SLOVENSKI SIST EN 62384:2007
STANDARD
januar 2007
Enosmerno ali izmenično napajane krmilne stikalne naprave za module LED -
Tehnične zahteve (IEC 62384:2006)
(istoveten EN 62384:2006)
D.C. or A.C. supplied electronic controlgears for LED modules - Performance
requirements (IEC 62384:2006)
ICS 29.140.99 Referenčna številka
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

EUROPEAN STANDARD
EN 62384
NORME EUROPÉENNE
September 2006
EUROPÄISCHE NORM
ICS 29.140.99; 31.080.99
English version
DC or AC supplied electronic control gear
for LED modules -
Performance requirements
(IEC 62384:2006)
Appareillages électroniques alimentés  Gleich- oder wechselstromversorgte
en courant continu ou alternatif elektronische Betriebsgeräte
pour modules de DEL - für LED-Module -
Exigences de performances Anforderungen an die Arbeitsweise
(CEI 62384:2006) (IEC 62384:2006)

This European Standard was approved by CENELEC on 2006-09-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 62384:2006 E

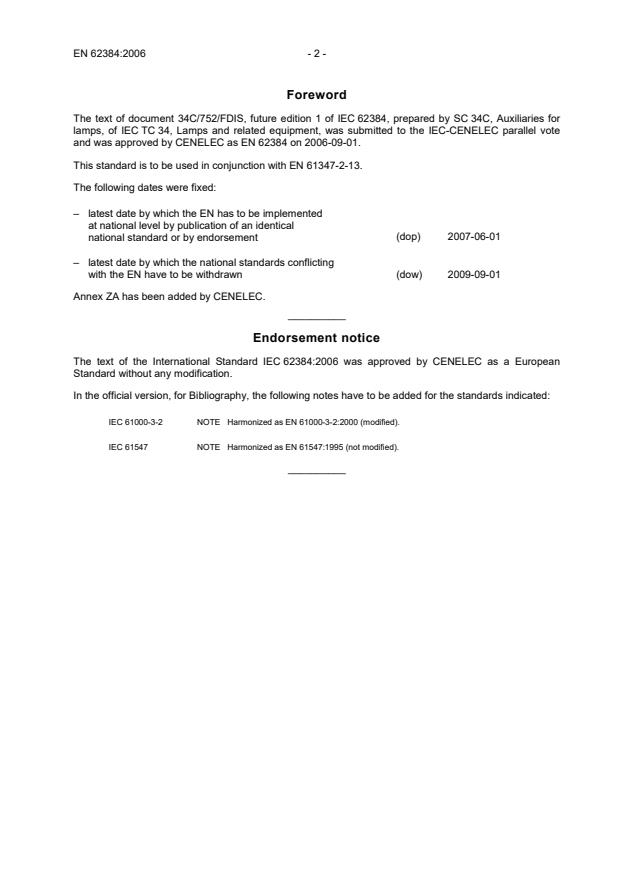

Foreword
The text of document 34C/752/FDIS, future edition 1 of IEC 62384, prepared by SC 34C, Auxiliaries for
lamps, of IEC TC 34, Lamps and related equipment, was submitted to the IEC-CENELEC parallel vote
and was approved by CENELEC as EN 62384 on 2006-09-01.
This standard is to be used in conjunction with EN 61347-2-13.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-06-01
– latest date by which the national standards conflicting
(dow) 2009-09-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 62384:2006 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:
IEC 61000-3-2 NOTE  Harmonized as EN 61000-3-2:2000 (modified).
IEC 61547 NOTE  Harmonized as EN 61547:1995 (not modified).
__________
- 3 - EN 62384:2006
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

1) 2)
IEC 61347-2-13 - Lamp controlgear EN 61347-2-13 2006
Part 2-13: Particular requirements for d.c. or
a.c. supplied electronic controlgear for LED
modules
3)
IEC 62031 - LED modules for general lighting - Safety - -
specifications
1)
Undated reference.
2)
Valid edition at date of issue.
3)
At draft stage.
NORME CEI
INTERNATIONALE
IEC
INTERNATIONAL
Première édition
STANDARD
First edition
2006-08
Appareillages électroniques alimentés
en courant continu ou alternatif
pour modules de DEL –
Exigences de performances
DC or AC supplied electronic
control gear for LED modules –
Performance requirements
 IEC 2006 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
N
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

62384  IEC:2006 – 3 –
CONTENTS
FOREWORD.5

1 Scope.9
2 Normative references .9
3 Terms and definitions .9
4 General notes on tests .11
5 Classification.11
5.1 Classification according to the load .11
5.2 Classification according to the output voltage.13
5.3 Classification according to the output current .13
6 Marking .13
6.1 Mandatory marking.13
6.2 Optional marking .13
7 Output voltage and current .13
7.1 Starting and connecting requirements .13
7.2 Voltage and current during operation.15
7.3 Capacitive load requirement .15
7.4 Voltage surges during switching and operation.15
8 Total circuit power .15
9 Circuit power factor .15
10 Supply current .15
11 Impedance at audio-frequencies.17
12 Operational tests for abnormal conditions.17
13 Endurance.17

Annex A (normative) Tests.21
Annex B (informative) A guide to quoting product life and failure rate .27

Bibliography.29

62384  IEC:2006 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
DC OR AC SUPPLIED ELECTRONIC CONTROL GEAR
FOR LED MODULES –
PERFORMANCE REQUIREMENTS
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62384 has been prepared by subcommittee 34C: Auxiliaries for
lamps, of IEC technical committee 34: Lamps and related equipment
The text of this standard is based on the following documents:
FDIS Report on voting
34/752/FDIS 34/760/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

62384  IEC:2006 – 7 –
This standard is to be read in conjunction with IEC 61347-2-13.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
62384  IEC:2006 – 9 –
DC OR AC SUPPLIED ELECTRONIC CONTROL GEAR
FOR LED MODULES –
PERFORMANCE REQUIREMENTS
1 Scope
This international standard specifies performance requirements for electronic control gear for
use on d.c. supplies up to 250 V and a.c. supplies up to 1 000 V at 50 Hz or 60 Hz with an
output frequency which can deviate from the supply frequency, associated with LED modules
according to IEC 62031. Control gear for LED modules specified in this standard are designed
to provide constant voltage or current. Deviations from the pure voltage and current types do
not exclude the gear from this standard.
NOTE 1 The tests in this standard are type tests. Requirements for testing individual control gear during
production are not included.
NOTE 2 Requirements for control gear which incorporate means for varying the output power are under
consideration.
NOTE 3 It may be expected that control gear complying with this standard will ensure satisfactory operation
between 92 % and 106 % of the rated supply voltage, taking into account the specifications of the LED module
manufacturer.
2 Normative references
The following referenced docume
...
