EN 61347-2-13:2006

SLOVENSKI STANDARD
01-januar-2007
.UPLOQHVWLNDOQHQDSUDYHGHO3RVHEQH]DKWHYH]DHQRVPHUQRDOLL]PHQLþQR
QDSDMDQHNUPLOQHVWLNDOQHQDSUDYH]DPRGXOH/(',(&
Lamp controlgear -- Part 2-13: Particular requirements for d.c. or a.c. supplied electronic
controlgear for LED modules
Geräte für Lampen -- Teil 2-13: Besondere Anforderungen an gleich- oder
wechselstromversorgte elektronische Betriebsgeräte für LED-Module
Appareillages de lampes -- Partie 2-13: Exigences particulières pour les appareillages
électroniques alimentés en courant continu ou alternatif pour les modules de DEL
Ta slovenski standard je istoveten z: EN 61347-2-13:2006
ICS:
29.130.01 Stikalne in krmilne naprave Switchgear and controlgear
na splošno in general
29.140.99 Drugi standardi v zvezi z Other standards related to
žarnicami lamps
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61347-2-13
NORME EUROPÉENNE
August 2006
EUROPÄISCHE NORM
ICS 29.140.99
English version
Lamp controlgear
Part 2-13: Particular requirements
for d.c. or a.c. supplied electronic controlgear
for LED modules
(IEC 61347-2-13:2006)
Appareillages de lampes  Geräte für Lampen
Partie 2-13: Exigences particulières pour Teil 2-13: Besondere Anforderungen an
les appareillages électroniques alimentés gleich- oder wechselstromversorgte
en courant continu ou alternatif pour elektronische Betriebsgeräte für
les modules de DEL LED-Module
(CEI 61347-2-13:2006) (IEC 61347-2-13:2006)

This European Standard was approved by CENELEC on 2006-07-01. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Cyprus, the Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2006 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61347-2-13:2006 E

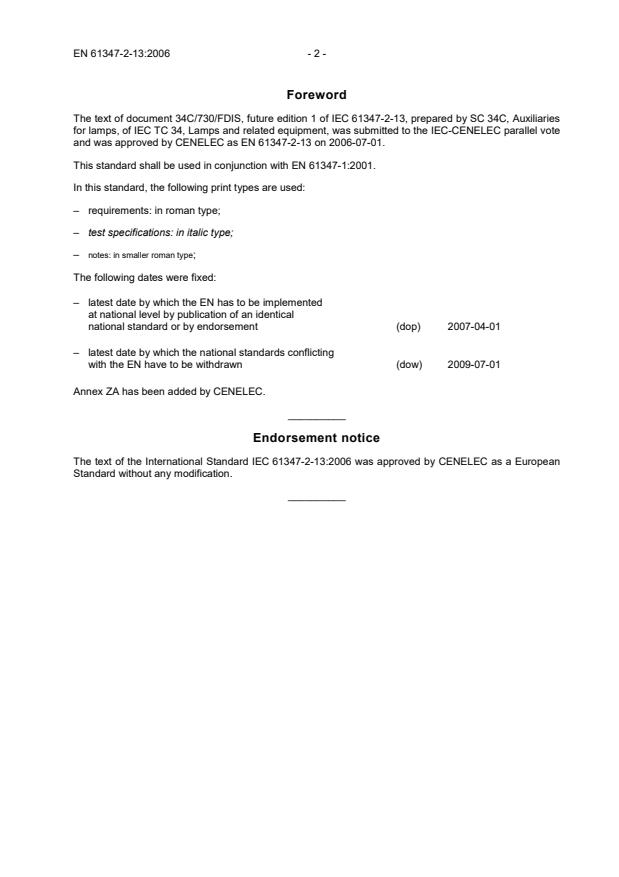

Foreword
The text of document 34C/730/FDIS, future edition 1 of IEC 61347-2-13, prepared by SC 34C, Auxiliaries
for lamps, of IEC TC 34, Lamps and related equipment, was submitted to the IEC-CENELEC parallel vote
and was approved by CENELEC as EN 61347-2-13 on 2006-07-01.
This standard shall be used in conjunction with EN 61347-1:2001.
In this standard, the following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type;
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
(dop) 2007-04-01
national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2009-07-01
with the EN have to be withdrawn
Annex ZA has been added by CENELEC.
__________
Endorsement notice
The text of the International Standard IEC 61347-2-13:2006 was approved by CENELEC as a European
Standard without any modification.
__________
- 3 - EN 61347-2-13:2006
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.

NOTE  When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD
applies.
Publication Year Title EN/HD Year

IEC 60051 Series Direct acting indicating analogue electrical EN 60051 Series
measuring instruments and their accessories

1) 2)
IEC 60065 (mod) 1985 Safety requirements for mains operated EN 60065 1993

electronic and related apparatus for + A11 1997
household and similar general use

IEC/TR 60083 2004 Plugs and socket-outlets for domestic and - -
similar general use standardized in member
countries of IEC
IEC 60085 2004 Electrical insulation - Thermal classification EN 60085 2004

IEC 60127 Series Miniature fuses EN 60127 Series

IEC 60269-2 1986 Low-voltage fuses EN 60269-2 1995
A1 1995 Part 2: Supplementary requirements for fuses A1 1998
A2 2001 for use by authorized persons (fuses mainly A2 2002
for industrial application)
IEC 60269-2-1 2004 Low-voltage fuses HD 60269-2-1 2005
(mod) Part 2-1: Supplementary requirements for
fuses for use by authorized persons (fuses
mainly for industrial application) - Sections I
to VI: Examples of types of standardized
fuses
IEC 60269-3 1987 Low-voltage fuses EN 60269-3 1995
Part 3: Supplementary requirements for fuses
for use by unskilled persons (fuses mainly for
household and similar applications)

IEC 60269-3-1 2004 Low-voltage fuses HD 60269-3-1 2004
(mod) Part 3-1: Supplementary requirements for
fuses for use by unskilled persons (fuses
mainly for household and similar
applications) - Sections I to IV: Examples of
types of standardized fuses
IEC 60317-0-1 1997 Specifications for particular types of winding EN 60317-0-1 1998
wires
Part 0-1: General requirements - Enamelled
round copper wire
1)
EN 60065 includes A1 + A2 + A3 to IEC 60065 (mod).
2)
EN 60065 is superseded by EN 60065:2002, which is based on IEC 60065:2001(mod).

Publication Year Title EN/HD Year
IEC 60384-14 2005 Fixed capacitors for use in electronic EN 60384-14 2005
equipment
Part 14: Sectional specification - Fixed
capacitors for electromagnetic interference
suppression and connection to the supply
mains
IEC 60417-DB data- Graphical symbols for use on equipment - -
base
IEC 60454 Series Specifications for pressure-sensitive adhesive EN 60454 Series
tapes for electrical purposes
IEC 60598-1 (mod) 2003 Luminaires EN 60598-1 2004
Part 1: General requirements and tests

3) 4)
IEC 60598-2-6 - Luminaires EN 60598-2-6 1994
Part 2: Particular requirements - Section 6:
Luminaires with built-in transformers or
convertors for filament lamps
IEC 60906 Series IEC system of plugs and socket-outlets for - -
household and similar purposes
Part 1: Plugs and socket-outlets
16 A 250 V a.c.
IEC 60906-1 1986 IEC system of plugs and socket-outlets for - -
household and similar purposes
Part 1: Plugs and socket-outlets
16 A 250 V a.c.
IEC 60950-1 (mod) 2005 Information technology equipment - Safety EN 60950-1 2006
Part 1: General requirements
IEC 61347-1 2000 Lamp controlgear EN 61347-1 2001
Part 1: General and safety requirements + corr. July 2003
A1 2003 - -
5)
IEC 61558-1 (mod) 1997 Safety of power transformers, power supply EN 61558-1 1997
units and similar + corr. April 2003
A1 1998 Part 1: General requirements and tests A1 1998

A11 2003
3)
Undated reference.
4)
Valid edition at date of issue.
5)
EN 61558-1 is superseded by EN 61558-1:2005, which is based on IEC 61558-1:2005.

NORME CEI
INTERNATIONALE
IEC
61347-2-13
INTERNATIONAL
Première édition
STANDARD
First edition
2006-05
Appareillages de lampes –
Partie 2-13:
Exigences particulières pour les appareillages
électroniques alimentés en courant continu ou
alternatif pour les modules de DEL

Lamp controlgear –
Part 2-13:
Particular requirements for d.c. or a.c. supplied
electronic controlgear for LED modules
 IEC 2006 Droits de reproduction réservés  Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in any
utilisée sous quelque forme que ce soit et par aucun procédé, form or by any means, electronic or mechanical, including
électronique ou mécanique, y compris la photocopie et les photocopying and microfilm, without permission in writing from
microfilms, sans l'accord écrit de l'éditeur. the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
W
PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

61347-2-13  IEC:2006 – 3 –
CONTENTS
FOREWORD.7
INTRODUCTION.11

1 Scope.13
2 Normative references .13
3 Terms and definitions .17
4 General requirements .19
5 General notes on tests .19
6 Classification.19
7 Marking .21
8 Protection against accidental contact with live parts .21
9 Terminals .23
10 Provisions for protective earthing .23
11 Moisture resistance and insulation.23
12 Electric strength .23
13 Thermal endurance test for windings of ballasts .23
14 Fault conditions .23
15 Transformer heating .25
16 Abnormal conditions .25
17 Construction .27
18 Creepage distances and clearances .27
19 Screws, current-carrying parts and connections.29
20 Resistance to heat, fire and tracking.29
21 Resistance to corrosion .29

Annex A (normative) Test to establish whether a conductive part is a live part which
may cause an electric shock .31
Annex B (normative) Particular requirements for thermally protected lamp controlgear .31
Annex C (normative) Particular requirements for electronic lamp controlgear with
means of protection against overheating.31
Annex D (normative) Requirements for carrying out the heating tests of thermally
protected lamp controlgear .31
Annex E (normative) Use of constant S other than 4 500 in t tests .31
w
Annex F (normative) Draught-proof enclosure.33
Annex G (normative) Explanation of the derivation of the values of pulse voltages .33
Annex H (normative) Tests .33
Annex I (normative) Particular additional requirements for independent SELV d.c. or
a.c. supplied electronic controlgear for LED modules.35

Bibliography.75

61347-2-13  IEC:2006 – 5 –
Table I.1 – Values of temperature rise in normal use .49
Table I.2 – Test temperature and testing time (in days) per cycle.51
Table I.3 – Maximum values of temperature rises under short circuit or overload
conditions .55
Table I.4 – Rated current of the protection fuse-link.57
Table I.5 – Values of insulation resistance .61
Table I.6 – Test voltages .61
Table I.7 – Creepage distances (cr) and clearances (cl) and distances through
insulation (dti).67

61347-2-13  IEC:2006 – 7 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LAMP CONTROLGEAR –
Part 2-13: Particular requirements for d.c. or a.c. supplied
electronic controlgear for LED modules

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61347-2-13 has been prepared by subcommittee 34C: Auxiliaries
for lamps, of IEC technical committee 34: Lamps and related equipment.
The text of this standard is based on the following documents:
FDIS Report on voting
34C/730/FDIS 34C/748/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This standard shall be used in conjunction with IEC 61347-1. It was established on the basis
of the first (2000) edition of that standard.

61347-2-13  IEC:2006 – 9 –
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
In this standard, the following print types are used:
− requirements: in roman type
− test specifications: in italic type
− notes: in small roman type
IEC 61347 consists of the following parts, under the general title Lamp controlgear:
Part 1: General and safety requirements
Part 2-1: Particular requirements for starting devices (other than glow starters)
Part 2-2: Particular requirements for d.c. or a.c. supplied electronic step-down convertors
for filament lamps
Part 2-3: Particular requirements for a.c. supplied electronic ballasts for fluorescent lamps
Part 2-4: Particular requirements for d.c. supplied electronic ballasts for general lighting
Part 2-5: Particular requirements for d.c. supplied electronic ballasts for public transport
lighting
Part 2-6: Particular requirements for d.c. supplied electronic ballasts for aircraft lighting
Part 2-7: Particular requirements for d.c. supplied electronic ballasts for emergency lighting
Part 2-8: Particular requirements for ballasts for fluorescent lamps
Part 2-9: Particular requirements for ballasts for discharge lamps (excluding fluorescent
lamps)
Part 2-10: Particular requirements for electronic invertors and convertors for high-frequency
operation of cold start tubular discharge lamps (neon tubes)
Part 2-11: Particular requirements for miscellaneous electronic circuits used with luminaires
Part 2-12: Particular requirements for d.c. or a.c. supplied electronic ballasts for discharge
lamps (excluding fluorescent lamps)
Part 2-13: Particular requirements for d.c. or a.c. supplied electronic controlgear for LED
modules
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
61347-2-13  IEC:2006 – 11 –
INTRODUCTION
This standard, and the parts which make up IEC 61347-1, in referring to any of the clauses of
IEC 61347-1 specify the extent to which such a clause is applicable and the order in which the
tests are to be performed; they also include additional requirements as necessary. All parts
which make up IEC 61347-2 are self-contained and therefore do not include references to
each other.
Where the requirements of any of the clauses of IEC 61347-1 are referred to in this standard
by the phrase “The requirements of Clause n of IEC 61347-1 apply”, this phrase is interpreted
as meaning that all requirements of the clause in question of Part 1 apply, except any which
are clearly inapplicable to the specific type of lamp controlgear covered by this particular part
of IEC 61347-2.
61347-2-13  IEC:2006 – 13 –
LAMP CONTROLGEAR –
Part 2-13: Particular requirements for d.c. or a.c. supplied
electronic controlgear for LED modules

1 Scope
This part of IEC 61347 specifies particular safety requirements for electronic controlgear for
use on d.c. supplies up to 250 V and a.c. supplies up to 1 000 V at 50 Hz or 60 Hz and at an
output frequency which can deviate from the supply frequency, associated with LED modules.
Controlgear for LED modules specified in this standard are designed to provide constant
voltage or current at SELV or SELV equivalent or higher voltages.Deviations from the pure
voltage and current types do not exclude the gear from this standard.
The annexes of IEC 61347-1 which are applicable according to this Part 2-13 and using the
word “lamp” are understood to also comprise LED modules.
Particular requirements for stationary independent SELV controlgear, which are part of the
wiring in installations, are given in Annex I.
Performance requirements will be covered by IEC 62384 .
Plug-in controlgear, being part of the luminaire, are covered as for built-in controlgear by the
additional requirements of the luminaire standard.
2 Normative references
For the purpose of this Part 2 of IEC 61347, the normative references given in Clause 2 of
IEC 61347-1 which are mentioned in this standard apply, together with the following:
IEC 60051 (all parts), Direct acting indicating analogue electrical measuring instruments and
their accessories
IEC 60065:1985, Audio, video and similar electronic apparatus – Safety requirements
IEC 60083:2004, Plugs and socket-outlets for domestic and similar general use standardized
in member countries of IEC
IEC 60085:2004, Electrical insulation – Thermal classification
IEC 60127 (all parts), Miniature fuses
___________
To be published.
61347-2-13  IEC:2006 – 15 –
IEC 60269-2:1986, Low voltage fuses – Part 2: Supplementary requirements for fuses for use
by authorised persons (fuses mainly for industrial application)
Amendment 1 (1995)
Amendment 2 (2001)
IEC 60269-2-1:2004, Low voltage fuses – Part 2-1: Supplementary requirements for fuses for
use by authorised persons (fuses mainly for industrial application) – Sections I to VI:
Examples of types of standardised fuses
IEC 60269-3:1987, Low-voltage fuses – Part 3: Supplementary requirements for fuses for use
by unskilled persons (fuses mainly for household and similar applications)
IEC 60269-3-1:2004, Low-voltage fuses – Part 3-1: Supplementary requirements for fuses for
use by unskilled persons (fuses mainly for household and similar applications) – Sections
I to IV: Examples of types of standardised fuses
IEC 60317-0-1:1997, Specifications for particular types of winding wires – Part 0-1: General
requirements – Enamelled round copper wire
IEC 60384-14:2005, Fixed capacitors for use in electronic equipment – Part 14: Sectional
specification: Fixed capacitors for electromagnetic interference suppression and connection to
the supply mains
IEC 60417-DB:2002 , Graphical symbols for use on equipment
IEC 60454 (all parts):, Specifications for pressure-sensitive adhesive tapes for electrical
purposes
IEC 60598-1:2003, Luminaires – Part 1: General requirements and tests
IEC 60598-2-6, Luminaires – Part 2: Particular requirements – Section 6: Luminaires with
built-in transformers for filament lamps
IEC 60906 (all parts), IEC system of plugs and socket-outlets for household and similar
purposes
IEC 60906-1:1986, IEC system of plugs and socket-outlets for household and similar
purposes – Part 1: Plugs and socket-outlets 16 A 250 Va.c.
IEC 60950-1:2005, Information technology equipment – Safety – Part 1: General requirements
IEC 61347-1:2000, Lamp controlgear – Part 1: General and safety requirements
Amendment 1:2003
IEC 61558-1:1998, Safety of power transformers, power supply units and similar – Part 1:
General requirements and tests
___________
“DB” refers to the IEC on-line database.

61347-2-13  IEC:2006 – 17 –
3 Terms and definitions
For the purpose of this document, the definitions of Clause 3 of Part 1 apply, together with the
following.
3.1
electronic controlgear for LED modules
unit inserted between the supply and one or more LED modules which serves to supply the
LED module(s) with its (their) rated voltage or rated current. The unit may consist of one or
more separate components and may include means for dimming, correcting the power factor
and suppressing radio interference
3.2
d.c. or a.c. supplied controlgear
controlgear that includes stabilising elements for operating one or more LED module(s)
3.3
safety extra-low voltage (SELV)-equivalent controlgear (under consideration)
built-in or associated controlgear for operating one or more LED module(s) with an output
voltage equivalent to SELV
NOTE For the purposes of this standard, SELV-equivalent controlgear, complying with 8.1 and 8.2 are deemed as
giving protection against electric shock equivalent to SELV.
3.4
independent SELV controlgear
controlgear providing a SELV output isolated from the supply mains by means such as a
safety isolating transformer, as specified in IEC 61558-1:1998
3.5
associated controlgear
controlgear designed to supply specific appliance(s) or equipment, incorporated or not
incorporated
NOTE An example of an associated controlgear is an electronic controlgear within an emergency unit where it is
assigned in a one-to-one relation to a battery driven ballast.
3.6
stationary controlgear
either a fixed controlgear or one which cannot be easily moved from one place to another
3.7
plug-in controlgear
controlgear incorporated in an enclosure provided with an integral plug as the means of
connection of the electrical supply
3.8
rated output voltage for constant voltage controlgear
output voltage, at rated supply voltage, rated frequency and at rated output power, assigned
to the controlgear
3.9
rated output current for constant current controlgear
output current, at rated supply voltage, rated frequency and at rated output power, assigned
to the controlgear
61347-2-13  IEC:2006 – 19 –
3.10
light emitting diode
LED
solid state device embodying a p-n junction, emitting optical radiation when excited by an
electric current
[IEC 60050(845), definition 845-04-40]
NOTE This definition is independent from the existence of enclosure(s) and of terminals.
3.11
LED module
unit supplied as a light source. In addition to one or more LEDs it may contain further
components, e.g. optical, electrical, mechanical and/or electronic
3.12
maximum output voltage
maximum voltage which can occur between the output terminals for constant current control
gear in any load condition
4 General requirements
The requirements of Clause 4 of IEC 61347-1 apply, together with the following additional
requirements:
– Independent SELV controlgear shall comply with the requirements of Annex I. This
includes insulation resistance, electric strength, creepage distances and clearances of the
outer case.
– controlgear which are not of the pure voltage and current types are tested according to the
requirements of either a voltage source or a current source, whichever comes closer to the
electrical behaviour of the controlgear.
5 General notes on tests
The requirements of Clause 5 of IEC 61347-1 apply, with the following additional requirement:
The following number of specimens shall be submitted for testing:
– one unit for the tests of Clauses 6 to 12 and 15 to 21;
– one unit for the tests of Clause 14 (additional units or components, where necessary, may
be required in consultation with the manufacturer).
6 Classification
Controlgear are classified according to the method of installation given in Clause 6 of
IEC 61347-1 and according to:
protection against electric shock:
– SELV-equivalent or isolating controlgear (this type of controlgear can be used instead of
double-wound transformers with reinforced insulation; see IEC 60598-2-6 (to be read as
for LED modules where lamps are mentioned));
– auto-wound controlgear;
– independent SELV controlgear.

61347-2-13  IEC:2006 – 21 –
7 Marking
7.1 Mandatory marking
Controlgear, other than integral controlgear, shall be clearly and durably marked, in
accordance with the requirements of 7.2 of IEC 61347-1, with the following mandatory
markings:
– items a), b), c), d), e), f), k), l), and m) of 7.1 of IEC 61347-1 together with
– for constant voltage types: rated output voltage;
– for constant current types: rated output current and maximum output voltage;
– if applicable: an indication that the control gear is suitable for operation with LED modules
only.
7.2 Information to be provided if applicable
In addition to the above mandatory markings, the following information, if applicable, shall be
given either on the controlgear, or be made available in the manufacturer’s catalogue or
similar:
– items h), i), and j) of 7.1 of IEC 61347-1 together with
– mention whether the controlgear has mains-connected windings,
– mention that they are SELV-equivalent controlgear, if applicable.
8 Protection against accidental contact with live parts
NOTE The limits of the output voltage for SELV or SELV equivalent controlgear are in accordance with
IEC 60364-4-41.
The requirements of Clause 10 of IEC 61347-1 apply, together with the following additional
requirements:
8.1 For SELV-equivalent controlgear, the accessible parts shall be insulated from live parts
by double or reinforced insulation.
Subclauses 8.6 and 13.1 of IEC 60065 apply.
8.2 Output circuits of SELV- or SELV equivalent control gear may have exposed terminals if
– the rated output voltage for constant voltage control gear or maximum output voltage for
constant current control gear under load does not exceed 25 V r.m.s.;
– the no-load output voltage does not exceed 33 V r.m.s. and the peak does not exceed
33 2V.
Compliance is checked by measuring the output voltage when steady conditions are
established, the controlgear being connected to rated supply voltage and rated frequency. For
the test under load, the controlgear is loaded with a resistance which would give rated output
at rated output voltage.
For controlgear with more than one rated supply voltage, the requirement is applicable for
each of the rated supply voltages.
Controlgear with a rated output voltage above 25 V shall have insulated terminals.

61347-2-13  IEC:2006 – 23 –
In the case of capacitors which are connected between SELV or SELV equivalent output and
primary circuits, one capacitor Y1 or two capacitors Y2 in series with the same value specified
and tested according to Tables 2 and 3 respectively of IEC 60384-14 are to be used.
Each capacitor shall comply with the requirements of 14.2 of IEC 60065.
If other components are necessary for bridging the separating transformer, for example
resistors, Clause 14 of IEC 60065 shall apply.
9 Terminals
The requirements of Clause 8 of IEC 61347-1 apply.
10 Provisions for protective earthing
The requirements of Clause 9 of IEC 61347-1 apply.
11 Moisture resistance and insulation
The requirements of Clause 11 of IEC 61347-1 apply, together with the following additional
requirements:
For SELV-equivalent controlgear, the insulation between input and output terminals not
bonded together shall be adequate.
With double or reinforced insulation, the resistance shall be not less than 4 MΩ.
12 Electric strength
The requirements of Clause 12 of IEC 61347-1 apply, together with the following additional
requirement:
Insulation conditions of windings of separating transformers in SELV-equivalent control gear
shall apply according to 14.3.2 of IEC 60065.
13 Thermal endurance test for windings of ballasts
The requirements of Clause 13 of IEC 61347-1 are not applicable.
14 Fault conditions
The requirements of Clause 14 of IEC 61347-1 apply, together with the following additional
requirements:
In the case of controlgear provided with the marking    , the requirements specified in
Annex C shall be fulfilled.
61347-2-13  IEC:2006 – 25 –
15 Transformer heating
In SELV-equivalent controlgear, windings of separating transformers shall be tested according
to 7.1 and 11.2 of IEC 60065.
15.1 Normal operation
For normal operation, the values in the second column of Table 3 of IEC 60065 shall apply.
15.2 Abnormal operation
