CLC

EN 60269-2:1995

(Main)

Low-voltage fuses - Part 2: Supplementary requirements for fuses for use by authorized persons (fuses mainly for industrial application)

Low-voltage fuses - Part 2: Supplementary requirements for fuses for use by authorized persons (fuses mainly for industrial application)

The following characteristics of fuses are specified in addition to IEC Publication 269-1: - minimum rated breaking capacities; - time-current characteristics; - I2t characteristics; - standard conditions of constructions; - power dissipation and acceptance.

Niederspannungssicherungen - Teil 2: Zusätzliche Anforderungen an Sicherungen zum Gebrauch durch Elektrofachkräfte oder elektrotechnisch unterwiesene Personen (Sicherungen überwiegend für den industriellen Gebrauch)

Fusibles basse tension - Partie 2: Règles supplémentaires pour les fusibles destinés à être utilisés par des personnes habilitées (fusibles pour usages essentiellement industriels)

En supplément à la Publication 269-1 de la CEI, les caractéristiques de fusibles suivantes sont spécifiées: - valeurs minimales des pouvoirs de coupure assignés; - caractéristiques temps-courant; - caractéristiques I2t; - caractéristiques de construction normalisées; - puissances dissipée et dissipable.

Low-voltage fuses - Part 2: Supplementary requirements for fuses for use by authorized persons (fuses mainly for industrial application) (IEC 269-2:1986)

General Information

Status
Withdrawn
Publication Date
18-Jan-1995
Withdrawal Date
30-Nov-1995
ICS
29.120.50 - Fuses and other overcurrent protection devices
Technical Committee
CLC/SR 32B - Low-voltage fuses
Drafting Committee
IEC/SC 32B - IEC_SC_32B
Parallel Committee
IEC/SC 32B - IEC_SC_32B
Current Stage
9960 - Withdrawal effective - Withdrawal
Start Date
01-Mar-2010
Completion Date
01-Mar-2010
Directive
2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
73/23/EEC - Electrical equipment designed for use within certain voltage limits
Ref Project
SIST EN 60269-2:1995 - Low-voltage fuses -- Part 2: Supplementary requirements for fuses for use by authorized persons (fuses mainly for industrial application)

Relations

Replaced By
HD 60269-2:2007 - Low-voltage fuses - Part 2: Supplementary requirements for fuses for use by authorized persons (fuses mainly for industrial application) - Examples of standardized systems of fuses A to J
Effective Date
29-Jan-2023
Replaced By
EN 60269-1:2007 - Low-voltage fuses - Part 1: General requirements
Effective Date
29-Jan-2023
Amended By
EN 60269-2:1995/A2:2002 - Low-voltage fuses - Part 2: Supplementary requirements for fuses for use by authorized persons (fuses mainly for industrial application)
Effective Date
29-Jan-2023
Amended By
EN 60269-2:1995/A1:1998 - Low-voltage fuses - Part 2: Supplementary requirements for fuses for use by authorized persons (fuses mainly for industrial application)
Effective Date
28-Jan-2023

Buy Standard

EN 60269-2:1995EN 60269-2:1995
PreviousNext
Standard
EN 60269-2:1995
English language
9 pages
sale 10% off

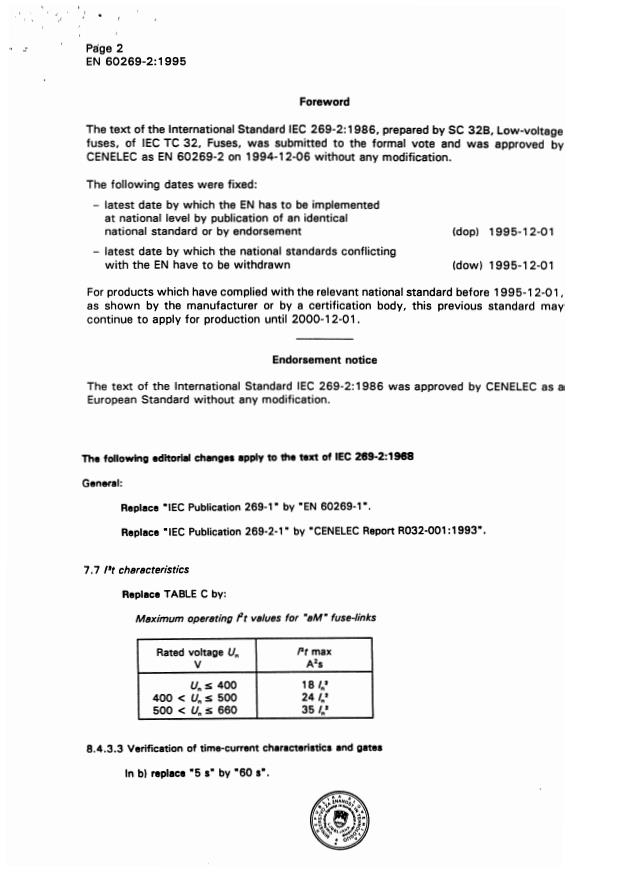

Preview
sale 10% off
Preview
e-Library read for
1 day
