Acoustics - Measurement of sound insulation in buildings and of building elements using sound intensity - Part 1: Laboratory measurements (ISO 15186-1:2000)

Akustik - Bestimmung der Schalldämmung in Gebäuden und von Bauteilen aus Schallintensitätsmessungen - Teil 1: Messungen im Prüfstand (ISO 15186-1:2000)

Der vorliegende Teil von ISO 15186 legt ein Schallintensitätsverfahren zur Bestimmung des Schalldämmmaßes und der Norm-Schallpegeldifferenz von Bauteilen fest. Das Verfahren kann alternativ zu ISO 140-3 bzw. ISO 140-10 eingesetzt werden. Das Verfahren wird insbesondere dann eingesetzt, wenn das herkömmliche Verfahren nach ISO 140-3 wegen hoher Flankenübertragung versagt.
Es wird abgeschätzt, dass die Reproduzierbarkeit dieses Intensitätsverfahrens gleich oder besser als das von ISO 140-3 ist.
ANMERKUNG   In Anhang A sind Angaben über die Genauigkeit enthalten, mit der der vorliegende Teil von ISO 15186 das nach ISO 140-3 gemessene Schalldämmmaß reproduzieren kann.

Acoustique - Mesurage par intensité de l'isolation acoustique des immeubles et des éléments de construction - Partie 1: Mesurages en laboratoire (ISO 15186-1:2000)

La présente partie de l'ISO 15186 spécifie une méthode d'intensité pour déterminer l'indice d'affaiblissement acoustique et l'isolement acoustique normalisé des éléments de construction. La méthode peut être utilisée comme une alternative à l'ISO 140-3 et à l'ISO 140-10 respectivement. L'utilisation de cette méthode se révèle importante lorsque la méthode traditionnelle de l'ISO 140-3 échoue en raison d'une transmission latérale élevée.La reproductibilité de cette méthode d'intensité est jugée supérieure ou égale à celle de l'ISO 140-3.NOTE Certaines informations relatives à l'exactitude avec laquelle la présente partie de l'ISO 15186 peut reproduire l'indice d'affaiblissement acoustique mesuré conformément à l'ISO 140-3 sont données dans l'annexe A.

Akustika - Merjenje zvočne izolirnosti v zgradbah in zvočne izolirnosti gradbenih elementov z uporabo zvočne intenzitete - 1 .del: Laboratorijska merjenja (ISO 15186-1:2000)

General Information

Status
Published
Publication Date
29-Jul-2003
ICS
91.120.20 - Acoustics in building. Sound insulation
Technical Committee
CEN/TC 126 - Acoustic properties of building products and of buildings
Drafting Committee
CEN/TC 126 - Acoustic properties of building products and of buildings
Current Stage
9093 - Decision to confirm - Review Enquiry
Start Date
31-Jul-2008
Completion Date
31-Jul-2008
Ref Project
SIST EN ISO 15186-1:2004 - Acoustics - Measurement of sound insulation in buildings and of building elements using sound intensity - Part 1: Laboratory measurements (ISO 15186-1:2000)

Overview

EN ISO 15186-1:2003 - "Acoustics - Measurement of sound insulation in buildings and of building elements using sound intensity - Part 1: Laboratory measurements" specifies a sound‑intensity method for laboratory determination of the sound reduction index and the element‑normalized level difference of building elements. The procedure is an alternative to ISO 140‑3 and ISO 140‑10, particularly useful when traditional methods are compromised by high flanking transmission. The standard was adopted by CEN from ISO 15186‑1:2000.

Key topics and technical requirements

  • Measurement principle: Uses sound intensity probes to determine average sound intensity on a receiving‑room measurement surface and source‑room sound pressure to calculate the intensity sound reduction index (RI) and intensity element‑normalized level difference (DI,n,e).
  • When to use: Intended as an alternative where ISO 140‑3 fails (e.g., strong flanking paths). Reproducibility is estimated to be equal to or better than ISO 140‑3.
  • Instrumentation:
    • Intensity instrumentation complying with IEC 61043 (Class 1).
    • Measurement in one‑third octave bands with real‑time scanning capability.
    • Pressure‑residual intensity index (pI0) of probe/analyser should be > 10 dB; field indicator FpI requirements apply.
    • Suggested spacer guidance from the text (example): 50 mm spacer for 50–500 Hz and 12 mm above 500 Hz; full coverage often possible from ~100 Hz to 5 kHz with appropriate probe configuration.
  • Calibration & checks:
    • Verify IEC 61043 compliance (laboratory calibration at least annually or every 2 years with a calibrator).
    • Pre‑use checks: warm‑up, microphone calibrator per IEC 60942, residual intensity testing and phase compensation as recommended.
  • Test arrangement & specimens:
    • Source and receiving rooms must meet ISO 140‑1 requirements; specimens conform to ISO 140‑3 or ISO 140‑10 mounting rules.
    • Measure average source room sound pressure and average receiving room sound intensity over the measurement surface; compute RI or DI,n,e (modifications and Kc adaption term covered in Annex B).

Applications and users

  • Who uses it: acoustic test laboratories, building acousticians, product manufacturers (doors, facades, partition elements), research organisations, and regulatory compliance bodies.
  • Practical applications:
    • Laboratory certification of sound insulation performance of walls, floors, doors and small building elements.
    • Testing when flanking transmission prevents reliable ISO 140‑3 measurements.
    • R&D and quality control where sound intensity scanning allows localized diagnosis of transmission paths.

Related standards

  • ISO 140‑1, ISO 140‑3, ISO 140‑10 (sound insulation laboratory methods)
  • ISO 9614‑1 (sound intensity measurement)
  • IEC 60942 (sound calibrators), IEC 61043 (sound intensity instruments)

Keywords: EN ISO 15186-1:2003, sound insulation, sound intensity, laboratory measurements, intensity sound reduction index, building elements, acoustic measurement.

Frequently Asked Questions

EN ISO 15186-1:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Acoustics - Measurement of sound insulation in buildings and of building elements using sound intensity - Part 1: Laboratory measurements (ISO 15186-1:2000)". This standard covers: La présente partie de l'ISO 15186 spécifie une méthode d'intensité pour déterminer l'indice d'affaiblissement acoustique et l'isolement acoustique normalisé des éléments de construction. La méthode peut être utilisée comme une alternative à l'ISO 140-3 et à l'ISO 140-10 respectivement. L'utilisation de cette méthode se révèle importante lorsque la méthode traditionnelle de l'ISO 140-3 échoue en raison d'une transmission latérale élevée.La reproductibilité de cette méthode d'intensité est jugée supérieure ou égale à celle de l'ISO 140-3.NOTE Certaines informations relatives à l'exactitude avec laquelle la présente partie de l'ISO 15186 peut reproduire l'indice d'affaiblissement acoustique mesuré conformément à l'ISO 140-3 sont données dans l'annexe A.

La présente partie de l'ISO 15186 spécifie une méthode d'intensité pour déterminer l'indice d'affaiblissement acoustique et l'isolement acoustique normalisé des éléments de construction. La méthode peut être utilisée comme une alternative à l'ISO 140-3 et à l'ISO 140-10 respectivement. L'utilisation de cette méthode se révèle importante lorsque la méthode traditionnelle de l'ISO 140-3 échoue en raison d'une transmission latérale élevée.La reproductibilité de cette méthode d'intensité est jugée supérieure ou égale à celle de l'ISO 140-3.NOTE Certaines informations relatives à l'exactitude avec laquelle la présente partie de l'ISO 15186 peut reproduire l'indice d'affaiblissement acoustique mesuré conformément à l'ISO 140-3 sont données dans l'annexe A.

EN ISO 15186-1:2003 is classified under the following ICS (International Classification for Standards) categories: 91.120.20 - Acoustics in building. Sound insulation. The ICS classification helps identify the subject area and facilitates finding related standards.

EN ISO 15186-1:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

Standards Content (Sample)


2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Akustik - Bestimmung der Schalldämmung in Gebäuden und von Bauteilen aus Schallintensitätsmessungen - Teil 1: Messungen im Prüfstand (ISO 15186-1:2000)Acoustique - Mesurage par intensité de l'isolation acoustique des immeubles et des éléments de construction - Partie 1: Mesurages en laboratoire (ISO 15186-1:2000)Acoustics - Measurement of sound insulation in buildings and of building elements using sound intensity - Part 1: Laboratory measurements (ISO 15186-1:2000)91.120.20L]RODFLMDAcoustics in building. Sound insulation17.140.01Acoustic measurements and noise abatement in generalICS:Ta slovenski standard je istoveten z:EN ISO 15186-1:2003SIST EN ISO 15186-1:2004en01-januar-2004SIST EN ISO 15186-1:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN ISO 15186-1July 2003ICS 91.120.20English versionAcoustics - Measurement of sound insulation in buildings and ofbuilding elements using sound intensity - Part 1: Laboratorymeasurements (ISO 15186-1:2000)Acoustique - Mesurage par intensité de l'isolationacoustique des immeubles et des éléments de construction- Partie 1: Mesurages en laboratoire (ISO 15186-1:2000)Akustik - Bestimmung der Schalldämmung in Gebäudenund von Bauteilen aus Schallintensitätsmessungen - Teil 1:Messungen im Prüfstand (ISO 15186-1:2000)This European Standard was approved by CEN on 2 July 2003.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovakia, Spain, Sweden, Switzerland and UnitedKingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN ISO 15186-1:2003 ESIST EN ISO 15186-1:2004

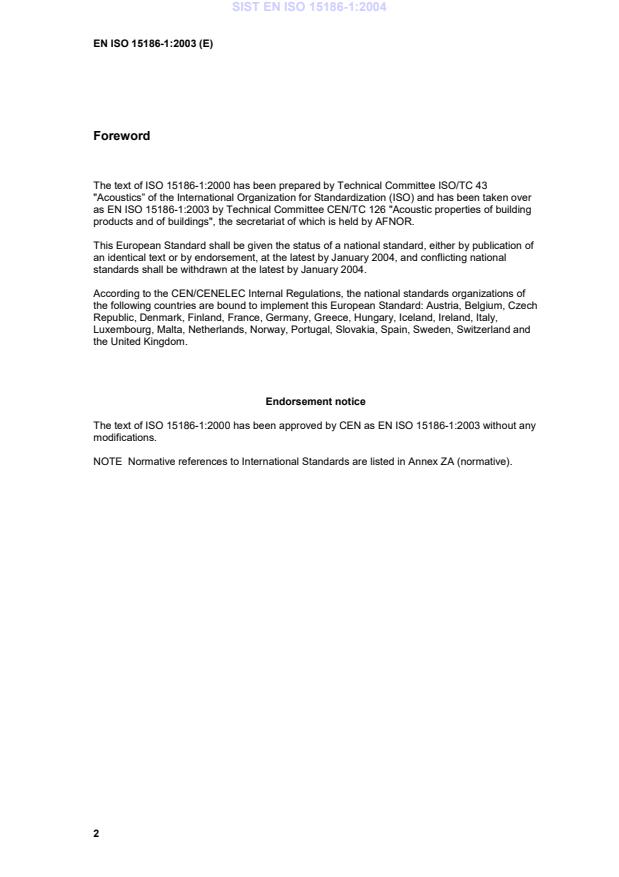

Normative references to International Standards are listed in Annex ZA (normative).SIST EN ISO 15186-1:2004

ReferencenumberISO15186-1:2000(E)©ISO2000INTERNATIONALSTANDARDISO15186-1Firstedition2000-03-01Acoustics—Measurementofsoundinsulationinbuildingsandofbuildingelementsusingsoundintensity—Part1:LaboratorymeasurementsAcoustique—Mesurageparintensitédel'isolationacoustiquedesimmeublesetdesélémentsdeconstruction—Partie1:MesuragesenlaboratoireSIST EN ISO 15186-1:2004

ISO15186-1:2000(E)PDFdisclaimerThisPDFfilemaycontainembeddedtypefaces.InaccordancewithAdobe'slicensingpolicy,thisfilemaybeprintedorviewedbutshallnotbeeditedunlessthetypefaceswhichareembeddedarelicensedtoandinstalledonthecomputerperformingtheediting.Indownloadingthisfile,partiesacceptthereintheresponsibilityofnotinfringingAdobe'slicensingpolicy.TheISOCentralSecretariatacceptsnoliabilityinthisarea.AdobeisatrademarkofAdobeSystemsIncorporated.DetailsofthesoftwareproductsusedtocreatethisPDFfilecanbefoundintheGeneralInforelativetothefile;thePDF-creationparameterswereoptimizedforprinting.EverycarehasbeentakentoensurethatthefileissuitableforusebyISOmemberbodies.Intheunlikelyeventthataproblemrelatingtoitisfound,pleaseinformtheCentralSecretariatattheaddressgivenbelow.©ISO2000Allrightsreserved.Unlessotherwisespecified,nopartofthispublicationmaybereproducedorutilizedinanyformorbyanymeans,electronicormechanical,includingphotocopyingandmicrofilm,withoutpermissioninwritingfromeitherISOattheaddressbeloworISO'smemberbodyinthecountryoftherequester.ISOcopyrightofficeCasepostale56CH-1211Geneva20Tel.+41227490111Fax+41227341079E-mailcopyright@iso.chWebwww.iso.chPrintedinSwitzerlandii©ISO2000–AllrightsreservedSIST EN ISO 15186-1:2004

ISO15186-1:2000(E)©ISO2000–AllrightsreservediiiContentsPageForeword.iv1Scope.12Normativereferences.13Termsanddefinitions.14Instrumentation.45Testarrangement.56Testprocedure.67Expressionofresults.98Testreport.9AnnexA(informative)Estimatedprecisionofthemethod.11AnnexB(informative)AdaptiontermKc.12Bibliography.14SIST EN ISO 15186-1:2004

ISO15186-1:2000(E)iv©ISO2000–AllrightsreservedForewordISO(theInternationalOrganizationforStandardization)isaworldwidefederationofnationalstandardsbodies(ISOmemberbodies).TheworkofpreparingInternationalStandardsisnormallycarriedoutthroughISOtechnicalcommittees.Eachmemberbodyinterestedinasubjectforwhichatechnicalcommitteehasbeenestablishedhastherighttoberepresentedonthatcommittee.Internationalorganizations,governmentalandnon-governmental,inliaisonwithISO,alsotakepartinthework.ISOcollaboratescloselywiththeInternationalElectrotechnicalCommission(IEC)onallmattersofelectrotechnicalstandardization.InternationalStandardsaredraftedinaccordancewiththerulesgivenintheISO/IECDirectives,Part3.DraftInternationalStandardsadoptedbythetechnicalcommitteesarecirculatedtothememberbodiesforvoting.PublicationasanInternationalStandardrequiresapprovalbyatleast75%ofthememberbodiescastingavote.AttentionisdrawntothepossibilitythatsomeoftheelementsofthispartofISO15186maybethesubjectofpatentrights.ISOshallnotbeheldresponsibleforidentifyinganyorallsuchpatentrights.InternationalStandardISO15186-1waspreparedbyTechnicalCommitteeISO/TC43,Acoustics,SubcommitteeSC2,Buildingacoustics.ISO15186consistsofthefollowingparts,underthegeneraltitleAcoustics—Measurementofsoundinsulationinbuildingsandofbuildingelementsusingsoundintensity:Part1:LaboratorymeasurementsPart2:FieldmeasurementsPart3:LaboratorymeasurementsatlowfrequenciesAnnexesAandBofthispartofISO15186areforinformationonly.SIST EN ISO 15186-1:2004

INTERNATIONALSTANDARDISO15186-1:2000(E)©ISO2000–Allrightsreserved1Acoustics—Measurementofsoundinsulationinbuildingsandofbuildingelementsusingsoundintensity—Part1:Laboratorymeasurements1ScopeThispartofISO15186specifiesasoundintensitymethodtodeterminethesoundreductionindexandtheelement-normalizedleveldifferenceofbuildingelements.ThemethodcanbeusedasanalternativetoISO140-3andISO140-10respectively.OneimportantuseiswhenthetraditionalISO140-3methodfailsbecauseofhighflankingtransmission.ThereproducibilityofthisintensitymethodisestimatedtobeequaltoorbetterthanthatofISO140-3.NOTESomeinformationabouttheaccuracywithwhichthispartofISO15186canreproducethesoundreductionindexmeasuredaccordingtoISO140-3isgiveninannexA.2NormativereferencesThefollowingnormativedocumentscontainprovisionswhich,throughreferenceinthistext,constituteprovisionsofthispartofISO15186.Fordatedreferences,subsequentamendmentsto,orrevisionsof,anyofthesepublicationsdonotapply.However,partiestoagreementsbasedonthispartofISO15186areencouragedtoinvestigatethepossibilityofapplyingthemostrecenteditionofthenormativedocumentsindicatedbelow.Forundatedreferences,thelatesteditionofthenormativedocumentreferredtoapplies.MembersofISOandIECmaintainregistersofcurrentlyvalidInternationalStandards.ISO140-1,Acoustics—Measurementofsoundinsulationinbuildingsandofbuildingelements—Part1:Requirementsforlaboratoytestfacilitieswithsuppressedflankingtransmission.ISO140-3,Acoustics—Measurementofsoundinsulationinbuildingsandofbuildingelements—Part3:Laboratorymeasurementsofairbornesoundinsulationofbuildingelements.ISO140-10,Acoustics—Measurementofsoundinsulationinbuildingsandofbuildingelements—Part10:Laboratorymeasurementofairbornesoundinsulationofsmallbuildingelements.ISO9614-1:1993,Acoustics—Determinationofsoundpowerlevelsofnoisesourcesusingsoundintensity—Measurementatdiscretepoints.IEC60942,Soundcalibrators.IEC61043,Electroacoustics—Instrumentsforthemeasurementofsoundintensity—Measurementwithpairsofpressuresensingmicrophones.3TermsanddefinitionsForthepurposesofthispartofISO15186,thefollowingtermsanddefinitionsapply.SIST EN ISO 15186-1:2004

ISO15186-1:2000(E)2©ISO2000–Allrightsreserved3.1averagesoundpressurelevelinasourceroomLp1tentimesthelogarithmtothebase10oftheratioofthespaceandtimeaverageofthesoundpressuresquaredtothesquareofthereferencesoundpressure,thespaceaveragebeingtakenovertheentireroomwiththeexceptionofthosepartswherethedirectradiationofasoundsourceorthenearfieldoftheboundaries(wall,window,etc.)isofsignificantinfluenceNOTE1Thisquantityisgivenindecibels.NOTE2Foracompletedefinition,seeISO140-3.3.2soundreductionindexRtentimesthelogarithmtothebase10oftheratioofthesoundpowerW1incidentonthetestspecimentothesoundpowerW2transmittedthroughthespecimenRWW1012lgdB(1)NOTETheexpression"soundtransmissionloss"isalsoinuse.3.3soundintensityItime-averagedrateofflowofsoundenergyperunitareaorientednormaltothelocalparticlevelocity;thisisavectorialquantitywhichisequaltoITptuttT10()()d(2)wherep(t)istheinstantaneoussoundpressureatapoint,inpascals;ut()istheinstantaneousparticlevelocityatthesamepoint,inmetrespersecond;Tistheaveragingtime,insecondsNOTESoundintensityismeasuredinwattspersquaremetre.3.4normalsoundintensityIncomponentofthesoundintensityinthedirectionnormaltoameasurementsurfacedefinedbytheunitnormalvectorn:IInn(3)wherenistheunitnormalvectordirectedoutofthevolumeenclosedbythemeasurementsurface3.5normalsoundintensitylevelLIntentimesthelogarithmtothebase10oftheratiooftheunsignedvalueofthenormalsoundintensitytothereferenceintensityI0,asgivenby:SIST EN ISO 15186-1:2004

ISO15186-1:2000(E)©ISO2000–Allrightsreserved3LIIInn0dB10lg(4)whereI01210W/m23.6surfacepressure-intensityindicatorFpdifferencebetweenthesoundpressurelevel,Lp,andthenormalsoundintensitylevel,LIn,onthemeasurementsurface,bothbeingtimeandsurfaceaveraged:FLLpIpIn(5)NOTEThisnotationisinaccordancewithISO9614-2.InISO9614-1thenotationF2isused.3.7pressure-residualintensityindexpI0differencebetweentheindicatedsoundpressurelevel,Lp,andtheindicatedsoundintensitylevel,LI,whentheintensityprobeisplacedandorientedinasoundfieldsuchthatthesoundintensityiszeroNOTE1Itisexpressedindecibels.NOTE2DetailsfordeterminingpI0aregiveninIEC61043:pIpILL0(6)3.8intensitysoundreductionindexRIforonesourceroomandonereceivingroom,whichalsomaybetheexterior,thisistheindexevaluatedfromequation(1),assumingthatthesoundfieldinthesourceroomisdiffuse:RLLSSIpI1610nmlgdB(7)whereLp1istheaveragesoundpressurelevelinthesourceroom;LInistheaveragesoundintensityleveloverthemeasurementsurfaceinthereceivingroom;Smisthetotalareaofthemeasurementsurface(s);Sistheareaofthetestspecimenundertest.NOTETheweightedintensitysoundreductionindex,RI,w,iscalculatedaccordingtoISO717-1byreplacingRwithRI.3.9intensityelementnormalizedleveldifferenceDI,n,edifferencegivenby:DLLSANIpI,,lglg()nenm0dB161010(8)SIST EN ISO 15186-1:2004

ISO15186-1:2000(E)4©ISO2000–AllrightsreservedwhereLp1istheaveragesoundpressurelevelinthesourceroom;LInistheaveragesoundintensityleveloverthemeasurementsurfaceinthereceivingroom;Nisthenumberofsmallbuildingelementunitsinsta
...
