EN 14227-2:2004

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Hydraulisch gebundene Gemische - Anforderungen - Teil 2: Schlackengebundene GemischeMélanges traités aux liants hydrauliques - Spécifications - Partie 2 : Mélanges traités au laitierHydraulically bound mixtures - Specifications - Part 2: Slag bound mixtures93.080.20Materiali za gradnjo cestRoad construction materialsICS:Ta slovenski standard je istoveten z:EN 14227-2:2004SIST EN 14227-2:2004en01-september-2004SIST EN 14227-2:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 14227-2July 2004ICS 01.040.93; 93.080.20English versionHydraulically bound mixtures - Specifications - Part 2: Slagbound mixturesMélanges traités aux liants hydrauliques - Spécifications -Partie 2 : Mélanges traités au laitierHydraulisch gebundene Gemische - Anforderungen - Teil 2:Schlackengebundene GemischeThis European Standard was approved by CEN on 16 April 2004.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2004 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 14227-2:2004: ESIST EN 14227-2:2004

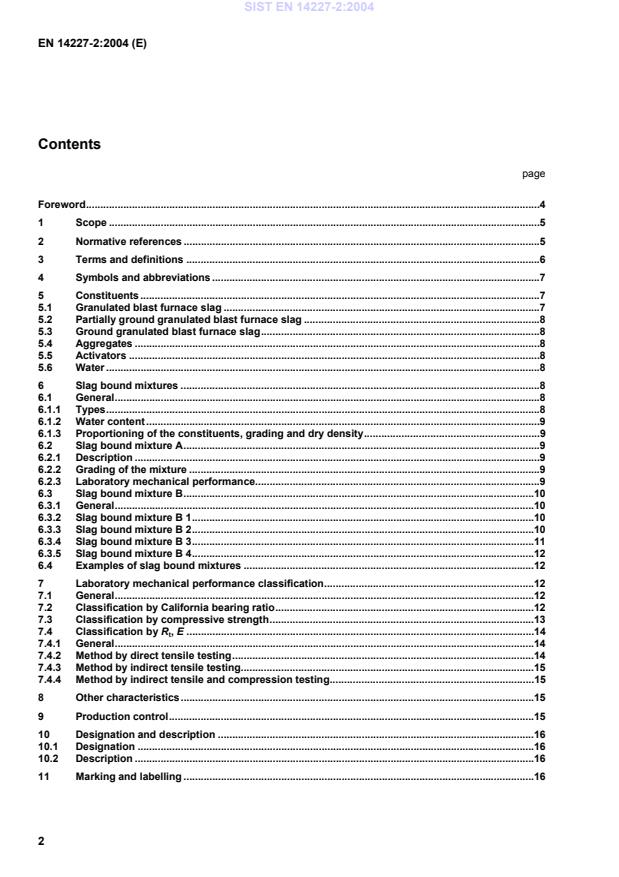

Hydraulic activity of granulated blast furnace slag, partially ground granulated blast furnace slag and ground granulated blast furnace slag.25 A.1 Hydraulic activity.25 A.2 C.A product.25 A.3 Granulated blast furnace slag.25 A.4 Partially ground granulated slag.26 A.5 Ground granulated blast furnace slag.26 Annex B (informative)
Examples of slag bound mixtures A and B (component proportions as percentage dry mass).27 Annex C (normative)
Compacity of a slag bound mixture B2.28 Annex D (normative)
Increase of the CBR value of slag bound mixtures.29 D.1 Sampling and preparation of the test samples.29 D.2 Specimen manufacture and curing.29 D.3 Calculation and expression of results.30 Annex E (informative)
Production control for slag bound mixtures.31 E.1 General.31 E.2 Quality manual.31 E.3 Organization.31 E.3.1 Responsibility and authority.31 E.3.2 Management representative.31 E.3.3 Internal audits.31 E.3.4 Management review.32 E.3.5 Sub-contract services.32 E.3.6 Records.32 E.3.7 Training.32 E.4 Control procedures.32 E.4.1 Production management.32 E.4.2 Composition of the mixture.33 E.4.3 Constituents.33 E.4.4 Process control.33 E.4.5 Inspection, calibration and control of process equipment.33 E.4.6 Handling and delivery.34 E.5 Inspection and testing of constituents and mixtures during production.34 E.5.1 General.34 E.5.2 Characteristics that require control during production.34 E.5.3 Frequency of sampling the mixture.35 E.6 Inspection and testing equipment.35 E.6.1 General.35 E.6.2 Measuring and testing equipment.35 E.6.3 Measuring and testing equipment in the process.35 E.6.4 Measuring and testing equipment in laboratory.35 E.7 Non-conformity.36 E.7.1 General.36 E.7.2 Non-conformity of constituents.36 E.7.3 Non-conformity of the mixture.36
the manufacture of test specimens of hydraulically bound mixtures by axial compression. prEN 14227-11, Unbound and hydraulically bound mixtures — Specifications — Part 11: Soil treated by lime. 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 hydraulically bound mixture mixture which sets and hardens by hydraulic reaction 3.2 slag bound mixture mixture containing one or more of the following slags and water, which hardens by hydraulic reaction and/or carbonation NOTE Hardening may be accelerated by the addition of an activator defined in 5.5. 3.3 air-cooled blast furnace slag aggregate made mainly of crystalline silicates and aluminosilicates of calcium and magnesium, obtained by slow air cooling of molten blastfurnace slag NOTE Air-cooled blastfurnace slag is obtained by slow air cooling of molten blastfurnace slag. The cooling process may be assisted by the controlled application of water. Air-cooled blastfurnace slag hardens by hydraulic reaction and carbonation. 3.4 air-cooled steel slag aggregate made mainly of crystalline calcium silicates and calcium ferrites comprising CaO, SiO2, MgO and iron oxides, obtained by slow air cooling of molten steel slag NOTE The cooling process may be assisted by the controlled application of water. Air-cooled steel slag hardens mainly by carbonatic reactions. 3.5 granulated blast furnace slag glassy, sandy material made up mainly of CaO, SiO2, Al2O3 and MgO, produced generally by rapid water quenching of molten blast furnace slag NOTE 1 Granulated blast furnace slag hardens by hydraulic reaction. NOTE 2 Pelletized and dry granulated blastfurnace slag may have similar hydraulic properties. SIST EN 14227-2:2004

7 % to 20 %; SIST EN 14227-2:2004

5.5 Activators Activators shall include lime in accordance with prEN 14227-11, gypsum, steel slags and other similar products containing lime and or sulphate. 5.6 Water Water shall not contain components that adversely affect the hardening and performance of the slag bound mixture. 6 Slag bound mixtures 6.1 General 6.1.1 Types Slag bound mixture shall be made from the constituents specified in clause 5. The mixture shall be selected from the types and sub-types described below and shall conform to the specified requirements for the selected mixture. SIST EN 14227-2:2004

Figure 1 2 B1-2 0/31,5
Figure 2 3 B1-3 0/45
Figure 3 4 B1-4 0/31,5
Figure 4 6.3.3 Slag bound mixture B 2 6.3.3.1 Description Slag bound mixture B 2 shall be a granular mixture with compacity requirement. SIST EN 14227-2:2004

Figures 5 to 7 shall be specified. Table 3 — Grading of slag bound mixture B 2 Column 1 2 3 Line Slag bound mixture Grading category Grading
envelopes 1 B 2 - 0/20 G1 or G2 Figure 5 2 B 2 - 0/14 G1 or G2 Figure 6 3 B 2- 0/10 G1 or G2 Figure 7 6.3.3.3 Compacity The minimum compacity of the mixture at the maximum modified Proctor dry density shall be 0,80 in accordance with annex C. 6.3.3.4 Immediate bearing index of the mixture In the case of slag bound mixture B2-0/10, the immediate bearing index determined in accordance with EN 13286-47, using modified Proctor compaction shall not be less than 50. 6.3.4 Slag bound mixture B 3 6.3.4.1 Description Slag bound mixture B 3 shall be a fine aggregate mixture with an immediate bearing index requirement. 6.3.4.2 Grading of the mixture The grading of the mixture, determined in accordance with EN 933-1, shall comply with Table 4. Table 4 — Grading of slag bound mixture B 3 Column 1 2 3 4 Line Sieve mm 12,5 6,3 0,063 1 Percentage passing by mass 100 ≥85 ≤35 6.3.4.3 Immediate bearing index of the mixture In order to facilitate site compaction and depending on trafficking, the immediate bearing index of the mixture, determined in accordance with EN 13286-47, using modified Proctor compaction shall be selected from Table 5.
...
