EN 13286-40:2003

Overview

EN 13286-40:2003 is a European standard developed by the European Committee for Standardization (CEN) that specifies a test method for determining the direct tensile strength of hydraulically bound mixtures. This standard is applicable to medium or coarse-grained specimens prepared from laboratory or production mixes and excludes fine-grained materials. It is an essential part of a comprehensive series of standards for road construction materials, ensuring consistent and reliable testing of mixtures used in infrastructure projects.

The direct tensile strength indicates the maximum tensile stress a hydraulically bound mixture specimen can withstand before failure, providing key insight into its durability and suitability for use in base layers, sub-bases, and capping layers in road construction.

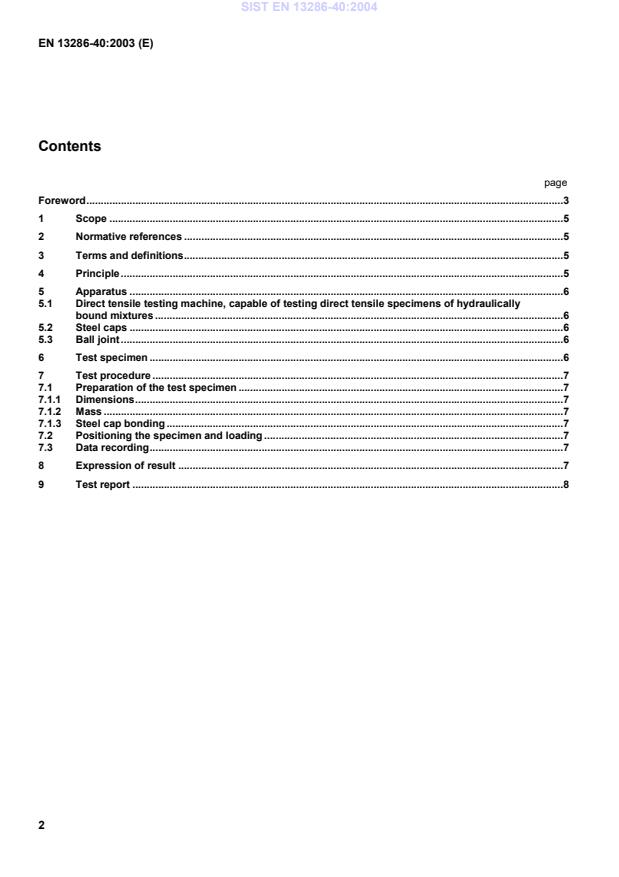

Key Topics

• Scope and Application
  Focuses on medium or coarse-grained hydraulically bound mixture specimens made according to prEN 13286-52 using vibrocompression methods. Applies primarily to construction and civil engineering road materials.

• Test Principle
  A specimen is subjected to controlled direct tensile loading until failure occurs. The direct tensile strength is calculated from the peak load and specimen diameter.

• Apparatus

  • Direct tensile testing machine with ±1% load measurement accuracy
  • Steel caps with diameter matching the specimen (±2 mm) and thickness ≥ 20 mm
  • Ball joint connection system to prevent flexural moments during testing

• Specimen Preparation
  Specimens must conform to the compaction, dimensional, and curing requirements outlined in prEN 13286-52 to ensure reproducible results.

• Test Procedure

  • Measure specimen diameter to ±0.5% accuracy
  • Weigh specimens and monitor mass loss during curing (not exceeding 2%)
  • Bond steel caps carefully with aligned axes
  • Apply tensile load continuously at 0.010 ± 0.005 MPa per second until specimen failure
  • Record the maximum tensile force and note the failure location

• Result Calculation
  The direct tensile strength (Rt) is computed using the formula:
  Rt = (4 × F) / (π × D²)
  where F is the maximum load (N) and D is the specimen diameter (mm).

• Test Reporting Requirements
  Detailed reporting includes specimen identification, conditioning, mass data, curing method, tensile strength value, failure type, testing date, and compliance remarks.

Applications

This standard plays a critical role in:

• Road Construction and Maintenance
  Evaluating the tensile strength of hydraulically bound mixtures used in base and sub-base layers ensures durability and structural integrity of roads and highways.

• Material Quality Control
  Provides consistent quantitative data for assessing production mixes and optimizing mix designs for improved performance.

• Infrastructure Design
  Assists engineers in selecting appropriate materials based on mechanical strength to withstand traffic loads and environmental conditions.

• Research and Development
  Facilitates standardized testing protocols for developing new hydraulically bound materials and comparing their performance.

Related Standards

EN 13286-40:2003 is part of the EN 13286 series covering unbound and hydraulically bound mixtures, including:

• EN 13286-1 to EN 13286-5 – Test methods for laboratory density, water content, and compaction techniques
• EN 13286-41 – Compressive strength of hydraulically bound mixtures
• EN 13286-42 – Indirect tensile strength testing
• EN 13286-52 – Method for manufacturing test specimens using vibrocompression
• EN 13286-47 – Bearing capacity and swelling tests for soil treated with hydraulic binders

By aligning with these standards, EN 13286-40 provides a coherent framework for testing and evaluating road construction materials, offering reliable data for engineers, manufacturers, and quality assurance professionals.
