EN 13286-42:2003
(Main)Unbound and hydraulically bound mixtures - Part 42: Test method for the determination of the indirect tensile strength of hydraulically bound mixtures
Unbound and hydraulically bound mixtures - Part 42: Test method for the determination of the indirect tensile strength of hydraulically bound mixtures
This standard specifies a method for the determination of the indirect tensile strength of test specimens of hydraulically bound mixtures (HBM). The standard applies to specimens made from either laboratory or production mixes with a maximum aggregate size of 31,5 mm.
Ungebundene und hydraulisch gebundene Gemische - Teil 42: Prüfverfahren zur Bestimmung der Zugfestigkeit hydraulisch gebundener Gemische im indirekten Zugversuch
Diese Europäische Norm beschreibt ein Prüfverfahren zur Bestimmung der Zugfestigkeit von zylindrischen Probekörpern aus hydraulisch gebundenen Gemischen im indirekten Zugversuch. Diese Europäische Norm gilt für Probekörper, die entweder im Labor oder aus Bohrkernen hergestellt werden.
Mélanges traités et mélanges non traités aux liants hydraulique - Partie 42: Méthode d'essai pour la détermination de la résistance à la traction indirecte des mélanges traités aux liants hydrauliques
La présente norme Norme Européenne spécifie une méthode d'essai pour la détermination de la résistance à la traction indirecte d'éprouvettes cylindriques de mélanges traités aux liants hydrauliques. La présente Norme européenne s'applique à des éprouvettes confectionnées en laboratoire ou préparées à partir de carottes.
Nevezane in hidravlično vezane zmesi – 42. del: Preskusna metoda za ugotavljanje posredne natezne trdnosti hidravlično vezanih zmesi
General Information
- Status
- Published
- Publication Date
- 04-Mar-2003
- Withdrawal Date
- 30-Dec-2004
- Technical Committee
- CEN/TC 227 - Road materials
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 26-Jul-2024
- Completion Date
- 14-Apr-2025
- Directive
- 89/106/EEC - Construction products
Overview
EN 13286-42:2003 is a CEN test standard for determining the indirect tensile strength (ITS) of hydraulically bound mixtures (HBM). It specifies a laboratory method for cylindrical specimens (laboratory-made or cored from production material) with a maximum aggregate size of 31.5 mm. The procedure measures the tensile capacity of HBM used in road base, sub‑base and capping layers by applying compressive loads along opposite generatrices until failure.
Key topics and technical requirements
Scope and specimens
- Applies to cylindrical specimens manufactured in the lab or cored from production mixes.
- Slenderness ratio (length/diameter) required between 0.8 and 2.0.
- Dimensions measured to ±0.5%; mass to ±0.25%.
- Mass loss during curing greater than 2% must be recorded and may invalidate results.
Apparatus and accessories
- Compression testing machine with load indication accurate enough to determine ultimate load to ±1%.
- Loading platens flatness tolerance < 3% and alignment provisions (visual alignment not acceptable).
- Single-use packing/bearing strips (plywood or hardboard) with thickness (4 ± 1) mm, width ≥ 0.1·D and length ≥ specimen length H.
Test procedure
- Specimens positioned centrally with an alignment accuracy better than 1 mm.
- Apply load continuously and uniformly (no shock) with a stress increase ≤ 0.2 MPa/s.
- Parallelism of the loaded generatrices not to exceed 1 mm per 100 mm; non‑conforming specimens discarded.
Result calculation and reporting
- ITS is calculated from the failure force F and specimen geometry (length H, diameter D) using the formula given in the standard and reported to the nearest 0.01 N/mm² (0.01 MPa).
- Test report must reference EN 13286-42 and include specimen ID, dimensions, compaction and curing method, mass changes, age at test, ITS result and any non‑compliances.
Applications and users
- Who uses it: pavement engineers, construction material laboratories, contractors, quality control teams, researchers, and public authorities specifying HBM performance.
- Practical uses: quality control of hydraulically bound base/sub-base layers, comparative assessment of mixes, design verification, research on binder formulations and long‑term performance prediction.
Related standards
- EN 13286 series for unbound and hydraulically bound mixtures (relevant parts):
- EN 13286-1, -2, -3, -4, -5 (reference density/water content and compaction methods)
- EN 13286-40 (direct tensile), EN 13286-41 (compressive strength), EN 13286-43 (modulus)
- prEN 13286-50 to -53 (methods for manufacturing test specimens)
Keywords: EN 13286-42, indirect tensile strength, hydraulically bound mixtures, HBM test method, road construction materials, ITS test, specimen compaction.
Frequently Asked Questions
EN 13286-42:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Unbound and hydraulically bound mixtures - Part 42: Test method for the determination of the indirect tensile strength of hydraulically bound mixtures". This standard covers: This standard specifies a method for the determination of the indirect tensile strength of test specimens of hydraulically bound mixtures (HBM). The standard applies to specimens made from either laboratory or production mixes with a maximum aggregate size of 31,5 mm.
This standard specifies a method for the determination of the indirect tensile strength of test specimens of hydraulically bound mixtures (HBM). The standard applies to specimens made from either laboratory or production mixes with a maximum aggregate size of 31,5 mm.
EN 13286-42:2003 is classified under the following ICS (International Classification for Standards) categories: 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 13286-42:2003 is associated with the following European legislation: EU Directives/Regulations: 305/2011, 89/106/EEC. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 13286-42:2003 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

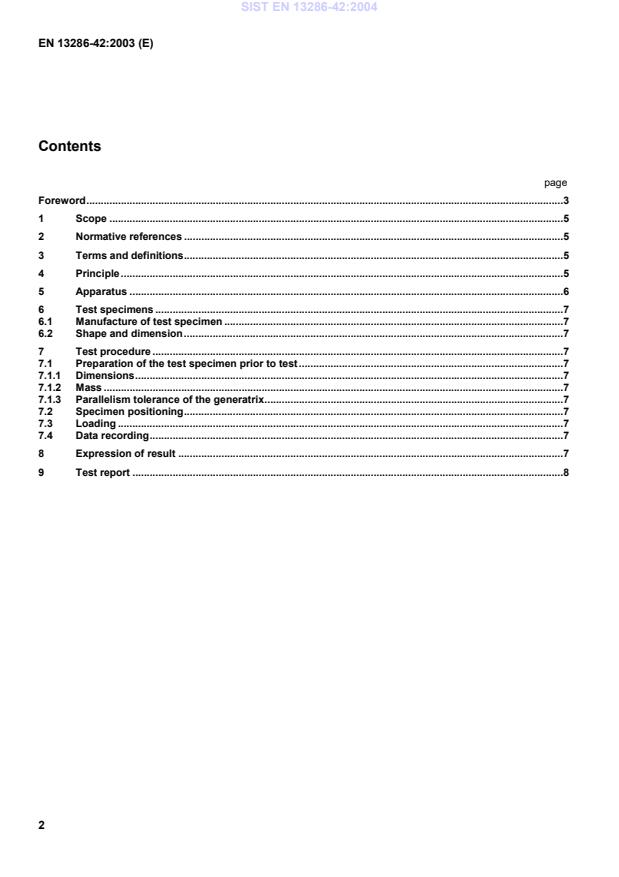

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ungebundene und hydraulisch gebundene Gemische - Teil 42: Prüfverfahren zur Bestimmung der Zugfestigkeit hydraulisch gebundener Gemische im indirekten ZugversuchMélanges traités et mélanges non traités aux liants hydraulique - Partie 42: Méthode d'essai pour la détermination de la résistance a la traction indirecte des mélanges traités aux liants hydrauliquesUnbound and hydraulically bound mixtures - Part 42: Test method for the determination of the indirect tensile strength of hydraulically bound mixtures93.080.20Materiali za gradnjo cestRoad construction materialsICS:Ta slovenski standard je istoveten z:EN 13286-42:2003SIST EN 13286-42:2004en01-junij-2004SIST EN 13286-42:2004SLOVENSKI
STANDARD
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13286-42March 2003ICS 93.080.20English versionUnbound and hydraulically bound mixtures - Part 42: Testmethod for the determination of the indirect tensile strength ofhydraulically bound mixturesMélanges traités et mélanges non traités aux liantshydraulique - Partie 42: Méthode d'essai pour ladétermination de la résistance à la traction indirecte desmélanges traités aux liants hydrauliquesUngebundene und hydraulisch gebundene Gemische - Teil42: Prüfverfahren zur Bestimmung der Zugfestigkeithydraulisch gebundenen Gemischen im indirektenZugversuchThis European Standard was approved by CEN on 29 November 2002.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Hungary, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Slovak Republic, Spain, Sweden, Switzerland andUnited Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2003 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13286-42:2003 ESIST EN 13286-42:2004
...
