SLOVENSKI STANDARD
01-februar-2011
1DGRPHãþD
SIST EN 741:2001
1DSUDYHLQVLVWHPL]DNRQWLQXLUQLWUDQVSRUW9DUQRVWQH]DKWHYH]DVLVWHPHLQ
QMLKRYHNRPSRQHQWH]DSQHYPDWVNRPDQLSXODFLMRVLSNHJDPDWHULDOD YNOMXþQR]
GRSROQLORP$
Continuous handling equipment and systems - Safety requirements for systems and their
components for pneumatic handling of bulk materials
Stetigförderer und Systeme - Sicherheitsanforderungen an Systeme und ihre
Komponenten zur pneumatischen Förderung von Schüttgut
Equipements et systèmes de manutention continue - Prescriptions de sécurité pour les
systèmes et leurs composants pour la manutention pneumatique des produits en vrac
Ta slovenski standard je istoveten z: EN 741:2000+A1:2010
ICS:
53.040.30 3QHYPDWLþQLWUDQVSRUWLQ Pneumatic transport and its
QMHJRYLVHVWDYQLGHOL components
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 741:2000+A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2010
ICS 53.040.30 Supersedes EN 741:2000
English Version
Continuous handling equipment and systems - Safety
requirements for systems and their components for pneumatic
handling of bulk materials
Equipements et systèmes de manutention continue - Stetigförderer und Systeme - Sicherheitsanforderungen an
Prescriptions de sécurité pour les systèmes et leurs Systeme und ihre Komponenten zur pneumatischen
composants pour la manutention pneumatique des produits Förderung von Schüttgut
en vrac
This European Standard was approved by CEN on 1 July 1999 and includes Amendment 1 approved by CEN on 16 November 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2010 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 741:2000+A1:2010: E
worldwide for CEN national Members.

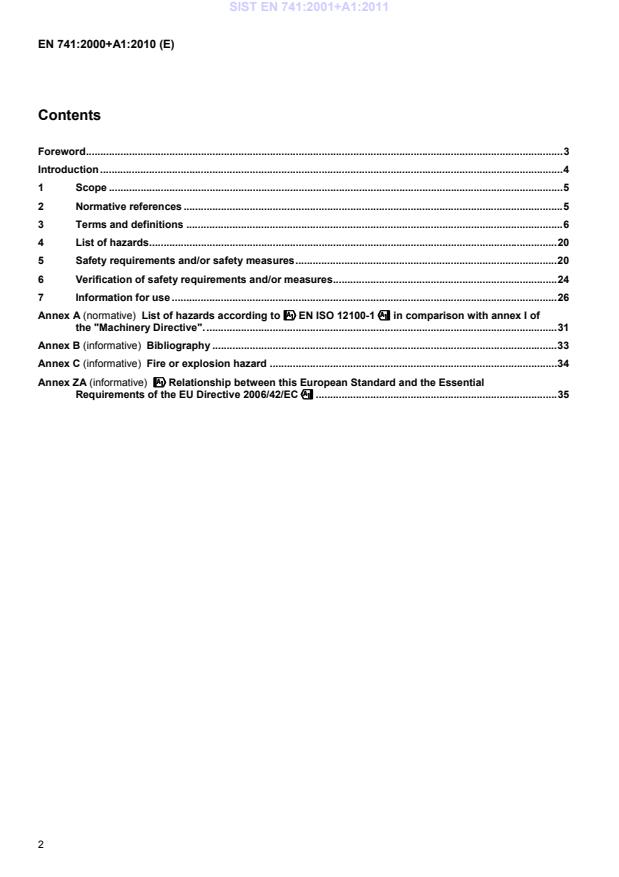

Contents
Foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 List of hazards . 20
5 Safety requirements and/or safety measures . 20
6 Verification of safety requirements and/or measures . 24
7 Information for use . 26
Annex A (normative) List of hazards according to !!!!EN ISO 12100-1"""" in comparison with annex I of
the "Machinery Directive". . 31
Annex B (informative) Bibliography . 33
Annex C (informative) Fire or explosion hazard . 34
Annex ZA (informative) !!!!Relationship between this European Standard and the Essential
Requirements of the EU Directive 2006/42/EC"""" . 35
Foreword
This document (EN 741:2000+A1:2010) has been prepared by Technical Committee CEN/TC 148 "Continuous
handling equipment and systems - Safety", the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by June 2011, and conflicting national standards shall be withdrawn at the latest by
June 2011.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights.
CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document includes Amendment 1, approved by CEN on 2010-11-16.
This document supersedes EN 741:2000.
The start and finish of text introduced or altered by amendment is indicated in the text by tags ! ".
This European Standard has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this standard.
This standard forms part of a series of five standards the titles of which are given below:
EN 617, !Continuous handling equipment and systems — Safety and EMC requirements for the equipment for
the storage of bulk materials in silos, bunkers, bins and hoppers"
EN 618, !Continuous handling equipment and systems — Safety and EMC requirements for equipment for
mechanical handling of bulk materials except fixed belt conveyors"
EN 619, !Continuous handling equipment and systems — Safety and EMC requirements for equipment for
mechanical handling of unit loads"
EN 620, !Continuous handling equipment and systems — Safety and EMC requirements for fixed belt conveyors
for bulk materials"
EN 741, Continuous handling equipment and systems — Safety requirements for systems and their components
for pneumatic handling of bulk materials
!deleted text"
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.
Introduction
This European standard is a type C standard as defined in !EN ISO 12100-1".
When provisions of this type C standard are different from those which are stated in type A or B standards, the
provisions of this type C standard take precedence over the provisions of the other standards, for systems and
components that have been designed and built according to the provisions of this type C standard.
While producing this standard it was assumed that:
- only trained persons operate the machine;
- parts without specific requirements are:
a) designed in accordance with the usual engineering practice and calculation codes, including all failures
modes;
b) of sound mechanical and electrical construction;
c) made of materials with adequate strength and of suitable quality;
d) made of materials free of defects;
- harmful materials, such as asbestos are not used as part of the system and components;
- components and system are kept in good repair and working order, so that the required characteristics remain
despite wear;
- by design of the load bearing elements, a safe operation of the system and components is assured for loading
ranging from zero to 100 % of the rated possibilities and during the tests;
- the ambient air temperature is maintained between - 15 °C and + 40 °C;
- the relative humidity is kept between limits which do not impede the safe working of the system and
components;
- the components (see clause 3.4) are not exposed to external vibration;
!deleted text"
- a negotiation takes place between the user / installer and the manufacturer concerning the particular
conditions for the use and places of use of the machinery;
- the working area is adequately lit;
- the places of installation allow a safe use of the system;
- safety data sheets on the bulk materials to be conveyed are provided by the user / installer and are part of the
design criteria.
EN 617, EN 618 and EN 620 may need to be considered for a complete continuous handling system (machine).
1 Scope
1.1 This standard specifies the special safety requirements for those types of fixed pneumatic handling systems
and components as defined in clause 3, which are designed for conveying bulk materials on a continuous or an
intermittent basis (batch conveying system) from the loading point(s) to the unloading point(s).
1.2 This European standard deals with the technical requirements to minimise the hazards listed in clause 4
which can arise during the operation and the maintenance of the pneumatic conveying system. when carried out in
accordance with the specifications given by the manufacturer or his authorised representative.
Annex A gives a list of hazards according to !EN ISO 12100-1". and the safety requirements and/or measures
are specified in the same order as they are given in Annex A.
1.3 This standard applies to design, on site assembly, and commissioning stages.
1.4 This standard applies also to the built-in actuators and parts of the systems, which control the components.
1.5 Exclusions
This standard does not specify the requirements for any elements used as a link between a fixed part(s) of the
system and any other part mounted on mobile/movable supports (e.g.: ship, unloaders, .).
This standard does not take into account the risks of burns and scalds by the radiation of heat sources or by
contact with hot gases.
This standard does not take into account the risk generated by ionising materials used in measuring equipment
(e.g. level indicators).
This standard does not specify the requirements for handling specific hazardous materials, such as radiating
material, explosives, explosive gases, .
This standard does not specify the requirements for hazards due to electrostatic charges of pipes and equipment
made of non-metallic materials.
The safety requirements for the transportation including loading and unloading of the components are not covered
by this standard.
This standard does not apply to pneumatic conveying systems used underground, for mining and in public areas.
This European standard does not establish the additional requirements for: freezer applications, high temperatures,
corrosive environments, strong magnetic fields, potentially explosive atmospheres, radioactive environment,
operation on ships and earthquake effects, hazards during decommissioning.
!This standard does not specify the requirements for hazards due to noise."
2 Normative references
!The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies."
!deleted text"
EN 349:1993, Safety of machinery — Minimum gaps to avoid crushing of parts of the human body
!deleted text"
EN 953:1997, Safety of machinery — Guards — General requirements for the design and construction of fixed and
movable guards
EN 1037:1995, Safety of machinery — Prevention of unexpected start-up
EN 1050:1996, Safety of machinery — Risk assessment
EN 1070: 1998, Safety of machinery — Terminology
EN 1088:1995, Safety of machinery — Interlocking devices associated with guards — Principles for design and
selection
EN 1127-1:1997, Safety of machinery — Fire and explosions — Part 1: Explosion prevention and protection
!deleted text"
EN 50014:1992, Electrical apparatus for potentially explosive atmospheres — General requirements
EN 50082-2:1995, Electromagnetic compatibility — Generic immunity standard — Part 2: Industrial environment
!EN 60204-1:2006, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
(IEC 60204-1:2005, modified)"
EN 60529:1991, Degrees of protection provided by enclosures (code IP)
EN 61310-2:1995, Safety of machinery — Indication, marking and actuation — Part 2: Requirements for marking
EN 1672-2:1997, Food processing machinery — Basic concepts — Part 2: Hygiene requirements
CENELEC R044-001:1999, Guidance and recommendations for the avoidance of hazards due to static electricity
!EN ISO 12100-1, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic
terminology, methodology (ISO 12100-1:2003)"
!EN ISO 12100-2:2003, Safety of machinery — Basic concepts, general principles for design — Part 2:
Technical principles (ISO 12100-2:2003)"
!EN ISO 1
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
