EN 30-1-4:2002/A1:2006

SLOVENSKI STANDARD
01-februar-2007
3OLQVNLNXKDOQLDSDUDWL]DJRVSRGLQMVWYRGHO9DUQRVW$SDUDWL]HQLPDOLYHþ
JRULOQLNL]DYWRPDWVNLPQDG]RURPJRULOQLNRY'RSROQLOR$
Domestic cooking appliances burning gas - Part 1-4: Safety - Appliances having one or
more burners with an automatic burner control system - Amendment A1
Haushalt-Kochgeräte für gasförmige Brennstoffe - Teil 1-4: Sicherheit - Geräte mit einem
oder mehreren Brenner(n) mit Feuerungsautomat
Appareils de cuisson domestiques utilisant les combustibles gazeux - Partie 1-4:
Sécurité - Appareils comportant un ou plusieurs bruleurs avec systeme automatique de
commande pour bruleurs
Ta slovenski standard je istoveten z: EN 30-1-4:2002/A1:2006
ICS:
97.040.20 âWHGLOQLNLGHORYQLSXOWL Cooking ranges, working
SHþLFHLQSRGREQLDSDUDWL tables, ovens and similar
appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 30-1-4:2002/A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2006
ICS 91.040.20
English Version
Domestic cooking appliances burning gas - Part 1-4: Safety -
Appliances having one or more burners with an automatic
burner control system
Appareils de cuisson domestiques utilisant les Haushalt-Kochgeräte für gasförmige Brennstoffe - Teil 1-4:
combustibles gazeux - Partie 1-4: Sécurité - Appareils Sicherheit - Geräte mit einem oder mehreren Brenner(n)
comportant un ou plusieurs brûleurs avec système mit Feuerungsautomat
automatique de commande pour brûleurs
This amendment A1 modifies the European Standard EN 30-1-4:2002; it was approved by CEN on 4 September 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this
amendment into the relevant national standard without any alteration. Up-to-date lists and bibliographical references concerning such
national standards may be obtained on application to the Central Secretariat or to any CEN member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 30-1-4:2002/A1:2006: E
worldwide for CEN national Members.

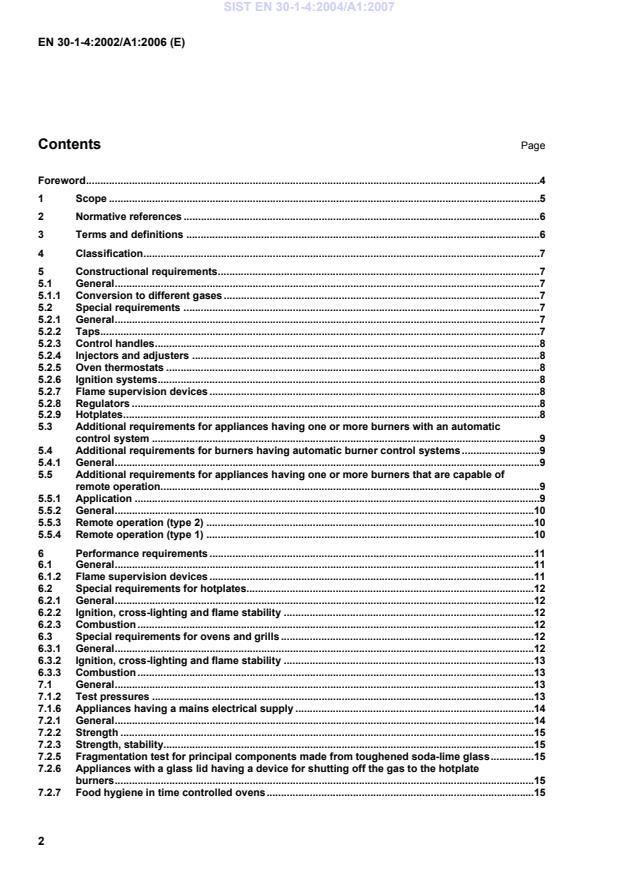

Contents Page
Foreword.4
1 Scope .5
2 Normative references .6
3 Terms and definitions .6
4 Classification.7
5 Constructional requirements.7
5.1 General.7
5.1.1 Conversion to different gases .7
5.2 Special requirements .7
5.2.1 General.7
5.2.2 Taps.7
5.2.3 Control handles.8
5.2.4 Injectors and adjusters .8
5.2.5 Oven thermostats .8
5.2.6 Ignition systems.8
5.2.7 Flame supervision devices .8
5.2.8 Regulators .8
5.2.9 Hotplates.8
5.3 Additional requirements for appliances having one or more burners with an automatic
control system .9
5.4 Additional requirements for burners having automatic burner control systems .9
5.4.1 General.9
5.5 Additional requirements for appliances having one or more burners that are capable of
remote operation.9
5.5.1 Application .9
5.5.2 General.10
5.5.3 Remote operation (type 2) .10
5.5.4 Remote operation (type 1) .10
6 Performance requirements .11
6.1 General.11
6.1.2 Flame supervision devices .11
6.2 Special requirements for hotplates.12
6.2.1 General.12
6.2.2 Ignition, cross-lighting and flame stability .12
6.2.3 Combustion.12
6.3 Special requirements for ovens and grills .12
6.3.1 General.12
6.3.2 Ignition, cross-lighting and flame stability .13
6.3.3 Combustion.13
7.1 General.13
7.1.2 Test pressures .13
7.1.6 Appliances having a mains electrical supply .14
7.2.1 General.14
7.2.2 Strength .15
7.2.3 Strength, stability.15
7.2.5 Fragmentation test for principal components made from toughened soda-lime glass.15
7.2.6 Appliances with a glass lid having a device for shutting off the gas to the hotplate
burners.15
7.2.7 Food hygiene in time controlled ovens.15
7.3.1 General .16
7.3.2.1 Ignition, cross-lighting, flame stability.17
7.3.2.2 Resistance to draught.18
8 Marking and instructions.20
8.1 Appliance marking .20
8.1 Appliance marking (including any type 2 hand-operated control).20
8.2 Marking of the packaging .20
8.3 Instructions.21
8.3.1 General .21
8.3.2 Technical instructions .21
8.3.3 Instructions for use and maintenance .21
8.3.4 Instructions for conversion to other gases .21
Annex A (informative) .22
A.1 General .22
A.2 Marketing in different countries of the categories listed in the text of the standard.22
A.3 Supply pressures for the appliance (see 7.1.2).24
A.4 Particular categories marketed nationally or locally .26
A.4.2 The definitions of the special categories given in Table A.3 are derived in the same way
as those categories listed in 4.2. The characteristics of the gases distributed regionally
are given in A.4 .27
A.3.4 Permitted operations for changing gas .29
A.4 Test gases corresponding to the special categories given in A.3 .29
A.5 Particular conditions.30
A.6Inlet connections in the various countries.30
Annex B (informative) .32

Foreword
This document (EN 30-1-4:2002/A1:2006) has been prepared by Technical Committee CEN/TC 49 “Gas
cooking appliances”, the secretariat of which is held by UNI.
This Amendment to the European Standard EN 30-1-4:2002 shall be given the status of a national standard,
either by publication of an identical text or by endorsement, at the latest by May 2007, and conflicting national
standards shall be withdrawn at the latest by May 2007.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden,
Switzerland and United Kingdom.
1 Scope
st nd rd
Replace the 1 , 2 and 3 paragraphs with the following:
This European Standard specifies the construction and performance characteristics as well as the
requirements and methods of test for the safety and marking of domestic cooking appliances, capable of using
the combustible gases defined in EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005, that
have one or more burners with an automatic burner control system, referred to in the text as "appliances".
This European Standard includes specific requirements and methods of test that are applicable to burners
having an automatic burner control system, whether or not the appliance is equipped with a fan for the supply
of combustion air to, and/or the evacuation of the products of combustion from, the burner concerned. These
specific requirements and methods of test are only applicable when the burner has a automatic burner control
system and do not apply to burners having automatic ignition that fall within the scope of EN 30-1-1:1998, its
A1:1999, its A2:2003/AC:2004 and its A3:2005.
This European Standard is intended to be used in conjunction with EN 30-1-1:1998, its A1:1999, its
A2:2003/AC:2004 and its A3:2005 and, where appropriate, other parts of EN 30- covering appliances having:
 forced-convection ovens and/or grills;
 a glass ceramic hotplate.
th th
In the 6 paragraph, delete the 4 indent and replace it with the following:
 appliances having automatic burner control systems that
 a) have a second safety time (see EN 298:2003), or
 b) control one or more burners that incorporate a separate ignition burner;
th
In the 6 paragraph add the following indents:
 appliances having one or more burners that are capable of remote operation (type1), unless the
burner(s) concerned are:
 oven burners equipped with an automatic burner control system, or
 oven burners of time-controlled ovens that are designed for a delayed start without the user
being present;
 appliances having one or more burners that are capable of remote operation (type 2), unless the
burner(s) concerned are:
 oven, grill or hotplate burners equipped with automatic burner control systems, or
 oven burners of time-controlled ovens that are designed for a delayed start without the user
being present.
2 Normative references
Replace the first paragraph with the following:
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
Replace the second paragraph with the following:
The normative references in Clause 2 of EN 30-1-1:1998, its A1:1999, its A2:2003 and its A3:2005 apply with
the following additions:
Replace the reference to prEN 30-1-3 with the following:
EN 30-1-3:2003, Domestic cooking appliances burning gas — Part 1-3: Safety — Appliances having a glass
ceramic hotplate
Replace the date 1993 of EN 298 with the date 2003.
Add:
EN 30-1-1:1998/A2:2003/AC:2004, Domestic cooking appliances burning gas — Part 1-1: Safety — General
EN 30-1-1: 1998/A3:2005, Domestic cooking appliances burning gas — Part 1-1: Safety — General
Delete the full stops at the end of the reference titles.
3 Terms and definitions
st
Replace the 1 paragraph with the following:
Unless specifically modified as described in 3.1 hereafter the definitions of Clause 3 of EN 30-1-1:1998, its
A1:1999, its A2:2003/AC:2004 and its A3:2005 apply, as well as the additional definitions given in 3.1.1 to
3.1.3 of this European Standard.
Delete 3.1.1 and re-number 3.1.2 as 3.1.1.
Add the following:
3.1.2
remote operation (type 1)
operation by means of a control intended to be actuated out of sight of the appliance,
NOTE For example, by telecommunications or bus systems
3.1.3
remote operation (type 2)
operation by means of a separate hand-held control (e.g. an infrared device) designed for use only when the
appliance is directly visible to an operator of the control who is present within the same room as the appliance
4 Classification
st
Replace the 1 paragraph with the following:
The classification given in Clause 4 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005
applies with the following modifications:
4.2.2.3 Appliances designed for use with gases of the third family
st
Replace the 1 paragraph with the following:
The text of 4.2.2.3 “Appliances designed for use with gases of the third family” of EN 30-1-1:1998, its A1:1999,
its A2:2003/AC:2004 and its A3:2005 is replaced with the following:
5 Constructional requirements
5.1 General
st
Replace the 1 paragraph with the following:
Unless specifically modified as described hereafter, the appliance shall comply with the requirements of 5.1 of
EN 30-1-1:1998, its A1:1999, its A2:2003 and its A3:2004 which are applicable to them, any verifications in
the form of tests being carried out in accordance with clause 7 of this standard, and not in accordance with the
corresponding clause of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005.
nd
Replace the 2 sentence of the note with the following:
Additional constructional requirements are given in EN 30-1-2:1999 and EN 30-1-3:2003 respectively.
5.1.1 Conversion to different gases
st
Replace the 1 paragraph with the following:
5.1.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies with the following
modification:
5.2 Special requirements
5.2.1 General
st
Replace the 1 paragraph with the following:
Unless specifically modified as described hereafter, the appliance shall comply with the requirements of 5.2 of
EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 which are applicable to them, any
verifications in the form of tests being carried out in accordance with Clause 7 of this standard, and not in
accordance with the corresponding clause of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its
A3:2005.
nd
Replace the 2 sentence of the note with the following:
Additional constructional requirements are given in EN 30-1-2:1999 and EN 30-1-3:2003 respectively.
5.2.2 Taps
st st
Replace the 1 sentence of the 1 paragraph with the following:
5.2.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to all direct-acting
manually operated burner controls.
5.2.3 Control handles
st st
Replace the 1 sentence of the 1 paragraph with the following:
5.2.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to control handles for
all direct-acting manually operated burner controls.
5.2.4 Injectors and adjusters
st
Replace the 1 line with the following:
5.2.3 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable with the following
modification:
5.2.5 Oven thermostats
st st
Replace the 1 sentence of the 1 paragraph with the following:
5.2.4 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable where the oven
burner is not equipped with an automatic burner control system.
5.2.6 Ignition systems
st
Replace the 1 line with the following:
5.2.5 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is replaced with the following:
5.2.7 Flame supervision devices
st st
Replace the 1 sentence of the 1 paragraph with the following:
5.2.6 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is only applicable to burners not
equipped with an automatic burner control system.
5.2.8 Regulators
st
Replace the 1 line with the following:
5.2.7 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is replaced with the following:
5.2.9 Hotplates
st
Replace the 1 paragraph with the following:
5.2.8 of EN 30-1-1:1998 its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable, with the following
1)
modification, to all hotplates except glass ceramic hotplates .
nd
Replace the 2 paragraph with the following:

1)
Additional requirements for glass ceramic hotplates are given in EN 30-1-3:2003.
5.2.8.2.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is replaced by the following:
5.3 Additional requirements for appliances having one or more burners with an automatic
control system
5.3.2.1.2 Marking
st
Replace the 1 paragraph with the following:
The requirements of 5.2.2.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 are
applicable.
5.4 Additional requirements for burners having automatic burner control systems
5.4.1 General
st
Replace the 1 paragraph with the following:
Automatic single burner and multi-burner control systems shall comply with the following requirements of
EN 298:2003, even if the automatic burner control system is designed for use with a heat sensitive flame
supervision device:
 Clauses 4, 5 and 6;
 all sub-clauses of Clause 7 except 7.2.5, 7.3.4 and 7.3.5;
 Clauses 8, 9, 10, and 11.
Add the following new subclause:
5.5 Additional requirements for appliances having one or more burners that are capable of
remote operation
5.5.1 Application
The appliance shall not incorporate an oven that is capable of remote control unless:
a) it is a time-controlled oven designed for delayed ignition, or
b) the oven burner is equipped with an automatic burner control system.
If an oven is capable of remote operation, the appliance shall comply with the requirements given in 5.5.2 and,
depending on whether the remote operation is type 1 or type 2 (see 3.1.2 and 3.1.3), the requirements given
in 5.5.3 or 5.5.4.
The appliance shall not incorporate hotplate or grill burners that are capable of remote operation unless this
means of remote operation is type 2 (see 3.1.3) and the burners are equipped with automatic burner control
systems.
If hotplate or grill burners are capable of remote operation, the appliance shall comply with the requirements
given in 5.5.2 and 5.5.3.
5.5.2 General
The appliance shall be so designed and arranged that remote operation of the burner or burners may only be
achieved after the user has set the appliance for remote operation. When the burner or burners are set for
remote operation this condition shall be indicated visually.
Each burner that is capable of remote operation shall be provided with a direct acting or an indirect manually
operated control that enables the burner to be used safely in accordance with manufacturer’s instructions
when remote operation is not in use. The appliance shall be so designed and arranged that it is always
possible for the user to utilise these manual operated controls to override remote operation of the burner or
burners.
Direct-acting manually operated controls shall comply with 5.2.2 and 5.2.3. Indirect manually operated
controls shall comply with 5.3.1 and 5.3.2.
When the appliance, and any hand–held control supplied for type 2 remote operation, are tested in
accordance with all the tests described in 19.101 of EN 50165:1997 and its A1:1999, it shall be verified that:
 the burner or burners are not put into operation when in the stand-by mode and that any gas valves
supplying these burners remain closed;
 the burner or burners are not put into operation when the burner control system is in non-volatile
lock-out and that any gas valves supplying these burners remain closed;
 the burner or burners, when in remote operation, continue to operate safely or the burner(s) are shut
off by the burner control system.
5.5.3 Remote operation (type 2)
The appliance shall be supplied with the separate hand-operated control for remote operation of the burner or
burners.
The separate hand–operated control shall be designed and/or programmed by the manufacturer so as to
minimise the risk of its signals operating another appliance.
The appliance signal receiver shall be designed and/or programmed by the manufacturer so as to minimise
the risk of the appliance being operated by the hand-held controls for other appliances.
The separate hand-held control shall be so designed that operation of the appliance by means of this control
is only possible when the appliance is directly visible to an operator of the control who is present in the same
room as the appliance.
The separate hand-held control shall be so designed that:
 at least two distinct manual actions are required to start the operation of any burner (e.g. activation of
two different buttons) and
 the burner or burners can be shut off quickly by means of a single action if necessary.
5.5.4 Remote operation (type 1)
The appliance signal receiver/control system shall be provided with a unique recognition code or address and,
possibly, a password that has to be signalled to the appliance by the user in order to initiate remote operation.
Where a password is utilised this may be changed by the user but only after the existing password has been
entered and recognised by the appliance control system.
The appliance signal receiver /control system shall be so designed that the duration of any remote operation
cycle is required to be set before the burner or burners can be operated, unless the burner or burners shut off
automatically at the end of a cycle or continuous operation of the burner or burners is not hazardous.
The appliance signal receiver/control system shall be designed so as to enable the user, when signalling the
appliance remotely:
 to shut off any burner which can be operated remotely and
 to cancel any remote operating programme.
6 Performance requirements
6.1 General
st
Replace the 1 paragraph with the following:
Unless specifically modified as described hereafter, the appliance shall comply with the requirements of 6.1 of
EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 which are applicable to them, any
verifications in the form of tests being carried out in accordance with Clause 7 of this standard, and not in
accordance with the corresponding subclause of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its
A3:2005.
nd
Replace the 2 sentence of the note with the following:
Additional or alternative performance requirements are given in EN 30-1-2:1999 and EN 30-1-3:2003 respectively.
6.1.1.1 Obtaining the nominal heat input
st st
Replace the 1 sentence of the 1 paragraph with the following:
6.1.2.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies to all burners without
automatic burner control systems.
6.1.1.2 Obtaining the reduced heat input
st st
Replace the 1 sentence of the 1 paragraph with the following:
6.1.2.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies to all burners without
automatic burner control systems.
6.1.2 Flame supervision devices
st st
Replace the 1 sentence of the 1 paragraph with the following:
6.1.3 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies to all burners without
automatic burner control systems.
6.1.3.1 Resistance to overheating
Replace the text with the following:
6.1.4.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is replaced with the following
text:
Resistance to overheating
6.1.4.1 of EN30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to all burners
except those with a fan for the supply of combustion air and/or for the evacuation of the products of
combustion.
6.1.3.2 Escape of unburnt gas
Replace the1st paragraph with the following:
6.1.4.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to all burners
except those with a fan for the supply of combustion air and/or for the evacuation of the products of
combustion.
6.2 Special requirements for hotplates
6.2.1 General
Replace the1st paragraph with the following:
Unless specifically modified as described hereafter, the appliance shall comply with the requirements of 6.2 of
EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 which are applicable to them, any
verifications in the form of tests being carried out in accordance with Clause 7 of this standard, and not in
accordance with the corresponding clause of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its
A3:2005.
nd
Replace the 2 sentence of the note with the following:
Additional or alternative performance requirements are given in EN 30-1-2:1999 and EN 30-1-3:2003 respectively.
6.2.2 Ignition, cross-lighting and flame stability
st st
Replace the 1 sentence of the 1 paragraph with the following:
6.2.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to hotplate burners
without automatic burner control systems.
6.2.3 Combustion
st st
Replace the 1 sentence of the 1 paragraph with the following:
6.2.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to hotplate burners
without automatic burner control systems when operating independently.
6.3 Special requirements for ovens and grills
6.3.1 General
st
Replace the1 paragraph with the following:
Unless specifically modified as described hereafter, the appliance shall comply with the requirements of 6.3 of
EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 which are applicable to them, any
verifications in the form of tests being carried out in accordance with Clause 7 of this standard, and not in
accordance with the corresponding clause of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its
A3:2005.
nd
Replace the 2 sentence of the note with the following:
Additional or alternative performance requirements are given in EN 30-1-2:1999 and EN 30-1-3:2003 respectively.
6.3.2 Ignition, cross-lighting and flame stability
st st
Replace the 1 sentence of the 1 paragraph with the following:
6.3.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to oven and grill
burners without automatic burner control systems.
6.3.3 Combustion
st st
Replace the 1 sentence of the 1 paragraph with the following:
6.3.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to oven and grill
burners without automatic burner control systems.
7.1 General
st
Replace the 1 paragraph with the following:
This clause modifies the general conditions of test given in EN 30-1-1:1998, its A1:1999, its
A2:2003/AC:2004 and its A3:2005 in order that they are suitable for appliances having one or more burners
with an automatic burner control system. These general conditions are to be applied even when references
are made in Clause 7 of this standard to the methods of test given in EN 30-1-1:1998, its
A1:1999, its A2:2003/AC:2004 and its A3:2005.
nd nd
Replace the 2 sentence of the 2 paragraph with the following:
Where appropriate, references to EN 30-1-2:1999 and to EN 30-1-3:2003 have been included.
7.1.1.1. Characteristics of the test gases
Replace the text with the following:
7.1.1.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.1.1.2 Practical methods of test
Replace the text with the following:
7.1.1.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.1.2 Test pressures
Replace the text with the following:
7.1.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.1.3.1 Adjustment of the burner
st
Replace the 1 paragraph with the following:
7.1.3.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is replaced with the following:
7.1.3.1.2 Burners without gas rate adjusters
st
Replace the 1 paragraph with the following:
7.1.3.1.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.1.3.1.3 Pressure corrections
st
Replace the 1 paragraph with the following:
7.1.3.1.3 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is replaced with the following:
7.1.3.2 Test installation
st
Replace the 1 paragraph with the following:
7.1.3.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies with the following
addition.
7.1.4.1 Pans
st
Replace the 1 paragraph with the following:
7.1.4 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies to all appliances except
those equipped with a glass ceramic hotplate.
nd
Replace the 2 paragraph with the following:
7.1.4 of EN 30-1-3:2003 applies to appliances having a glass ceramic hotplate.
7.1.5.1 Conventional ovens and grills
Replace the text with the following:
7.1.5 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies to conventional ovens and
grills having controls that require rotation, or a sliding action, for their operation.
7.1.5 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 also applies to conventional ovens
and grills having touch controls but, in this case, adjustment of the oven and grill temperatures is achieved by
manipulation of the touch controls for the burner concerned.
7.1.6 Appliances having a mains electrical supply
Replace the text with the following:
7.1.6 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.2.1 General
st
Replace the 1 paragraph with the following:
This subclause modifies the methods of test for construction given in EN 30-1-1:1998, its A1:1999, its
A2:2003/AC:2004 and its A3:2005 in order that they are suitable for appliances having one or more burners
with an automatic burner control system.
nd
Replace the 2 sentence of the note with the following:
Additional or alternative methods of test are given in EN 30-1-2:1999 and EN 30-1-3:2003 respectively.
7.2.2 Strength
Replace the text with the following:
7.2.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.2.3 Strength, stability
Replace the text with the following:
7.2.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.2.4.1 Examination of the construction
st
Replace the 1 paragraph with the following:
7.2.3.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to parts of the
appliance having burners not equipped with automatic burner control systems.
Replace the note with the following:
NOTE 7.2.3.1 of EN 30-1-2:1999 and EN 30-1-3:2003 give additional or alternative testing criteria appropriate to
appliances having forced-convection ovens and/or grills and those having glass ceramic hotplates.
7.2.4.2 Test
Replace the text with the following:
7.2.3.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.2.5 Fragmentation test for principal components made from toughened soda-lime glass
Replace the text with the following:
7.2.4 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.2.6 Appliances with a glass lid having a device for shutting off the gas to the hotplate burners
Replace the text with the following:
7.2.5 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.2.7 Food hygiene in time controlled ovens
Replace the text with the following:
7.2.6 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.3.1 General
st
Replace the 1 paragraph with the following:
This subclause of the standard modifies the methods of test for verification of the operational requirements
given in EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 in order that they are suitable for
appliances having one or more burners with an automatic burner control system.
nd
Replace the 2 sentence of the note with the following:
Additional or alternative methods of test are given in EN 30-1-2:1999 and EN 30-1-3:2003 respectively.
7.3.1.1 Soundness - Durability of the method of sealing the gas circuit
Replace the text with the following:
7.3.1.1 of EN 30-1-1:1998, its A1:1999, its A2:2003 /AC:2004 and its A3:2005 applies.
7.3.1.2.1 Obtaining the nominal heat input
st
Replace the1 paragraph and note with the following:
7.3.1.2.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to burners not
equipped with automatic burner control systems.
NOTE 7.3.1.2.1 of EN 30-1-2:1999 and EN 30-1-3:2003 give additional or alternative testing criteria appropriate to
appliances having forced-convection ovens and/or grills and those having glass ceramic hotplates.
7.3.1.2.2 Obtaining the reduced rate
st
Replace the1 paragraph with the following:
7.3.1.2.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to burners not
equipped with automatic burner control systems.
7.3.1.3 Flame supervision device
st
Replace the1 paragraph with the following:
7.3.1.3 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to burners not
equipped with automatic burner control systems.
7.3.1.4.1 Resistance to overheating
st
Replace the1 paragraph and note with the following:
7.3.1.4.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to all burners
except those with a fan for the supply of combustion air and/or for the evacuation of the products of
combustion.
NOTE In accordance with EN 30-1-3:2003, this test is not applied to glass ceramic hotplate burners. 7.3.1.4 of
EN 30-1-2:1999 gives alternative testing criteria appropriate to appliances having forced-convection ovens and/or grills.
7.3.1.4.2 Escape of unburnt gas
st
Replace the1 paragraph and note with the following:
7.3.1.4.2 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to all burners
except those with a fan for the supply of combustion air and/or for the evacuation of the products of
combustion.
NOTE: In accordance with EN 30-1-3: 2003, this test is not applied to glass ceramic hotplate burners. 7.3.1.4.2 of
EN 30-1-2:1999 gives additional or alternative testing criteria appropriate to appliances having forced-convection ovens
and/or grills.
7.3.1.5 Heating
s
Replace the1 t paragraph and note with the following:
7.3.1.5 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
NOTE 7.3.1.5 of EN 30-1-2:1999 and EN 30-1-3:2003 give additional or alternative testing criteria appropriate to
appliances having forced-convection ovens and/or grills and those having glass ceramic hotplates.
7.3.1.6 Overheating of the third family gas cylinder and its compartment
st
Replace the1 paragraph with the following:
7.3.1.6 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 applies.
7.3.1.7 Total rate of the appliance
th
Replace the 5 paragraph with the following:
It is verified that the requirements of 6.1.7 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its
A3:2005 are satisfied by the air rates measured.
7.3.1.8 Regulator performance
th
Replace the 5 paragraph and the note with the following:
It is checked that the requirements of 6.1.8 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its
A3:2005 are satisfied.
NOTE 7.3.1.8 of EN 30-1-2:1999 and EN 30-1-3:2003 give additional or alternative testing criteria appropriate to
appliances having forced-convection ovens and/or grills and those having glass ceramic hotplates.
7.3.2.1 Ignition, cross-lighting, flame stability
Replace the text with the following:
7.3.2.1 of EN 30-1-1:1998, its A1:1999, its A2:2003/AC:2004 and its A3:2005 is applicable to burners not
equipped with an automatic burner control system.
NOTE 7.3.2.1 of EN 30-1-2:1999 and EN 30-1-3:2003 give additional or alternative testing criteria appropriate to
appliances having forced-convection ovens and/or grills and those having
...
