EN 15382:2013

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Geosynthetische Dichtungsbahnen - Eigenschaften, die für die Anwendung in Verkehrsbauten erforderlich sindBarrières géosynthétiques - Caractéristiques requises pour l'utilisation dans l'infrastructure des voies de transportGeosynthetic barriers - Characteristics required for use in transportation infrastructure93.080.20Materiali za gradnjo cestRoad construction materials59.080.70GeotekstilijeGeotextilesICS:Ta slovenski standard je istoveten z:EN 15382:2013SIST EN 15382:2013en,de01-september-2013SIST EN 15382:2013SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15382
July 2013 ICS 59.080.70; 93.080.20 Supersedes EN 15382:2008English Version
Geosynthetic barriers - Characteristics required for use in transportation infrastructure
Barrières géosynthétiques - Caractéristiques requises pour l'utilisation dans l'infrastructure des voies de transport
Geosynthetische Dichtungsbahnen - Eigenschaften, die für die Anwendung in Verkehrsbauten erforderlich sind This European Standard was approved by CEN on 16 May 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15382:2013: ESIST EN 15382:2013

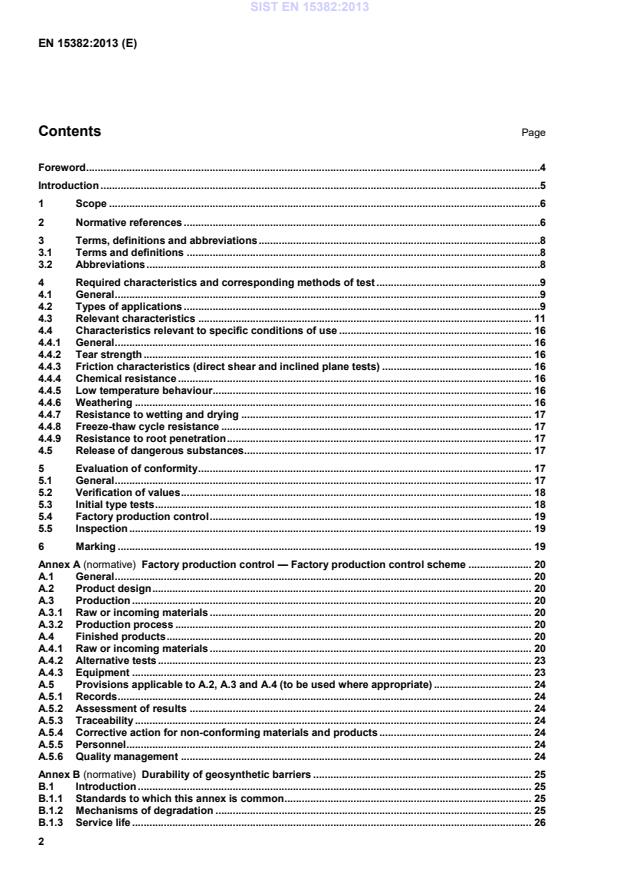

2 Contents Page Foreword .4 Introduction .5 1 Scope .6 2 Normative references .6 3 Terms, definitions and abbreviations .8 3.1 Terms and definitions .8 3.2 Abbreviations .8 4 Required characteristics and corresponding methods of test .9 4.1 General .9 4.2 Types of applications .9 4.3 Relevant characteristics . 11 4.4 Characteristics relevant to specific conditions of use . 16 4.4.1 General . 16 4.4.2 Tear strength . 16 4.4.3 Friction characteristics (direct shear and inclined plane tests) . 16 4.4.4 Chemical resistance . 16 4.4.5 Low temperature behaviour . 16 4.4.6 Weathering . 16 4.4.7 Resistance to wetting and drying . 17 4.4.8 Freeze-thaw cycle resistance . 17 4.4.9 Resistance to root penetration . 17 4.5 Release of dangerous substances . 17 5 Evaluation of conformity . 17 5.1 General . 17 5.2 Verification of values . 18 5.3 Initial type tests . 18 5.4 Factory production control . 19 5.5 Inspection . 19 6 Marking . 19 Annex A (normative)
Factory production control — Factory production control scheme . 20 A.1 General . 20 A.2 Product design . 20 A.3 Production . 20 A.3.1 Raw or incoming materials . 20 A.3.2 Production process . 20 A.4 Finished products . 20 A.4.1 Raw or incoming materials . 20 A.4.2 Alternative tests . 23 A.4.3 Equipment . 23 A.5 Provisions applicable to A.2, A.3 and A.4 (to be used where appropriate) . 24 A.5.1 Records . 24 A.5.2 Assessment of results . 24 A.5.3 Traceability . 24 A.5.4 Corrective action for non-conforming materials and products . 24 A.5.5 Personnel . 24 A.5.6 Quality management . 24 Annex B (normative)
Durability of geosynthetic barriers . 25 B.1 Introduction . 25 B.1.1 Standards to which this annex is common . 25 B.1.2 Mechanisms of degradation . 25 B.1.3 Service life . 26 SIST EN 15382:2013

3 B.1.4 Use of rework materials . 26 B.2 Test requirements . 26 B.2.1 General requirement . 26 B.2.2 Requirements for repeat testing . 26 B.2.3 Requirements for individual materials . 27 B.3 Durability tests . 28 B.3.1 Introduction . 28 B.3.2 Weathering . 28 B.3.3 Resistance to micro-organisms . 30 B.3.4 Resistance to environmental stress cracking . 30 B.3.5 Resistance to leaching . 30 B.3.6 Resistance to oxidation . 31 B.3.7 Chemical resistance . 31 B.4 Evaluation tests and acceptance criteria . 31 B.4.1 General. 31 B.4.2 Evaluation by comparison of tensile properties . 31 B.4.3 Evaluation by comparison of Oxidative Induction Time (OIT) values . 32 B.4.4 Evaluation by change in mass . 32 B.4.5 Evaluation by change in water permeability . 32 Annex C (informative)
Major technical changes to previous edition . 33 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive . 34 ZA.1 Scope and relevant characteristics . 34 ZA.2
Procedure for the attestation of conformity for geosynthetic barriers used in transportation infrastructure . 35 ZA.2.1 Systems of attestation of conformity . 35 ZA.2.2 Certificate and declaration of conformity . 36 ZA.3 CE marking and labelling . 37 Bibliography . 41
4 Foreword This document (EN 15382:2013) has been prepared by Technical Committee CEN/TC 189 “Geosynthetics”, the secretariat of which is held by NBN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2014, and conflicting national standards shall be withdrawn at the latest by January 2014. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 15382:2008. Annex C provides details of significant technical changes between this European Standard and the previous edition. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive. For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
5 Introduction This European Standard allows manufacturers to describe geosynthetic barriers on the basis of declared values for characteristics relevant to the intended use and if tested to the specified method. It also includes procedures for evaluation of conformity and factory production control. This European Standard may also be used by designers, end-users and other interested parties as a tool to define relevant and appropriate characteristics for specifications and on-site quality control. It should be emphasised however that not all characteristics and test methods quoted in this European Standard are suitable for the purpose of on-site quality control.
Tests for several non-mandated characteristics are still under study and will be included when the standard is revised. The term “product” used in this standard refers to a geosynthetic barrier, including polymeric geosynthetic barriers, clay geosynthetic barriers and bituminous geosynthetic barriers. This European Standard is part of a group of standards, addressing the requirements for geosynthetic barriers when used in a specific application.
Particular application cases may contain requirements about additional properties and – preferably standardised – test methods, if they are technically relevant and not conflicting with European Standards.
The design life of the product should be determined, since its function may be temporary, as a construction expediency, or permanent, for the lifetime of the structure.
1 Scope This European Standard specifies the relevant characteristics of geosynthetic barriers (polymeric, clay and bituminous geosynthetic barriers), used as fluid barriers in infrastructure works, e.g. roads, railroads, runways of airports, and the appropriate test methods to determine these characteristics. Tunnels and underground structures are addressed in EN 13491. The intended use of these products is to control the pathway of liquids through the construction and to limit any contamination, e.g. by de-icing products, of groundwater or water sources. This European Standard is applicable to geosynthetic barriers, but not to geotextiles or geotextile-related products, as defined in EN ISO 10318. This European Standard provides for the evaluation of conformity of the product to this European Standard. This European Standard defines requirements to be met by manufacturers and their authorised representatives with regard to the presentation of product properties.
This European Standard does not cover applications where the geosynthetic barrier will be in contact with water that has been treated for human consumption. In these cases other relevant standards, requirements and/or regulations should be observed. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 495-5, Flexible sheets for waterproofing — Determination of foldability at low temperature — Part 5: Plastic and rubber sheets for roof waterproofing EN 1109, Flexible sheets for waterproofing — Bitumen sheets for roof waterproofing — Determination of flexibility at low temperature EN 1844, Flexible sheets for waterproofing — Determination of resistance to ozone — Plastic and rubber sheets for roof waterproofing EN 1849-1, Flexible sheets for waterproofing — Determination of thickness and mass per unit area — Part 1: Bitumen sheets for roof waterproofing EN 1849-2, Flexible sheets for waterproofing — Determination of thickness and mass per unit area — Part 2: Plastic and rubber sheets EN 12224, Geotextiles and geotextile-related products — Determination of the resistance to weathering EN 12225, Geotextiles and geotextile-related products — Method for determining the microbiological resistance by a soil burial test EN 12310-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for waterproofing — Determination of resistance to tearing (nail shank) EN 12311-1, Flexible sheets for waterproofing — Part 1: Bitumen sheets for roof waterproofing — Determination of tensile properties EN 12311-2, Flexible sheets for waterproofing — Determination of tensile properties — Part 2: Plastic and rubber sheets for roof waterproofing EN 13361, Geosynthetic barriers — Characteristics required for use in the construction of reservoirs and dams SIST EN 15382:2013

7 EN 13362, Geosynthetic barriers — Characteristics required for use in the construction of canals EN 13491, Geosynthetic barriers — Characteristics required for use as a fluid barrier in the construction of tunnels and underground structures EN 13492, Geosynthetic barriers — Characteristics required for use in the construction of liquid waste disposal sites, transfer stations or secondary containment EN 13493, Geosynthetic barriers — Characteristics required for use in the construction of solid waste storage and disposal sites EN 14150, Geosynthetic barriers — Determination of permeability to liquids EN 14196, Geosynthetics — Test methods for measuring mass per unit area of clay geosynthetic barriers EN 14414:2004, Geosynthetics — Screening test method for determining chemical resistance for landfill applications EN 14415, Geosynthetic barriers — Test method for determining the resistance to leaching CEN/TS 14416, Geosynthetic barriers — Test method for determining the resistance to roots CEN/TS 14417, Geosynthetic barriers — Test method for the determination of the influence of wetting-drying cycles on the permeability of clay geosynthetic barriers CEN/TS 14418, Geosynthetic barriers — Test method for the determination of the influence of freezing-thawing cycles on the permeability of clay geosynthetic barriers EN 14575, Geosynthetic barriers — Screening test method for determining the resistance to oxidation EN 14576, Geosynthetics — Test method for determining the resistance of polymeric geosynthetic barriers to environmental stress cracking EN 16416, Geosynthetic clay barriers — Determination of water flux index — Flexible wall permeameter method at constant head EN ISO 527-1:2012, Plastics — Determination of tensile properties — Part 1: General principles (ISO 527-1:2012) EN ISO 527-3:1995, Plastics — Determination of tensile properties — Part 3: Test conditions for films and sheets (ISO 527-3:1995) EN ISO 527-4:1997, Plastics — Determination of tensile properties — Part 4: Test conditions for isotropic and orthotopic fibre-reinforced plastic composites (ISO 527-4:1997) EN ISO 9862, Geosynthetics — Sampling and preparation of test specimens (ISO 9862) EN ISO 9863-1, Geosynthetics — Determination of thickness at specified pressures — Part 1: Single layers (ISO 9863-1) EN ISO 9864, Geosynthetics — Test method for the determination of mass per unit area of geotextiles and geotextile-related products (ISO 9864) EN ISO 10318:2005, Geosynthetics —Terms and definitions (IS0 10318:2005) EN ISO 10319, Geotextiles — Wide-width tensile test (ISO 10319) EN ISO 10320, Geotextiles and geotextile-related products — Identification on site (ISO 10320) EN ISO 12236, Geosynthetics — Static puncture test (CBR test) (ISO 12236) EN ISO 12957-1, Geosynthetics — Determination of friction characteristics — Part 1: Direct shear test (ISO 12957-1) SIST EN 15382:2013

8 EN ISO 12957-2, Geosynthetics — Determination of friction characteristics — Part 2: Inclined plane test (ISO 12957-2) EN ISO 13438:2004, Geotextiles and geotextile-related products — Screening test method for determining the resistance to oxidation (ISO 13438:2004) ISO 34-1:2010, Rubber, vulcanized or thermoplastic — Determination of tear strength — Part 1: Trouser, angle and crescent test pieces EN ISO 11357-6, Plastics — Differential scanning calorimetry (DSC) — Part 6: Determination of oxidation induction time (isothermal OIT) and oxidation induction temperature (dynamic OIT) (ISO 11357-6) ASTM D 696, Standard Test Method for Coefficient of Linear Thermal Expansion of Plastics Between -30°C and 30°C With a Vitreous Silica Dilatometer ASTM D 1434, Standard test method for determining gas permeability characteristics of plastic film and sheeting ASTM D 5890, Standard test method for swell index of clay mineral component of geosynthetic clay liners 3 Terms, definitions and abbreviations 3.1 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 10318:2005 and the following apply. 3.1.1 product geosynthetic barrier, including polymeric, bituminous and clay barriers 3.1.2 specification document in which the works, functions, specific conditions and required material property values of the geosynthetic barrier of use are described 3.1.3 infrastructure basic transportation system that is necessary for the operation of any kind of traffic 3.1.4 embankment shoulder
slope extending from the edge of a pavement to a linear ditch made of packed soil built above the natural ground 3.2 Abbreviations For the purposes of this document, the abbreviations given in EN ISO 10318:2005 and the following apply. GBR-P: polymeric geosynthetic barrier GBR-B:
bituminous geosynthetic barrier GBR-C:
clay geosynthetic barrier SIST EN 15382:2013

9 4 Required characteristics and corresponding methods of test 4.1 General
The main function of geosynthetic barriers used in these types of application is to control the pathway of liquids through the construction and to limit contamination of groundwater or water sources. Damage during installation has not been addressed in this document. 4.2 Types of applications The following types of application can be distinguished:  deep laying GBR on side slopes: application where the GBR is installed under the drainage collection system and covers the entire slope as well as the ditch area (see Figure 1);  high laying GBR on side slopes: application where the GBR is installed above the drainage collection system as a high laying sealing system and covers the opposite side slope of the road to prevent an overflow of the road surface run-off (see Figure 2);  deep laying GBR between two roads: application where the GBR is installed under the drainage collection system and covers the section between two roads, where a sealing is required (see Figure 3);
 high laying GBR between two roads: application where the GBR is installed above the drainage collection system as a high laying sealing system and covers the section between two roads where sealing is required (see Figure 4).
Key 1 pavement and/or track bed 2 rain water collection 3 geosynthetic barrier (GBR) 4 cover soil 5 fill soil 6 collection pipe 7 manhole Figure 1 — Deep laying GBR on side slopes SIST EN 15382:2013

Key 1 pavement and/or track bed 2 side embankment 3 geosynthetic barrier (GBR) 4 cover soil 5 sealing connection 6 collection pipe 7 manhole Figure 2 — High laying GBR on side slopes
Key 1 pavement and/or track bed 2 rain water collection 3 geosynthetic barrier (GBR) 4 cover soil 5 fill soil 6 collection pipe Figure 3 — Deep laying GBR between two roads SIST EN 15382:2013

Key 1 pavement and/or track bed 2 sealing connection 3 geosynthetic barrier (GBR) 4 cover soil 5 fill soil 6 manhole Figure 4 — High laying GBR between two roads 4.3 Relevant characteristics The characteristics and the test methods to be used are given in Table 1. The list of characteristics in Table 1 includes those relevant to all conditions of use and subject to regulation (H), those relevant to all conditions of use and not subject to regulation (A), and those relevant to specific conditions of use and not subject to regulation (S).
The functions and conditions of use, corresponding with the characteristics, marked with “S” in Table 1, are specified in 4.4.
The manufacturer shall provide the data based on the results of tests specified in this standard and where relevant, in accordance with 5.1. The manufacturer shall provide information on how functioning joints can be made. Where products are jointed in the factory the water permeability and, if relevant, the strength of the joints shall be tested and data presented. SIST EN 15382:2013

12 Table 1 — Geosynthetic barriers used in transportation infrastructure - Functions, function-related characteristics and test methods (including durability requirements)
Requirement Test methods Remarks No. Property to be tested GBR-P GBR-B GBR-C GBR-P GBR-B GBR-C
Physical properties 1 Thickness A A A EN 1849-2 EN 1849-1 EN ISO 9863-1
2 Mass per unit area A A A EN 1849-2 EN 1849-1 EN 14196
Hydraulic properties 3 Water permeability (liquid tightness)
H H H EN 14150 EN 14150 EN 16416
4 Swell Index - - A - - ASTM D 5890
Mechanical properties 5 Tensile strength
H H H EN ISO 527-1, EN ISO 527-3 EN ISO 527-4 or EN 12311-2 EN 12311-1 EN ISO 10319 For non reinforced GBR-P use EN ISO 527-1 and EN ISO 527-3:1995, test specimen type 5 at a speed of 100 mm/min. For reinforced GBR-P use EN ISO 527-1 and EN ISO 527-4:1997, specimen type 2 with width 50 mm, at a speed of 5 mm per minute. EN 12311-2 should only be used for non-polyolefinic GBR-P.
Report in all cases the maximum strength measured according to the test method
Requirement Test methods Remarks No. Property to be tested GBR-P GBR-B GBR-C GBR-P GBR-B GBR-C
6 Elongation A A A EN ISO 527-1, EN ISO 527-3 EN ISO 527-4 or EN 12311-2 EN 12311-1 EN ISO 10319 For non reinforced GBR-P use EN ISO 527-1 and EN ISO 527-3:1995, test specimen type 5 at a speed of 100 mm/min. For reinforced GBR-P use EN ISO 527-1 and EN ISO 527-4:1997, specimen type 2 with width 50 mm, at a speed of 5 mm per minute. Calculation of elongation as defined in EN ISO 527-1:2012, 10.2, using grip separation measurement. EN 12311-2 should only be used for non-polyolefinic GBR-P. 7 Static puncture H H H EN ISO 12236 EN ISO 12236 EN ISO 12236
8 Tear strength S S - ISO 34-1 EN 12310-1 - For GBR-P use ISO 34-1:2010, method B, angle specimen (Figure 2) without nick at a speed of 50 mm/min 9 Friction direct shear S S S EN ISO 12957-1 EN ISO 12957-1 EN ISO 12957-1
14 Table 1 (continued)
Requirement Test methods Remarks No. Property to be tested GBR-P GBR-B GBR-C GBR-P GBR-B GBR-C
Physical properties 10 Friction Inclined
Plane S
S
S
EN ISO 12957-2 EN ISO 12957-2 EN ISO 12957-2
Thermal properties 11 Low temp behaviour (flexure) S S - EN 495-5 EN 1109 -
12 Thermal expansion A - - ASTM D 696 - -
Durability and chemical resistance 13 Weathering H H - EN 12224 EN 12224 EN 12224 GBR-C: see 4.4.6 14 Micro organisms A A A EN 12225 EN 12225 EN 12225
15 Oxidation H H H EN 14575 EN 14575 EN ISO 13438
EN ISO 13438 is applicable for the geotextile elements and reinforcement yarns of GBR-C barriers
16 Environmental stress cracking H - H EN 14576
- EN 14576 EN 14576 is not applicable to GBR-P with a non-crystalline structure If GPR-P is greater 0,5 mm and less 1,0 mm the test EN 14576 shall be performed with the same composition at a thickness between 1,0 and 1,5 mm. In order to estimate exposure durability of thermoset elastomers, as non-crystalline materials cannot be tested following the environmental stress cracking test (EN 14576), the ozone stress cracking test shall be performed according to EN 1844 and evaluated with tensile strength measurements of the reference and the exposed specimen in accordance with B.4.1. SIST EN 15382:2013

Table 1 (concluded)
Requirement Test methods Remarks No. Property to be tested GBR-P GBR-B GBR-C GBR-P GBR-B GBR-C
17 Leaching (water soluble) A A A EN 14415 EN 14415
EN 14415
18 Wetting/drying - - A - - CEN/TS 14417
19 Freezing / thawing - - A
- - CEN/TS 14418
20 Root penetration A A A CEN/TS 14416 CEN/TS 14416 CEN/TS 14416
21 Chemical resistance S S S EN 14414, Annex B EN 14414, Annex B EN 14414, Annex B
Relevancy:
H: required for harmonisation;
A : relevant to all conditions of use; S : relevant to specific conditions of use;
-: not relevant
Particular application cases may call for additional requirements, e.g. due to specific design features or conditions of use. These additional requirements should be technically relevant and preferably be measured by standardised test methods, described in European or International Standards.
The design life of the product should be determined, since its function may be temporary, as a construction expediency, or permanent, for the lifetime of the structure.
In addition to the friction characteristics information on the internal bonding strength of GBR-C in the direction of the actual stress may be relevant. A shear (EN ISO 12957 and ASTM D 6243) or peel (EN ISO 13426-1 and EN ISO 13426-2 and/or ASTM D 6496 (for needle punched GBR-C)) test may be appropriate, particularly on slopes or in applications where shear stress may occur (i.e. during installation).
Site specific testing should be carried out to establish the friction characteristics between all the materials used.
4.4.4 Chemical resistance Depending on the application and the liquids involved, chemical testing according to EN 14414 may be applicable. 4.4.5 Low temperature behaviour Data on low temperature behaviour are required for applications where polymer and bituminous products may be exposed to low temperatures in storage, construction and use. Tests which set simple pass/fail criteria at a single temperature condition may not be appropriate for this purpose.
Prehydrated GBR-C should not be stored or installed when the ambient temperature is below 0° C. 4.4.6 Weathering Data on weathering (combined effects of cycles of wetting, temperature change, and exposure to UV light) are required for applications where a GBR-C will be exposed to weathering without adequate protective cover. It should be noted that in all normal situations GBR-C barriers should be covered with soil on the same working day or prior to any circumstances which could cause a hydration of the clay component. SIST EN 15382:2013

Resistance to wetting and drying
Data on the resistance of GBR-C to repeated wetting and drying is required when the conditions of use will subject the product to this sequence of actions. NOTE Installations close to the surface will always be subjected to drying periods. 4.4.8 Freeze-thaw cycle resistance
Data on the resistance of GBR-C to freeze/thaw is required when the conditions of use will subject the product to this sequence of actions. 4.4.9 Resistance to root penetration
Data on root penetration are required in all applications where the geosynthetic barrier is exposed to soils containing restorative vegetation.
NOTE 1 Slopes in infrastructure will usually be vegetated. Therefore an "A", as defined in 4.2, is recommended.
NOTE 2 Only applications underneath embankments of infrastructure or in the central area of multilane highways form an exception: no frost, no roots, no drying effects, no traffic loads after installation.
4.5 Release of dangerous substances National regulations on dangerous substances may require verification and declaration on release, and sometimes content, when construction products covered by this standard are placed on those markets. In the absence of European harmonised test methods, verification and declaration on release/content should be done taking into account national provisions in the place of use. NOTE An informative database covering European and national provisions on dangerous substances is available at the Construction web site on EUROPA accessed through: http://ec.europa.eu/enterprise/construction/cpd-ds/ 5 Evaluation of conformity 5.1 General The compliance of the geosynthetic barriers with the requirements of this European Standard and with the stated values shall be demonstrated by:  Initial type testing (5.3);  Factory production control (5.4) by the manufacturer, including product assessment. The characteristics specified in Table 2, except for durability, expressed as mean values and tolerance limit(s) corresponding to the 95 % confidence level, shall be provided by the manufacturer, based on the statistical interpretation of his internal quality control measurements. Physical examination or preliminary testing, according to one of the test methods referenced in Table 1, may indicate that values obtained for a product lie below (or above) the sensitivity threshold established for that test method. In these particular circumstances the manufacturer may declare a value as being less (or greater) than this sensitivity threshold value. Information about durability shall be expressed in accordance with Annex B. SIST EN 15382:2013

If the test result(s) for a particular characteristic is (are) within the tolerance limit(s) given by the manufacturer, the product is accepted as complying with respect to this characteristic. If the test result(s) for a particular characteristic is (are) outside the tolerance limit(s), specimens prepared from sample B shall be tested. If the test result(s) of the sample B specimens for the same characteristic are within the given tolerance limit(s), the product is accepted as complying with respect to that characteristic. If the test result(s) is (are) outside the tolerance limit(s), the product is not accepted. 5.3 Initial type tests Initial type tests shall be carried out by the manufacturer to define the values of the properties to be declared for the product to satisfy the requirements of this European Standard. Initial type tests shall also be carried out on existing products when a change in the basic materials or manufacturing procedures affects the declared properties or the use of a product. In these cases the appropriate initial type tests are those for the properties which are affected or need confirming and new properties introduced by a change of use. The tests to be conducted shall be reference tests as specified in this European Standard and shall be selected for the characteristics specified in Table 2, consistent with the product’s intended use: Table 2 — Characteristics required for initial type testing and evaluation of conformity Characteristica
Functions tensile strength fluid barrier static puncture (CBR test) fluid barrier liquid tightness fluid barrier durability fluid barrier a For the durability aspects of these characteristics, see Table 1, 4.4 and Annex B.
The results of initial type tests shall be recorded and be available for inspection. The sample for the type tests shall be drawn according to EN ISO 9862 from a normal production run using the materials and forming processes to be used for the full production process. The size of the sample shall be big enough to allow the determination of the characteristics specified in Table 2. Handmade samples, short trial batches and other development prototypes may be tested by the same methods, but shall not be used for establishing characteristic values in type tests.
The factory production control procedures shall consist of a system for the permanent internal control of the production of the products to ensure that such products comply with this standard and that the measured values conform with the declared values.
Annex A (normative) lists all the items that shall be considered to determine which is appropriate for the control exercised for a product. The manufacturer shall establish the applicable items and record them in his factory production control manual.
When relevant the procedure given in 5.2 shall be used to check the conformity of the product, for one or more of the characteristics. 5.5 Inspection
When required, inspection of the factory and of the factory production control shall be made on the provisions contained in 5.4 and Annex A. 6
Marking
The manufacturer shall clearly and indelibly mark the geosynthetic barrier with the information specified in EN ISO 10320. NOTE For CE Marking, see ZA.3. SIST EN 15382:2013

Factory production control – Factory production control scheme A.1 General The items to be addressed in the factory production control manual relating to the system of control determined from 5.4 are given in Annex A. A.2 Product design The manufacturer shall describe how design requirements and criteria are identified, checked, controlled and updated to be unambiguous and relevant to the use of the product and its specification. The manufacturer shall describe the communication of the design to the internal production departments or external sub-contractors. A.3 Production A.3.1 Raw or incoming materials The manufacturer shall define the acceptance criteria of incoming materials and the procedures that he operates to ensure that these are met. A.3.2 Production process
The relevant features of the plant and production process shall be defined giving the frequency of the inspections, checks and tests, together with the values or criteria required both on equipment and on work in the process. The action to be taken when control values or criteria are not obtained shall be recorded. These records shall be available for inspection by relevant parties. A.4 Finished products A.4.1 Raw or incoming materials The manufacturer shall define the acceptance criteria of incoming materials and the procedures that he operates to ensure that these are met. Tables A.1 to A.3 specify testing frequencies for harmonised (mandatory) properties; for other purposes than CE-marking other frequencies may be appropriate.
...
