EN ISO 13137:2013

SLOVENSKI STANDARD
01-julij-2014
1DGRPHãþD
SIST EN 1232:1999
SIST EN 12919:2000
=UDNQDGHORYQHPPHVWXýUSDONH]DRVHEQRY]RUþHQMHNHPLþQLKLQELRORãNLK
DJHQVRY=DKWHYHLQSUHVNXVQHPHWRGH,62
Workplace atmospheres - Pumps for personal sampling of chemical and biological
agents - Requirements and test methods (ISO 13137:2013)
Arbeitsplatzatmosphäre - Pumpen für die personenbezogene Probenahme von
chemischen und biologischen Arbeitsstoffen - Anforderungen und Prüfverfahren (ISO
13137:2013)
Air des lieux de travail - Pompes pour le prélèvement individuel des agents chimiques et
biologiques - Exigences et méthodes d'essai (ISO 13137:2013)
Ta slovenski standard je istoveten z: EN ISO 13137:2013
ICS:
13.040.30 Kakovost zraka na delovnem Workplace atmospheres
mestu
23.080 ýUSDONH Pumps
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 13137
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2013
ICS 13.040.30 Supersedes EN 1232:1997, EN 12919:1999
English Version
Workplace atmospheres - Pumps for personal sampling of
chemical and biological agents - Requirements and test
methods (ISO 13137:2013)
Air des lieux de travail - Pompes pour le prélèvement Arbeitsplatzatmosphäre - Pumpen für die
individuel des agents chimiques et biologiques - Exigences personenbezogene Probenahme von chemischen und
et méthodes d'essai (ISO 13137:2013) biologischen Arbeitsstoffen - Anforderungen und
Prüfverfahren (ISO 13137:2013)
This European Standard was approved by CEN on 28 September 2013.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 13137:2013: E
worldwide for CEN national Members.

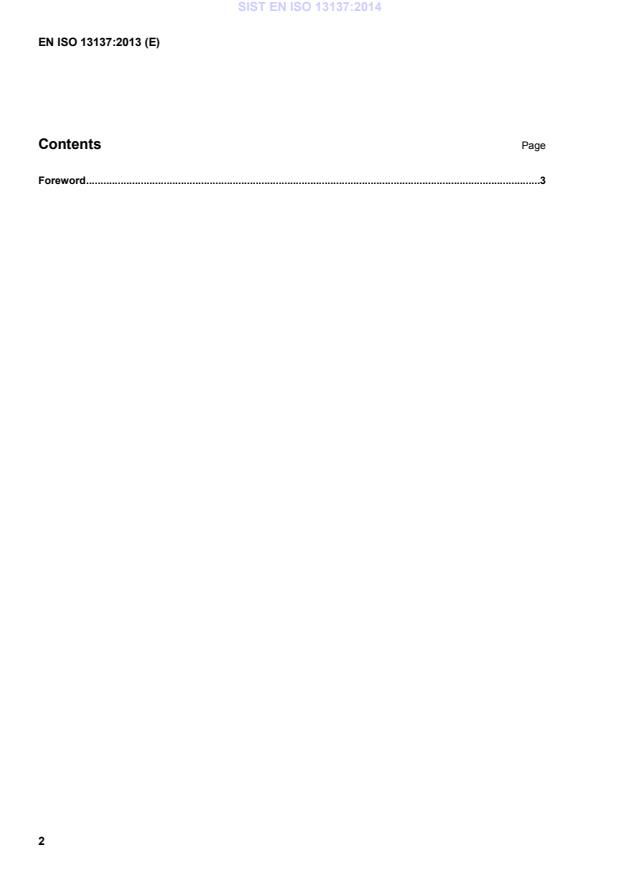

Contents Page
Foreword .3

Foreword
This document (EN ISO 13137:2013) has been prepared by Technical Committee ISO/TC 146 "Air quality" in
collaboration with Technical Committee CEN/TC 137 “Assessment of workplace exposure to chemical and
biological agents” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2014, and conflicting national standards shall be withdrawn at the
latest by April 2014.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1232:1997, EN 12919:1999.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Endorsement notice
The text of ISO 13137:2013 has been approved by CEN as EN ISO 13137:2013 without any modification.
INTERNATIONAL ISO
STANDARD 13137
First edition
2013-10-15
Workplace atmospheres — Pumps for
personal sampling of chemical and
biological agents — Requirements
and test methods
Air des lieux de travail — Pompes pour le prélèvement individuel des
agents chimiques et biologiques — Exigences et méthodes d’essai
Reference number
ISO 13137:2013(E)
©
ISO 2013
ISO 13137:2013(E)
© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

ISO 13137:2013(E)
Contents Page
Foreword .v
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Types of pump . 3
5 Requirements . 3
5.1 Features . 3
5.2 Mass . 3
5.3 Design safety . 4
5.4 Operating time. 4
5.5 Start-up and long-term performance . 4
5.6 Short-term interruption of air flow . . 4
5.7 Temperature dependence. 4
5.8 Mechanical strength . 5
5.9 Pulsation of flow rate (for type P pumps only) . 5
5.10 Flow rate stability under increasing pressure drop . 5
5.11 Timer accuracy. 5
5.12 Electromagnetic compatibility . 5
5.13 Explosion hazard . 6
6 Test conditions . 6
6.1 Number of test objects . 6
6.2 Test instruments . 6
6.3 Preconditioning and sequence of tests . 7
6.4 Adjustment of volume flow rate and pressure drop . 7
6.5 Test set-up and performance . 7
7 Test methods . 8
7.1 Features . 8
7.2 Mass . 8
7.3 Design safety . 8
7.4 Operating time. 8
7.5 Start-up and long-term performance . 8
7.6 Short-term interruption of air flow . . 9
7.7 Temperature dependence.10
7.8 Mechanical strength .11
7.9 Pulsation of flow rate (for type P pumps only) .12
7.10 Flow rate stability under increasing pressure drop .14
7.11 Timer accuracy.15
7.12 Electromagnetic compatibility .15
7.13 Explosion hazard .15
8 Test report .15
9 Instructions for use .16
10 Charger .16
10.1 Requirements .16
10.2 Testing .16
11 Marking .17
Annex A (informative) Types of pump mechanism and control system
.......................................................................18
Annex B (informative) Internal sensors of sampling pumps .21
ISO 13137:2013(E)
Annex C (informative) User tests for pumps and flow meters .23
Annex D (informative) Pressure drop due to collection substrates .26
Annex E (informative) Test instruments .30
Bibliography .31
iv © ISO 2013 – All rights reserved

ISO 13137:2013(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2, www.iso.org/directives.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received, www.iso.org/patents.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
The committee responsible for this document is ISO/TC 146, Air quality, Subcommittee SC 2,
Workplace atmospheres.
ISO 13137:2013(E)
Introduction
Many different methods are used to determine the concentration of chemical and biological agents in
workplace air. Many of these methods involve the use of a pump and sampler connected by a flexible
tube. Air is drawn through the sampler and chemical and biological agents are trapped, e.g. on a filter,
sorbent tube or long-term detector tube, or in a gas washing bottle. In personal sampling, the pump and
sampler are attached to the worker so as to collect chemical and biological agents in the breathing zone.
The volume of air drawn by the pump during the sampling period is one of the quantities in the calculation
of the concentration of the chemical and biological agents in air. Therefore, the volume of air sampled
should be determined accurately and, in order to facilitate this, the flow rate should be maintained
within acceptable limits throughout the sampling period. For particle size selective sampling, the short-
term fluctuation of the flow rate should also be maintained within acceptable limits in order to ensure
that the sampler exhibits the required collection characteristics.
[1]
EN 482 specifies general performance criteria for methods for measuring the concentration of
chemical and biological agents in workplace air. These performance criteria include maximum values of
expanded uncertainty that are not to be exceeded under prescribed laboratory conditions. In addition,
the performance criteria should also be met under a wider variety of environmental influences,
representative of workplace conditions. The contribution of the sampling pump to measurement
uncertainty should be kept to a minimum.
This International Standard is intended to enable manufacturers and users of personal sampling pumps to
adopt a consistent approach to, and provide a framework for, the assessment of the specified performance
criteria. Manufacturers are urged to ensure that pumps meet the requirements laid down in this
International Standard, including environmental influences which can be expected to affect performance.
vi © ISO 2013 – All rights reserved

INTERNATIONAL STANDARD ISO 13137:2013(E)
Workplace atmospheres — Pumps for personal sampling
of chemical and biological agents — Requirements and test
methods
1 Scope
This International Standard specifies performance requirements for battery powered pumps used for
personal sampling of chemical and biological agents in workplace air. It also specifies test methods in order
to determine the performance characteristics of such pumps under prescribed laboratory conditions.
This International Standard is applicable to battery powered pumps having a nominal volume flow rate
−1
above 10 ml ⋅ min , as used with combinations of sampler and collection substrate for sampling of
gases, vapours, dusts, fumes, mists and fibres.
This International Standard is primarily intended for flow-controlled pumps.
2 Normative references
The following referenced documents, in whole or in part, are normatively referenced in this document
and are indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
IEC 60079-0, Explosive atmospheres — Part 0: Equipment — General requirements
IEC 61000-6-1, Electromagnetic compatibility (EMC) — Part 6-1: Generic standards — Immunity for
residential, commercial and light-industrial environments
IEC 61000-6-3, Electromagnetic compatibility (EMC) — Part 6-3: Generic standards — Emission standard
for residential, commercial and light-industrial environments
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
biological agent
bacteria, viruses, fungi and other micro-organisms or parts of them and their associated toxins, including
those which have been genetically modified, cell cultures or endoparasites which are potentially
hazardous to human health
Note 1 to entry: Dusts of organic origin, e.g. pollen, flour dust and wood dust, are not considered to be biological
agents and are therefore not covered by this definition.
[SOURCE: EN 1540:2011, definition 2.1.1]
3.2
chemical agent
any chemical element or compound on its own or admixed as it occurs in the natural state or as produced,
used, or released, including release as waste, by any work activity, whether or not produced intentionally
and whether or not placed on the market
[SOURCE: EN 1540:2011, definition 2.1.2]
ISO 13137:2013(E)
3.3
airborne particles
fine matter, in solid or liquid form, dispersed in air
Note 1 to entry: Smoke, fume, mist and fog consist of airborne particles.
[SOURCE: EN 1540:2011, definition 2.2.3]
3.4
air sampler
sampler
device for separating chemical and/or biological agents from the surrounding air
Note 1 to entry: Air samplers are generally designed for a particular purpose, e.g. for sampling gases and vapours
or for sampling airborne particles.
[SOURCE: EN 1540:2011, definition 3.2.1, modified — synonyms placed on separate lines]
3.5
personal sampler
sampler, attached to a person, that collects gases, vapours or airborne particles in the breathing zone to
determine exposure to chemical and/or biological agents
[SOURCE: EN 1540:2011, definition 3.2.2]
3.6
personal sampling
process of (air) sampling carried out using a personal sampler
[SOURCE: EN 1540:2011, definition 3.3.3]
3.7
breathing zone
space around the nose and mouth from which breath is taken
Note 1 to entry: Technically the breathing zone corresponds to a hemisphere (generally accepted to be 30 cm
in radius) extending in front of the human face, centred on the midpoint of a line joining the ears. The base of
the hemisphere is a plane through this line, the top of the head and the larynx. This technical description is not
applicable when respiratory protective equipment is used.
[SOURCE: EN 1540:2011, definition 2.4.5]
3.8
sorbent tube
device, usually made of metal or glass, containing a collection substrate such as a sorbent or a support
impregnated with reagent
Note 1 to entry: Some sorbent tubes are intended for use as active samplers and some as passive samplers.
[SOURCE: EN 1540:2011, definition 3.2.5]
3.9
pressure drop
difference between ambient pressure and the pressure at the inlet of the pump, for a
constant volume flow rate setting
Note 1 to entry: The pressure drop, sometimes referred to as back pressure, is measured across the sampler, the
collection substrate and the tubing.
3.10
flow-controlled pump
pump with nominally constant flow rate provided by an automatic flow control system
2 © ISO 2013 – All rights reserved

ISO 13137:2013(E)
3.11
nominal flow rate range
range of volume flow rate values, adjustable at the pump, at which the manufacturer claims that the
pump can operate at a constant flow rate up to the maximum value of the required pressure drop range
for the operating time
3.12
operating time
period during which the pump can be operated at specified flow rate and pressure drop without
recharging or replacing the battery
3.13
pulsation
short-term relative variation of volume flow rate at a given flow rate
4 Types of pump
Sampling pumps are classified according to their intended use as follows:
— type P: pumps for personal sampling of airborne particles;
— type G: pumps for personal sampling of gases and vapours.
NOTE 1 Type P pumps can be used for personal sampling of gases and vapours as long as they comply with the
type G pump requirements.
NOTE 2 For types of pump mechanism and control system. see Annex A.
5 Requirements
5.1 Features
The pump shall have the following features:
a) an automatic control which keeps the volume flow rate nominally constant;
b) a means to reduce the likelihood of unintentional or unauthorized adjustment of any pump control,
such that it is concealed beneath a cover, can only be actuated with the aid of a tool or requires
specialized knowledge for operation;
c) either a malfunction indicator which, following completion of sampling, indicates that the air flow
has been reduced or interrupted during sampling, or an automatic cut-out which stops the pump if
the flow rate is reduced or interrupted;
d) a fuse or resettable breaker which interrupts the current in the electrical circuit of the pump in the
case of excessive current drain;
e) a filter which prevents particles from being drawn into the mechanism of the pump;
f) a means to secure the pump on a person (integrated or available as an accessory).
NOTE Some pumps use internal sensors to provide atmospheric, pressure and air flow data. Information on
the use of these sensors is given in Annex B.
5.2 Mass
The mass of the pump, including batteries and integral holders, shall not exceed 1,2 kg for sampling
−1
pumps with a flow rate of less or equal than 5 l ⋅ min and 2,5 kg for sampling pumps with a flow rate
−1
above 5 l ⋅ min .
ISO 13137:2013(E)
5.3 Design safety
The outer case of the pump shall be so designed that there are no sharp corners or other uncomfortable
protruding parts.
5.4 Operating time
The operating time shall be at least 1 h and should preferably be greater than 8 h. This applies to the
complete nominal flow rate range against the pressure drops as specified in Table 4 at (5 ± 2) °C.
NOTE The capacity of a battery increases with temperature. Therefore, the test is performed towards the
lower end of the temperature range in which the pump is likely to be used.
For the duration of the operating time, the flow rate shall not deviate by more than 5 % from the initial value.
The manufacturer shall report, in the instructions for use, the operating time at the specified pressure
drop according to 5.10 for the flow rates given in Table 1 at (5 ± 2) °C.
Table 1 — Flow rates for reporting by the manufacturer of the operating time
Nominal flow rate range Flow rate setting
Pump type
−1 −1
ml ⋅ min ml ⋅ min
2 000
≤5 000
Maximum value of the nominal flow
rate range of the pump
P
Minimum value of the nominal flow
rate range of the pump
>5 000
Maximum value of the nominal flow
rate range of the pump
≤300
Maximum value of the nominal flow
rate range of the pump
G
>300
Maximum value of the nominal flow
rate range of the pump
NOTE For regular user tests to maintain pumps and flow meters, see Annex C.
5.5 Start-up and long-term performance
During operation of the pump at (5 ± 2) °C and in the range from 20 °C to 25 °C, the flow rate shall not deviate
by more than 5 % from the value measured at the start of the determination of the long-term performance.
5.6 Short-term interruption of air flow
When the air flow is fully blocked, the pump shall cut out or the malfunction indicator activate. The
pump may try to restart automatically after the airflow is becoming blocked. If the air flow is blocked
for more than (120 ± 10) s, the pump shall not restart automatically or the malfunction indicator shall
remain activated until reset.
5.7 Temperature dependence
When the flow rate is set within the temperature range from 20 °C to 25°C in accordance with 7.7, it shall
not deviate by more than 5 % after cooling down the sampling train to (5 ± 2) °C within about 2 h and
running for a period of (60 ± 1) min when the temperature is changed to the next (fixed) value within
the range from 5 °C to 40 °C as stated in 7.7.3.
4 © ISO 2013 – All rights reserved

ISO 13137:2013(E)
5.8 Mechanical strength
The general function of the pump shall not be impaired by shock treatment (see 7.8). No mechanical
damage or electrical defect shall occur.
After shock treatment, the flow rate measured shall not deviate by more than 5 % from the value
measured prior to shock treatment.
5.9 Pulsation of flow rate (for type P pumps only)
For type P pumps, the pulsation shall not exceed 10 % of the flow rate.
By recording the time curve of the flow rate the pulsation P is given by Formula (1):
T
 
ft − ftd
()
 
∫
T
P = ×100 (1)
f
where
−1
f(t) is the volume flow rate over time t, in litre per minute (l ⋅ min ), calculated from the meas-
urement of velocity;
−1
is the mean volume flow rate over time T, calculated in litre per minute (l ⋅ min ), from the
f
measurement of velocity;
t is the time, in seconds (s);
T is the time period of pulsation, in seconds (s).
The quantity f(t) is not necessarily the absolute air flow, but shall have a direct linear relationship to
the flow rate.
NOTE P can be measured in several ways. See 7.9 for examples.
5.10 Flow rate stability under increasing pressure drop
−1
5.10.1 Pumps with a nominal flow rate range less or equal than 5 000 ml · min
When set within the nominal flow rate range of the pump, the flow rate shall not deviate by more than
±5 % from the initial value on changing the pressure drop within the range specified in Table 2.
−1
5.10.2 Pumps with a nominal flow rate range above 5 000 ml · min
When set within the nominal flow rate range of the pump, the flow rate shall not deviate by more than
±5 % from the initial value on changing the pressure drop within the nominal pressure drop range
specified by the pump manufacturer.
5.11 Timer accuracy
If the pump has an internal timer, the indicated time shall not deviate by more than ±0,5 % from that of
a calibrated timer.
5.12 Electromagnetic compatibility
The pump shall meet the requirements for electromagnetic compatibility according to IEC 61000-6-1
and IEC 61000-6-3.
ISO 13137:2013(E)
5.13 Explosion hazard
If the pump is claimed to be suitable for use in areas subject to explosion hazard, the pump shall comply
with the requirements of IEC 60079-0.
Table 2 — Required pressure drop range
Adjusted flow rate Required pressure drop range
Pump type
−1
ml ⋅ min kPa
1 000 0,1 to 4,0
2 000 0,3 to 4,0
P 3 000 0,4 to 4,0
4 000 0,6 to 5,0
5 000 0,7 to 6,25
10 0,02 to 0,2
50 0,1 to 1,2
100 0,2 to 2,6
G
200 0,5 to 6,0
300 1,0 to 10,0
500 2,0 to 10,0
NOTE The upper and lower values specified for the required pressure drop range for type P pumps are typical for an
unloaded and heavily loaded filter. The values specified for required pressure drop for type G pumps are typical for one
sorbent tube with low flow resistance up to two sorbent tubes in line. See Annex D.
6 Test conditions
6.1 Number of test objects
The tests given in Clause 7 may be carried out with one pump only unless otherwise stated in the
specific test clause.
6.2 Test instruments
The uncertainty of the test instruments shall be in accordance with Table 3.
Table 3 — Uncertainty of test instruments used
Test instrument Uncertainty
Volume flow meter within ±2 %
Volume meter within ±2 %
Pressure gauge within ±5 %
Timer within ±0,1 %
Thermometer within ±1 °C
For a rapidly responding flow meter, e.g. a hot-wire anemometer, the response time shall be less than
4,5 ms from t to t
10 90.
NOTE 1 Times t and t are those at which 10 % and 90 % of the final reading of the anemometer signal is
10 90
reached when a step signal is applied.
The temperature stability of the climatic chamber used shall be at least ±2 °C.
6 © ISO 2013 – All rights reserved

ISO 13137:2013(E)
All test instruments listed in Table 3 shall have calibrations that are traceable to national standards.
NOTE 2 Annex E lists typical test instruments.
6.3 Preconditioning and sequence of tests
Prior to the technical tests (see Clause 7), precondition the pump by performing an appropriate number
of charging and operating cycles (see Clause 10 for charger).
For pumps with a nickel–cadmium (NiCd) battery, perform at least five cycles. Wherever possible, the
use of this battery type should be avoided for reasons of environmental protection and to avoid problems
with battery memory effects.
For pumps with a nickel–metal hydride (NiMH) battery or a lithium-ion (Li-ion) type battery, perform
at least three cycles.
Fully charge the battery in accordance with the manufacturer’s instructions and run the pump until it
automatically shuts down due to low battery status.
To reduce the cycle time, the pump should run at its maximum nominal flow rate and at 80 % of the
maximum of the required pressure drop range as in 5.10.
Following completion of the charging and operating cycles, perform tests in the order given in Clause 7.
6.4 Adjustment of volume flow rate and pressure drop
Flow rates shall be adjusted within a maximum deviation of ±5 % of the required value.
Pressure drops shall be adjusted within a maximum deviation of ±10 % of the required value.
If an integral flow meter is incorporated in the pump this shall not be used to adjust the flow rate.
NOTE 1 The technical tests (see Clause 7) require the pump to be adjusted to specific flow rates and the
flow resistor to be adjusted to give specific pressure drops at the inlet of the pump. The required flow rates and
pressure drops are specified in the individual test clauses.
NOTE 2 The pressure drop settings for the technical tests include the flow resistance of the connected volume
flow meter or volume meter (Figure 1, label 1).
6.5 Test set-up and performance
The basic test set-up for the technical tests shall be as depicted in Figure 1.
Key
1 volume flow meter or volume meter 4 pulsation damper (optional)
2 air flow resistor 5 pump
3 differential pressure gauge (manometer)
Figure 1 — Test set-up for pumps operating with a variable flow resistance
Air is drawn through a volume flow meter or volume meter. The flow resistor, adjusted depending on
the test to be performed, is connected by one end to the outlet of the volume flow meter, and by the
ISO 13137:2013(E)
other end to the inlet of the pump. The pressure drop relative to ambient pressure is measured using a
differential pressure gauge (manometer), connected to the line, and in between the flow resistor and the
inlet of the pump. The pump inlet is connected to the flow resistor and the differential pressure gauge.
NOTE 1 Where pulsation of the air flow prevents accurate reading of the volume flow meter and differential
−1
pressure gauge, a pulsation damper of low flow resistance (up to 200 Pa at 2 l ⋅ min ) can be inserted downstream
of the differential pressure gauge.
All connections shall be leak tight. The diameter and length of the tubing used should be as low as
possible with a maximum total length of (80 ± 5) cm and a nominal internal diameter of 6 mm. For
higher flow rates, larger diameter tubing may be used to limit pressure restriction. For the pulsation
test given in 7.7, special requirements for the tubing and test set-up shall be fulfilled.
Tests shall be performed with fully charged batteries.
Unless otherwise specified, the tests shall be carried out at a range from 20 °C to 25 °C, and the
temperature shall be measured and recorded in the test report.
NOTE 2 If the measurement of the pressure drop is not necessary for a test, the differential pressure gauge
can be omitted.
7 Test methods
7.1 Features
Make a visual inspection and check the manufacturer’s specifications to determine that the pump
incorporates all of the features specified in 5.1.
7.2 Mass
Check the mass by weighing and compare the result with the requirement given in 5.2.
7.3 Design safety
Determine whether the design safety requirements specified in 5.3 are met by visual inspection of the pump.
7.4 Operating time
Carry out the operating time tests at (5 ± 2) °C in conjunction with the tests for start-up and long-term
performance (see 7.5).
Check whether the requirement specified in 5.4 is met.
7.5 Start-up and long-term performance
7.5.1 Test set-up
Perform all the tests using the basic set-up given in 6.5 and carry out the tests at (5 ± 2) °C in a
climatic chamber.
7.5.2 Flow rate and pressure drop adjustment
Carry out the test at two flow rates and pressure drop conditions as specified in Table 4.
8 © ISO 2013 – All rights reserved

ISO 13137:2013(E)
Table 4 — Flow rate and pressure drop settings for the start-up and long-term performance test
Maximum value of the
nominal flow rate range of Flow rate setting Resistor pressure drop setting
Pump
the pump
type
−1 −1
ml ⋅ min ml ⋅ min kPa
a
2 000 1,6
Maximum value of the
≤5 000
Maximum pressure drop for this flow
nominal flow rate range of
rate as specified in Table 2
the pump
Minimum value of the 0,4 Times maximum pressure drop for
P
nominal flow rate range of this flow rate as specified by the manu-
the pump facturer
>5 000
Maximum value of the
Maximum pressure drop for this flow
nominal flow rate range of
rate as specified by the manufacturer
the pump
a
50 0,5
Maximum value of the
≤300
Maximum pressure drop for this flow
nominal flow rate range of
rate as specified in Table 2
the pump
G
a
300 4,0
Maximum value of the
>300
Maximum pressure drop for this flow
nominal flow rate range of
rate as specified by the manufacturer
the pump
a
0,4 Times the maximum pressure drop specified in Table 2.
If the required flow rate setting falls between the values stated in Table 2, determine the required
pressure drop setting by linear interpolation.
7.5.3 Procedure
Perform the test for each flow rate and pressure drop condition specified in 7.5.2, once at a temperature
in the range from 20 °C to 25 °C and once at (5 ± 2) °C.
Prior to each test, fully charge the battery and then condition the complete test set-up (see 6.5) by storing
at the required temperature for at least 16 h. Switch on the pump and adjust the flow rate and pressure
drop to the required values. Start the timer and measure the flow rate continuously. Continue the test
until the measured flow rate falls outside the ±5 % criterion set in 5.5, a malfunction is registered or the
pump cuts out automatically (see 5.1).
7.6 Short-term interruption of air flow
7.6.1 Test set-up
The basic set-up is as given in 6.5.
7.6.2 Flow rate and pressure drop adjustment
The test is carried out at the flow rate and pressure drop as specified in Table 5.
ISO 13137:2013(E)
Table 5 — Flow rate and pressure drop settings for the short-term interruption of airflow test
Maximum value of
the nominal flow rate Flow rate setting Resistor pressure drop setting
Pump type
range of the pump
−1 −1
ml ⋅ min ml ⋅ min kPa
≤5 000 2 000 0,5
For this flow rate, 1,5 times the
minimum value of the nominal pres-
P
Mean value of the nominal
>5 000 sure drop range, but not exceeding
flow rate range of the pump
the mean value of the nominal pres-
sure drop range
≤300 50 0,2
G
>300 300 1,5
7.6.3 Procedure
Adjust the pump and resistor to the required flow rate and pressure drop as specified in 7.6.2. Fully
block the air flow by fixing a hose clamp on the tubing at the inlet of the pump. Measure the time taken
for the pump to react to the blockage (e.g. automatic cut out, activation of malfunction indicator) using a
timer. Afterwards remove the clamp and check whether the requirements specified in 5.6 are met.
7.7 Temperature dependence
7.7.1 Test set-up
The basic set-up is as given in 6.5. The complete test set-up is located in a climatic chamber.
7.7.2 Flow rate and pressure drop adjustment
The test is carried out at the flow rate and pressure drop as specified in Table 6.
Table 6 — Flow rate and pressure drop settings for the temperature dependence test
Maximum value of
the nominal flow rate Flow rate setting Resistor pressure drop setting
Pump type
range of the pump
−1 −1
ml ⋅ min ml ⋅ min kPa
≤5 000 2 000 0,5
For this flow rate, 1,5 times the
minimum value of the nominal pres-
P
Mean value of the nominal
>5 000 sure drop range, but not exceeding
flow rate range of the pump
the mean value of the nominal pres-
sure drop range
≤300 50 0,2
G
>300 300 1,5
7.7.3 Procedure
Prior to the test, fully charge the battery and then condition the complete test set-up (see 6.5) by storing
at the temperature range from 20 °C to 25 °C for at least 16 h. Switch the pump on and adjust the flow rate
and pressure drop to the required values. Place the complete test set-up in the climate chamber at (5 ±
2) °C for about 2 h with the pump running, then measure the flow rate. Then increase the temperature to
10 °C, 20 °C, 30 °C, and 40 °C and keep constant for periods of (60 ± 1) min at each temperature. Measure
the flow rate at the end of each 1 h period.
10 © ISO 2013 – All rights reserved

ISO 13137:2013(E)
Pumps with operating times less than about 8 h shall not be run over the entire test period. Once
each required temperature is reached, switch on the pump and run for (15 ± 1) min prior to flow rate
measurement, then switch off the pump upon completion of flow rate measurement.
Check whether the requirement specified in 5.7 is met.
If the temperature range specified by the manufacturer exceeds the range from 5 °C to 40 °C the test
should be performed over this extended temperature range. In this case, the temperature steps should
be adjusted accordingly but should not exceed 10 °C.
7.8 Mechanical strength
7.8.1 Test set-up
The basic set-up is as given in 6.5.
For the shock treatment a test set-up as shown schematically in Figure 2 sha
...
