CEN/TS 15430-2:2012

SLOVENSKI STANDARD
01-julij-2012
9]GUåHYDOQDRSUHPD]D]LPVNHLQFHVWQHVOXåEH=DMHPDQMHLQSUHQRVSRGDWNRY
GHO3URWRNRO]DSUHQRVSRGDWNRYPHGSRQXGQLNRPSRGDWNRYLQRGMHPDOþHYLP
DSOLNDFLMVNLPVWUHåQLNRP
Winter and road service area maintenance equipment - Data acquisition and
transmission - Part 2: Protocol for data transfer between information supplier and client
application server
Winterdienst- und Straßenbetriebsdienstausstattung - Datenerfassung und -übertragung
- Teil 2: Protokoll für den Datentransfer zwischen dem Informationsanbieter-Server und
dem Client Anwenderserver
Matériels de viabilité hivernale et d'entretien des dépendances routières - Acquisition et
transmission des données - Partie 2: Protocole de transfert de données entre le serveur
fournisseur d'information et le serveur d'applications clientes
Ta slovenski standard je istoveten z: CEN/TS 15430-2:2012
ICS:
35.240.60 Uporabniške rešitve IT v IT applications in transport
transportu in trgovini and trade
43.160 Vozila za posebne namene Special purpose vehicles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

TECHNICAL SPECIFICATION
CEN/TS 15430-2
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
March 2012
ICS 35.240.60; 43.160
English Version
Winter and road service area maintenance equipment - Data
acquisition and transmission - Part 2: Protocol for data transfer
between information supplier and client application server
Matériels de viabilité hivernale et d'entretien des Winterdienst- und Straßenbetriebsdienstausstattung -
dépendances routières - Acquisition et transmission des Datenerfassung und -übertragung - Teil 2: Protokoll für den
données - Partie 2: Protocole de transfert de données entre Datentransfer zwischen dem Informationsanbieter-Server
le serveur fournisseur d'information et le serveur und dem Client Anwenderserver
d'applications clientes
This Technical Specification (CEN/TS) was approved by CEN on 14 February 2012 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 15430-2:2012: E
worldwide for CEN national Members.

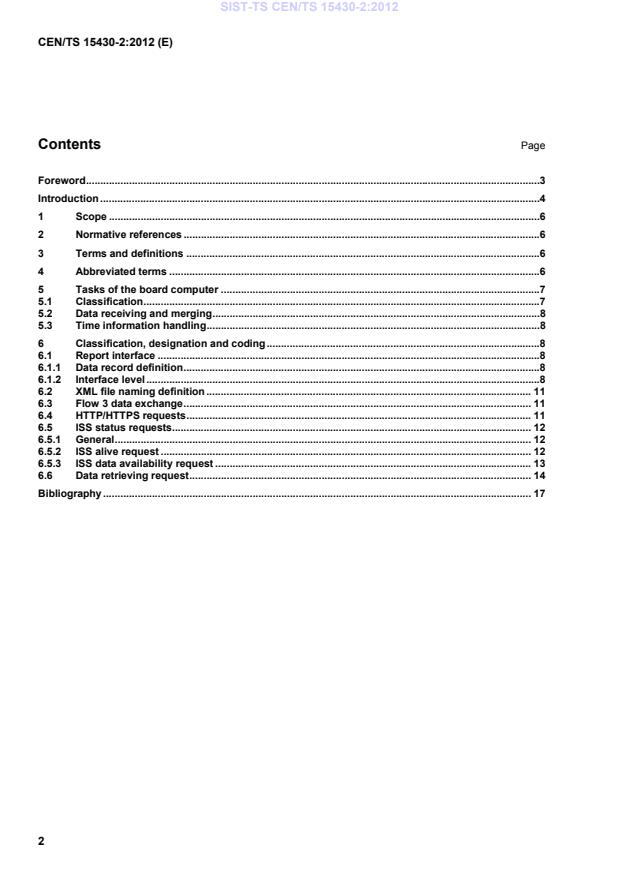

Contents Page
Foreword .3
Introduction .4
1 Scope .6
2 Normative references .6
3 Terms and definitions .6
4 Abbreviated terms .6
5 Tasks of the board computer .7
5.1 Classification .7
5.2 Data receiving and merging .8
5.3 Time information handling .8
6 Classification, designation and coding .8
6.1 Report interface .8
6.1.1 Data record definition .8
6.1.2 Interface level .8
6.2 XML file naming definition . 11
6.3 Flow 3 data exchange . 11
6.4 HTTP/HTTPS requests . 11
6.5 ISS status requests. 12
6.5.1 General . 12
6.5.2 ISS alive request . 12
6.5.3 ISS data availability request . 13
6.6 Data retrieving request . 14
Bibliography . 17

Foreword
This document (CEN/TS 15430-2:2012) has been prepared by Technical Committee CEN/TC 337 “Winter
maintenance and road service area maintenance equipment”, the secretariat of which is held by AFNOR.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This European Standard is one of the series CEN/TS 15430 "Winter and road service area maintenance
equipment - Data acquisition and transmission" which consists of the following parts:
 Part 1: In vehicle data acquisition
 Part 2: Protocol for data transfer between information supplier and client application server
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria, Croatia, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Introduction
This Technical Specification is the second part of EN 15430, the standard for data acquisition and
transmission in the field of municipal vehicles. The goal of EN 15430 is to allow interoperability between
systems (hardware and software) of different vendors. A customer should be able to combine
 any on-vehicle equipment (e.g. spreaders and ploughs),
 any on-vehicle data acquisition systems (e.g. board computers or enhanced control boxes),
 any client application software (e.g. data bases, analysing or accounting software),
as long as they follow EN 15430.
EN 15430-1:2007+A1:2011 defines the on-board communication (flow 1) between on-vehicle equipment (data
handler) and on-vehicle data acquisition systems (board computer). This document is meant to describe the
data structure, types, ranges, protocol and initial settings required by the information supplier server (ISS) and
client application server (CAS) including synchronized combining of the various data sources.
Figure 1 represents the whole data flow chain from vehicle to office system.

Key
1 flow 1 8 WLAN
2 flow 2 9 M-CARD
3 flow 3 10 information supplier server
4 data handler 1 11 application server
5 data handler n 12 client application 1
6 board computer 13 client application n
7 GSM/GPRS
Figure 1 — Transmission flow
Data that are collected are operating data of the vehicles, which contain time information, geo reference data
and machine status data. These data are stored in different memories: on the vehicle, in the facility where the
vehicles are maintained and in office, where data are retrieved and analyzed. Due to the fact that the collected
data can be used not only to supervise work contents and results, but also as proof in case of accidents, the
integrity and the correctness of the data are important and indispensable. The present Technical Specification
contains seamless integration of mechanisms into the data flow starting at the data sources and ending at
data analysis on the client application server (CAS).
The present Technical Specification does not define any specific rules for items like
 optional compression, encryption and authentication of the data during data transfer (flow 2),
 data transmission between on-vehicle data acquisition system and information supplier server (flow 2).
Data transfer between on-vehicle data acquisition systems and the information supplier server has to be
lossless, this means that reduction of data is not allowed. Lossy compression methods are not allowed.
In Figure 1, Section 1 defines the interface between devices and board computer, as described in
EN 15430-1:2007+A1:2011. Section 2 addresses the combination of data from different streams and the
transmission to a generic information supplier server. Section 3 addresses the data transfer (flow 3) between
the information supplier server (ISS) and client application server (CAS) and it is the purpose of this
document.
1 Scope
The function of this Technical Specification is to combine any vehicle equipment with different board
computers to any client application server. The communication interface on vehicle is defined by
EN 15430-1:2007+A1:2011. The interface between the information supplier server and the client application
server is defined as a specific protocol (flow 3), object of the present Technical Specification. This makes
interchangeability possible on both sides of the communication without any restriction in the range of
communication technology including memory card, WLAN, GPRS or any other communication media.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 15430-1:2007+A1:2011, Winter and road service area maintenance equipments — Data acquisition and
transmission — Part 1: In vehicle data acquisition
ISO/IEC 9075 (all parts), Information technology — Database languages — SQL
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
Information Supplier Server
ISS
entity able to store information coming from board computers and distribute these information to external
applications (CAS) using server process
3.2
Client Application Server
CAS
entity able to retrieve information
3.3
h
number before h is in hexadecimal notation
4 Abbreviated terms
For the purposes of this document, the following abbreviations apply.
4.1
FTP
File Transfer Protocol
4.2
GPRS
General Packet Radio Service
4.3
GSM
Global System for Mobile communication
4.4
HTTP
Hyper Text Transfer Protocol
4.5
ASCII
American national Standard Code for Information Interchange
4.6
CRC-32
Cyclic Redundancy Code with 32 bits
4.7
XML
Extended Markup Language
4.8
SQL
Structured Query Language (ISO/IEC 9075)
4.9
M-Card
Memory Card
4.10
P2P
Point-2-Point
4.11
RFC
Request For Comments
4.12
UMTS
Universal Mobile Telephone System
4.13
WAN
Wide Area Network
3.13
WLAN
Wireless Local Area Network
5 Tasks of the board computer
5.1 Classification
In EN 15430-1:2007+A1:2011, a data acquisition system like a board computer has been presented as a
black box with at least the following main features implemented:
 receive data from a generic vehicle/equipment data transmission handler (e.g. through RS232 serial
interface);
 store any incoming information in reports;
 generate one time stamp for every data message.
According to the time gap between record time stamp and ISS time stamp
...
