EN 10028-3:2009

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.QRUPDOL]LUDQDFlacherzeugnisse aus Druckbehälterstählen - Teil 3: Schweißgeeignete Feinkornbaustähle, normalgeglühtProduits plats en aciers pour appareils à pression - Partie 3: Aciers soudables à grains fins, normalisésFlat products made of steels for pressure purposes - Part 3: Weldable fine grain steels, normalized77.140.50SROL]GHONLFlat steel products and semi-products77.140.30Jekla za uporabo pod tlakomSteels for pressure purposesICS:Ta slovenski standard je istoveten z:EN 10028-3:2009SIST EN 10028-3:2009en,fr,de01-september-2009SIST EN 10028-3:2009SLOVENSKI
STANDARDSIST EN 10028-3:20031DGRPHãþD

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 10028-3June 2009ICS 77.140.30; 77.140.50Supersedes EN 10028-3:2003
English VersionFlat products made of steels for pressure purposes - Part 3:Weldable fine grain steels, normalizedProduits plats en aciers pour appareils à pression - Partie3: Aciers soudables à grains fins, normalisésFlacherzeugnisse aus Druckbehälterstählen - Teil 3:Schweißgeeignete Feinkornbaustähle, normalgeglühtThis European Standard was approved by CEN on 14 May 2009.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 10028-3:2009: ESIST EN 10028-3:2009

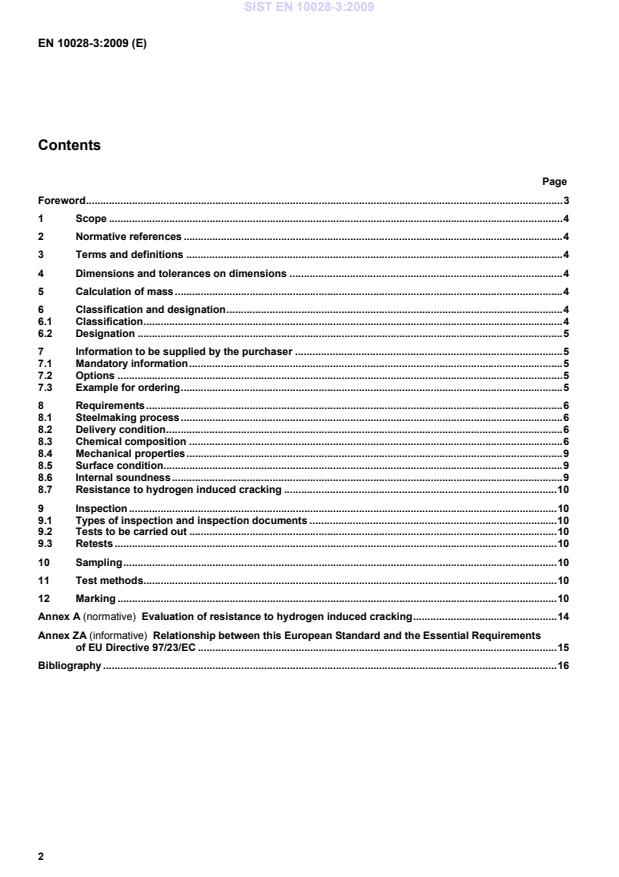

Evaluation of resistance to hydrogen induced cracking . 14 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 97/23/EC . 15 Bibliography . 16
EN ISO 643. The requirements and definitions of EN 10028-1:2007 + A1:2009 also apply. NOTE 2 Once this European Standard is published in the EU Official Journal (OJEU) under Directive 97/23/EC, presumption of conformity to the Essential Safety Requirements (ESRs) of Directive 97/23/EC is limited to technical data of materials in this European Standard (Part 1 and this Part 3 of the series) and does not presume adequacy of the material to a specific item of equipment. Consequently, the assessment of the technical data stated in this material standard against the design requirements of this specific item of equipment to verify that the ESRs of Directive 97/23/EC are satisfied, needs to be done. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 10028-1:2007 + A1:2009, Flat products made of steels for pressure purposes – Part 1: General requirements EN 10204:2004, Metallic products – Types of inspection documents EN 10229:1998, Evaluation of resistance of steel products to hydrogen induced cracking (HIC) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 10028-1:2007 + A1:2009 apply. 4 Dimensions and tolerances on dimensions See EN 10028-1:2007 + A1:2009. 5 Calculation of mass See EN 10028-1:2007 + A1:2009. 6 Classification and designation 6.1 Classification 6.1.1 The steel grades covered by this document are given in four qualities: a) room temperature quality (P . N), b) elevated temperature quality (P.NH), c) low temperature quality (P.NL1) and d) special low temperature quality (P.NL2). SIST EN 10028-3:2009

EN 10028-1:2007 + A1:2009 apply. If the purchaser does not indicate a wish to implement any of these options at the time of enquiry and order, the products shall be supplied in accordance with the basic specification (see also EN 10028-1:2007 + A1:2009). 1) tests in the simulated normalized condition (see 8.2.2); 2) delivery of products in the untreated condition (see 8.2.3); 3) maximum carbon equivalent value (see 8.3.3); 4) tensile properties for increased product thicknesses (see Table 4, footnote c); 5) modified values for ReH and Rm
for grades P460NH and P460NL1 (see Table 4, footnote d)
6) application of the Rp0,2 values of Table 5 for the corresponding P.NL1 and P…NL2 grade (see 8.4.2); 7) Rp0,2 values at elevated temperatures for increased product thicknesses (see Table 5, footnote b); 8) specification of a minimum impact energy of 40 J (see NOTE to 8.4.1 and Table 6); 9) HIC test in accordance with EN 10229 (see 8.7); 10) mid thickness test pieces for the impact test (see Clause 10); 11) verification of impact energy for longitudinal test pieces (see clause 11); 12) use of test solution B for the HIC test with agreed acceptance criteria (see Annex A). 7.3 Example for ordering 10 plates with nominal dimensions, thickness = 50 mm, width = 2000 mm, length = 10 000 mm, made of a steel grade with the name P275NL2 and the number 1.1104 as specified in EN 10028-3, to be delivered with inspection certificate 3.1 as specified in EN 10204: 10 plates – 50 x 2000 x 10000 – EN 10028-3
P275NL2 - Inspection certificate 3.1. or 10 plates – 50 x 2000 x 10000 – EN 10028-3
1.1104 – Inspection certificate 3.1.
Unless otherwise agreed at the time of enquiry and order (see 8.2.3), the products covered by this document shall be supplied in the normalized condition. For steels with a minimum yield strength ≥ 460 MPa, delayed cooling or additional tempering may be necessary for small product thicknesses and in special cases. If such a treatment is performed, this shall be noted in the inspection document. 8.2.2 •• Normalizing may, at the discretion of the manufacturer, be replaced with normalizing rolling for the
steel grades P275NH, P275NL1, P275NL2, P355N, P355NH, P355NL1 and P355NL2 (see 3.1 in EN 10028-1:2007 + A1:2009). In this case, additional tests on simulated normalized samples with an agreed frequency of testing may be agreed at the time of enquiry and order to verify that the specified properties are
...
