EN 81-77:2013
(Main)Safety rules for the construction and installations of lifts - Particular applications for passenger and goods passenger lifts - Part 77: Lifts subject to seismic conditions
Safety rules for the construction and installations of lifts - Particular applications for passenger and goods passenger lifts - Part 77: Lifts subject to seismic conditions
This European Standard specifies the special provisions and safety rules for passenger and goods passenger lifts where these lifts are permanently installed in buildings that are in compliance with EN 1998-1 (Eurocode 8).
This standard defines additional requirements to EN 81 1 and EN 81 2.
It applies to new passenger lifts and goods passenger lifts. However, it may be used as a basis to improve the safety of existing passenger and goods passenger lifts.
It does not apply to seismic lift category 0 as defined in Table A.1.
This European Standard does not address other risks due to seismic events (for example fire, flood, explosion).
Sicherheitsregeln für Konstruktion und Einbau von Aufzügen - Besondere Anwendungen für Personen- und Lastenaufzüge - Teil 77: Aufzüge unter Erdbebenbedingungen
Diese Europäische Norm legt die besonderen Vorkehrungen und Sicherheitsregeln für Personen- und Lastenaufzüge fest, wenn diese Aufzüge dauerhaft in Gebäuden eingebaut sind, die EN 1998-1 (Eurocode 8) entsprechen.
Diese Norm legt zusätzliche Anforderungen zu EN 81 1 und EN 81 2 fest.
Sie gilt für neue Personenaufzüge und Lastenaufzüge. Sie darf jedoch auch als Grundlage zur Verbesserung der Sicherheit bestehender Personen- und Lastenaufzüge herangezogen werden.
Sie gilt nicht für die Erdbebenkategorie 0 für Aufzüge nach Tabelle A.1.
Diese Europäische Norm behandelt andere mit Erdbebenereignissen einhergehende Risiken (zum Beispiel Brand, Überflutung, Explosion) nicht.
Règles de sécurité pour la construction et l’installation des élévateurs - Applications particulières pour les ascenseurs et les ascenseurs de charge - Partie 77: Ascenseurs soumis à des conditions sismiques
La présente Norme européenne spécifie les dispositions spéciales et les règles de sécurité relatives aux ascenseurs et ascenseurs de charge installés de manière permanente dans des bâtiments qui sont conformes à l’EN 1998-1 (Eurocode 8).
La présente norme définit des prescriptions supplémentaires par rapport à l’EN 81-1 et à l’EN 81-2.
Elle s’applique aux nouveaux ascenseurs et ascenseurs de charge. Cependant, elle peut être utilisée comme base pour améliorer la sécurité des ascenseurs et ascenseurs de charge existants.
Elle ne s’applique pas aux ascenseurs sismiques de catégorie 0 tels que définis dans le Tableau A.1.
La présente Norme européenne ne traite pas des autres risques associés aux événements sismiques (par exemple incendie, inondation, explosion).
Varnostna pravila za konstruiranje in vgradnjo dvigal (liftov) - Posebne izvedbe osebnih in tovorno-osebnih dvigal - 77. del: Dvigala (lifti) za potresne razmere
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2014
Varnostna pravila za konstruiranje in vgradnjo dvigal (liftov) - Posebne izvedbe
osebnih in tovorno-osebnih dvigal - 77. del: Dvigala (lifti) za potresne razmere
Safety rules for the construction and installations of lifts - Particular applications for
passenger and good passengers lifts - Part 77: Lifts subject to seismic conditions
Sicherheitsregeln für Konstruktion und Einbau von Aufzügen - Besondere Anwendungen
für Personen- und Lastenaufzüge - Teil 77: Aufzüge unter Erdbebenbedingungen
Règles de sécurité pour la construction et l'installation des élévateurs - Applications
particulières pour les ascenseurs et les ascenseurs de charge - Partie 77 : Ascenseurs
soumis aux conditions sismiques
Ta slovenski standard je istoveten z: EN 81-77:2013
ICS:
91.120.25 =DãþLWDSUHGSRWUHVLLQ Seismic and vibration
YLEUDFLMDPL protection
91.140.90 'YLJDOD7HNRþHVWRSQLFH Lifts. Escalators
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD
EN 81-77
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2013
ICS 91.120.25; 91.140.90
English Version
Safety rules for the construction and installations of lifts -
Particular applications for passenger and goods passenger lifts -
Part 77: Lifts subject to seismic conditions
Règles de sécurité pour la construction et l'installation des Sicherheitsregeln für Konstruktion und Einbau von
élévateurs - Applications particulières pour les ascenseurs Aufzügen - Besondere Anwendungen für Personen- und
et les ascenseurs de charge - Partie 77: Ascenseurs Lastenaufzüge - Teil 77: Aufzüge unter
soumis à des conditions sismiques Erdbebenbedingungen
This European Standard was approved by CEN on 21 September 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2013 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 81-77:2013 E
worldwide for CEN national Members.

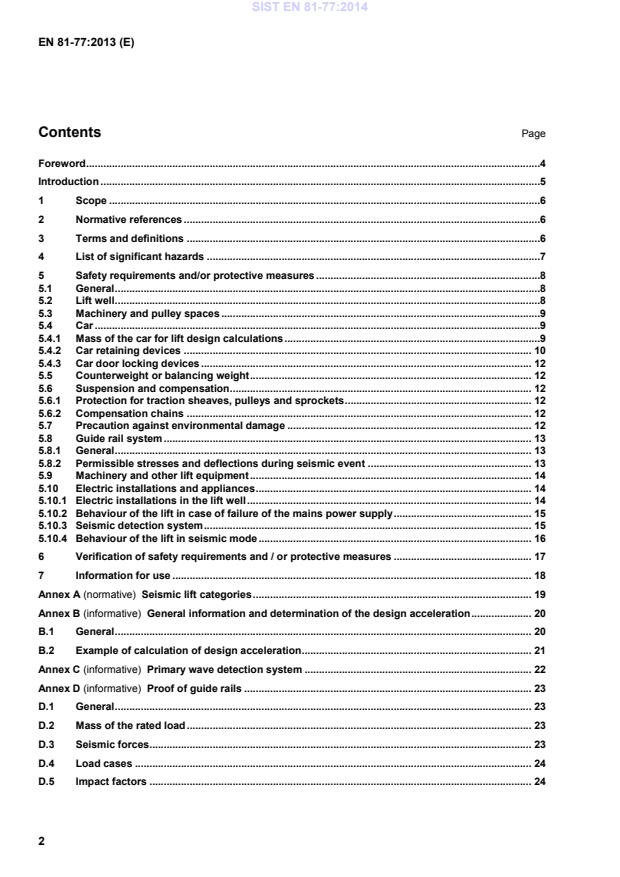

Contents Page
Foreword .4
Introduction .5
1 Scope .6
2 Normative references .6
3 Terms and definitions .6
4 List of significant hazards .7
5 Safety requirements and/or protective measures .8
5.1 General .8
5.2 Lift well .8
5.3 Machinery and pulley spaces .9
5.4 Car .9
5.4.1 Mass of the car for lift design calculations .9
5.4.2 Car retaining devices . 10
5.4.3 Car door locking devices . 12
5.5 Counterweight or balancing weight . 12
5.6 Suspension and compensation . 12
5.6.1 Protection for traction sheaves, pulleys and sprockets . 12
5.6.2 Compensation chains . 12
5.7 Precaution against environmental damage . 12
5.8 Guide rail system . 13
5.8.1 General . 13
5.8.2 Permissible stresses and deflections during seismic event . 13
5.9 Machinery and other lift equipment . 14
5.10 Electric installations and appliances . 14
5.10.1 Electric installations in the lift well . 14
5.10.2 Behaviour of the lift in case of failure of the mains power supply . 15
5.10.3 Seismic detection system . 15
5.10.4 Behaviour of the lift in seismic mode . 16
6 Verification of safety requirements and / or protective measures . 17
7 Information for use . 18
Annex A (normative) Seismic lift categories . 19
Annex B (informative) General information and determination of the design acceleration . 20
B.1 General . 20
B.2 Example of calculation of design acceleration . 21
Annex C (informative) Primary wave detection system . 22
Annex D (informative) Proof of guide rails . 23
D.1 General . 23
D.2 Mass of the rated load . 23
D.3 Seismic forces . 23
D.4 Load cases . 24
D.5 Impact factors . 24
D.6 Acceleration direction . 24
D.7 Vertical distribution of masses . 25
D.8 Car guide rail bending force . 26
D.9 Counterweight or balancing weight guide rail bending force . 27
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 95/16/EC Lift Directive . 28
Bibliography . 29
Foreword
This document (EN 81-77:2013) has been prepared by Technical Committee CEN/TC 10 “Lifts, escalators
and moving walks”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by May 2014, and conflicting national standards shall be withdrawn at the
latest by May 2014.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document.
This document is part of the EN 81 series of standards: “Safety rules for the construction and installation of
lifts”. This is the first edition of this European Standard.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
Introduction
The lifts concerned and the extent to which hazards, hazardous situations and events are covered, are
indicated in the scope of this document.
This document is a Type C Standard as stated in EN ISO 12100.
When the provisions of this C standard are different from those which are stated in type A or B standards, the
provisions of this document take precedence over the other standards, for lifts that have been designed and
built according to the provisions of this document.
The objective of this standard is to define additional safety rules related to passenger and goods/passenger-
lifts with a view to safeguarding persons and objects against the risks described below associated with the
use, maintenance, inspection and emergency operation of lifts subject to seismic conditions.
The aim of this European Standard is to:
— avoid loss of life and reduce the extent of injuries;
— avoid people trapped in the lift;
— avoid damage;
— avoid environmental problems related to oil leakage;
— reduce the number of lifts out of service.
It is assumed that negotiations have been made for each contract between the customer and the
supplier/installer about the design acceleration (a ) to be considered and the most effective position of the
d
seismic detection system, if any, and of the primary wave detection system, if any. The building designer or
the lift owner should provide the design acceleration (a ) which will be documented in the information for the
d
owner provided by the installer.
This European Standard covers only the effects of earthquakes and not the nature of them.
1 Scope
This European Standard specifies the special provisions and safety rules for passenger and goods passenger
lifts where these lifts are permanently installed in buildings that are in compliance with EN 1998-1
(Eurocode 8).
This standard defines additional requirements to EN 81-1 and EN 81-2.
It applies to new passenger lifts and goods passenger lifts. However, it may be used as a basis to improve the
safety of existing passenger and goods passenger lifts.
It does not apply to seismic lift category 0 as defined in Table A.1.
This European Standard does not address other risks due to seismic events (for example fire, flood,
explosion).
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its
...
