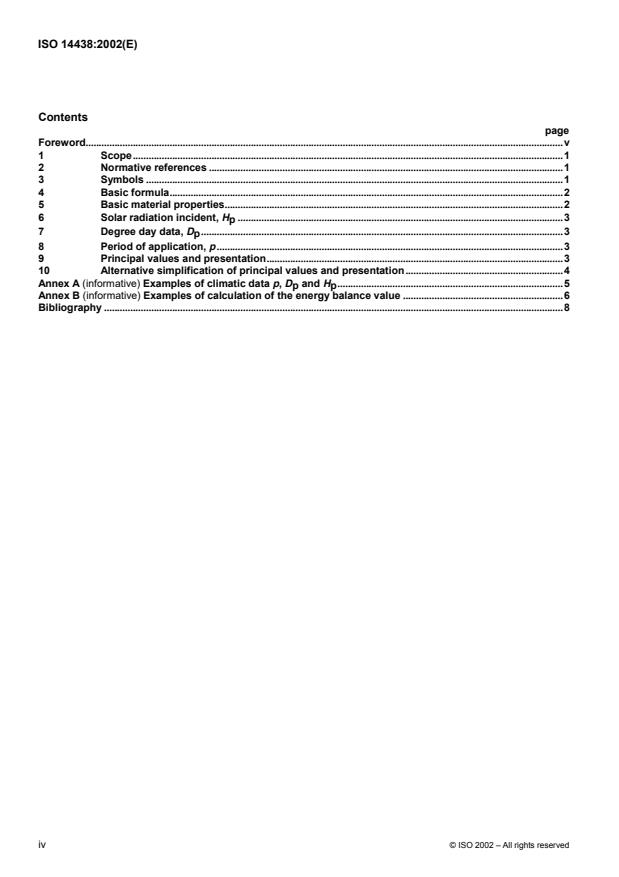

Contents
page
Foreword.v
1 Scope.1
2 Normative references .1
3 Symbols .1
4 Basic formula.2
5 Basic material properties.2
6 Solar radiation incident, H .3
p
7 Degree day data, D .3
p
8 Period of application, p .3
9 Principal values and presentation.3
10 Alternative simplification of principal values and presentation.4
Annex A (informative) Examples of climatic data p, D and H .5
p p
Annex B (informative) Examples of calculation of the energy balance value .6
Bibliography .8
iv © ISO 2002 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 14438:2002(E)
Foreword
This document (EN ISO 14438:2002) has been prepared by Technical Committee CEN/TC 129 "Glass in building",
the secretariat of which is held by IBN, in collaboration with Technical Committee ISO/TC 160 "Glass in building".
This European Standard shall be given the status of a national standard, either by publication of an identical text or
by endorsement, at the latest by December 2002, and conflicting national standards shall be withdrawn at the latest
by December 2002.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard : Austria, Belgium, Czech Republic, Denmark, Finland,
France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain,
Sweden, Switzerland and the United Kingdom.
A first Formal Vote took place within CEN as prEN 14026 between 2000-10-19 and 2000-12-19.
Annexes A and B are informative.
This standard includes a Bibliography.
© ISO 2002 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 14438:2002(E)
1 Scope

This European Standard specifies a calculation method to determine the energy balance value of glazing. This
European Standard applies to transparent materials such as glass and combinations of glass used to glaze
windows in buildings.
This method is intended to evaluate the balance of heat loss and useful heat gain by solar radiation entering the
building through the glazing for a given period by means of an average rate of loss (or gain) of heat called the
energy balance value.
The method enables producers to compare the performance of their glazing products. The energy balance value
should not be used for energy use or heating capacity calculations in buildings.
2 Normative references
This European Standard incorporates by dated or undated references, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed hereafter. For
dated references, subsequent amendments to or revisions of any of these publications apply to this European
Standard only when incorporated in it by amendment or revision. For undated references the latest edition of the
publication referred to applies (including amendments).
EN 410 Glass in building - Determination of luminous and solar characteristics of glazing
EN 673 Glass in building - Determination of thermal transmittance (U value) - Calculation method
EN 674 Glass in building - Determination of thermal transmittance (U value) - Guarded hot plate method
EN 675 Glass in building - Determination of thermal transmittance (U value) - Heat flow meter method
EN 832 Thermal performance of buildings - Calculation of energy use for heating - Residential buildings
3 Symbols
D degree days K·24 h
utility factor


H unobstructed incident solar radiation 2
kWh/m
g total solar energy transmittance (solar factor)
U U
thermal transmittance ( value) 2
W/(m ·K)
f factor due to glazing maintenance and shadow effects
S function of H and D characterising a given region 2
W/(m ·K)
E energy balance value 2
W/(m ·K)
Subscripts
p period of application
© ISO 2002 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 14438:2002(E)
4 Basic formula

The energy balance value, E, for a given period is calculated according to the following equation:


g
f
H
p
E U
  (1)
D
p
where:
U is the U value of the glazing;

is the utility factor;
f is the factor due to glazing maintenance and shadow effects
;
g is the glazing total solar energy transmittance (solar factor);
H is the unobstructed incident solar radiation during the given period;
p
D is the degree
...
