IEC 60335-2-56:2002

IEC 60335-2-56
Edition 3.0 2002-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-56: Particular requirements for projectors and similar appliances

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-56: Règles particulières pour les projecteurs d’images et appareils
analogues
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60335-2-56
Edition 3.0 2002-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-56: Particular requirements for projectors and similar appliances

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-56: Règles particulières pour les projecteurs d’images et appareils
analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
N
CODE PRIX
ICS 13.120; 37.060.10; 97.180 ISBN 2-8318-6869-6
– 2 – 60335-2-56 © CEI:2002

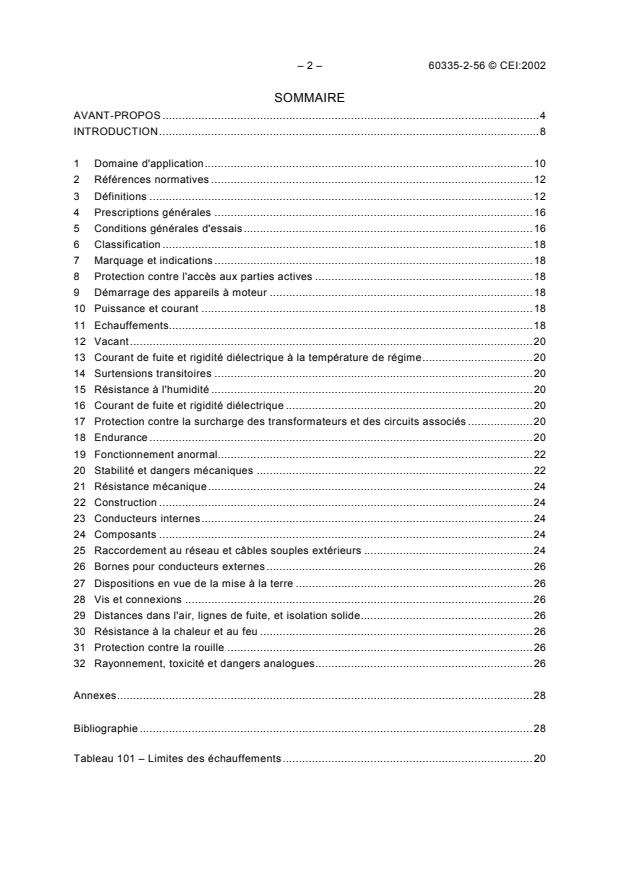

SOMMAIRE
AVANT-PROPOS .4
INTRODUCTION.8

1 Domaine d'application.10
2 Références normatives.12
3 Définitions.12
4 Prescriptions générales .16
5 Conditions générales d'essais.16
6 Classification.18
7 Marquage et indications .18
8 Protection contre l'accès aux parties actives .18
9 Démarrage des appareils à moteur .18
10 Puissance et courant .18
11 Echauffements.18
12 Vacant.20
13 Courant de fuite et rigidité diélectrique à la température de régime.20
14 Surtensions transitoires .20
15 Résistance à l'humidité .20
16 Courant de fuite et rigidité diélectrique .20
17 Protection contre la surcharge des transformateurs et des circuits associés .20
18 Endurance.20
19 Fonctionnement anormal.22
20 Stabilité et dangers mécaniques .22
21 Résistance mécanique.24
22 Construction.24
23 Conducteurs internes.24
24 Composants.24
25 Raccordement au réseau et câbles souples extérieurs .24
26 Bornes pour conducteurs externes .26
27 Dispositions en vue de la mise à la terre .26
28 Vis et connexions .26
29 Distances dans l'air, lignes de fuite, et isolation solide.26
30 Résistance à la chaleur et au feu .26
31 Protection contre la rouille .26
32 Rayonnement, toxicité et dangers analogues.26

Annexes.28

Bibliographie .28

Tableau 101 – Limites des échauffements.20

60335-2-56 © IEC:2002 – 3 –
CONTENTS
FOREWORD.5
INTRODUCTION.9

1 Scope.11
2 Normative references.13
3 Definitions.13
4 General requirement.17
5 General conditions for the tests .17
6 Classification.19
7 Marking and instructions.19
8 Protection against access to live parts.19
9 Starting of motor-operated appliances .19
10 Power input and current .19
11 Heating.19
12 Void .21
13 Leakage current and electric strength at operating temperature.21
14 Transient overvoltages .21
15 Moisture resistance.21
16 Leakage current and electric strength.21
17 Overload protection of transformers and associated circuits .21
18 Endurance.21
19 Abnormal operation.23
20 Stability and mechanical hazards .23
21 Mechanical strength .25
22 Construction.25
23 Internal wiring.25
24 Components.25
25 Supply connection and external flexible cords .25
26 Terminals for external conductors.27
27 Provision for earthing .27
28 Screws and connections .27
29 Clearances, creepage distances and solid insulation .27
30 Resistance to heat and fire.27
31 Resistance to rusting.27
32 Radiation, toxicity and similar hazards.27

Annexes .29

Bibliography.29

Table 101 – Temperature rise limits .21

– 4 – 60335-2-56 © CEI:2002
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –
SÉCURITÉ –
Partie 2-56: Règles particulières pour les projecteurs
d’images et appareils analogues

AVANT-PROPOS
1) La CEI (Commission Electrotechnique Internationale) est une organisation mondiale de normalisation composée
de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a pour objet de
favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines de
l'électricité et de l'électronique. A cet effet, la CEI, entre autres activités, publie des Normes internationales.
Leur élaboration est confiée à des comités d'études, aux travaux desquels tout Comité national intéressé par le
sujet traité peut participer. Les organisations internationales, gouvernementales et non gouvernementales, en
liaison avec la CEI, participent également aux travaux. La CEI collabore étroitement avec l'Organisation
Internationale de Normalisation (ISO), selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques, représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux intéressés
sont représentés dans chaque comité d’études.
3) Les documents produits se présentent sous la forme de recommandations internationales. Ils sont publiés
comme normes, spécifications techniques, rapports techniques ou guides et agréés comme tels par les Comités
nationaux.
4) Dans le but d'encourager l'unification internationale, les Comités nationaux de la CEI s'engagent à appliquer de
façon transparente, dans toute la mesure possible, les Normes internationales de la CEI dans leurs normes
nationales et régionales. Toute divergence entre la norme de la CEI et la norme nationale ou régionale
correspondante doit être indiquée en termes clairs dans cette dernière.
5) La CEI n’a fixé aucune procédure concernant le marquage comme indication d’approbation et sa responsabilité
n’est pas engagée quand un matériel est déclaré conforme à l’une de ses normes.
6) L’attention est attirée sur le fait que certains des éléments de la présente Norme internationale peuvent faire
l’objet de droits de propriété intellectuelle ou de droits analogues. La CEI ne saurait être tenue pour
responsable de ne pas avoir identifié de tels droits de propriété et de ne pas avoir signalé leur existence.
La présente partie de la Norme internationale CEI 60335 a été établie par le comité d'études
61 de la CEI: Sécurité des appareils électrodomestiques et analogues.
Cette troisième édition annule et remplace la seconde édition parue en 1997, dont elle
constitue une révision technique.
Cette version bilingue, publiée en 2003-02, correspond à la version anglaise.
Le texte anglais de cette norme est issu des documents 61/2171/FDIS et 61/2252/RVD. Le
rapport de vote 61/2252/RVD donne toute information sur le vote ayant abouti à l’approbation
de cette norme.
La version française de cette norme n’a pas été soumise au vote.

60335-2-56 © IEC:2002 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
___________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-56: Particular requirements for projectors
and similar appliances
FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.
This third edition cancels and replaces the second edition published in 1997. It constitutes a
technical revision.
This bilingual version, published in 2003-02, corresponds to the English version.
The text of this part of IEC 60335 is based on the following documents:
FDIS Report on voting
61/2171/FDIS 61/2252/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.

– 6 – 60335-2-56 © CEI:2002
La présente partie 2 doit être utilisée conjointement avec la dernière édition de la CEI 60335-1
et ses amendements. Elle a été établie sur la base de la quatrième édition (2001) de cette
norme.
NOTE 1 L’expression « Partie 1 » utilisée dans la présente norme fait référence à la CEI 60335-1.
La présente partie 2 complète ou modifie les articles correspondants de la CEI 60335-1 de
façon à la transformer en norme CEI: Règles de sécurité pour les projecteurs électriques
d'images et appareils analogues.
Lorsqu'un paragraphe particulier de la Partie 1 n'est pas mentionné dans cette partie 2, ce
paragraphe s'applique pour autant qu'il est raisonnable. Lorsque la présente norme spécifie
«addition», «modification» ou «remplacement», le texte correspondant de la Partie 1 doit être
adapté en conséquence.
NOTE 2 Le système de numérotation suivant est utilisé:
– paragraphes, tableaux et figures: ceux qui sont numérotés à partir de 101 sont complémentaires à ceux de la
Partie 1;
– notes: à l’exception de celles qui sont dans un nouveau paragraphe ou de celles qui concernent des notes de
la Partie 1, les notes sont numérotées à partir de 101, y compris celles des articles ou paragraphes qui sont
modifiés ou remplacés;
– les annexes supplémentaires sont appelées AA, BB, etc.
NOTE 3 Les caractères d'imprimerie suivants sont utilisés:
– prescriptions: caractères romains;
– modalités d'essais: caractères italiques;
– notes: petits caractères romains.
Les termes figurant en caractères gras dans le texte sont définis à l'Article 3. Lorsqu'une définition concerne un
adjectif, l'adjectif et le nom associé figurent également en gras.

Le comité a décidé que le contenu de cette publication ne sera pas modifié avant 2004. A cette
date, la publication sera
• reconduite;
• supprimée;
• remplacée par une édition révisée, ou
• amendée.
Les différences suivantes existent dans les pays indiqués ci-après:
– 3.1.9: Les durées de fonctionnement sont différentes (USA).
– 11.8: L’addition n’est pas applicable (USA).
– 19.1: L’essai de 19.9 est effectué (USA).
– 19.7: L’essai est différent (USA).
– 21.101: L'essai est différent (USA).

60335-2-56 © IEC:2002 – 7 –
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric projectors and
similar appliances.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification", or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.

The committee has decided that the contents of this publication will remain unchanged until
2004. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
The following differences exist in the countries indicated below.
– 3.1.9: The operating times are different (USA).
– 11.8: The addition is not applicable (USA).
– 19.1: The test of 19.9 is carried out (USA).
– 19.7: The test is different (USA).
– 21.101: The test is different (USA).

– 8 – 60335-2-56 © CEI:2002
INTRODUCTION
Il a été considéré en établissant la présente Norme internationale que l'exécution de ses
dispositions était confiée à des personnes expérimentées et ayant une qualification appropriée.
Cette norme reconnaît le niveau de protection internationalement accepté contre les risques
électriques, mécaniques, thermiques, liés au feu et au rayonnement des appareils, lorsqu'ils
fonctionnent comme en usage normal en tenant compte des instructions du fabricant. Elle
couvre également les situations anormales auxquelles on peut s'attendre dans la pratique.
Cette norme tient compte autant que possible des prescriptions de la CEI 60364, de façon à
rester compatible avec les règles d'installation quand l’appareil est raccordé au réseau
d’alimentation. Cependant, des règles nationales d'installation peuvent être différentes.
Si un appareil compris dans le domaine d’application de cette norme comporte également des
fonctions qui sont couvertes par une autre partie 2 de la CEI 60335, la partie 2 correspondante
est appliquée à chaque fonction séparément, dans la limite du raisonnable. Si cela est
applicable, on tient compte de l’influence d’une fonction sur les autres fonctions.
Cette norme est une norme de famille de produits traitant de la sécurité d’appareils et a
préséance sur les normes horizontales et génériques couvrant le même sujet.
Un appareil conforme au texte de la présente norme ne sera pas nécessairement jugé
conforme aux principes de sécurité de la norme si, lorsqu'il est examiné et soumis aux essais,
il apparaît qu'il présente d'autres caractéristiques qui compromettent le niveau de sécurité visé
par ces prescriptions.
Un appareil utilisant des matériaux ou présentant des modes de construction différents de
ceux décrits dans les prescriptions de cette norme peut être examiné et essayé en fonction de
l'objectif poursuivi par ces prescriptions et, s'il est jugé pratiquement équivalent, il peut être
estimé conforme aux principes de sécurité de la norme.

60335-2-56 © IEC:2002 – 9 –
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 10 – 60335-2-56 © CEI:2002
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –
SÉCURITÉ –
Partie 2-56: Règles particulières pour les projecteurs
d’images et appareils analogues

1 Domaine d'application
L'article de la Partie 1 est remplacé par l’article ci-après.
La présente Norme internationale traite de la sécurité des projecteurs électriques d’images et
des appareils analogues destinés à un usage domestique ou analogue, dont la tension
assignée n'est pas supérieure à 250 V.
NOTE 101 Comme exemples d'appareils entrant dans le domaine d'application de cette norme, on peut citer
– les projecteurs de décors;
– les projecteurs de bandes d'images fixes;
– les visionneuses de films;
– les projecteurs pour microscopes;
– les projecteurs de cinéma;
– les projecteurs opaques (épiscopes);
– les projecteurs opaques transparents (épidiascopes);
– les rétroprojecteurs;
– les agrandisseurs photographiques;
– les appareils de reproduction photographique;
– les projecteurs de diapositives (diascopes);
– les trieuses de diapositives;
– les visionneuses fixes.
Les projecteurs peuvent incorporer des amplificateurs sonores.
Les appareils non destinés à un usage domestique normal mais qui néanmoins peuvent
constituer une source de danger pour le public, tels que les appar
...

IEC 60335-2-56
Edition 3.1 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-56: Particular requirements for projectors and similar appliances

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-56: Règles particulières pour les projecteurs d'images et appareils
analogues
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or

IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 60335-2-56
Edition 3.1 2008-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-56: Particular requirements for projectors and similar appliances

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-56: Règles particulières pour les projecteurs d'images et appareils
analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CE
CODE PRIX
ICS 13.120; 37.060.10; 97.180 ISBN 2-8318-9759-9
– 2 – 60335-2-56 © IEC:2002+A1:2008

CONTENTS
FOREWORD.3

INTRODUCTION.5

1 Scope.6

2 Normative references.7

3 Definitions.7

4 General requirement.9

5 General conditions for the tests .9
6 Classification.9
7 Marking and instructions.9
8 Protection against access to live parts.10
9 Starting of motor-operated appliances .10
10 Power input and current .10
11 Heating.10
12 Void .11
13 Leakage current and electric strength at operating temperature.11
14 Transient overvoltages .11
15 Moisture resistance.11
16 Leakage current and electric strength.11
17 Overload protection of transformers and associated circuits .11
18 Endurance.11
19 Abnormal operation.12
20 Stability and mechanical hazards .12
21 Mechanical strength.13
22 Construction.13
23 Internal wiring.13
24 Components.13
25 Supply connection and external flexible cords .13
26 Terminals for external conductors.14

27 Provision for earthing .14
28 Screws and connections .14
29 Clearances, creepage distances and solid insulation .14
30 Resistance to heat and fire.14
31 Resistance to rusting.14
32 Radiation, toxicity and similar hazards.14

Annexes .15

Bibliography.15

Table 101 – Temperature rise limits .

60335-2-56 © IEC:2002+A1:2008 – 3 –

INTERNATIONAL ELECTROTECHNICAL COMMISSION

___________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-56: Particular requirements for projectors

and similar appliances
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This part of International Standard IEC 60335 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
This consolidated version of IEC 60335-2-56 consists of the third edition (2002) [documents
61/2171/FDIS and 61/2252/RVD] and its amendment 1 (2008) [documents 61/3557/FDIS and
61/3603/RVD].
The technical content is therefore identical to the base edition and its amendment and has
been prepared for user convenience.
It bears the edition number 3.1.
A vertical line in the margin shows where the base publication has been modified by
amendment 1.
The French version of this standard has not been voted upon.

– 4 – 60335-2-56 © IEC:2002+A1:2008

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric projectors and
similar appliances.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification", or "replacement",
the relevant text in Part 1 is to be adapted accordingly.

NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 3.1.9: The operating times are different (USA).
– 11.8: The addition is not applicable (USA).
– 19.1: The test of 19.9 is carried out (USA).
– 19.7: The test is different (USA).
– 21.101: The test is different (USA).
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date,
the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of the amendment 1 be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

60335-2-56 © IEC:2002+A1:2008 – 5 –

INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 6 – 60335-2-56 © IEC:2002+A1:2008

HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-56: Particular requirements for projectors

and similar appliances
1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric projectors and similar appliances
for household and similar purposes, their rated voltage being not more than 250 V.
NOTE 101 Examples of appliances that are within the scope of this standard are
– effects projectors;
– film-strip projectors;
– film viewers;
– microscope projectors;
– motion-picture projectors;
– opaque projectors (episcopes);
– opaque-transparency projectors (epidiascopes);
– overhead projectors;
– photographic enlargers;
– photo-reproduction appliances;
– slide projectors (diascopes);
– slide-sorting appliances.
– still viewers.
Appliances may incorporate sound amplifiers.
Appliances not intended for normal household use, but which nevertheless may be a source
of danger to the public, such as appliances intended for use by laymen in schools, offices,
shops and similar locations are within the scope of this standard.
As far as practicable, this standard deals with the common hazards presented by appliances
which are encountered by all persons in and around the home. However, in general, it does
not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTES 102 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, and similar authorities.
– IEC 60598-1 is applicable as far as is reasonable.

60335-2-56 © IEC:2002+A1:2008 – 7 –

NOTE 103 This standard does not apply to:

– LCD and video projectors (IEC 60065);

– micrographic office equipment (IEC 60950);

– motion picture projectors for films having a width exceeding 16 mm;

– appliances intended to be used in locations where special conditions prevail, such as the presence of a

corrosive or explosive atmosphere (dust, vapour or gas);

– appliances for medical purposes (IEC 60601).

2 Normative references
This clause of Part 1 is applicable.
3 Definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance as in normal use under the following conditions
Semi-automatic slide projectors are operated with the slide carrier filled and with the slide
changing mechanism operated every 10 s.
Fully-automatic slide projectors are operated with the slide carrier filled and with the
control for the slide changing mechanism adjusted for the most unfavourable speed. If
necessary, the projector is reloaded with slides as quickly as possible.
Semi-automatic film-strip projectors are operated with the longest film that can be
accommodated and with the frame changing mechanism operated every 10 s.
Fully-automatic film-strip projectors are operated with the longest film that can be
accommodated and with the control adjusted to give the most unfavourable period for viewing
the frames. If necessary, the projector is reloaded with film strips as quickly as possible.
Motion-picture projectors and film viewers are operated in cycles using the longest film
that can be accommodated. Each cycle consists of a period during which the film is projected,
followed by a period during which the film is fully rewound. Fans are not manually switched
off.
Photographic enlargers, with a film strip in position, and photo-reproduction appliances
are operated in cycles. Each cycle consists of a period of operation of 1 min followed by a

rest period of 1 min.
Opaque projectors are operated with a neutral grey card of a sufficient size to completely
cover the object field.
NOTE 101 The neutral grey card is made of 2 mm thick cardboard having a grey side with 18 % reflectance and a
white side with 90 % reflectance.
Other appliances are operated with the appropriate visual media in position.
Audio amplifiers are operated in accordance with the conditions of normal operation specified
in subclause 4.2.6 of IEC 60065.
Manually-switched motors for adjusting the lens are operated for the time necessary to move
the lens from one extreme position to the other. This operation is carried out once every 4 min
for manually-operated projectors and after each 18 frames have been projected for other
projectors.
– 8 – 60335-2-56 © IEC:2002+A1:2008

3.101
slide projector
appliance for the still projection of slides

3.102
manually-operated slide projector

slide projector in which the slides are changed by hand

3.103
semi-automatic slide projector

slide projector in which the slides are changed automatically, each operation being initiated
manually
3.104
fully-automatic slide projector
slide projector in which the slides are changed automatically, each operation being initiated
by a timer, tape recorder or other automatic means
3.105
overhead projector
appliance with a large object field intended for the still projection of positive transparencies
3.106
opaque projector
appliance for the still projection of non-transparent positives
3.107
opaque-transparency projector
combination of a slide projector and an opaque projector
3.108
microscope projector
appliance that projects microscope slides
3.109
effects projector
appliance for generating optical effects
NOTE Optical effects may be produced by projecting film loops, rotating disks or other means.
3.110
still viewer
appliance for directly viewing an image from a slide or film strip
3.111
film viewer
appliance for viewing motion picture film on an integral screen
3.112
motion-picture projector
appliance for the diascopic projection of motion picture film
3.113
photo-reproduction appliance
appliance for photographing drawings, transparencies, printed matter and other objects

60335-2-56 © IEC:2002+A1:2008 – 9 –

3.114
photographic enlarger
appliance for producing enlarged photographic prints

3.115
film-strip projector
appliance for the sequential or random projection of individual frames in a film strip or loop

3.116
manually-operated film-strip projector

film-strip projector in which the individual frames are selected by manual action
3.117
semi-automatic film-strip projector
film-strip projector in which individual frames are selected automatically, each operation
being initiated manually
3.118
fully-automatic film-strip projector
film-strip projector in which individual frames are selected automatically, each operation
being initiated by a timer, tape recorder or other automatic means
3.119
slide-sorting appliance
appliance for manual selection of transparencies that are illuminated from the rear by artificial
light
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.6 Addition:
Lamp intensities are adjusted to the highest setting.

5.101 Appliances are tested as motor-operated appliances.
6 Classification
This clause of Part 1 is applicable.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.

– 10 – 60335-2-56 © IEC:2002+A1:2008

7.1 Addition:
Appliances shall be marked on or near the lampholder with the power input of replaceable
projection lamps as follows:
lamp . . . W
The word “lamp” may be replaced by symbol IEC 60417-5012 (2002-10).

The rated voltage of the lamp shall also be marked.

7.12 Addition:
The instructions shall state that ventilation openings are not to be obstructed during operation
of the appliance.
The instructions shall state the rated voltage, rated power input and model or type
reference of replaceable lamps. They shall include the substance of the following:
– disconnect from the supply before changing the lamp;
– allow the appliance to cool before touching the lamp or parts of the optical system.
7.15 Addition:
The marking related to replaceable projection lamps shall be visible during replacement of the
lamp.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.

11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances are operated until steady conditions are established.

60335-2-56 © IEC:2002+A1:2008 – 11 –

11.8 Addition:
Temperatures rises shall not exceed the values shown in Table 101.

Table 101 – Temperature rise limits

Part Temperature rise
K
Accessible ventilation grilles
– of metal  80
– other material 100
a
Neutral grey card 150
b
Accessible lens of overhead projectors 120
a
The temperature rise is measured on the white side of the card,
the grey side facing the lamp.

b
The temperature rise shall not exceed 100 K when the lamp has
been switched off for 3 min.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable.
16 Leakage current and electric strength
This clause of Part 1 is applicable.

17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable except as follows.
NOTE 101 Lamps without filaments are not considered to cause short circuits.
18 Endurance
This clause of Part 1 is not applicable.

– 12 – 60335-2-56 © IEC:2002+A1:2008

19 Abnormal operation
This clause of Part 1 is applicable except as follows.

19.1 Modification:
Instead of the tests specified, compliance is checked by the tests of 19.7, 19.10 to 19.12 and

19.101.
19.7 Addition:
The following appliances are operated for 5 min:
– film viewers;
– manually-operated film-strip projectors;
– manually-operated slide projectors;
– microscope projectors;
– overhead projectors;
– opaque projectors;
– photographic enlargers;
– photo-reproduction appliances;
– semi-automatic film-strip projectors;
– semi-automatic slide projectors;
– slide-sorting appliances;
– still viewers.
19.101 The appliance is supplied at rated voltage and operated under normal operation.
Any fault condition that can be expected during normal use is applied one at a time.
During the test, the temperature of the windings shall not exceed the values shown in Table 8.
NOTE Examples of fault conditions are
– breakage of fan belts. The test is continued until steady conditions are established even if the lamp fails;
– covering of ventilation openings that are likely to be covered simultaneously on one side.
In general, tests are limited to the fault conditions that may be expected to give the most unfavourable results.

20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.1 Addition:
Motion-picture projectors are loaded with the longest film that can be wound on the most
unfavourable reel.
Slide projectors are loaded with slides.

60335-2-56 © IEC:2002+A1:2008 – 13 –

21 Mechanical strength
This clause of Part 1 is applicable except as follows.

21.1 Addition:
Remote control units that are held in the hand in normal use, other than those operating at

safety extra-low voltage, are also subjected to the test of 21.101.

21.101 The remote control unit is subjected to the free-fall test, procedure 2, of

IEC 60068-2-32, any cord being cut to a length of 100 mm. The number of falls is
– 100, if the mass of the unit does not exceed 250 g;
– 50, for other units.
After the test, the unit shall not be damaged to such an extent that compliance with this
standard is impaired.
22 Construction
This clause of Part 1 is applicable except as follows.
22.101 Appliances having tungsten-halogen lamps or high-pressure discharge lamps shall
be constructed so that glass particles are not ejected from the appliance if the lamp fractures.
Compliance is checked by inspection.
23 Internal wiring
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable except as follows.
24.2 Modification:
Switches in flexible cords are allowed if the length of cord between the switch and the
appliance does not exceed 500 mm.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable except as follows.
25.23 Addition:
The requirement does not apply to interconnection cords supplied at safety extra-low
voltage.
– 14 – 60335-2-56 © IEC:2002+A1:2008

26 Terminals for external conductors

This clause of Part 1 is applicable.

27 Provision for earthing
This clause of Part 1 is applicable.

28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable.
30 Resistance to heat and fire
This clause of Part 1 is applicable except as follows.
30.2 Addition:
For the following appliances, 30.2.2 is applicable:
– film viewers;
– manually-operated film-strip projectors;
– manually-operated slide projectors;
– microscope projectors;
– overhead projectors;
– opaque projectors;
– photographic enlargers;
– photo-reproduction appliances;
– semi-automatic film-strip projectors;
– semi-automatic slide projectors;

– slide-sorting appliances;
– still viewers.
For other appliances, 30.2.3 is applicable.
31 Resistance to rusting
This clause of Part 1 is applicable.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

60335-2-56 © IEC:2002+A1:2008 – 15 –

Annexes
The annexes of Part 1 are applicable.

Bibliography
The bibliography of Part 1 is applicable except as follows.

Addition:
ISO 13732-1, Ergonomics of the thermal environment – Methods for the assessment of human
responses to contact with surfaces – Part 1: Hot surfaces

___________
– 16 – 60335-2-56 © CEI:2002+A1:2008

SOMMAIRE
AVANT-PROPOS .17

INTRODUCTION.19

1 Domaine d'application.20

2 Références normatives.21

3 Définitions.21

4 Prescriptions générales .23

5 Conditions générales d'essais.23

6 Classification.24
7 Marquage et indications .24
8 Protection contre l'accès aux parties actives .24
9 Démarrage des appareils à moteur .24
10 Puissance et courant .24
11 Echauffements.24
12 Vacant.25
13 Courant de fuite et rigidité diélectrique à la température de régime.25
14 Surtensions transitoires .25
15 Résistance à l'humidité .25
16 Courant de fuite et rigidité diélectrique .25
17 Protection contre la surcharge des transformateurs et des circuits associés .25
18 Endurance.25
19 Fonctionnement anormal.26
20 Stabilité et dangers mécaniques .26
21 Résistance mécanique.27
22 Construction.27
23 Conducteurs internes.27
24 Composants.27
25 Raccordement au réseau et câbles souples extérieurs .27
26 Bornes pour conducteurs externes .28
27 Dispositions en vue de la mise à la terre .28
28 Vis et connexions .28
29 Distances dans l'air, lignes de fuite, et isolation solide.28

30 Résistance à la chaleur et au feu .28
31 Protection contre la rouille .28
32 Rayonnement, toxicité et dangers analogues.28

Annexes.29

Bibliographie .29

Tableau 101 – Limites des échauffements.25

60335-2-56 © CEI:2002+A1:2008 – 17 –

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

____________
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –

SÉCURITÉ –
Partie 2-56: Règles particulières pour les projecteurs

d’images et appareils analogues

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation composée
de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a pour objet de
favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines de
l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes internationales,
des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au public (PAS) et des
Guides (ci-après dénommés "Publication(s) de la CEI"). Leur élaboration est confiée à des comités d'études,
aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les organisations
internationales, gouvernementales et non gouvernementales, en liaison avec la CEI, participent également aux
travaux. La CEI collabore étroitement avec l'Organisation Internationale de Normalisation (ISO), selon des
conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de la CEI
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de la CEI se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de la CEI. Tous les efforts raisonnables sont entrepris afin que la CEI
s'assure de l'exactitude du contenu technique de ses publications; la CEI ne peut pas être tenue responsable de
l'éventuelle mauvaise utilisation ou interprétation qui en est faite par un quelconque utilisateur final.
4) Dans le but d'encourager l'uniformité internationale, les Comités nationaux de la CEI s'engagent, dans toute la
mesure possible, à appliquer de façon transparente les Publications de la CEI dans leurs publications
nationales et régionales. Toutes divergences entre toutes Publications de la CEI et toutes publications
nationales ou régionales correspondantes doivent être indiquées en termes clairs dans ces dernières.
5) La CEI n’a prévu aucune procédure de marquage valant indication d’approbation et n'engage pas sa
responsabilité pour les équipements déclarés conformes à une de ses Publications.
6) Tous les utilisateurs doivent s'assurer qu'ils sont en possession de la dernière édition de cette publication.
7) Aucune responsabilité ne doit être imputée à la CEI, à ses administrateurs, employés, auxiliaires ou
mandataires, y compris ses experts particuliers et les membres de ses comités d'études et des Comités
nationaux de la CEI, pour tout préjudice causé en cas de dommages corporels et matériels, ou de tout autre
dommage de quelque nature que ce soit, directe ou indirecte, ou pour supporter les coûts (y compris les frais
de justice) et les dépenses découlant de la publication ou de l'utilisation de cette Publication de la CEI ou de
toute autre Publication de la CEI, ou au crédit qui lui est accordé.
8) L'attention est attirée sur les références normatives citées dans cette publication. L'utilisation de publications
référencées est obligatoire pour une application correcte de la présente publication.
9) L’attention est attirée sur le fait que certains des éléments de la présente Publication de la CEI peuvent faire

l’objet de droits de propriété intellectuelle ou de droits analogues. La CEI ne saurait être tenue pour
responsable de ne pas avoir identifié de tels droits de propriété et de ne pas avoir signalé leur existence.
La présente partie de la Norme internationale CEI 60335 a été établie par le comité d'études 61
de la CEI: Sécurité des appareils électrodomestiques et analogues.
Cette version consolidée de la CEI 60335-2-56 comprend la troisième édition (2002)
[documents 61/2171/FDIS et 61/2252/RVD] et son amendement 1 (2008) [documents
61/3557/FDIS et 61/3603/RVD].
Le contenu technique de cette version consolidée est donc identique à celui de l'édition de base
et à son amendement; cette version a été préparée par commodité pour l'utilisateur.
Elle porte le numéro d'édition 3.1.
Une ligne verticale dans la marge indique où la publication de base a été modifiée par
l'amendement 1.
– 18 – 60335-2-56 © CEI:2002+A1:2008

La version française de cette norme n
...

IEC 60335-2-56 ®
Edition 3.2 2014-08
CONSOLIDATED
VERSION
VERSION
CONSOLIDÉE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-56: Particular requirements for projectors and similar appliances

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-56: Règles particulières pour les projecteurs d’images et appareils
analogues
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.

Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
Plus de 55 000 entrées terminologiques électrotechniques, en
La recherche avancée permet de trouver des publications IEC
en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et
comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus
projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished

Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just
Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette
Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:
csc@iec.ch.
IEC 60335-2-56 ®
Edition 3.2 2014-08
CONSOLIDATED
VERSION
VERSION
CONSOLIDÉE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-56: Particular requirements for projectors and similar appliances

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-56: Règles particulières pour les projecteurs d’images et appareils

analogues
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 37.060.10; 97.180 ISBN 978-2-8322-1815-0

IEC 60335-2-56 ®
Edition 3.2 2014-08
REDLINE VERSION
VERSION REDLINE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-56: Particular requirements for projectors and similar appliances

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-56: Règles particulières pour les projecteurs d’images et appareils
analogues
– 2 – IEC 60335-2-56:2002
+AMD1:2008+AMD2:2014 CSV  IEC 2014

CONTENTS
FOREWORD . 3

INTRODUCTION . 5

1 Scope . 6

2 Normative references . 7

3 Terms and definitions . 7

4 General requirement . 9
5 General conditions for the tests . 9
6 Classification . 9
7 Marking and instructions . 9
8 Protection against access to live parts . 10
9 Starting of motor-operated appliances . 10
10 Power input and current . 10
11 Heating . 10
12 Void . 11
13 Leakage current and electric strength at operating temperature . 11
14 Transient overvoltages . 11
15 Moisture resistance . 11
16 Leakage current and electric strength . 11
17 Overload protection of transformers and associated circuits . 11
18 Endurance . 11
19 Abnormal operation . 11
20 Stability and mechanical hazards . 12
21 Mechanical strength . 12
22 Construction . 13
23 Internal wiring . 13
24 Components . 13
25 Supply connection and external flexible cords . 13
26 Terminals for external conductors . 13

27 Provision for earthing . 13
28 Screws and connections . 13
29 Clearances, creepage distances and solid insulation . 14
30 Resistance to heat and fire . 14
31 Resistance to rusting . 14
32 Radiation, toxicity and similar hazards . 14

Annexes . 15
Bibliography . 16

Table 101 – Temperature rise limits . 11

+AMD1:2008+AMD2:2014 CSV  IEC 2014

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-56: Particular requirements for projectors

and similar appliances
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This Consolidated version of IEC 60335-2-56 bears the edition number 3.2. It consists of
the third edition (2002-10) [documents 61/2171/FDIS and 61/2252/RVD], its amendment 1
(2008-04) [documents 61/3557/FDIS and 61/3603/RVD] and its amendment 2 (2014-08)
[documents 61/4683/CDV and 61/4749/RVC]. The technical content is identical to the
base edition and its amendments.
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendments 1 and 2. Additions and deletions are displayed in red, with
deletions being struck through. A separate Final version with all changes accepted is
available in this publication.
This publication has been prepared for user convenience.

– 4 – IEC 60335-2-56:2002
+AMD1:2008+AMD2:2014 CSV  IEC 2014

This part of International Standard IEC 60335 has been prepared by IEC technical committee
61: Safety of household and similar electrical appliances.

This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.

NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.

This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to

convert that publication into the IEC standard: Safety requirements for electric projectors and
similar appliances.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification", or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
The following differences exist in the countries indicated below.
– 3.1.9: The operating times are different (USA).
– 11.8: The addition is not applicable (USA).
– 19.1: The test of 19.9 is carried out (USA).
– 19.7: The test is different (USA).
– 21.101: The test is different (USA).
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

+AMD1:2008+AMD2:2014 CSV  IEC 2014

INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features that impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
– 6 – IEC 60335-2-56:2002
+AMD1:2008+AMD2:2014 CSV  IEC 2014

HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-56: Particular requirements for projectors

and similar appliances
1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of electric projectors and similar appliances
for household and similar purposes, their rated voltage being not more than 250 V.
NOTE 101 Examples of appliances that are within the scope of this standard are
– effects projectors;
– film-strip projectors;
– film viewers;
– microscope projectors;
– motion-picture projectors;
– opaque projectors (episcopes);
– opaque-transparency projectors (epidiascopes);
– overhead projectors;
– photographic enlargers;
– photo-reproduction appliances;
– slide projectors (diascopes);
– slide-sorting appliances.
– still viewers.
Appliances may incorporate sound amplifiers.
Appliances not intended for normal household use, but which nevertheless may be a source
of danger to the public, such as appliances intended for use by laymen in schools, offices,
shops and similar locations are within the scope of this standard.
As far as practicable, this standard deals with the common hazards presented by appliances
which are encountered by all persons in and around the home. However, in general, it does
not take into account
– the use of appliances by young children or infirm persons without supervision persons
(including children) whose
 physical, sensory or mental capabilities; or
 lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance by young children.
NOTES 102 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, and similar authorities.
– IEC 60598-1 is applicable as far as is reasonable.
NOTE 103 This standard does not apply to:

+AMD1:2008+AMD2:2014 CSV  IEC 2014

– LCD and video projectors (IEC 60065);

– micrographic office equipment (IEC 60950);

– motion picture projectors for films having a width exceeding 16 mm;

– appliances intended to be used in locations where special conditions prevail, such as the presence of a

corrosive or explosive atmosphere (dust, vapour or gas);

– appliances for medical purposes (IEC 60601).

2 Normative references
This clause of Part 1 is applicable.

3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance as in normal use under the following conditions
Semi-automatic slide projectors are operated with the slide carrier filled and with the slide
changing mechanism operated every 10 s.
Fully-automatic slide projectors are operated with the slide carrier filled and with the
control for the slide changing mechanism adjusted for the most unfavourable speed. If
necessary, the projector is reloaded with slides as quickly as possible.
Semi-automatic film-strip projectors are operated with the longest film that can be
accommodated and with the frame changing mechanism operated every 10 s.
Fully-automatic film-strip projectors are operated with the longest film that can be
accommodated and with the control adjusted to give the most unfavourable period for viewing
the frames. If necessary, the projector is reloaded with film strips as quickly as possible.
Motion-picture projectors and film viewers are operated in cycles using the longest film
that can be accommodated. Each cycle consists of a period during which the film is projected,
followed by a period during which the film is fully rewound. Fans are not manually switched
off.
Photographic enlargers, with a film strip in position, and photo-reproduction appliances
are operated in cycles. Each cycle consists of a period of operation of 1 min followed by a
rest period of 1 min.
Opaque projectors are operated with a neutral grey card of a sufficient size to completely

cover the object field.
NOTE 101 The neutral grey card is made of 2 mm thick cardboard having a grey side with 18 % reflectance and a
white side with 90 % reflectance.
Other appliances are operated with the appropriate visual media in position.
Audio amplifiers are operated in accordance with the conditions of normal operation specified
in subclause 4.2.6 of IEC 60065.
Manually-switched motors for adjusting the lens are operated for the time necessary to move
the lens from one extreme position to the other. This operation is carried out once every 4 min
for manually-operated projectors and after each 18 frames have been projected for other
projectors.
– 8 – IEC 60335-2-56:2002
+AMD1:2008+AMD2:2014 CSV  IEC 2014

3.101
slide projector
appliance for the still projection of slides

3.102
manually-operated slide projector

slide projector in which the slides are changed by hand

3.103
semi-automatic slide projector

slide projector in which the slides are changed automatically, each operation being initiated

manually
3.104
fully-automatic slide projector
slide projector in which the slides are changed automatically, each operation being initiated
by a timer, tape recorder or other automatic means
3.105
overhead projector
appliance with a large object field intended for the still projection of positive transparencies
3.106
opaque projector
appliance for the still projection of non-transparent positives
3.107
opaque-transparency projector
combination of a slide projector and an opaque projector
3.108
microscope projector
appliance that projects microscope slides
3.109
effects projector
appliance for generating optical effects
NOTE Optical effects may be produced by projecting film loops, rotating disks or other means.
3.110
still viewer
appliance for directly viewing an image from a slide or film strip
3.111
film viewer
appliance for viewing motion picture film on an integral screen
3.112
motion-picture projector
appliance for the diascopic projection of motion picture film
3.113
photo-reproduction appliance
appliance for photographing drawings, transparencies, printed matter and other objects

+AMD1:2008+AMD2:2014 CSV  IEC 2014

3.114
photographic enlarger
appliance for producing enlarged photographic prints

3.115
film-strip projector
appliance for the sequential or random projection of individual frames in a film strip or loop

3.116
manually-operated film-strip projector

film-strip projector in which the individual frames are selected by manual action

3.117
semi-automatic film-strip projector
film-strip projector in which individual frames are selected automatically, each operation
being initiated manually
3.118
fully-automatic film-strip projector
film-strip projector in which individual frames are selected automatically, each operation
being initiated by a timer, tape recorder or other automatic means
3.119
slide-sorting appliance
appliance for manual selection of transparencies that are illuminated from the rear by artificial
light
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.6 Addition:
Lamp intensities are adjusted to the highest setting.
5.101 Appliances are tested as motor-operated appliances.

6 Classification
This clause of Part 1 is applicable.
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.1 Addition:
Appliances shall be marked on or near the lampholder with the power input of replaceable
projection lamps as follows:
lamp . . . W
– 10 – IEC 60335-2-56:2002
+AMD1:2008+AMD2:2014 CSV  IEC 2014

The word “lamp” may be replaced by symbol 5012 of IEC 60417-1 IEC 60417-5012 (2002-10).

The rated voltage of the lamp shall also be marked.

7.12 Addition:
The instructions shall state that ventilation openings are not to be obstructed during operation

of the appliance.
The instructions shall state the rated voltage, rated power input and model or type

reference of replaceable lamps. They shall include the substance of the following:

– disconnect from the supply before changing the lamp;
– allow the appliance to cool before touching the lamp or parts of the optical system.
7.15 Addition:
The marking related to replaceable projection lamps shall be visible during replacement of the
lamp.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances are operated until steady conditions are established.
11.8 Addition:
Temperatures rises shall not exceed the values shown in Table 101.

+AMD1:2008+AMD2:2014 CSV  IEC 2014

Table 101 – Temperature rise limits

Part Temperature rise
K
Accessible ventilation grilles

– of metal  80
– other material 100
a
Neutral grey card 150
b
Accessible lens of overhead projectors 120

a
The temperature rise is measured on the white side of the card,
the grey side facing the lamp.

b
The temperature rise shall not exceed 100 K when the lamp has
been switched off for 3 min.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable except as follows.

NOTE 101 Lamps without filaments are not considered to cause short circuits.
18 Endurance
This clause of Part 1 is not applicable.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.1 Modification:
Instead of the tests specified, compliance is checked by the tests of 19.7, 19.10 to 19.12 and
19.101.
– 12 – IEC 60335-2-56:2002
+AMD1:2008+AMD2:2014 CSV  IEC 2014

19.7 Addition:
The following appliances are operated for 5 min:

– film viewers;
– manually-operated film-strip projectors;

– manually-operated slide projectors;

– microscope projectors;
– overhead projectors;
– opaque projectors;
– photographic enlargers;
– photo-reproduction appliances;
– semi-automatic film-strip projectors;
– semi-automatic slide projectors;
– slide-sorting appliances;
– still viewers.
19.101 The appliance is supplied at rated voltage and operated under normal operation.
Any fault condition that can be expected during normal use is applied one at a time.
During the test, the temperature of the windings shall not exceed the values shown in Table 8.
NOTE Examples of fault conditions are
– breakage of fan belts. The test is continued until steady conditions are established even if the lamp fails;
– covering of ventilation openings that are likely to be covered simultaneously on one side.
In general, tests are limited to the fault conditions that may be expected to give the most unfavourable results.
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.1 Addition:
Motion-picture projectors are loaded with the longest film that can be wound on the most
unfavourable reel.
Slide projectors are loaded with slides.
21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.1 Addition:
Remote control units that are held in the hand in normal use, other than those operating at
safety extra-low voltage, are also subjected to the test of 21.101.
21.101 The remote control unit is subjected to the test free-fall test repeated, – procedure 2,
of IEC 60068-2-321, any cord being cut to a length of 100 mm. The number of falls is
– 100, if the mass of the unit does not exceed 250 g;

+AMD1:2008+AMD2:2014 CSV  IEC 2014

– 50, for other units.
The height of the fall is 500 mm.

After the test, the unit shall not be damaged to such an extent that compliance with this

standard is impaired.
22 Construction
This clause of Part 1 is applicable except as follows.

22.101 Appliances having tungsten-halogen lamps or high-pressure discharge lamps shall
be constructed so that glass particles are not ejected from the appliance if the lamp fractures.
Compliance is checked by inspection.
23 Internal wiring
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable except as follows.
24.2 Modification:
Switches in flexible cords are allowed if the length of cord between the switch and the
appliance does not exceed 500 mm.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable except as follows.
25.23 Addition:
The requirement does not apply to interconnection cords supplied at safety extra-low
voltage.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable.
28 Screws and connections
This clause of Part 1 is applicable.

– 14 – IEC 60335-2-56:2002
+AMD1:2008+AMD2:2014 CSV  IEC 2014

29 Clearances, creepage distances and solid insulation

This clause of Part 1 is applicable.

30 Resistance to heat and fire

This clause of Part 1 is applicable except as follows.

30.2 Addition:
For the following appliances, 30.2.2 is applicable:
– film viewers;
– manually-operated film-strip projectors;
– manually-operated slide projectors;
– microscope projectors;
– overhead projectors;
– opaque projectors;
– photographic enlargers;
– photo-reproduction appliances;
– semi-automatic film-strip projectors;
– semi-automatic slide projectors;
– slide-sorting appliances;
– still viewers.
For other appliances, 30.2.3 is applicable.
31 Resistance to rusting
This clause of Part 1 is applicable.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

+AMD1:2008+AMD2:2014 CSV  IEC 2014

Annexes
The annexes of Part 1 are applicable.

– 16 – IEC 60335-2-56:2002
+AMD1:2008+AMD2:2014 CSV  IEC 2014

Bibliography
The bibliography of Part 1 is applicable.

___________
– 18 – IEC 60335-2-56:2002
+AMD1:2008+AMD2:2014 CSV  IEC 2014

SOMMAIRE
AVANT-PROP OS . 19

INTRODUCTION . 22

1 Domaine d'application . 23

2 Références nor matives . 24

3 Termes et définitions . 24

4 Prescriptions générales . 26

5 Conditions générales d'essais . 26
6 Classification . 27
7 Marquage et indications . 27
8 Protection contre l'accès aux parties actives . 27
9 Démarrage des appareils à moteur . 27
10 Puissance et courant . 27
11 Echauffements . 28
12 Vacant . . 28
13 Courant de fuite et rigidité diélectrique à la température de régime . 28
14 Surtensions transitoires . 28
15 Résistance à l'humidit é . 28
16 Courant de fuite et rigidité diélectrique . 28
17 Protection contre la surcharge des transformateurs et des circuits associés . 28
18 Endurance . 29
19 Fonctionnement anormal . 29
20 Stabilité et dangers mécaniques . 29
21 Résistance mécanique . 30
22 Constructi on . 30
23 Conducteurs internes . 30
24 Composants . 30
25 Raccordement au réseau et câbles souples extérieurs . 30
26 Bornes pour conducteurs externes . 31
27 Dispositions en vue de la mise à la terre . 31
28 Vis et connexions . 31

29 Distances dans l'air, lignes de fuite, et isolation solide . 31
30 Résistance à la chaleur et au feu . 31
31 Protection contre la rouille . 31
32 Rayonnement, toxicité et dangers analogues . 32

Annexes . . 33
Bibliographie . . 34

Tableau 101 – Limites des échauffements . 28

+AMD1:2008+AMD2:2014 CSV  IEC 2014

COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

____________
APPAREILS ÉLECTRODOMESTIQUES ET ANALOGUES –

SÉCURITÉ –
Partie 2-56: Règles particulières pour les projecteurs

d’images et appareils analogues

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (IEC) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de l’IEC). L’IEC a pour
objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les domaines
de l'électricité et de l'électronique. A cet effet, l’IEC – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques, des Spécifications accessibles au
public (PAS) et des Guides (ci-après dénommés "Publication(s) de l’IEC"). Leur élaboration est confiée à des
comités d'études, aux travaux desquels tout Comité national intéressé par le sujet traité peut participer. Les
organisations internationales, gouvernementales et non gouvernementales, en liaison avec l’IEC, participent
également aux travaux. L’IEC collabore étroitement avec l'Organisation Internationale de Normalisation (ISO),
selon des conditions fixées par accord entre les deux organisations.
2) Les décisions ou accords officiels de l’IEC concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de l’IEC
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de l’IEC se présentent sous la forme de recommandations internationales et sont agréées
comme telles par le
...
