Amendment 1 - Household and similar electrical appliances - Safety - Part 2-89: Particular requirements for commercial refrigerating appliances with an incorporated or remote refrigerant unit or compressor

Describes tests 13a, 13b, 13c, 13d, 13e, 14b, 14d, 14e and 14f.

Amendement 1 - Appareils électrodomestiques et analogues - Sécurité - Partie 2-89: Règles particulières pour les appareils de réfrigération à usage commercial avec une unité de fluide frigorigène ou un compresseur incorporés ou à distance

Décrit les essais 13a, 13b, 13c, 13d, 13e, 14b, 14d, 14e, 14f.

General Information

Status
Published
Publication Date
16-Jul-2012
Current Stage
DELPUB - Deleted Publication
Completion Date
20-Jun-2019
Ref Project

Relations

Buy Standard

Standard
IEC 60335-2-89:2010/AMD1:2012 - Amendment 1 - Household and similar electrical appliances - Safety - Part 2-89: Particular requirements for commercial refrigerating appliances with an incorporated or remote refrigerant unit or compressor Released:7/17/2012
English and French language
12 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

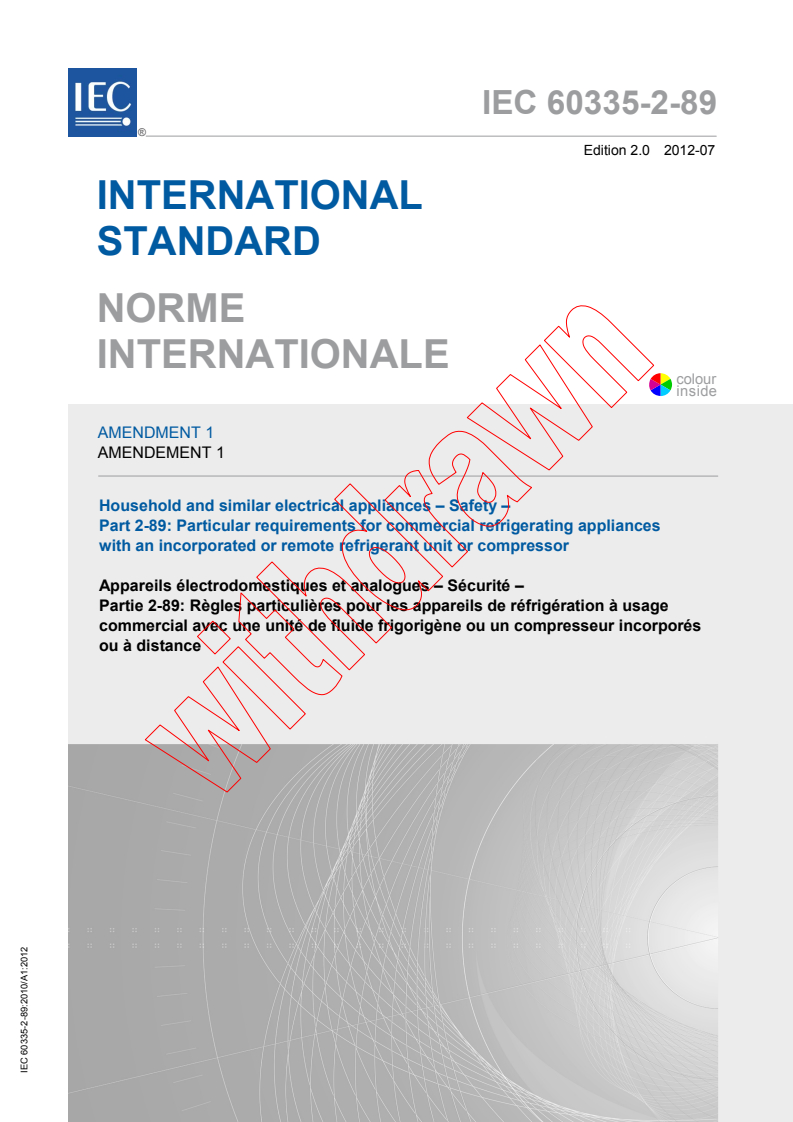

IEC 60335-2-89 ®
Edition 2.0 2012-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
AMENDMENT 1
AMENDEMENT 1
Household and similar electrical appliances – Safety –
Part 2-89: Particular requirements for commercial refrigerating appliances
with an incorporated or remote refrigerant unit or compressor

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-89: Règles particulières pour les appareils de réfrigération à usage
commercial avec une unité de fluide frigorigène ou un compresseur incorporés
ou à distance
IEC 60335-2-89:2010/A1:2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les

microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: csc@iec.ch.

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: csc@iec.ch.

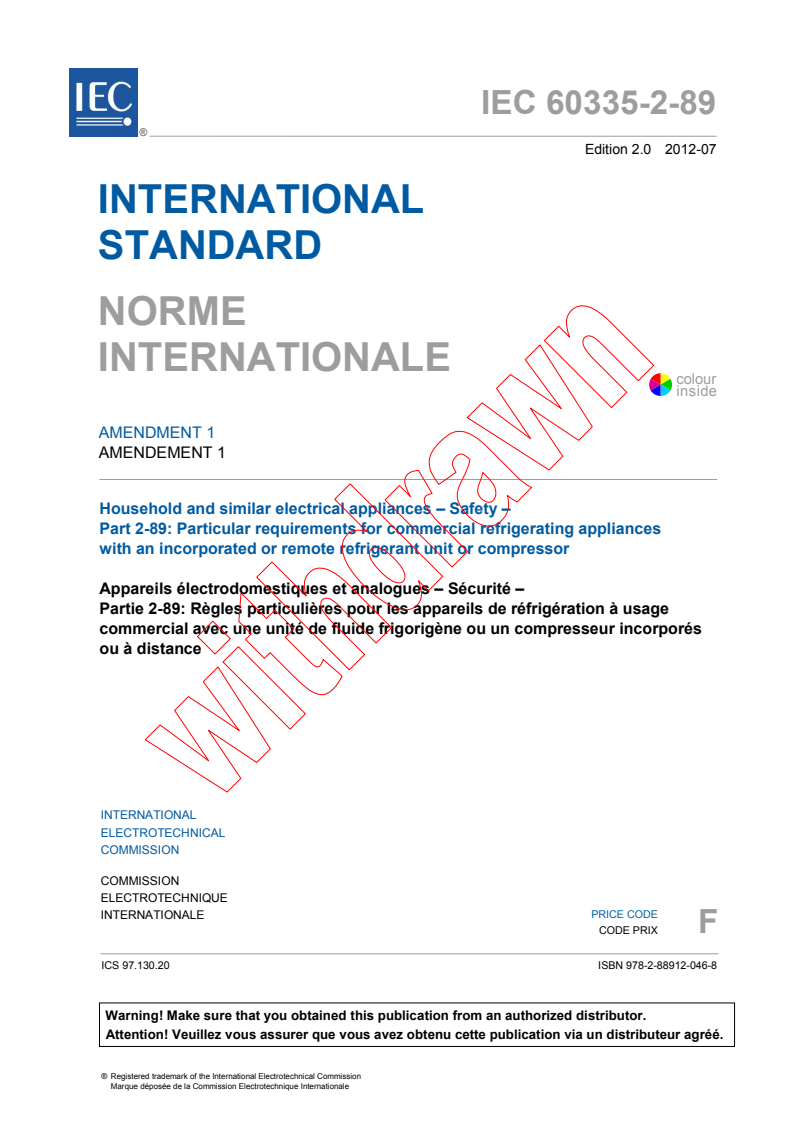

IEC 60335-2-89 ®
Edition 2.0 2012-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
AMENDMENT 1
AMENDEMENT 1
Household and similar electrical appliances – Safety –

Part 2-89: Particular requirements for commercial refrigerating appliances

with an incorporated or remote refrigerant unit or compressor

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-89: Règles particulières pour les appareils de réfrigération à usage

commercial avec une unité de fluide frigorigène ou un compresseur incorporés

ou à distance
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX F
ICS 97.130.20 ISBN 978-2-88912-046-8

– 2 – 60335-2-89 Amend.1 © IEC:2012

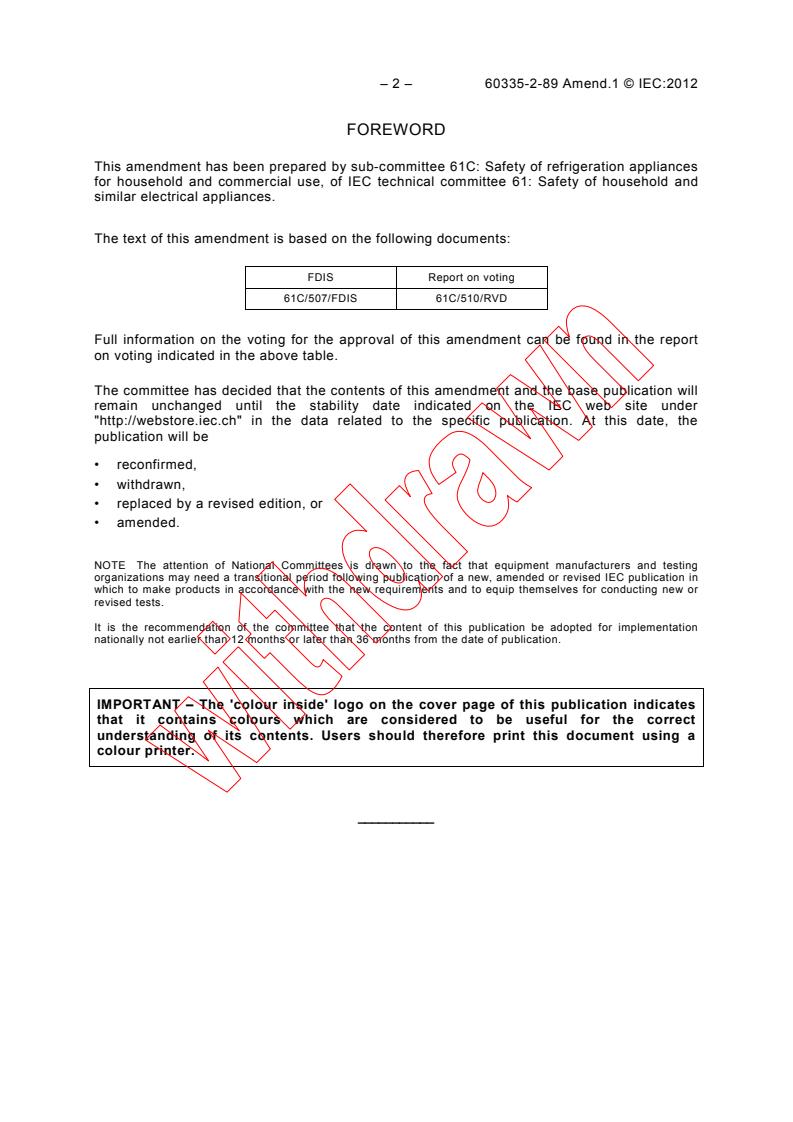

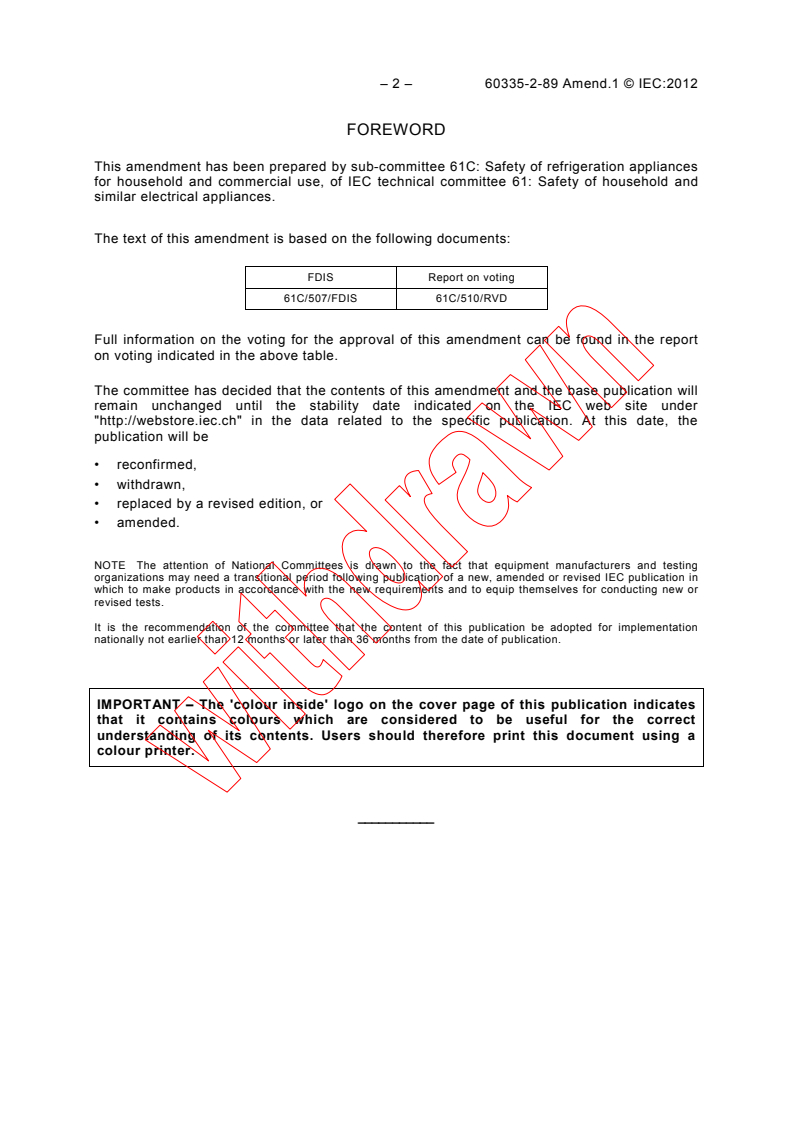

FOREWORD
This amendment has been prepared by sub-committee 61C: Safety of refrigeration appliances

for household and commercial use, of IEC technical committee 61: Safety of household and

similar electrical appliances.

The text of this amendment is based on the following documents:

FDIS Report on voting
61C/507/FDIS 61C/510/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
___________
60335-2-89 Amend.1 © IEC:2012 – 3 –

Contents
Replace the title of Clause 3 but not the clause number, by the following:

Terms and definitions
2 Normative references
Replace reference to IEC 60079-15 by the following:

IEC 60079-15:2010, Explosive atmospheres – Part 15: Equipment protection by type of
protection "n"
Add the following new reference:
ISO 7010:2011, Graphical symbols – Safety colours and safety signs – Registered safety
signs
3 Definitions
Replace the title of Clause 3 but not the clause number, by the following:
Terms and definitions
5 General conditions for the tests
5.7 Replace the first dashed item in the first paragraph of the test specification by the
following:
– 32 °C ± 2 °C on appliances of climatic class 0, 1, 2, 3 , 4, 6 or 8;
6 Classification
6.101 Add the following dashed item to the requirement:
– appliance of class 8.
7 Marking and instructions
7.1 Replace the third dashed item in the addition by the following:
– one or more of the numerals; 0, 1, 2, 3, 4, 5, 6, 7 or 8, indicating the climatic class of the
appliance;
7.6 Replace Symbol ISO 3864-B.3.2 and its associated text by the following:
Symbol ISO 7010 W021 Warning; Risk of fire / flammable materials

7.14 Add the following new paragraph:

– 4 – 60335-2-89 Amend.1 © IEC:2012

The height of the letters used for the marking of the type of flammable insulation blowing gas

shall be at least 40 mm.
8 Protection against access to live parts

8.1.1 Delete the modification.

11 Heating
11.8 Replace the fifth paragraph in the modification by the following:

For appliances of climatic classes 0, 1, 2, 3, 4, 6 or 8 the temperature rises shall not exceed
the values given in Table 3.
21 Mechanical strength
Add the following new subclause.
21.102 Shelves in appliances for displaying or storing beverages shall have adequate
mechanical strength.
Compliance is checked as follows.
Each shelf shall be uniformly loaded in turn with a load/unit area of 25 kg/m for a period
of 1 h.
During the test, the shelf deflection shall not exceed 3 mm/meter of shelf width.
The test is then repeated with a uniform load/unit area of 230 kg/m or the maximum load
specified by the manufacturer whichever is more onerous. The load is applied for a period of
1 h.
During this test, the shelf shall not fall out of position.
For appliances intended to display or store barrels, this test is repeated a further four times,
the load being removed and the reapplied each time.
After the tests, the appliance shall show no da
...
