IEC 62417:2010

IEC 62417 ®
Edition 1.0 2010-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Semiconductor devices – Mobile ion tests for metal-oxide semiconductor field
effect transistors (MOSFETs)
Dispositifs à semiconducteurs – Essais d’ions mobiles pour transistors à
semiconducteur à oxyde métallique à effet de champ (MOSFETs)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 62417 ®
Edition 1.0 2010-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Semiconductor devices – Mobile ion tests for metal-oxide semiconductor field
effect transistors (MOSFETs)
Dispositifs à semiconducteurs – Essais d’ions mobiles pour transistors à
semiconducteur à oxyde métallique à effet de champ (MOSFETs)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
H
CODE PRIX
ICS 31.080 ISBN 978-2-88910-696-7

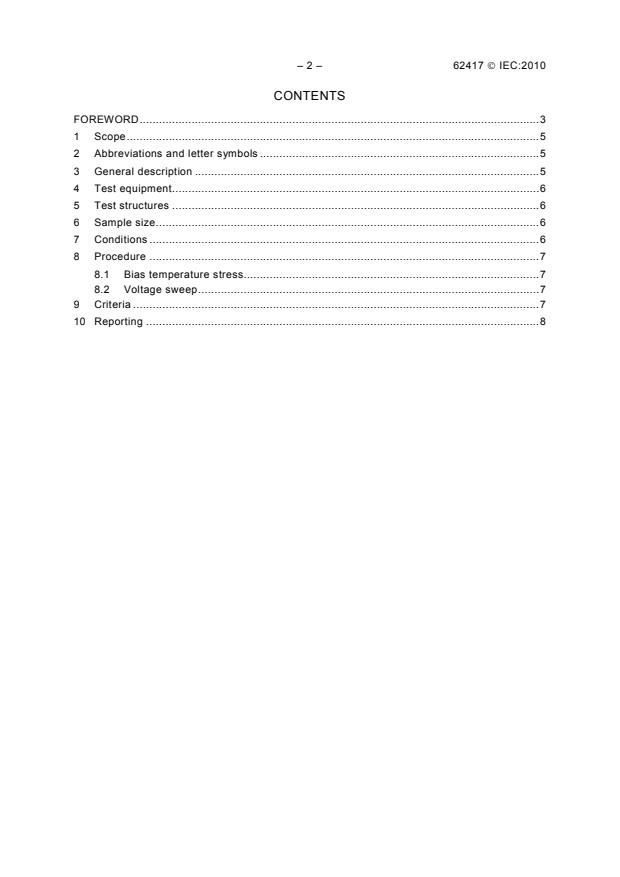

– 2 – 62417 © IEC:2010
CONTENTS
FOREWORD.3
1 Scope.5
2 Abbreviations and letter symbols .5
3 General description .5
4 Test equipment.6
5 Test structures .6
6 Sample size.6
7 Conditions .6
8 Procedure .7
8.1 Bias temperature stress.7
8.2 Voltage sweep.7
9 Criteria .7
10 Reporting .8

62417 © IEC:2010 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
MOBILE ION TESTS FOR METAL-OXIDE
SEMICONDUCTOR FIELD EFFECT
TRANSISTORS (MOSFETs)
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62417 has been prepared by IEC technical committee 47:
Semiconductor devices.
The text of this standard is based on the following documents:
FDIS Report on voting
47/2042/FDIS 47/2049/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

– 4 – 62417 © IEC:2010
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
62417 © IEC:2010 – 5 –
SEMICONDUCTOR DEVICES –
MOBILE ION TESTS FOR METAL-OXIDE
SEMICONDUCTOR FIELD EFFECT
TRANSISTORS (MOSFETs)
1 Scope
This present standard provides a wafer level test procedure to determine the amount of
positive mobile charge in oxide layers in metal-oxide semiconductor field effect transistors. . It
is applicable to both active and parasitic field effect transistors. The mobile charge can cause
degradation of microelectronic devices, e.g. by shifting the threshold voltage of MOSFETs or
by inversion of the base in bipolar transistors.
2 Abbreviations and letter symbols
This standard uses the following abbreviations and letter symbols:
CV test capacitance-voltage measurement
HFCV test high frequency capacitance-voltage measurement
V gate voltage
g
t oxide thickness
ox
I drain-source current
ds
V positive power supply voltage
dd
V maximum supply voltage
dd,max
V transistor threshold voltage
t
V the absolute value of the threshold voltage before the test
t,initial
V the absolute value of the supply voltage
supply
ε dielectric constant of the oxide
ox
3 General description
The stress applied is on test structures at an elevated temperature where mobile ions can
overcome the energy barriers at the interfaces and the ion mobility in the oxide is sufficiently
high. Two test methods are described in this document.
• Bias temperature stress (BTS)
• Voltage sweep (VS).
The bias temperature stress test is done on transistors. The threshold voltage is determined
from an I - V measurement at room temperature on fresh structures. The threshold voltage
ds gs
is defined as the gate voltage needed to force a fixed drain current through the transistor.
Then, a positive gate stress is applied at a high temperature, to sweep the mobile ions
towards the substrate. After the stress the test structure is cooled to room temperature with
the bias still applied. A second I - V curve is measured at room temperature. The
ds gs
sequence is completed with a negative gate stress at high temperature followed by an I -
ds
V measurement at room temperature. Mobile charge causes a shift in the I - V curve.
gs ds gs
The distance over which the curve is shifted is a measure of the amount of mobile charge in
the insulator.
– 6 – 62417 © IEC:2010
Edge effects of the transistor structure can be taken into account by applying a negative gate
bias for 2 minutes duration at the elevated temperature prior to the BTS measurement.
NOTE Mobile charge in dielectric layers above a large area polysilicon or metal-plate cannot be detected,
because there is no electric field which drives the ions towards the underlying oxide. To overcome this problem
special edge sensitive test structures can be used, that have a large edge/area value, e.g. structures with fingers.
The voltage sweep measurements are done on capacitors. A quasi-static C-V curve is
measured and compared with a low-frequency C-V curve. The ionic displacement current,
which appears as a peak in the quasi-static C-V curve, is indicative of the mobile ion
concentration.
4 Test equipment
The hot chuck shall be capable of maintaining a temperature of
...
