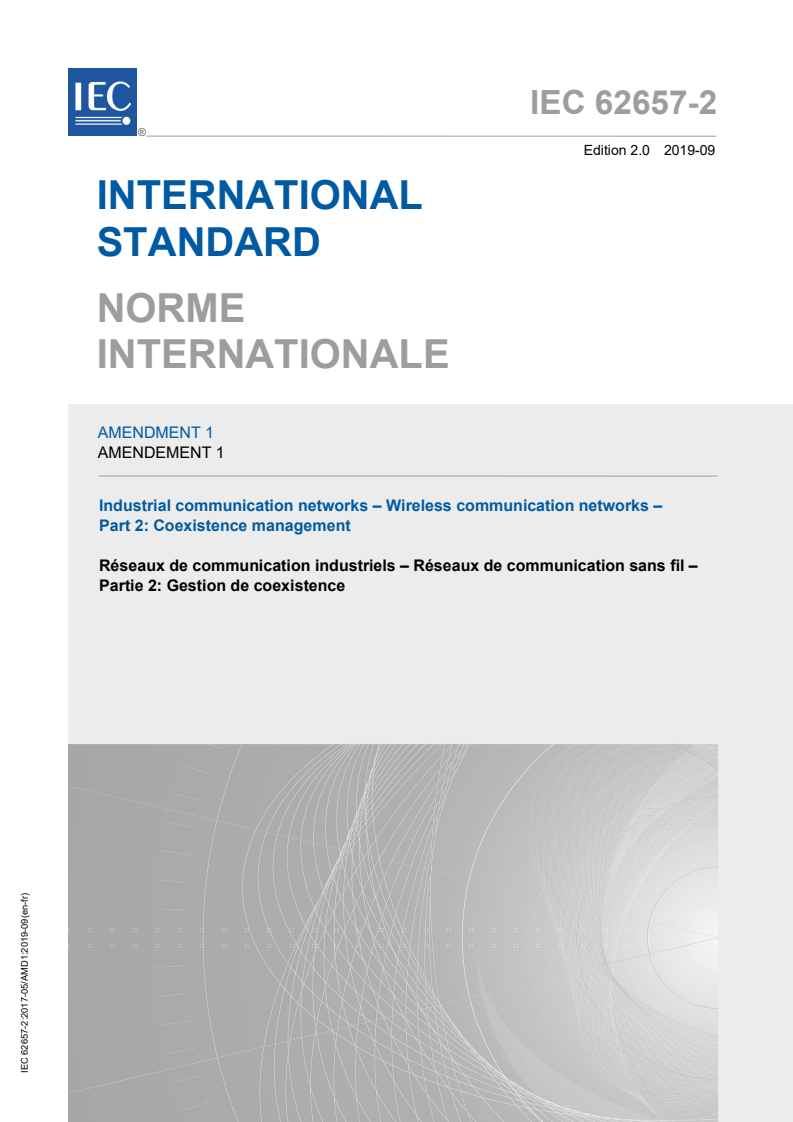

IEC 62657-2:2017/AMD1:2019

IEC 62657-2 ®
Edition 2.0 2019-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Industrial communication networks – Wireless communication networks –
Part 2: Coexistence management

Réseaux de communication industriels – Réseaux de communication sans fil –
Partie 2: Gestion de coexistence

IEC 62657-2:2017-05/AMD1:2019-09(en-fr)

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au
La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées
antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

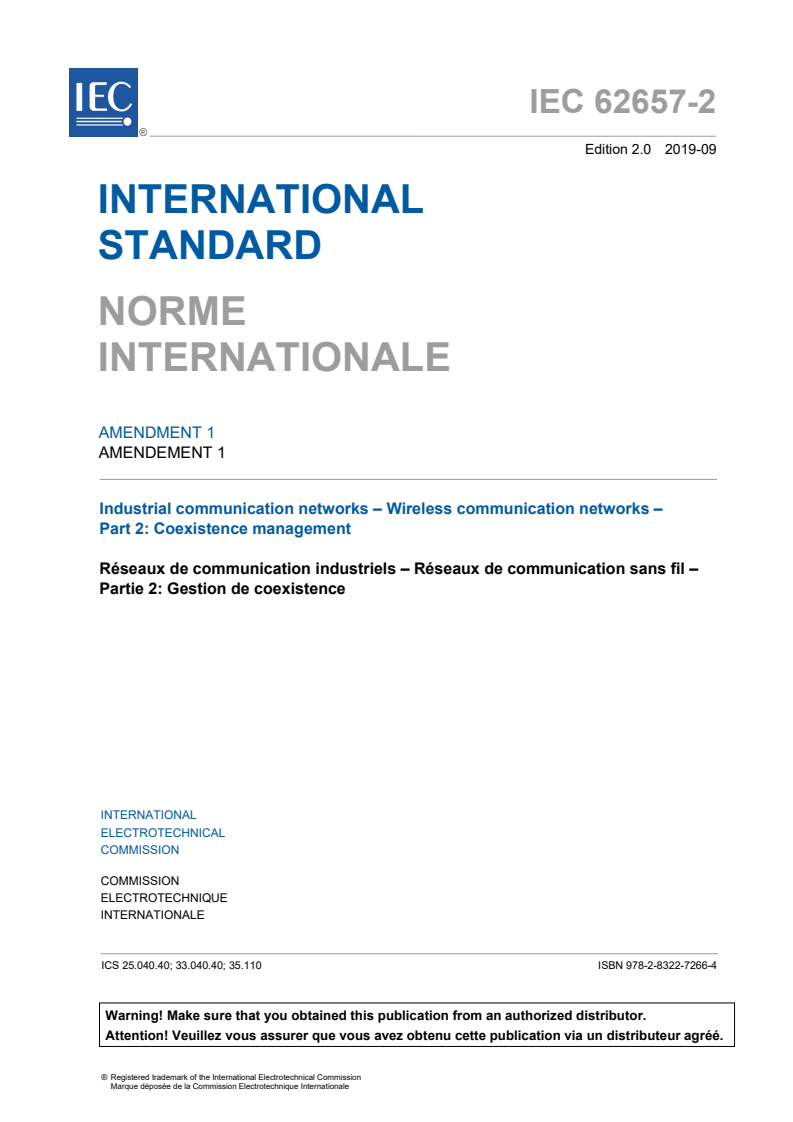

IEC 62657-2 ®
Edition 2.0 2019-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 1
AM ENDEMENT 1
Industrial communication networks – Wireless communication networks –

Part 2: Coexistence management

Réseaux de communication industriels – Réseaux de communication sans fil –

Partie 2: Gestion de coexistence

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 25.040.40; 33.040.40; 35.110 ISBN 978-2-8322-7266-4

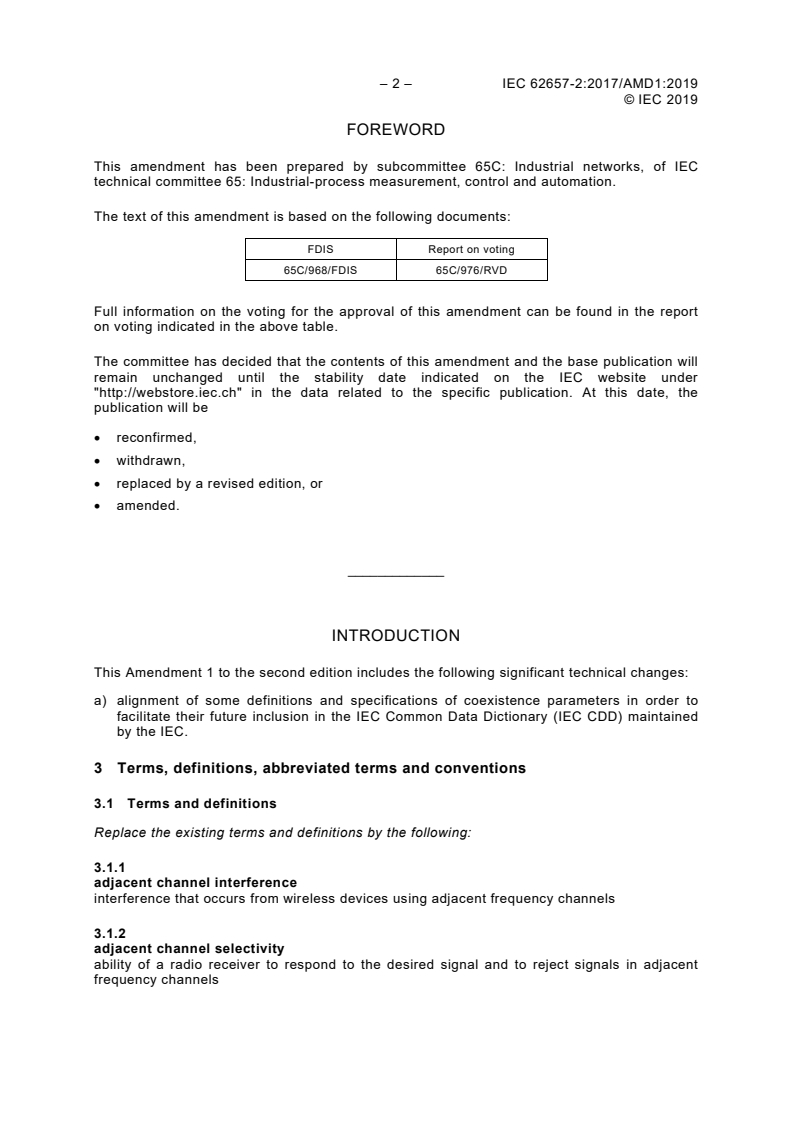

– 2 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
FOREWORD
This amendment has been prepared by subcommittee 65C: Industrial networks, of IEC
technical committee 65: Industrial-process measurement, control and automation.
The text of this amendment is based on the following documents:
FDIS Report on voting
65C/968/FDIS 65C/976/RVD
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC website under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
INTRODUCTION
This Amendment 1 to the second edition includes the following significant technical changes:
a) alignment of some definitions and specifications of coexistence parameters in order to
facilitate their future inclusion in the IEC Common Data Dictionary (IEC CDD) maintained
by the IEC.
3 Terms, definitions, abbreviated terms and conventions
3.1 Terms and definitions
Replace the existing terms and definitions by the following:
3.1.1
adjacent channel interference
interference that occurs from wireless devices using adjacent frequency channels
3.1.2
adjacent channel selectivity
ability of a radio receiver to respond to the desired signal and to reject signals in adjacent
frequency channels
© IEC 2019
3.1.3
antenna gain
ratio of the power required at the input of a reference antenna to the power supplied to the
input of the given antenna to produce, in a given direction, the same field strength at the
same distance
[SOURCE: Federal Standard 1037C:1996, modified – Deletion of “loss-free” before “reference
antenna”, deletion of the two notes and synonyms] [21]
3.1.4
antenna radiation pattern
variation of the field intensity of an antenna as an angular function with respect to the axis
3.1.5
antenna type
structure or device used to collect or radiate electromagnetic waves
3.1.6
application communication requirements
quantitative requirements specifying the required conditions and the required characteristics
of wireless communication solutions at the communication interface that is met in order to
achieve the purpose of the automation application
3.1.7
automation application
industrial automation application
application of measurement and automatic control in the industrial automation domain
3.1.8
automation application data length
user data length
number of octets that are exchanged at the reference interface
3.1.9
availability
 ability of an item to be in a state to perform as required function under given
conditions at a given instant of time or over a given time interval, assuming that the required
external resources are provided
Note 1 to entry: This ability depends on the combined aspects of the reliability performance, the maintainability
performance, and the maintenance support performance.
Note 2 to entry: Required external resources, other than maintenance resources, do not affect the availability
performance of the item.
[SOURCE: IEC 60050-191:1990, 191-02-05, modified – Deletion of third note to entry]
3.1.10
bandwidth
frequency bandwidth
difference between upper cut-off frequency and lower cut-off frequency
3.1.11
bit rate of the physical link
measure of the number of binary digits transferred per second

– 4 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
3.1.12
cellular topology
cellular network topology
network topology where the geographical area is divided in cells
Note 1 to entry: A device can move from one cell to another cell. Devices that are in a cell communicate through
a central hub. Hubs in different cells are interconnected.
3.1.13
center frequency
geometric mean of lower cut-off frequency and upper cut-off frequency of a frequency channel
3.1.14
channel number
unsigned integer number identifying a wireless communication channel in accordance to an
authoritative document or rule
3.1.15
channel occupation
time in which the medium is busy
Note 1 to entry: Beyond the pure transfer of user data, this time includes all time slices necessary to process the
transmission protocol, for example to transfer an acknowledgement.
3.1.16
characteristic of the area of operation
distinguishing properties of the area where the wireless communication network is operated
3.1.17
characteristic of wireless communication solution
parameters of wireless communication solutions which are implementations of wireless
communication systems and devices
3.1.18
characteristic of wireless device solution
parameters related to individual nodes within a network implementing a wireless
communication solution
3.1.19
characteristic of wireless device type
specification of transmitter and receiver parameters
3.1.20
characteristic of wireless network solution
parameters related to a network as a whole used implementing a wireless communication
solution
3.1.21
characteristic of wireless system type
parameters describing the kind of wireless communication system
3.1.22
characteristic of wireless system type and wireless device type
parameters that characterize the model of a wireless system or a wireless device by providing
the parameters to specify a wireless system type and a wireless device type

© IEC 2019
3.1.23
coexistence
wireless communication coexistence
state in which all wireless communication solutions of a plant using shared medium fulfil all
their application communication requirements
Note 1 to entry: In IEEE 802.15.2-2003 [19] the coexistence is defined as a characteristic of a device.
3.1.24
coexistence assessment
undertaking of an investigation in order to arrive at a judgment, based on evidence of the
suitability of a set of products and their installation to achieve coexistence
3.1.25
coexistence management
process to establish and to maintain coexistence that includes technical and organizational
measures
3.1.26
coexistence management information
parameters for the wireless coexistence management process
3.1.27
coexistence manager
role of a nominated person to manage coexistence
3.1.28
coexistence planning
process that describes the allocation of wireless communication resources (time, frequencies,
coding, space) to each wireless communication system in order to achieve coexistence
3.1.29
communication load
amount of user data to be transmitted from the automation application within a certain period
of time
3.1.30
cut-off frequency
frequency limit, nearest to the frequency where the spectral power density drops below a
certain level, defining the frequency bandwidth
3.1.31
data throughput
ratio of the number of user data per time period, transferred within a consumer at the
reference interface to the application
3.1.32
device type information
manufacturer name, manufacturer contact, the type and version of hardware and software
3.1.33
distance between wireless devices
geographical distance between devices within a three-dimensional space
3.1.34
duty cycle
ratio of the transmitter sequence referenced to a given observation time for the used
frequency channel
– 6 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
3.1.35
dwell time
period spent at a particular frequency during any single hop of a frequency hopping system
3.1.36
equivalent isotropic radiated power
product of the power supplied to the antenna and the antenna gain in a given direction
relative to an isotropic antenna (absolute or isotropic gain)
[SOURCE: Radio Regulations (2012) – Art. 1 § 1.161, modified – Term modified from
isotropically to isotropic and definition reformatted according to the ISO/IEC Directives Part 2]
3.1.37
effective radiated power
product of the power supplied to the antenna and its gain relative to a half-wave dipole in a
given direction
[SOURCE: Radio Regulations (2012) – Art. 1 § 1.162, modified – Deleted “(in a given
direction)” and definition reformatted according to the ISO/IEC Directives Part 2]
3.1.38
electromagnetic interference
EMI
degradation of the performance of an equipment, transmission channel or system caused by
an electromagnetic disturbance
Note 1 to entry: In French, the terms "perturbation électromagnétique" and "brouillage électromagnétique"
designate respectively the cause and the effect, and should not be used indiscriminately.
Note 2 to entry: In English, the terms "electromagnetic disturbance" and "electromagnetic interference" designate
respectively the cause and the effect, and should not be used indiscriminately.
[SOURCE: IEC 60050-161:1990/AMD1:1997, 161-01-06, modified – Corrected mistakes in the
Notes to entry]
3.1.39
frequency band
range in the frequency spectrum that is assigned by regulatory organizations for use for
specific applications or a group of applications
Note 1 to entry: The ITU as international regulatory organization assigns only radio communication services to a
specific range in the frequency spectrum.
3.1.40
frequency channel
span of the frequency spectrum which is characterized by lower cut-off frequency and upper
cut-off frequency or by center frequency and bandwidth
3.1.41
frequency hopping procedure
sequence of frequency channels used for transmission (hopping sequence) and dwell time
3.1.42
future expansion plan
possible installation of new wireless communication solutions and buildings that can affect
coexistence
© IEC 2019
3.1.43
general plant characteristics
parameters that characterizes the plant in general with respect to all wireless communication
applications
3.1.44
geographical dimension of the plant
length, width and height of the intended space of the wireless system
3.1.45
industrial automation application
control or management systems used in industrial production, including supervisory control
and data acquisition systems, distributed control systems, and other control system
configurations often found in the industrial sectors and critical infrastructures
3.1.46
industrial communication network
data communications sub-systems for industrial-process measurement and control as well as
on instrumentation systems used for research, development or testing purposes
3.1.47
immunity
ability of an item to continue operating properly in the event of an interference, up to a certain
level of interference, and to be resilient above this level
Note 1 to entry: Immunity of an item is achieved by adding to the robustness of the item the ability to be resilient
to interference.
3.1.48
infrastructure device
device that is essential for building up a wireless communication system according to a
technology or standard, but not having an interface to an automation application
EXAMPLE Router or base stations without interfaces to the wired industrial network or without automation
application functions.
3.1.49
initiation of data transmission
method that specifies how the application initiates the data transfer
3.1.50
intermodulation sensitivity
levels of out-of-band interfering signals that, when mixed in the receiver front-end, produce an
in-band third order non-linearity product
3.1.51
interference
radio frequency interference
effect of unwanted energy due to one or a combination of emissions, radiations, or inductions
upon reception in a radio communication system, manifested by any performance
degradation, misinterpretation, or loss of information which could be extracted in the absence
of such unwanted energy
[SOURCE: Database ITU Terms and Definitions]
3.1.52
industrial, scientific and medical application
operation of equipment or appliances designed to generate and use locally radio frequency
energy for industrial, scientific, medical, domestic or similar purposes, excluding applications
in the field of telecommunications

– 8 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
[SOURCE: Radio Regulations (2012) – Art. 1 § 1.15]
3.1.53
jitter
time variation of an expected occurrence
Note 1 to entry: Examples are variation of transmission time and update time.
3.1.54
length of user data per transfer interval
number of the octets sent out during a transfer interval, where the octets that are added
because of the requirements of the wireless communication protocol are subtracted
Note 1 to entry: The application data length affects the communication load and might account for the temporal
separation of the wireless communication systems.
3.1.55
life-cycle
length of time from the start of the development phase of a product type to the product
abandonment
[SOURCE: IEC 62890:— , 3.1.19]
3.1.56
limitation from neighbours of the plant
description of the neighbors of the plant that are likely to cause limitations for wireless
communication
EXAMPLE High power radio source(s).
3.1.57
linear topology
linear network topology
topology where the nodes are connected in series, with two nodes connected to only one
other node and all others each connected to two other nodes (that is, connected in the shape
of a line)
Note 1 to entry: This topology corresponds to that of an open ring.
[SOURCE: IEC 61918:2013, 3.1.44, modified – Added an admitted term]
3.1.58
lower cut-off frequency
frequency furthest below the frequency of maximum power where the power spectral density
drops below a certain level
3.1.59
mechanisms for adaptivity
measures to modify one or more of the systems operational parameters in order to improve
the systems robustness against interferences and to minimize the medium utilization
3.1.60
maximum number of retransmissions
upper limit of how many times user data are allowed being retransmitted automatically by the
communication stack because of transmission errors
____________
Under preparation. Stage at the time of publication: IEC 62890/FDIS:2019.

© IEC 2019
3.1.61
mechanism for adaptivity
technique or procedure to increase coexistence capability
3.1.62
medium access control mechanism
transmission technique how to access the medium
Note 1 to entry: Examples are CSMA, TDMA, or combination of both.
3.1.63
mesh topology
mesh network topology
topology in which redundant physically-diverse routing paths are available between each pair
of network nodes
Note 1 to entry: Wireless mesh topology is usable to extend coverage via multi-hop capability and/or to facilitate
communication reliability by providing redundant paths between devices.
[SOURCE: IEC 62734:2014, 3.1.2.95, modified – Added an admitted term]
3.1.64
metrics
set of quantitative indicators corresponding to selected properties of a communication device,
equipment, or wireless communication system
3.1.65
modulation
process of varying one or more properties of a periodic waveform with a modulating signal
that contains information to be transmitted
3.1.66
natural environmental condition
condition that surrounds the wireless device and wireless system
Note 1 to entry: Examples are temperature, humidity, air pressure.
3.1.67
network
all of the media, connectors, repeaters, routers, gateways and associated node
communication elements by which a given set of communicating devices are interconnected
[SOURCE: IEC 61158-2:2014, 3.1.30]
3.1.68
node
end-point of a branch in a network
[SOURCE: IEC 61918:2013, 3.1.50]
3.1.69
other frequency user
user which generates and uses radio frequency energy without having the objective of
telecommunication
Note 1 to entry: Examples are welding machine, electrical drive and frequency converter.

– 10 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
3.1.70
out-of-band emission
emission on a frequency or frequencies immediately outside the necessary bandwidth which
results from the modulation process, but excluding spurious emissions
[SOURCE: Radio Regulations (2012) – Art. 1 § 1.144]
3.1.71
packet loss rate
ratio of number of packets, transferred from the application at the reference interface within
the producer, and the number of packets, transferred at the reference interface to the
application within the consumer
3.1.72
performance requirements
requirements describing the time and error behavior necessary to achieve the purpose of the
automation application
3.1.73
physical link
relation between radio transceivers (physical end points) of two wireless devices
3.1.74
plant
managed facility, typically with a physically protected perimeter, hosting the physical process,
operation, personnel, equipment
3.1.75
point-to-point topology
point-to-point network topology
topology where two nodes are directly connected to each other
3.1.76
position of wireless device
geographical position of the three dimensional space in absolute or relative coordinates where
the device is located
3.1.77
power spectral density
distribution as a function of frequency of the power per unit bandwidth of the spectral
components of a signal or a noise having a continuous spectrum and a finite mean power
[SOURCE: IEC 60050-713:1998,713-09-12]
3.1.78
purpose of the automation application
summary of the automation application supported by the wireless network to the extent
needed to provide a useful overview of the requirements imposed on the wireless network
3.1.79
radio channel
model considers the characteristic of the frequency channel, the environmental conditions, the
distance between the wireless devices, the antenna characteristic
3.1.80
radio resource
means used by multiple wireless communication solutions for the purpose of radio signal
transmission
© IEC 2019
3.1.81
radio robustness
attribute of wireless communication to fulfil the designated function despite the presence of
other active wireless applications interfering in the sphere of influence
Note 1 to entry: This term has the same meaning as the definition of the term coexistence in IEEE 802.15.2-2003,
3.1.2 [19].
3.1.82
reference interface
exposed interface between an automation application and the wireless communication
function
Note 1 to entry: There is no consistently defined interface for measurement and automation. The interface of the
device might be a serial or a parallel hardware interface, a fieldbus interface, a software interface, or serial,
parallel, discrete, and analog interface.
3.1.83
receiver blocking
effect of a strong interfering signal on the receiver’s ability to detect a low-level wanted signal
3.1.84
receiver input level
received signals with levels above the receiver maximum input level
3.1.85
receiver maximum input level
maximum signal power that the system can tolerate without distortion of the signal
3.1.86
receiver sensitivity
minimal signal power to receive data with a defined bit error rate
3.1.87
regional radio regulation
regulation of important coexistence parameters such as frequency band and output power
related to the region where the wireless application is intended to be used
3.1.88
relative movement
position of a wireless device over time
3.1.89
requirements influencing the characteristic of wireless solutions
application communication requirements that influence the performance of wireless solutions
and thus the coexistence state
3.1.90
response time
time interval between the instant delivery of the first user data bit, or octet, of a packet to the
reference interface of a transmitter, and the instant when the last bit, or octet, of the
confirmation packet is delivered at the reference interface of the same transmitter, which can
be assigned to the request
3.1.91
ring topology
ring network topology
active network where each node is connected in series to two other nodes

– 12 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
[SOURCE: IEC 61918:2013, 3.1.63, modified – ring" has been changed to "ring topology" and
an admitted term has been added]
3.1.92
robustness
ability of an item to continue operating properly in the event of an interference, up to a certain
level of the interference
Note 1 to entry: The robustness of an item may be increased with measures that modify one or more of its
operational parameters.
3.1.93
security level
requirement category for cyber security
3.1.94
shared medium
resource of frequency band in particular area shared by several wireless applications
Note 1 to entry: In the industrial, scientific and medical (ISM)-bands many wireless applications are used. Due to
this joint use, the term shared medium is used in this document. The frequency bands are used by diverse ISM
applications and wireless communication applications.
3.1.95
spatial coverage of the wireless communication network
spatial coverage specified by length, width and height of a cuboid that encloses the wireless
communication network
3.1.96
spurious emission
emission on a frequency or frequencies which are outside the necessary bandwidth and the
level of which may be reduced without affecting the corresponding transmission of
information, including harmonic emissions, parasitic emissions, intermodulation products and
frequency conversion products, but exclude out-of-band emissions
[SOURCE: Radio Regulations (2012) – Art. 1 § 1.145]
3.1.97
spurious response
receiver output due to unwanted signals
Note 1 to entry: That means having frequencies other than those of the tuned frequency channel.
3.1.98
star topology
star network topology
network of three or more devices topology where all devices are connected to a central device
[SOURCE: IEC 61918:2013, 3.1.69, modified – "topology" has been added, "point (which may
be active or passive)" has been replaced by "device", and an admitted term has been added]
3.1.99
telecommunication
any transmission, emission or reception of signs, signals, writings, images and sounds or
intelligence of any nature by wire, radio, optical or other electromagnetic systems
[SOURCE: Radio Regulations (2012) – Art. 1 § 1.3]

© IEC 2019
3.1.100
topology of a network
network topology
pattern of the relative positions and interconnections of the individual elements of the network
[SOURCE: IEC 61918:2013, 3.1.73, modified – Deleted the “Note 1 to entry” and added an
admitted term]
3.1.101
total radiated power
spatial power density integrated across the surface of the sphere
3.1.102
transfer interval
time difference between two consecutive transfers of user data from the automation
application via the reference interface to the wireless communication function
3.1.103
transmission gap
gap between two successive channel usages by a transmitter
3.1.104
transmission time
interval from starting the delivery of the first application data octet of a packet to the reference
communication interface of a producer until the delivery of the last application data octet of
the same packet from the reference communication interface of a consumer
3.1.105
transmitter sequence
time that a transmitter uses a frequency channel without the possibility to be interrupted by a
wireless device of the same network
3.1.106
transmission output power
total radiated power reduced by losses between the transmitter output and the antenna
3.1.107
transmitter spectral mask
envelope of maximum values of power spectral density over a frequency range
3.1.108
tree topology
tree network topology
network topology where all nodes are connected in a combination of a linear and a star
topology
3.1.109
update time
interval from the delivery of the last user data byte of the packet of a producer, from the
reference interface of a consumer to the automation application, until the delivery of the last
user data byte of the following packet of the same producer
3.1.110
upper cut-off frequency
frequency furthest above the frequency of maximum power where the power spectral density
drops below a certain level
– 14 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
3.1.111
wireless application
any use of electromagnetic waves with devices or equipment for the generation and use of
radio frequency energy
Note 1 to entry: The definition includes radio determination equipment.
3.1.112
wireless communication
communication in which electromagnetic radiations are used to transfer information without
the use of wires or optical fibers
3.1.113
wireless communication application
part of an industrial automation application that uses wireless communication
3.1.114
wireless communication network density
ratio of the number of wireless communication networks and the spatial coverage of the plant
3.1.115
wireless device
wireless automation device
equipment of wireless communication applications that uses radio waves for wireless
communication with other equipment of wireless communication applications
3.1.116
wireless device density
number of wireless devices within the spatial coverage of the wireless communication network
3.1.117
wireless device receiver parameters
specification of wireless receiver characteristics
3.1.118
wireless device transmitter parameters
specification of wireless transmitter characteristics
3.1.119
wireless network
wireless communication network
network consisting of at least two wireless devices that established wireless communication
3.1.120
wireless solution
wireless communication solution
specific implementation or instance of a wireless communication system
Note 1 to entry: A wireless solution may be composed of products of one or more producers.
3.1.121
wireless system
wireless communication system
set of interrelated elements providing wireless communication
Note 1 to entry: A wireless system is a high level representation of a system, while a wireless solution is a
practical instance of a system. A wireless system can comprise one or more wireless networks.

© IEC 2019
3.1.122
wireless technology or standard
naming the wireless technology or standard
EXAMPLE Examples of standards specifying a wireless communication network are IEC 62591, IEC 62601 and
IEC 62734.
5.1.1 Definition and usage of parameters
Add, at the end of 5.1.1, the following paragraph:
The data types of the parameters are defined in the Common Data Dictionary (CDD).

5.17 Dwell time
Add, at the end of the first paragraph of 5.17, the following sentence:
The number of frequency hopping channels is implicit given with the parameter frequency
hopping procedure, see 5.22.
5.38 Power spectral density
Replace the last sentence by the following:
The unit of this parameter shall be dBm/Hz over the intended frequency range.

5.53 Transmitter output power
Replace the last sentence by the following:
The unit of this parameter shall be W.

6.4.2 Wireless system type
Replace the title by “Characteristic of wireless system type”.
Add, in Table 7, two rows below “Frequency band”, as follows:
Frequency band 5.20 Description of possible frequency band
Lower cut-off frequency 5.12 Lower frequency limit of the frequency band
Upper cut-off frequency 5.12 Upper frequency limit of the frequency band

6.4.3 Wireless device type
Replace the title by “Characteristic of wireless device type”.

– 16 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
6.4.3.2 Transmitter parameters
Replace the title by “Characteristic of wireless transmitter parameters”.
6.4.3.3 Receiver parameters
Replace the title by “Characteristic of wireless receiver parameters”.
6.5.2 Characteristic of a wireless network solution
Replace the parameter name in Table 10, first row by “Characteristic of wireless system type”.
6.5.3 Characteristic of a wireless device solution
Replace the parameter name in Table 11, first row by “Characteristic of wireless system type”.
Replace the parameter name in Table 11, third row by “Characteristic of wireless device type”.

7.1.2 Documentation
Replace the titles of 6.4.2 in bullet a) and 6.4.3 in bullet b) respectively by:
• Characteristic of wireless system type
• Characteristic of wireless device type
Replace the titles of 6.4.3.2 in bullet i) and 6.4.3.3 in bullet ii) respectively by:
• Characteristic of wireless transmitter parameters
• Characteristic of wireless receiver parameters

8 Coexistence parameter templates
Replace the parameter name in Table 17, first row by “Characteristic of wireless system type”.
Replace the parameter name in Table 18, first row by “Characteristic of wireless system type”.
Replace the parameter name in Table 18, third row by “Characteristic of wireless device type”.

Bibliography
Add, at the end of Bibliography, the following new reference:
Database ITU Terms and Definitions, available at
R/index.asp?redirect=true&category=information&rlink=terminology-
database&lang=en&adsearch=&SearchTerminology=&collection=normative§or=itu-
r&language=all&part=abbreviationterm&kind=anywhere&StartRecord=1&NumberRecords=50>
[viewed 2019-05-14]
___________
– 18 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
AVANT-PROPOS
Le présent amendement a été établi par le sous-comité 65C: Réseaux industriels, du comité
d'études 65 de l'IEC: Mesure, commande et automation dans les processus industriels.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
65C/968/FDIS 65C/976/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
Le comité a décidé que le contenu de cet amendement et de la publication de base ne sera
pas modifié avant la date de stabilité indiquée sur le site web de l'IEC sous
«http://webstore.iec.ch» dans les données relatives à la publication recherchée. À cette date,
la publication sera
• reconduite,
• supprimée,
• remplacée par une édition révisée, ou
• amendée.
_____________
INTRODUCTION
Le présent Amendement 1 à la deuxième édition inclut les modifications techniques
significatives suivantes:
a) alignement de certaines définitions et spécifications des paramètres de coexistence afin
de faciliter leur inclusion future dans le dictionnaire de données communes de l'IEC
(IEC CDD) géré par l'IEC.
3 Termes, définitions, abréviations et conventions
3.1 Termes et définitions
Remplacer les termes et définitions existants par les suivants:
3.1.1
interférence dans le canal adjacent
interférence se produisant lorsque des appareils sans fil utilisent des canaux de fréquences
adjacents
3.1.2
sélectivité pour le canal adjacent
aptitude d'un récepteur radioélectrique à répondre au signal utile et à renvoyer des signaux
dans des canaux de fréquences adjacents

IEC 62657-2:2017/AMD1.2019 – 19 –
© IEC 2019
3.1.3
gain d’antenne
rapport de la puissance exigée en entrée d'une antenne de référence sur la puissance fournie
à l'entrée de l'antenne donnée pour produire, dans une direction donnée, la même intensité
de champ à la même distance
[SOURCE: Norme fédérale 1037C:1996, modifiée – Suppression de “sans perte” devant
“antenne de référence”, suppression de deux notes et des synonymes] [21]
3.1.4
caractéristique de rayonnement d'antenne
variation de l'intensité de champ d'une antenne sous forme de fonction angulaire par rapport
à l'axe
3.1.5
type d'antenne
structure ou appareil servant à recueillir ou émettre des ondes électromagnétiques
3.1.6
exigences de communication de l'application
exigences quantitatives spécifiant les conditions exigées et les caractéristiques de solution de
communication sans fil exigées au niveau de l’interface de communication qui est satisfaite
afin d’atteindre le but de l’application d'automatisation
3.1.7
application d'automatisation
application d'automatisation industrielle
application de mesure et de commande automatique dans le domaine de l'automatisation
industrielle
3.1.8
longueur des données d'application d'automatisation
longueur de données de l'utilisateur
nombre d'octets échangés au niveau de l'interface de référence
3.1.9
disponibilité
 aptitude d'une entité à être en état d'accomplir une fonction exigée dans des
conditions données, à un instant donné ou pendant un intervalle de temps donné, en
supposant que la fourniture des moyens extérieurs exigés est assurée
Note 1 à l’article: La disponibilité dépend de la fiabilité, de la maintenabilité et de la logistique de maintenance.
Note 2 à l’article: Les moyens extérieurs exigés, autres que la logistique de maintenance, n'influencent pas la
disponibilité de l'entité.
[SOURCE: IEC 60050-191:1990, 191-02-05, modifiée – Suppression de la troisième Note à
l'article]
3.1.10
bande passante
largeur de bande de fréquences
différence entre la fréquence de coupure supérieure et la fréquence de coupure inférieure
3.1.11
débit binaire de liaison physique
mesure du nombre d’éléments binaires transférés par seconde

– 20 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
3.1.12
topologie cellulaire
topologie de réseau cellulaire
topologie de réseau dans laquelle la zone géographique est divisée en cellules
Note 1 à l’article: Un appareil peut être déplacé d'une cellule à l'autre. Les appareils se trouvant dans une cellule
communiquent par l'intermédiaire d'un concentrateur central. Les concentrateurs présents dans différentes cellules
sont interconnectés.
3.1.13
fréquence centrale
moyenne géométrique des fréquences de coupure inférieure et supérieure d'un canal de
fréquences
3.1.14
numéro de canal
nombre entier non signé identifiant un canal de communication sans fil conformément à un
document ou une loi officiel(le)
3.1.15
occupation de canal
durée pendant laquelle le support est occupé
Note 1 à l’article: En plus du pur transfert de données d'utilisateur, cette durée comprend toutes les périodes
nécessaires à l'exécution du protocole de transmission, par exemple pour transférer un accusé de réception.
3.1.16
caractéristiques du lieu de fonctionnement
propriétés distinctives du lieu dans lequel le réseau de communication sans fil est en
fonctionnement
3.1.17
caractéristiques de solution de communication sans fil
paramètres des solutions de communication sans fil qui sont des mises en œuvre des
systèmes et appareils de communication sans fil
3.1.18
caractéristiques d'une solution à appareil sans fil
paramètres relatifs aux nœuds individuels au sein d’un réseau exécutant une solution de
communication sans fil
3.1.19
caractéristiques d'un type d'appareil sans fil
spécification des paramètres d’émission et de réception
3.1.20
caractéristiques d'une solution réseau sans fil
paramètres relatifs à un réseau utilisé dans son ensemble exécutant une solution de
communication sans fil
3.1.21
caractéristiques du type de système sans fil
paramètres décrivant le genre de système de communication sans fil
3.1.22
caractéristiques du type de système et du type d'appareil sans fil
paramètres qui caractérisent le modèle d'un système sans fil ou d'un appareil sans fil en
fournissant les paramètres permettant de spécifier un type de système sans fil et un type
d'appareil sans fil
IEC 62657-2:2017/AMD1.2019 – 21 –
© IEC 2019
3.1.23
coexistence
coexistence de communications sans fil
état dans lequel toutes les solutions de communication sans fil d'une installation utilisant un
support commun satisfont à toutes les exigences de communication de leur application
Note 1 à l’article: Dans l'IEEE 802.15.2-2003 [19], la coexistence est définie comme une caractéristique d'un
appareil.
3.1.24
évaluation de coexistence
étude visant à établir un jugement, fondé sur des preuves, de la pertinence d'un ensemble de
produits et de leur installation pour obtenir la coexistence
3.1.25
gestion de coexistence
processus visant à établir et maintenir la coexistence comportant des mesures techniques et
organisationnelles
3.1.26
informations de gestion de coexistence
paramètres du processus de gestion de coexistence sans fil
3.1.27
gestionnaire de coexistence
rôle d’une personne nommée afin de gérer la coexistence
3.1.28
planification de coexistence
processus décrivant l'allocation de ressources de communication sans fil (telles que des
périodes, fréquences, codage, espaces, etc.) pour chaque système de communication sans fil
afin d'obtenir la coexistence
3.1.29
charge de communication
quantité de données utilisateur à transmettre depuis l'application d'automatisation en un
certain laps de temps
3.1.30
fréquence de coupure
limite de fréquence, la plus proche de la fréquence à laquelle la densité spectrale de
puissance passe au-dessous d'un certain niveau, définissant la largeur de bande de
fréquences
3.1.31
débit de données
rapport du nombre de données utilisateur par période transférées chez un client entre
l'interface de référence et l'application
3.1.32
informations sur le type d'appareil
nom du fabricant, contact chez le fabricant, type et version du matériel et du logiciel
3.1.33
distance entre des appareils sans fil
distance géographique entre les appareils dans un espace tridimensionnel

– 22 – IEC 62657-2:2017/AMD1:2019
© IEC 2019
3.1.34
cycle de service
rapport de la séquence de l'émetteur référencée sur une période d'observation donnée pour
le canal d
...
