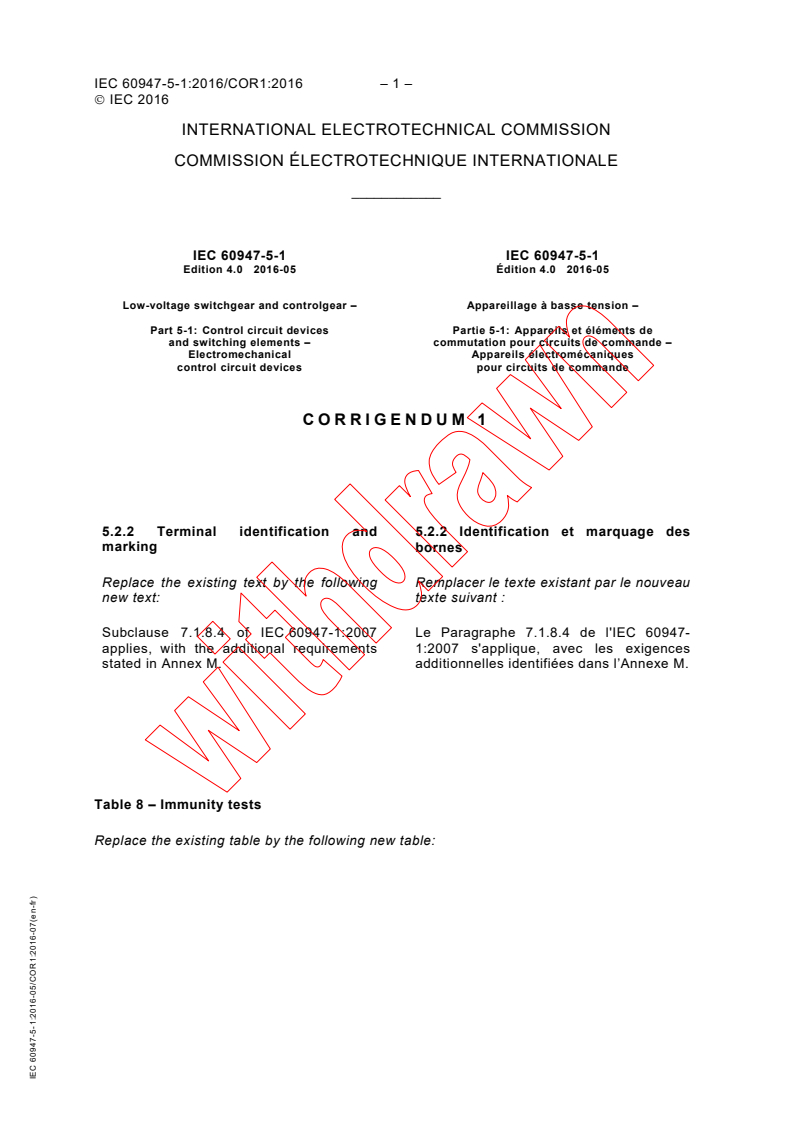

IEC 60947-5-1:2016/COR1:2016

 IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE
____________
IEC 60947-5-1 IEC 60947-5-1
Edition 4.0  2016-05 Édition 4.0  2016-05

Low-voltage switchgear and controlgear – Appareillage à basse tension –

Part 5-1: Control circuit devices Partie 5-1: Appareils et éléments de
and switching elements – commutation pour circuits de commande –
Electromechanical Appareils électromécaniques
control circuit devices pour circuits de commande

CO RRI G ENDU M 1
5.2.2 Terminal identification and 5.2.2 Identification et marquage des
marking bornes
Replace the existing text by the following Remplacer le texte existant par le nouveau
new text: texte suivant :
Subclause 7.1.8.4 of IEC 60947-1:2007 Le Paragraphe 7.1.8.4 de l'IEC 60947-
applies, with the additional requirements 1:2007 s'applique, avec les exigences
stated in Annex M. additionnelles identifiées dans l’Annexe M.

Table 8 – Immunity tests
Replace the existing table by the following new table:
IEC 60947-5-1:2016-05/COR1:2016-07(en-fr)

– 2 – IEC 60947-1:2016/COR1:2016
 IEC 2016

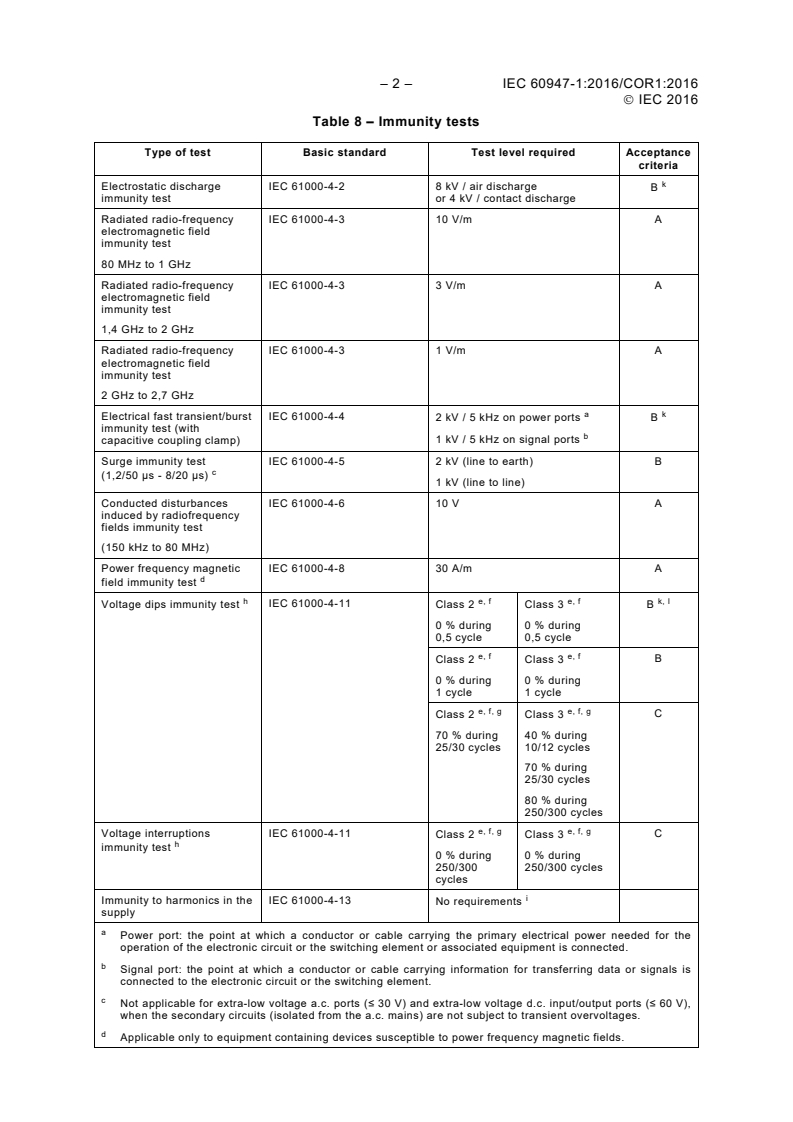

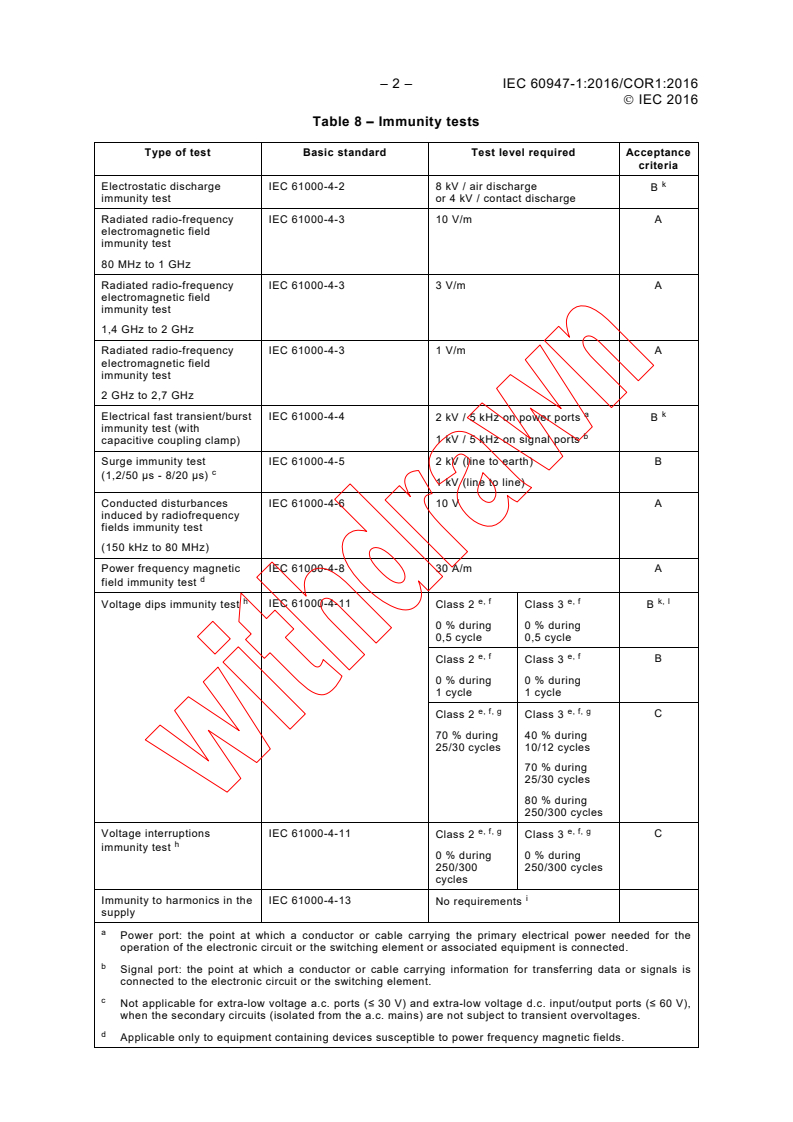

Table 8 – Immunity tests
Type of test Basic standard Test level required Acceptance
criteria
k
Electrostatic discharge IEC 61000-4-2 8 kV / air discharge
B
immunity test or 4 kV / contact discharge
Radiated radio-frequency IEC 61000-4-3 10 V/m A
electromagnetic field
immunity test
80 MHz to 1 GHz
Radiated radio-frequency IEC 61000-4-3 3 V/m A
electromagnetic field
immunity test
1,4 GHz to 2 GHz
Radiated radio-frequency IEC 61000-4-3 1 V/m A
electromagnetic field
immunity test
2 GHz to 2,7 GHz
a k
Electrical fast transient/burst IEC 61000-4-4
2 kV / 5 kHz on power ports B
immunity test (with
b
1 kV / 5 kHz on signal ports
capacitive coupling clamp)
Surge immunity test IEC 61000-4-5 2 kV (line to earth) B
c
(1,2/50 μs - 8/20 μs)
1 kV (line to line)
Conducted disturbances IEC 61000-4-6 10 V A
induced by radiofrequency
fields immunity test
(150 kHz to 80 MHz)
Power frequency magnetic IEC 61000-4-8 30 A/m A
d
field immunity test
h e, f e, f k, l
IEC 61000-4-11
Voltage dips immunity test Class 2 Class 3 B
0 % during 0 % during
0,5 cycle 0,5 cycle
e, f e, f
B
Class 2 Class 3
0 % during 0 % during
1 cycle 1 cycle
e, f, g e, f, g
C
Class 2 Class 3
70 % during 40 % during
25/30 cycles 10/12 cycles
70 % during
25/30 cycles
80 % during
250/300 cycles
e, f, g e, f, g
Voltage interruptions IEC 61000-4-11 C
Class 2 Class 3
h
immunity test
0 % during 0 % during
250/300 250/300 cycles
cycles
i
Immunity to harmonics in the IEC 61000-4-13
No requirements
supply
a
Power port: the point at which a conductor or cable carrying the primary electrical power needed for the
operation of the electronic circuit or the switching element or associated equipment is connected.
b
Signal port: the point at which a conductor or cable carrying information for transferring data or signals is
connected to the electronic circuit or the switching element.
c
Not applicable for extra-low voltage a.c. ports (≤ 30 V) and extra-low voltage d.c. input/output ports (≤ 60 V),
when the secondary circuits (isolated from the a.c. mains) are not subject to transient overvoltages.
d
Applicable only to equipment containing devices susceptible to power frequency magnetic fields.

 IEC 2016

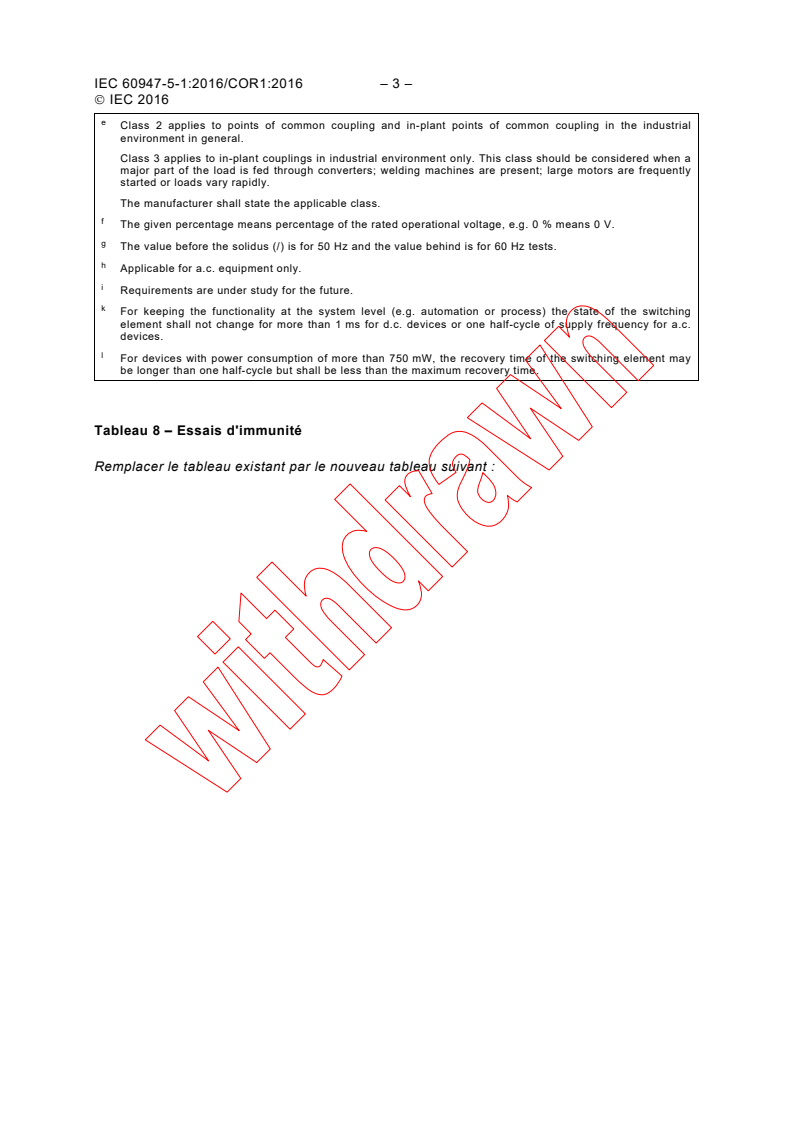

e
Class 2 applies to points of common coupling and in-plant points of common coupling in the industrial
environment in general.
Class 3 applies to in-plant couplings in industrial environment only. This class should be considered when a
major part of the load is fed through converters; welding machines are present; large motors are frequently
started or loads vary rapidly.
The manufacturer shall state the applicable class.
f
The given percentage means percentage of the rated operational voltage, e.g. 0 % means 0 V.
g
The value before the solidus (/) is for 50 Hz and the value behind is for 60 Hz tests.
h
Applicable for a.c. equipment only.
i
Requirements are under study for the future.
k
For keeping the functionality at the system level (e.g. automation or process) the state of the switching
element shall not change for more than 1 ms for d.c. devices or one half-cycle of supply frequency for a.c.
devices.
l
For devices with power consumption of more than 750 mW, the recovery time of the switching element may
be longer than one half-cycle but shall be less than the maximum recovery time.

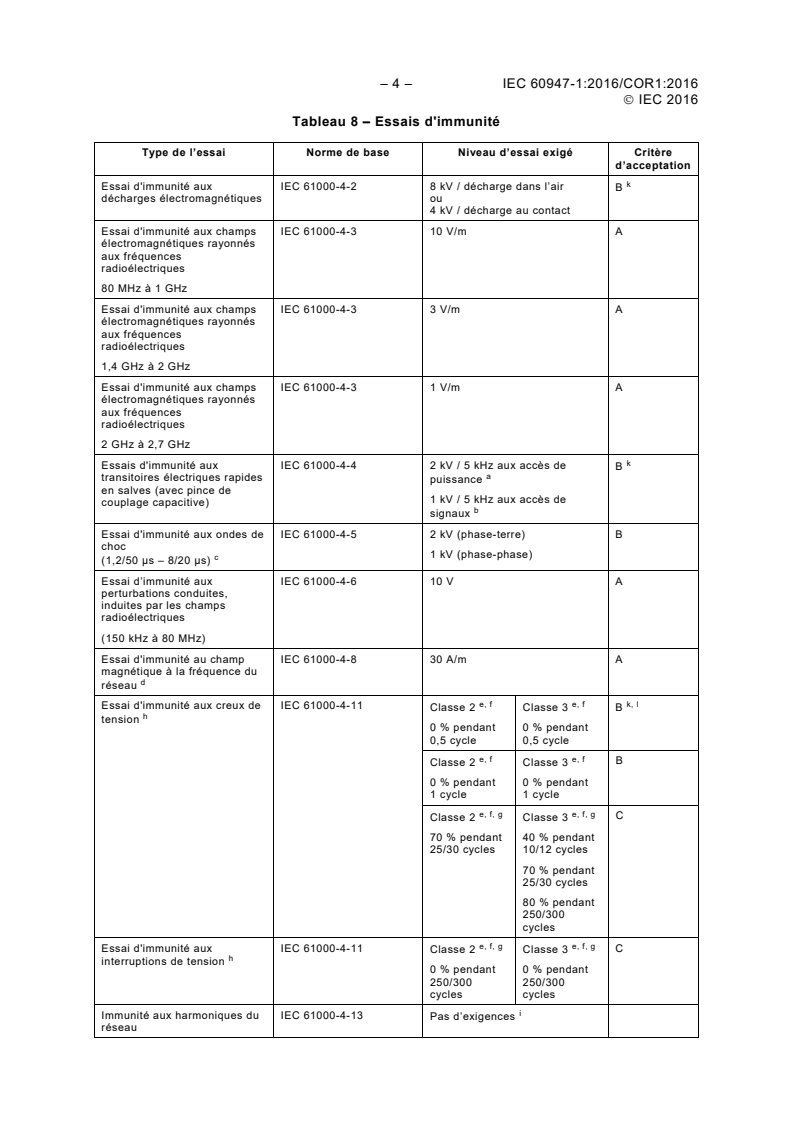

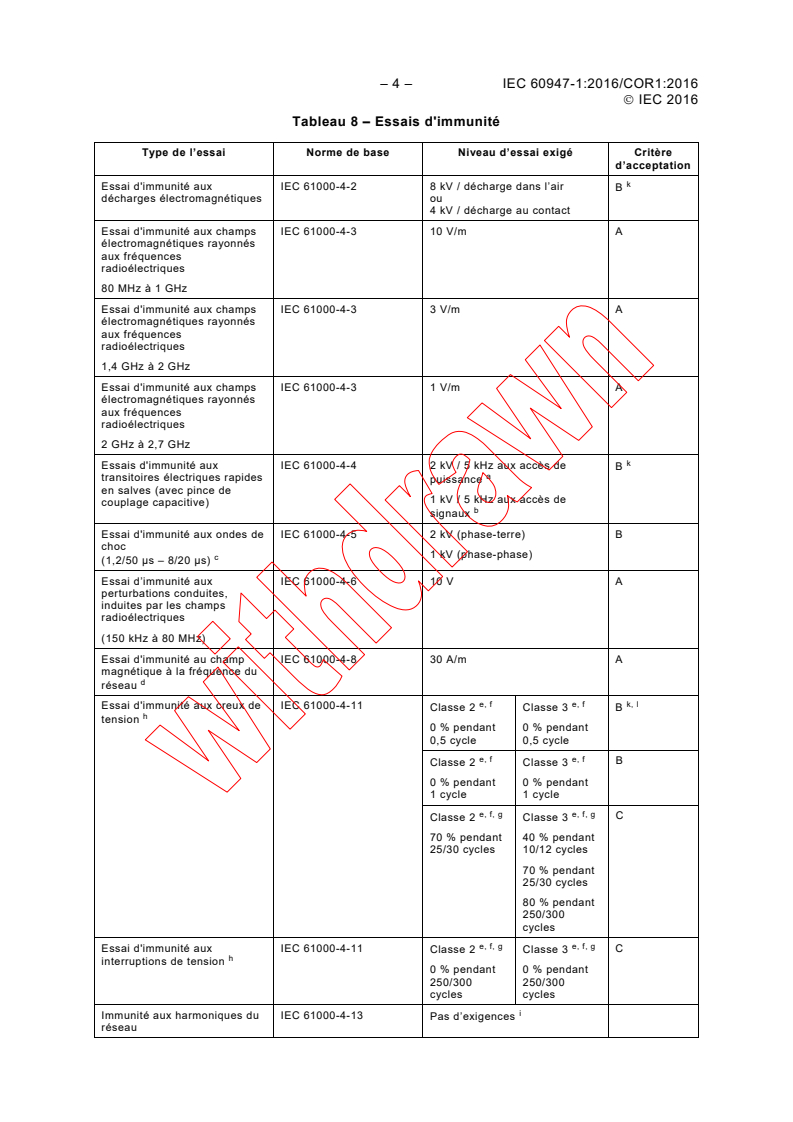

Tableau 8 –
...
