IEC 61188-5-8:2007

IEC 61188-5-8 ®
Edition 1.0 2007-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Printed board and printed board assemblies – Design and use –
Part 5-8: Attachment (land/joint) considerations – Area array components (BGA,
FBGA, CGA, LGA)
Cartes imprimées et cartes imprimées équipées – Conception et utilisation –
Partie 5-8: Considérations sur les liaisons pastilles/joints – Composants
matriciels (BGA, FBGA, CGA, LGA)

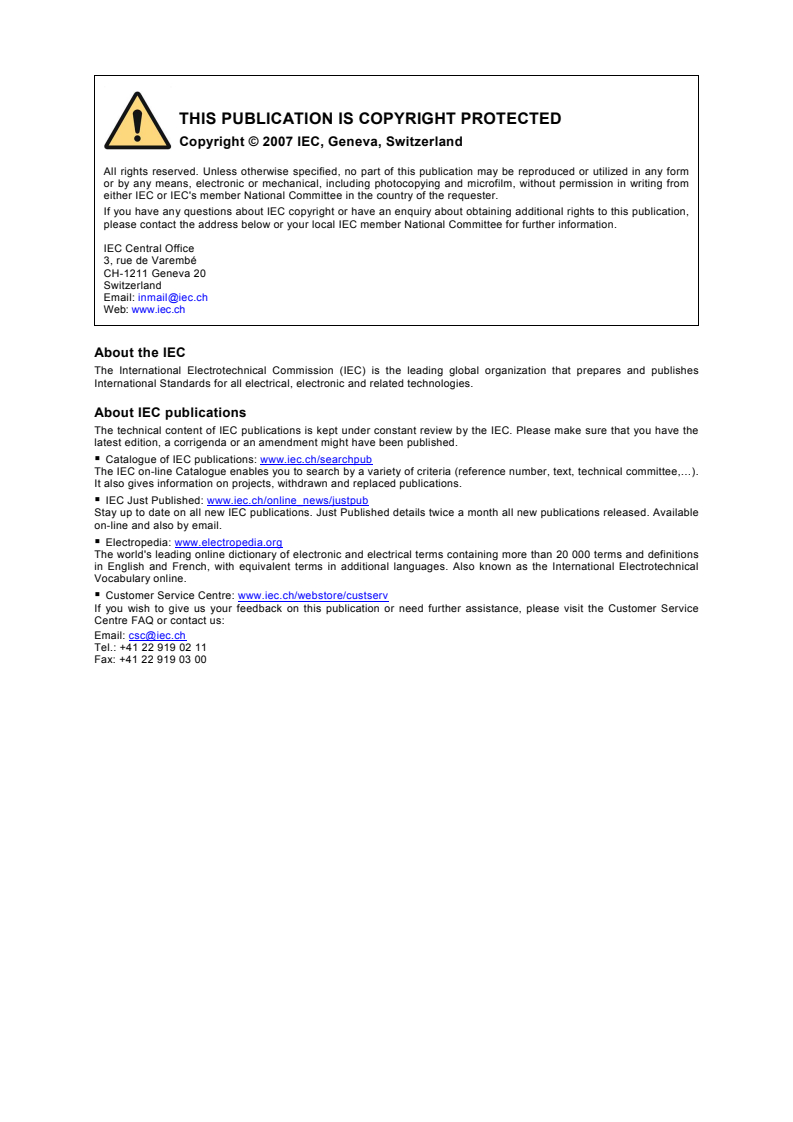

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: inmail@iec.ch
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: csc@iec.ch
Tel.: +41 22 919 02 11
Fax: +41 22 919 03 00
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: csc@iec.ch
Tél.: +41 22 919 02 11
Fax: +41 22 919 03 00
IEC 61188-5-8 ®
Edition 1.0 2007-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Printed board and printed board assemblies – Design and use –
Part 5-8: Attachment (land/joint) considerations – Area array components (BGA,
FBGA, CGA, LGA)
Cartes imprimées et cartes imprimées équipées – Conception et utilisation –
Partie 5-8: Considérations sur les liaisons pastilles/joints – Composants
matriciels (BGA, FBGA, CGA, LGA)

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
U
CODE PRIX
ICS 31.180 ISBN 978-2-88910-436-9
– 2 – 61188-5-8 © IEC:2007

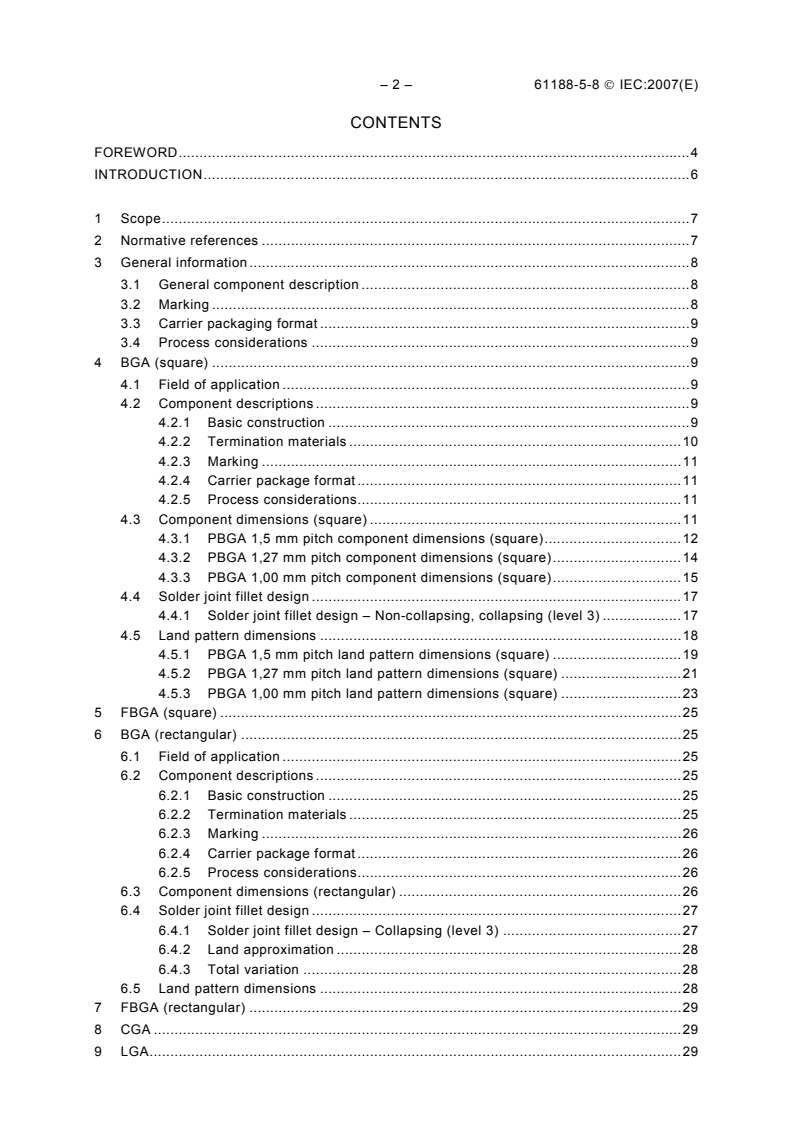

CONTENTS
FOREWORD.4
INTRODUCTION.6
1 Scope.7
2 Normative references .7
3 General information.8
3.1 General component description .8
3.2 Marking .8
3.3 Carrier packaging format .9
3.4 Process considerations .9
4 BGA (square) .9
4.1 Field of application .9
4.2 Component descriptions .9
4.2.1 Basic construction .9
4.2.2 Termination materials .10
4.2.3 Marking .11
4.2.4 Carrier package format .11
4.2.5 Process considerations.11
4.3 Component dimensions (square) .11
4.3.1 PBGA 1,5 mm pitch component dimensions (square).12
4.3.2 PBGA 1,27 mm pitch component dimensions (square).14
4.3.3 PBGA 1,00 mm pitch component dimensions (square).15
4.4 Solder joint fillet design .17
4.4.1 Solder joint fillet design – Non-collapsing, collapsing (level 3) .17
4.5 Land pattern dimensions .18
4.5.1 PBGA 1,5 mm pitch land pattern dimensions (square) .19
4.5.2 PBGA 1,27 mm pitch land pattern dimensions (square) .21
4.5.3 PBGA 1,00 mm pitch land pattern dimensions (square) .23
5 FBGA (square) .25
6 BGA (rectangular) .25
6.1 Field of application .25
6.2 Component descriptions .25
6.2.1 Basic construction .25
6.2.2 Termination materials .25
6.2.3 Marking .26
6.2.4 Carrier package format .26
6.2.5 Process considerations.26
6.3 Component dimensions (rectangular) .26
6.4 Solder joint fillet design .27
6.4.1 Solder joint fillet design – Collapsing (level 3) .27
6.4.2 Land approximation .28
6.4.3 Total variation .28
6.5 Land pattern dimensions .28
7 FBGA (rectangular) .29
8 CGA .29
9 LGA.29
Bibliography.30

61188-5-8 © IEC:2007 – 3 –
Figure 1 – Area array land pattern configuration .7
Figure 2 – BGA physical configuration examples .10
Figure 3 – High land and eutectic solder ball and joint comparison .10
Figure 4 – BGA (square) .11
Figure 5 – General BGA dimensional characteristics.12
Figure 6 – Solder joint fillet design.18
Figure 7 – BGA (square) land pattern dimensions .19

Table 1 – Ball diameter sizes .8
Table 2 – BGA products with pitch of 1,5 mm.13
Table 3 – BGA products with pitch of 1,27 mm.14
Table 4 – BGA products with pitch of 1,0 mm.16
Table 5 – BGA product land patterns with pitch of 1,50 mm .20
Table 6 – BGA product land patterns with pitch of 1,27 mm .22
Table 7 – BGA product land patterns with pitch of 1,00 mm .24
Table 8 – Rectangular BGA products with pitch of 1,27 mm .27
Table 9 – Rectangular BGA product land patterns with pitch of 1,27 mm.29

– 4 – 61188-5-8 © IEC:2007
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PRINTED BOARD AND PRINTED BOARD ASSEMBLIES –
DESIGN AND USE –
Part 5-8: Attachment (land/joint) considerations –
Area array components (BGA, FBGA, CGA, LGA)

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61188-5-8 has been prepared by IEC technical committee 91:
Electronics assembly technology.
This bilingual version, published in 2010-01, corresponds to the English version.
The text of this standard is based on the following documents:
FDIS Report on voting
91/705/FDIS 91/737/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The French version of this standard has not been voted upon.

61188-5-8 © IEC:2007 – 5 –
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
IEC 61188-5-8 is to be read in conjunction with IEC 61188-5-1.
A list of all parts of the IEC 61188 series, under the general title Printed boards and printed
board assemblies – Design and use, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the maintenance result date0F indicated on the IEC web site under "http://webstore.iec.ch" in
the data related to the specific publication. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – 61188-5-8 © IEC:2007
INTRODUCTION
This part of IEC 61188 covers land patterns for area array components which include ball grid
array (BGA) parts (rigid, flexible or ceramic substrate); fine pitch ball grid array (FBGA) parts
(rigid or flexible substrate); column grid array (CGA) parts (ceramic substrates) and land grid
array (LGA) parts (ceramic substrates). Each clause contains information in accordance with
the area array family of components and their requirements for appropriate land patterns.
The proposed land pattern dimensions in this standard are based upon the fundamental
tolerance calculation combined with the given land geometries and courtyard excesses (see
IEC 61188-5-1, Generic requirements). The courtyard includes all issues of the normal
manufacturing necessities.
The unaltered land pattern dimensions of this part are generally applicable for the solder
paste application plus the reflow soldering process.
Although other standards in the IEC 61188-5 series define three levels of land pattern
dimensioning, this standard will only define two levels. One level (level 2) is for non collapsing
BGA balls; the other level (level 3) is for those BGA components where the ball does collapse
around the land. All land descriptions are non-solder mask defined. Each land pattern has
been assigned an identification number to indicate the characteristics of the specific
robustness of the land patterns. Users also have the opportunity to organize the information
so that it is most useful for their particular design.
If a user has good reason to use a concept different from that of IEC 61188-5-1, or if the user
prefers unusual land geometries, this standard should be used for checking the resulting ball
to land relationship.
It is the responsibility of the user to verify the SMD land patterns used for achieving an
undisturbed mounting process including testing and an ensured reliability for the product
stress conditions in use. In addition, the size and shape of the proposed land pattern may
vary according to the solder resist aperture, the size of the land pattern extension (dog bone),
the via within the extension, or if the via is in the land pattern itself.
Dimensions of the components listed in this standard are of those available in the market, and
regarded as reference only.
61188-5-8 © IEC:2007 – 7 –
PRINTED BOARD AND PRINTED BOARD ASSEMBLIES –
DESIGN AND USE –
Part 5-8: Attachment (land/joint) considerations –
Area array components (BGA, FBGA, CGA, LGA)

1 Scope
This part of IEC 61188 provides information on land pattern geometries used for the surface
attachment of electronic components with area array terminations in the form of solder balls,
solder columns or protective coated lands. The intent of the information presented herein is to
provide the appropriate size, shape and tolerances of surface mount land patterns to ensure
sufficient area for the appropriate solder joint, and also allow for inspection, testing and
reworking of those solder joints.
Each clause contains a specific set of criteria such that the information presented is
consistent, providing information on the component, the component dimensions, the solder
joint design and the land pattern dimensions.
The land pattern dimensions are based on a mathematical model that establishes a platform
for a solder joint attachment to the printed board. The existing models create a platform that is
capable of establishing a reliable solder joint no matter which solder alloy is used to make
that joint (lead-free, tin lead, etc.).
Process requirements for solder reflow are different depending on the solder alloy and should
be analyzed so that the process is taking place above the liquidus temperature of the alloy,
and remains above that temperature a sufficient time to form a reliable metallurgical bond.
Area array land patterns do not use "land protrusion" concepts and attempt to match the
characteristics of the physical and dimensional termination properties. There are several
configurations available, as shown in Figure 1. However, the tables provided show only the
optimum dimension across the outer construction of the land.

Circle Hexagon
Via in Pad
Dog Bone
IEC  2028/07
Figure 1 – Area array land pattern configuration
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.

– 8 – 61188-5-8 © IEC:2007
IEC 60068-2-58, Environmental testing – Part 2-58: Tests: Test Td – Test methods for
solderability, resistance to dissolution of metallization and to soldering heat of surface
mounting devices (SMD)
IEC 60191-2 (all parts), Mechanical standardization of semiconductor devices – Part 2:
Dimensions
IEC 61188-5-1, Printed boards and printed board assemblies – Design and use – Part 5-1:
Attachment (land/joint) considerations – Generic requirements
IEC 62090, Product package labels for electronic components using bar code and two-
dimensional symbologies
3 General information
3.1 General component description
The area array family is characterized by terminations that are on a particular pitch and
contain a number of rows and columns for the total IO termination pin count. The BGA family
uses a solder ball as a termination and may have a square or rectangular package
configuration. The family includes both moulded plastic and ceramic case styles. The
acronyms PBGA (plastic ball grid array), CBGA (ceramic ball grid array), FBGA (fine pitch ball
grid array), and TBGA (tape ball grid array) are also used to describe the family since they all
use a ball termination in an array format. Other enhancements such as the addition of thermal
heat distributors may be included in any of the package types described.
There are several ball pitch variations within the family; these range from 1,50 mm to 0,25 mm
as shown in Table 1. The lower pitch items (below 0,40 mm) are predicted for future
component configurations.
Table 1 – Ball diameter sizes
Solder bump Solder bump
Pitch
nominal diameter diameter variation
mm
mm mm
1,50; 1,27 0,75 0,90 – 0,65
1,00 0,60 0,70 – 0,50
1,00; 0,80 0,50 0,55 – 0,45
1,00; 0,80; 0,75 0,45 0,50 – 0,40
0,80; 0,75; 0,65 0,40 0,45 – 0,35
0,80; 0,75; 0,65; 0,50 0,30 0,35 – 0,25
0,40 0,25 0,28 – 0,22
0,30 0,20 0,22 – 0,18
0,25 0,15 0,17 – 0,13
3.2 Marking
The area array family of parts are generally marked with the manufacturer’s part numbers,
manufacturer’s name or symbol and a pin 1 indicator. Some parts may have a pin 1 feature in
the case shape instead of a pin 1 marking. Additional markings may include date-code
manufacturing lot and/or manufacturing location. Bar code marking should be in accordance
with IEC 62090.
61188-5-8 © IEC:2007 – 9 –
3.3 Carrier packaging format
Carrier tray packaging format or tape and reel may be provided. Either format is acceptable
and is usually specified by the component manufacturer or the assembler. Choice of format is
usually dependent on size of component and volume to be assembled. Bulk packaging is not
acceptable because of termination coplanarity issues and the requirements for placement and
soldering.
3.4 Process considerations
Area array packages are normally processed by reflow solder operations. There is also a
process difference between the solder application for those terminations that collapse slightly
during soldering as defined in level 3 of this standard, and those terminations that do not
collapse (level 2) where a significant amount of additional solder paste is required.
In conjunction with the right land size, the volume of the solder paste application is a
fundamental parameter to keep under control in order to have a good reflow quality yield and
reliable solder joint. Paste volume deposition may be a matter of SPC adoption at the print
process step.
Fine pitch ball parts may require special processing outside the normal pick/place and reflow
manufacturing operations. This requirement relates to the amount of solder paste, the
precision of the placement machine and the soldering process profile, in order to permit all
parts to become attached at the same time that the FBGA is reflowed.
4 BGA (square)
4.1 Field of application
This clause provides the component and land pattern dimensions for square type BGA (ball
grid array) components. The basic construction of the BGA device is also covered. At the end
of this clause is a listing of the tolerances and target solder joint dimensions used to arrive at
the land pattern dimensions.
4.2 Component descriptions
BGAs are widely used in a variety of applications for commercial, industrial or military
electronics.
4.2.1 Basic construction
The ball grid array has been developed for applications requiring low height and high density.
The BGA components may take many forms, as illustrated in Figure 2. Variations include the
method of die attach (wire bonding, flip chip, etc.), the substrate material (organic rigid or
flexible material, ceramic, etc.) and the method of protecting the device from the environment
(plastic encapsulation, hermetic sealing etc.). All variations can use the same land patterns
defined in this clause, as all types may be used in many printed circuit board assemblies for
device applications.
– 10 – 61188-5-8 © IEC:2007
IC die
Epoxy
Au bond
overmold
Plastic BGA with wire bond
wires
chip attach
AG filled
BT/glass
Solder balls
die attach
PCB
(62/36/2 Sn/Pb/Ag)
IEC  2029/07
Silicon die
Thermal grease
Solder balls
Underfill
Ceramic BGA, hermetically
(97PB/3Sn)
sealed, with flip chip die
Sealing
attach
adhesive
Multiplayer alumina substrate
Solder
Solder balls
(37PB/63Sn)
(90PB/10Sn)
IEC  2030/07
Thermal grease
Silicon die
Underfill
Tape bonded grid array,
with flip chip die attach and
Heat spreader
enhanced thermal heat
Adhesive Copper ring Copper ring
spreader
Flex circuit
Solder balls Solder balls
(95Pb/5Sn) (90Pb/10Sn)
IEC  2031/07
Figure 2 – BGA physical configuration examples
4.2.2 Termination materials
The BGA ball termination may consist of a variety of metal alloys. Some of these include balls
with some lead content such as 37Pb63Sn, 90Pb10Sn, 95Pb5Sn, while others do not contain
lead such as Sn96,5Ag3,0Cu0,5, Sn96,5Ag3,5, Sn-9Zn-0,003Al. It is a good recommendation
to use the same alloy, in a paste form, to attach the BGA balls to the mounting substrate,
however, some of the balls that do not collapse, as shown in Figure 3, require a paste that is
more conducive to reflow temperatures.

Collapsing Non-collapsing
CBGA substrate
PBGA substrate
Eutectic ball
Ball
(Pb/Sn)
(90/10 Pb/Sn)
PWB
PWB
IEC  2032/07
Figure 3 – High land and eutectic solder ball and joint comparison

61188-5-8 © IEC:2007 – 11 –
4.2.3 Marking
All parts shall be marked with a part number and an index area. The index area shall identify
the location of pin 1.
4.2.4 Carrier package format
The carrier package format for BGAs may be tray or tape and reel format. In most instances,
BGAs are delivered in a carrier tray.
4.2.5 Process considerations
BGAs are usually processed using standard reflow solder processes. Parts should be capable
of withstanding three cycles through a standard reflow system operating within a range of
235 °C to 260 °C depending on the attachment alloy being used. Each cycle shall consist of a
60 s to 90 s exposure at the particular temperature selected. The construction of the BGA
resin system used for encapsulation, as shown in Figure 4, shall be capable of withstanding
the process temperature exposure. This capability may be verified through test methods
indicated in IEC 60068-2-58, Method 2, for three cycles with an appropriate dwell time to
allow the specimens to cool.
It is important to consider that plastic BGAs are moisture sensitive device/components.
Precaution shall be taken during the printed board assembly process in order to avoid MSD
damages (delamination, cracks, etc). Traceability for baking PBGA, might be required mainly
when attached in a double sided/reflow printed board assembly.

Chip
Resin
Au wires
Solder balls
Printed substrate
IEC  2033/07
Figure 4 – BGA (square)
4.3 Component dimensions (square)
This subclause contains the physical dimensions of various PBGAs that have been
standardized so that land pattern analysis can be performed. Figure 5 provides the general
characteristic of the component and shows a depopulated version of the BGA device. Each
manufacturer of a semiconductor may take the fully populated version and remove those
terminations (balls), as appropriate, to establish the final configuration of the part.
Land pattern dimensional data may need to be adjusted if the component dimensional data
does not match JEDEC and/or JEITA sheets.

– 12 – 61188-5-8 © IEC:2007
E A L
A1
S
x
Inde Pin 1
IEC  2034/07
Figure 5 – General BGA dimensional characteristics
The following tables have been segmented according to the know pitch of those devices
presently in use. The requirements are fully documented in IEC 60191-2. The information is
provided for fully populated parts only, so that all the corresponding land patterns can be
derived. Users of the information are cautioned to be sure that their land pattern version is
identical to the part that they have purchased from the component supplier. It should also be
known that not every supplier follows the same removal of termination pattern for a similar
product. Thus, when looking for multiple sources, the user shall establish complete
compliance with the design image in the computer library before making the commitment that
the end use patterns may be used to mount different BGA component supplier parts.
4.3.1 PBGA 1,5 mm pitch component dimensions (square)
Table 2 defines the requirements for BGA components with a pitch of 1,5 mm.
b
e
61188-5-8 © IEC:2007 – 13 –
Table 2 – BGA products with pitch of 1,5 mm

A H C
Pin A1
Pin A1
indicator
F
IEC  2035/07
FE full even matrix
FO full odd matrix
Component Contact A B C D W P H F or G
identifier array
rows x
Max. Max. Max. Max. Nom. Basic Max. Nom.
columns
PBGA 7x7 FE16 4x4 7,00 7,00 4,50 4,50 0,75 1,50 3,50 1,25
PBGA 7x7 FO9 3x3 7,00 7,00 3,00 3,00 0,75 1,50 3,50 2,00
PBGA 8x8 FO25 5x5 8,00 8,00 6,00 6,00 0,75 1,50 3,50 1,00
PBGA 8x8 FE16 4x4 8,00 8,00 4,50 4,50 0,75 1,50 3,50 1,75
PBGA 9x9 FE36 6x6 9,00 9,00 7,50 7,50 0,75 1,50 3,50 0,75
PBGA 9x9 FO25 5x5 9,00 9,00 6,00 6,00 0,75 1,50 3,50 1,50
PBGA 10x10 FE36 6x6 10,00 10,00 7,50 7,50 0,75 1,50 3,50 1,25
PBGA 10x10 FO25 5x5 10,00 10,00 6,00 6,00 0,75 1,50 3,50 2,00
PBGA 11x11 FO49 7x7 11,00 11,00 9,00 9,00 0,75 1,50 3,50 1,00
PBGA 11x11 FE36 6x6 11,00 11,00 7,50 7,50 0,75 1,50 3,50 1,75
PBGA 12x12 FE64 8x8 12,00 12,00 10,50 10,50 0,75 1,50 3,50 0,75
PBGA 12x12 FO49 7x7 12,00 12,00 9,00 9,00 0,75 1,50 3,50 1,50
PBGA 13x13 FE64 8x8 13,00 13,00 10,50 10,50 0,75 1,50 3,50 1,25
PBGA 13x13 FO49 7x7 13,00 13,00 9,00 9,00 0,75 1,50 3,50 2,00
PBGA 14x14 FO81 9x9 14,00 14,00 12,00 12,00 0,75 1,50 3,50 1,00
PBGA 14x14 FE64 8x8 14,00 14,00 10,50 10,50 0,75 1,50 3,50 1,75
PBGA 15x15 FE100 10x10 15,00 15,00 13,50 13,50 0,75 1,50 3,50 0,75
PBGA 15x15 FO81 9x9 15,00 15,00 12,00 12,00 0,75 1,50 3,50 1,50
PBGA 17x17 FO121 11x11 17,00 17,00 15,00 15,00 0,75 1,50 3,50 1,00
PBGA 17x17 FE100 10x10 17,00 17,00 13,50 13,50 0,75 1,50 3,50 1,75
PBGA 19X19 FE144 12x12 19,00 19,00 16,50 16,50 0,75 1,50 3,50 1,25
PBGA 19X19 FO121 11x11 19,00 19,00 15,00 15,00 0,75 1,50 3,50 2,00
PBGA 21X21 FE196 14x14 21,00 21,00 19,50 19,50 0,75 1,50 3,50 0,75
PBGA 21X21 FO169 13x13 21,00 21,00 18,00 18,00 0,75 1,50 3,50 1,5
PBGA 23X23 FO225 15x15 23,00 23,00 21,00 21,00 0,75 1,50 3,50 1,00
PBGA 23X23 FE196 14x14 23,00 23,00 19,50 19,50 0,75 1,50 3,50 1,75
PBGA 25X25 FE256 16x16 25,00 25,00 22,50 22,50 0,75 1,50 3,50 1,25
PBGA 25X25 FO225 15x15 25,00 25,00 21,00 21,00 0,75 1,50 3,50 2,00
PBGA 27X27 FE324 18x18 27,00 27,00 25,50 25,50 0,75 1,50 3,50 0,75
PBGA 27X27 FO289 17x17 27,00 27,00 24,00 24,00 0,75 1,50 3,50 1,50
PBGA 29X29 FO361 19x19 29,00 29,00 27,00 27,00 0,75 1,50 3,50 1,00
PBGA 29X29 FE324 18x18 29,00 29,00 25,50 25,50 0,75 1,50 3,50 1,75
PBGA 31X31 FE400 20x20 31,00 31,00 28,50 28,50 0,75 1,50 3,50 1,25
PBGA 31X31 FO361 19x19 31,00 31,00 27,00 27,00 0,75 1,50 3,50 2,00
PBGA 33X33 FE484 22x22 33,00 33,00 31,50 31,50 0,75 1,50 3,50 0,75
PBGA 33X33 FO441 21x21 33,00 33,00 30,00 30,00 0,75 1,50 3,50 1,50
PBGA 35X35 FO529 23x23 35,00 35,00 33,00 33,00 0,75 1,50 3,50 1,00
PBGA 35X35 FE484 22x22 35,00 35,00 31,50 31,50 0,75 1,50 3,50 1,75
B
G
W P
D
– 14 – 61188-5-8 © IEC:2007
Table 2 (continued)
Component Contact A B C D W P H F or G
identifier array
rows x
Max. Max. Max. Max. Nom. Basic Max. Nom.
columns
PBGA 37,5X37,5 25x25 37,50 37,50 36,00 36,00 0,75 1,50 3,50 0,75
FO625
PBGA 37,5X37,5 24x24 37,50 37,50 34,50 34,50 0,75 1,50 3,50 1,50
FE576
PBGA 40X40 FE676 26x26 40,00 40,00 37,50 37,50 0,75 1,50 3,50 1,25
PBGA 40X40 FO625 25x25 40,00 40,00 36,00 36,00 0,75 1,50 3,50 2,00
PBGA 42,5X42,5 28x28 42,50 42,50 40,50 40,50 0,75 1,50 3,50 1,00
FE784
PBGA 42,5X42,5 27x27 42,50 42,50 39,00 39,00 0,75 1,50 3,50 1,75
FO729
PBGA 45X45 FE900 30x30 45,00 45,00 43,50 43,50 0,75 1,50 3,50 0,75
PBGA 45X45 FO841 29x29 45,00 45,00 42,00 42,00 0,75 1,50 3,50 1,50
PBGA 47,5X47,5
31x31 47,50 47,50 45,00 45,00 0,75 1,50 3,50 1,25
FO961
PBGA 47,5X47,5
30x30 47,50 47,50 43,50 43,50 0,75 1,50 3,50 2,00
FE900
PBGA 50X50 FO1089 33x33 50,00 50,00 48,00 48,00 0,75 1,50 3,50 1,00
PBGA 50X50 FE1024 32x32 50,00 50,00 46,50 46,50 0,75 1,50 3,50 1,75
Unit dimensions are in millimetres.
4.3.2 PBGA 1,27 mm pitch component dimensions (square)
Table 3 defines the requirements for BGA components with a pitch of 1,27 mm.
Table 3 – BGA products with pitch of 1,27 mm

A H C
Pin A1
Pin A1
indicator
F
IEC  2035/07
FE full even matrix
FO full odd matrix
Component Contact A B C D W P H F or G
identifier array
rows x
Max. Max. Max. Max. Nom. Basic Max. Nom.
columns
PBGA 7x7 FO25 5x5 7,00 7,00 5,08 5,08 0,75 1,27 3,50 0,96
PBGA 7x7 FE16 4x4 7,00 7,00 3,81 3,81 0,75 1,27 3,50 1,6
PBGA 8x8 FE36 6x6 8,00 8,00 6,35 6,35 0,75 1,27 3,50 0,82
PBGA 8x8 FO25 5x5 8,00 8,00 5,08 5,08 0,75 1,27 3,50 1,46
PBGA 9x9 FE36 6x6 9,00 9,00 6,35 6,35 0,75 1,27 3,50 1,32
PBGA 9x9 FO25 5x5 9,00 9,00 5,08 5,08 0,75 1,27 3,50 1,96
PBGA 10x10 FO49 7x7 10,00 10,00 7,62 7,62 0,75 1,27 3,50 1,19
PBGA 10x 10 FE36 6x6 10,00 10,00 6,35 6,35 0,75 1,27 3,50 1,82

B
G
W P
D
61188-5-8 © IEC:2007 – 15 –
Table 3 (continued)
PBGA 11x11 FE64 8x8 11,00 11,00 8,89 8,89 0,75 1,27 3,50 1,05
PBGA 11x11 FO49 7x7 11,00 11,00 7,62 7,62 0,75 1,27 3,50 1,69
PBGA 12x12 FO81 9x9 12,00 12,00 10,16 10,16 0,75 1,27 3,50 0,92
PBGA 12x12 FE64 8x8 12,00 12,00 8,89 8,89 0,75 1,27 3,50 1,56
PBGA 13x13 FE100 10x10 13,00 13,00 11,43 11,43 0,75 1,27 3,50 0,78
PBGA 13x13 FO81 9x9 13,00 13,00 10,16 10,16 0,75 1,27 3,50 1,42
PBGA 14x14 FE100 10x10 14,00 14,00 11,43 11,43 0,75 1,27 3,50 1,28
PBGA 14x14 FO81 9x9 14,00 14,00 10,16 10,16 0,75 1,27 3,50 1,92
PBGA 15x15 FO121 11x11 15,00 15,00 12,70 12,70 0,75 1,27 3,50 1,15
PBGA 15x15 FE100 10x10 15,00 15,00 11,43 11,43 0,75 1,27 3,50 1,78
PBGA 17x17 FO169 13x13 17,00 17,00 15,24 15,24 0,75 1,27 3,50 0,88
PBGA 17x17 FE144 12x12 17,00 17,00 13,97 13,97 0,75 1,27 3,50 1,51
PBGA 19X19 FE196 14x14 19,00 19,00 16,51 16,51 0,75 1,27 3,50 1,24
PBGA 19X19 FO169 13x13 19,00 19,00 15,24 15,24 0,75 1,27 3,50 1,88
PBGA 21X21 FE256 16x16 21,00 21,00 19,05 19,05 0,75 1,27 3,50 0,971
PBGA 21X21 FO225 15x15 21,00 21,00 17,78 17,78 0,75 1,27 3,50 1,6
PBGA 23X23 FE324 18x18 23,00 23,00 21,59 21,59 0,75 1,27 3,50 0,70
PBGA 23X23 FO289 17x17 23,00 23,00 20,32 20,32 0,75 1,27 3,50 1,34
PBGA 25X25 FO361 19x19 25,00 25,00 22,86 22,86 0,75 1,27 3,50 1,07
PBGA 25X25 FE324 18x18 25,00 25,00 21,59 21,59 0,75 1,27 3,50 1,70
PBGA 27X27 FO441 21x21 27,00 27,00 25,40 25,40 0,75 1,27 3,50 0,80
PBGA 27X27 FE400 20x20 27,00 27,00 24,13 24,13 0,75 1,27 3,50 1,43
PBGA 29X29 FE484 22x22 29,00 29,00 26,67 26,67 0,75 1,27 3,50 1,16
PBGA 29X29 FO441 21x21 29,00 29,00 25,40 25,40 0,75 1,27 3,50 1,80
PBGA 31X31 FE576 24x24 31,00 31,00 29,21 29,21 0,75 1,27 3,50 0,89
PBGA 31X31 FO529 23x23 31,00 31,00 27,94 27,94 0,75 1,27 3,50 1,53
PBGA 33X33 FO625 25x25 33,00 33,00 30,48 30,48 0,75 1,27 3,50 1,26
PBGA 33X33 FE576 24x24 33,00 33,00 29,21 29,21 0,75 1,27 3,50 1,89
PBGA 35X35 FO729 27x27 35,00 35,00 33,02 33,02 0,75 1,27 3,50 0,99
PBGA 35X35 FE676 26x26 35,00 35,00 31,75 31,75 0,75 1,27 3,50 1,62
PBGA 37,5X37,5 29x29 37,50 37,50 35,56 35,56 0,75 1,27 3,50 0,97
FO841
PBGA 37,5X37,5 28x28 37,50 37,50 34,29 34,29 0,75 1,27 3,50 1,60
FE784
PBGA 40X40 FO961 31x31 40,00 40,00 38,10 38,10 0,75 1,27 3,50 0,95
PBGA 40X40 FE900 30x30 40,00 40,00 36,83 36,83 0,75 1,27 3,50 1,58
PBGA 42,5X42,5 33x33 42,50 42,50 40,64 40,64 0,75 1,27 3,50 0,93
FO1089
PBGA 42,5X42,5 32x32 42,50 42,50 39,37 39,37 0,75 1,27 3,50 1,56
FE1024
PBGA 45X45 FO1225 35x35 45,00 45,00 43,18 43,18 0,75 1,27 3,50 0,91
PBGA 45X45 FO1156 34x34 45,00 45,00 41,91 41,91 0,75 1,27 3,50 1,54
PBGA 47,5X47,5 37x37 47,50 47,50 45,72 45,72 0,75 1,27 3,50 0,89
FO1369
PBGA 47,5X47,5 36x36 47,50 47,50 44,45 44,45 0,75 1,27 3,50 1,52
FE1296
PBGA 50X50 FO1521 39x39 50,00 50,00 48,26 48,26 0,75 1,27 3,50 0,87
PBGA 50X50 FE1444 38x38 50,00 50,00 46,99 46,99 0,75 1,27 3,50 1,50
Unit dimensions are in millimetres.

4.3.3 PBGA 1,00 mm pitch component dimensions (square)
Table 4 defines the requirements for BGA components with a pitch of 1,00 mm.

– 16 – 61188-5-8 © IEC:2007
Table 4 – BGA products with pitch of 1,0 mm

A H C
Pin A1
Pin A1
indicator
F
IEC  2035/07
FE full even matrix
FO full odd matrix
Component Contact A B C D W P H F or G
identifier array
rows x
Max. Max. Max. Max. Nom. Basic Max. Nom.
columns
PBGA 7x7 FE36 6x6 7,00 7,00 5,00 5,00 0,60 1,00 3,50 1,00
PBGA 7x7 FO25 5x5 7,00 7,00 4,00 4,00 0,60 1,00 3,50 1,50
PBGA 8x8 F049 7x7 8,00 8,00 6,00 6,00 0,60 1,00 3,50 1,00
PBGA 8x8 FE36 6x6 8,00 8,00 5,00 5,00 0,60 1,00 3,50 1,50
PBGA 9x9 FE64 8x8 9,00 9,00 7,00 7,00 0,60 1,00 3,50 1,00
PBGA 9x9 FO49 7x7 9,00 9,00 6,00 6,00 0,60 1,00 3,50 1,50
PBGA 10x10 FO81 9x9 10,00 10,00 8,00 8,00 0,60 1,00 3,50 1,00
PBGA 10x10 FE64 8x8 10,00 10,00 7,00 7,00 0,60 1,00 3,50 1,50
PBGA 11x11 FE100 10x10 11,00 11,00 9,00 9,00 0,60 1,00 3,50 1,00
PBGA 11x11 FO81 9x9 11,00 11,00 8,00 8,00 0,60 1,00 3,50 1,50
PBGA 12x12 FO121 11x11 12,00 12,00 10,00 10,00 0,60 1,00 3,50 1,00
PBGA 12x12 FE100 10x10 12,00 12,00 9,00 9,00 0,60 1,00 3,50 1,50
PBGA 13x13 FE144 12x12 13,00 13,00 11,00 11,00 0,60 1,00 3,50 1,00
PBGA 13x13 FO121 11x11 13,00 13,00 10,00 10,00 0,60 1,00 3,50 1,50
PBGA 14x14 FO169 13x13 14,00 14,00 12,00 12,00 0,60 1,00 3,50 1,00
PBGA 14x14 FE144 12x12 14,00 14,00 11,00 11,00 0,60 1,00 3,50 1,50
PBGA 15x15 FE196 14x14 15,00 15,00 13,00 13,00 0,60 1,00 3,50 1,00
PBGA 15x15 FO169 13x13 15,00 15,00 12,00 12,00 0,60 1,00 3,50 1,50
PBGA 17x17 FE256 16x16 17,00 17,00 15,00 15,00 0,60 1,00 3,50 1,00
PGBA 17x17 FO225 15x15 17,00 17,00 14,00 14,00 0,60 1,00 3,50 1,50
PBGA 19X19 FE324 18X18 19,00 19,00 17,00 17,00 0,60 1,00 3,50 1,00
PBGA 19x19 FO289 17x17 19,00 19,00 16,00 16,00 0,60 1,00 3,50 1,50
PBGA 21X21 FE400 20X20 21,00 21,00 19,00 19,00 0,60 1,00 3,50 1,00
PBGA 21x21 FO361 19x19 21,00 21,00 18,00 18,00 0,60 1,00 3,50 1,50
PBGA 23X23 FE484 22X22 23,00 23,00 21,00 21,00 0,60 1,00 3,50 1,00
PBGA 23x23 FO441 21x21 23,00 23,00 20,00 20,00 0,60 1,00 3,50 1,50
PBGA 25X25 FE576 24X24 25,00 25,00 23,00 23,00 0,60 1,00 3,50 1,00
PBGA 25x25 FO529 23x23 25,00 25,00 22,00 22,00 0,60 1,00 3,50 1,50
PBGA 27X27 FE676 26X26 27,00 27,00 25,00 25,00 0,60 1,00 3,50 1,00
PBGA 27X27 FO625 25x25 27,00 27,00 24,00 24,00 0,60 1,00 3,50 1,50
PBGA 29X29 FE784 28X28 29,00 29,00 27,00 27,00 0,60 1,00 3,50 1,00
PBGA 29X29 FO729 27x27 29,00 29,00 26,00 26,00 0,60 1,00 3,50 1,50
PBGA 31X31 FE900 30X30 31,00 31,00 29,00 29,00 0,60 1,00 3,50 1,00
PBGA 31X31 FO841 29x29 31,00 31,00 28,00 28,00 0,60 1,00 3,50 1,50
PBGA 33X33 FE1024 32X32 33,00 33,00 31,00 31,00 0,60 1,00 3,50 1,00
PBGA 33X33 FO961 31x31 33,00 33,00 30,00 30,00 0,60 1,00 3,50 1,50
PBGA 35X35 FE1156 34X34 35,00 35,00 33,00 33,00 0,60 1,00 3,50 1,00
PBGA 35X35 FO1089 33x33 35,00 35,00 32,00 32,00 0,60 1,00 3,50 1,50
B
G
W P
D
61188-5-8 © IEC:2007 – 17 –
Table 4 (continued)
Component Contact A B C D W P H F or G
identifier array
rows x
Max. Max. Max. Max. Nom. Basic Max. Nom.
columns
PBGA 37,5X37,5 37X37 37,50 37,50 36,00 36,00 0,60 1,00 3,50 0,75
FO1369
PBGA 37,5X37,5 36x36 37,50 37,50 35,00 35,00 0,60 1,00 3,50 1,25
FE1296
PBGA 40X40 FO1521 39X39 40,00 40,00 38,00 38,00 0,60 1,00 3,50 1,00
PBGA 40X40 FE1444 38x38 40,00 40,00 37,00 37,00 0,60 1,00 3,50 1,50
PBGA 42,5X42,5 42X42 42,50 42,50 41,00 41,00 0,60 1,00 3,50 0,75
FE1764
PBGA 42,5X42,5 41x41 42,50 42,50 40,00 40,00 0,60 1,00 3,50 1,25
FO1681
PBGA 45X45 FE1936 44X44 45,00 45,00 43,00 43,00 0,60 1,00 3,50 1,00
PBGA 45X45 FO1849 43x43 45,00 45,00 42,00 42,00 0,60 1,00 3,50 1,50
PBGA 47,5X47,5
47X47 47,50 47,50 46,00 46,00 0,60 1,00 3,50 0,75
FO2209
PBGA 47,5X47,5 46x46 47,50 47,50 45,00 45,00 0,60 1,00 3,50 1,25
FE2116
PBGA 50X50 FO2401 49X49 50,00 50,00 48,00 48,00 0,60 1,00 3,50 1,00
PBGA 50X50 FE2304 48x48 50,00 50,00 47,00 47,00 0,60 1,00 3,50 1,50
Unit dimensions are in millimetres.

4.4 Solder joint fillet design
In designing land patterns, three accuracy factors need to be taken into consideration:
– parts dimensions accuracy (C);
– parts mount ac
...
