EN 10217-7:2014

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Geschweißte Stahlrohre für Druckbeanspruchungen - Technische Lieferbedingungen - Teil 7: Rohre aus+ nichtrostenden StählenTubes soudés en acier pour service sous pression - Conditions techniques de livraison - Partie 7: Tubes en aciers inoxydablesWelded steel tubes for pressure purposes - Technical delivery conditions - Part 7: Stainless steel tubes77.140.75Jeklene cevi in cevni profili za posebne nameneSteel pipes and tubes for specific use23.020.30MHNOHQNHPressure vessels, gas cylindersICS:Ta slovenski standard je istoveten z:EN 10217-7:2014SIST EN 10217-7:2015en,de01-januar-2015SIST EN 10217-7:2015SLOVENSKI
STANDARDSIST EN 10217-7:20051DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10217-7
October 2014 ICS 23.040.10; 77.140.75 Supersedes EN 10217-7:2005English Version
Welded steel tubes for pressure purposes - Technical delivery conditions - Part 7: Stainless steel tubes
Tubes soudés en acier pour service sous pression - Conditions techniques de livraison - Partie 7: Tubes en aciers inoxydables
Geschweißte Stahlrohre für Druckbeanspruchungen - Technische Lieferbedingungen - Teil 7: Rohre aus nichtrostenden Stählen This European Standard was approved by CEN on 6 September 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10217-7:2014 ESIST EN 10217-7:2015

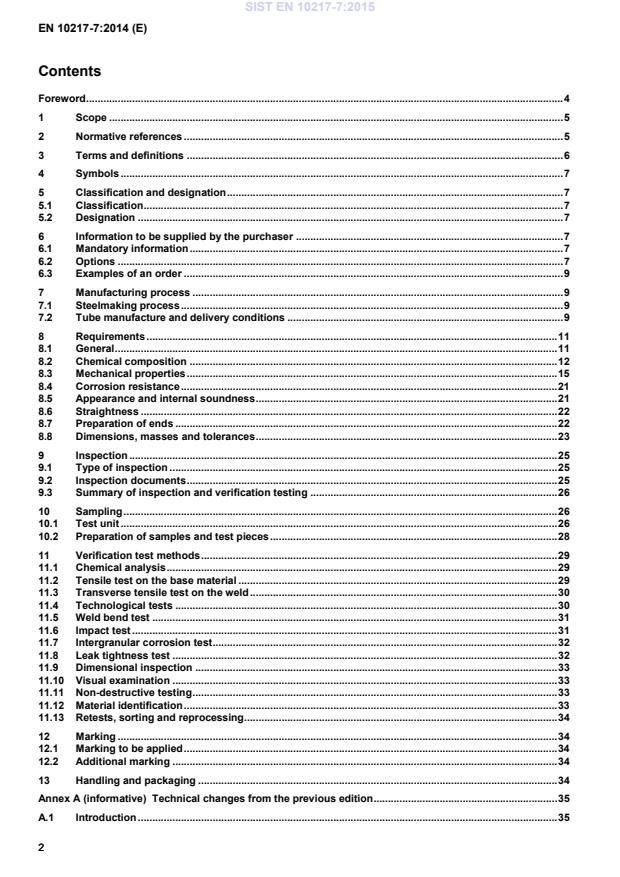

Technical changes from the previous edition . 35 A.1 Introduction . 35 SIST EN 10217-7:2015

Relationship between this European Standard and the Essential Requirements of EU Directive 97/23/EC . 36
The employer may be either the tube manufacturer or supplier or a third party organization providing Non- Destructive Testing (NDT) services. SIST EN 10217-7:2015

The type of inspection certificate 3.2 in place of the standard document (see 9.2.1); 22) Transverse tensile test on the weld (see 10.2.2.3); 23) Test pressure for hydrostatic leak-tightness test (see 11.8.1); 24) Wall thickness measurement away from the ends (see 11.9); 25) Selection of non- destructive testing method for the inspection of the weld seam (see Table 16); 26) Image quality class B of EN ISO 10893-6 for the radiographic inspection of the weld seam (see Table 16); 27) Additional marking (see 12.2); 28) Special protection (see 13); 29) Image quality class B of EN ISO 10893-7 for the digital radiographic testing of the weld (see Table 16). SIST EN 10217-7:2015

EN 10028-7. They shall be longitudinally welded by fusion across the abutting edges using either an arc welding or a laser welding or an electron beam welding process, or a combination thereof. The definitions of these respective fusion welding methods are given in 4.2 of ISO 857-1:1998. Welding can be performed with or without the addition of filler metal in accordance with one of the routes as specified in Table 1. Unless Option 2 is specified, the manufacturing process and/or route are at the discretion of the manufacturer. Option 2: The tube manufacturing process and/or route is specified by the purchaser. The finished tubes shall not include welds used for joining together lengths of the hot or cold rolled strip prior to forming. Option 3: (see Table 1). Option 4: (see Table 1). 7.2.2 Welding shall be carried out by qualified personnel in accordance with operating procedures. When tubes are being used for pressure equipment in categories II, III, and IV, (of Directive 97/23/EC) the operating procedures and the personnel shall be approved by a notified body in accordance with Article 12 or recognised third party organization in accordance with Article 13 of the Directive. SIST EN 10217-7:2015

X2CrNiMoN17-13-3 1.4429 0,030 1,00 2,00 0,045b 0,015b 0,12 to 0,22 16,5 to 18,5 _ 2,50 to 3,0 11,0 to 14,0 _ X3CrNiMo17-13-3 1.4436 0,05 1,00 2,00 0,045b 0,015b ≤=0,10 16,5 to 18,5 _ 2,50 to 3,0 10,5 to 13,0 _ X2CrNiMo18-14-3 1.4435 0,030 1,00 2,00 0,045b 0,015b ≤=0,10 17,0 to 19,0 _ 2,50 to 3,0 12,5 to 15,0 _ X2CrNiMoN17-13-5 1.4439 0,030 1,00 2,00 0,045b 0,015b 0,12 to 0,22 16,5 to 18,5 _ 4,0 to 5,0 12,5 to 14,5 _ X2CrNiMo18-15-4 1.4438 0,030 1,00 2,00 0,045b 0,015b ≤=0,10 17,5 to 19,5 _ 3,0 to 4,0 13,0 to 16,0 _ X1NiCrMoCu31-27-4 1.4563 0,020 0,70 2,00 0,030 0,010 ≤=0,10 26,0 to 28,0 0,70 to 1,50 3,0 to 4,0 30,0 to 32,0 _ X1NiCrMoCu25-20-5 1.4539 0,020 0,70 2,00 0,030 0,010 ≤=0,15 19,0 to 21,0 1,20 to 4,0 to 24,0 to 26,0 _ SIST EN 10217-7:2015

Sb max N Cr Cu Mo Ni Others Steel name Steel number X2CrNiMoN22-5-3 1.4462 0,030 1,00 2,00 0,035 0,015 0,10 to 0,22 21,0 to 23,0 _ 2,50 to 3,5 4,5 to 6,5 _ X2CrNiN23-4 1.4362 0,030 1,00 2,00 0,035 0,015 0,05 to 0,20 22,0 to 24,0 0,10 to 0,60 0,10 to 0,60 3,5 to 5,5 _ X2CrNiMoN25-7-4 1.4410 0,030 1,00 2,00 0,035 0,015 0,20 to 0,35 24,0 to 26,0 _ 3,0 to 4,5 6,0 to 8,0 _ X2CrNiMoCuWN25-7-4 1.4501 0,030 1,00 1,00 0,035 0,015 0,20 to 0,30 24,0 to 26,0 0,50 to 1,00 3,0 to 4,0 6,0 to 8,0 W 0,50 to 1,00 a Elements not listed in this table shall not be intentionally added to the steel without the agreement of the purchaser except for finishing the cast. All appropriate precautions are to be taken to avoid the addition of such elements from scrap and other materials used in production which would impair mechanical properties and the suitability of the steel. b For tubes welded without filler material the sum of sulphur and phosphorus shall be maximum 0,040 %. SIST EN 10217-7:2015

% by mass % by mass Carbon ≤=0,030 + 0,005 >=0,030=to=≤=0,08 ± 0,01 Silicon ≤=1,00 + 0,05 Manganese ≤=1,00 + 0,03 >=1,00=to=≤=2,00 +0,04 Phosphorus ≤=0,030 + 0,003 >=0,030=to=≤=0,045 + 0,005 Sulphur ≤=0,015 + 0,003 Nitrogen ≤=0,35 ± 0,01 Chromium ≥=16,5=to=≤=20,0 ± 0,20 >=20,0=to=≤=28,0 ± 0,25 Copper ≤=1,00 ± 0,07 >=1,00=to=≤=2,00 ± 0,10 Molybdenum ≤=0,60 ± 0,03 ≥=2.00=to=≤=7,0 ± 0,10 Niobium ≤=1,00 ± 0,05 Nickel ≤=5,0 ± 0,07 > 5,0 to ≤=10,0 ± 0,10 >=10,0=to=≤=20,0 ± 0,15 >=20,0=to=≤=32,0 ± 0,20 Titanium ≤=0,70 ± 0,05 Tungsten ≤=1,00 ± 0,05 a If several product analyses are carried out on one cast, and the contents of an individual element determined lie outside the permissible range of the chemical composition specified for the cast analysis, then it is only allowed to exceed the permissible maximum value or to fall short of the permissible minimum value, but not both for one cast. 8.3 Mechanical properties 8.3.1 At room temperature The mechanical properties of the tubes shall conform to the requirements in Tables 6 and 7 and in Clause 11 irrespective of whether they are verified or not (see Table 13). If heat treatments different from, or additional to, the reference heat treatment, are to be carried out after the delivery of the tubes, the purchaser may request, at the time of enquiry and order, additional mechanical tests on samples, that have been given heat treatments different from or additional to, those given in Tables 6 and 7. The heat treatment of the samples and the mechanical properties to be obtained from tests on them shall be agreed between the purchaser and the manufacturer at the time of enquiry and order. Option 7: Additional mechanical tests on samples, which have undergone a different or additional heat treatment, shall be carried out. Option 8: Impact test shall be carried out at room temperature (see Tables 6 and 7). The location of the test pieces, either from the weld or opposite to the weld, shall be agreed at the time of enquiry and order. Option 9: (see Table 6, footnote a). SIST EN 10217-7:2015

Tensile properties at room temperatureb Impact propertiesb Reference heat treatment conditions Resistance to intergranular corrosion Steel grade Proof strength Tensile strength Elongation
Minimum average absorbed energy KV2 J
Rp0,2 min Rp1,0 min Rmc A min (%) at RT at - 196 °C Solution temperatured Cooling ine f Method in EN ISO 3651-2 Steel name Steel number MPa MPa MPa l t l t t
X2CrNi18-9 1.4307 180 215 470-670 40 35 100 60 60 1 000-1 100 w, a yes A X2CrNi19-11 1.4306 180 215 460-680 40 35 100 60 60 1 000-1 100 w, a yes A X2CrNiN18-10 1.4311 270 305 550-760 35 30 100 60 60 1 000-1 100 w, a yes A X5CrNi18-10 1.4301 195 230 500-700 40 35 100 60 60 1 000-1 100 w, a yesg A X6CrNiTi18-10 1.4541 200 235 500-730 35 30 100 60 60 1 020-1 120 w, a yes A X6CrNiNb18-10 1.4550 205 240 510-740 35 30 100 60 60 1 020-1 120 w, a yes A X2CrNiMo17-12-2 1.4404 190 225 490-690 40 30 100 60 60 1 020-1 120 w, a yes A X5CrNiMo17-12-2 1.4401 205 240 510-710 40 30 100 60 60 1 020-1 120 w, a yesg A X6CrNiMoTi17-12-2 1.4571 210 245 500-730 35 30 100 60 60 1 020-1 120 w, a yes A X2CrNiMo 17-12-3 1.4432 190 225 490-690 40 30 100 60 60 1 020-1 120 w, a yes A X2CrNiMoN17-13-3 1.4429 295 330 580-800 35 30 100 60 60 1 020-1 120 w, a yes A X3CrNiMo17-13-3 1.4436 205 240 510-710 40 30 100 60 60 1 020-1 120 w, a yesg A X2CrNMo18-14-3 1.4435 190 225 490-690 40 30 100 60 60 1 020-1 120 w, a yes A X2CrNiMoN17-13-5 1.4439 285 315 580-800 35 30 100 60 60 1 100-1 140 w, a yes C X2CrNiMo18-15-4 1.4438 220 250 490-690 35 30 100 60 60 1 100-1 160 w, a yes C SIST EN 10217-7:2015

Tensile properties at room temperatureb Impact propertiesb Reference heat treatment conditions Resistance to intergranular corrosion Steel grade Proof strength Tensile strength Elongation
Minimum average absorbed energy KV2 J
Rp0,2 min Rp1,0 min Rmc A min (%) at RT at -196 °C Solution temperatured Cooling ine f Method in EN ISO 3651-2 Steel name Steel number MPa MPa MPa l t l t t
X1CrMoCu31-27-4 1.4563 215 245 500-750 40 35 120 90 60 1 100-1 160 w, a yes C X1NiCrMoCu25-20-5 1.4539 220 250 520-720 35 30 120 90 60 1 100-1 150 w, a yes C X1CrNiMoCuN20-18-7 1.4547 300 340 650-850 35 30 100 60 60 1 180-1 230 w, a yes C X1NiCrMoCuN25-20-7 1.4529 300 340 600-800 40 40 120 90 60 1 120-1 180 w, a yes C a For wall thicknesses greater than 60 mm the mechanical properties are subject to agreement at the time of enquiry and order. Option 9: Agreed mechanical properties for wall thicknesses greater than 60 mm apply. b l = longitudinal; t = transverse. c For the delivery conditions W 0, W 1 and W 2 which do not include solution annealing, the upper Rm limit may be exceeded by 70 MPa. d The maximum temperatures are for guidance only. e w = water; a = air; cooling sufficiently rapid. f When tested according to EN ISO 3651-2 (Appropriate method, A or B or C, as indicated) up to the limit temperatures indicated in the last column of Table 8. g In delivery condition. (Normally not fulfilled in the sensitized condition). SIST EN 10217-7:2015

Tensile properties at room temperaturea Impact propertiesa Reference heat treatment Resistance to Steel grade Proof strength Tensile strength Elongation A min Minimum average absorbed energy KV2 J conditions intergranular corrosion
Rp0,2 min. Rm (%) at RT at - 40 °C Solution temperatureb Cooling inc d Method in EN ISO 3651-2 Steel name Steel number MPa MPa l t l t t
X2CrNiMoN22-5-3 1.4462 450 700-920 25 20 120 90 40 1 020-1 100 w, a yes B or C X2CrNiN23-4 1.4362 400 600-820 25 25 120 90 40 950-1050 w, a yes A X2CrNiMoN25-7-4 1.4410 550 800-1 000 20 20 100 100 40 1 040-1 120 w yes B or C X2CrNiMoCuWN 25-7-4 1.4501 550 800-1 000 20 20 100 100 40 1 080-1 160 w yes B or C a l = longitudinal; t = transverse. b The maximum temperatures are for guidance only. c w = water; a = air; cooling sufficiently rapid. d When tested according to EN ISO 3651-2 (Appropriate method, A or B or C, as indicated) up to 250 °C. SIST EN 10217-7:2015

steels in the solution annealed condition (+AT) and guideline for the limit temperature for intergranular corrosion Steel grade Rp0,2, min MPa at a temperature (°C) of Rp1,0, min MPa at a temperature (°C) of Limit temp.b Steel name Steel number 50 100 150 200 250 300 350 400 450 500 550 50 100 150 200 250 300 350 400 450 500 550 °C X2CrNi18-9 1.4307 165 147 132 118 108 100 94 89 85 81 80 200 181 162 147 137 127 121 116 112 109 108 350 X2CrNi19-11 1.4306 165 147 132 118 108 100 94 89 85 81 80 200 181 162 147 137 127 121 116 112 109 108 350 X2CrNiN18-10 1.4311 255 205 175 157 145 136 130 125 121 119 118 282 240 210 187 175 167 161 156 152 149 147 400 X5CrNi18-10 1.4301 180 157 142 127 118 110 104 98 95 92 90 218 191 172 157 145 135 129 125 122 120 120 300 X6CrNiTi18-10 1.4541 190 176 167 157 147 136 130 125 121 119 118 222 208 196 186 177 167 161 156 152 149 147 400 X6CrNiNb18-10 1.4550 195 177 167 157 147 136 130 125 121 119 118 232 211 196 186 177 167 161 156 152 149 147 400 X2CrNiMo17-12-2 1.4404 182 166 152 137 127 118 113 108 103 100 98 217 199 181 167 157 145 139 135 130 128 127 400 X5CrNiMo17-12-2 1.4401 193 177 162 147 137 127 120 115 112 110 108 230 211 191 177 167 156 150 144 141 139 137 300 X6CrNiMoTi17-12-2 1.4571 202 185 177 167 157 145 140 135 131 129 127 232 218 206 196 186 175 169 164 160 158 157 400 X2 CrNiMo 17-12-3 1.4432 182 166 152 137 127 118 113 108 103 100 98 217 199 181 167 157 145 139 135 130 128 127 400 X2CrNiMoN17-13-3 1.4429 260 211 185 167 155 145 140 135 131 129 127 290 246 218 198 183 175 169 164 160 158 157 400 X3CrNiMo17-13-3 1.4436 195 177 162 147 137 127 120 115 112 110 108 228 211 191 177 167 156 150 144 141 139 137 300 X2CrNiMo18-14-3 1.4435 180 165 150
...
