EUROPEAN STANDARD
EN 13418
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2004
ICS 83.200
English version
Rubber and plastics machines - Winding machines for film or
sheet - Safety requirements
Machines pour le caoutchouc et les matières plastiques - Gummi- und Kunststoffmaschinen - Wickelmaschinen für
Bobineuses pour films ou feuilles - Prescriptions de flache Bahnen - Sicherheitsanforderungen
sécurité
This European Standard was approved by CEN on 2 February 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13418:2004: E
worldwide for CEN national Members.

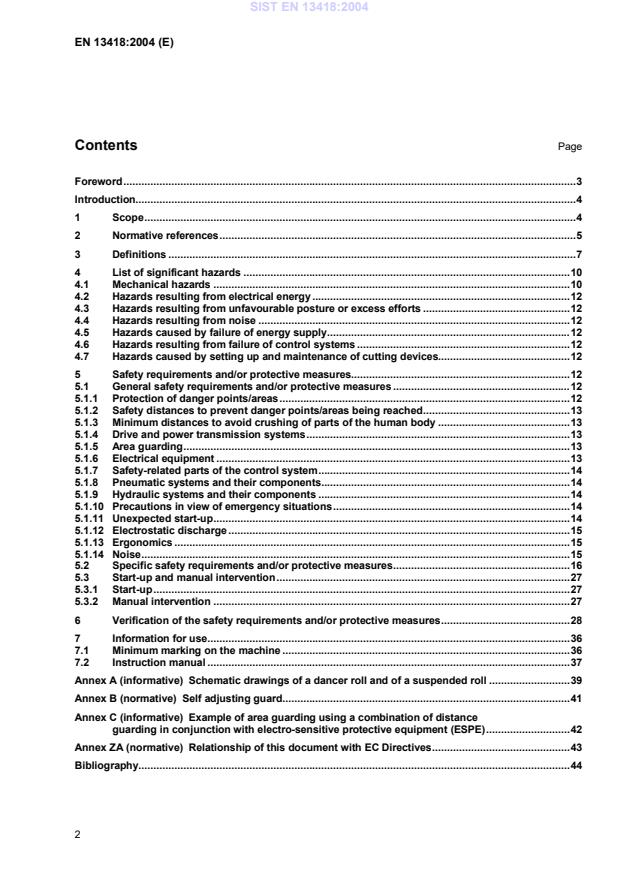

Contents Page
Foreword.3
Introduction.4
1 Scope.4
2 Normative references.5
3 Definitions .7
4 List of significant hazards .10
4.1 Mechanical hazards .10
4.2 Hazards resulting from electrical energy.12
4.3 Hazards resulting from unfavourable posture or excess efforts .12
4.4 Hazards resulting from noise .12
4.5 Hazards caused by failure of energy supply.12
4.6 Hazards resulting from failure of control systems .12
4.7 Hazards caused by setting up and maintenance of cutting devices.12
5 Safety requirements and/or protective measures.12
5.1 General safety requirements and/or protective measures .12
5.1.1 Protection of danger points/areas.12
5.1.2 Safety distances to prevent danger points/areas being reached.13
5.1.3 Minimum distances to avoid crushing of parts of the human body .13
5.1.4 Drive and power transmission systems.13
5.1.5 Area guarding.13
5.1.6 Electrical equipment .13
5.1.7 Safety-related parts of the control system.14
5.1.8 Pneumatic systems and their components.14
5.1.9 Hydraulic systems and their components .14
5.1.10 Precautions in view of emergency situations.14
5.1.11 Unexpected start-up.14
5.1.12 Electrostatic discharge .15
5.1.13 Ergonomics .15
5.1.14 Noise.15
5.2 Specific safety requirements and/or protective measures.16
5.3 Start-up and manual intervention.27
5.3.1 Start-up.27
5.3.2 Manual intervention .27
6 Verification of the safety requirements and/or protective measures.28
7 Information for use.36
7.1 Minimum marking on the machine .36
7.2 Instruction manual .37
Annex A (informative) Schematic drawings of a dancer roll and of a suspended roll .39
Annex B (normative) Self adjusting guard.41
Annex C (informative) Example of area guarding using a combination of distance
guarding in conjunction with electro-sensitive protective equipment (ESPE).42
Annex ZA (normative) Relationship of this document with EC Directives.43
Bibliography.44

Foreword
This document EN 13418:2004 has been prepared by Technical Committee CEN/TC 145 “Rubber
and plastics machines - Safety”, the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2004, and conflicting national standards
shall be withdrawn at the latest by October 2004.
This European Standard has been prepared under a mandate given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s).
For the relationship with EU Directive(s), see informative annex ZA, which is an integral part of this
document.
Annexes A and C are informative, annex B is normative.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.
Introduction
This document is a type C standard as stated in EN 1070.
The machinery concerned and the extent to which hazards, hazardous situations and events are
covered are indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A or B
standards, the provisions of this type C standard take precedence over the provisions of the other
standards for machines that have been designed and built according to the provisions of this type C
standard.
1 Scope
This European Standard specifies the safety requirements for the design and construction of winding,
unwinding and rewinding machines for film or sheet manufactured from rubber, plastics and
composite materials in respect of the significant hazards listed in clause 4.
A winding machine begins at the intake of the film or sheet into the winding machine and ends at the
discharge position of the reel(s).
An unwinding machine begins at the take-up position of the reel(s) and ends at the film or sheet take-
off point.
A rewinding machine begins at the take-up position of the reel(s) and ends at the discharge position of
the reel(s).
In some machines the winding, unwinding and rewinding functions may be combined.
The following functional groups are covered by this European Standard:
 fixed point roll;
 film or sheet tension control;
 winding zone;
 reel change device;
 reel loading and unloading devices;
and the following additional equipment integrated into the winding machine:
 spreader roll device;
 longitudinal cutting unit;
 slitting device;
 film or sheet alignment device;
 static eliminator.
Technical safety requirements for the design and construction of aids for lifting and handling, e.g. of
winding cores or reels, are not covered by this standard.
Technical safety requirements for the design and construction of thickness monitoring devices are not
covered by this standard.
Hazards due to electro-magnetic radiation, e.g. from the use of thickness monitoring devices, are not
covered by this standard.
Toxic or chemical hazards and hazards due to dusts, fumes or gases, which could occur from the
materials being wound are not covered by this standard.
NOTE Directive 94/9/EC concerning equipment and protective systems intended for use in potentially
explosive atmospheres can be applicable to the type of machine or equipment covered by this European
Standard. The present standard is not intended to provide means of complying with the essential health and
safety requirements of Directive 94/9/EC.
This standard applies to machines which are manufactured after the date of approval of the standard
by CEN.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other
publications. These normative references are cited at the appropriate places in the text and the
publications are listed hereafter. For dated references, subsequent amendments to or revisions of any
of these publications apply to this European Standard only when incorporated in it by amendment or
revision. For undated references the latest edition of the publication referred to applies (including
amendments).
EN 292-1:1991, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic
terminology, methodology.
EN 292-2:1991, Safety of machinery — Basic concepts, general principles for design — Part 2:
Technical principles and specifications.
EN 292-2:1991/A1:1995, Safety of machinery — Basic concepts, general principles for design -—
Part 2: Technical principles and specifications.
EN 294:1992, Safety of machinery — Safety distances to prevent danger zones being reached by the
upper limbs.
EN 349:1993, Safety of machinery — Minimum gaps to avoid crushing of parts of the human body.
EN 418:1992, Safety of machinery — Emergency stop equipment, functional aspects — Principles for
design.
EN 574:1996, Safety of machinery — Two-hand control devices — Functional aspects — Principles
for design.
EN 614-1:1995, Safety of machinery — Ergonomic design principles — Part 1: Terminology and
general principles.
EN 811:1996, Safety of machinery — Safety distances to prevent danger zones being reached by the
lower limbs.
EN 953:1997, Safety of machinery — Guards — General requirements for the design and
construction of fixed and movable guards.
EN 954-1:1996, Safety of machinery — Safety related parts of control systems — Part 1: General
principles for design.
EN 982:1996, Safety of machinery — Safety requirements for fluid power systems and their
components — Hydraulics.
EN 983:1996, Safety of machinery — Safety requirements for fluid power systems and their
components — Pneumatics.
EN 999:1998, Safety of machinery — The positioning of protective equipment in respect of approach
speeds of parts of the human body.
EN 1037:1995, Safety of machinery — Prevention of unexpected start-up.
EN 1070:1998, Safety of machinery — Terminology.
EN 1088:1995, Safety of machinery — Interlocking devices with and without guard locking — General
principles and provisions for design.
EN 1760-1:1997, Safety of machinery — Pressure sensitive protective devices — Part 1: General
principles for the design and testing of pressure sensitive mats and pressure sensitive floors.
EN 60204-1:1997, Safety of machinery — Electrical equipment of machines — Part 1: General
requirements (IEC 60204-1:1997).
EN 60529:1991, Degrees of protection provided by enclosures (IP-Code) (IEC 60529:1989).
EN 61496-1:1997, Safety of machinery — Electro-sensitive protective equipment — Part 1: General
requirements and test (IEC 61496-1:1997).
EN ISO 3743-1:1995, Acoustics — Determination of sound power levels of noise sources -
Engineering methods for small, movable sources in reverberant fields — Part 1: Comparison method
for hard-walled test rooms (ISO 3743-1:1994).
EN ISO 3743-2:1996, Acoustics — Determination of sound power levels of noise sources using sound
pressure - Engineering methods for small, movable sources in reverberant fields — Part 2: Methods
for special reverberation test rooms (ISO 3743-2:1994).
EN ISO 3744:1995, Acoustics — Determination of sound power levels of noise sources using sound
pressure — Engineering method in an essentially free field over a reflecting plane (ISO 3744:1994).
EN ISO 3746:1995, Acoustics — Determination of sound power levels of noise sources using sound
pressure — Survey method using an enveloping measurement surface over a reflecting plane
(ISO 3746:1995).
EN ISO 3747:2000, Acoustics — Determination of sound power levels of noise sources using sound
pressure — Comparison method for use in situ (ISO 3747:2000).
EN ISO 4871:1996, Acoustics —- Declaration and verification of noise emission values of machinery
and equipment (ISO 4871:1996).
EN ISO 9614-1:1995, Acoustics — Determination of sound power levels of noise sources using sound
intensity — Part 1: Measurement at discrete points (ISO 9614-1:1993).
EN ISO 9614-2:1996, Acoustics — Determination of sound power levels of noise sources using sound
intensity — Part 1: Measurement by scanning (ISO 9614-2:1996).
EN ISO 11201:1995, Acoustics — Noise emitted by machinery and equipment — Measurement of
emission sound pressure levels at a work station and at other specified positions — Engineering
method in an essentially free field over a reflecting plane (ISO 11201:1995).
EN ISO 11202:1995, Acoustics — Noise emitted by machinery and equipment — Measurement of
emission sound pressure levels at a work station and at other specified positions — Survey method in
situ (ISO 11202:1995).
EN ISO 11203:1995, Acoustics — Noise emitted by machinery and equipment — Measurement of
emission sound pressure levels at a work station and at other specified positions from the sound
power level (ISO 11203:1995).
EN ISO 11204:1995, Acoustics — Noise emitted by machinery and equipment — Measurement of
emission sound pressure levels at a work station and at other specified positions — Method requiring
environmental corrections (ISO 11204:1995).
EN ISO 11688-1:1998, Acoustics — Recommended practice for the design of low-noise machinery
and equipment — Part 1: Planning (ISO/TR 11688-1:1995).
3 Definitions
For the purposes of this document, the definitions given in EN 1070:1998 and the following definitions
apply:
3.1
working zone
this zone includes any place where the operator of the machine stands or passes in order to carry out
operations and includes catwalks, working pits and devices firmly mounted to the machine like stairs,
platforms and pedestals of all kinds
3.2
winding machines
machines to wind up film or sheet material and/or to unwind and/or rewind it. The various kinds of
machines are distinguished by their drives. A distinction is made between centre winder, surface
winder and combinations of both
3.2.1
centre winder
winding machine with central drive to the winding core
3.2.2
surface winder
winding machine whose winding or reel drive relies on friction at the driven roll surface
3.3
winding core
element onto which film or sheet is wound or from which film or sheet is unwound. It may be a solid
shaft or a hollow core, for example made of cardboard, or a combination of the two where the core is
sleeved onto the shaft
3.4
winding
film or sheet in the process of being wound
3.5
reel
film or sheet material which is wound with or without a winding core
3.6
area guarding
one or a combination of safety measure(s) for several danger points/areas
3.7
non-driven roll
roll for guiding film or sheet through the machine and which is driven by the film or sheet
3.8
fixed point roll
roll or set of rolls that determine the material speed and/or the tension within the winding machine.
The following are fixed point rolls: driven roll, vacuum roll, nip roll
3.8.1
driven roll
roll that pulls the film or sheet by means of surface contact (friction)
3.8.2
vacuum roll
driven roll against which the film or sheet is held by means of a vacuum which creates adherence
3.8.3
nip rolls
rolls that are pressed one against the other; one at least is driven. The film or sheet is drawn through
the nip by the nipping effect
3.9
film or sheet tension control
driven or non-driven roll systems that control the film or sheet tension
3.9.1
dancer roll
guide roll that is pivoted about a point and over which the film or sheet runs. The load of the dancer
roll determines the film or sheet tension (see annex A, Figure A.1)
3.9.2
suspended roll
guide roll that reciprocates between guides in a linear direction and over which the film or sheet runs.
The load of the suspended roll determines the film or sheet tension (see annex A, Figure A.2)
3.9.3
measuring roll
guide roll the axis of which is supported in load cell mounted bearings which measure the film or sheet
tension
3.10
winding zone
area in which the winding and/or unwinding and/or rewinding is undertaken
3.10.1
winding position
position where film or sheet material is wound to form a reel.
3.10.2
unwind position
position where film or sheet material is unwound from a reel
3.10.3
pivot arm
pair of arms that support a reel and insert or discharge it in a pivoting movement
3.10.4
turret device
device that changes the positions of the winding core and the reel in the winding position e. g. by
rotation. The following distinction is made:
 for winding machines: the winding core is moved from the take-up position to the winding position
and the reel is moved from the winding position to the discharge position,
 for unwinding machines: the reel is moved from the take-up position to the unwind position and
the winding core is moved from the unwind position to the discharge position.
3.10.5
guide carriage
device that provides linear direction to the reel or the contact/pressure roll to maintain the winding
parameters
3.10.6
contact/pressure roll
a driven or non-driven roll that is used for controlling the winding of the film or sheet
3.10.7
winding core support
device for supporting and fixing winding cores, for example, three-point bearing, tilting bearing,
spindle, trunnion bearing or expanding mandrel
3.10.8
winding core loading device
device that feeds empty winding cores either into a magazine or directly to the winding start position
3.10.9
winding core unloading device
device that extracts winding cores from the unwind position
3.11
reel change device
device that ensures continuous winding, unwinding or rewinding of the film or sheet during the reel
change sequence
3.11.1
lay on device
device that lays the film or sheet against an empty winding core during reel change
3.11.2
film or sheet splicing device
device that splices the end of the film or sheet from one reel to the start of the film or sheet of a new
reel
3.11.3
cross cutting device
device that finishes the winding cycle by cutting the film or sheet across its width
3.11.3.1
impact cutting device
device that cuts the film or sheet by an impact movement across its width
3.11.3.2
draw-type cutting device
device in which either a a rotating or fixed knife/blade is moved to cut the film or sheet across its width
3.12
reel loading device
device for loading reels on to the unwind station
3.13
reel unloading device
device for unloading reels from the winding station
3.14
spreader roll
roll that prevents the film or sheet being wound from getting narrower or from getting wrinkled and
maintains the spread of multiple lanes of film or sheet
3.15
longitudinal cutting device
device for cutting film or sheet to a certain width. It allows the film or sheet to be cut into two or more
lanes or to trim the edges. There are different kinds of cutting knives, for example:
 fixed knives;
 circular knives.
3.16
slitting device
device that slits a tubular film in a fold
3.17
film or sheet alignment device
device for alignment of the film or sheet
3.18
static eliminator
device for eliminating electrostatic charges built up on the film or sheet during winding or unwinding or
rewinding
4 List of significant hazards
4.1 Mechanical hazards
This clause contains the significant hazards and hazardous situations, as far as they are dealt with in
this European Standard, identified by a risk assessment significant for this type of machinery and
which require action to eliminate or reduce the risk.
When using this standard, it is important to carry out a risk assessment of the individual functional
groups in accordance with EN 1050 to check whether it has hazards additional to the ones covered by
this standard.
The letters a – k in Table 1 below that indicate the hazards are referred to in Table 2, column 3.
Table 1 — List of mechanical hazards
Hazards
a b c d e f g h j k
Danger points/areas
4.1.1 Non-driven web roll(s) x  x x  x
4.1.2 Fixed point roll(s)
4.1.2.1 Driven roll(s) x  x x
4.1.2.2 Vacuum roll(s) x  x
4.1.2.3 Nip roll(s) x  x x x
4.1.3 Film or sheet tension control (e.g. x   x
dancer roll, suspended roll, measuring
roll)
4.1.4 Winding zone
4.1.4.1 Winding position x X
4.1.4.2 Unwind position  X
4.1.4.3 Pivot arm   x x
4.1.4.4 Turret device    x x
4.1.4.5 Guide carriage    x x
4.1.4.6 Contact/pressure roll x  x x x
4.1.4.7 Winding core support    x x
4.1.4.8 Winding core loading device    x
4.1.4.9 Winding core unloading device    x
4.1.5 Reel change device
4.1.5.1 Lay on device  x x x
4.1.5.2 Film or sheet splicing device  x  x  x
4.1.5.3 Cross cutting device
4.1.5.3.1 Impact cutting device    x  x
4.1.5.3.2 Draw cutting device   x  x
4.1.6. Reel loading device    x
4.1.7 Reel unloading device    x
4.1.8 Spreader roll device  x
4.1.9 Longitudinal cutting device  x   x
4.1.10 Slitting device     x
4.1.11 Film or sheet alignment x   x
4.1.12 Drive and power transmission systems  x x x x x

Drawing-in between film or sheet and moving
part, e. g. roll
Drawing-in between film or sheet and winding
Drawing-in between film or sheet and winding/
reel and fixed or moving machine parts or floor
Drawing-in between moving parts, e. g. roll/roll
Drawing-in between fixed and moving machine
parts
Crushing and/or shearing between moving
machine parts
Crushing and/or shearing between fixed and
moving machine parts and floor
Crushing and/or shearing when
inserting/chucking machine parts
Drawing-in or trapping by moving machine
parts
Cutting by knives
4.2 Hazards resulting from electrical energy
Electric shock or burns due to direct or indirect contact with live conductive parts.
Electric shock due to electrostatic discharge.
4.3 Hazards resulting from unfavourable posture or excess efforts
4.4 Hazards resulting from noise
Hazards caused by high noise levels can lead to:
 hearing impairment;
 interference with speech communication;
 interference with the perception of acoustic signals.
4.5 Hazards caused by failure of energy supply
 unexpected movement of machine parts.
4.6 Hazards resulting from failure of control systems
 unexpected overrunning or starting of hazardous movements;
 movable machine parts changing their position.
4.7 Hazards caused by setting up and maintenance of cutting devices
 hazard of cutting during assembly and disassembly of cutting blade(s).
5 Safety requirements and/or protective measures
Machinery shall comply with the safety requirements and/or protective measures of this clause. In
addition, the machine shall be designed according to the principles of EN 292 for hazards relevant but
not significant, which are not dealt with by this document (e. g. sharp edges).
5.1 General safety requirements and/or protective measures
5.1.1 Protection of danger points/areas
Access to danger points/areas in working zones shall be protected by measures in accordance with
clause 4 of EN 292-2:1991, subject to additional provisions for individual functional groups in 5.2.
No drawing-in hazard exists for arms and hands at rolls where:
 there is a minimum distance of 120 mm between two rolls,
 there is a minimum distance of 120 mm between a roll and the nearest machine parts.
Protection at material take-up points of non-driven rolls is not required, if:
 the roll can be stopped with one hand;
and
 there are no hazards which are due to any property of the material such as adhesion, roughness,
etc.
5.1.2 Safety distances to prevent danger points/areas being reached
5.1.2.1 Upper limbs
The safety distances for the upper limbs shall be in accordance with EN 294:1992. For selection of
tables to be used concerning "reaching over protective structures", see 5.2.
5.1.2.2 Lower limbs
The safety distances for the lower limbs shall be in accordance with EN 811:1996.
5.1.3 Minimum distances to avoid crushing of parts of the human body
The minimum distances shall be in accordance with EN 349:1993.
5.1.4 Drive and power transmission systems
Moving parts of drive and power transmission systems, for example shafts, clutches, chains or belts
shall be protected by fixed guards in accordance with 3.2 of EN 953:1997.
5.1.5 Area guarding
Area guarding may be used to protect several danger points/areas.
The danger points/areas may need different categories of protective measures and safety related
parts for their control systems if safeguarded individually. If this is the case, the protective measures
and safety related parts selected from among those specified for the individual danger points/areas
shall be those which achieve the highest level of safety.
5.1.6 Electrical equipment
The electrical equipment shall be in accordance with EN 60204-1:1997 and the following additional
requirements:
5.1.6.1 Supply disconnecting (isolating) device
The supply disconnecting devices shall be in accordance with EN 60204-1:1997, 5.3.2 a) to e).
Where the supply disconnecting device is of the type a), b) or c), the requirements of
EN 60204-1:1997, 5.3.3 shall apply.
5.1.6.2 Protection against direct contact
Protection against direct contact shall be in accordance with EN 60204-1:1997, 6.2 including the
IP codes according to EN 60529.
5.1.6.3 Protection against indirect contact
Protection against indirect contact shall be in accordance with EN 60204-1:1997, 6.3.
5.1.6.4 Control functions – Start and Stop
The start function shall conform to EN 60204-1:1997, 9.2.1 and 9.2.5.2.
The stop shall function as a category 0 stop and in accordance with EN 60204-1:1997, 9.2.2.
If stop category 0 can result in additional hazards, e.g. due to inertia of the winding, stop category 1
shall be used. Stop category 2 may be used if it is necessary to leave the winding machine energized
after stopping, e.g. to keep the film or sheet tensioned in the production line when it is stationary.
5.1.7 Safety-related parts of the control system
The safety-related parts of the control system shall be at least in accordance with category 1 of
EN 954-1:1996, subject to other provisions for individual functional groups in 5.2.
5.1.8 Pneumatic systems and their components
The pneumatic systems and their components shall be in accordance with EN 983:1996.
5.1.9 Hydraulic systems and their components
The hydraulic systems and their components shall be in accordance with EN 982:1996.
5.1.10 Precautions in view of emergency situations
Precautions in view of emergency situations shall be in accordance with 6.1 of EN 292-2:1991.
Emergency stop device(s) shall be positioned to give easy access at every control point and at other
suitable locations around the winder. They shall function as category 0 in accordance with
EN 418:1992 unless there are additional hazards, e.g. due to inertia of the winding machine or other
machinery working in combination with it, in which case category 1 shall be used (see also 7.2 b)).
Operation of an emergency stop actuator shall cause the winding machine to come to rest in a safe
condition and its reset shall not initiate a restart of the winding machine.
The manufacturer shall inform the user about the electrical interface concerning the emergency stop
equipment in the information for use supplied with the winding machine (see 7.2.b)).
The types of device(s) for emergency stop shall be in accordance with EN 60204-1:1997, 10.7.2.
5.1.11 Unexpected start-up
Hazards due to unexpected start-up of winding machines shall be prevented in accordance with the
requirements of EN 1037:1995.
Devices for switching off for the prevention of unexpected start-up shall conform to 5.4 of
EN 60204-1:1997.
Protective measures against hazards due to unexpected start-up from individual functional groups are
described in the corresponding subclauses of 5.2 in this standard.
5.1.12 Electrostatic discharge
5.1.12.1 General
Hazards arising from static electricity shall be prevented by bonding all conductive structural parts of
the electrical equipment and the machine and connecting to earth.
Earthing points for temporary connections shall be provided where a machine assembly includes
moveable metal items, which are not permanently installed.
See also 7.2 l).
5.1.12.2 Additional requirements for machinery processing non-conductive film or sheet
Additional measures shall be employed to prevent hazards due to electrostatic discharge where a
winding machine is used to process non-conductive film or sheet, for example by:
 reducing friction between the film or sheet and guiding system by minimizing the area of contact;
 eliminating thin non-conductive layers on metallic parts upon which non-conductive film or sheet
is to be wound; or
 use of suitably located static eliminators.
NOTE For guidance see CENELEC Report R 044-001.
5.1.13 Ergonomics
The machines shall be designed in accordance with EN 614-1:1995, taking into account operating
positions and the need for access to particular zones.
5.1.14 Noise
5.1.14.1 Noise reduction at source by design
Main sources of noise are:
 drive motors;
 power transmission systems;
 pneumatic systems;
 ventilators;
 hydraulic systems;
 control valves;
 pipe lines.
The following measures may, for example, be taken for noise reduction:
 low-noise design;
 enclosures;
 silencers;
 low-noise machinery components e. g. pumps, ventilators, etc.;
 vibration damping;
 sound insulating elements.
When designing the machine, the available information and technical measures to reduce noise at
source shall be taken into account, see for example EN ISO 11688-1:1998.
NOTE EN ISO 11688-2:2000 gives useful information on noise generation mechanisms in machinery.
5.1.14.2 Noise reduction information
The manufacturer shall inform the user in the instruction handbook of measures to reduce noise
further (see 7.2.g)).
5.2 Specific safety requirements and/or protective measures
In addition to 5.1, the safety requirements and/or protective measures in Table 2 shall be complied
with.
Guidance for interpreting Table 2
The arrangement of the columns does not represent any hierarchical order.
 the first column contains the numbering in accordance with 4.1, Table 1.
 the second column contains the danger points/areas dealt with according to 4.1, Table 1.
 the third column contains the hazard(s) applicable to the respective danger points/areas or type
of operation, according to 4.1, Table 1.
 supplements are used in Table 2 where further instruction or information is required in relation to
a particular safety requirement and/or protective measure.
NOTE The supplements are given at the end of Table 2. In the table, the word supplement is abbreviated to
“Supp.”
 an "X" ("cross" sign) in columns "Guards" and "Control devices" identifies the “Protective
measures” which are permitted for the particular danger point/area. They are local protective
measures and at least one of them shall be used for the particular danger point/area. Where
necessary, a "Protective measure" is specified by a value or by a supplement (e.g. “+ Supp. 1”).
If the column "Combination" (abbreviated to “Combi.”) is marked with an "X", then it is permissible
to use the identified “Protective measures” in combination for a particular danger point/area.
See example in annex C for a combination of protective measures for area guarding.
 an "&" ("and" sign) contained in any of the columns identifies an "Obligatory requirement" that
has to be fulfilled in addition to the "Protective measures". If required, this "Obligatory
requirement" is specified by a value or with supplement (e.g. “Supp. 4”).
 the right-hand column contains the "Additional protective measures" that have to be fulfilled.
Table 2 — Safety requirements and/or protective measures for individual functional groups and/or machine parts
Protective measures
Guards Control devices Combi. Further Additional protective
requirements measures
Danger point/area
Requirements or protective
measures which shall be
complied with
5.2.1 Non-driven roll(s) a,d,e, j x x x 1 2   x

5.2.2 Fixed point roll(s)
5.2.2.1 Driven roll(s) a,d,e x x x 1 2   x
5.2.2.2 Vacuum roll(s) a,e x x x 1 2   x
5.2.2.3 Nip roll(s) a,d,f,g x x x 3 2   x &
Alternatively see Supplement 3

+ supp. 4
5.2.3 Film or sheet a,g x x x 1 2   x  Securing devices shall be
tension control (e.g.
provided to prevent gravity
dancer roll, falling of rolls during activities
suspended roll,
other than normal operation,
measuring roll) e.g. during maintenance (see
7.2 d))
Hazards in accordance with 4.1, Table 1
Guards in accordance with 3.1 of
EN 953:1997
Fixed guards in accordance with 3.2 of EN
953:1997
Interlocking guards in accordance with 3.5 of
EN 953:1997; or
Interlocking guards with guard locking in
accordance with both 3.6 of EN 953:1997
and the choice criteria of EN 1088:1995
Category for the safety related parts of the
control system in accordance with
EN 954-1:1996
Self adjusting guards (see normative Annex
B)
Table for the safety distances for the upper
limbs for reaching over protective structures
in accordance with EN 294:1992
Two-hand control device in accordance with
EN 574: 1996, type III B
Hold-to-run control device in accordance
with 3.23.3 of EN 292-1:1991 and category 3
of EN 954-1:1996. The maximum speed of
the movement shall not exceed 5 m/min
Trip devices in accordance with 3.23.5 of
EN 292-1:1991.
Control device (e.g. push-button) with
category 3 of EN 954-1:1996
A combination of the devices in columns
"Guards" and/or "Control devices" where
their use is indicated as permissible
The danger zone shall be visible to the
operator from the actuator operating position
It shall be ensured that machine parts
cannot move unintentionally as a result of
stopping the machine or due to a failure of
the energy supply (see EN 1037:1995)

Table 2 — Safety requirements and/or protective measures for individual functional groups and/or machine parts (continued)
Protective measures
Guards Control devices Further Additional
Combi.
requirements protective
measures
Danger point/area
Requirements or
protective measures
which shall be
complied with
5.2.4 Winding zone
5.2.4.1 Winding position
5.2.4.1.1 Material take-up point of a b,c x x 3 x 1  x x
centre winder
+ Supp.
+ Supp.
5.2.4.1.2 Intake nip of a surface b,c x x 3 x 1  x x
winder + Supp.
+ Supp.
5.2.4.2 Unwind position c    1
Hazards in accordance with 4.1, Table 1
Guards in accordance with 3.1 of
EN 953:1997
Fixed guards in accordance with 3.2 of EN
953:1997
Interlocking guards in accordance with 3.5 of
EN 953:1997; or
Interlocking guards with guard locking in
accordance with both 3.6 of EN 953:1997
and the choice criteria of EN 1088:1995
Category for the safety related parts of the
control system in accordance with
EN 954-1:1996
Self adjusting guards (see normative Annex
B)
Table for the safety distances for the upper
limbs for reaching over protective structures
in accordance with EN 294:1992
Two-hand control device in accordance with
EN 574: 1996, type III B
Hold-to-run control device in accordance
with 3.23.3 of EN 292-1:1991 and category 3
of EN 954-1:1996. The maximum speed of
the movement shall not exceed 5 m/min
Trip devices in accordance with 3.23.5 of
EN 292-1:1991.
Control device (e.g. push-button) with
category 3 of EN 954-1:1996
A combination of the devices in columns
"Guards" and/or "Control devices" where
their use is indicated as permissible
The danger zone shall be visible to the
operator from the actuator operating position
It shall be ensured that machine parts
cannot move unintentionally as a result of
stopping the machine or due to a failure of
the energy supply (see EN 1037:1995)

Table 2 — Safety requirements and/or protective measures for individual functional groups and/or machine parts (continued)
Protective measures
Guards Control devices Further Additional
Combi.
requirements protective
measures
Danger point/area
Requirements or
protective measures
which shall be
complied with
5.2.4.3 Pivot arm
automatc operation f,g x x x 1 2  x x &
+ Supp. + Supp. 4
manual operation f,g    2 x  & &
+ Supp. 4
5.2.4.4 Turret device
automatic operation g, j x x x 1 2  x x &
+ Supp. + Supp. 4
Manual operation g, j    2 x  & &
+ Supp. 4
5.2.4.5 Guide carriage g, j    1
Hazards in accordance with 4.1, Table 1
Guards in accordance with 3.1 of
EN 953:1997
Fixed guards in accordance with 3.2 of EN
953:1997
Interlocking guards in accordance with 3.5 of
EN 953:1997; or
Interlocking guards with guard locking in
accordance with both 3.6 of EN 953:1997
and the choice criteria of EN 1088:1995
Category for the safety related parts of the
control system in accordance with
EN 954-1:1996
Self adjusting guards (see normative Annex
B)
Table for the safety distances for the upper
limbs for reaching over protective structures
in accordance with EN 294:1992
Two-hand control device in accordance with
EN 574: 1996, type III B
Hold-to-run control device in accordance
with 3.23.3 of EN 292-1:1991 and category 3
of EN 954-1:1996. The maximum speed of
the movement shall not exceed 5 m/min
Trip devices in accordance with 3.23.5 of
EN 292-1:1991.
Control device (e.g. push-button) with
category 3 of EN 954-1:1996
A combination of the devices in columns
"Guards" and/or "Control devices" where
their use is indicated as permissible
The danger zone shall be visible to the
operator from the actuator operating position
It shall be ensured that machine parts
cannot move unintentionally as a result of
stopping the machine or due to a failure of
the energy supply (see EN 1037:1995)

SIST EN 1341
...
