EN ISO 14509-2:2006

SLOVENSKI STANDARD
01-januar-2007
0DODSORYLOD=YRNY]UDNXNLJDRGGDMDMRPRWRUL]LUDQDUHNUHDFLMVNDSORYLODGHO
2FHQMHYDQMHKUXSD]XSRUDERUHIHUHQþQHJDSORYLOD,62
Small craft - Airborne sound emitted by powered recreational craft - Part 2: Sound
assessment using reference craft (ISO 14509-2:2006)
Kleine Wasserfahrzeuge - Von motorgetriebenen Sportbooten abgestrahlter Luftschall -
Teil 2: Beurteilung der Schallemission mittels Referenzbooten (ISO 14509-2:2006)
Petits navires - Bruit aérien émis par les bateaux de plaisance motorisés - Partie 2:
Évaluation du bruit a l'aide de bateaux de référence (ISO 14509-2:2006)
Ta slovenski standard je istoveten z: EN ISO 14509-2:2006
ICS:
17.140.30
47.080
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

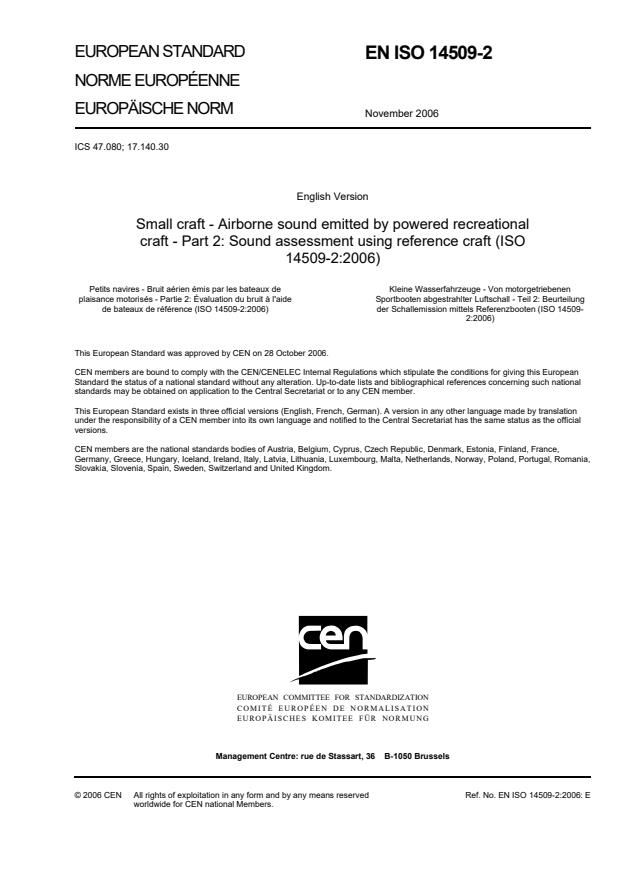

EUROPEAN STANDARD
EN ISO 14509-2
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2006
ICS 47.080; 17.140.30
English Version
Small craft - Airborne sound emitted by powered recreational
craft - Part 2: Sound assessment using reference craft (ISO
14509-2:2006)
Petits navires - Bruit aérien émis par les bateaux de Kleine Wasserfahrzeuge - Von motorgetriebenen
plaisance motorisés - Partie 2: Évaluation du bruit à l'aide Sportbooten abgestrahlter Luftschall - Teil 2: Beurteilung
de bateaux de référence (ISO 14509-2:2006) der Schallemission mittels Referenzbooten (ISO 14509-
2:2006)
This European Standard was approved by CEN on 28 October 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14509-2:2006: E
worldwide for CEN national Members.

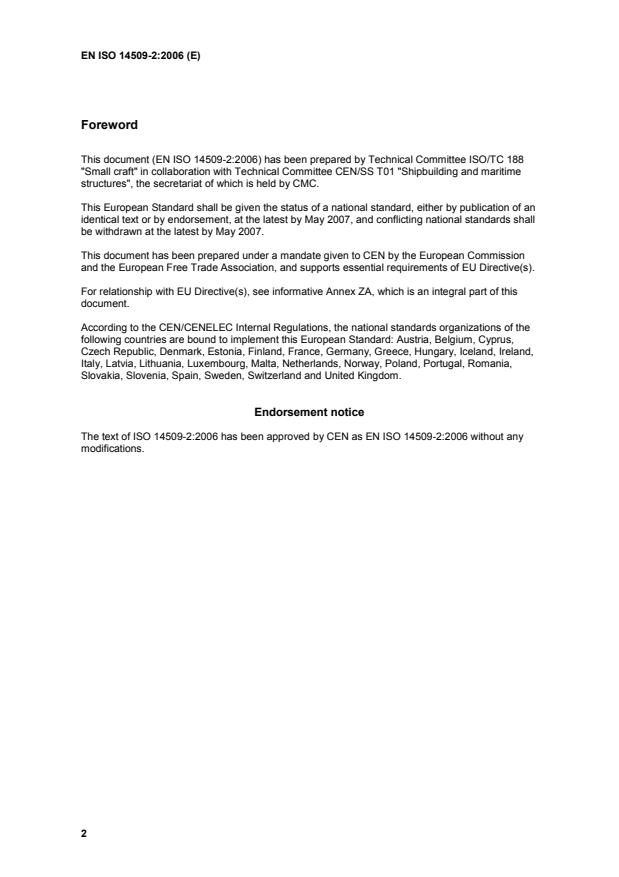

Foreword
This document (EN ISO 14509-2:2006) has been prepared by Technical Committee ISO/TC 188
"Small craft" in collaboration with Technical Committee CEN/SS T01 "Shipbuilding and maritime
structures", the secretariat of which is held by CMC.

This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2007, and conflicting national standards shall
be withdrawn at the latest by May 2007.

This document has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).

For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Cyprus,
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 14509-2:2006 has been approved by CEN as EN ISO 14509-2:2006 without any
modifications.
ANNEX ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 94/25 EC as amended by Directive
2003/44/EC
This European Standard has been prepared under a mandate given to CEN by the European

Commission and the European Free Trade Association to provide a means of conforming to
Essential Requirements of EU Directive 94/25/EC as amended by Directive 2003/44/EC.

Once this standard is cited in the Official Journal of the European Communities under that Directive
and has been implemented as a national standard in at least one Member State, compliance with
the normative clauses of this standard given in Table ZA.1 confers, within the limits of the scope of
this standard, a presumption of conformity with the corresponding Essential Requirements of that
Directive and associated EFTA regulations.

Table ZA.1 — Correspondence between this European Standard and Directive 94/25/EC
as amended by Directive 2003/44/EC

Clause(s)/Sub-clause(s) of Essential Requirements (ERs) of Qualifying remarks/Notes
this European Standard EU Directive 94/25/EC as amended
by Directive 2003/44/EC
All clauses Annex l, C, Clause 1.4
WARNING: Other requirements and other EU Directives may be applicable to the products falling
within the scope of this standard.

INTERNATIONAL ISO
STANDARD 14509-2
First edition
2006-11-01
Small craft — Airborne sound emitted
by powered recreational craft —
Part 2:
Sound assessment using reference craft
Petits navires — Bruit aérien émis par les bateaux de plaisance
motorisés —
Partie 2: Évaluation du bruit à l'aide de bateaux de référence

Reference number
ISO 14509-2:2006(E)
©
ISO 2006
ISO 14509-2:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

ISO 14509-2:2006(E)
Contents Page
Foreword. iv
Introduction . v
1 Scope. 1
2 Normative references. 1
3 Terms and definitions. 1
4 Symbols. 2
5 Reference boat. 3
6 Sound assessment method . 3
7 Assessment report. 3
Annex A (normative) Insertion loss measurement method. 4
Annex B (normative) Sound pressure level over stern measurement method . 6
Annex C (informative) Background information on the reference boat concept. 11
Bibliography . 12

ISO 14509-2:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 14509-2 was prepared by Technical Committee ISO/TC 188, Small craft.
ISO 14509 consists of the following parts, under the general title Small craft — Airborne sound emitted by
powered recreational craft:
⎯ Part 1: Pass-by measurement procedures
⎯ Part 2: Sound assessment using reference craft
The following part is under preparation:
⎯ Part 3: Sound assessment using calculation and measurement procedures
iv © ISO 2006 – All rights reserved

ISO 14509-2:2006(E)
Introduction
The development of this part of ISO 14509 became necessary in order to provide an assessment procedure
which would satisfy the needs of the European Union Directive 2003/44/EC (Amendment to Directive
94/25/EC). The reason for the inclusion of this type of assessment procedure in the Directive is to try to
minimize the economic impact of the Directive on the boating industry, in particular small European boat
builders, while still providing an environmental benefit to the community through lower sound levels.

INTERNATIONAL STANDARD ISO 14509-2:2006(E)

Small craft — Airborne sound emitted by powered recreational
craft —
Part 2:
Sound assessment using reference craft
1 Scope
This part of ISO 14509 specifies the procedures to assess the maximum sound emission of powered
mono-hull recreational craft of up to 24 m length according to one of the two alternative methods defined in
Annex A and Annex B.
This part of ISO 14509 is not applicable for the type testing of outboard motors and of stern drives with
integral exhaust systems.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 8665, Small craft — Marine propulsion reciprocating internal combustion engines — Power measurements
and declarations
ISO 8666:2002, Small craft — Principal data
1)
ISO 14509-1:— , Small craft — Airborne sound emitted by powered recreational craft — Part 1: Pass-by
measurement procedures
IEC 60942, Electroacoustics — Sound calibrators
IEC 61672-1, Electroacoustics — Sound level meters — Part 1: Specifications
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
recreational craft
any craft, regardless of the means of propulsion, intended to be used for sports and leisure purposes

1) To be published.
ISO 14509-2:2006(E)
3.2
stern drive with integral exhaust
any stern drive powered boat where the exhaust gases are expelled through the transmission or drive
3.3
bottom type configuration
construction type of the bottom of a craft
3.3.1
hard-chine bottom
bottom of a boat with an abrupt intersection between the hull side and the hull bottom
3.3.2
flat bottom
hard-chine bottom with a deadrise angle β u 5° at the transom
3.3.3
round bottom
bottom of a boat with a round bilge hull form
3.3.4
multi-chine bottom
hard-chine bottom with more than one chine
3.4
performance test mass
m
P
mass of the craft that includes all permanently attached standard items of equipment and all items of loose
equipment needed for the safe operation of the boat, and additionally the mass of the number of persons
needed for the safe operation of the boat and the mass of the fuel (i.e. at least at 25 % but no more than 50 %
of the tank capacity of permanently installed fuel tanks, or one portable tank per engine at least 50 % full at
the beginning of each test trial), but excludes the mass of fresh water, waste water, provisions and other loose
equipment
NOTE 1 This definition is in conformity with ISO 8666:2002, 6.4.
NOTE 2 Loose equipment needed for the safe operation of the b
...
