EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1264-1
June 2011 ICS 01.040.91; 01.075; 91.140.10 Supersedes EN 1264-1:1997English Version
Water based surface embedded heating and cooling systems - Part 1: Definitions and symbols
Systèmes de surfaces chauffantes et rafraîchissantes hydrauliques encastrées - Partie 1: Définitions et symboles Raumflächenintegrierte Heiz- und Kühlsysteme mit Wasserdurchströmung - Teil 1: Definitionen und SymboleThis European Standard was approved by CEN on 3 June 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1264-1:2011: ESIST EN 1264-1:2011

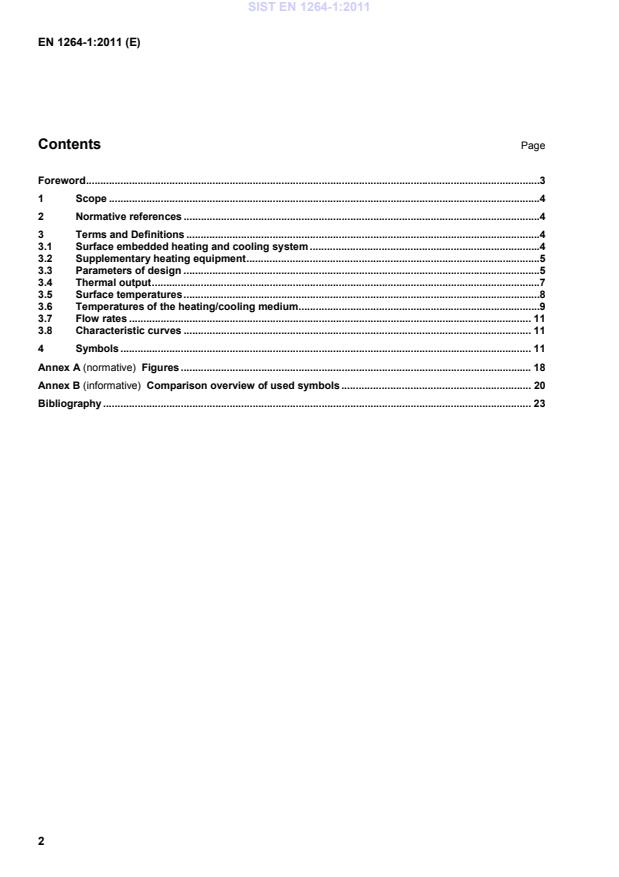

Figures . 18Annex B (informative)
Comparison overview of used symbols . 20Bibliography . 23 SIST EN 1264-1:2011

Dimensioning;  Part 4: Installation;  Part 5: Heating and cooling surfaces embedded in floors, ceilings and walls — Determination of the thermal output. The main change with respect to EN 1264-1:1997 consists in the expansion of the scope over floor heating, now additionally includes ceiling and wall heating as well as cooling surfaces in floors, ceilings and walls. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
heating or cooling installation embedded into the enclosure surfaces of the room consisting of circuits of pipes, circuit distributors, and control equipment 3.1.2 floor, wall, ceiling heating and cooling system system where pipes carrying water with or without additives as a heating or cooling medium are laid in the floor, wall or ceiling 3.1.3 circuit section of pipes connected to circuit distributor which can be independently switched and controlled 3.1.4 circuit distributor common connection point for several circuits 3.1.5 system components - insulating layer for thermal and footstep noise insulation, - protection layer (to protect the insulating layer), - heating/cooling pipes or plane sections, - floor covering, - heat diffusion devices, peripheral strips, attachment items etc., SIST EN 1264-1:2011

3.1.6.1 systems with pipes inside the screed type A and type C systems with heating/cooling pipes completely embedded in the screed NOTE See Figure A.1 and A.3. 3.1.6.2 systems with pipes below the screed type B systems with heating/cooling pipes laid with diffusion plates in the thermal insulating layer below the screed NOTE See Figure A.2. 3.1.6.3 systems with surface elements (plane sections) type D system plates with hollow sections acting as water channels
NOTE See Figure A.4. 3.1.7 system Insulation insulation with the thermal resistance R,ins according to EN 1264-4:2009, Table 1 to limit the heat loss of heating and cooling systems
NOTE In the case of floor heating and cooling systems, as a rule the thermal resistance R,ins is provided by the insulation layers which are integral parts of the system; on this topic, national rules shall be consulted. In the case of wall and ceiling heating and cooling systems, the thermal resistance R,ins may be determined taking into account the effective thermal resistance of the building structure. 3.1.8 interior walls partitions of rooms within dwellings or similar used room groups NOTE Wall heating and cooling systems embedded in interior walls, are constructed with or without insulation, depending on their use. 3.2 Supplementary heating equipment Additional heating facility, e. g. convectors, radiators with the additional required thermal output and possibly with its own control equipment 3.3 Parameters of design 3.3.1 standard heat load in a floor heated room QN,f rate of heat loss from the building to the outside and to neighbouring rooms under standardized conditions, depending on the regional climatic data, the location, its use and the thermal properties of the building NOTE When calculating the standard heat load, the thermal output from the embedded heating systems in the neighbouring room is not taken into account. SIST EN 1264-1:2011

AF area of surface covered by the heating or cooling system, including a perimeter strip whose width should be half of one spacing, but not exceeding 0,150 m 3.3.5 furniture area area of the floor surface not covered by a heating or cooling system, intended for permanent placement of furnishings forming part of the building 3.3.6 peripheral area
AR floor surface heated to a higher temperature and generally an area of 1,0 m maximum in width along exterior walls. NOTE It is not an occupied area. 3.3.7 occupied area
AA
area within the heated or cooled floor surface occupied for long periods NOTE
In case of floor heating, it consists of the heating floor surface less the peripheral area. 3.3.8 standard indoor room temperature ϑi resultant indoor temperature defined as the average of the dry air temperature and the mean radiant temperature NOTE The resultant temperature is considered as the relevant for thermal comfort assessment and heat loss calculations. This value of internal temperature
is used for the calculation method [1], [2].
3.3.9 regional dew point
ϑDp,R dew point specified depending on the climatic conditions of the region 3.3.10 design dew point
ϑDp,des dew point determined for the design SIST EN 1264-1:2011

qN limit of specific thermal output of floor heating systems achieved without floor covering 3.4.7 standard specific thermal output of embedded heating systems
qH,N specific thermal output of embedded heating systems achieved with standard temperature difference between heating medium and room NOTE For heating systems (other then floor heating), ûϑH,N = 10 K is valid. 3.4.8 standard specific thermal output of embedded cooling systems
qC,N specific thermal output of embedded cooling systems achieved with standard temperature difference between room and cooling medium NOTE For cooling systems, ûϑC,N = 8 K is valid. 3.4.9 design value of specific thermal output of floor heating systems
qdes amount due to the room, calculated with the standard heat load, divided by the heating floor surface area SIST EN 1264-1:2011

3.4.10 maximum value of specific thermal output
qmax highest design value qdes within qG of specific thermal output in circuits operated at the same design flow temperature
3.4.11 downward specific heat loss of floor heating system
...
