Standards Content (Sample)


SLOVENSKI STANDARD
01-julij-2006
$NXVWLND/DERUDWRULMVNRPHUMHQMHERþQHJDSUHQRVD]YRNDY]UDNXLQXGDUQHJD
]YRNDPHGPHMQLPLSURVWRULGHO2NYLUQLGRNXPHQW ,62
Acoustics - Laboratory measurement of the flanking transmission of airborne and impact
sound between adjoining rooms - Part 1: Frame document (ISO 10848-1:2006)
Akustik - Messung der Flankenübertragung von Luftschall und Trittschall zwischen
benachbarten Räumen in Prüfständen - Teil 1: Rahmendokument (ISO 10848-1:2006)
Acoustique - Mesurage en laboratoire des transmissions latérales du bruit aérien et des
bruits de choc entre pieces adjacentes - Partie 1: Document cadre (ISO 10848-1:2006)
Ta slovenski standard je istoveten z: EN ISO 10848-1:2006
ICS:
17.140.01 $NXVWLþQDPHUMHQMDLQ Acoustic measurements and
EODåHQMHKUXSDQDVSORãQR noise abatement in general
91.120.20 $NXVWLNDYVWDYEDK=YRþQD Acoustics in building. Sound
L]RODFLMD insulation
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 10848-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
April 2006
ICS 91.120.20
English Version
Acoustics - Laboratory measurement of the flanking
transmission of airborne and impact sound between adjoining
rooms - Part 1: Frame document (ISO 10848-1:2006)
Acoustique - Mesurage en laboratoire des transmissions Akustik - Messung der Flankenübertragung von Luftschall
latérales du bruit aérien et des bruits de choc entre pièces und Trittschall zwischen benachbarten Räumen in
adjacentes - Partie 1: Document cadre (ISO 10848-1:2006) Prüfständen - Teil 1: Rahmendokument (ISO 10848-
1:2006)
This European Standard was approved by CEN on 16 March 2006.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10848-1:2006: E
worldwide for CEN national Members.

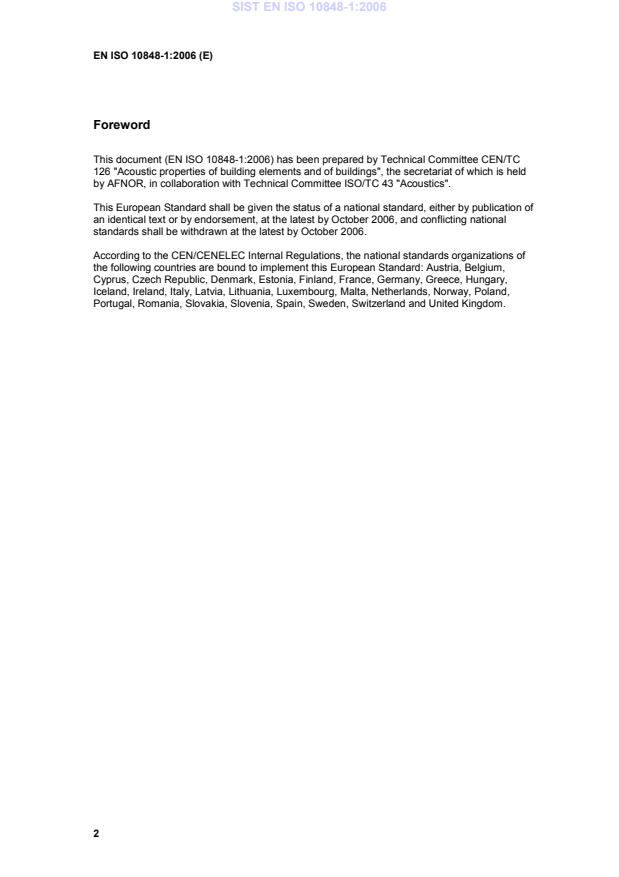

Foreword
This document (EN ISO 10848-1:2006) has been prepared by Technical Committee CEN/TC
126 "Acoustic properties of building elements and of buildings", the secretariat of which is held
by AFNOR, in collaboration with Technical Committee ISO/TC 43 "Acoustics".

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by October 2006, and conflicting national
standards shall be withdrawn at the latest by October 2006.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

INTERNATIONAL ISO
STANDARD 10848-1
First edition
2006-04-01
Acoustics — Laboratory measurement of
the flanking transmission of airborne and
impact sound between adjoining
rooms —
Part 1:
Frame document
Acoustique — Mesurage en laboratoire des transmissions latérales du
bruit aérien et des bruits de choc entre des pièces adjacentes —
Partie 1: Document cadre
Reference number
ISO 10848-1:2006(E)
©
ISO 2006
ISO 10848-1:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2006 – All rights reserved

ISO 10848-1:2006(E)
Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Quantities to characterize flanking transmission . 6
4.1 General. 6
4.2 Normalized flanking level difference D and normalised flanking impact sound pressure
n,f
level L . 6
n,f
4.3 Vibration reduction index, K . 6
ij
4.4 Selection of the principle of measurement . 8
5 Measuring equipment. 9
6 General requirements for test specimens and test rooms. 9
7 Measurement methods. 10
7.1 Measurement of D and L . 10
n,f n,f
7.2 Measurement of the vibration reduction index with structure-borne excitation . 12
7.3 Measurement of the structural reverberation time. 15
7.4 Measurement of the vibration reduction index with airborne excitation. 16
7.5 Frequency range of measurement. 17
8 Influences from the structures of the test facility . 17
8.1 Criterion to verify flanking transmissions through constructions of the test facility . 17
8.2 Conventional limit for light elements compared with the surrounding elements of the test
facility. 18
8.3 Verification procedure for a light flanking element that is structurally independent of a
separating element . 18
9 Shielding. 18
Annex A (normative) Single-number rating of the vibration reduction index. 24
Bibliography . 25

ISO 10848-1:2006(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 10848-1 was prepared by the European Committee for Standardization (CEN) Technical Committee
CEN/TC 126, Acoustic properties of building elements and of buildings, in collaboration with Technical
Committee ISO/TC 43, Acoustics, Subcommittee SC 2, Building acoustics, in accordance with the Agreement
on technical cooperation between ISO and CEN (Vienna Agreement).
ISO 10848 consists of the following parts, under the general title Acoustics — Laboratory measurement of the
flanking transmission of airborne and impact sound between adjoining rooms:
⎯ Part 1: Frame document
⎯ Part 2: Application to light elements when the junction has a small influence
⎯ Part 3: Application to light elements when the junction has a substantial influence
The following part is under preparation:
⎯ Part 4: Application to all other cases

iv © ISO 2006 – All rights reserved

INTERNATIONAL STANDARD ISO 10848-1:2006(E)

Acoustics — Laboratory measurement of the flanking
transmission of airborne and impact sound between adjoining
rooms —
Part 1:
Frame document
1 Scope
ISO 10848 specifies measurement methods to be performed in a laboratory test facility in order to
characterize the flanking transmission of one or several building components. The performance of the building
components is expressed either as an overall quantity for the combination of elements and junction (such as
D and/or L ) or as the vibration reduction index K of a junction.
n,f n,f ij
This part of ISO 10848 contains definitions, general requirements for test specimens and test rooms, and
measurement methods. Guidelines are given for the selection of the quantity to be measured depending on
the junction and the types of building elements involved. Other parts of ISO 10848 specify the application for
different types of junction and building elements.
The quantities characterizing the flanking transmission can be used to compare different products, or to
express a requirement, or as input data for prediction methods, such as EN 12354-1 and EN 12354-2.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 140-1, Acoustics — Measurement of sound insulation in buildings and of building elements — Part 1:
Requirements for laboratory test facilities with suppressed flanking transmission
ISO 140-3:1995, Acoustics — Measurement of sound insulation in buildings and of building elements —
Part 3: Laboratory measurements of airborne sound insulation of building elements
ISO 140-6:1998, Acoustics — Measurement of sound insulation in buildings and of building elements —
Part 6: Laboratory measurements of impact sound insulation of floors
ISO 354, Acoustics — Measurement of sound absorption in a reverberation room
ISO 3382, Acoustics — Measurement of the reverberation time of rooms with reference to other acoustical
parameters
ISO 7626-1, Vibration and shock — Experimental determination of mechanical mobility — Part 1: Basic
definitions and transducers
-----
...
