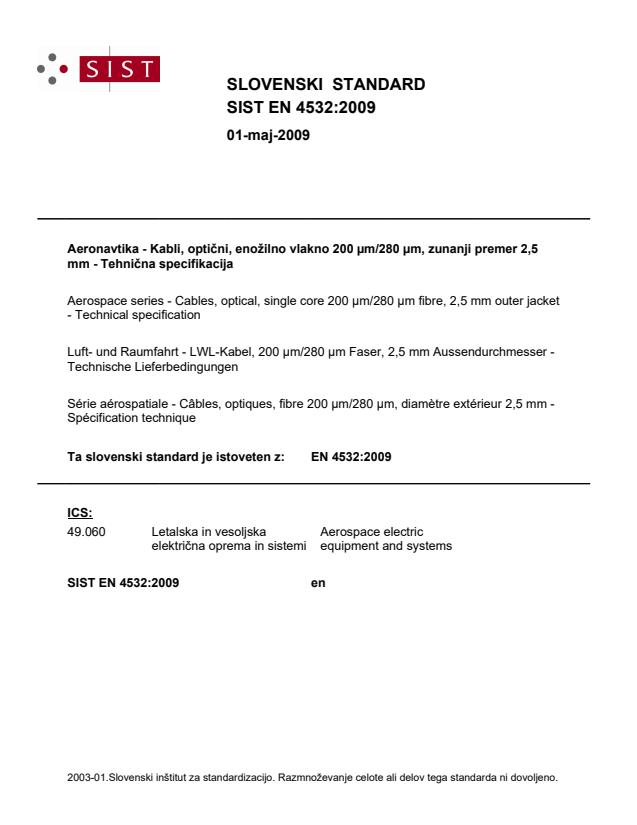

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - LWL-Kabel, 200 µm/280 µm Faser, 2,5 mm Aussendurchmesser - Technische LieferbedingungenSérie aérospatiale - Câbles, optiques, fibre 200 µm/280 µm, diamètre extérieur 2,5 mm - Spécification techniqueAerospace series - Cables, optical, single core 200 µm/280 µm fibre, 2,5 mm outer jacket - Technical specification49.060Aerospace electric equipment and systemsICS:Ta slovenski standard je istoveten z:EN 4532:2009SIST EN 4532:2009en01-maj-2009SIST EN 4532:2009SLOVENSKI
STANDARD

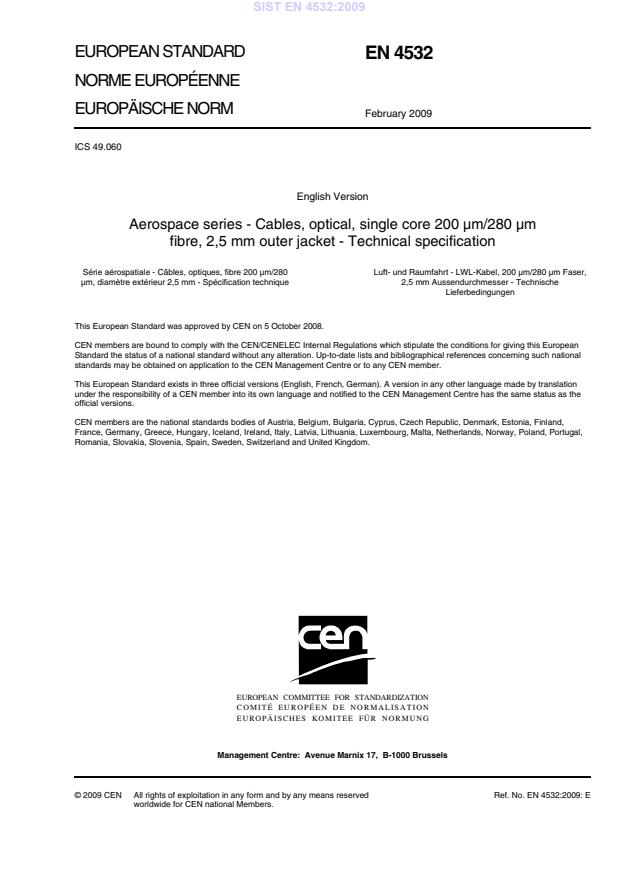

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 4532February 2009ICS 49.060 English VersionAerospace series - Cables, optical, single core 200 µm/280 µmfibre, 2,5 mm outer jacket - Technical specificationSérie aérospatiale - Câbles, optiques, fibre 200 µm/280µm, diamètre extérieur 2,5 mm - Spécification techniqueLuft- und Raumfahrt - LWL-Kabel, 200 µm/280 µm Faser,2,5 mm Aussendurchmesser - TechnischeLieferbedingungenThis European Standard was approved by CEN on 5 October 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre:
Avenue Marnix 17,
B-1000 Brussels© 2009 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 4532:2009: ESIST EN 4532:2009

Type B, single core, is intended for general airframe and equipment inter-connection cable suitable for installation in all aircraft locations, with exception of power plant compartments. These cables are particularly suitable for use in military aircraft as well as for general civil aircraft applications. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 2591-306, Aerospace series — Elements of electrical and optical connection — Test methods — Part 306: Mould growth EN 2591-316, Aerospace series — Elements of electrical and optical connection — Test methods — Part 316: Ozone resistance EN 3733-001, Aerospace series — Connector, optical , circular, single channel, coupled by self-locking ring, operating temperature up to 150 °C continuous — Part 001: Technical specification 1) EN 3745-100*, Aerospace series — Fibres and cables, optical, aircraft use — Test methods — Part 100: General ISO 1817, Rubber, vulcanized — Determination of the effect of liquids ISO 2574, Aircraft — Electrical cables — Identification marking IEC 60793-1-1, Optical fibres — Part 1-1: Measurement methods and test procedures — General and guidance IEC 60794-1-2, Optical fibre cables — Part 1-2: Generic specification — Basic optical cable test procedures IEC 60874-1, Connectors for optical fibres and cables — Part 1: Generic specification MIL-HDBK-454B, General guidelines for electronic equipment
* And all applicable parts quoted. 1) Published as ASD Prestandard at the date of publication of this standard. SIST EN 4532:2009

Key 1 Buffer 2 Primary coating 3 Cladding 4 Core 5 Refractive index Figure 1 — Construction of type 'A' primary fibre
4.2 Construction of type 'B' single core cable The cable shall consist of a single, step-index, multimode, all silica fibre (pure silica core with sufficiently high OH content to meet nuclear radiation hardening requirements) and suitably doped silica cladding which is protected by a primary coating. The cable shall have a tight buffer, all dielectric (non-conducting) construction, with strength members and outer sheath, and have an operating temperature range of − 60 °C to 150 °C. The cable shall comprise an outer sheath, strength member, inner sheath, buffer, and fibre, which is protected by a primary coating. For a cable end view and side view drawing (3rd angle), see Figure 2. 1 2 3 4 5 SIST EN 4532:2009

Key 1 Outer sheath 2 Inner sheath 3 Primary coating 4 Core 5 Cladding 6 Buffer 7 Strength member Figure 2 — Construction of type 'B' cable 5 Cable characteristics 5.1 Optical performance of cable 5.1.1 Optical isolation of cable jacketing
The cable jacketing shall provide sufficient optical isolation so that any possible ambient light pick up is not more than 1 nW over a length characteristic for the installed fibre-optic network. 5.1.2 Useful installed lifetime
The useful installed lifetime shall be ≥ 25 years. 5.1.3 Mean time between failure (MTBF) Cable failure rate of 0,02/100 m over 25 years life. 5.2 Construction data of cable (Type B) 5.2.1 Sheath colour The sheath shall be coloured light violet. 5.2.2 Cable design Tight buffer, all dielectric construction with strength members suitable for single connectors. 1 2 3 4 5 6 7 SIST EN 4532:2009

Key 1 Primary coating 2 Fibre Figure 3 — Concentricity of primary coating 7 Environmental conditions 7.1 Temperature range The operating temperature shall be − 60 °C to 150 °C. 7.2 Operating pressure range The operating pressure range sh
...
