EN 3745-503:2005
(Main)Aerospace series - Fibres and cables, optical, aircraft use - Test methods - Part 503: Scrape abrasion
Aerospace series - Fibres and cables, optical, aircraft use - Test methods - Part 503: Scrape abrasion
This standard specifies a method for testing the resistance of an optical to scrape abrasion.
Luft- und Raumfahrt - Faseroptische Leitungen für Luftfahrzeuge - Prüfverfahren - Teil 503: Abriebbeständigkeit
Diese Norm legt ein Verfahren zur Prüfung der Abriebfestigkeit von Lichtwellenleiterkabeln fest.
Série aérospatiale - Fibres et câbles optiques à usage aéronautique - Méthodes d'essais - Partie 503 : Abrasion par raclage
Aeronavtika – Optična vlakna in kabli za uporabo v zračnih plovilih – Preskusne metode – 503. del: Obstojnost pri odrgnjenju
General Information
- Status
- Published
- Publication Date
- 15-Nov-2005
- Withdrawal Date
- 30-May-2006
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2 - Electrical
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 16-Nov-2005
- Completion Date
- 16-Nov-2005
Relations
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
- Effective Date
- 28-Jan-2026
Overview
EN 3745-503:2005 - “Aerospace series - Fibres and cables, optical, aircraft use - Test methods - Part 503: Scrape abrasion” is a CEN/AECMA test standard that specifies a repeatable method to evaluate the scrape abrasion resistance of optical fibres and optical cables used in aircraft. The standard defines the specimen preparation, required apparatus and the test procedure to determine the number of scrape cycles to sheath penetration while monitoring optical attenuation.
Key topics and technical requirements
- Scope: Measures resistance of an optical cable jacket to a scraping action until sheath penetration.
- Specimen preparation: Prepared as per EN 3745-100; typical specimen length is 0.75 ± 0.05 m. Test parameters (load, number of cycles, attenuation limits, inspection intervals) must be specified in the product/test plan.
- Apparatus:
- Light Launch System (LLS) and Light Detector System (LDS) as defined by EN 2591-100 for optical power/attenuation monitoring.
- Climatic chamber to run tests at ambient and at the cable’s maximum operating temperature.
- Scrape abrasion test fixture that wears the jacket parallel to the cable axis over a wear length of (10 ± 1) mm at a frequency of (55 ± 5) cycles/min (needle mechanism, mass, anvil and clamps as shown in the standard).
- Test method:
- One cycle = forward and backward movement of the needle.
- Resistance defined as the number of complete cycles before sheath penetration.
- Attenuation is continuously monitored in accordance with EN 3745-301 (method C).
- Procedure includes repeating the test five additional times, moving the cable 100 mm and rotating it 90° between each test (always in same rotation direction).
- Final inspection: Visual examination per EN 3745-201 and recording of damage and attenuation changes.
Applications and users
This standard is practical for:
- Aerospace cable manufacturers validating jacket formulations and assembly processes for aircraft optical cables.
- Qualification and test laboratories performing acceptance, qualification or comparative abrasion testing.
- Design and quality engineers specifying cable performance for harnesses, avionics and in-flight systems.
- Procurement and certification authorities requiring documented mechanical durability data for optical cable acceptance.
EN 3745-503:2005 helps ensure reliable optical performance under mechanical wear conditions typical of aircraft installations.
Related standards
- EN 2591-100 - Light Launch/Detector Systems (LLS/LDS)
- EN 3745-100 - General test requirements for aerospace optical fibres and cables
- EN 3745-201 - Visual examination
- EN 3745-301 - Attenuation measurement (method C)
Keywords: EN 3745-503:2005, scrape abrasion, optical fibres, optical cables, aerospace test methods, abrasion resistance, LLS, LDS, cable qualification.
Get Certified
Connect with accredited certification bodies for this standard
National Aerospace and Defense Contractors Accreditation Program (NADCAP)
Global cooperative program for special process quality in aerospace.
NSF-ISR
NSF International Strategic Registrations.
Orion Registrar Inc.
US-based certification body for management systems.
Sponsored listings
Frequently Asked Questions
EN 3745-503:2005 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Fibres and cables, optical, aircraft use - Test methods - Part 503: Scrape abrasion". This standard covers: This standard specifies a method for testing the resistance of an optical to scrape abrasion.
This standard specifies a method for testing the resistance of an optical to scrape abrasion.
EN 3745-503:2005 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 3745-503:2005 has the following relationships with other standards: It is inter standard links to EN 3745-100:2008, EN 3745-301:2012, EN 3745-201:2002, EN 2591-100:2024, EN 4641-102:2025, EN 4641-202:2018, EN 4641-301:2024, EN 4641-200:2018, EN 3745-411:2007, EN 4641-101:2015, EN 3745-411:2018, EN 4641-401:2024, EN 4641-106:2018, EN 4532:2009, EN 4641-301:2022. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 3745-503:2005 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.

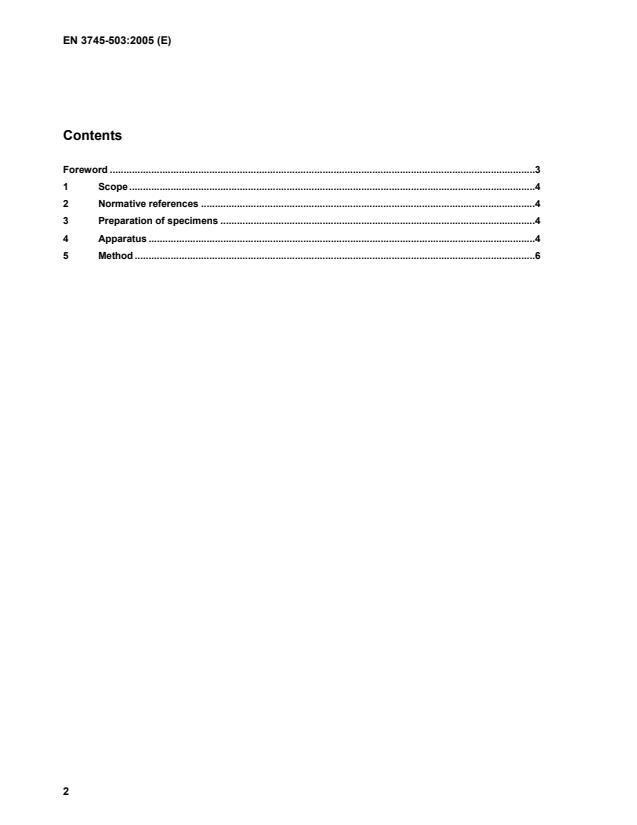

Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Aerospace series - Fibres and cables, optical, aircraft use - Test methods - Part 503: Scrape abrasionSérie aérospatiale - Fibres et câbles optiques a usage aéronautique - Méthodes d'essais - Partie 503 : Abrasion par raclageLuft- und Raumfahrt - Faseroptische Leitungen für Luftfahrzeuge - Prüfverfahren - Teil 503: AbriebbeständigkeitTa slovenski standard je istoveten z:EN 3745-503:2005SIST EN 3745-503:2006en49.060ICS:SLOVENSKI
STANDARDSIST EN 3745-503:200601-julij-2006
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 3745-503November 2005ICS 49.060 English VersionAerospace series - Fibres and cables, optical, aircraft use - Testmethods - Part 503: Scrape abrasionSérie aérospatiale - Fibres et câbles optiques à usageaéronautique - Méthodes d'essais - Partie 503 : Abrasionpar raclageLuft- und Raumfahrt - Faseroptische Leitungen fürLuftfahrzeuge - Prüfverfahren - Teil 503:AbriebbeständigkeitThis European Standard was approved by CEN on 19 September 2005.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Central Secretariat or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2005 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 3745-503:2005: E
...
