EN 6059-302:2025
(Main)Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 302: High temperature exposure
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 302: High temperature exposure
This document specifies a method for the high temperature exposure of protection sleeves for electrical cable and cable bundles for aerospace applications.
It is used together with EN 6059 100.
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche - Prüfverfahren - Teil 302: Hochtemperaturbeständigkeit
No Scope available
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes d'essais - Partie 302 : Exposition à haute température
Le présent document spécifie une méthode d’exposition à haute température des gaines de protection pour câbles et torons de câbles électriques pour les applications aérospatiales.
Il est utilisé conjointement avec l’EN 6059 100.
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode - 302. del: Izpostavljenost visoki temperaturi
General Information
- Status
- Published
- Publication Date
- 16-Dec-2025
- Technical Committee
- ASD-STAN - Aerospace
- Drafting Committee
- ASD-STAN/D 2/S 8 - Installation Technologies
- Current Stage
- 6060 - Definitive text made available (DAV) - Publishing
- Start Date
- 17-Dec-2025
- Completion Date
- 17-Dec-2025
Relations
- Effective Date
- 05-Jun-2024
Overview
EN 6059-302:2025 - "Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 302: High temperature exposure" is a CEN/ASD‑STAN standard that defines a reproducible test method for exposing protection sleeves (used on electrical cables and cable bundles) to high temperature. Intended for aerospace applications, this standard is to be used together with EN 6059-100 (general test methods). It supersedes EN 6059-302:2017 and clarifies procedural details for high temperature exposure testing.
Key topics and requirements
The document specifies practical, verifiable steps and acceptance criteria for high temperature testing of protection sleeves. Main technical points include:
- Specimen preparation
- Minimum specimen length: 600 mm taken from a finished sleeve.
- Apparatus
- Stainless steel mandrel with nominal diameter equal to the sleeve and length > 600 mm.
- Laboratory oven capable of reaching the maximum operating temperature specified in the product standard.
- Test method
- The specimen is slid over the mandrel and exposed in the oven for 168 hours.
- Oven temperature tolerance: ±5 °C around the maximum specified operating temperature.
- Acceptance criteria
- Specimens must retain required dimensions and expansion range as given in the product standard.
- No damage or broken fibres allowed; all tows (multifilament) or fibres (monofilament) must meet the minimum tensile strength specified in the product standard.
- Closures (if present) must remain undamaged.
Note: Where the product standard defines specific numeric criteria (e.g., maximum temperature, tensile limits, dimensional tolerances), those values apply and are referenced by this test method.
Applications and users
EN 6059-302:2025 is used to validate the thermal durability and performance of protection sleeves in high-temperature aerospace environments. Typical users include:
- Aerospace OEMs and integrators specifying cable protection performance
- Protection-sleeve and material manufacturers performing product qualification
- Independent test laboratories conducting acceptance and certification tests
- Design and wiring harness engineers assessing installation reliability
- Quality assurance and procurement teams requiring compliance evidence
Practical applications include qualifying sleeve materials for engine bay routing, environmental control systems, and high-temperature zones within aircraft and spacecraft installations.
Related standards
- EN 6059-100 - Aerospace series - Protection sleeves - Test methods - Part 100: General (normative companion referenced by EN 6059-302)
- Other parts of the EN 6059 series addressing alternate environmental, mechanical or flammability tests for protection sleeves
Keywords: EN 6059-302:2025, high temperature exposure, protection sleeves, aerospace electrical cables, test methods, cable bundles, mandrel, tensile strength, EN 6059-100.
Frequently Asked Questions
EN 6059-302:2025 is a standard published by the European Committee for Standardization (CEN). Its full title is "Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 302: High temperature exposure". This standard covers: This document specifies a method for the high temperature exposure of protection sleeves for electrical cable and cable bundles for aerospace applications. It is used together with EN 6059 100.
This document specifies a method for the high temperature exposure of protection sleeves for electrical cable and cable bundles for aerospace applications. It is used together with EN 6059 100.
EN 6059-302:2025 is classified under the following ICS (International Classification for Standards) categories: 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 6059-302:2025 has the following relationships with other standards: It is inter standard links to EN 6059-302:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 6059-302:2025 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)

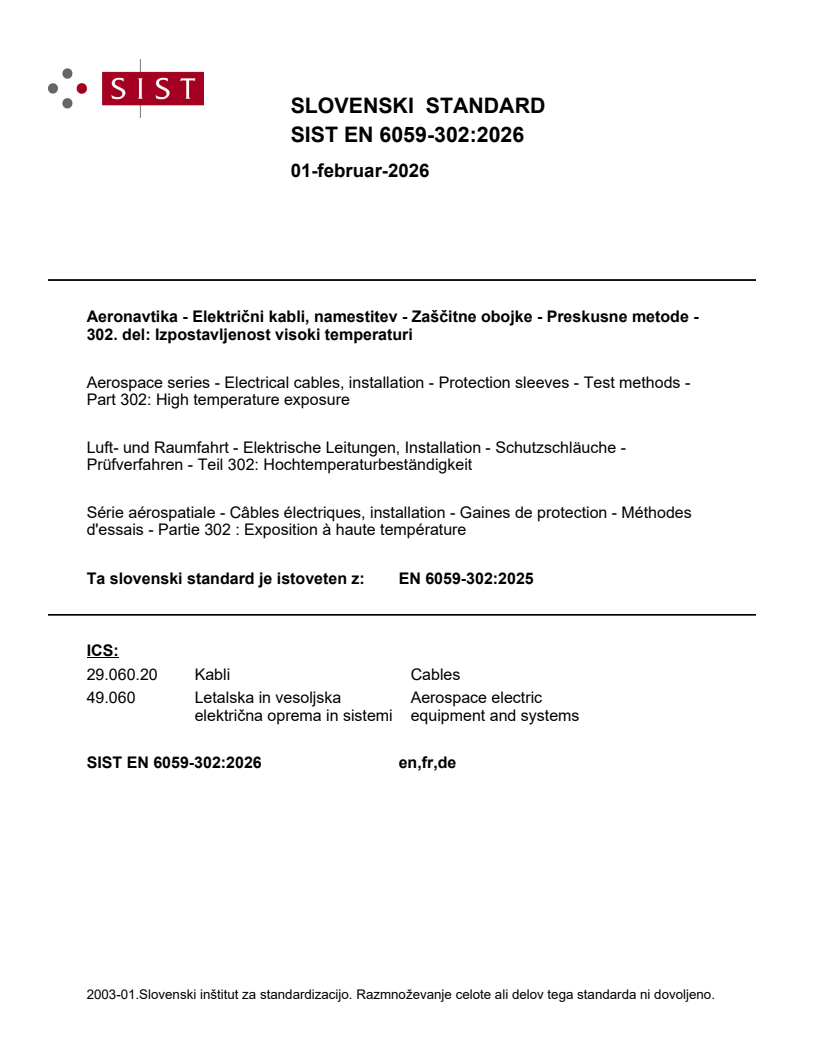

SLOVENSKI STANDARD
01-februar-2026
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode -
302. del: Izpostavljenost visoki temperaturi
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods -
Part 302: High temperature exposure
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche -
Prüfverfahren - Teil 302: Hochtemperaturbeständigkeit
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes
d'essais - Partie 302 : Exposition à haute température
Ta slovenski standard je istoveten z: EN 6059-302:2025
ICS:
29.060.20 Kabli Cables
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

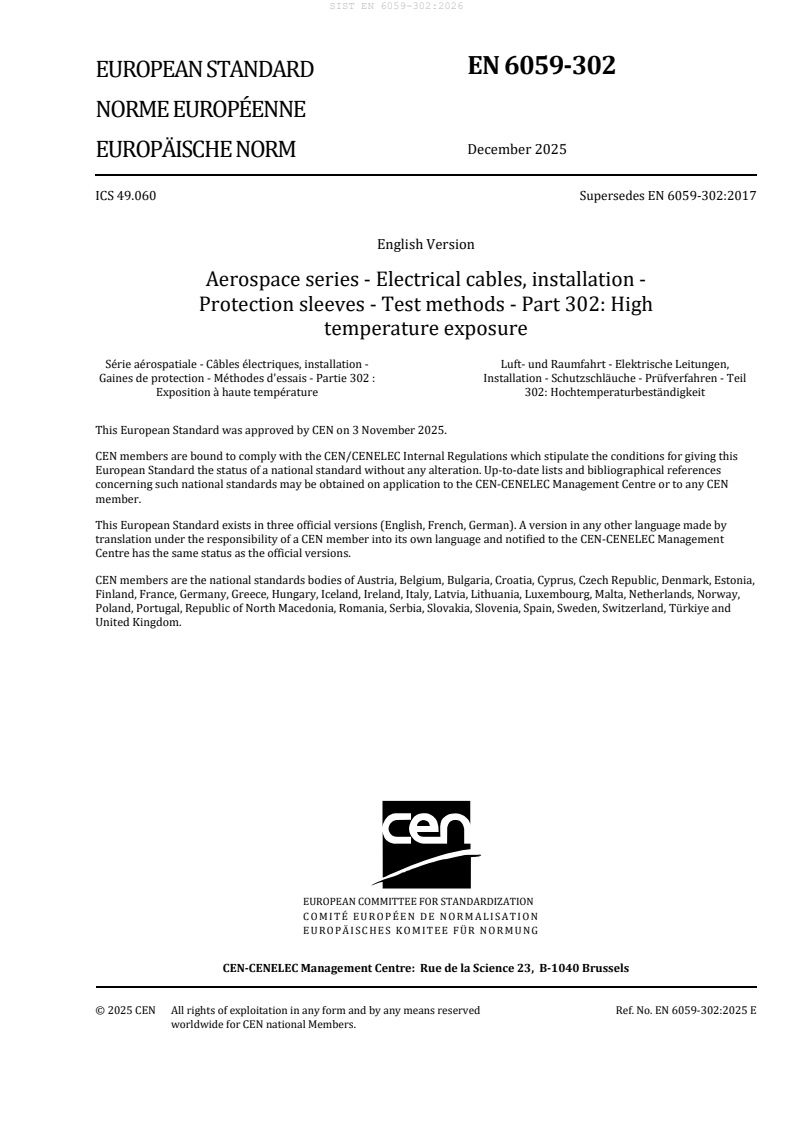

EN 6059-302
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2025
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 6059-302:2017
English Version
Aerospace series - Electrical cables, installation -
Protection sleeves - Test methods - Part 302: High
temperature exposure
Série aérospatiale - Câbles électriques, installation - Luft- und Raumfahrt - Elektrische Leitungen,
Gaines de protection - Méthodes d'essais - Partie 302 : Installation - Schutzschläuche - Prüfverfahren - Teil
Exposition à haute température 302: Hochtemperaturbeständigkeit
This European Standard was approved by CEN on 3 November 2025.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6059-302:2025 E
worldwide for CEN national Members.

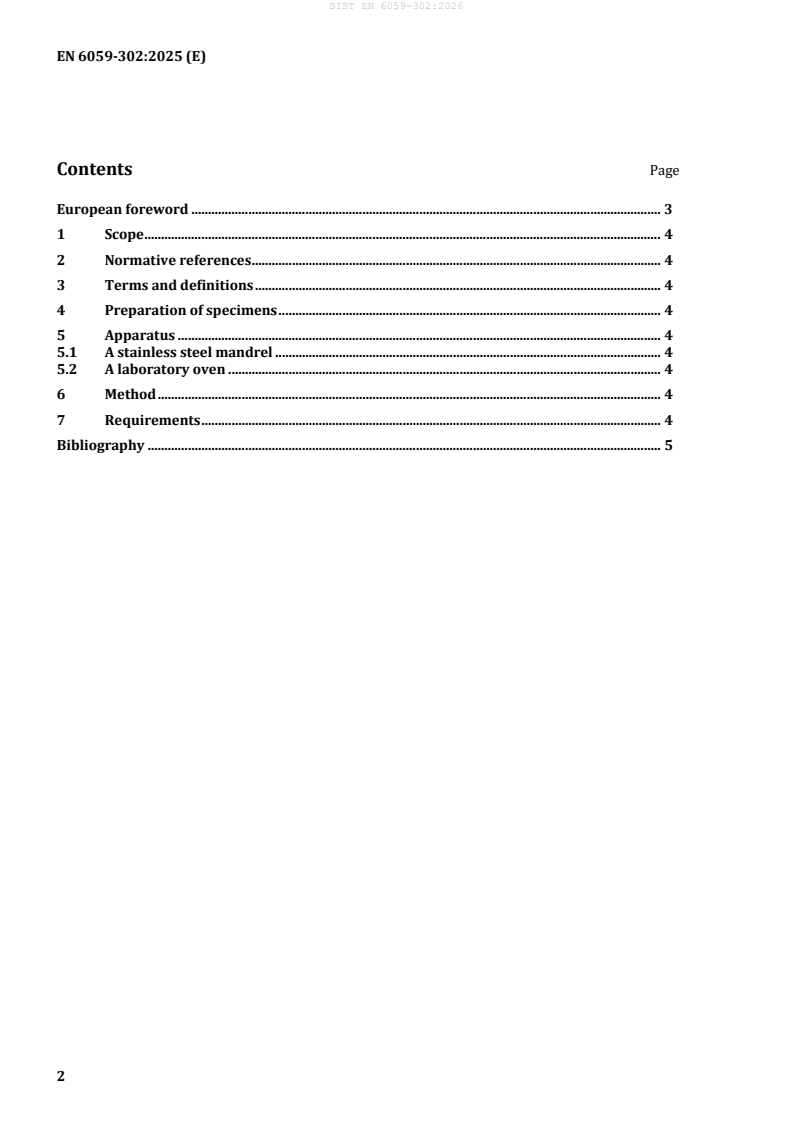

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Preparation of specimens . 4
5 Apparatus . 4
5.1 A stainless steel mandrel . 4
5.2 A la
...
