SIST EN 6059-302:2026
(Main)Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 302: High temperature exposure
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 302: High temperature exposure
This document specifies a method for the high temperature exposure of protection sleeves for electrical cable and cable bundles for aerospace applications.
It is used together with EN 6059 100.
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche - Prüfverfahren - Teil 302: Hochtemperaturbeständigkeit
No Scope available
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes d'essais - Partie 302 : Exposition à haute température
Le présent document spécifie une méthode d’exposition à haute température des gaines de protection pour câbles et torons de câbles électriques pour les applications aérospatiales.
Il est utilisé conjointement avec l’EN 6059 100.
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode - 302. del: Izpostavljenost visoki temperaturi
General Information
- Status
- Not Published
- Public Enquiry End Date
- 30-Jan-2025
- Technical Committee
- I13 - Imaginarni 13
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 05-Jan-2026
- Due Date
- 12-Mar-2026
Relations
- Effective Date
- 05-Jun-2024
Overview
EN 6059-302:2025 - "Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 302: High temperature exposure" is a CEN/ASD‑STAN standard that defines a reproducible test method for exposing protection sleeves (used on electrical cables and cable bundles) to high temperature. Intended for aerospace applications, this standard is to be used together with EN 6059-100 (general test methods). It supersedes EN 6059-302:2017 and clarifies procedural details for high temperature exposure testing.
Key topics and requirements
The document specifies practical, verifiable steps and acceptance criteria for high temperature testing of protection sleeves. Main technical points include:
- Specimen preparation
- Minimum specimen length: 600 mm taken from a finished sleeve.
- Apparatus
- Stainless steel mandrel with nominal diameter equal to the sleeve and length > 600 mm.
- Laboratory oven capable of reaching the maximum operating temperature specified in the product standard.
- Test method
- The specimen is slid over the mandrel and exposed in the oven for 168 hours.
- Oven temperature tolerance: ±5 °C around the maximum specified operating temperature.
- Acceptance criteria
- Specimens must retain required dimensions and expansion range as given in the product standard.
- No damage or broken fibres allowed; all tows (multifilament) or fibres (monofilament) must meet the minimum tensile strength specified in the product standard.
- Closures (if present) must remain undamaged.
Note: Where the product standard defines specific numeric criteria (e.g., maximum temperature, tensile limits, dimensional tolerances), those values apply and are referenced by this test method.
Applications and users
EN 6059-302:2025 is used to validate the thermal durability and performance of protection sleeves in high-temperature aerospace environments. Typical users include:
- Aerospace OEMs and integrators specifying cable protection performance
- Protection-sleeve and material manufacturers performing product qualification
- Independent test laboratories conducting acceptance and certification tests
- Design and wiring harness engineers assessing installation reliability
- Quality assurance and procurement teams requiring compliance evidence
Practical applications include qualifying sleeve materials for engine bay routing, environmental control systems, and high-temperature zones within aircraft and spacecraft installations.
Related standards
- EN 6059-100 - Aerospace series - Protection sleeves - Test methods - Part 100: General (normative companion referenced by EN 6059-302)
- Other parts of the EN 6059 series addressing alternate environmental, mechanical or flammability tests for protection sleeves
Keywords: EN 6059-302:2025, high temperature exposure, protection sleeves, aerospace electrical cables, test methods, cable bundles, mandrel, tensile strength, EN 6059-100.
Frequently Asked Questions
SIST EN 6059-302:2026 is a draft published by the Slovenian Institute for Standardization (SIST). Its full title is "Aerospace series - Electrical cables, installation - Protection sleeves - Test methods - Part 302: High temperature exposure". This standard covers: This document specifies a method for the high temperature exposure of protection sleeves for electrical cable and cable bundles for aerospace applications. It is used together with EN 6059 100.
This document specifies a method for the high temperature exposure of protection sleeves for electrical cable and cable bundles for aerospace applications. It is used together with EN 6059 100.
SIST EN 6059-302:2026 is classified under the following ICS (International Classification for Standards) categories: 29.060.20 - Cables; 49.060 - Aerospace electric equipment and systems. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 6059-302:2026 has the following relationships with other standards: It is inter standard links to SIST EN 6059-302:2017. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 6059-302:2026 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
SLOVENSKI STANDARD
oSIST prEN 6059-302:2025
01-januar-2025
Aeronavtika - Električni kabli, namestitev - Zaščitne obojke - Preskusne metode -
302. del: Izpostavljenost visoki temperaturi
Aerospace series - Electrical cables, installation - Protection sleeves - Test methods -
Part 302: High temperature exposure
Luft- und Raumfahrt - Elektrische Leitungen, Installation - Schutzschläuche -
Prüfverfahren - Teil 302: Hochtemperaturbeständigkeit
Série aérospatiale - Câbles électriques, installation - Gaines de protection - Méthodes
d'essais - Partie 302 : Exposition à haute température
Ta slovenski standard je istoveten z: prEN 6059-302
ICS:
29.060.20 Kabli Cables
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
oSIST prEN 6059-302:2025 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
oSIST prEN 6059-302:2025
oSIST prEN 6059-302:2025
DRAFT
EUROPEAN STANDARD
prEN 6059-302
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2024
ICS 49.060 Will supersede EN 6059-302:2017
English Version
Aerospace series - Electrical cables, installation -
Protection sleeves - Test methods - Part 302: High
temperature exposure
Série aérospatiale - Câbles électriques, installation - Luft- und Raumfahrt - Elektrische Leitungen,
Gaines de protection - Méthodes d'essais - Partie 302 : Installation - Schutzschläuche - Prüfverfahren - Teil
Exposition à haute température 302: Hochtemperaturbeständigkeit
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-
STAN.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 6059-302:2024 E
worldwide for CEN national Members.
oSIST prEN 6059-302:2025
prEN 6059-302:2024 (E)

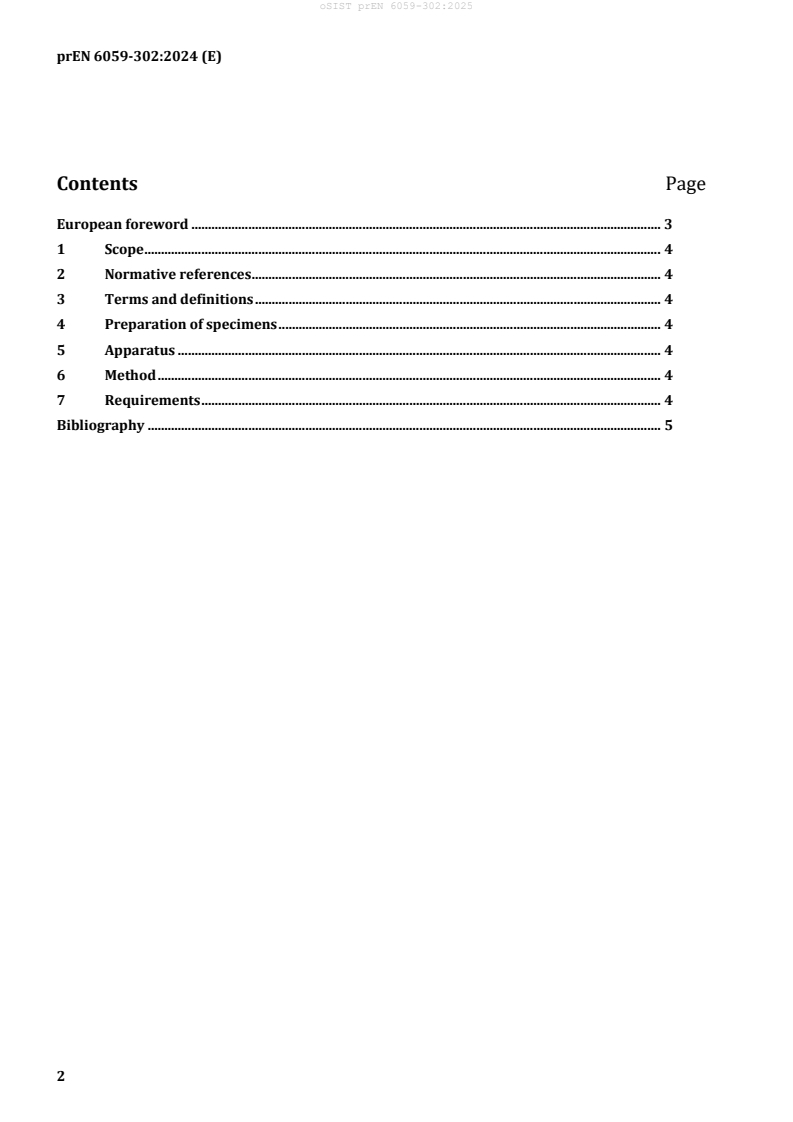

Contents Page
European foreword . 3
1 Sc
...
