TECHNICAL SPECIFICATION
CEN/TS 13149-6
SPÉCIFICATION TECHNIQUE
TECHNISCHE SPEZIFIKATION
August 2005
ICS 45.060.01; 35.240.60; 43.080.20

English Version
Public transport - Road vehicle scheduling and control systems -
Part 6: CAN message content
Transports publics - Systèmes d'ordonnancement et de Straßentransport- und Verkehrstelematik - Planungs- und
contrôle des véhicules routiers - Partie 6: Contenu de Steuerungssysteme für Straßenfahrzeuge - Teil 6: CAN
messages CAN Nachrichteninhalt
This Technical Specification (CEN/TS) was approved by CEN on 27 June 2004 for provisional application.
The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to submit their
comments, particularly on the question whether the CEN/TS can be converted into a European Standard.
CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS available
promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in parallel to the CEN/TS)
until the final decision about the possible conversion of the CEN/TS into an EN is reached.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 13149-6:2005: E
worldwide for CEN national Members.

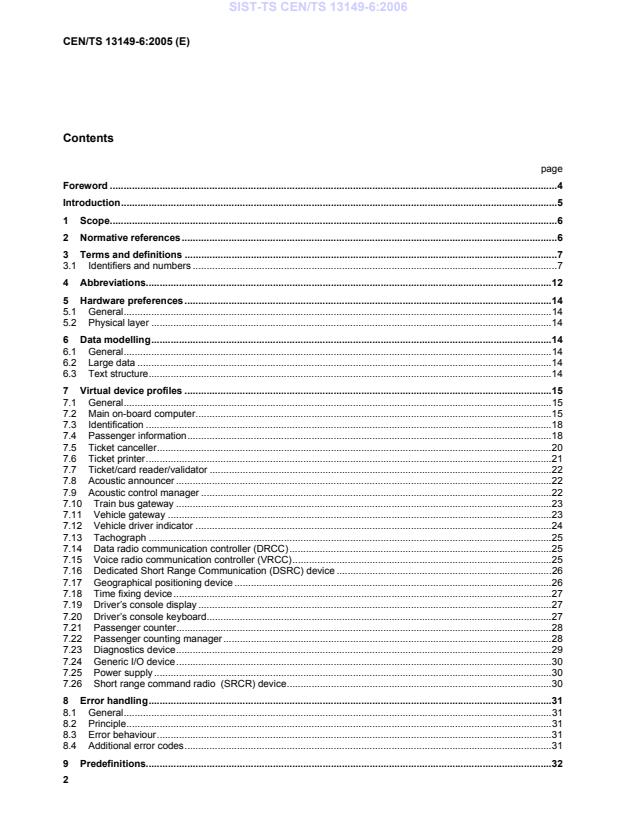

Contents
page
Foreword .4
Introduction.5
1 Scope.6
2 Normative references.6
3 Terms and definitions .7
3.1 Identifiers and numbers .7
4 Abbreviations.12
5 Hardware preferences.14
5.1 General.14
5.2 Physical layer .14
6 Data modelling.14
6.1 General.14
6.2 Large data .14
6.3 Text structure.14
7 Virtual device profiles .15
7.1 General.15
7.2 Main on-board computer.15
7.3 Identification .18
7.4 Passenger information.18
7.5 Ticket canceller.20
7.6 Ticket printer.21
7.7 Ticket/card reader/validator .22
7.8 Acoustic announcer .22
7.9 Acoustic control manager .22
7.10 Train bus gateway .23
7.11 Vehicle gateway .23
7.12 Vehicle driver indicator .24
7.13 Tachograph .25
7.14 Data radio communication controller (DRCC).25
7.15 Voice radio communication controller (VRCC).25
7.16 Dedicated Short Range Communication (DSRC) device .26
7.17 Geographical positioning device .26
7.18 Time fixing device.27
7.19 Driver’s console display .27
7.20 Driver’s console keyboard.27
7.21 Passenger counter.28
7.22 Passenger counting manager.28
7.23 Diagnostics device.29
7.24 Generic I/O device.30
7.25 Power supply .30
7.26 Short range command radio (SRCR) device.30
8 Error handling.31
8.1 General.31
8.2 Principle.31
8.3 Error behaviour.31
8.4 Additional error codes.31
9 Predefinitions.32
9.1 Predefined communication objects.32
9.2 Pre-defined configurations.34
9.3 Pre-defined PDOs .35
9.4 Operator-specific configuration.36
10 Object dictionary overview .37
11 Detailed specification of object entries .38
11.1 Introduction.38
11.2 Complex data type definition.38
11.3 Objects related to the physical device.39
11.4 Object 6001 : Virtual device events.40
h
11.5 Object 6002 : Main onboard computer events .44
h
11.6 Objects provided by main on-board computer .46
11.7 Objects provided by identification device.71
11.8 Objects provided to passenger information device .75

11.9 Objects provided by ticket canceller .84
11.10 Objects provided by ticket printer.84
11.11 Objects provided by ticket/card reader/validator .84
11.12 Objects provided by acoustic announcer .84
11.13 Objects provided by acoustic control manager .84
11.14 Objects provided by train bus gateway .84
11.15 Objects provided by vehicle gateway.85
11.16 Objects provided by vehicle driver information.96
11.17 Objects provided by tachograph .96
11.18 Objects provided by DRCC.103
11.19 Objects provided by VRCC.103
11.20 Objects provided by DSRC.103
11.21 Objects provided by geographical positioning device .103
11.22 Objects provided by time fixing device.107
11.23 Objects provided by driver’s console display .110
11.24 Objects provided by driver’s console keyboard.110
11.25 Objects provided by passenger counter.111
11.26 Objects provided by passenger counting manager .111
11.27 Objects provided by diagnostics device.114
11.28 Objects provided by generic I/O device .121
11.29 Objects provided by SRCR.124
Bibliography.126

Foreword
This Technical Specification (CEN/TS 13149-6:2005) has been prepared by Technical Committee CEN/TC 278
"Road Transport and Traffic Telematics", the secretariat of which is held by NEN.
Annex A is informative.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to announce this CEN Technical Specification: Austria, Belgium, Cyprus, Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and
United Kingdom.
Introduction
This Technical Specification is part 6 of EN 13149, which gives rules for on-board data transmission systems.
This part 6 together with part 4 and part 5 describes a complete solution independent from part 1, part 2 and part 3.
This document uses terms which are already used in other standards e.g. ENV 12896:1997 “Public
transport - Reference data model”, when applicable.
1 Scope
This Technical Specification specifies the choice and the general application's rules of an onboard data
transmission bus between the different equipment for service operations and monitoring of the fleet. This applies to
equipment installed onboard buses, trolley-buses and tramways only as part of a bus fleet operation. It excludes
tramways when they are operated as part of a train, subway or metro operation. This equipment includes operation
aid systems, automatic passenger information systems, fare collection systems, etc.
The equipment directly related to the safety-related functioning of the vehicle (propulsion management,
brake systems, door opening systems, etc.) are excluded from the scope of the present standard and are
dealt with in other standardisation bodies.
For the described application two bus systems are standardised. Part 1 to part 3 describe the WORLDFIP
bus system and part 4 to part 6 describe the CANopen bus system. There is no ranking between the two
bus systems.
This Technical Specification covers the link between equipment inside a single vehicle. Although it could be applied
to multiple vehicles, this application is not explicitly covered by this standard.
Part 4 of this European Standard specifies the CANopen-based network. This specification describes the general
architecture in terms of hierarchical layers according to the ISO reference model for Open Systems Interconnection
(OSI) specified in ISO 7498.
Part 5 of this European Standard specifies in detail the connectors and the connector pin assignment and the
cabling.
Part 6 (this document), which will be published as a Technical Specification specifies in detail the application
profiles for the virtual devices in public transport.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated references,
only the edition cited applies. For undated references, the latest edition of the referenced document (including any
amendments) applies.
EN 13149-4, Public transport - Road vehicle scheduling and control systems - Part 4: General application rules
for CANopen transmission buses.
EN 13149-5, Public transport - Road vehicle scheduling and control systems - Part 5: CANopen cabling
specifications.
EN 50325-4, Industrial communication subsystem based on ISO 11898 (CAN) for controller-device interfaces –
Part 4: CANopen
ENV 12896, Road transport and traffic telematics - Public transport - Reference data model.
ISO 11898-1, Road vehicles - Controller area network (CAN) – Part 1: Data link layer and physical signalling.
ISO 11992-3, Road vehicles - Interchange of digital information on electrical connections between towing and
towed vehicles - Part 3: Application layer for equipment other than braking and running gear.
ISO 16844-7, Road vehicles - Tachograph systems - Part 7: Parameters.
ISO/IEC 646, Information technology - ISO 7-bit coded character set for information interchange.
ISO/IEC 8859-1, Information technology - 8-bit single-byte coded graphic character sets - Part 1: Latin alphabet
No. 1.
ISO/IEC 8859-2, Information technology - 8-bit single-byte coded graphic character sets - Part 2: Latin alphabet
No. 2.
ISO/IEC 8859-15, Information technology - 8-bit single-byte coded graphic character sets - Part 15: Latin
alphabet No. 9.
3 Terms and definitions
For the purposes of this Technical Specification, the terms and definitions given in ENV 12896 apply.
3.1 Identifiers and numbers
3.1.1 Vehicle related identifiers and numbers
The vehicle ID is assigned uniquely by the system designer to the vehicle. Usually it refers to the vehicle ID text
object (611C ) containing the number given inside of the main computer or the number is coded by a fixed
h
connector at the main computer (see Figure 1: x).
The body ID assigned by the system designer refers to the body ID text object (611D ) containing the readable
h
identification on the vehicle body. Usually this text is printed on the vehicle body (see Figure 1: y).
The radio ID assigned by the system designer refers to the radio ID text object (611E ) containing the textual radio
h
address of the bus. This address is necessary for selective calls to this bus (see Figure 1: z)

Figure 1 — Vehicle related identifiers and numbers
3.1.2 Vehicle operation identifiers and numbers
The garage ID assigned by the system designer refers to the garage ID text object (611F ) containing the textual
h
description of the depot or garage, where a vehicle is going to be parked during the night (see Figure 2).
The block ID assigned by the system designer indicates the work of a vehicle from the time it leaves a parking point
(depot, garage) after parking until its next return to park at a parking point. Any subsequent departure from a
parking point after parking marks the start of a new block. A block should consist of one or several lines (see
Figure 2). The block ID refers to the block ID text object (6197 ) containing the textual description of the block.
h
The line ID assigned by the system designer refers to the line ID text object (6196 ) containing the textual or
h
numerical name of the line, which is known from the public by. A line should consist of a single route or a group of
routes.
Figure 2 — Non-closed and closed block
A route is an ordered list of points defining one single path through the road (or rail) network. Stop points, timing
points and points of other types should be used to define this path uniquely. The route number is related to a line
(see Figure 3).
The stop point ID assigned by the system designer refers to the stop point ID text object (6120 ) representing
h
uniquely a stop point within a transportation network (see Figure 3).
The destination number is the reference to the route destination. The number may differ from stop point ID (see
Figure 3).
The number of running in route representation is the running stop point number within a route (see Figure 3).

Figure 3 — Definition of a line

The journey number refers to a journey (between one terminus to another terminus) related to a given time or time
table (see Figure 4).
Figure 4 — Definition of a journey

The route destination ID identifies a unique route and line. With this identifier the path and the rail track of this
line/route is defined for a vehicle. For example, this is used for the controlling of rail switches in the track (see
Figure 5)
Figure 5 — Description of the use of Route Destination ID
3.1.3 Fare terms and related identifiers and numbers
The route segment number indicates a set of consecutive links on a given route and is unique for a fare zone (see
Figure 6).
The fare zone indicates the current fare zone number (see Figure 6).
The previous fare zone indicates the number of the last/previous crossed fare zone (see Table 1).
The previous route segment number is the number of the last/previous crossed route segment (see Table 1).
Figure 6 — Fare terms and related identifiers and numbers
Table 1 — Contents of the objects at the different vehicle positions p
x
Positions P P P P
1 2 3 4
Fare zone Z Z Z Z
1 1 2 2
Route segment RS RS RS RS
1 2 1 2
Previous fare zone - - Z Z
1 1
Previous route segment - RS RS RS
1 2 1
4 Abbreviations
4.1
AAS
Acoustic Announcement System
System that controls the acoustic announcements on a vehicle.
4.2
CAN
Controller Area Network
Data link layer protocol for serial communication as specified in ISO 11898-1.
4.3
CiA
CAN in Automation
International users and manufacturers group promoting CAN.
4.4
COB
Communication Object
Data transportation unit in a CAN network mapped to one or more CAN frames.
4.5
COB-ID
COB Identifier
Identifies a COB uniquely in a network and determines the priory of that COB in the network.
4.6
DRCC
Data Radio Communication Control
Controls data radio transmission between vehicle and central station.
4.7
DSRC
Dedicated Short Range Communication
Controls radio or infrared shot distance communicator.
4.8
GIF
Graphics Interchange Format
The data stream-oriented file format maintained by CompuServe, defines the transmission protocol of bitmap data.
4.9
HMI
Human Machine Interface
Device providing input and/or output capability for human users.
4.10
IAM
IBIS Application Manager
Main on-board computer controlling the IBIS system.
4.11
IBIS
Integrated Board information system
Integrated on-vehicle information system for passengers and drivers.
4.12
JPEG
Joint Photographic Experts Group
The best known standard from JPEG is ISO 10918-1, which is the first of the multi-part set of standards for still
image compression.
4.13
PDO
Process Data Object
Unconfirmed COB containing process data and mapped to one CAN data frame.
4.14
rffu
Reserved for future use
Place holder for future definitions
4.15
RPDO
Receive PDO
PDO received by one node or several nodes depending on the configuration.
4.16
SDO
Service Data Object (SDO)
Confirmed and Optionally segmented COB providing peer-to-peer communication with access to the Object
Dictionary of a device.
4.17
SRCR
Short Range Command Radio
SRCR is a radio short distance command communication link
4.18
TPDO
Transmit PDO
PDO transmitted by one node.
4.19
UTC
Universal Time Coordinated (UTC)
International time base previously known as GMT.
4.20
VRCC
Voice Radio Communication Control
Controls voice radio transmission between vehicle and central station.
4.21
XML
Extensible Markup Language
Formatting language for text (http://www.w3.org/TR/2000/WD-xml-2e-20000814).
5 Hardware preferences
5.1 General
This clause defines the hardware preferences for CANopen network implementations.
5.2 Physical layer
The definitions given in EN 13149-4 and EN 13149-5 shall be used in CANopen networks for devices compliant to
this application profile.
5.2.1 Bit rates
See EN 13149-4.
5.2.2 Bus connector
See EN 13149-5 and CiA DR 303-1:2002 “Cabling and connector pin assignment (version 1.1)”.
5.2.3 Bus cable
See EN 13149-5 and CiA DR 303-1:2002 “Cabling and connector pin assignment (version 1.1)”.
6 Data modelling
6.1 General
Application objects should use a standardized structure. Different application objects use the following data
definitions. Most of the data may be transmitted within a single PDO. In case of an object with a length of more than
8 byte, SDO communication is used.
6.2 Large data
The transfer of texts and other data (e.g. bitmaps) longer than 8 byte requires a segmented transfer performed by
SDO. As the transporting of the SDOs is done through a peer-to-peer connection, it is not possible to supply all
devices with the text simultaneously.
The following procedure is determined:
— Texts and other data to be stored may be sent to the equipment at any time using SDO service.
— Each text or data has a system-wide, definite reference number, which is sent within the SDO.
— Devices may also request text and data (by SDO).
— The texts and data may be clearly addressed via the reference number.
— Using a PDO, which contains a reference number the devices (respective indicators) should be requested to
display a text.
6.3 Text structure
6.3.1 General
Texts may be stored (and transferred) in two different formats: plain text and XML formatted text.
6.3.2 Plain text
This format will be used to store and transfer plain text without any specific control characters. It is usual to control
old style displays or to store the names of stations.
6.3.3 XML formatted text
The standard permit to convey XML formatted text. The content is considered as user defined.
6.3.3.1 Referenced text
To be specified
6.3.3.2 Referenced CANopen objects
To be specified
6.3.3.3 Call-up parameter
To be specified
7 Virtual device profiles
7.1 General
The main approach of this application profile specification is the definition of virtual devices and their application
objects. A physical device consists of one or more virtual devices. A virtual device shall not be distributed to several
physical devices. Each virtual device supports a set of mandatory objects and should implement additionally a
variable set of optional objects. Physical devices will not be defined, because they should implement multiple
functions.
The virtual device implements different application objects, some shall be supported (Mandatory) and some should
be supported (Optional). In the virtual device description, the access attribute is defined, indicating if an application
object is read only (ro), read/write (rw) or write only (wo). Read only indicates that this shall not be written via the
bus; read/write allows to read and to write this object; and write only means that this application object shall be not
read via the bus.
7.2 Main on-board computer
Main on-board computer controls and supervises the on-vehicle information system application.

class 0 not used
subclass 0 not used
All objects used by this virtual device are listed as follows:

Index Name Cat. Access
6001 Virtual_device_events M wo
h
6002 Main_onboard_computer_events M ro
h
6100 Vehicle_ID O ro
h
6101 body_ID O ro
h
6102 Garage_ID O ro
h
6103 radio_ID O ro
h
6104 Vehicle_class O ro
h
6105 number_of_vehicle_units O ro
h
6106 driver_schedule_number O ro
h
6107 route_destination_ID O ro
h
6108 journey_direction M ro
h
6109 stop_point_ID M ro
h
610A number_of_running_in_route_representation M ro
h
610B line_short_representation M ro
h
610C text_line/route_description O ro
h
610D text_of_destination O ro
h
610E local_time_and_date M ro
h
610F time_standby O ro
h
6110 route_segment_number M ro
h
6111 fare_zone M ro
h
6112 text_of_stop_point O ro
h
6113 previous_route_segment O ro
h
6114 previous_fare_zone O ro
h
6115 scheduled_time_and_date O ro
h
6116 blocking_of_ticket_canceller M ro
h
6117 traffic_light_priortiy_request O ro
h
6118 stop_point_short_representation M ro
h
6119 Inside_temperature O ro
h
611A car_mileage O ro
h
611B car_mileage_calibration_information O ro
h
611C Vehicle_ID_text O ro
h
611D body_ID_text O ro
h
611E Garage_ID_text O ro
h
611Fradio_ID_text O ro
h
6120 stop_point_ID_text O ro
h
6121route_destination_ID_text O ro
h
6122Driver_schedule_number_text O ro
h
6123 vehicle_speed O ro
h
Index Name Cat. Access
6190 Driver_ID M wo
h
6191 destination_number M wo
h
6192 line_ID M wo
h
6193 route_number M wo
h
6194 block_ID M wo
h
6195 journey_number M wo
h
6196 line_ID_text O ro
h
6197 block_ID_text O ro
h
6198 Driver_ID_text O ro
h
6204 bus_stop_request M ro
h
6481 Wheel_based_vehicle_speed O wo
h
6482 vehicle_mileage O wo
h
6483 vehicle_mileage_precision O wo
h
6484 drive_flag_and_direction_flag O wo
h
6486 compass_bearing O wo
h
6487 compass_bearing_precision O wo
h
6488 state_of_doors O wo
h
6489 ambient_air_temperature O wo
h
6520 tachograph_speed O wo
h
6552 high_resolution_vehicle_distance O wo
h
6660 Position O wo
h
6661 position_precision O wo
h
6662 GPS_based_speed O wo
h
6663 GPS_based_heading O wo
h
6664 GPS_mileage O wo
h
6665 GPS_mileage_precision O wo
h
6680 time_universal_reference O wo
h
6720 passenger_counting_manager_data O wo
h
6721 total_in/out_passenger_counting_value O wo
h
6722 counter_passenger_sum O wo
h
6723 passenger_capacity_use O wo
h
6740 Short_diagnostic_error_field M wo
h
6741 extended_diagnostic_message_file O wo
h
6742 error_class_1 O wo
h
6743 error_class_2 O wo
h
6744 error_class_3 O wo
h
In some cases the identification device should have the access type ‚ro’ and the main on-board computer ‚wo’ and
‚rw’.
7.3 Identification
The identification device provides daily identification and numbering objects.

class 0 not used
subclass 0 not used
All objects used by this virtual device are listed as follows:

Index Name Cat. Access
6190 driver_ID M ro
h
6191 destination_number M ro
h
6192 line_ID M ro
h
6193 route_number M ro
h
6194 block_ID M ro
h
6195 journey_number M ro
h
6196 line_ID_text O wo
h
6197 block_ID_text O wo
h
6198 driver_ID_text O wo
h
In some cases the identification device should have the access type ‚ro’ and the main on-board computer ‚wo’ and
‚rw’.
7.4 Passenger information
Passenger information device displays data.
class
1 destination indicator
2 next stop indicator
3 information indicator
subclass 1 Simple
2 Text
3 Graphics
4 Extended
Assignment of objects to class and subclass:

Index Name class 1 1 1 1 2 2 2 2 3 3 3 3 Cat.
1 2 3 4 1 2 3 4 1 2 3 4
subclass
6001 virtual_device_events OOO O OOO OO OO O ro
h
6002 main_onboard_computer_events O O O O O O O O O O O O wo
h
6101 body_ID - O O O - O O O - O O O wo
h
6109 stop_point_ID - - - O M M M M M M M M wo
h
610B line_short_representation - O M M M M M M M M M M wo
h
610C text_line/route_description O O O O - - - - O M O O wo
h
610D text_of_destination - M O O - O O O - M O O wo
h
610E local_time_and_date - - - O - - - O - - - O wo
h
6110 route_segment_number M M M M - - - - M M M M wo
h
6112 text_of_stop_point - O O O - M O O - M O O wo
h
6119 inside_temperature - - - O - - - O - O O O wo
h
611D body_ID_text - O O O - O O O - O O O wo
h
6120 stop_point_ID_text - - - O M M M M M M M M wo
h
6121 route_destination_ID_text OOO O OOO OO OO O wo
h
6123 vehicle_speed - - - O - - - O - O O O wo
h
6191 destination_number MMM M MMM MM MM M wo
h
6192 line_ID O M M M O M M M M M M M wo
h
6193 route_number MM M MMM MM MM M wo
M
h
6196 O M M M O MM MM MM M wo
line_ID_text
h
6200 XML_text OOO O OOO OO OO M rw
h
6201 special_character_files - OO O OOO OO OO O rw
h
6202 referenced_files_for_XML_files OOO O OOO OO OO M rw
h
6203 display_mapping MMM M MMM MM MM M rw
h
6204 bus_stop_request - - - - - O O O O O O O wo
h
6205 character_set - - - - - O O O O O O O wo
h
6481 wheel_based_vehicle_speed - - - O - - - O - O O O wo
h
6488 state_of_doors - - - O - - - O - O O O wo
h
6489 Ambient_air_temperature - - - O - - - O - O O O wo
h
6520 tachograph_speed - - - O - - - O - O O O wo
h
6662 GPS_based_speed - - - O - - - O - O O O wo
h
6740 Short_diagnostic_message_field - - - - - - - - O O O O wo
h
6741 extended_diagnostic_message_file - - - - - - - - O O O O wo
h
Index Name class 1 1 1 1 2 2 2 2 3 3 3 3 Cat.
1 2 3 4 1 2 3 4 1 2 3 4
subclass
6742 error_class_1 - - - - - - - - O O O O wo
h
6743 error_class_2 - - - - - - - - O O O O wo
h
6743 error_class_3 - - - - - - - - O O O O wo
h
7.5 Ticket canceller
Ticket canceller device cancels tickets.

class 0 not used
subclass 0 not used
All objects used by this virtual device are listed as follows:

Index Name Cat. Access
6001 virtual_device_events O ro
h
6002 main_onboard_computer_events O wo
h
6100 vehicle_ID O wo
h
6105 number_of_vehicle_units O wo
h
6108 journey_direction M wo
h
6109 stop_point_ID M wo
h
610A number_of_running_in_line_representation O wo
h
610B line_short_representation O wo
h
610E local_time_and_date M wo
h
6110 route_segment_number M wo
h
6111 fare_zone M wo
h
6112 text_of_stop_point O wo
h
6116 blocking_of_ticket_canceller O wo
h
6118 stop_point_short_representation O wo
h
611C vehicle_ID_text O wo
h
6120 stop_point_ID_text M wo
h
6191 destination_number M wo
h
6192 line_ID M wo
h
6193 route_number O wo
h
6194 block_ID M wo
h
7.6 Ticket printer
Ticket printer device prints tickets.

class 0 not used
subclass 0 not used
All objects used by this virtual device are listed as follows:

Index Name Cat. Access
6100 vehicle_ID O wo
h
6108 journey_direction M wo
h
6109 stop_point_ID M wo
h
610A number_of_running_in_route_representation O wo
h
610B line_short_representation O wo
h
610C text_line/route_description O wo
h
610E local_time_and_date M wo
h
6110 route_segment_number M wo
h
6111 fare_zone M wo
h
6112 text_of_stop_point M wo
h
6116 blocking_of_ticket_canceller O wo
h
6118 stop_point_short_representation O wo
h
611C vehicle_ID_text O wo
h
6120 stop_point_ID_text M wo
h
6191 destination_number M wo
h
6192 line_ID M wo
h
6193 route_number M wo
h
6194 block_ID M wo
h
6196 line_ID_text M wo
h
6197 block_ID_text O wo
h
6740 short_diagnostic_message_field M wo
h
6741 extended_diagnostic_message_file O wo
h
6742 error_class_1 O wo
h
6743 error_class_2 O wo
h
6744 error_class_3 O wo
h
7.7 Ticket/card reader/validator
Ticket/card reader/validator device reads and/or validates the ticket.

class 0 not used
subclass 0 not used
All objects used by this virtual device are listed as follows:

Index Cat. Access
Name
rffu rffu rffu rffu
7.8 Acoustic announcer
Acoustic announcement device is used for voice announcement to passengers, in particular to announce next stop
point or current stop point. It should provide for indoor and outdoor loud-speakers.
Object 6109 shall be used to trigger the announcement.
h
class 0 not used
subclass
0 not used
All objects used by this virtual device are listed as follows:

Index Name Cat. Access
6109stop_point_ID M wo
h
6120stop_point_ID_text O wo
h
7.9 Acoustic control manager
Acoustic control manager controls the AAS/Intercom sub-system.
Simple acoustic passenger information system consists only of a digital acoustic announcer and a power amplifier.
The main on-board computer triggers an announcement with writing to object 6109 of the acoustic announcement
h
virtual device. All other functions are realised in hardware.
In more powerful systems, the main on-board computer is able to control the AAS sub-system with object 6001 .
h
For example, the driver wants to make a manually controlled announcement to speak to passengers via
microphone and loudspeakers. He pushes the related button on the panel (driver’s console keyboard). The driver’s
console display device sends a corresponding event to the main on-board computer. The main on-board computer
translates this request in a command for the acoustic control manager to realise a manually controlled driver's
announcement (that means to switch the audio paths in the hardware).
Complex systems provide passenger driver intercommunication additionally to manually controlled and pre-
recorded (digitised and analogue) announcements. Such systems consist of more than one device, distributed over
a train or a bus. One device (acoustic control manager) controls the other devices (acoustic control units). The
interaction between Acoustic Control Manager and Acoustic Control Units is manufacturer-specific. That is why this
standard defines only the interface between the main on-board computer and the acoustic control manager. The
communication between Acoustic Control Manager and Acoustic Control Units should be established with objects
in the area 2000 – 5FFF (Manufacturer Specific Profile Area).
h h
The object 6001 may be used to switch audio paths in an AAS sub-system on or off by the main on-board
h
computer.
class 0 not used
subclass 0 not used
All objects used by this virtual device are listed as follows:

Index Name Cat. Access
6001vitual_device_events O ro
h
6002main_onboard_computer_events O wo

h
7.10 Train bus gateway
The train bus gateway virtual device is user-transparent. It may consume application objects from all connected
devices by means of RPDO and SDO services. Additionally, the train bus gateway virtual device may implement
virtual devices that are remotely connected in order to produce the corresponding application objects.

class 0 not used
subclass 0 not used
7.11 Vehicle gateway
Vehicle gateway device is used for interaction to other in-vehicle networks. Mainly it performs the logical
information exchange between the driver’s working place (vehicle driver indicator virtual device), drivetrain (e.g.
engine, brake and gearbox), bodytrain (e.g. door control units), and multiplex-train (e.g. sensors, lamps and
switches). The tachograph virtual device will be very often implemented together with the vehicle gateway in one
physical device.
class 0 not used
subclass 0 not used
All objects used by this virtual device are listed as follows:

Index Name Cat. Access
610E local_time_date O ro
h
6481 wheel_based_vehicle_speed O ro
h
6482 vehicle_mileage O ro
h
6483 vehicle_mileage_precision O ro
h
6484 drive_flag_and_direction_flag O ro
h
6486 compass_bearing O ro
h
6487 compass_bearing_precision O ro
h
6488 state_of_doors O ro
h
6489 ambient_air_temperature O ro
h
648A fuel_economy O ro
h
648B brake_switch O ro
h
648C engine_coolant_temperature O ro
h
operation_times O ro
648D
h
7.12 Vehicle driver indicator
Vehicle driver indicator device is used for interaction to the vehicle driver.

Class (C) 1 Display only
2 Display with keyboard
subclass 0 not used
Assignment of objects to class and subclass:

Index Name Cat. C1 Cat. C2 Access
610E local_time_and_date O M wo
h
6488 state_of_doors O O wo
h
6489 ambient_air_temperature O O wo
h
648A fuel_economy O O wo
h
648B b
...
