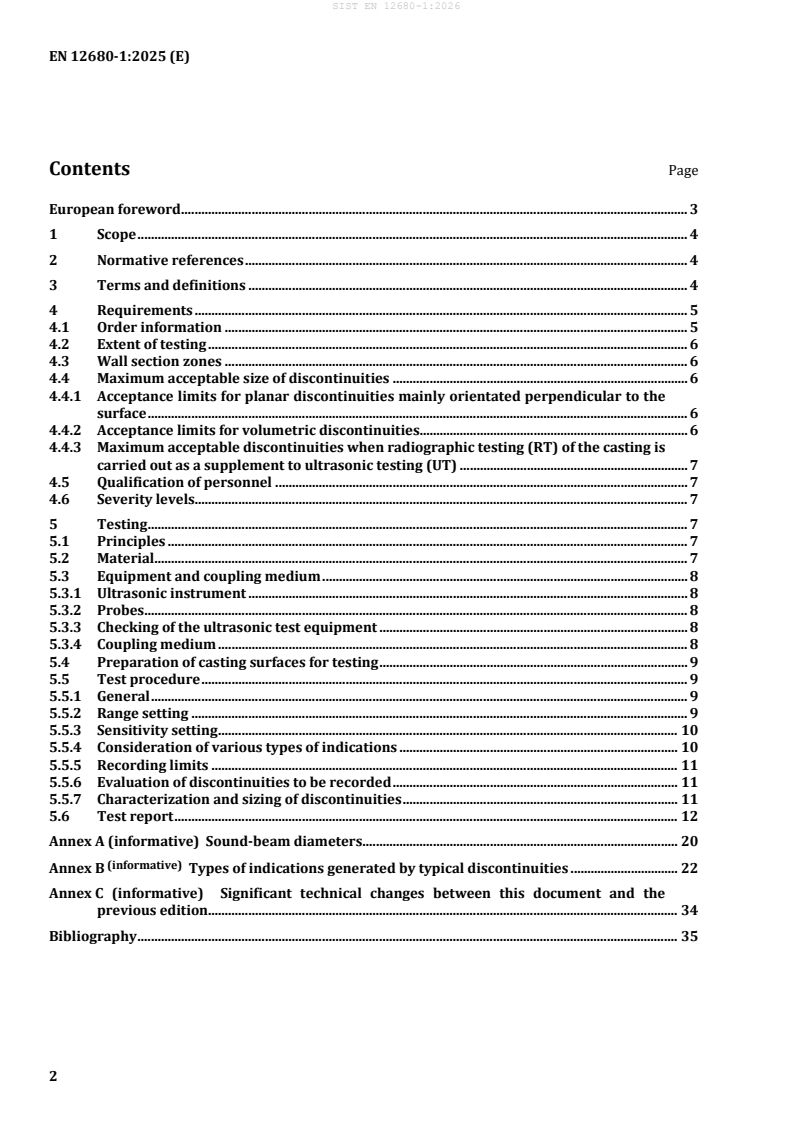

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Requirements . 5
4.1 Order information . 5
4.2 Extent of testing . 6
4.3 Wall section zones . 6
4.4 Maximum acceptable size of discontinuities . 6
4.4.1 Acceptance limits for planar discontinuities mainly orientated perpendicular to the
surface . 6
4.4.2 Acceptance limits for volumetric discontinuities. 6
4.4.3 Maximum acceptable discontinuities when radiographic testing (RT) of the casting is
carried out as a supplement to ultrasonic testing (UT) . 7
4.5 Qualification of personnel . 7
4.6 Severity levels. 7
5 Testing . 7
5.1 Principles . 7
5.2 Material . 7
5.3 Equipment and coupling medium . 8
5.3.1 Ultrasonic instrument . 8
5.3.2 Probes. 8
5.3.3 Checking of the ultrasonic test equipment . 8
5.3.4 Coupling medium . 8
5.4 Preparation of casting surfaces for testing . 9
5.5 Test procedure . 9
5.5.1 General . 9
5.5.2 Range setting . 9
5.5.3 Sensitivity setting . 10
5.5.4 Consideration of various types of indications . 10
5.5.5 Recording limits . 11
5.5.6 Evaluation of discontinuities to be recorded . 11
5.5.7 Characterization and sizing of discontinuities . 11
5.6 Test report . 12
Annex A (informative) Sound-beam diameters . 20
(informative)
Annex B Types of indications generated by typical discontinuities . 22
Annex C (informative) Significant technical changes between this document and the
previous edition . 34
Bibliography . 35

European foreword
This document (EN 12680-1:2025) has been prepared by Technical Committee CEN/TC 190 “Foundry
technology”, the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by May 2026, and conflicting national standards shall be
withdrawn at the latest by May 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 12680-1:2003.
Annex C, Table C.1 provides details of significant technical changes between EN 12680-1:2025 and
EN 12680-1:2003.
Within its programme of work, Technical Committee CEN/TC 190 requested CEN/TC 190/WG 10
“Testing for inner discontinuities” to prepare the following standard:
EN 12680-1, Founding — Ultrasonic testing — Part 1: Steel castings for general purposes.
This is one of four European Standards for ultrasonic testing. The other standards are:
— EN 12680-2, Founding — Ultrasonic testing — Part 2: Steel castings for highly stressed components.
— EN 12680-3, Founding — Ultrasonic testing — Part 3: Spheroidal graphite cast iron castings.
— EN 12680-4, Founding — Ultrasonic testing — Part 4: Phased array ultrasonic testing of steel castings
Annex A and Annex B are informative.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies the requirements for the ultrasonic testing of steel castings (with ferritic
structure) for general purposes and the methods for determining internal discontinuities by the pulse-
echo technique.
This document is applicable to the ultrasonic testing of steel castings which have usually received a grain
refining heat treatment and which have wall thicknesses up to and including 600 mm.
For greater wall thicknesses, special agreements are applicable with respect to test procedure and
recording levels.
This document does not apply to austenitic steels and joint welds. For highly stressed components
EN 12680-2 is applicable.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN ISO 2400, Non-destructive testing — Ultrasonic testing — Specification for standard block No. 1
(ISO 2400)
EN ISO 5577, Non-destructive testing — Ultrasonic testing — Vocabulary (ISO 5577)
EN ISO 7963, Non-destructive testing — Ultrasonic testing — Specification for calibration block No. 2
(ISO 7963)
EN ISO 16810, Non-destructive testing — Ultrasonic testing — General principles (ISO 16810)
EN ISO 16811, Non-destructive testing — Ultrasonic testing — Sensitivity and range setting (ISO 16811)
EN ISO 16827, Non-destructive testing — Ultrasonic testing — Characterization and sizing of
discontinuities (ISO 16827)
EN ISO 22232-1, Non-destructive testing — Characterization and verification of ultrasonic test
equipment — Part 1: Instruments (ISO 22232-1)
EN ISO 22232-2, Non-destructive testing — Characterization and verification of ultrasonic test
equipment — Part 2: Probes (ISO 22232-2)
EN ISO 22232-3, Non-destructive testing — Characterization and verification of ultrasonic test
equipment — Part 3: Combined equipment (ISO 22232-3)
3 Terms and definitions
For the purposes of this document the terms and definitions given in EN ISO 5577 and the following
apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp/
— IEC Electropedia: available at https://www.electropedia.org/
3.1
point-like discontinuity
discontinuity, the dimensions of which are smaller than or equal to the sound-beam width
Note 1 to entry: Dimensions in this document relate to length, width and/or dimension in through-wall direction.
3.2
extended discontinuity
discontinuity, the dimensions of which are larger than the sound-beam width
Note 1 to entry: Dimensions in this document relate to length, width and/or dimension in through-wall direction.
3.3
planar discontinuity
discontinuity having two measurable dimensions
3.4
volumetric discontinuity
discontinuity having three measurable dimensions
3.5
rim zone
1/3 of the through-wall thickness from the surface with a maximum of 30 mm
3.6
special rim zone
outer rim zone of the test object with special requirements
Note 1 to entry: Examples of special requirements are machined surfaces, higher stresses and sealing surfaces.
3.7
non-measurable dimension
dimension of a discontinuity that is smaller than the beam width, which depends on the probe size and
the frequency used
Note 1 to entry: Current state of the industry is < 3 mm.
3.8
finishing welding
welding carried out in order to ensure the agreed quality of the casting
3.9
severity level
upper size limit for acceptable discontinuities, depending on the wall thickness zone
4 Requirements
4.1 Order information
The following information shall be available at the time of enquiry and order (see also EN ISO 16810):
a) the areas of the casting and the number or percentage of castings to which the requirements of
ultrasonic testing apply;
b) the severity levels shall applied to the various zones or areas of the casting (acceptance criteria);
c) requirements for a written test procedure;
d) whether there are any additional requirements for the test procedure, see also 5.5.1.
4.2 Extent of testing
The casting shall be tested so that the agreed areas are covered (insofar as this is possible from the shape
of the casting) by the use of the best applicable test technique.
For wall thicknesses greater than 600 mm, agreement shall be made between the manufacturer and the
customer on the severity levels, test procedure and the recording of the test results.
4.3 Wall section zones
The wall section shall be divided into core and rim zones as shown in Figure 1. These zones relate to the
dimensions of the casting ready for assembly (finish-machined).
If the foundry does not know the final condition of the casting, the test result applies to the condition “as
delivered”.
NOTE An acceptable discontinuity in the core zone in the raw casting condition can be shifted to the rim zone
after final machining by the customer and can become unacceptable.
Single discontinuities extending into the rim zone and core zone shall be evaluated as rim zone.
4.4 Maximum acceptable size of discontinuities
4.4.1 Acceptance limits for planar discontinuities mainly orientated perpendicular to the
surface
The acceptance limits for planar discontinuities are given in Figure 2.
Discontinuities exceeding 3 mm flat-bottomed hole (FBH) shall not be acceptable in severity level 1.
The largest dimension of a discontinuity in through-wall direction shall not exceed 10 % of the wall
thickness, except discontinuities with a length ≤ 10 mm. Discontinuities with a length ≤ 10 mm shall not
exceed a dimension in through-wall direction of 25 % of wall thickness or maximum 20 mm.
The greatest distance between discontinuities, as criterion for evaluation as single discontinuity or
discontinuity area perpendicular or lateral to the surface, shall be 10 mm.
For a discontinuity with more than 3 mm in length and non-measurable dimension in the through-wall
direction, this non-measurable dimension shall be taken as 3 mm and the discontinuity area shall be
calculated according to Formula (1):
A = 3 L (1)
where
A is the area of discontinuity expressed in square millimetres;
3 is the width in millimetres;
L is the length in millimetres.
4.4.2 Acceptance limits for volumetric discontinuities
The acceptance limits for volumetric discontinuities are given in Table 1. Any discontinuity exceeding
one of the levels shall not be acceptable.
Groups of individual discontinuities consist of individual areas, each containing a group of several,
individually resolved indications. An area of grouped indications is treated as an individual area when its
distance to the neighbouring area is bigger than the biggest lateral dimension of each area. An example is
given in Figure B.6.
4.4.3 Maximum acceptable discontinuities when radiographic testing (RT) of the casting is
carried out as a supplement to ultrasonic testing (UT)
Unless otherwise agreed by the time of enquiry and order, when conducting radiographic and ultrasonic
testing in combination, it was proven that if a discontinuity indicated by radiographic testing is situated
in the core zone, the discontinuity is acceptable at one level lower, e.g. severity level 3 instead of severity
level 2 for radiographic testing. For further information, see EN 1559-2.
4.5 Qualification of personnel
Ultrasonic testing shall be performed by qualified personnel. Qualification of personnel can be in
accordance with EN ISO 9712 or other equivalent recognized standards.
4.6 Severity levels
If the purchaser specifies different severity levels in different areas of the same casting, all of these areas
shall be clearly identified and shall include:
a) all necessary dimensions for accurate location of zones;
b) the full extent of all weld preparations and the thickness of any special rim zone.
Severity level 1 is only applied to weld preparations and special rim zones.
Unless other requirements have been agreed at the time of acceptance of the order, for finishing welds,
the requirements for the parent metal shall apply.
5 Testing
5.1 Principles
The principles of ultrasonic testing given in EN ISO 16810, EN ISO 16811 and EN ISO 16827 shall apply.
5.2 Material
The suitability of material for ultrasonic testing is assessed by comparison with the echo height of a
reference reflector (usually the first back-wall echo) and the noise level. This assessment shall be carried
out on selected casting areas which are representative of the surface finish and of the total thickness
range of the objects to be tested. The assessment areas shall have parallel surfaces.
The reference echo height according to Table 2 shall be at least 6 dB above the noise level.
If the echo height is less than 6 dB above the noise level, then ultrasonic testing has reduced performance.
In this case, the next larger detectable FBH or side-drilled holes (SDH) diameter which can be detected
with a signal-to-noise ratio of at least 6 dB shall be noted in the test report.
The further procedure shall be agreed between the manufacturer and the purchaser.
NOTE 1 For the definition of an adequate diameter of a flat-bottomed hole, the distance-gain-size system (DGS)
or a test block of identical material, heat treatment and thickness containing flat-bottomed holes with a diameter
according to Table 2 or equivalent side-drilled holes, can be used. Formula (2) can be used for converting a flat-
bottomed hole diameter into an equivalent side-drilled hole diameter:
4, 935 D
FBH
D = (2)
Q
λ s
where
D is the side-drilled hole diameter, in millimetres;
Q
D is the flat-bottomed hole diameter, in millimetres;
FBH
λ is the wavelength, in millimetres;
s is the path length, in millimetres.
The formula is applicable for D ≥ 2 λ and s ≥ 5 times the near-field length and is only defined for single-
Q
transducer probes.
NOTE 2 Steel castings usually receive at least an austenitizing heat treatment before ultrasonic testing.
5.3 Equipment and coupling medium
5.3.1 Ultrasonic instrument
The ultrasonic instrument shall meet the requirements given in EN ISO 22232-1 and shall have the
following characteristics:
a) range setting capability, from at least 10 mm to 2 m, continuously selectable, for longitudinal and
transverse waves in steel;
b) gain span, adjustable in 2 dB maximum steps over a range of at least 80 dB with an accuracy of 1 dB;
c) inaccuracy of time-base and vertical linearities less than 5 % of the adjustment range of the screen;
d) operating in combined transmitter-receiver mode or in separate transmitter-receiver-mode;
e) suitability, at least for nominal frequencies from 1 MHz up to and including 5 MHz, for the pulse-echo
technique with single-element and dual-element probes.
5.3.2 Probes
The probes shall meet the requirements given in EN ISO 22232-2 and EN ISO 22232-3 with the following
exceptions:
a) nominal frequencies shall be in the range 1 MHz to 5 MHz;
b) for oblique incidence, angle-beam probes with angles between 35° and 70° shall be used.
NOTE Normal-beam or angle-beam probes can be used for the testing of steel castings. The suited type of probe
depends on the geometry of the casting and the type of discontinuity to be detected.
For test zones close to the surface, dual-transducer probes (normal-beam or angle-beam) should be
preferred.
5.3.3 Checking of the ultrasonic test equipment
The ultrasonic test equipment shall be checked regularly by the operator according to EN ISO 22232-3.
5.3.4 Coupling medium
A coupling medium in accordance with EN ISO 16810 shall be used. The coupling medium shall wet the
test surface to ensure satisfactory sound transmission. The same coupling medium shall be used for the
calibration and all subsequent test operations.
NOTE The sound transmission can be checked by one or more stable back-wall echoes in areas with parallel
surfaces.
5.4 Preparation of casting surfaces for testing
For the preparation of casting surfaces for ultrasonic testing, see EN ISO 16810.
The casting surfaces to be tested shall be such that satisfactory coupling with the probe can be achieved.
With single-transducer probes, satisfactory coupling can be achieved if the surfaces correspond at least
to the limit comparator 4 S1 or 4 S2 according to EN 1370.
The roughness of any machined surface used for testing shall be R ≤ 12,5 μm.
a
For special test techniques, higher surface qualities such as 2 S1, 2 S2 (see EN 1370) and R ≤ 6,3 μm can
a
be necessary.
5.5 Test procedure
5.5.1 General
Because the choice of both the direction of incidence and suitable probes largely depends on the shape of
the casting or on the possible discontinuities in the casting or on the possible discontinuities from
finishing welding, the applicable test procedure shall be specified by the manufacturer of the casting.
If geometrically possible, the areas to be tested shall be tested from both sides. When testing from only
one side, short-range resolving probes shall be used additionally for the detection of discontinuities close
to the surface. Testing with dual-element probes is only adequate for wall thicknesses up to 50 mm.
Additionally, when not otherwise agreed between the purchaser and the manufacturer, for all castings,
dual-element normal-beam and/or angle-beam probes shall be used to test the following areas up to a
depth of 50 mm:
a) critical areas, e.g. fillets, changes in cross-section, areas with external chills;
b) finishing welds;
c) weld preparation areas, as specified in the order;
d) special rim zones, as specified in the order, critical for the performance of the casting.
Finishing welds which are deeper than 50 mm shall be subject to supplementary testing with other
su
...
