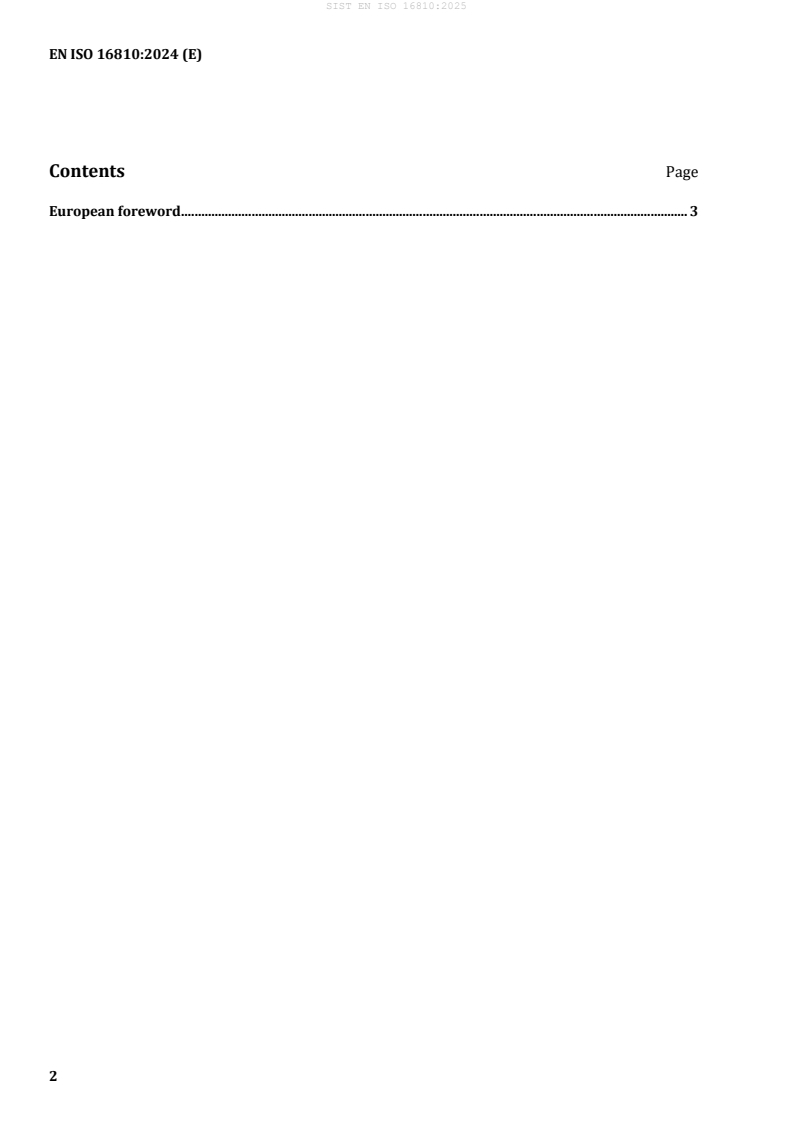

Contents Page
European foreword . 3

European foreword
This document (EN ISO 16810:2024) has been prepared by Technical Committee ISO/TC 135 "Non-
destructive testing" in collaboration with Technical Committee CEN/TC 138 “Non-destructive testing”
the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2025, and conflicting national standards shall be
withdrawn at the latest by April 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 16810:2014.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 16810:2024 has been approved by CEN as EN ISO 16810:2024 without any modification.

International
Standard
ISO 16810
Second edition
Non-destructive testing —
2024-10
Ultrasonic testing — General
principles
Essais non destructifs — Contrôle par ultrasons — Principes
généraux
Reference number
ISO 16810:2024(en) © ISO 2024
ISO 16810:2024(en)
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
ISO 16810:2024(en)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Qualification and certification of test personnel . 2
5 Information required prior to testing . 2
6 Principles of ultrasonic testing (UT) . . 2
6.1 General .2
6.2 Wave mode and direction of sound propagation .3
6.3 Through-transmission technique .3
6.4 Pulse-echo technique . .3
7 Test equipment . 3
7.1 Instrument .3
7.2 Probes .3
7.2.1 General .3
7.2.2 Probe selection.4
7.2.3 Frequency and dimensions of transducer .4
7.2.4 Dead zone .4
7.2.5 Damping .4
7.2.6 Focusing probes .4
7.3 Coupling media .5
7.4 Standard blocks .5
7.5 Reference blocks .5
7.6 Specific test blocks .6
8 Settings. 6
8.1 General .6
8.2 Range . .6
8.3 Sensitivity .7
8.4 Pulse repetition frequency .7
9 Preparation for testing . 7
9.1 Surface preparation .7
9.2 Identification and datum points .7
9.3 Application of transfer correction .7
10 Testing. 8
10.1 Coverage of testing .8
10.2 Overlapping .8
10.3 Scanning speed.8
10.4 Evaluation and recording levels .8
10.4.1 General .8
10.4.2 Pulse-echo technique .8
10.4.3 Through-transmission technique .8
11 Characterization of discontinuities . 9
11.1 Pulse-echo technique . .9
11.2 Through-transmission technique .9
12 Test procedure . 9
13 Test report . 10
Bibliography .11

iii
ISO 16810:2024(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 135, Non-destructive testing, Subcommittee
SC 3, Ultrasonic testing, in collaboration with the European Committee for Standardization (CEN) Technical
Committee CEN/TC 138, Non-destructive testing, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 16810:2012), which has been technically
revised.
The main changes are as follows:
— normative references have been updated;
— Clause 3 Terms and definitions refers to ISO 5577 as a source of terms;
— editorial revisions and usage of terms has been harmonized.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
ISO 16810:2024(en)
Introduction
The following International Standards are linked:
ISO 16810, Non-destructive testing — Ultrasonic testing — General principles
ISO 16811, Non-destructive testing — Ultrasonic testing — Sensitivity and range setting
ISO 16823, Non-destructive testing — Ultrasonic testing — Through-transmission technique
ISO 16826, Non-destructive testing — Ultrasonic testing — Testing for discontinuities perpendicular to the surface
ISO 16827, Non-destructive testing — Ultrasonic testing — Characterization and sizing of discontinuities
ISO 16828, Non-destructive testing — Ultrasonic testing — Time-of-flight diffraction technique for detection
and sizing of discontinuities
v
International Standard ISO 16810:2024(en)
Non-destructive testing — Ultrasonic testing — General
principles
1 Scope
This document specifies the general principles for the ultrasonic testing of industrial products that permit
the transmission of ultrasound.
The specific conditions of application and use of ultrasonic testing, which depend on the type of product to
be tested, are described in documents which can include:
— product standards;
— specifications;
— codes;
— contractual documents;
— written procedures.
This document specifies the minimum applicable requirements, unless otherwise specified in the referencing
documents.
This document does not specify:
— extent of testing and scan plans;
— acceptance criteria.
This document describes only conventional probes, however, the general principles for ultrasonic testing
also apply to ultrasonic testing using array techniques. If array techniques are used, then additional steps or
verifications can be needed.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 2400, Non-destructive testing — Ultrasonic testing — Specification for calibratio
...
