EUROPEAN STANDARD
EN 201
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2009
ICS 25.120.20; 83.200 Supersedes EN 201:1997
English Version
Plastics and rubber machines - Injection moulding machines -
Safety requirements
Machines pour les matières plastiques et le caoutchouc - Kunststoff- und Gummimaschinen - Spritzgießmaschinen -
Machines de moulage par injection - Prescriptions de Sicherheitsanforderungen
sécurité
This European Standard was approved by CEN on 12 September 2009.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 201:2009: E
worldwide for CEN national Members.

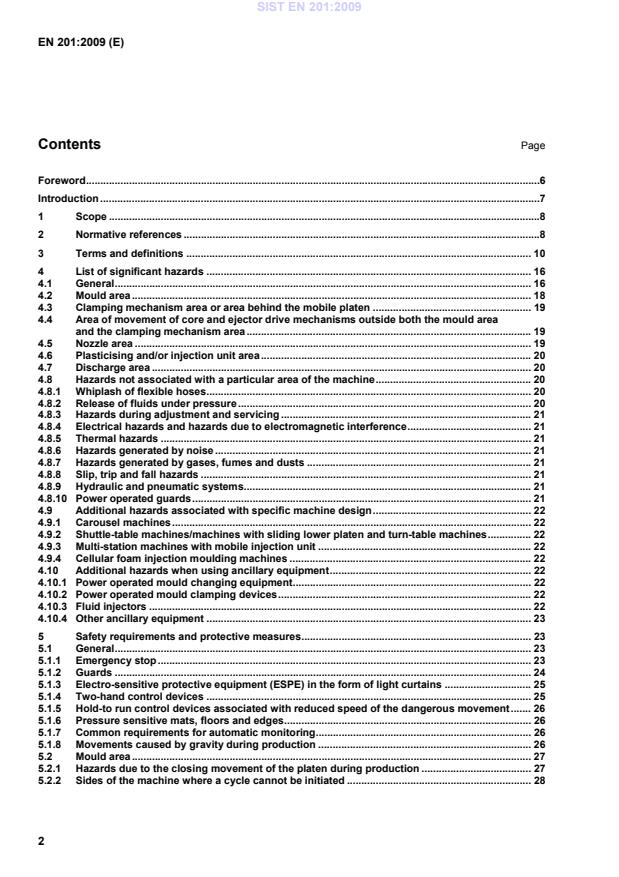

Contents Page
Foreword .6
Introduction .7
1 Scope .8
2 Normative references .8
3 Terms and definitions . 10
4 List of significant hazards . 16
4.1 General . 16
4.2 Mould area . 18
4.3 Clamping mechanism area or area behind the mobile platen . 19
4.4 Area of movement of core and ejector drive mechanisms outside both the mould area
and the clamping mechanism area . 19
4.5 Nozzle area . 19
4.6 Plasticising and/or injection unit area . 20
4.7 Discharge area . 20
4.8 Hazards not associated with a particular area of the machine . 20
4.8.1 Whiplash of flexible hoses . 20
4.8.2 Release of fluids under pressure . 20
4.8.3 Hazards during adjustment and servicing . 21
4.8.4 Electrical hazards and hazards due to electromagnetic interference . 21
4.8.5 Thermal hazards . 21
4.8.6 Hazards generated by noise . 21
4.8.7 Hazards generated by gases, fumes and dusts . 21
4.8.8 Slip, trip and fall hazards . 21
4.8.9 Hydraulic and pneumatic systems. 21
4.8.10 Power operated guards . 21
4.9 Additional hazards associated with specific machine design . 22
4.9.1 Carousel machines . 22
4.9.2 Shuttle-table machines/machines with sliding lower platen and turn-table machines . 22
4.9.3 Multi-station machines with mobile injection unit . 22
4.9.4 Cellular foam injection moulding machines . 22
4.10 Additional hazards when using ancillary equipment . 22
4.10.1 Power operated mould changing equipment . 22
4.10.2 Power operated mould clamping devices . 22
4.10.3 Fluid injectors . 22
4.10.4 Other ancillary equipment . 23
5 Safety requirements and protective measures . 23
5.1 General . 23
5.1.1 Emergency stop . 23
5.1.2 Guards . 24
5.1.3 Electro-sensitive protective equipment (ESPE) in the form of light curtains . 25
5.1.4 Two-hand control devices . 25
5.1.5 Hold-to run control devices associated with reduced speed of the dangerous movement . 26
5.1.6 Pressure sensitive mats, floors and edges . 26
5.1.7 Common requirements for automatic monitoring . 26
5.1.8 Movements caused by gravity during production . 26
5.2 Mould area . 27
5.2.1 Hazards due to the closing movement of the platen during production . 27
5.2.2 Sides of the machine where a cycle cannot be initiated . 28
5.2.3 Hazards due to movements other than the closing movement of the platen during
production . 28
5.2.4 Use of control guards . 30
5.2.5 Thermal hazards . 30
5.2.6 Additional safety requirements for machines with a downstroking platen . 30
5.2.7 Additional requirements for machines where whole body access is possible between the
interlocking guard or light curtain for the mould area and the mould area itself . 31
5.2.8 Additional requirements for machines where whole body access is possible to the mould
area . 34
5.2.9 Additional requirements for machines with L-Type configuration during production . 35
5.3 Clamping mechanism area or area behind the mobile platen . 36
5.3.1 Basic safety requirements . 36
5.3.2 Additional safety requirements for machines with an upstroking platen . 36
5.4 Area of movement of core and ejector drive mechanisms outside the mould area and
outside the clamping mechanism area . 37
5.5 Nozzle area . 37
5.5.1 Mechanical hazards . 37
5.5.2 Thermal hazards . 37
5.6 Plasticising and/or injection unit area . 38
5.6.1 Mechanical hazards . 38
5.6.2 Thermal hazards . 38
5.6.3 Mechanical and/or thermal hazards . 39
5.7 Discharge area . 39
5.8 Safety requirements and/or protective measures against hazards not associated with a
particular area of the machine . 40
5.8.1 Whiplash of flexible hoses . 40
5.8.2 Release of fluids under pressure . 41
5.8.3 Hazards during adjustment and servicing . 41
5.8.4 Electrical hazards and hazards due to electromagnetic interference . 41
5.8.5 Thermal hazards . 41
5.8.6 Hazards generated by noise . 41
5.8.7 Hazards generated by gases, fumes and dusts . 42
5.8.8 Slip, trip and fall hazards . 42
5.8.9 Hydraulic and pneumatic systems . 42
5.8.10 Power operated guards . 42
5.9 Additional safety requirements and/or protective measures associated with specific
machine design . 43
5.9.1 Carousel machines . 43
5.9.2 Shuttle-table machines / machines with sliding lower platen and turn-table machines . 43
5.9.3 Multistation machines with mobile injection unit . 43
5.9.4 Cellular foam injection moulding machines . 44
5.10 Additional safety requirements and/or protective measures when using ancillary
equipment. 44
5.10.1 Power operated mould changing equipment . 44
5.10.2 Power operated mould clamping devices . 44
5.10.3 Fluid injectors . 46
5.10.4 Other ancillary equipment . 46
6 Verification of the safety requirements and/or protective measures . 47
7 Information for use . 49
7.1 Instruction handbook . 49
7.1.1 Emergency stop . 49
7.1.2 Stopping performance . 49
7.1.3 Stopping time . 49
7.1.4 Light curtains . 49
7.1.5 Parking brakes . 49
7.1.6 Moulds and extensions . 50
7.1.7 Movements of cores and ejectors . 50
7.1.8 Thermal hazards in the mould area . 50
7.1.9 Maintenance operations on vertical machines . 50
7.1.10 Machines where whole body access is possible . 50
7.1.11 Presence detecting devices in the mould area . 50
7.1.12 Plasticising and/or injection unit . 50
7.1.13 Machines with L-Type configuration . 51
7.1.14 Flexible hose assemblies . 51
7.1.15 Adjustment and servicing . 51
7.1.16 Exhaust system. 51
7.1.17 Designated access and working positions . 51
7.1.18 Non-permanent safe means of access . 51
7.1.19 Automatic feeding of material . 52
7.1.20 Manual feeding of material . 52
7.1.21 Magnetic mould clamping . 52
7.1.22 Ancillary equipment . 53
7.1.23 Applying ergonomic principles when using ancillary equipment . 53
7.1.24 Bursting of moulded parts . 53
7.1.25 Cellular foam injection moulding . 53
7.1.26 Hydraulic system cleaning . 53
7.1.27 Noise emission . 54
7.1.28 Splashing hazards where two-hand control devices are used . 54
7.2 Marking . 54
Annex A (normative) Movable interlocking guards type I (non-electrical axis) . 56
A.1 Interlocking function . 57
A.2 Quality of the components . 57
Annex B (normative) Movable interlocking guards type II (non-electrical axis) . 58
B.1 Interlocking function . 59
B.2 Quality of the components . 59
B.3 Automatic monitoring requirements. 59
Annex C (normative) Movable interlocking guards type III (non-electrical axis) . 60
C.1 Movable interlocking guard with three position detectors . 60
C.1.1 Interlocking function . 61
C.1.2 Quality of the components . 61
C.1.3 Additional requirements for the second shut-off device in Figure C.1 . 61
C.2 Movable interlocking guard with two position detectors . 62
C.2.1 Interlocking function . 63
C.2.2 Quality of the components . 63
C.2.3 Additional requirements for the second shut-off device in Figure C.2 . 63
C.3 Automatic monitoring requirements. 63
C.3.1 Common requirements (see also 5.1.7) . 63
C.3.2 Additional automatic monitoring requirements (Figure C.1) . 64
C.3.3 Additional automatic monitoring requirements (Figure C.2) . 64
Annex D (normative) Movable interlocking guards type I (electrical axis) . 65
D.1 Principle of interlocking corresponding to type I, using one electromechanical
component . 65
D.2 Principle of interlocking corresponding to type I, using the motor control unit . 67
Annex E (normative) Movable interlocking guards type II (electrical axis) . 69
E.1 Principle of interlocking corresponding to type II, using one electromechanical
component . 69
E.2 Principle of interlocking corresponding to type II, using the motor control unit (version A) . 71
E.3 Principle of interlocking corresponding to type II, using the motor control unit (version B) . 73
Annex F (normative) Movable interlocking guards type III (electrical axis) . 75
F.1 Principle of interlocking corresponding to type III, using electromechanical components . 75
F.2 Principle of interlocking corresponding to type III, using one electromechanical
component and the motor control unit. 77
F.3 Principle of interlocking corresponding to type III, using the motor control unit (version
A) . 79
F.4 Principle of interlocking corresponding to type III, using the motor control unit (version
B) . 81
Annex G (normative) Electro-sensitive protective equipment in the form of a light curtain . 83
G.1 Mode of operation of the light curtain . 83
G.2 Automatic monitoring requirements . 84
Annex H (normative) Two-hand control device . 85
H.1 Mode of operation of the two hand control . 85
H.2 Automatic monitoring requirements . 86
Annex J (normative) Acknowledgement systems . 87
J.1 Single acknowledgement system . 87
J.2 Double acknowledgment system . 87
Annex K (normative) Noise test code . 88
K.1 Introduction . 88
K.2 Measurement of the A-weighted emission sound pressure level at the usual operating
position . 88
K.3 Determination of the A-weighted sound power level . 88
K.4 Installation and mounting conditions for noise measurement. 88
K.5 Operating conditions . 89
K.5.1 Plastic processing machines . 89
K.5.2 Rubber processing machines . 90
K.6 Information to be reported. 90
K.7 Declaration and verification of noise emission values . 91
Annex L (normative) Warning signs . 92
Annex M (normative) Use of proportional valves for the platen movement . 93
M.1 Design . 93
M.2 Mode of operation . 93
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 98/37/EC . 94
Annex ZB (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC . 95
Bibliography . 96

Foreword
This document (EN 201:2009) has been prepared by Technical Committee CEN/TC 145 “Plastics and rubber
machines”, the secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by April 2010, and conflicting national standards shall be withdrawn at the
latest by April 2010.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 201:1997.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document.
A transition period of one year is permitted following the publication of this document during which the
manufacturer may choose to apply either version of the standard.
In addition to EN 201:1997, requirements for machines with electrical axes, machines with L-type
configuration, cellular foam injection moulding machines, machines with fluid injectors, and machines
safeguarded by light curtains or two-hand control devices are included.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

Introduction
This document is a type C standard as stated in EN ISO 12100.
The machinery concerned and the extent to which hazards, hazardous situations and hazardous events are
covered are indicated in the scope of this document.
When provisions of this type C standard are different from those which are stated in type A and B standards,
the provisions of this type C standard take precedence over the provisions of the other standards, for
machines that have been designed and built in accordance with the provisions of this type C standard.
1 Scope
This European Standard specifies the essential safety requirements for injection moulding machines for the
processing of plastics and/or rubber.
All hazards listed in Clause 4 are covered by this standard.
The following machines are not covered:
 machines on which the clamping unit can only be operated by the physical force of the operator;
 injection moulding machines with pneumatic drives for the platen movement;
 injection moulding machines with vertical platen movements driven by an electrical axis;
 blow moulding machines associated with an injection process (EN 422);
 machines for reaction injection moulding (RIM) (EN 1612-1);
 presses (EN 289);
 footwear moulding machines covered by EN 1845.
The safety requirements for the interaction between injection moulding machines and ancillary equipment are
specified.
This standard covers magnetic clamping systems only if:
 machines have horizontal clamping units; and
 the mould area is protected by guards; and
 such systems are delivered at the same time as the injection moulding machine by the machine
manufacturer.
This standard does not cover requirements for the design of an exhaust system.
This standard is not applicable to injection moulding machines which are manufactured before the date of its
publication as an EN.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendment) applies.
EN 349:1993+A1:2008, Safety of machinery — Minimum gaps to avoid crushing of parts of the human body
EN 574:1996+A1:2008, Safety of machinery — Two-hand control devices — Functional aspects — Principles
for design
EN 953, Safety of machinery — Guards — General requirements for the design and construction of fixed and
movable guards
EN 982:1996+A1:2008, Safety of machinery — Safety requirements for fluid power systems and their
components — Hydraulics
EN 983:1996+A1:2008, Safety of machinery — Safety requirements for fluid power systems and their
components — Pneumatics
EN 999:1998+A1:2008, Safety of machinery — The positioning of protective equipment in respect of approach
speeds of parts of the human body
EN 1088:1995+A2:2008, Safety of machinery — Interlocking devices associated with guards – Principles for
design and selection
EN 1760-1:1997+A1:2009, Safety of machinery — Pressure sensitive protective devices — Part 1: General
principles for the design and testing of pressure sensitive mats and pressure sensitive floors
EN 1760-2:2001+A1:2009, Safety of machinery — Pressure sensitive protective devices — Part 2: General
principles for the design and testing of pressure sensitive edges and pressure sensitive bars
EN 60204-1:2006, Safety of machinery — Electrical equipment of machines — Part 1: General requirements
(IEC 60204-1:2005, modified)
EN 60529:1991, Degrees of protection provided by enclosures (IP Code) (IEC 60529:1989)
EN 61000-6-2:2005, Electromagnetic compatibility (EMC) — Part 6-2: Generic standards — Immunity for
industrial environments (IEC 61000-6-2:2005)
EN 61000-6-4:2007, Electromagnetic compatibility (EMC) — Part 6-4: Generic standards — Emission
standard for industrial environments (IEC 61000-6-4:2006)
EN 61496-1:2004, Safety of machinery — Electro-sensitive protective equipment — Part 1: General
requirements and tests (IEC 61496-1:2004, modified)
CLC/TS 61496-2:2006, Safety of machinery — Electrosensitive protective equipment — Part 2: Particular
requirements for equipment using active opto-electronic protective devices (AOPDs) (IEC 61496- 2:2006)
CLC/TS 61496-3:2008, Safety of machinery — Electro-sensitive protective equipment — Part 3: Particular
requirements for Active opto-electronic protective devices responsive to diffuse reflection (AOPDDR)
(IEC 61496-3:2008)
EN ISO 3744:2009, Acoustics — Determination of sound power levels of noise sources using sound pressure
— Engineering method in an essentially free-field over a reflecting plane (ISO 3744:1994)
EN ISO 3746:2009, Acoustics — Determination of sound power levels of noise sources using sound pressure
— Survey method employing an enveloping measurement surface over a reflecting plane (ISO 3746:1995,
including Cor 1:1995)
EN ISO 3747:2009, Acoustics — Determination of sound power levels of noise sources using sound pressure
— Comparison method for use in situ (ISO 3747:2000)
EN ISO 4871:2009, Acoustics — Declaration and verification of noise emission values of machinery and
equipment (ISO 4871:1996)
EN ISO 11201:2009, Acoustics — Noise emitted by machinery and equipment — Measurement of emission
sound pressure levels at a work station and at other specified positions — Engineering method in an
essentially free field over a reflecting plane (ISO 11201:1995, including Cor 1:1997)
EN ISO 11202:2009, Acoustics — Noise emitted by machinery and equipment — Measurement of emission
sound pressure levels at a work station and at other specified positions — Survey method in situ
(ISO 11202:1995)
EN ISO 12100-1:2003, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic
terminology, methodology (ISO 12100-1:2003)
EN ISO 12100-2:2003, Safety of machinery — Basic concepts, general principles for design — Part 2:
Technical principles (ISO 12100-2:2003)
EN ISO 13732-1:2008, Ergonomics of the thermal environment — Methods for the assessment of human
responses to contact with surfaces — Part 1: Hot surfaces (ISO 13732-1:2006)
EN ISO 13849-1:2008, Safety of machinery — Safety-related parts of control systems — Part 1: General
principles for design (ISO 13849-1:2006)
EN ISO 13850:2008, Safety of machinery — Emergency stop — Principles for design (ISO 13850:2006)
EN ISO 13857:2008, Safety of machinery — Safety distances to prevent hazard zones being reached by
upper and lower limbs (ISO 13857:2008)
EN ISO 14122-2:2001, Safety of machinery — Permanent means of access to machinery — Part 2: Working
platforms and walkways (ISO 14122-2:2001)
EN ISO 14122-3:2001, Safety of machinery — Permanent means of access to machinery — Part 3: Stairs,
stepladders and guard-rails (ISO 14122-3:2001)
EN ISO 14122-4:2004, Safety of machinery — Permanent means of access to machinery — Part 4: Fixed
ladders (ISO 14122-4:2004)
EN ISO/IEC 17025:2005, General requirements for the competence of testing and calibration laboratories
(ISO/IEC 17025:2005)
3 Terms and definitions
For the purpose of this document, the following terms and definitions apply.
3.1
injection moulding machine
machine for the discontinuous production of moulded parts from plastics and/or rubber. The plasticised
material is injected through a nozzle into a mould containing one or more cavities in which the article is formed.
NOTE If the plasticised material is not injected through a nozzle into the mould then EN 289 refers.
An injection moulding machine essentially consists of one or more clamping units, one or more plasticising
and/or injection units, drive and control systems.
3.2
mould area
area between the platens
3.3
clamping mechanism area
area which comprises mechanisms for the movement of the mobile platen and/or the application of the
clamping force
3.4
plasticising and/or injection unit
unit for plasticising and subsequently injecting material through a nozzle
NOTE On some machines the plasticising unit(s) may be separate from the injection unit(s).
3.5
rubber
for the purpose of this document: any material which generates no splashing hazards during processing
3.6
carousel machine
machine consisting of two or more clamping units mounted on a carousel in either a vertical or horizontal
configuration to index to one or more fixed plasticising and/or injection units (see Figure 1)

Figure 1 — Example of a carousel machine
3.7
shuttle-table machine/machine with a sliding lower platen and turn-table machine
machines designed to contain one or more lower parts of moulds attached to a table/sliding lower platen. The
table indexes the lower parts of the mould by a sliding or rotary motion between the loading/unloading station
and the injection position (see Figures 2 and 3).

Figure 2 — Examples of shuttle-table machines (two stations left; single station right), shown without
guards for the movements of the table
Figure 3 — Example of a turn-table machine, shown without guards for the movements of the table
3.8
multi-station machine with mobile injection unit
machine consisting of a mobile plasticising and/or injection unit which indexes between two or more stationary
clamping units (see Figures 4 and 5)

Figure 4 — Example of multi-station machine with mobile plasticising and injection unit,
shown without guards for the clamping units
Figure 5 — Example of multi-station machine with mobile plasticising and injection unit,
shown with guards for the clamping units
3.9
injection assembling machine
machine with a C-shaped frame and a vertical closing movement used for assembling long or bulky parts by
the injection of rubber (see Figure 6)

Figure 6 — Example of an injection assembling machine,
shown without protective devices for the mould area
3.10
L-type machine
injection moulding machine with injection directed towards the usual operating position (see 3.24) on an axis
of approximately a 90° angle to the axis of the closing movement
3.11
ancillary equipment
equipment which interacts with the injection moulding machine, e.g. pick and place device, robot, mould
changing equipment, mould clamping device or a conveyor
3.12
magnetic clamping system
clamping system utilising magnetic force to attach the mould to the platens
3.13
fluid-assisted injection moulding
injection moulding where a fluid (gas or liquid) is injected separately into the mould to create a cavity in the
moulded part
3.14
cellular foam injection moulding
injection moulding which involves either a gas mixed into the melt or a granulate containing a foaming agent to
achieve a cellular-structured product
3.15
electrical motor
any type of motor using electrical energy, e.g. servo or linear motor
3.16
motor control unit
unit to control the movement, stopping process and standstill of an electrical motor, with or without an
integrated electronic device, e.g. frequency converter, contactor
3.17
electrical axis
system consisting of an electrical motor, a motor control unit and any additional contactors
3.18
standstill
condition under which there is no movement of a machine part with an electrical axis
3.19
safe standstill
standstill (see 3.18), during which additional measures are taken to prevent unexpected start-up
3.20
safety related input
input to a motor control unit used to interrupt the energy supply to the electrical motor
3.21
stopping
deceleration of a movement of a machine part with an electrical axis until standstill (see 3.18) is achieved
3.22
safe stopping
stopping (see 3.21), during which additional measures are taken to prevent a dangerous run-down
3.23
run-down time
time from initiation of stopping (see 3.21) until standstill (see 3.18) is achieved
3.24
usual operating position
position in front of the mould area where the operator usually stands
4 List of significant hazards
4.1 General
Clause 4 lists the significant hazards associated with injection moulding machines.
NOTE The numbering system of the safety requirements and protective measures in Clause 5 corresponds with the
numbering system of the signifi
...
