EN 16590-3:2014
(Main)Tractors and machinery for agriculture and forestry - Safety-related parts of control systems - Part 3: Series development, hardware and software (ISO 25119-3:2010 modified)
Tractors and machinery for agriculture and forestry - Safety-related parts of control systems - Part 3: Series development, hardware and software (ISO 25119-3:2010 modified)
This part of EN 16590 provides general principles for the series development, hardware and software of safety-related parts of control systems (SRP/CS) on tractors used in agriculture and forestry, and on self-propelled ride-on machines and mounted, semi-mounted and trailed machines used in agriculture. It can also be applied to municipal equipment (e.g. street sweeping machines). It specifies the characteristics and categories required of SRP/CS for carrying out their safety functions.
This part of EN 16590 is applicable to the safety-related parts of electrical/electronic/programmable electronic systems (E/E/PES), as these relate to mechatronic systems. It does not specify which safety functions, categories or performance levels are to be used for particular machines.
Machine specific standards (type-C standards) can identify performance levels and/or categories or they should be determined by the manufacturer of the machine based on risk assessment.
It is not applicable to non-E/E/PES systems (e.g. hydraulic, mechanic or pneumatic).
Traktoren und Maschinen für die Land- und Forstwirtschaft - Sicherheitsbezogene Teile von Steuerungen - Teil 3: Serienentwicklung, Hardware, Software (ISO 25119-3:2010 modifiziert)
Dieser Teil der FprEN 16590 gibt allgemeine Gestaltungsleitsätze für Serienentwicklung, Hardware und Software sicherheitsbezogener Teile von Steuerungen (SRP/CS) in land- und forstwirtschaftlichen Traktoren, selbstfahrenden Aufsitzmaschinen sowie Anbau-, Aufsattel- und Anhängemaschinen für landwirtschaftliche Geräte. Sie kann auch auf kommunale Geräte (z. B. Straßenkehrmaschinen) angewandt werden. Sie beschreibt Merkmale und Kategorien von SRP/CS Systemen, die zur Ausführung sicherheitsrelevanter Funktionen erforderlich sind.
Dieser Teil der FprEN 16590 gilt für sicherheitsbezogene Teile elektrischer/elektronischer/programmierbarer elektronischer Systeme (E/E/PES) als Teil mechatronischer Systeme. Sie schreibt jedoch nicht vor, welche Sicherheitsfunktionen, Kategorien oder Performance Levels für bestimmte Maschinen anzuwenden sind.
Maschinensicherheitsnormen (Typ C-Normen) können entweder Performance Levels und/oder Kategorien selbständig identifizieren oder sie sollten durch den Maschinenhersteller auf Basis einer Risikobeurteilung festgelegt werden.
Sie ist nicht anzuwenden auf nicht-E/E/PES Systeme (z. B. hydraulische, mechanische und pneumatische).
Tracteurs et matériels agricoles et forestiers - Parties des systèmes de commande relatives à la sécurité - Partie 3: Développement en série, matériels et logiciels (ISO 25119-3:2010 modifié)
La présente partie de l’EN 16590 fournit des principes généraux pour le développement en série, les matériels et les logiciels des parties relatives à la sécurité des systèmes de commande (SRP/CS) utilisés sur les tracteurs agricoles et forestiers, sur les machines automotrices à conducteur porté et sur les machines portées, semi-portées et remorquées utilisées en agriculture. Elle peut être également applicable aux équipements municipaux (par exemple machines de balayage des rues). Elle spécifie les caractéristiques et les catégories requises des SRP/CS pour réaliser leurs fonctions de sécurité.
La présente partie de l’EN 16590 est applicable aux parties relatives à la sécurité des systèmes électriques/électroniques/électroniques programmables (E/E/PES). Dans la mesure où celles-ci sont liées aux systèmes mécatroniques, elle ne spécifie ni les fonctions de sécurité ni les catégories censées être utilisées dans un cas particulier.
Les normes spécifiques (normes de type-C) peuvent identifier les niveaux de performance et/ou catégories ou il convient qu’ils soient déterminés par le fabricant de la machine sur la base de l’évaluation du risque.
Elle n'est pas applicable aux systèmes non-E/E/PES (par exemple hydraulique, mécanique et pneumatique).
Traktorji ter kmetijski in gozdarski stroji - Varnostni deli krmilnih sistemov - 3. del: Razvoj serije, strojna in programska oprema (ISO 25119-3:2010, spremenjen)
Standard EN 16590-3 podaja splošna načela za razvoj skupine, strojne in programske opreme za varnostne dele krmilnih sistemov (SRP/CS) za traktorje, ki se uporabljajo v kmetijstvu in gozdarstvu, in za samognane stroje s sedežem ter za priklopne, polpriklopne in vlečene stroje, ki se uporabljajo v kmetijstvu. Uporablja se lahko tudi za komunalno opremo (npr. za pometalne stroje). Določa lastnosti in kategorije, ki so zahtevane za SRP/CS, da lahko ti izvajajo svoje varnostne funkcije. Ta del standarda EN 16590 se uporablja za varnostne dele električnih/elektronskih/programirljivih elektronskih sistemov (E/E/PES), saj so ti povezani z mehatronskimi sistemi. Ne določa, katere varnostne funkcije, kategorije ali ravni delovanja je treba uporabiti za posamezne stroje. Standardi, značilni za stroje (standardi tipa C), lahko določajo ravni zmogljivosti in/ali kategorije oziroma naj bi jih določil proizvajalec stroja glede na oceno tveganja.
General Information
- Status
- Withdrawn
- Publication Date
- 22-Apr-2014
- Withdrawal Date
- 20-Jan-2026
- Technical Committee
- CEN/TC 144 - Tractors and machinery for agriculture and forestry
- Drafting Committee
- CEN/TC 144/WG 1 - General safety requirements
- Current Stage
- 9960 - Withdrawal effective - Withdrawal
- Start Date
- 19-Dec-2018
- Completion Date
- 21-Jan-2026
Relations
- Effective Date
- 26-Dec-2018
Get Certified
Connect with accredited certification bodies for this standard
BSI Group
BSI (British Standards Institution) is the business standards company that helps organizations make excellence a habit.
Rainforest Alliance
International non-profit sustainability certification organization.
SCS Global Services
Global leader in environmental and sustainability certification.
Sponsored listings
Frequently Asked Questions
EN 16590-3:2014 is a standard published by the European Committee for Standardization (CEN). Its full title is "Tractors and machinery for agriculture and forestry - Safety-related parts of control systems - Part 3: Series development, hardware and software (ISO 25119-3:2010 modified)". This standard covers: This part of EN 16590 provides general principles for the series development, hardware and software of safety-related parts of control systems (SRP/CS) on tractors used in agriculture and forestry, and on self-propelled ride-on machines and mounted, semi-mounted and trailed machines used in agriculture. It can also be applied to municipal equipment (e.g. street sweeping machines). It specifies the characteristics and categories required of SRP/CS for carrying out their safety functions. This part of EN 16590 is applicable to the safety-related parts of electrical/electronic/programmable electronic systems (E/E/PES), as these relate to mechatronic systems. It does not specify which safety functions, categories or performance levels are to be used for particular machines. Machine specific standards (type-C standards) can identify performance levels and/or categories or they should be determined by the manufacturer of the machine based on risk assessment. It is not applicable to non-E/E/PES systems (e.g. hydraulic, mechanic or pneumatic).
This part of EN 16590 provides general principles for the series development, hardware and software of safety-related parts of control systems (SRP/CS) on tractors used in agriculture and forestry, and on self-propelled ride-on machines and mounted, semi-mounted and trailed machines used in agriculture. It can also be applied to municipal equipment (e.g. street sweeping machines). It specifies the characteristics and categories required of SRP/CS for carrying out their safety functions. This part of EN 16590 is applicable to the safety-related parts of electrical/electronic/programmable electronic systems (E/E/PES), as these relate to mechatronic systems. It does not specify which safety functions, categories or performance levels are to be used for particular machines. Machine specific standards (type-C standards) can identify performance levels and/or categories or they should be determined by the manufacturer of the machine based on risk assessment. It is not applicable to non-E/E/PES systems (e.g. hydraulic, mechanic or pneumatic).
EN 16590-3:2014 is classified under the following ICS (International Classification for Standards) categories: 35.240.68 - IT applications in agriculture; 35.240.99 - IT applications in other fields; 65.060.01 - Agricultural machines and equipment in general. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 16590-3:2014 has the following relationships with other standards: It is inter standard links to EN ISO 25119-3:2018. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
EN 16590-3:2014 is associated with the following European legislation: EU Directives/Regulations: 2006/42/EC; Standardization Mandates: M/396. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
EN 16590-3:2014 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Traktorji ter kmetijski in gozdarski stroji - Varnostni deli krmilnih sistemov - 3. del: Razvoj serije, strojna in programska oprema (ISO 25119-3:2010, spremenjen)Sicherheit von Land- und Forstmaschinen - Sicherheitsbezogene Teile von Steuerungen - Teil 3: Serienentwicklung, Hardware, Software (ISO 25119-3:2010 modifiziert)Tracteurs et matériels agricoles et forestiers - Parties des systèmes de commande relatives à la sécurité - Partie 3: Développement en série, matériels et logiciels (ISO 25119-3:2010 modifié)Tractors and machinery for agriculture and forestry - Safety-related parts of control systems - Part 3: Series development, hardware and software (ISO 25119-3:2010 modified)65.060.01Kmetijski stroji in oprema na splošnoAgricultural machines and equipment in general35.240.99IT applications in other fieldsICS:Ta slovenski standard je istoveten z:EN 16590-3:2014SIST EN 16590-3:2014en,fr,de01-julij-2014SIST EN 16590-3:2014SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16590-3
April 2014 ICS 35.240.99; 65.060.01 English Version
Tractors and machinery for agriculture and forestry - Safety-related parts of control systems - Part 3: Series development, hardware and software (ISO 25119-3:2010 modified)
Tracteurs et matériels agricoles et forestiers - Parties des systèmes de commande relatives à la sécurité - Partie 3: Développement en série, matériels et logiciels (ISO 25119-3:2010 modifié)
Sicherheit von Land- und Forstmaschinen - Sicherheitsbezogene Teile von Steuerungen - Teil 3: Serienentwicklung, Hardware, Software (ISO 25119-3:2010 modifiziert) This European Standard was approved by CEN on 23 February 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16590-3:2014 ESIST EN 16590-3:2014

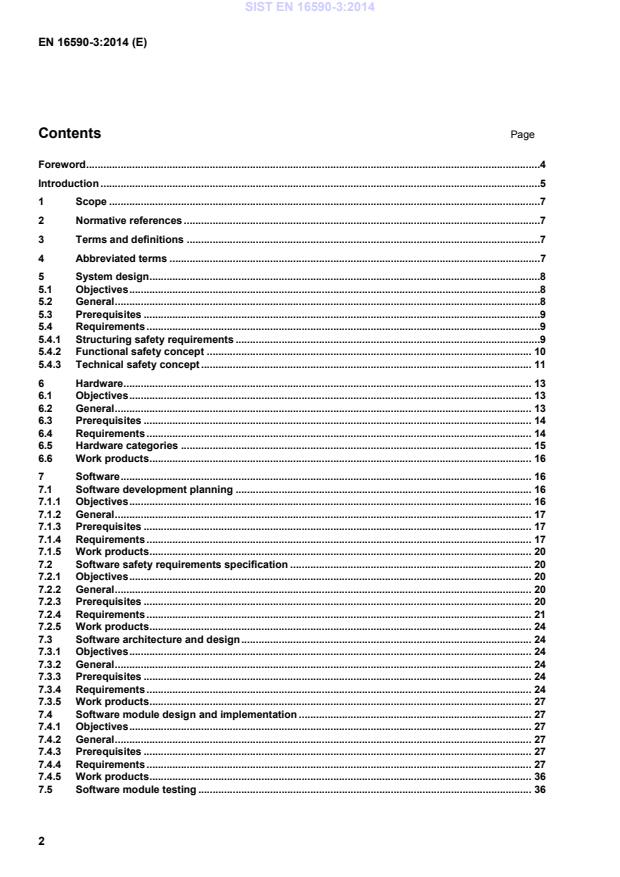

Example of agenda for assessment of functional safety at AgPL = e . 52 A.1 Functions of system . 52 A.2 Hardware . 52 A.3 Safety concept . 52 A.4 Safety analysis and safety data . 52 A.5 Safety design process for phases of life cycle . 52 A.6 Software development . 53 A.7 Verification and testing . 53 A.8 Documentation and safety documentation. 53 A.9 Summary and assessment . 53 Annex B (informative)
Independence by software partitioning . 54 B.1 General . 54 B.2 Terms, definitions and abbreviated terms . 54 B.3 Objectives . 56 B.4 General . 57 B.5 Requirements . 57 B.5.1 General requirements . 57 B.5.2 Several partitions within a single microcontroller . 57 B.5.3 Several partitions within the scope of a micro-controller network . 60 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Machinery Directive 2006/42/EC . 63 Bibliography . 64
Key
result
verification
validation a The first of two numbers separated by a slash refer to the respective part of EN 16590, and the second to the clause in that document: 2/6 is EN 16590-2:2014/Clause 6, 3/5 is EN 16590-3:2014/Clause 5, and so on. Figure 1 — Structuring of safety requirements 5.3 Prerequisites Before beginning system design, define the safety-related function requirements, application and operation environment. 5.4 Requirements 5.4.1 Structuring safety requirements The functional safety concept specifies the basic functioning of the safety-related system with which the safety goals are to be fulfilled. The basic allocation of functional safety requirements to the system architecture is specified by the technical safety concept in the form of technical safety requirements. This system architecture is comprised of both hardware and software. The hardware safety requirements refine and solidify the requirements of the technical safety concept. Clause 6 describes how to specify the hardware requirements in detail. The software safety requirements are derived from the requirements of the technical safety concept and the underlying hardware. The requirements for the software defined in Clause 7 shall be taken into account. SIST EN 16590-3:2014
Key
result
verification
validation a The first of two numbers separated by a slash refer to this part of EN 16590 and the second to Clause 6. Figure 2 — Hardware development V-model SIST EN 16590-3:2014
Key I input device (e.g. sensor) SI interconnecting signal input L logic SO interconnecting signal output O output device (e.g. actuator) m monitoring TE test equipment Cat hardware category OTE output of test equipment
Figure 3 — Integrated system with maximum AgPL for category 2 6.6 Work products The following work products are applicable to hardware design: a) hardware safety validation test plan; b) hardware safety validation test specification; c) hardware safety validation test results; d) hardware system integration test plan/hardware subsystem test plan; e) hardware system integration test specification; f) hardware system integration test results/hardware subsystem test results. 7 Software 7.1 Software development planning 7.1.1 Objectives The objective is to determine and plan the individual phases of software development. This includes the process of software development itself, which is described in this clause, as well as the necessary supporting processes described in EN 16590-4:2014, Clause 10. SIST EN 16590-3:2014
...
