EN ISO 23953-2:2005/A1:2012

SLOVENSKI STANDARD
SIST EN ISO 23953-2:2006/oprA1:2009
01-november-2009
5D]VWDYQHKODGLOQHRPDUHGHO5D]YUãþDQMH]DKWHYHLQSUHVNXVQLSRJRML
'RSROQLOR,62'$0
Refrigerated display cabinets - Part 2: Classification, requirements and test conditions -
Amendment 1 (ISO 23953-2:2005/DAM 1:2009)
Meubles frigorifiques de vente - Partie 2: Classification, exigences et méthodes d'essai -
Amendement 1 (ISO 23953-2:2005/DAM 1:2009)
Ta slovenski standard je istoveten z: EN ISO 23953-2:2005/prA1
ICS:
97.130.20 Hladilne naprave za trgovine Commercial refrigerating
appliances
SIST EN ISO 23953-2:2006/oprA1:2009 en,fr
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

SIST EN ISO 23953-2:2006/oprA1:2009

SIST EN ISO 23953-2:2006/oprA1:2009

EUROPEAN STANDARD
DRAFT
EN ISO 23953-2:2005
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
September 2009
ICS 97.130.20
English Version
Refrigerated display cabinets - Part 2: Classification,
requirements and test conditions - Amendment 1 (ISO 23953-
2:2005/DAM 1:2009)
Meubles frigorifiques de vente - Partie 2: Classification,
exigences et méthodes d'essai - Amendement 1 (ISO
23953-2:2005/DAM 1:2009)
This draft amendment is submitted to CEN members for parallel enquiry. It has been drawn up by the Technical Committee CEN/TC 44.

This draft amendment A1, if approved, will modify the European Standard EN ISO 23953-2:2005. If this draft becomes an amendment,
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this
amendment into the relevant national standard without any alteration.

This draft amendment was established by CEN in three official versions (English, French, German). A version in any other language made
by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same
status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2009 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 23953-2:2005/prA1:2009: E
worldwide for CEN national Members.

SIST EN ISO 23953-2:2006/oprA1:2009
EN ISO 23953-2:2005/prA1:2009 (E)

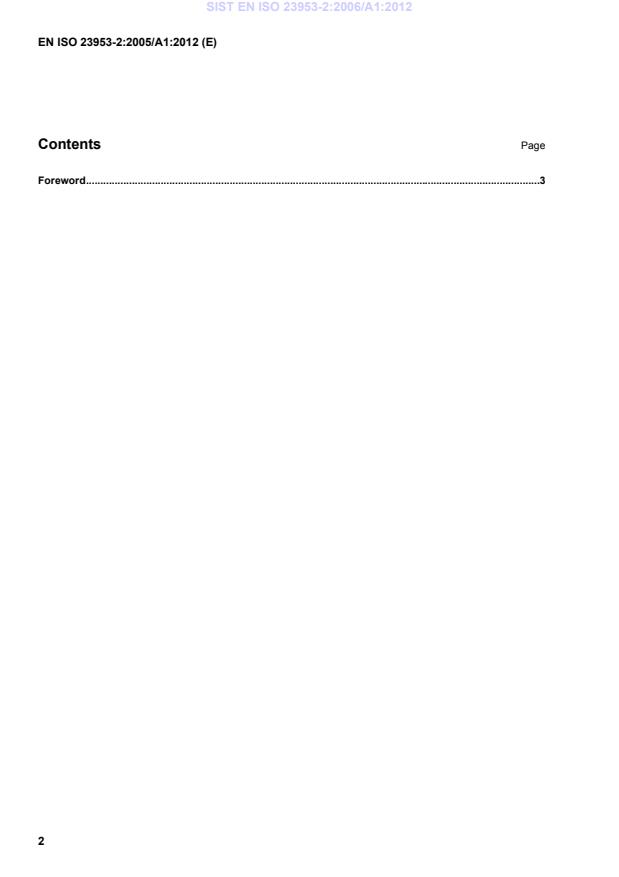

Contents Page
Foreword .3

SIST EN ISO 23953-2:2006/oprA1:2009
EN ISO 23953-2:2005/prA1:2009 (E)
Foreword
This document (EN ISO 23953-2:2005/prA1:2009) has been prepared by Technical Committee CEN/TC 44
“Commercial refrigerated cabinets, catering refrigerating appliances and industrial refrigeration", the
secretariat of which is held by UNI, in collaboration with Technical Committee ISO/TC 86 "Refrigeration and
air-conditioning".
This document is currently submitted to the parallel Enquiry.
Endorsement notice
The text of ISO 23953-2:2005/DAM 1:2009 has been approved by CEN as a EN ISO 23953-2:2005/prA1:2009
without any modification.
SIST EN ISO 23953-2:2006/oprA1:2009

SIST EN ISO 23953-2:2006/oprA1:2009

DRAFT AMENDMENT ISO 23953-2:2005/DAM 1
ISO/TC 86/SC 7 Secretariat: ANSI
Voting begins on Voting terminates on

2009-09-03 2010-02-03
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION  •  МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ  •  ORGANISATION INTERNATIONALE DE NORMALISATION

Refrigerated display cabinets —
Part 2:
Classification, requirements and test conditions
AMENDMENT 1
Meubles frigorifiques de vente —
Partie 2: Classification, exigences et méthodes d'essai
AMENDEMENT 1
ICS 97.130.20
ISO/CEN PARALLEL PROCESSING
This draft has been developed within the European Committee for Standardization (CEN), and
processed under the CEN-lead mode of collaboration as defined in the Vienna Agreement.
This draft is hereby submitted to the ISO member bodies and to the CEN member bodies for a parallel
five-month enquiry.
Should this draft be accepted, a final draft, established on the basis of comments received, will be
submitted to a parallel two-month approval vote in ISO and formal vote in CEN.

To expedite distribution, this document is circulated as received from the committee
secretariat. ISO Central Secretariat work of editing and text composition will be undertaken at
publication stage.
Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du
secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au
Secrétariat central de l'ISO au stade de publication.

THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE REFERRED TO
AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO WHICH
REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH THEY
ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
©  International Organization for Standardization, 2009

SIST EN ISO 23953-2:2006/oprA1:2009
ISO 23953-2:2005/DAM 1
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading
this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in
this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

Copyright notice
This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted
under the applicable laws of the user’s country, neither this ISO draft nor any extract from it may be reproduced,
stored in a retrieval system or transmitted in any form or by any means, electronic, photocopying, recording or
otherwise, without prior written permission being secured.
Requests for permission to reproduce should be addressed to either ISO at the address below or ISO’s member
body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
ii © ISO 2009 – All rights reserved

SIST EN ISO 23953-2:2006/oprA1:2009
ISO 23953-2:2005/DAM 1
Contents Page
Foreword .iv

SIST EN ISO 23953-2:2006/oprA1:2009
ISO 23953-2:2005/DAM 1
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
Amendment 1 to ISO 23953-2:2005 was prepared by Technical Committee ISO/TC 86, Refrigeration and air-
conditioning, Subcommittee SC 7, and by Technical Committee CEN/TC 44, Commercial refrigerated
cabinets, catering refrigerating appliances and industrial refrigeration in collaboration.

iv © ISO 2009 – All rights reserved

SIST EN ISO 23953-2:2006/oprA1:2009
DRAFT AMENDMENT ISO 23953-2:2005/DAM 1

Refrigerated display cabinets —
Part 2:
Classification, requirements and test conditions
AMENDMENT 1
Modify the fifth paragraph of clause 4.1.6.2 as follows:
The air return temperature shall be displayed. The temperature sensor shall be mounted to indicate the
temperature at the air-return side at the level of the clearly marked load limit line, except for vertical cabinets
for chilled foodstuffs, vertical closed cabinets for chilled and frozen foodstuffs, horizontal cabinets for chilled
and frozen foodstuffs with a front glass and cabinets with natural convection cooling.

Add the following text just after the two indents of b) in clause 4.1.6.2:
For horizontal cabinets for chilled and frozen foodstuffs with a front glass the temperature sensor probe
position shall be defined by option a).

For cabinets with natural convection cooling, the manufacturer defines the temperature sensor location.

Add the following text and figures after the third paragraph of clause 5.3.1.3.2:
For all vertical and semi-vertical cabinets, when the warm condenser air flow direction is across the testing
room air flow direction, from the front to the back of the cabinet, then an air deflector positioned as shown in
Fig. 1 shall be used in such a way to create a duct between the back of the cabinet and the vertical panel.
This duct shall be closed in the front end side towards the testing room airflow discharge direction and open in
the opposite side. On the top this duct shall be closed at the same height of the cabinet.
The distance d between the back of the cabinet and the vertical panel shall be specified by the manufacturer,
p
in compliance with EN ISO 23953-2, clause 5.3.2.1.
SIST EN ISO 23953-2:2006/oprA1:2009
ISO 23953-2:2005/DAM 1
Key
l length of the air back duct = length of the cabinet
h height of the air back duct = height of the cabinet
d  depth of the air back duct
p
Figure 3 — Size end position of the air back duct
In general, the power of horizontal cabinets is much lower than that of vertical cases. The installation of a back
duct is therefore not necessary.
Usually plug-in horizontal cabinets are not intended to be placed against a wall so that a vertical partition
against the rear is not necessary (clause. 5.3.2.1)
The warm condenser air can be removed by the test room airflow.
The air movement of the test room shall be parallel to the longitudinal axis (EN ISO 23953-2, clause 5.3.2.2).
The direction of the warm condenser airflow should be the same as the test room air flow direction and not
opposed to it.
If this is not possible because of the cabinet’s design the condenser airflow should be across the test room
airflow direction (see Figure 4).
2 © ISO 2009 – All rights reserved

SIST EN ISO 23953-2:2006/oprA1:2009
ISO 23953-2:2005/DAM 1
Key
1 M-package
a testing room air flow direction
b air flow direction of condensing unit
Figure 4 — Condensing air with test room air flow, or across, but not opposed the test room air flow

Renumber Figures 3, 4, 5 and 6 of clause 5.3.1.3.2 as Figures 5, 6 ,7 and 8

Delete the following dimension and mass of test packages from Table 4, clause 5.3.1.4:
(37, 5 x 100 x 200) mm 750 g
Renumber Figure 7 of clause 5.3.1.4 as Figure 9

Renumber Figure 8 of clause 5.3.1.5 as Figure 10

Add a new clause 5.3.1.6 "Alternative for filling test packages" as follows:
Alternative filling test packages having the dimensions shown in Table 4 and density of (480 ± 80) kg/m can
be used, except for rows and columns on transverse section containing M-packages.
SIST EN ISO 23953-2:2006/oprA1:2009
ISO 23953-2:2005/DAM 1
This test package may be a box made of plastic material of any density, and of 1 mm nominal thickness.
Cellular or foam material shall not be used. The case shall not incorporate any protrusions that would cause
the vertical separation of packages in a stack. Opposite faces shall be substantially parallel, and moulding
draft shall be the minimu
...
