Blast chillers and freezers cabinets for professional use - Classification, requirements and test conditions

This European Standard specifies the requirements for the construction, characteristics, performance including energy consumption of blast cabinet for professional used in commercial kitchens, hospitals, canteens, institutional catering and similar professional areas.
The appliances covered by this European Standard are intended to rapidly cool down hot foodstuffs up to a load capacity of 300 kg.
This European Standard applies to:
-   blast chillers;
-   blast freezers;
-   multi-use blast chillers/freezers.
The following appliances are not covered:
-   roll-in cabinet;
-   pass-through cabinet;
-   cabinets with remote condensing unit;
NOTE   Specific requirements for roll-in cabinets, pass-through cabinets and cabinets with remote condensing unit are under discussion.
-   cabinets with water cooled condenser;
-   blast chilling and freezing tunnels;
-   continuous blast-chilling and blast-freezing equipment;
-   bakery combined freezing and storage units.

Schnellkühl- und Schockfrostkabinen für den gewerblichen Gebrauch - Klassifizierung, Anforderungen und Prüfbedingungen

Diese Europäische Norm legt die Anforderungen an die Konstruktion, Eigenschaften und Leistung, einschließlich Energieaufnahme, von Schnellkühlkabinen für den gewerblichen Gebrauch in Großküchen, Krankenhäusern, Kantinen, Catering-Anwendungen und ähnlichen professionellen Bereichen fest.
Die in dieser Europäischen Norm behandelten Geräte dienen der schnellen Kühlung von heißen Lebensmittelerzeugnissen bis zu einer Traglast von 300 kg.
Diese Europäische Norm gilt für:
-   Schnellkühler;
-   Schockfroster;
-   Multifunktionsschnellkühler/ schockfroster.
Die folgenden Möbel werden in dieser Norm nicht behandelt:
-   Container Regale;
-   Durchgangsmöbel;
-   Möbel mit getrennt aufgestelltem Verflüssigungssatz;
ANMERKUNG   Besondere Anforderungen für Container-Regale, Durchgangsmöbel und Möbel mit getrennt aufgestelltem Verflüssigungssatz sind in Diskussion.
-   Möbel mit wassergekühltem Verflüssigungssatz;
-   Schnellkühl- und Schockfrosttunnel;
-   Ausrüstung für dauerhaftes Schnellkühlen und Schockfrosten;
-   Kombi Gefrier  und -Speichergeräte für Bäckereien.

Cellules de refroidissement et congélateurs pour usage professionnel - Classification, exigences et conditions d'essai

La présente Norme européenne spécifie les exigences relatives à la construction, aux caractéristiques et aux performances, y compris la consommation d'énergie, des cellules destinées à un usage professionnel dans les cuisines professionnelles, les hôpitaux, les cafétérias, la restauration collective et d'autres secteurs professionnels similaires.
Les appareils couverts par la présente Norme européenne sont destinés à refroidir rapidement des denrées alimentaires chaudes jusqu'à une capacité de charge de 300 kg.
La présente Norme européenne s'applique aux appareils suivants :
-   cellules de refroidissement rapide ;
-   cellules de surgélation rapide ;
-   cellules de refroidissement/surgélation rapide multi-usages.
Les appareils suivants ne sont pas couverts :
-   cellules à chariot ;
-   cellules traversantes ;
-   cellules avec groupe de condensation séparé ;
NOTE   Des exigences spécifiques applicables aux cellules à chariot, aux cellules traversantes et aux cellules avec groupe de condensation séparé sont à l'étude.
-   cellules avec condenseur refroidi à l'eau ;
-   tunnels de refroidissement et de surgélation rapides ;
-   équipements de refroidissement rapide et de surgélation rapide en continu ;
-   surgélateurs-conservateurs pour boulangeries.

Hladilniki in zamrzovalne omare za poklicno uporabo - Razvrstitev, zahteve in preskusni pogoji

General Information

Status
Withdrawn
Publication Date
09-Jan-2018
Withdrawal Date
12-Oct-2021
Current Stage
9960 - Withdrawal effective - Withdrawal
Completion Date
13-Oct-2021

Relations

Buy Standard

Standard
EN 17032:2018
English language
13 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-marec-2018
Hladilniki in zamrzovalne omare za poklicno uporabo - Razvrstitev, zahteve in
preskusni pogoji
Blast chillers and freezers cabinets for professional use - Classification, requirements
and test conditions
Schnellkühl- und Schockfrostkabinen für den gewerblichen Gebrauch - Klassifizierung,
Anforderungen und Prüfbedingungen
Cellules de refroidissement et congélateurs pour usage professionnel - Classification,
exigences et conditions d'essai
Ta slovenski standard je istoveten z: EN 17032:2018
ICS:
97.130.20 Hladilne naprave za trgovine Commercial refrigerating
appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 17032
EUROPEAN STANDARD
NORME EUROPÉENNE
January 2018
EUROPÄISCHE NORM
ICS 97.130.20
English Version
Blast chillers and freezers cabinets for professional use -
Classification, requirements and test conditions
Cellules de refroidissement et congélateurs pour usage Schnellkühl- und Schockfrostkabinen für den
professionnel - Classification, exigences et conditions gewerblichen Gebrauch - Klassifizierung,
d'essai Anforderungen und Prüfbedingungen
This European Standard was approved by CEN on 22 October 2017.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17032:2018 E
worldwide for CEN national Members.

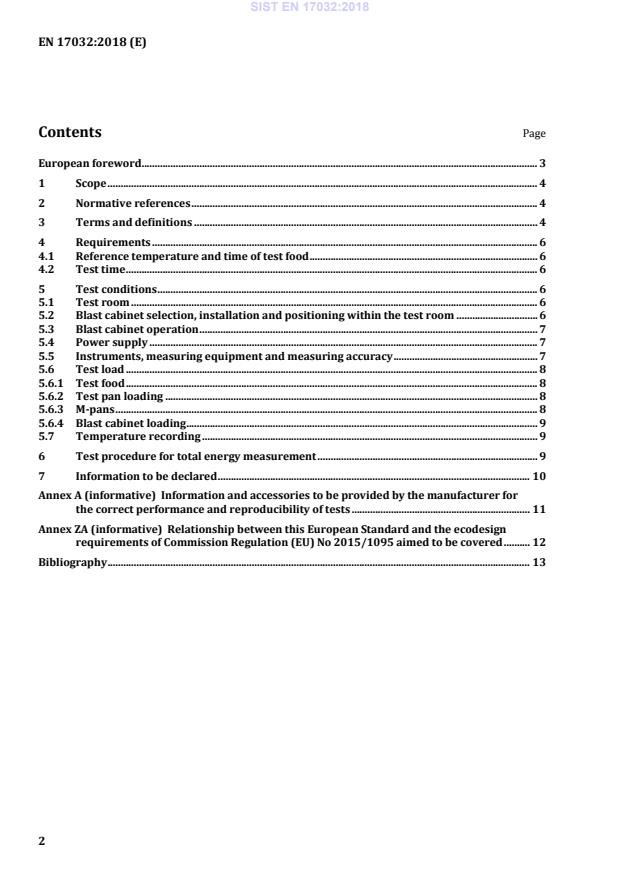

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Requirements . 6
4.1 Reference temperature and time of test food . 6
4.2 Test time . 6
5 Test conditions . 6
5.1 Test room . 6
5.2 Blast cabinet selection, installation and positioning within the test room . 6
5.3 Blast cabinet operation . 7
5.4 Power supply . 7
5.5 Instruments, measuring equipment and measuring accuracy . 7
5.6 Test load . 8
5.6.1 Test food . 8
5.6.2 Test pan loading . 8
5.6.3 M-pans . 8
5.6.4 Blast cabinet loading . 9
5.7 Temperature recording . 9
6 Test procedure for total energy measurement . 9
7 Information to be declared . 10
Annex A (informative) Information and accessories to be provided by the manufacturer for
the correct performance and reproducibility of tests . 11
Annex ZA (informative) Relationship between this European Standard and the ecodesign
requirements of Commission Regulation (EU) No 2015/1095 aimed to be covered . 12
Bibliography . 13

European foreword
This document (EN 17032:2018) has been prepared by Technical Committee CEN/TC 44 “Commercial
and Professional Refrigerating Appliances and Systems, Performance and Energy Consumption”, the
secretariat of which is held by UNI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by July 2018, and conflicting national standards shall be
withdrawn at the latest by July 2018.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements the ecodesign requirements of
Commission Regulation (EU) No 2015/1095.
For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
1 Scope
This European Standard specifies the requirements for the construction, characteristics, performance
including energy consumption of blast cabinet for professional used in commercial kitchens, hospitals,
canteens, institutional catering and similar professional areas.
The appliances covered by this European Standard are intended to rapidly cool down hot foodstuffs up
to a load capacity of 300 kg.
This European Standard applies to:
— blast chillers;
— blast freezers;
— multi-use blast chillers/freezers.
The following appliances are not covered:
— roll-in cabinet;
— pass-through cabinet;
— cabinets with remote condensing unit;
NOTE Specific requirements for roll-in cabinets, pass-through cabinets and cabinets with remote condensing
unit are under discussion.
— cabinets with water cooled condenser;
— blast chilling and freezing tunnels;
— continuous blast-chilling and blast-freezing equipment;
— bakery combined freezing and storage units.
2 Normative references
Not applicable.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
blast cabinet
insulated refrigerating appliance primarily intended to rapidly cool down hot foodstuff
3.1.1
blast chiller
blast cabinet intended to rapidly cool down hot foodstuff to below +10 °C
3.1.2
blast freezer
blast cabinet intended to rapidly cool down hot foodstuff to below −18 °C
Note 1 to entry: Blast freezers are also able to operate as blast chillers.
Note 2 to entry: Different full load capacity may be claimed depending on the mode of operation for chilling or
freezing considered.
3.2
built-in condensing unit
appliance in which the refrigeration unit is an integral part of the cabinet
3.3
remote condensing unit
appliance in which the compressors, condensers and liquid receivers (when required) are not supplied
with the cabinet
3.4
reach-in blast cabinet
appliance which can accommodate shelves, trays or pans
3.5
roll-in blast cabinet
appliance intended to be loaded with trolleys with shelves, trays or pans designed to be introduced as
such in the compartment
3.6
pass-through blast cabinet
equipment in which the cabinet can be loaded and unloaded from both sides
3.7
test food
reference food used for the tests
3.8
full load capacity
weight of the test food, in kg, as declared by the manufacturer, that can be processed in the appliance
for testing its performance
3.9
reference temperature cycle
cycle from which temperature in °C, down to which temperature in °C, the test food is intended to be
cooled and in how many minutes
Note 1 to entry: In Regulation 2015/1095/EU the term reference temperature cycle is reported as standard
temperature cycle.
3.10
energy consumption
ratio of total energy measured in kWh per kg of test food per reference temperature cycle, rounded to
four digits after the comma
3.11
test pan
container made by stainless steel according to EN 631-1
3.12
operating conditions
conditions which exist when the cabinet, including all permanently located accessories, has been set up
to the program specified by the manufacturer in order to achieve final reference temperature cycle
4 Requirements
4.1 Reference temperature and time of test food
Blast chillers shall bring the test food from an initial reference temperature of +65 °C to a final
temperature of +10 °C within a test time of 120 min.
Blast freezers shall bring the test food from an initial reference temperature of +65 °C to a final
temperature of −18 °C within a test time of 270 min.
For blast chillers, the temperature of the coldest M-pan, measured at the end of the test, shall be higher
than –1 °C.
NOTE In some European countries specific hygiene requirements apply, in addition.
4.2 Test time
The test time is the time between:
— T0, time when the average temperature of the test food in the M-pans is equal to the initial
reference temperature; and
— T, time when the temperature of the test food in all M-pans reaches the final reference
f
temperature.
The measured time is rounded to the full minute.
5 Test conditions
5.1 Test room
−1
Tests shall be carried out in a test room capable of maintaining a temperature of 30 °C  °C to one
+5
decimal place.
The measuring point shall be located opposite to the hinges of the door of the blast cabinet, 500 mm
upstream of the blast cabinet, in line with the front of the cabinet at a vertical height that is half the
blast cabinet height (including cabinet feet and fixings).
No specific requirement on relative humidity is applicable.
5.2 Blast cabinet selection, installation and positioning within the test room
Each blast cabinet intended to be tested, unless a prototype, shall be selected from stock or routine
production and shall be representative as to construction and adjustment. The blast cabinet, including
all components required for normal operation, shall be assembled, set up and sited as it would be
installed in service as far as practicable and in accordance with the manufacturer's instructions. All
permanently located accessories required for normal use shall be in their respective places. Blast
cabinets shall be placed against a wall of the test room or a vertical partition having a length of at least
1 m on the side of the test room temperature measuring point, 0,5 m on the opposite side and an height
of at least 0,5 m more than the cabinet under testing at a distance from the rear as specified in the
instructions for use (see Figure 1).
Dimensions in millimetres
Key
1 climate measuring line
H overall height of the cabinet including feet
k climate measuring point detecting temperature
dp clearance between rear wall of test room and vertical position specified by the manufacturer (if used)
Figure 1 — Test room temperature measuring point and positioning of the cabinet
5.3 Blast cabinet operation
The blast cabinet shall be operated at operating condition
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
