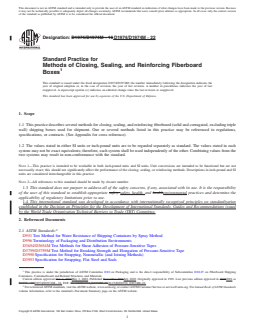

ASTM D1974/D1974M-22

This document is not an ASTM standard and is intended only to provide the user of an ASTM standard an indication of what changes have been made to the previous version. Because
it may not be technically possible to adequately depict all changes accurately, ASTM recommends that users consult prior editions as appropriate. In all cases only the current version
of the standard as published by ASTM is to be considered the official document.

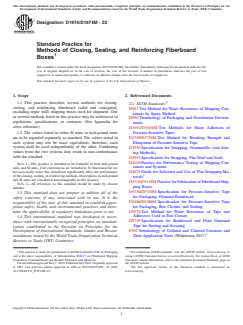

Designation: D1974/D1974M − 16 D1974/D1974M − 22
Standard Practice for
Methods of Closing, Sealing, and Reinforcing Fiberboard
Boxes
This standard is issued under the fixed designation D1974/D1974M; the number immediately following the designation indicates the
year of original adoption or, in the case of revision, the year of last revision. A number in parentheses indicates the year of last
reapproval. A superscript epsilon (´) indicates an editorial change since the last revision or reapproval.
This standard has been approved for use by agencies of the U.S. Department of Defense.
1. Scope
1.1 This practice describes several methods for closing, sealing, and reinforcing fiberboard (solid and corrugated, excluding triple
wall) shipping boxes used for shipment. One or several methods listed in this practice may be referenced in regulations,
specifications, or contracts. (See Appendix for cross reference).
1.2 The values stated in either SI units or inch-pound units are to be regarded separately as standard. The values stated in each
system may not be exact equivalents; therefore, each system shall be used independently of the other. Combining values from the
two systems may result in non-conformance with the standard.
NOTE 1—This practice is intended to be workable in both inch-pound units and SI units. Unit conversions are intended to be functional but are not
necessarily exact; this should not significantly affect the performance of the closing, sealing, or reinforcing methods. Descriptions in inch-pound and SI
units are considered interchangeable in this practice.
NOTE 2—All references to this standard should be made by closure number.
1.3 This standard does not purport to address all of the safety concerns, if any, associated with its use. It is the responsibility
of the user of this standard to establish appropriate safety safety, health, and healthenvironmental practices and determine the
applicability of regulatory limitations prior to use.
1.4 This international standard was developed in accordance with internationally recognized principles on standardization
established in the Decision on Principles for the Development of International Standards, Guides and Recommendations issued
by the World Trade Organization Technical Barriers to Trade (TBT) Committee.
2. Referenced Documents
2.1 ASTM Standards:
D951 Test Method for Water Resistance of Shipping Containers by Spray Method
D996 Terminology of Packaging and Distribution Environments
D3654/D3654M Test Methods for Shear Adhesion of Pressure-Sensitive Tapes
D3759/D3759M Test Method for Breaking Strength and Elongation of Pressure-Sensitive Tape
D3950 Specification for Strapping, Nonmetallic (and Joining Methods)
D3953 Specification for Strapping, Flat Steel and Seals
This practice is under the jurisdiction of ASTM Committee D10 on Packaging and is the direct responsibility of Subcommittee D10.27 on Fiberboard Shipping
Containers, Containerboard and Related Structures and Materials.
Current edition approved Oct. 1, 2016May 1, 2022. Published November 2016July 2022. Originally approved in 1991. Last previous edition approved in 20102016 as
D1974 – 10.D1974/D1974M – 16. DOI: 10.1520/D1974_D1974M–16.10.1520/D1974_D1974M–22.
For referenced ASTM standards, visit the ASTM website, www.astm.org, or contact ASTM Customer Service at service@astm.org. For Annual Book of ASTM Standards
volume information, refer to the standard’s Document Summary page on the ASTM website.
Copyright © ASTM International, 100 Barr Harbor Drive, PO Box C700, West Conshohocken, PA 19428-2959. United States
D1974/D1974M − 22

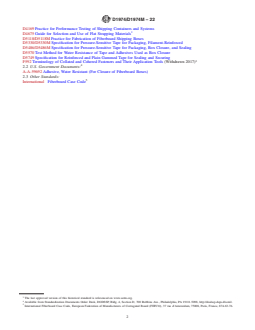

D4169 Practice for Performance Testing of Shipping Containers and Systems
D4675 Guide for Selection and Use of Flat Strapping Materials
D5118/D5118M Practice for Fabrication of Fiberboard Shipping Boxes
D5330/D5330M Specification for Pressure-Sensitive Tape for Packaging, Filament-Reinforced
D5486/D5486M Specification for Pressure-Sensitive Tape for Packaging, Box Closure, and Sealing
D5570 Test Method for Water Resistance of Tape and Adhesives Used as Box Closure
D5749 Specification for Reinforced and Plain Gummed Tape for Sealing and Securing
F592 Terminology of Collated and Cohered Fasteners and Their Application Tools (Withdrawn 2017)

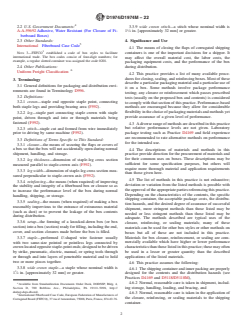

2.2 U.S. Government Documents:
A-A-59692 Adhesive, Water Resistant (For Closure of Fiberboard Boxes)
2.3 Other Standards:
International Fiberboard Case Code
The last approved version of this historical standard is referenced on www.astm.org.
Available from Standardization Documents Order Desk, DODSSP, Bldg. 4, Section D, 700 Robbins Ave., Philadelphia, PA 19111-5098, http://dodssp.daps.dla.mil.
International Fiberboard Case Code, European Federation of Manufacturers of Corrugated Board (FEFCO), 37 rue d’Amsterdam, 75008, Paris, France, 874-63-76.
D1974/D1974M − 22

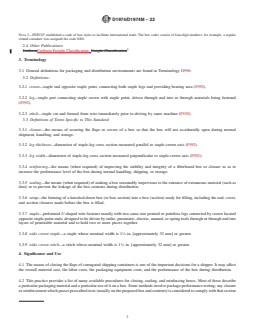

NOTE 3—FEFCO established a code of box styles to facilitate international trade. The box codes consist of four-digit numbers; for example, a regular
slotted container was assigned the code 0201.
2.4 Other Publications:
UniformUniform Freight Classification Freight Classification
3. Terminology
3.1 General definitions for packaging and distribution environments are found in Terminology D996.
3.2 Definitions:
3.2.1 crown—staple end opposite staple point, connecting both staple legs and providing bearing area (F592).
3.2.2 leg—staple part connecting staple crown with staple point, driven through and into or through materials being fastened
(F592).
3.2.3 stitch—staple cut and formed from wire immediately prior to driving by same machine (F592).
3.3 Definitions of Terms Specific to This Standard:
3.3.1 closure—the means of securing the flaps or covers of a box so that the box will not accidentally open during normal
shipment, handling, and storage.
3.3.2 leg thickness—dimension of staple-leg cross section measured parallel to staple-crown axis (F592).
3.3.3 leg width—dimension of staple-leg cross section measured perpendicular to staple-crown axis (F592).
3.3.4 reinforcing—the means (when required) of improving the stability and integrity of a fiberboard box or closure so as to
increase the performance level of the box during normal handling, shipping, or storage.
3.3.5 sealing—the means (when required) of making a box reasonably impervious to the entrance of extraneous material (such as
dust) or to prevent the leakage of the box contents during distribution.
3.3.6 setup—the forming of a knocked-down box (or box section) into a box (section) ready for filling, including the end, cover,
and section closures made before the box is filled.
3.3.7 staple—preformed U-shaped wire fastener usually with two same-size pointed or pointless legs connected by crown located
opposite staple-point ends; designed to be driven by strike, pneumatic, electric, manual, or spring tools through or through and into
layers of penetrable material and to hold two or more pieces together.
3.3.8 wide crown staple—a staple whose nominal width is 1 ⁄4 in. [approximately 32 mm] or greater.
3.3.9 wide crown stitch—a stitch whose nominal width is 1 ⁄4 in. [approximately 32 mm] or greater.
4. Significance and Use
4.1 The means of closing the flaps of corrugated shipping containers is one of the important decisions for a shipper. It may affect
the overall material cost, the labor costs, the packaging equipment costs, and the performance of the box during distribution.
4.2 This practice provides a list of many available procedures for closing, sealing, and reinforcing boxes. Most of these describe
a particular packaging material and a particular use of it on a box. Some methods involve package performance testing; any closure
or reinforcement which passes prescribed tests (usually on the proposed box and contents) is considered to comply with that section
D1974/D1974M − 22

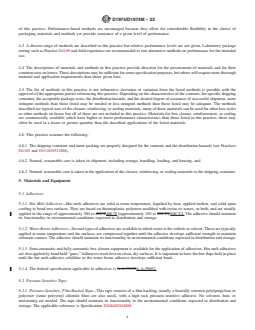

of this practice. Performance-based methods are encouraged because they allow for considerable flexibility in the choice of
packaging materials and methods yet provide assurance of a given level of performance.
4.3 A diverse range of methods are described in this practice but relative performance levels are not given. Laboratory package
testing such as Practice D4169 and field experience are recommended to rate alternative methods on performance for the intended
use.
4.4 The descriptions of materials and methods in this practice provide direction for the procurement of materials and for their
common uses on boxes. These descriptions may be sufficient for some specification purposes, but others will require more thorough
material and application requirements than those given here.
4.5 The list of methods in this practice is not exhaustive; deviation or variation from the listed methods is possible with the
approval of the appropriate parties referencing this practice. Depending on the characteristics of the contents, the specific shipping
container, the acceptable package costs, the distribution hazards, and the desired degree of assurance of successful shipment, more
stringent methods than those listed may be needed or less stringent methods than those listed may be adequate. The methods
described are typical uses of the closure, reinforcing, or sealing materials; many of these materials can be used for other box styles
or other methods on boxes but all of these are not included in this practice. Materials for box closure, reinforcement, or sealing
are commercially available which have higher or lower performance characteristics than those listed in this practice; these may
often be used in a lesser or greater quantity than the described applications of the listed materials.
4.6 This practice assumes the following:
4.6.1 The shipping container and inner packing are properly designed for the contents and the distribution hazards (see Practices
D4169 and D5118/D5118M),
4.6.2 Normal, reasonable care is taken in shipment, including storage, handling, loading, and bracing, and
4.6.3 Normal, reasonable care is taken in the application of the closure, reinforcing, or sealing materials to the shipping container.

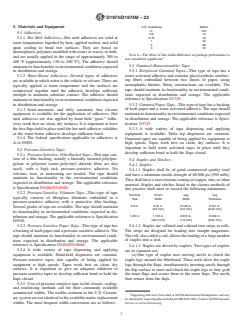

5. Materials and Equipment
5.1 Adhesives:
5.1.1 Hot Melt Adhesives—Hot melt adhesives are solid at room temperature, liquified by heat, applied molten, and solid upon
cooling to bond two surfaces. They are based on thermoplastic polymers modified with resins or waxes, or both, and are usually
applied in the range of approximately 300 to 400°F400 °F [approximately 150 to 200°C].200 °C]. The adhesive should maintain
its functionality in environmental conditions expected in distribution and storage.
5.1.2 Water-Borne Adhesives—Several types of adhesives are available in which water is the vehicle or solvent. These are typically
applied at room temperature and the surfaces are compressed together until the adhesive develops sufficient strength to maintain
substrate contact. The adhesive should maintain its functionality in environmental conditions expected in distribution and storage.
5.1.3 Semi-automatic and fully automatic box closure equipment is available for the application of adhesives. Hot melt adhesives
are also applied by hand held “guns.” Adhesives work best on clean, dry surfaces. It is important to have the box flaps held in place
until the hot melt adhesive solidifies or the water borne adhesive develops sufficient bond.
5.1.4 The federal specification applicable to adhesives is A-A-59692A-A-59692.
5.2 Pressure-Sensitive Tape:
5.2.1 Pressure-Sensitive, Film-Backed Tape—This tape consists of a film backing, usually a biaxially oriented polylpropylene or
polyester (some polyvinyl chloride films are also used), with a high tack pressure-sensitive adhesive. No solvents, heat, or
moistening are needed. The tape should maintain its functionality in the environmental conditions expected in distribution and
storage. The applicable reference is Specification D5486/D5486M.
D1974/D1974M − 22
5.2.2 Pressure-Sensitive Filament Tape—This type of tape typically consists of fiberglass filaments embedded in a pressure-
sensitive adhesive with a protective film backing. Several grades of tape are available. The tape should maintain its functionality
in environmental conditions expected in distribution and storage. The applicable reference is Specification D5530.
5.2.3 Pressure-Sensitive Paper Tape—This type of tape has a backing of kraft paper and a pressure-sensitive adhesive. The tape
should maintain its functionality in environmental conditions expected in distribution and storage. The applicable reference is
Specification D5486/D5486M.
5.2.4 A wide variety of tape dispensing and applying equipment is available. Hand-held dispensers are common. Pressure-
sensitive tapes also capable of being applied by equipment at high speeds. Tapes work best on clean, dry surfaces. It is important
to give an adequate rubdown to pressure-sensitive tapes to develop sufficient bond to hold the flaps closed.
5.2.5 Uses of pressure-sensitive tape in the closure, sealing, and reinforcing methods call for their commonly available commercial
widths. The widths common in the U.S. Customary system are not identical to the available metric replacement widths. The most
frequent width conversions are as follows:
U.S. Customary Metric
in. mm
0.5 12
0.75 18
1 24
2 48
3 72
NOTE 4—The effect of this width difference on package performance is not considered significant.
5.3 Gummed (Remoistenable) Tape:
5.3.1 Reinforced Gummed Tapes—This type of tape has a water activated adhesive and contains glassglass/synthetic reinforcing
fibers embedded between two sheets of paper, using nonasphaltic binders. Many constructions are available. The tape should
maintain its functionality in environmental conditions expected in distribution and storage. The applicable reference is
Specification D5749.
5.3.2 Gummed Paper Tape—This type of tape has a backing of kraft paper and a water activated adhesive. The tape should
maintain its functionality in environmental conditions expected in distribution and storage. The applicable reference is
Specification D5749.
5.3.3 A wide variety of tape dispensing and applying equipment is available. Table top dispensers are common. Gummed tapes
are capable of being applied by equipment at high speeds. Tapes work best on clean, dry surfaces. It is important to hold water
activated tapes in place until they develop sufficient bond to hold the flaps closed.
5.4 Staples and Stitches:
5.4.1 Staples:
5.4.1.1 Staples shall be of good commercial quality steel and have a minimum tensile strength of 80 000 psi [550 mPa]. They shall
have a rust-resistant coating of copper, zinc, or other material. Staples and stitches listed in the closure methods of this practice
shall meet or exceed the following minimums:
Nominal Crown Leg Leg
Size Width Width Thickness
0.5 in. 0.37 in. 0.100 in. 0.017 in.
[9.5 mm] [2.5 mm] [0.43 mm]
1.25 in. 1.125 in. 0.072 in. 0.033 in.
[28.5 mm] [1.9 mm] [0.84 mm]
Supporting data have been filed at ASTM International Headquarters and may be obtained by requesting Research Report RR:D10-1004. Contact ASTM Customer
Service at service@astm.org.
D1974/D1974M − 22
5.4.1.2 Staples are collated and cohered into strips or rolls. The strips are designed for loading into straight magazines. The roll,
also called a coil, allows the loading of a large number of staples into a tool.
5.4.1.3 Staples are driven by staplers. Two types of staplers are in common use.
(a) One type of stapler uses moving anvils to clinch the staple legs around the fiberboard. These tools drive the staple legs
through the flaps, simultaneously inserting anvils through the flap surface to meet and clinch the staple legs so they grab the inner
flaps and secure them to the outer flaps. The anvils then retract from the flaps.

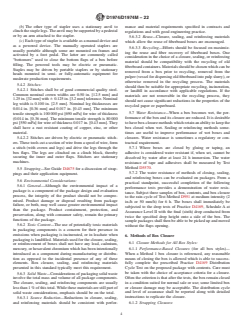

(b) The other type of stapler uses a stationary anvil to clinch the staple legs. The anvil may be supported by a pedestal or by
an arm attached to the stapler.
(c) Each type of stapler is available as a manual device and as a powered device. The manually operated staplers are usually
portable although some are mounted on frames and activated by a foot pedal. The latter are commonly called “bottomers” used
to close the bottom flaps of a box before filling. The powered tools may be electric or pneumatic. Staples may be driven by portable
staplers or by stationary heads mounted in semi- or fully-automatic equipment for moderate production requirements.
5.4.2 Stitches:
5.4.2.1 Stitches shall be of good commercial quality steel. Common nominal crown widths are 0.50 in. [12.5 mm] and 1.25 in.
[32 mm] with 6 0.125 in. [3.2 mm] tolerance. Nominal leg width is 0.100 in. [2.5 mm]. Nominal leg thicknesses are 0.014 in.
[0.36 mm] and 0.017 in. [0.43 mm]. The minimum tensile strength is 100 000 psi [690 mPa] for wire of thickness (0.014 in. [0.36
mm]. The minimum tensile strength is 80 000 psi [550 mPa] for wire of thickness 0.017 in. [0.43 mm]. They shall have a rust
resistant coating of copper, zinc, or other material.
5.4.2.2 Stitches are driven by electric or pneumatic stitchers. These tools cut a section of wire from a spool of wire, form a stitch
(with crown and legs) and drive the legs through the box flaps. The legs are clinched on a clinch block, thereby securing the inner
and outer flaps. Stitchers are stationary machines.
5.5 Strapping—See Guide D4675 for a discussion of strappings and their application equipment.
5.6 Environmental Considerations:
5.6.1 General—Although the environmental impact of a package is a component of the package design and evaluation process,
the integrity of the product should not be compromised. Product damage or disposal resulting from package failure, or both, may
well cause greater environmental impact than the package. Product containment, protection, and preservation, along with consumer
safety, remain the primary functions of the package.
5.6.2 Toxic Content—The use of potentially toxic materials in packaging components is a concern for their presence in emissions
when packaging is incinerated, or in leachate when packaging is landfilled. Materials used for the closure, sealing, or reinforcement
of boxes shall not have any lead, cadmium, mercury, or hexavalent chromium which has been intentionally introduced as a
component during manufacturing or distribution as opposed to the incidental presence of any of these elements. Box closure,
sealing, and reinforcing materials presented in this standard typically meet this requirement.
5.6.3 Solid Waste—Considerations of packaging solid waste involve the total mass and volume of all package components. The
closure, sealing, and reinforcing components are usually less than 1 % of this total. While these materials are still part of solid
waste considerations, emphasis should be on the total.
5.6.3.1 Source Reduction—Reductions in closure, sealing, and reinforcing materials should be consistent with performance and
material requirements specified in contracts and regulations and with good engineering practice.
5.6.3.2 Reuse—Closure, sealing, and reinforcing materials which allow the reuse of fiberboard boxes are encouraged.
5.6.3.3 Recycling—Efforts should be focused on maximizing the reuse and fiber recovery of fiberboard boxes. One consideration
in the choice of a closure, sealing, or reinforcing material should be compatibility with the recycling of old fiberboard containers.
Materials should be chosen which can be removed from a box prior to recycling, removed from the pulper (vessel for dispersing
old fiberboard into pulp slurry), or otherwise removed in the recycling process. The materials should then be suitable for
appropriate recycling, incineration, or landfill in accordance with applicable regulations. If the materials are not removable in the
recycling process, they should not cause significant reductions in the properties of the recycled paper or paperboard.
D1974/D1974M − 22
5.7 Water Resistance—When a box becomes wet, the performance of the box and its closure are reduced. It is desirable to have
box-closure methods which retain an ability to keep the box closed when wet. Sealing or reinforcing methods sometimes are useful
to improve performance of wet boxes and closures. Water resistance is sometimes a regulatory or contractual requirement.
5.7.1 Where boxes are closed by gluing or taping, an adhesive is considered water resistant if, when set, cannot be dissolved by
water after at least 24 h immersion. The water resistance of tape and adhesives shall be measured by Test Method D5570.
5.7.2 The water resistance of methods of closing, sealing, and reinforcing boxes can be evaluated on packages. Box Closure
Methods 1D and 1E provide some measurement of water resistance. From a practical standpoint, successful completion of the
following performance tests provides a demonstration of water resistance. Subject three samples of box, contents, and box closure
to the rain cycle of Test Method D951 at medium intensity (2 in./h or 50 mm/h) for 6 h. The boxes shall immediately be subjected
to the drop tests of Practice D4169, ElementSchedule A at Assurance Level II with the final (sixth) drop conducted from twice the
specified drop height onto a side of the box. The sample packages shall then be able to be picked up and moved without the flaps
opening.
6. Methods of Box Closure
6.1 Performance-Based ClosuresClosure Methods (for all box styles)for All Box Styles:— When a Method 1 box closure is
referenced, any reasonable means of closing the box is allowed which is able to successfully complete the prescribed performance
test on the proposed package with contents. Care must be taken with the choice of acceptance criteria for a closure. Often the
criterion is that after the tests, the box remain closed in a condition suited for normal sale or use; some limited box or closure
damage may be acceptable.
6.1.1 Closure MethodPerformance-Based Closures 1A—(for all box styles)—The closure must be able to complete the test
sequence of When a Method 1 box closure is referenced, any reasonable means of closing the box is allowed which is able to
successfully complete the prescribed Practice D4169, Distribution Cycle 3 or 4, Assurance Level 1. Distribution Cycle Test on the
proposed package with contents. Care must be taken with the choice of acceptance criteria for a closure. Often the criterion is that
after the tests, the box remain closed in a condition suited for normal sale or use; some limited box or closure damage may be
acceptable. The distribution cycle and level of assurance shall be reported along with detailed instructions to replicate the closure.
6.1.2 Closure Method 1B—The closure must be able to complete the test sequence of Practice D4169, Distribution Cycle 3 or 4,
Assurance Level II.
6.1.3 Closure Method 1C—The closure must be able to complete the test sequence of Practice D4169, Distribution Cycle 3 or 4,
Assurance Level III.
6.1.4 Box Closure 1D—The closure must be able to complete the test sequence of Practice D4169, Distribution Cycle 18,
Assurance Level I.
6.1.2 Box Closure 1E—Strapping Closures: The closure must be able to complete the test sequence of Practice D4169,
Distribution Cycle 18, Assurance Level II.
6.1.2.1 Closure Method 2E—The box shall be closed as described in Guide D4675, Section S1 without crushing or collapsing the
box.
6.1.3 Box Closure 1F—Adhesive Closures: The closure must be able to complete the test sequence of Practice D4169, Distribution
Cycle 18, Assurance Level III.
6.1.3.1 Adhesive closures for all box styles for the U.S. Government shall use adhesives conforming to A-A-59692.
6.2 Closure Methods for Regular Slotted Containers, Containers (RSCs) and Similar Box Styles (Including but not limited to One
Piece Folder, Five Panel Folder, international box codes 0401, 0403, 0410, 0411, 0415, 0416, and 0420—see also Practice
D5118/D5118M): Box Code 0201, Center Special Slotted Container, 0204, and similar box styles.
NOTE 5—See 2.3 (and Note 23) for information in box codes.
D1974/D1974M − 22
6.2.1 Adhesive Closures of RSC’s and Similar Boxes (Including One Piece Folder, Five Panel Folder, international box codes
0401, 0403, 0410, 0411, 0415, and 0416 — see also Practice Closures: D5118/D5118M):
6.2.1.1 Closure Method 2A1—The box shall be closed with a hot-melt adhesive in strips a minimum of 1 in. [25 mm] long and
⁄4 in. [6 mm] wide after compression. There shall be a minimum of four strips, two on each side of the center line;seam; the
separation between strips shall be a maximum of 2 in. [50 mm] with the innermost strips being ⁄2 in. [13 mm] from each side of
the center line.seam. The purchaser shall note if temperature ranges are a requirement of the bond, such as –20 °F [–29 °C] to
165 °F [74 °C], and if the adhesive is required to conform to A-A-59692.
6.2.1.2 Closure Method 2A2—The box shall be closed with a hot-melt adhesive which will maintain bond at temperatures for a
range from − 20°F [−29°C] to 165°F [74°C]. Adhesive shall be applied in at least eight full-length strips on each inner flap, each
3 1
strip having a minimum width of ⁄16 in. [5 mm] after compression. Strips shall not be more than 1 ⁄2 in. [38 mm] apart with one
strip not more than ⁄2 in. [13 mm] from each side of the center seam. See Fig. 1. The purchaser shall note if temperature ranges
are a requirement of the bond, such as –20 °F [–29 °C] to 165 °F [74 °C], and if the adhesive is required to conform to A-A-59692.
6.2.1.3 Closure Method 2A3—The box shall be closed with a the application of a hot melt or a waterborne adhesive by securely
bonding at least 50 % of the contact area of the flaps. The bonded areas shall extend to within ⁄2 in. [13 mm] of the center seam.
See Fig. 2. The purchaser shall note if temperature ranges are a requirement of the bond, such as –20 °F [–29 °C] to 165 °F [74 °C],
and if the adhesive is required to conform to A-A-59692.
6.2.1.4 Closure Method 2A4—The box shall be closed with the application of adhesive conforming with A-A-59692 by a hot melt
or a waterborne adhesive securely bonding at least 75 % of the contact area of the flaps. The adhesive shall be applied within ⁄4
in. [6 mm] of the edges and scorelines of the inner flaps. The purchaser shall note the bond requirements for temperature ranges
such as –20 °F [–29 °C] to 165 °F [74 °C] and if the adhesive is required to conform to A-A-59692.
6.2.1.5 Closure Method 2A5—The box shall be closed with a hot melt or a waterborne adhesive securely bonding at least 25 %
of the contact area of the flaps. The bonded areas shall extend to within ⁄2 in. [13 mm] of the center seam. The purchaser shall
note if temperature ranges are a requirement of the bond, such as –20 °F [–29 °C] to 165 °F [74 °C], and if the adhesive is required
to conform to A-A-59692.
6.2.2 Pressure-Sensitive Tape Closure of RSCs and Similar Boxes:
6.2.2.1 Closure Method 2B1—The box shall be closed with a minimum of 2 in. [48 mm] wide pressure-sensitive film backed tape
applied over the center seams of the box, continuing at least 2 in. [50 mm] onto the box ends. The tape shall have a nominal 2
mil [0.05 mm] biaxially oriented polypropylene backing and conform with Specification D5486/D5486M, Type III. See Fig. 3.
FIG. 1 Example of Closure Method 2A1 and 2A2
D1974/D1974M − 22
FIG. 2 Example of Closure Methods 2A3, 2A4, and 2A5
6.2.2.2 Closure Method 2B2—The box shall be closed with a minimum of 2 in. [48 mm] wide pressure-sensitive film backed tape
applied over the center seams of the box, continuing at least 2 in. [50 mm] onto the box ends. The tape shall have a nominal 1.4
mil [0.035-mm] biaxially oriented polypropylene backing with a nominal tape thickness of 2.2 mils [0.06 mm]. The adhesive shall
have a holding power to fiberboard, Test Method D3654/D3654M, Procedure A, of at least 2000 min. See Fig. 3.
6.2.2.3 Closure Method 2B3—The box shall be closed with a minimum of 2 in. [48 mm] wide pressure-sensitive film backed tape
applied over the center seams of the box, continuing at least 2 in. [50 mm] onto the box ends. The colored tape shall conform with
Specification D5486/D5486M Type II, Class 1 or 2. See Fig. 3.
6.2.2.4 Closure Method 2B6—The box shall be closed with a minimum of 2 in. [48 mm] wide paper tape applied over the center
seams of the box, continuing at least 2 in [50 mm] onto the box ends. The tape shall comply with Specification D5486/D5486M,
Type V. See Fig. 3.
6.2.2.5 Closure Method 2B7—The box shall be closed with a minimum of 2 in. [48 mm] wide paper tape applied over the center
seams of the box, continuing at least 2 in. [50 mm] onto the box ends. Four additional strips of tape shall be centered over the seam
formed by the edges of the outer flaps and the end panels; the tape shall extend within ⁄4 in. [19 mm] of the box corners. The tape
shall conform with Specification D5486/D5486M, Type V. See Fig. 4.
D1974/D1974M − 22
6.2.2 Gummed Tape Closure of RSC’s and Similar Boxes (Including One Piece Folder, Five Panel Folder, international box codes
0401, 0403, 0410, 0411, 0415, and 0416—see also Practice Tape Closures: D5118/D5118M):
6.2.3.1 Closure Method 2C1—The box shall be closed with a minimum of 3 in. [75 mm] wide reinforced gummed tape applied
over the center seams of the box, continuing at least 2 ⁄2 in. [65 mm] onto the box ends. The tape shall have glass reinforcements
in both the machine and cross machine direction (or at angles to provide some cross direction strength). See Fig. 3.
6.2.2.1 Closure Method 2C2—2B1—The box shall be closed with a minimum of 32 in. [75[48 mm] wide reinforced gummed tape
applied over the center seams of the box, continuing at least 2a ⁄2 in. [65 mm] length equal to the width of the tape onto the box
ends. The tape shall comply with Specificationused shall be specified to D5749, Type 1.conform to Specifications D5486/D5486M,
D5330/D5330M, or D5749. See Fig. 3.
FIG. 3 Example of Closure Methods 2B1, 2B2, 2B3, 2B6, 2C2, 2C3, and 2C42B1
6.2.3.3 Closure Method 2C3—The box shall be closed with a minimum of 3 in. [75 mm] wide reinforced gummed tape applied
over the center seams of the box, continuing at least 2 ⁄2 in. [65 mm] onto the box ends. The tape shall comply with Specification
D5749, Type II, Grade B. See Fig. 3.
6.2.3.4 Closure Method 2C4—The box shall be closed with a minimum of 2 in. [48 mm] wide paper tape applied over the center
seams of the box, continuing at least 2 in. [50 mm] onto the box ends. The tape shall comply with Specification D5749, Type II,
Grade B. See Fig. 3.
D1974/D1974M − 22
6.2.2.2 Closure Method 2C5—2B7—The box shall be closed with a minimum of 2 in. [48 mm] wide paper tape applied over the
center seams of the box, continuing at least 2 in. [50 mm] a length equal to the width of the tape onto the box ends. Four additional
strips of tape shall be centered over the seam formed by the edges of the outer flaps and the end panels; the tape shall extend within
⁄4 in. in. [19 mm] of the box corners. The tape shall comply with Specification used shall be specified to conform to Specifications
D5749D5486/D5486M, D5330/D5330MType II,, or D5749Grade B. . See Fig. 4.
FIG. 4 Example of Closure Method 2B7 and 2C5
6.2.2.3 Closure Method 2C6—The box shall be closed with a minimum of 2 in. [50[48 mm] wide paper tape applied over all open
seams of the box. Tape on the vertical seams will cover the entire length of each seam and conclude at least 2 in. [50 mm] a length
equal to the width of the tape around the bottom edge of the box end. The tape on the center seam will conclude at least 2 in. [50
mm] a length equal to the width of the tape over the center seam onto the end of the box. The tape shall comply with Specification
used shall be specified to conform to Specifications D5749D5486/D5486M, D5330/D5330MType II,, or D5749Grade B. . See Fig.
5.
FIG. 5 Example of Closure Method 2C6
6.2.3 Staple and Stitch Closure and Setup of RSC’s and Similar Boxes (Including One Piece Folder, Five Panel Folder,
international box codes 0401, 0403, 0410, 0411, 0415, and 0416 — see also Practice Setup: General—D5118/D5118M)—
General—Staples are used both for box setup and final closure. Stitcher operation requires that the stitcher’s head and clinch block
be on opposite sides of the flaps being joined. Hence, stitches are used only for the setup where access of the clinching block is
not restricted. The following methods apply to the use of staples for both setup and final closure and for box setup with stitches.
D1974/D1974M − 22
6.2.3.1 Closure Method 2D1—The box shall be closed with ⁄2-in. crown staples or stitches applied to each side of the center seam
in an area where outer flaps overlay inner flaps; fasteners should not be more than 2 ⁄2 in. [65 mm] apart. See Fig. 6. See Table
1 for quantities required for various box widths.
6.2.3.2 Closure Method 2D2—The box shall be closed with ⁄2-in. crown staples or stitches applied to each side of the center seam
in the area where outer flaps overlay inner flaps and to the sides of the outside flaps; fasteners shall not be more than 2 ⁄2 in. [65
mm] apart. See Fig. 7. See Table 1 for quantities required for various widths.
6.2.3.3 Closure Method 2D3—The box shall be closed with ⁄2-in. crown staples or stitches distributed uniformly over the areas
where outer flaps overlay inner flaps. Table 1 presents the number of staples/stitches for each end for stated box widths. See Fig.
8.
6.2.3.4 Closure Method 2D4—The box shall be closed with wide crown staples or stitches applied across the center seam not more
than 5 in. [125 mm] apart in the area where outer flaps overlay inner flaps. See Fig. 9. See Table 2 for quantities required for various
box widths.
6.2.3.5 Closure Method 2D5—The box shall be closed with wide crown staples or stitches applied across the center seam in the
area where the outer flaps overlay inner flaps and to the sides of the outside flaps: fasteners shall not be more than 5 in. [125 mm]
apart. See Fig. 10. See Table 2 for quantities required for various box widths.
6.2.3.6 Closure Method 2D6—The box shall be closed with wide crown staples or stitches applied across the center seam and
distributed uniformly over the areas where outer flaps overlay inner flaps. Table 2 presents the number of staples or stitches for
each end of stated box widths. See Fig. 11.
6.2.5 Strapping Closure of RSC’s and Similar Boxes (Including One Panel Folder, international box codes 0401, 0403, 0415, and
0416 — see also Practice D5118/D5118M):
6.2.5.1 Closure Method 2E—The box shall be closed as described in Guide D4675, Section S1.
6.3 Closure Methods for Overlap Slotted Container, Box Code 0202, Center Special Overlap Slotted Container, Code 0205, and
Other Partially Overlapping Boxes: Boxes (Including but not limited to international box codes 0202 and 0205—see also Practice
D5118/D5118M:
6.3.1 Adhesive Closure of Partial Overlap Boxes:
6.3.1.1 Closure Method 3A1—The box shall be closed with hot melt or waterborne adhesive securely bonding at least 50 % of the
FIG. 6 Example of Closure Method 2D1
D1974/D1974M − 22
TABLE 1 Number of ⁄2-in. Crown Staples or Stitches for Regular
Slotted Containers
Number of Fasteners At Each End of Box, by Method
Inside Width of Box,
2D1, 2D2, 2D3,
A
in.
Commercial, Rule 41, Government,
Fig. 6 Fig. 7 Fig. 8
6 2 2 6
7 2 4 6
9 4 6 6
10 4 6 8
11 4 6 8
12 4 8 10
14 6 10 12
16 6 10 14
17 6 12 14
18 6 12 16
19 8 14 16
20 8 14 18
22 8 16 20
24 10 16 22
A
One inch = 25.4 mm.
FIG. 7 Example of Closure Method 2D2
two overlapped flaps as shown in Fig. 12. The purchaser shall note if temperature ranges are a requirement of the bond, such as
–20 °F [–29 °C] to 165 °F [74 °C], and if the adhesive is required to conform to A-A-59692.
6.3.1.2 Closure Method 3A2—The box shall be closed with the application of hot melt or waterborne adhesive conforming with
A-A-59692 by securely bonding at least 50 % of the area of contact of the flaps. See Fig. 12.
6.3.2 Pressure-Sensitive Tape Closure of Partial Overlap Boxes:
6.3.2.1 Closure Method 3B1—The box shall be closed with pressure-sensitive tape applied so that one half of the width is on the
outer flap and one half is applied to the under flap. The tape shall be a minimum of 2 in. [48 mm] wide and conform with
Specification D5486/D5486M, Type II. Tape shall extend down onto the end panels not less than 2 in. [50 mm].at least a length
equal to the width of the tape. The tape used shall be specified to conform to Specifications D5486/D5486M, D5330/D5330M, or
D5749. Parties must specify type and width.
6.3.3 Gummed Tape Closure of Partial Overlap Boxes:
6.3.3.1 Closure Method 3C1—The box shall be closed with reinforced gummed tape applied so that one half of the width is on
the outer flap and one half is applied to the under flap. The tape shall be a minimum of 3 in. [75 mm] wide and conform with
Specification D5749 Type I.
D1974/D1974M − 22
FIG. 8 Example of Closure Method 2D3
FIG. 9 Example of Closure Method 2D4
6.3.3 Staple and Stitch Closure and Setup of Partial Overlap Boxes—General —Boxes—General—Staples are used both for box
setup and final closure. Stitcher operation requires that the stitcher’s head and clinch block be on opposite sides of the flaps being
joined. Hence, stitches are used only for the setup where access of the clinching block is not restricted. The following methods
apply to the use of staples for both setup and final closure and for box setup with stitches.
6.3.3.1 Closure Method 3D1—The box shall be closed with ⁄2-in. crown staples or stitches applied along the length of the overlap;
fasteners should not be more than 2 ⁄2 in. [63 mm] apart. See the length column of Table 3 for quantity required for various box
lengths. See Fig. 13.
D1974/D1974M − 22
TABLE 2 Number of Wide Crown Staples or Stitches for Regular
Slotted Containers
Number of Fasteners At Each End of Box, by Method
Inside Width of Box,
2D4, 2D5, 2D6,
A
in.
Commercial, Old Rule 41, Government,
Fig. 9 Fig. 10 Fig. 11
8 1 1 4
10 2 2 5
12 2 2 6
14 2 2 8
16 2 4 9
18 2 4 10
20 2 4 11
22 3 5 12
24 3 5 14
26 3 5 15
A
One inch = 25.4 mm.
FIG. 10 Example of Closure Method 2D5
6.3.3.2 Closure Method 3D2—The box shall be closed with ⁄2-in. crown staples or stitches applied along the length of the overlap
and the sides of the outside flaps not more than 2 ⁄2 in. [63 mm] apart to join the inner and outer flaps. See Table 3 for quantities
required for various box lengths and widths. See Fig. 14.
6.3.3.3 Closure Method 3D3—The box shall be closed with wide crown staples or stitches applied along the length of the overlap;
fasteners shall not be more than 5 in. [125 mm] apart. See Fig. 13. See the length column of Table 4 for quantity required for
various box lengths.
6.3.3.4 Closure Method 3D4—The box shall be closed with wide crown staples or stitches applied along the length of the overlap
and the sides of the outside flaps not more than 5 in. [125 mm] apart to join the inner and outer flaps. See Table 4 for quantities
required for various box lengths and widths. See Fig. 14.
D1974/D1974M − 22
FIG. 11 Example of Closure Method 2D6
FIG. 12 Example of Closure Method 3A1 and 3A2
TABLE 3 Number of ⁄2-in. Crown Staples or Stitches for Boxes
With Partially or Fully Overlapping Flaps
Number of Fasteners Along
Number of Fasteners Along
Each Side of the
Length of Flap Overlap
Overlapping Flap
Methods 3D1, 3D2, 4D1, and 4D2 Methods 3D2 and 4D2
Fasteners Along
Fasteners Along
Length Length of Width
A
Each Edge
Overlap
below 6 1 below 4 ⁄2 0
6 up to 9 2 up to 7 1
up to 12 3 up to 9 ⁄2 2
up to 15 4 up to 12 3
up to 18 5 up to 14 ⁄2 4
up to 21 6 up to 17 5
up to 24 7 up to 19 ⁄2 6
up to 27 8 up to 22 7
up to 30 9 up to 24 ⁄2 8
A
This quantity excludes the fastener in the line of fasteners running the length of
the overlap of the flaps.
6.3.3.5 Closure Method 3D5—The box shall be closed with staples or stitches distributed over the areas where outer flaps overlay
inner flaps. The number of staples or stitches is given in Table 5. When the inner flaps gap by more than 3 in. [75 mm], additional
D1974/D1974M − 22
FIG. 13 Example of Closure Method 3D1 and 3D3
FIG. 14 Example of Closure Methods 3D2 and 3D4
TABLE 4 Number of Wide Crown Staples or Stitches for Boxes
With Partially or Fully Overlapping Flaps
Number of Fasteners Along Each
Number of Fasteners Along
Side
Length of Flap Overlap
of the Overlapping Flap
Methods 3D3, 3D4, 4D3, and 4D4 Methods 3D4 and 4D4
Fasteners Along
Fasteners Along
Length Length of Width
A
Each Edge
Overlap
up to 10 2 up to 6 0
16 3 11 1
22 4 16 2
28 5 21 3
34 6 26 4
40 7 31 5
46 8 36 6
52 9 41 7
58 10 46 8
A
This quantity excludes the fastener in the line of fasteners running the length of
the overlap of the flaps.
D1974/D1974M − 22
TABLE 5 Number of Staples or Stitches for Partial and Full
AB
Overlap Boxes
Number of Fasteners at
Overlapping Flap Width (Equal to Box
Each End of Box
C
Width for Full Overlap Boxes), in.
Wide Crown ⁄2 in. Crown
6 . 6
7 . 6
8 4 6
9 4 6
10 5 8
11 5 8
12 6 10
14 8 12
16 9 14
17 9 14
18 10 16
19 10 16
20 11 18
22 12 20
24 14 22
A
Closure Method 3D5, Partial Overlap—Fig. 15.
B
Closure Method 4D5, Full Overlap—Fig. 21.
C
1 in. = 25.4 mm.
staples shall be driven in a row parallel to and approximately ⁄2 to 1 in. [12 to 25 mm] from the long edge of the outer flaps for
the full length of the gap. See Fig. 15.
FIG. 15 Example of Closure Method 3D5
6.3.5 Strapping Closure of Overlap Boxes:
6.3.5.1 Closure Method 3E—The box shall be closed as described in Guide D4675, Section S1.
6.4 Closure Methods for Full Overlap Box, Box Code 0203, Center Special Full Overlap Slotted Container, Code 0206, Five Panel
Folder, Code 0410, and Other Boxes with Fully Overlapping Flaps: Flaps (Including but not limited to international box codes
0203, 0206, and 0410—see also Practice D5118/D5118M):
6.4.1 Adhesive Closures of Boxes with Fully Overlapping Flaps:
6.4.1.1 Closure Method 4A1—The box shall be closed with the application of hot melt or waterborne adhesive by securely bonding
at least 50 % of the contact area of the flaps. See Fig. 16. The purchaser shall note if temperature ranges are a requirement of the
bond, such as –20 °F [–29 °C] to 165 °F [74 °C], and if the adhesive is required to conform to A-A-59692.
D1974/D1974M − 22
FIG. 16 Example of Closure Methods 4A1 and 4A24A3
6.4.1.2 Closure Method 4A2—The box shall be closed with the application of adhesive conforming with A-A-59692 by securely
bonding at least 50 % of the contact area of contact of all flaps. See Fig. 16.
6.4.1.2 Closure Method 4A3—The box shall be closed with the application of a hot melt or waterborne adhesive by securely
bonding at least 25 % of the contact area of the flaps. The bonded areas shall extend to within ⁄2 in. [13 mm] of the flap edges.
The purchaser shall note if temperature ranges are a requirement of the bond, such as –20 °F [–29 °C] to 165 °F [74 °C], and if
the adhesive is required to conform to A-A-59692.
6.4.2 Pressure-Sensitive Tape Closure of Boxes with Fully Overlapping Flaps:
6.4.2.1 Closure Method 4B1—The box shall be closed with a minimum of 3 in. [72 mm] wide pressure-sensitive paper 2 in.
[48 mm] wide tape applied to all seams. The tape shall conform with Specificationseams and extend at least a length equal to the
width of the tape onto the box end edge. The tape used shall be specified to conform to Specifications D5486/D5486M,
D5330/D5330MType V., or D5749. See Fig. 17.
FIG. 17 Example of Closure Methods 4B1, 4B2, and 4C14B1
6.4.2.2 Closure Method 4B
...
