SIST EN 1047-2:2019

SLOVENSKI STANDARD
SIST EN 1047-2:2019
01-julij-2019
Nadomešča:
SIST EN 1047-2:2009+A1:2013
Varnostne shranjevalne enote - Klasifikacija in metode preskušanja požarne
odpornosti - 2. del: Prostori in vsebniki za shranjevanje podatkov
Secure storage units - Classification and methods of test for resistance to fire - Part 2:
Data rooms and data container
Wertbehältnisse - Klassifizierung und Methoden zur Prüfung des Widerstandes gegen
Brand - Teil 2: Datensicherungsräume und Datensicherungscontainer
Unités de stockage en lieu sûr - Classification et méthodes d'essai de résistance au feu -
Partie 2: Conteneurs et chambres réfractaires
Ta slovenski standard je istoveten z: EN 1047-2:2019
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
13.310 Varstvo pred kriminalom Protection against crime
35.220.99 Druge naprave za Other data storage devices
shranjevanje podatkov
SIST EN 1047-2:2019 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 1047-2:2019

---------------------- Page: 2 ----------------------

SIST EN 1047-2:2019


EN 1047-2
EUROPEAN STANDARD

NORME EUROPÉENNE

April 2019
EUROPÄISCHE NORM
ICS 13.220.40; 13.310; 35.020 Supersedes EN 1047-2:2009+A1:2013
English Version

Secure storage units - Classification and methods of test
for resistance to fire - Part 2: Data rooms and data
container
Unités de stockage en lieu sûr - Classification et Wertbehältnisse - Klassifizierung und Methoden zur
méthodes d'essai de résistance au feu - Partie 2: Prüfung des Widerstandes gegen Brand - Teil 2:
Conteneurs et chambres réfractaires Datensicherungsräume und Datensicherungscontainer
This European Standard was approved by CEN on 11 February 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 1047-2:2019 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)

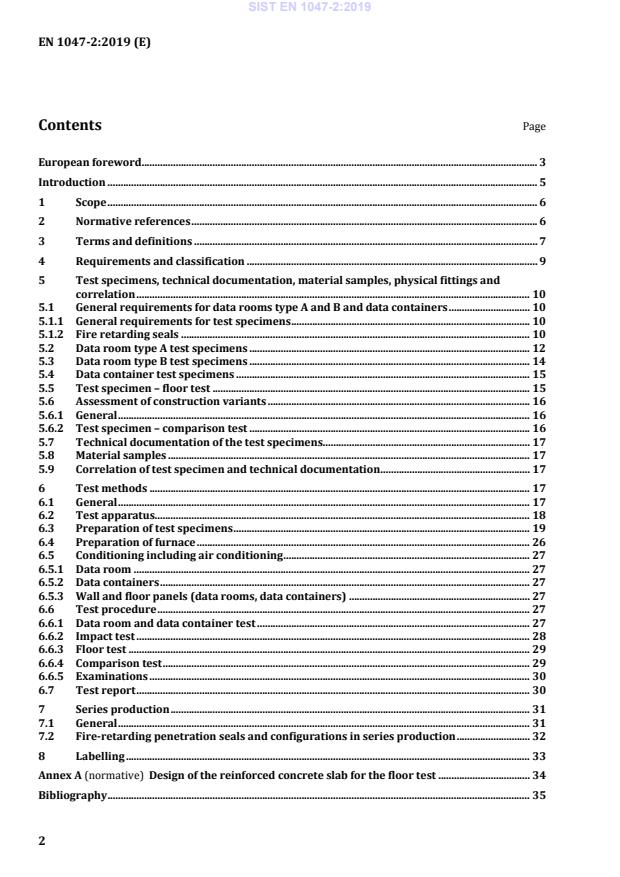

Contents Page
European foreword . 3
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 7
4 Requirements and classification . 9
5 Test specimens, technical documentation, material samples, physical fittings and
correlation . 10
5.1 General requirements for data rooms type A and B and data containers . 10
5.1.1 General requirements for test specimens . 10
5.1.2 Fire retarding seals . 10
5.2 Data room type A test specimens . 12
5.3 Data room type B test specimens . 14
5.4 Data container test specimens . 15
5.5 Test specimen – floor test . 15
5.6 Assessment of construction variants . 16
5.6.1 General . 16
5.6.2 Test specimen – comparison test . 16
5.7 Technical documentation of the test specimens . 17
5.8 Material samples . 17
5.9 Correlation of test specimen and technical documentation . 17
6 Test methods . 17
6.1 General . 17
6.2 Test apparatus. 18
6.3 Preparation of test specimens . 19
6.4 Preparation of furnace . 26
6.5 Conditioning including air conditioning . 27
6.5.1 Data room . 27
6.5.2 Data containers . 27
6.5.3 Wall and floor panels (data rooms, data containers) . 27
6.6 Test procedure . 27
6.6.1 Data room and data container test . 27
6.6.2 Impact test . 28
6.6.3 Floor test . 29
6.6.4 Comparison test . 29
6.6.5 Examinations . 30
6.7 Test report . 30
7 Series production . 31
7.1 General . 31
7.2 Fire-retarding penetration seals and configurations in series production . 32
8 Labelling . 33
Annex A (normative) Design of the reinforced concrete slab for the floor test . 34
Bibliography . 35
2

---------------------- Page: 4 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
European foreword
This document (EN 1047-2:2019) has been prepared by Technical Committee CEN/TC 263 “Secure
storage of cash, valuables and data media”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2019, and conflicting national standards shall
be withdrawn at the latest by October 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 1047-2:2009+A1:2013.
This document EN 1047 Secure storage units — Classification and methods of test for resistance to fire is
composed of two parts:
— Part 1: Data cabinets and diskette inserts
— Part 2: Data rooms and data container
In comparison with EN 1047-2:2009+A1:2013, the following changes have been made:
— references have been updated;
— the definitions have been updated to the state of the art;
— the requirements in Table 1 have changed;
— the requirements for doors have been updated (see 4.2);
— for easier and shorter reading the general requirements (for instance equipment of the test
specimen and position of fire-retarding penetration seals) for data rooms type A and data room
type B as well as data containers have moved into one new clause (see 5.1);
— the configuration (including a number and type of cables and pipes reaching into the room) is
defined more precisely and is updated to the state of the art for the type test and the series
products (see3.8, 5.1.2, and 7.2);
— to make sure that customers wishing to have higher data rooms, the test specimen in the furnace is
allowed to be higher than the limit of 2 700 mm which was in the standard before (see 5.2.2 and
5.3.1);
— an additional type test for the floor has been added (see 5.2.4, 5.3.3, 5.4.3, 5.5, 6.2.1d, 6.3.7, 6.6.3
and Annex A);
— the requirements for the comparison test have changed (see Table 1, 5.6, 6.2.1e, 6.3.8, 6.4.5, and
6.6.4);
— the thermocouples have been repositioned for the data room test (see 6.3.4);
— the requirements for series products have been updated and have been moved from the scope to
the new Clause 7 “series products”. Above all the height of a data room may only be increased by
35 % and decreased by 35 % (before both were at 50 %);
3

---------------------- Page: 5 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
— the figures in the standard have been updated;
— editorial changes have been made throughout the standard.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
4

---------------------- Page: 6 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
Introduction
The testing conditions given in this European Standard provide a basis for simulating fires to
determine, in a reproducible way, the fire resistance of data rooms and data containers.
The values for the maximum temperature increase in protection classes R60D and C60D specified in
accordance with Table 1 in this European Standard relate to the relatively short time of high
temperature exposure occurring during a fire test; in general, they are not experienced by data media
and systems hardware stored in data rooms and data containers in the normal and correct way.
EN 1363-1 establishes the general principles for determining the fire resistance of various elements of
construction when subjected to standard fire exposure conditions. Alternative and additional
procedures to meet special requirements are given in EN 1363-2. The development of the temperatures
and the relative humidity in the interior of a data room and data container cannot be measured under
the standard series EN 1363.
The sensitivity of media (see 3.5) and hardware systems (see 3.6) to temperature and humidity
requires additional protection with regard to excessively high temperatures and relative humidity,
proof of which cannot be furnished through type tests in accordance with the European Standards
EN 1363-1 and EN 1363-2. This additional protection requires a series of product solutions, the
performance of which is type tested and certified on the basis of the standard series EN 1047.
EN 1047-1 covers the type testing of data cabinets as freestanding units.
EN 1047-2 covers the type testing of data rooms and data containers. For wall, ceiling and floor
elements type tested within the framework of this system test, proof of an additional protection can be
furnished in accordance with the European Standards EN 1363-1 and EN 1363-2.
5

---------------------- Page: 7 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
1 Scope
This part of the document EN 1047 specifies requirements for data rooms and data containers. It
includes a method of test for the determination of the ability of data rooms and data containers to
protect temperature and humidity sensitive data media (see 3.5) and hardware systems (see 3.6) from
the effects of fire. A test method for measuring the resistance to mechanical stress (impact test)
provided by data rooms type B and data containers is also specified.
Requirements are also specified for test specimens, the technical documentation of the test specimens,
materials specimens, physical fittings, the correlation of test specimens with the technical
documentation and the preparation for type testing, test procedures as well as the series production.
In addition, a scheme to classify data rooms and data containers from the test results is given (see
Table 1).
As well as providing protection against fire, correctly installed data rooms and data containers offer a
defined protection against impacts caused by failure during fire of components and objects external to
the data room or data container.
Data rooms and data containers having the same design, protection and construction features (type and
thickness of construction and protective materials, rebate geometry, lockings, doors, etc.) will only be
given the same protection classification as that of the test specimen if the tolerances are within the
ranges specified in Clause 7.
NOTE This document does not regulate the use of data rooms in the meaning of the building laws of the
respective countries. In the construction of data rooms, it is advised to consider the respective national
requirements.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 206, Concrete — Specification, performance, production and conformity
EN 1363-1:2012, Fire resistance tests - Part 1: General Requirements
EN 1363-2:1999, Fire resistance tests - Part 2: Alternative and additional procedures
EN 1364-1:2015, Fire resistance tests for non-loadbearing elements - Part 1: Walls
EN 1364-2, Fire resistance tests for non-loadbearing elements - Part 2: Ceilings
EN 1992-1-1, Eurocode 2: Design of concrete structures - Part 1-1: General rules and rules for buildings
EN 12735-1, Copper and copper alloys - Seamless, round tubes for air conditioning and refrigeration - Part
1: Tubes for piping systems
EN 13369:2018, Common rules for precast concrete products
EN 50441-2, Cables for indoor residential telecommunication installations - Part 2: Screened cables -
Grade 1
6

---------------------- Page: 8 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
EN 50525-3-21, Electric cables - Low voltage energy cables of rated voltages up to and including 450/750
V (U0/U) - Part 3-21: Cables with special fire performance - Flexible cables with halogen-free crosslinked
insulation, and low emission of smoke
EN 60584-1, Thermocouples - Part 1: EMF specifications and tolerances (IEC 60584-1)
EN 61515, Mineral insulated thermocouple cables and thermocouples (IEC 61515)
HD 361 S3:1999, System for cable designation
ISO/IEC 11801, Information technology — Generic cabling for customer premises
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
test specimen
data room type A, data room type B or data container designed to protect media, hardware systems and
valuables against the effects of fire, or construction elements (e.g. floor, wall) of the data room or data
container
3.2
data room type A
room consisting of walls, ceiling and floor which provides the fire resistance specified in this standard
(see Table 1)
Note 1 to entry: When installed within walls and ceilings fulfilling the requirements for integrity, insulation and
load bearing capacity for 90 min according to EN 1365-1 and EN 1365-2, respectively. The floor of the data room
type A shall satisfy the fire resistance requirements specified in this standard and provide the same protection
against the penetration of water vapour as the wall and ceiling construction
3.2.1
exterior cell
construction built for testing to simulate the room into which the internal cell of the data room type A in
accordance with 3.2 is installed
3.2.2
internal cell
independent and self-supporting construction intended for installation as a data room type A in a
building situation which satisfies the requirements for walls, ceiling and floor specified in 3.2
7

---------------------- Page: 9 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
3.3
data room type B
room consisting of walls, ceiling and floor which provides the fire resistance specified in this standard
(see Table 1)
Note 1 to entry: when the floor onto which it is installed fulfils the requirements for integrity, insulation and
load bearing capacity for 90 min according to EN 1365-2.
3.4
data container
structure which can be transported in one piece or in modular parts and which provides the fire
resistance specified in this standard (see Table 1)
Note 1 to entry: When the floor onto which it is installed fulfils the requirements for integrity, insulation and
load bearing capacity for 90 min according to EN 1365-2.
Note 2 to entry: Data containers differ from data cabinets according to EN 1047-1 insofar as they contain
computer hardware and therefore have fire-resistant penetration seals and openings.
3.5
data media
material holding information, including paper documents, magnetic tapes, films, cassettes, optical disks,
solid state drives (flash memory) and video and audio cassettes except those that lose their data at
temperatures below 75 °C and relative air humidity below 85 %
3.6
hardware system
electronic system which stores, processes, moves or transmits data and/or has an archive function
Note 1 to entry: Types of hardware systems include host computers, master computers, master control
modules, PI tape drives, network computers, MB tape drives with robot support, etc.
3.7
door
component that provides access to, respectively, a data room or data container equipped with at least
one lock
3.8
fire-retarding penetration seals
permanently sealable openings through which cables and/or tubes enter a data room or data container
(see 4.3)
3.9
configuration
number and type of cables and tubes which enter through the wall opening and are held in place in one
or several fire-retarding penetration seals
3.10
openings
openings for the installation of e.g. ventilation facilities (see 4.4)
3.11
load bearing structure
supporting and reinforcing building components which guarantee the load bearing capacity of ceiling
and/or wall elements
8

---------------------- Page: 10 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
4 Requirements and classification
4.1 Data rooms and data containers shall provide protection against fire (see Clause 6) and shall be
classified in accordance with Table1.
Table 1 — Protection class requirements
b
Protection Data room / data Impact test (6.6.2) Comparison tests
class container test (6.6.1) and
(6.6.4)
c
floor test (6.6.3)

 Maximum Maximum  Maximum Maximum
temperature relative temperature relative
increase humidity increase humidity
d a
R60D 50 K 85 % Assessment 85 %
b
Type A according to
d
R60D 50 K 85 % Integrity to 3.1.10 Assessment 85 %
b
Type B and 10.4.5 of according to
EN 1363-1:2012
d
C60D 50 K 85 % Integrity to 3.1.10 Assessment 85 %
b
and 10.4.5 of according to
EN 1363-1:2012
where
R refers to data rooms;
C refers to data containers;
60 refers to the 60 min fire exposure time;
D characterizes the kind of data media and hardware systems which may be protected and includes all
kinds of data media except those that lose their data at temperatures below 75 °C and relative air
humidity below 85 %.
a
Data rooms of type A are only installed within walls and ceilings with minimum fire integrity (see 3.2)
and are therefore not tested for impact resistance.
b
Assessment of comparison test results for modified or alternative constructions.
If the construction differs from the type-tested construction and for all other construction variants (see
5.6 and 6.6.4), the results of the comparison test conducted on the specimens are assessed according to
the following formula:
ΔTA ≥ ΔTB
ΔT = temperature rise in K of the test specimen having the construction of the type-tested specimen of
A
the data room resp. data container;
ΔTB = temperature rise in K of the alternative constructions or other construction variants during the
comparison test (see 6.6.4);
c
The floor of the data room shall be tested in addition (see 5.5 and 6.6.3)
d
At any time only one of the thermocouples as defined in 6.3.4 is allowed to reach a maximum of 55°K.
9

---------------------- Page: 11 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
4.2 Doors of data rooms shall be self-closing in case of fire.
The definition on self-closing shall be given in the user manual (e.g. door angle necessary for the self-
closing function).
Doors shall be equipped with at least one lock.
4.3 Data rooms and data containers may have permanently closed fire-retarding penetration seals
(see 3.8) through which cables and tubes may enter.
4.4 Openings (see 3.10) in data rooms and data containers shall be closed in case of fire (e.g. through
self-closing devices).
5 Test specimens, technical documentation, material samples, physical fittings
and correlation
5.1 General requirements for data rooms type A and B and data containers
5.1.1 General requirements for test specimens
The test specimen for data rooms type A (see 5.2), data rooms type B (see 5.3) and data containers (see
5.4) shall at least have one door (see 3.7), fire-retarding penetration seals (see 3.8 and 5.1.2) with
configuration (see 3.9 and 5.1.2) and openings (see 3.10). The function of the data room door shall be
shown before the type test in such a way that the conditions of 6.5 will not be affected.
NOTE Construction variants can be tested in accordance with 6.6.4.
For data rooms type A (see 5.2) and data rooms type B (see 5.3) fire-retarding penetration seals and
openings shall be fitted in the top third at the short sides of the test specimen. The usage of the long
sides of the test specimen in only possible in cases where the short sides of the test specimens are
already used by fire retarding seals and openings and no further configuration is possible in the short
sides.
5.1.2 Fire retarding seals
The following minimum configuration of cables and tubes shall be installed in the fire-retarding
penetration seals of data room test specimens according to 5.2 and 5.3. The configuration may be
distributed in one or several fire-retarding penetration seals:
10

---------------------- Page: 12 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
Table 2 — Minimum configuration of the data room test specimen
Amount Specification of cables or tubes Copper cross
2
section in mm
(cable designation is according to HD 361 S3:1999)
(the general
tolerance in the
standards apply)
6 Copper tubes EN 12735-1 – R220 22 × 1,0 (outer diameter of 396
22 mm, inner diameter of 20 mm)
4 Isolated power supply cables with fire retardant properties 80
2
with 5 cores each with a cross section of 4 mm
2
(for instance NHXMH-J 5x4mm according to DIN
VDE 250-214)
5 Isolated power supply cables with fire retardant properties 37,5
2
with 3 cores each with a cross section of 2,5 mm
2
(for instance NHXMH-J 3x2,5 mm according to DIN
VDE 250-214)
2 Isolated power supply cables with fire retardant properties 9
2
with 3 cores each with a cross section of 1,5 mm
2
(for instance NHXMH-J 3x1,5 mm according to DIN
VDE 250-214)
2
2 Cables for equipotential H07ZZ-F 1x16 mm according to 32
EN 50525-3-21
4 Cables for fire alarms J-Y(St)H 2x2x0.8 mm according to 8
EN 50441-2
2 Cables for error messages / signalling J-H(St)H 2x2x0.8 mm 4
according to
EN 50441-2
1 Cable for error messages J-H(St)H 4x2x0.8 mm according to 4
EN 50441-2
25 Cat 7 network cables 8,08
S/FTP 1000 MHz 4x2xAWG 31/1 R100 Cat 7 simplex
according to ISO/IEC 11801
25 Fibre optic network cables 0
LWL A/I DQ (ZN) BH 1x24
All cables and tubes shall protrude the surface of fire-retarding penetration seals by 300 mm in both
directions of which at least 100 mm shall not be isolated. Installation examples are given in Figure 1.
If wished additional cables and tubes may be installed in the fire-retarding penetration seals.
11

---------------------- Page: 13 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)

Key
1 inside of the test specimen
2 furnace
3 fire retarding seal
4 copper tube
5 tube isolation (if wished)
6 mineral wool, ceramic fibre or similar material (maximum length of 50 mm)
7 soldered up copper tube
A example with isolation
B example without isolation
Figure 1 — Fire retarding seal with copper tube
5.2 Data room type A test specimens
5.2.1 An exterior cell shall be erected in the furnace, and within it, a data room type A test specimen
shall be installed as an internal cell in the manner as if it were a data room being installed within walls
and ceilings (see 3.2). The exterior cell shall be positioned in the furnace in accordance with Figure 10.
5.2.2 The walls, ceiling and floor of the exterior cell shall be constructed of individual prefabricated
units, each (100 ± 5) mm thick, made of reinforced concrete grade C20/25 to EN 206 with a density of
3
(2 400 ± 200) kg/m , and shall be connected to one another.
The exterior cell shall have the following internal dimensions:
height (≥2 500) mm;
width (2 800 ± 100) mm;
length (3 800 ± 100) mm.
12

---------------------- Page: 14 ----------------------

SIST EN 1047-2:2019
EN 1047-2:2019 (E)
For t
...
