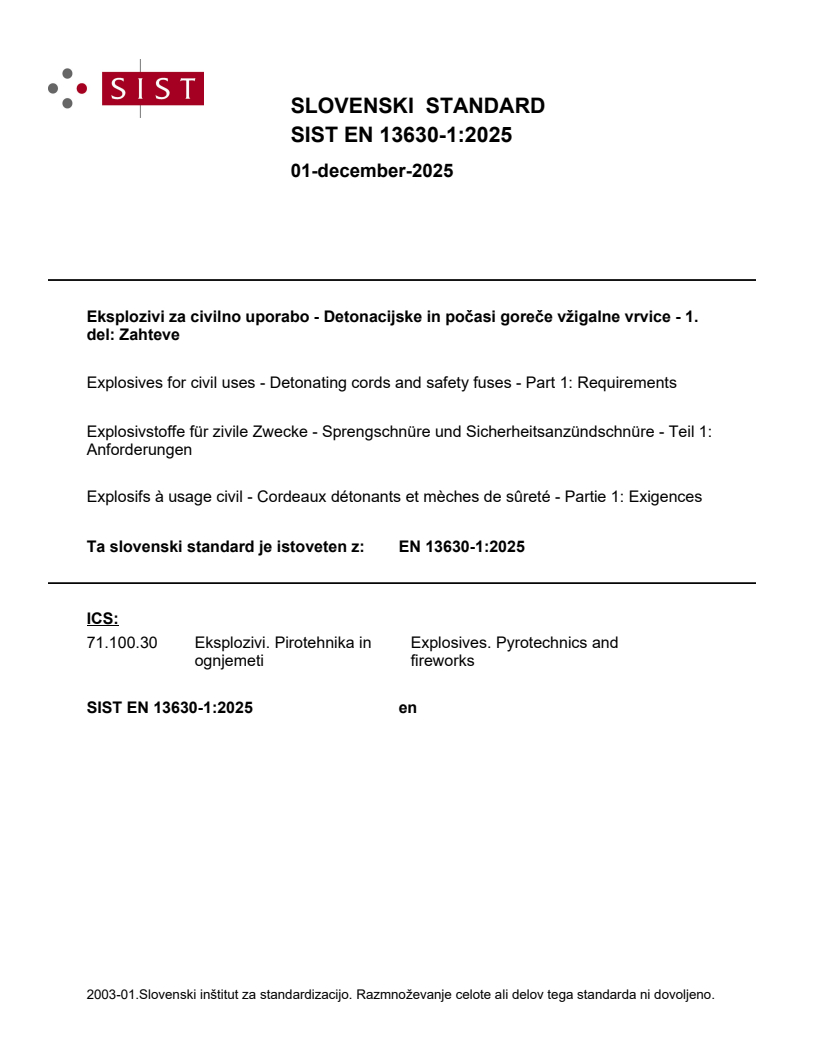

SIST EN 13630-1:2025

SLOVENSKI STANDARD
01-december-2025
Eksplozivi za civilno uporabo - Detonacijske in počasi goreče vžigalne vrvice - 1.
del: Zahteve
Explosives for civil uses - Detonating cords and safety fuses - Part 1: Requirements
Explosivstoffe für zivile Zwecke - Sprengschnüre und Sicherheitsanzündschnüre - Teil 1:
Anforderungen
Explosifs à usage civil - Cordeaux détonants et mèches de sûreté - Partie 1: Exigences
Ta slovenski standard je istoveten z: EN 13630-1:2025
ICS:
71.100.30 Eksplozivi. Pirotehnika in Explosives. Pyrotechnics and
ognjemeti fireworks
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

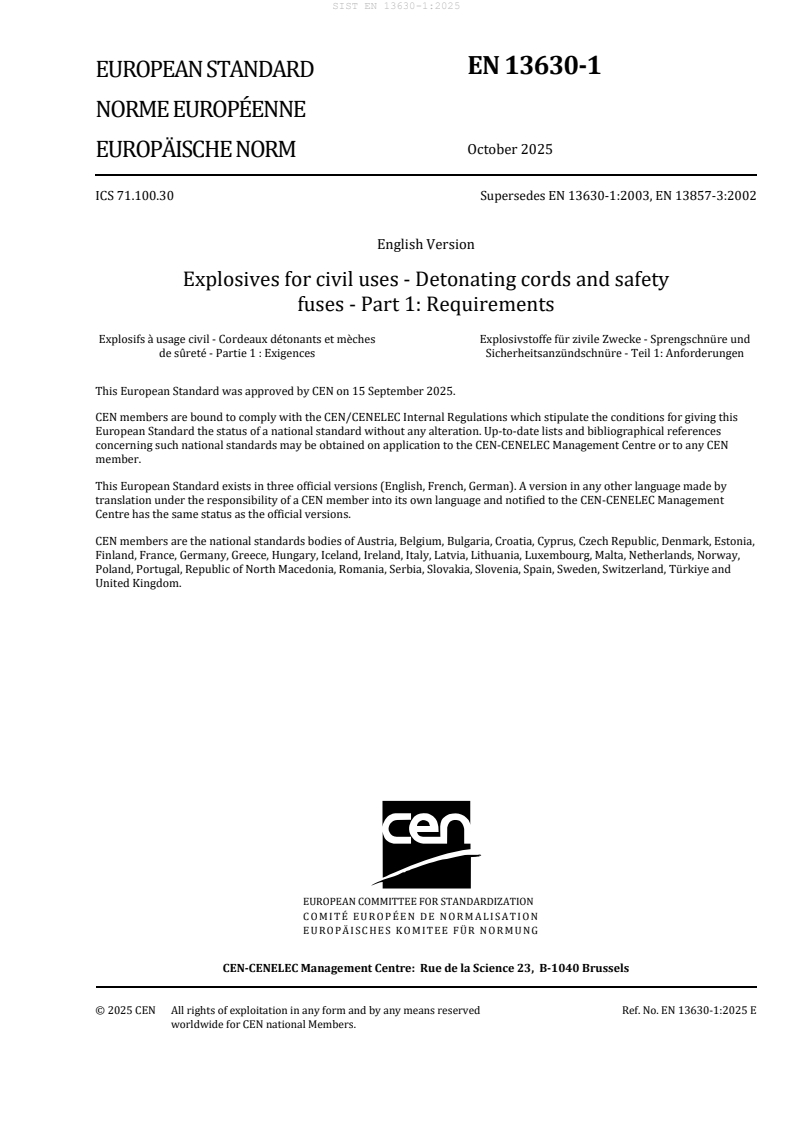

EN 13630-1
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2025
EUROPÄISCHE NORM
ICS 71.100.30 Supersedes EN 13630-1:2003, EN 13857-3:2002
English Version
Explosives for civil uses - Detonating cords and safety
fuses - Part 1: Requirements
Explosifs à usage civil - Cordeaux détonants et mèches Explosivstoffe für zivile Zwecke - Sprengschnüre und
de sûreté - Partie 1 : Exigences Sicherheitsanzündschnüre - Teil 1: Anforderungen
This European Standard was approved by CEN on 15 September 2025.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13630-1:2025 E
worldwide for CEN national Members.

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements for detonating cords . 6
4.1 Information to be provided for detonating cords . 6
4.1.1 Temperature of use . 6
4.1.2 Storage conditions . 6
4.1.3 Use in wet conditions. 6
4.1.4 Means of initiation . 6
4.1.5 Methods of connecting the detonating cord to another detonating cord . 6
4.1.6 Index of initiating capability . 6
4.1.7 Velocity of detonation . 6
4.2 Requirements on properties of detonating cords . 6
4.2.1 Thermal stability . 6
4.2.2 Insensitiveness to friction . 6
4.2.3 Insensitiveness to impact . 7
4.2.4 Resistance to abrasion . 7
4.2.5 Resistance to tension . 7
4.2.6 Reliability of initiation . 7
4.2.7 Resistance to water . 7
4.2.8 Transmission of detonation from detonating cord to detonation cord . 7
4.2.9 Initiating capability . 7
4.2.10 Velocity of detonation . 7
5 Requirements for safety fuses . 7
5.1 Information to be provided for safety fuses . 7
5.1.1 Temperature of use . 7
5.1.2 Storage conditions . 8
5.1.3 Use in wet conditions. 8
5.1.4 Means of ignition . 8
5.1.5 Burning duration . 8
5.2 Requirements on properties of safety fuses . 8
5.2.1 Thermal stability . 8
5.2.2 Resistance to water . 8
5.2.3 Burning duration . 8
Annex ZA (informative) Relationship between this European Standard and the essential
requirements of Directive 2014/28/EU relating to the making available on the market
and supervision of explosives for civil uses aimed to be covered. 9
Bibliography . 13

European foreword
This document (EN 13630-1:2025) has been prepared by Technical Committee CEN/TC 321 “Explosives
for civil uses”, the secretariat of which is held by UNE.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2026 and conflicting national standards shall be
withdrawn at the latest by April 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13630-1:2003. Together with EN 13631-1:2025, EN 13763-1:2025 and
EN 13938-1:2025, this document supersedes EN 13857-3:2002.
— the Scope has been updated;
— the normative references have been updated;
— Clause 4 “Requirements for detonating cords” has been revised:
— the requirements on information to be provided for detonating cords have been added as new
4.1 – these requirements have been moved here from EN 13857-3:2002 in revised form;
— the requirements on properties of detonating cords, former 4.1 to 4.10 have been completely
revised and are now given in 4.2;
— Clause 5 “Requirements for safety fuses” has been revised:
— the requirements on information to be provided for safety fuses have been added as new 5.1 –
these requirements have been moved here from EN 13857-3:2002 in revised form;
— the requirements on properties of safety fuses, former 5.1 to 5.3 have been completely revised
and are now given in 5.2;
— Annex ZA has been updated;
— the Bibliography has been added.
This document has been prepared under a standardization request addressed to CEN by the European
Commission. The Standing Committee of the EFTA States subsequently approves these requests for its
Member States.
For the relationship with EU Legislation, see informative Annex ZA, which is an integral part of this
document.
A list of all parts in the EN 13630 series, published under the general title Explosives for civil uses —
Detonating cords and safety fuses, can be found on the CEN website.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies requirements for detonating cords and safety fuses.
This document is applicable to explosives for civil uses.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 13630-2:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 2: Verification of
thermal stability
EN 13630-3:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 3: Verification of
insensitiveness to friction of the core of detonating cords
EN 13630-4:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 4: Verification of
insensitiveness to impact of detonating cords
EN 13630-5:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 5: Verification of
resistance to abrasion of detonating cords
EN 13630-6:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 6: Verification of
resistance to tension of detonating cords
EN 13630-7:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 7: Verification of
reliability of initiation of detonating cords
EN 13630-8:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 8: Verification of
resistance to water
EN 13630-9:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 9: Verification of
transmission of detonation from detonating cord to detonating cord
EN 13630-10:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 10: Determination
of the index of initiating capability of detonating cords
EN 13630-11:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 11: Determination
of velocity of detonation of detonating cords
EN 13630-12:2025, Explosives for civil uses — Detonating cords and safety fuses — Part 12: Determination
of burning duration of safety fuses
EN 13763-1:2025, Explosives for civil uses — Detonators and detonating cord relays — Part 1:
Requirements
EN 13857-1:2025, Explosives for civil uses — Part 1: Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 13857-1:2025 apply.
4 Requirements for detonating cords
4.1 Information to be provided for detonating cords
4.1.1 Temperature of use
The temperature range in which the detonating cord may be used shall be given as minimum and as
maximum temperature expressed in degrees Celsius (°C).
4.1.2 Storage conditions
4.1.2.1 Temperature
The temperature range for storage of
...
