SIST EN 13880-6:2019
(Main)Hot applied joint sealants - Part 6: Method for the preperation of samples for testing
Hot applied joint sealants - Part 6: Method for the preperation of samples for testing
This document describes a method for preparation of a representative test sample, heating of the test sample and pouring of test specimens for testing hot applied joint sealants for use in joints in concrete pavements for roads, airfields and other trafficked areas.
Heiß verarbeitbare Fugenmassen - Teil 6: Prüfverfahren zur Vorbereitung von Proben für die Prüfung
Dieses Dokument beschreibt ein Verfahren zur Vorbereitung einer repräsentativen Untersuchungsprobe, zur Erhitzung der Untersuchungsprobe und zum Vergießen von Probekörpern zur Prüfung heiß verarbeitbarer Fugenmassen, die für Fugen in Fahrbahnbefestigungen aus Beton für Straßen, Flugverkehrsflächen und andere Verkehrsflächen verwendet werden.
Produits de scellement de joints appliqués à chaud - Partie 6 : Méthode d'essai pour la préparation des échantillons destinés à l'essai
Ce document décrit une méthode d'essai pour la préparation d'un échantillon représentatif, le chauffage de l'échantillon et le versement des éprouvettes pour les essais sur des produits de scellement de joints appliqués à chaud destinés aux joints dans les chaussées en béton pour les routes, terrains d'aviation et autres chaussées circulées.
Toplo nanosljive tesnilne mase za stike - 6. del: Metoda priprave preskušancev
Ta evropski standard opisuje preskusne metode za pripravo vzorcev za preskušanje toplo nanosljivih tesnilnih mas za stike, ki se uporabljajo za stike na cestah, letalskih stezah in drugih betonskih površinah.
General Information
- Status
- Published
- Public Enquiry End Date
- 19-Oct-2017
- Publication Date
- 26-May-2019
- Technical Committee
- CES - Roads
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 18-Apr-2019
- Due Date
- 23-Jun-2019
- Completion Date
- 27-May-2019
Relations
- Effective Date
- 01-Jul-2019
Overview
EN 13880-6:2019 - part of the CEN series for hot applied joint sealants - specifies a laboratory method for the preparation, heating and pouring of representative test samples intended for testing sealants used in joints in concrete pavements (roads, airfields and other trafficked areas). The standard defines how to obtain a representative composite sample, how to heat it uniformly to the manufacturer’s safe heating temperature, and how to produce test specimens for subsequent physical and performance testing.
Key topics and requirements
- Scope: Preparation of test samples, heating and pouring of specimens for hot applied joint sealants used in concrete pavement joints.
- Sample definition: A “sample” is one or more original containers totalling at least 10 kg; spot samples are 20–100 g vertical straight‑through cuts; composite samples are 0.5–2 kg made by mixing spot samples.
- Heating protocol:
- Heat composite sample to the manufacturer-declared safe heating temperature.
- Heat-up period: reach temperature within 1.5 h; the measured heating time starts when the sealant reaches safe temp − 5 °C.
- Hold at safe heating temperature for 4 h ± 10 min (changed from 6 h in the previous edition).
- Apparatus temperature must not exceed safe temp + 5 °C.
- Apparatus: Any heating equipment that provides uniform heat transfer is allowed (oil bath, air heat chamber or direct electrical heater). If using an oil bath, oil must have a flash point ≥ 285 °C. Inner containers: metal (≈1 mm thick), glass or ceramic, 100–200 mm diameter and depth.
- Instrumentation: Thermometer accuracy ±1 °C for the 100–220 °C range; stirrer to homogenize the molten sealant.
- Pouring and finishing: Pour specimens promptly after heating; avoid oil contamination from oil baths; remove small air bubbles with a pilot flame or hot glass rod if necessary.
- Test report: Must record sample ID, source, batch/manufacture date, quantity/packaging/damage, preparation date, laboratory name, safe heating temperature, end-of-pour temperature and heating method.
Applications and users
- Laboratories performing standardized testing of hot applied joint sealants.
- Sealant manufacturers and quality control teams for product conformity.
- Road/airfield contractors and material specifiers who require validated test specimens.
- National standards bodies and accreditation entities assessing compliance with EN test methods.
Related standards
- EN 13880 series (Parts 1–13) - companion test methods for density, penetration, heat resistance, flow, function testing, compatibility, adhesion, etc.
- EN 14188-1 - specifications for hot applied sealants (normative reference).
- EN 58:2012 - sampling of bituminous binders (terminology source).
Keywords: EN 13880-6:2019, hot applied joint sealants, sample preparation, safe heating temperature, composite sample, pouring specimens, concrete pavement joints, CEN.
Frequently Asked Questions
SIST EN 13880-6:2019 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Hot applied joint sealants - Part 6: Method for the preperation of samples for testing". This standard covers: This document describes a method for preparation of a representative test sample, heating of the test sample and pouring of test specimens for testing hot applied joint sealants for use in joints in concrete pavements for roads, airfields and other trafficked areas.
This document describes a method for preparation of a representative test sample, heating of the test sample and pouring of test specimens for testing hot applied joint sealants for use in joints in concrete pavements for roads, airfields and other trafficked areas.
SIST EN 13880-6:2019 is classified under the following ICS (International Classification for Standards) categories: 91.100.50 - Binders. Sealing materials; 93.080.20 - Road construction materials. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN 13880-6:2019 has the following relationships with other standards: It is inter standard links to SIST EN 13880-6:2004. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN 13880-6:2019 is associated with the following European legislation: EU Directives/Regulations: 305/2011. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN 13880-6:2019 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)
SLOVENSKI STANDARD
01-julij-2019
Nadomešča:
SIST EN 13880-6:2004
Toplo nanosljive tesnilne mase za stike - 6. del: Metoda priprave preskušancev
Hot applied joint sealants - Part 6: Method for the preperation of samples for testing
Heiß verarbeitbare Fugenmassen - Teil 6: Prüfverfahren zur Vorbereitung von Proben für
die Prüfung
Produits de scellement de joints appliqués à chaud - Partie 6 : Méthode d'essai pour la
préparation des échantillons destinés à l'essai
Ta slovenski standard je istoveten z: EN 13880-6:2019
ICS:
91.100.50 Veziva. Tesnilni materiali Binders. Sealing materials
93.080.20 Materiali za gradnjo cest Road construction materials
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EN 13880-6
EUROPEAN STANDARD
NORME EUROPÉENNE
April 2019
EUROPÄISCHE NORM
ICS 93.080.20 Supersedes EN 13880-6:2004
English Version
Hot applied joint sealants - Part 6: Method for the
preparation of samples for testing
Produits de scellement de joints appliqués à chaud - Heiß verarbeitbare Fugenmassen - Teil 6:
Partie 6 : Méthode d'essai pour la préparation des Prüfverfahren zur Vorbereitung von Proben für die
échantillons destinés à l'essai Prüfung
This European Standard was approved by CEN on 25 February 2019.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13880-6:2019 E
worldwide for CEN national Members.

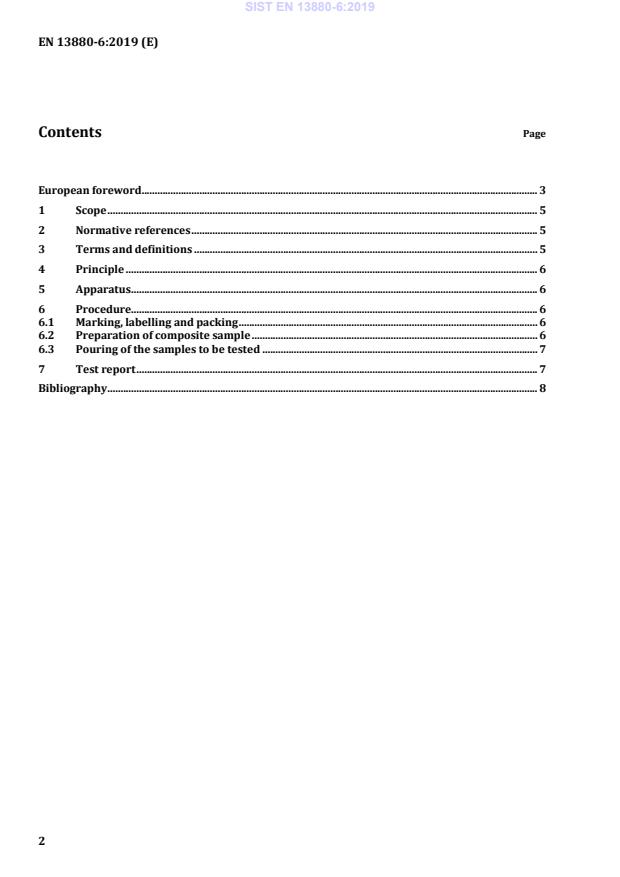

Contents Page
European foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Principle . 6
5 Apparatus . 6
6 Procedure. 6
6.1 Marking, labelling and packing . 6
6.2 Preparation of composite sample . 6
6.3 Pouring of the samples to be tested . 7
7 Test report . 7
Bibliography . 8
European foreword
This document (EN 13880-6:2019) has been prepared by Technical Committee CEN/TC 227 “Road
materials”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by October 2019, and conflicting national standards shall
be withdrawn at the latest by October 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13880-6:2004
This European Standard is one of a series of standards as listed below:
— EN 13880-1, Hot applied joint sealants — Part 1: Test method for the determination of density at
25 °C
— EN 13880-2, Hot applied joint sealants — Part 2: Test method for the determination of cone
penetration at 25 °C
— EN 13880-3, Hot applied joint sealants — Part 3: Test method for the determination of penetration
and recovery (resilience)
— EN 13880-4, Hot applied joint sealants — Part 4: Test method for the determination of heat
resistance — Change in penetration value
— EN 13880-5, Hot applied joint sealants — Part 5: Test method for the determination of flow resistance
— EN 13880-6, Hot applied joint sealants — Part 6: Test method for the preparation of samples for
testing
— EN 13880-7, Hot applied joint sealants — Part 7: Function testing of joint sealants
— EN 13880-8, Hot applied joint sealants — Part 8: Test method for the determination of the change in
weight of fuel resistance joint sealants after fuel immersion
— EN 13880-9, Hot applied joint sealants — Part 9: Test method for the determination of compatibility
with asphalt pavements
— EN 13880-10, Hot applied joint sealants — Part 10: Test method for the determination of adhesion
and cohesion following continuous extension and compression
— EN 13880-11, Hot applied joint sealants — Part 11: Test method for the preparation of asphalt test
blocks used in the function test and for the determination of compatibility with asphalt pavements
— EN 13880-12, Hot applied joint sealants — Part 12: Test method for the manufacture of concrete test
blocks for testing (recipe methods)
— EN 13
...
