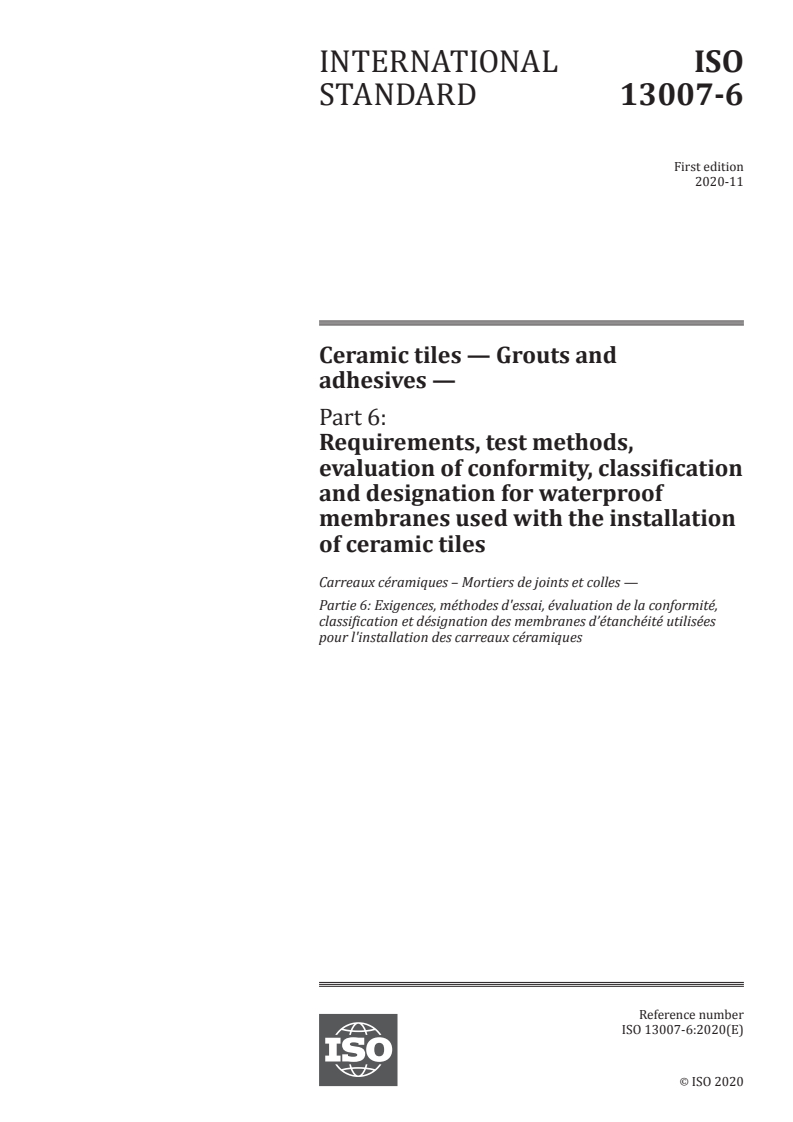

INTERNATIONAL ISO
STANDARD 13007-6
First edition
2020-11
Ceramic tiles — Grouts and
adhesives —
Part 6:
Requirements, test methods,
evaluation of conformity, classification
and designation for waterproof
membranes used with the installation
of ceramic tiles
Carreaux céramiques – Mortiers de joints et colles —
Partie 6: Exigences, méthodes d'essai, évaluation de la conformité,
classification et désignation des membranes d’étanchéité utilisées
pour l'installation des carreaux céramiques
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

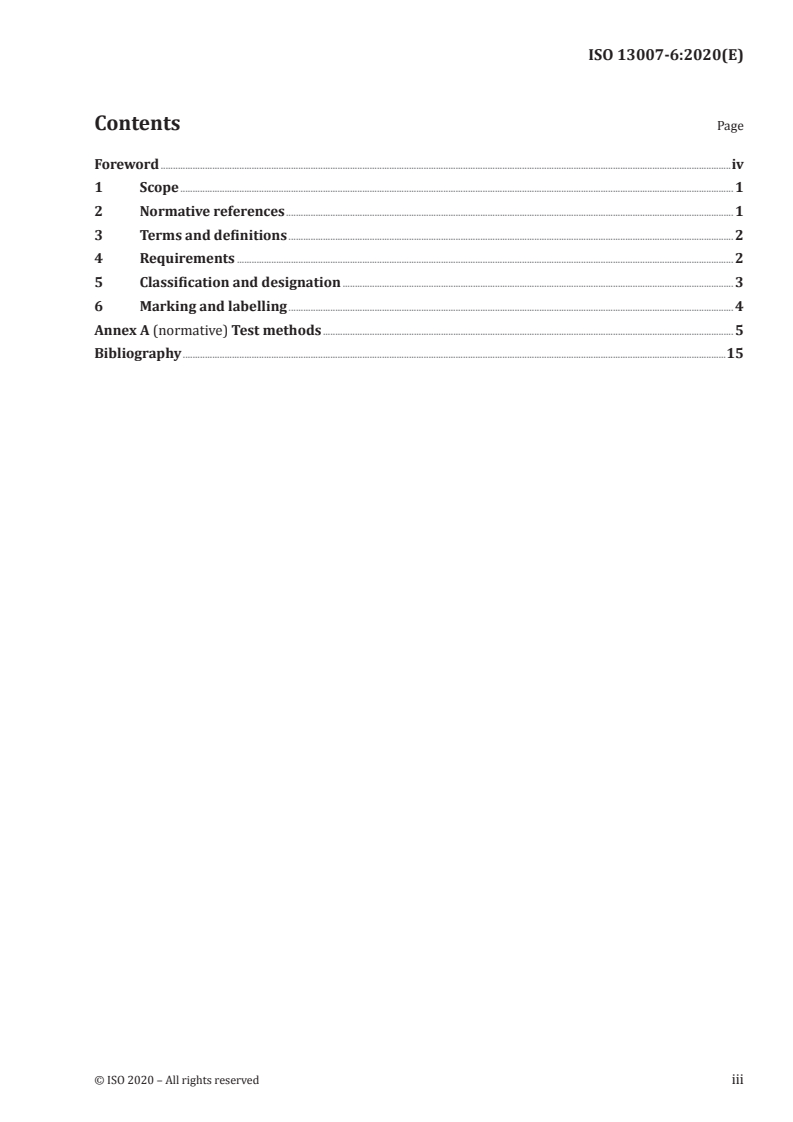

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Requirements . 2
5 Classification and designation . 3
6 Marking and labelling . 4
Annex A (normative) Test methods . 5
Bibliography .15
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 189, Ceramic tile.
A list of all parts in the ISO 13007 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved
INTERNATIONAL STANDARD ISO 13007-6:2020(E)
Ceramic tiles — Grouts and adhesives —
Part 6:
Requirements, test methods, evaluation of conformity,
classification and designation for waterproof membranes
used with the installation of ceramic tiles
1 Scope
This document applies to all bonded sheet waterproofing membranes that are used beneath ceramic
tiling for internal and external tile installations on walls and floors.
This document provides the terminology concerning the products and specifies the test methods and
the values of performance requirements for bonded sheet waterproofing products associated with tile
adhesives.
Furthermore, this document specifies the evaluation of conformity and the classification and
designation of all bonded sheet waterproofing products beneath ceramic tiling.
NOTE 1 Bonded sheet waterproofing products can also be used beneath other types of tiles (natural and
agglomerated stones etc.), where they do not adversely affect these materials.
NOTE 2 This document does not address crack isolation, decoupling, sound control, thermal properties, or any
aspect of membranes apart from waterproofing.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 13006, Ceramic tiles — Definitions, classification, characteristics and marking
ISO 13007-1, Ceramic tiles — Grouts and adhesives — Part 1: Terms, definitions and specifications for
adhesives
ISO 13007-2, Ceramic tiles — Grouts and adhesives — Part 2: Test methods for adhesives
ISO 15605, Adhesives — Sampling
EN 197-1, Cement — Part 1: Composition, specifications and conformity criteria for common cements
EN 480-1:2014, Admixture for concrete, mortar and grout — Test methods — Part 1: Reference concrete
and mortar for testing
EN 1008, Mixing water for concrete — Specification for sampling, testing and assessing the suitability of
water, including water recovered from processes in the concrete industry, as mixing water for concrete
EN 1067, Adhesives — Examination and preparation of samples for testing
EN 1931, Flexible sheets for waterproofing — Bitumen, plastic and rubber sheets for roof waterproofing —
Determination of water vapour transmission properties
EN 12390-2, Testing hardened concrete — Part 2: Making and curing specimens for strength tests
EN 12620, Aggregates for concrete
ASTM E96, Standard Test Methods for Water Vapor Transmission of Materials
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
bonded sheet waterproofing membrane
BM
single- or multi component waterproofing membrane applied as a preformed sheet in a uniform layer
or layers, beneath ceramic tiling in such a manner as to be bonded to the substrate as well as the tile
according to manufacturer’s instructions
Note 1 to entry: The final waterproofing membrane may include a separately applied seam sealer.
Note 2 to entry: The bonded sheet waterproofing membrane can be flat or structured with a geometric
configuration.
3.2
primer
liquid coating applied to the surface, prior to the application of a bonded sheet waterproofing product,
to improve adhesion and durability of the bond between the substrate and the membrane
4 Requirements
The bonded sheet waterproofing membrane products shall comply with the characteristics specified in
Table 1.
Table 2 gives the additional characteristics that might be required for special service conditions.
The tile adhesive used for evaluation should be the same for all testing performed in a series, a C2S1
adhesive being recommended. The amount of water and/or liquid admixture required for preparing the
adhesives used to affix to the sheet membrane shall be the same for all tests.
2 © ISO 2020 – All rights reserved
Table 1 — Product requirements — Fundamental characteristics
Characteristic Requirement Test method
Initial tensile adhesion strength ≥0,2 N/mm A.6.2
Tensile adhesion strength after water contact ≥0,2 N/mm A.6.3 or A.6.4
Tensile adhesion strength after heat ageing ≥0,2 N/mm A.6.5
Tensile adhesion strength after freeze-thaw cycles ≥0,2 N/mm A.6.6
Tensile adhesion strength after contact with lime water ≥0,2 N/mm A.6.9
Water permeability No visual A.7
penetration below
membrane
and
≤3,0 g weight gain
when tested at a
seam
Fundamental characteristics are the characteristics that a bonded sheet waterproofing membrane product always needs
to have.
Table 2 — Product requirements — Optional characteristics
Characteristic Requirement Test method
Enhanced adhesion (BM2 rating) – All tensile strengths listed above ≥0,5 N/mm
Low water vapour permeance (W rating) <1,0 Perm A.8
Tensile adhesion strength after contact with chlorinated water (P ≥0,5 N/mm A.6.7 or A.6.8
rating)
Optional characteristics are characteristics for specific service conditions where enhanced levels of performance are
required, or which provide further information about its general performance.
5 Classification and designation
The bonded sheet waterproofing membranes are classified according to the conformity with
fundamental or optional characteristics from Tables 1 and 2:
BM1 Bonded sheet waterproofing membrane;
OR
BM2 Enhanced adhesion bonded sheet waterproofing membrane.
NOTE Membranes not meeting the minimum tensile adhesion requirements of Tables 1 and 2 are considered
unbonded membranes.
It is possible to have different classes, related to the different optional characteristics given in Table 2.
These classes are designated by the following abbreviations:
P resistant to contact with chlorinated water (i.e. for use in swimming pools);
W resistant to water vapour permeation.
The product is designated by the symbol BM1 or BM2, followed by the abbreviation of the optional
characteristics it has. Table 3 describes the designation of the products types and classes which shall
be used.
Table 3 — Classification and designation of bonded sheet waterproofing membranes
SYMBOL DESCRIPTION
TYPE CLASS
BM1 or 2 Normal or enhanced adhesion bonded sheet waterproofing membrane
BM1 or 2 P Normal or enhanced adhesion bonded sheet waterproofing membrane resistant to con-
tact with chlorinated water
BM1 or 2 W Normal or enhanced adhesion bonded sheet waterproofing membrane with low water
vapour permeance
BM1 or 2 PW Normal or enhanced adhesion bonded sheet waterproofing membrane with low water
vapour permeance and resistance to contact with chlorinated water
6 Marking and labelling
Products conforming with the requirements of this document shall be clearly marked with the following
information:
a) name of the product;
b) manufacturer’s mark and place of origin;
c) date or code of production, shelf life and conditions of storage;
d) number of this document, i.e. ISO 13007-6, and date of issue;
e) type of product according to Clause 6 (using symbols given in Clause 6);
f) instructions for use:
— substrate bonding materials required to adhere sheet membrane to substrate;
— mode of application (including recommended primer and/or surface preparation);
— minimum quantity or thickness of the adhesive product;
— maturing time for initial membrane bonding to substrate (where applicable);
— delay for installing ceramic tiles;
— suitable tile adhesive(s) (type and class in accordance with ISO 13007-1);
— field of application (internal, external, wall, floor etc.).
NOTE In the designation of a sheet waterproofing membrane, information about special properties can be
included when the product is intended for use in specific applications.
This information shall be marked on the packaging and/or on the product’s technical data sheet.
This does not remove the requirement that all manufacturers claiming conformity with this document
should state declared values for the properties of their products, when required.
4 © ISO 2020 – All rights reserved
Annex A
(normative)
Test methods
A.1 Sampling
A.1.1 Tile adhesive
Take a sample of at least 2 kg of the product to be tested in accordance with ISO 15605 and EN 1067.
A.1.2 Membrane
Cut a sample of at least 1 m of the membrane to be tested. Avoid using membrane material from too
close to the edge of the sheet.
A.1.3 Other: membrane adhesive (if required), primer (if required), seam sealer (if
required)
Obtain a full unit of any of these materials if required.
A.2 Test co
...
