Zinc coatings — Guidelines and recommendations for the protection against corrosion of iron and steel in structures — Part 3: Sherardizing

ISO 14708-3:2017 provides guidelines and recommendations regarding the general principles of design that are appropriate for articles to be sherardized for corrosion protection. The protection afforded by the sherardized coating to the article will depend upon the method of application of the coating, the design of the article and the specific environment to which the article is exposed. The sherardized article can be further protected by application of additional coatings (outside the scope of this document), such as organic coatings (wet paints or powder coatings). When applied to sherardized articles, this combination of coatings is often known as a "duplex system". General guidance on this subject can be found in ISO 12944‑5 and EN 13438. The maintenance of corrosion protection in service for steel with sherardized coatings is outside the scope of this document. Specific product-related requirements (e.g. for sherardized coatings on fasteners or tubes, etc.) will take precedence over these general recommendations.

Revêtements de zinc — Lignes directrices et recommandations pour la protection contre la corrosion du fer et de l'acier dans les constructions — Partie 3: Shérardisation

ISO 14713-3:2017fournit des lignes directrices et des recommandations concernant les principes généraux de conception appropriés pour les pièces à shérardiser pour leur protection contre la corrosion. La protection assurée par le revêtement de shérardisation appliqué sur la pièce dépend de la méthode d'application du revêtement, de la conception de la pièce et de l'environnement spécifique auquel la pièce est exposée. La pièce shérardisée peut être encore plus protégée par l'application de revêtements supplémentaires (non couverts par le domaine d'application du présent document), tels que des revêtements organiques (peintures humides ou revêtements poudre). Lorsqu'elle est appliquée aux pièces shérardisées, cette combinaison de revêtements est souvent appelée «système duplex». Des lignes directrices générales sur ce sujet sont données dans l'ISO 12944‑5 et l'EN 13438. L'entretien de la protection contre la corrosion en service assurée pour l'acier par des revêtements shérardisés ne relève pas du domaine d'application du présent document. Des exigences spécifiques relatives aux produits (par exemple pour les revêtements shérardisés sur les tubes et les éléments de fixation, etc.) prévalent sur les présentes recommandations générales.

General Information

Status
Published
Publication Date
12-Apr-2017
Current Stage
9093 - International Standard confirmed
Start Date
14-Sep-2022
Completion Date
19-Apr-2025
Ref Project

Relations

Standard
ISO 14713-3:2017 - Zinc coatings -- Guidelines and recommendations for the protection against corrosion of iron and steel in structures
English language
8 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ISO 14713-3:2017 - Revetements de zinc -- Lignes directrices et recommandations pour la protection contre la corrosion du fer et de l'acier dans les constructions
French language
9 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

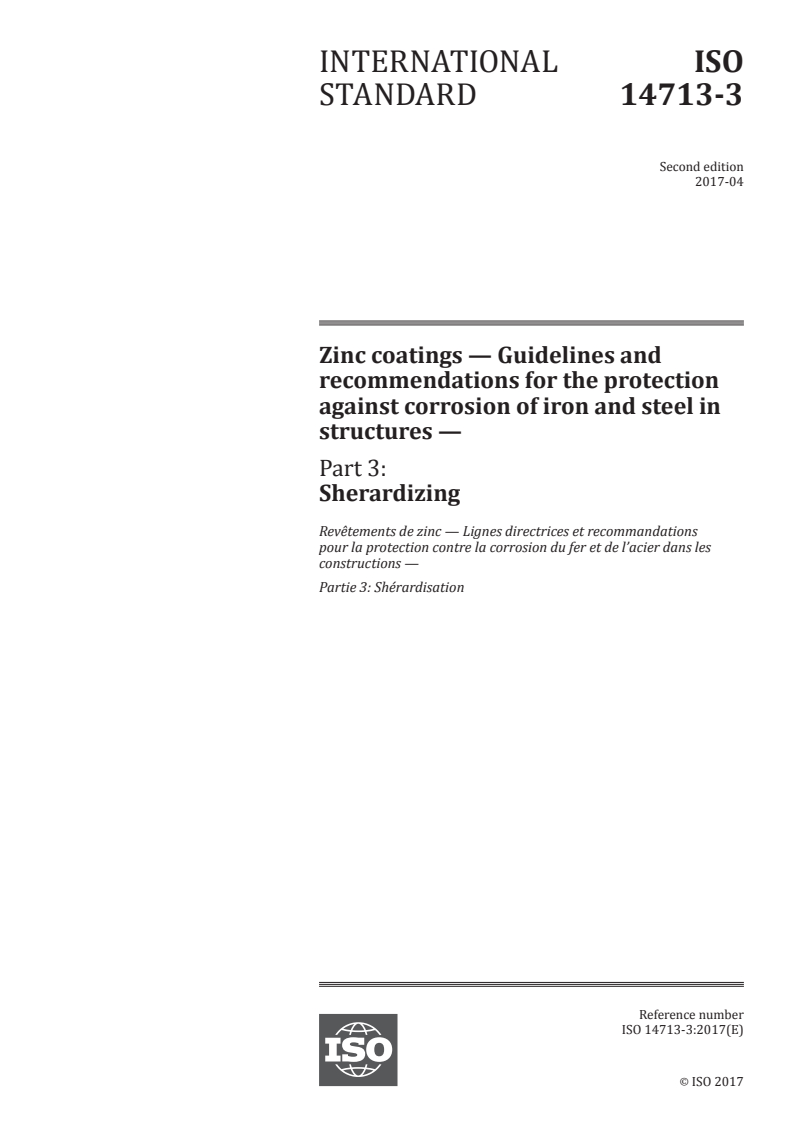

INTERNATIONAL ISO
STANDARD 14713-3
Second edition
2017-04
Zinc coatings — Guidelines and
recommendations for the protection
against corrosion of iron and steel in
structures —
Part 3:
Sherardizing
Revêtements de zinc — Lignes directrices et recommandations
pour la protection contre la corrosion du fer et de l’acier dans les
constructions —
Partie 3: Shérardisation
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

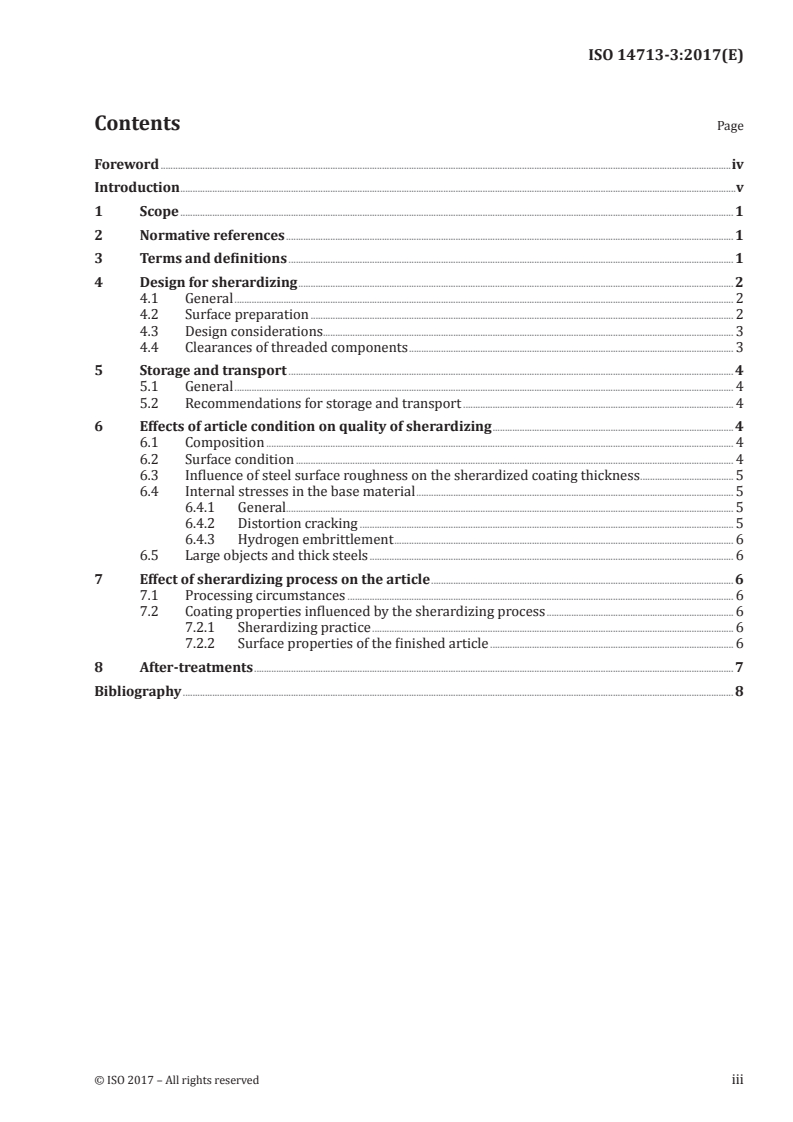

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Design for sherardizing . 2
4.1 General . 2
4.2 Surface preparation . 2
4.3 Design considerations. 3
4.4 Clearances of threaded components . 3
5 Storage and transport . 4
5.1 General . 4
5.2 Recommendations for storage and transport . 4
6 Effects of article condition on quality of sherardizing . 4
6.1 Composition . 4
6.2 Surface condition . 4
6.3 Influence of steel surface roughness on the sherardized coating thickness . 5
6.4 Internal stresses in the base material . 5
6.4.1 General. 5
6.4.2 Distortion cracking . 5
6.4.3 Hydrogen embrittlement . 6
6.5 Large objects and thick steels . 6
7 Effect of sherardizing process on the article . 6
7.1 Processing circumstances . 6
7.2 Coating properties influenced by the sherardizing process . 6
7.2.1 Sherardizing practice . 6
7.2.2 Surface properties of the finished article . 6
8 After-treatments . 7
Bibliography . 8

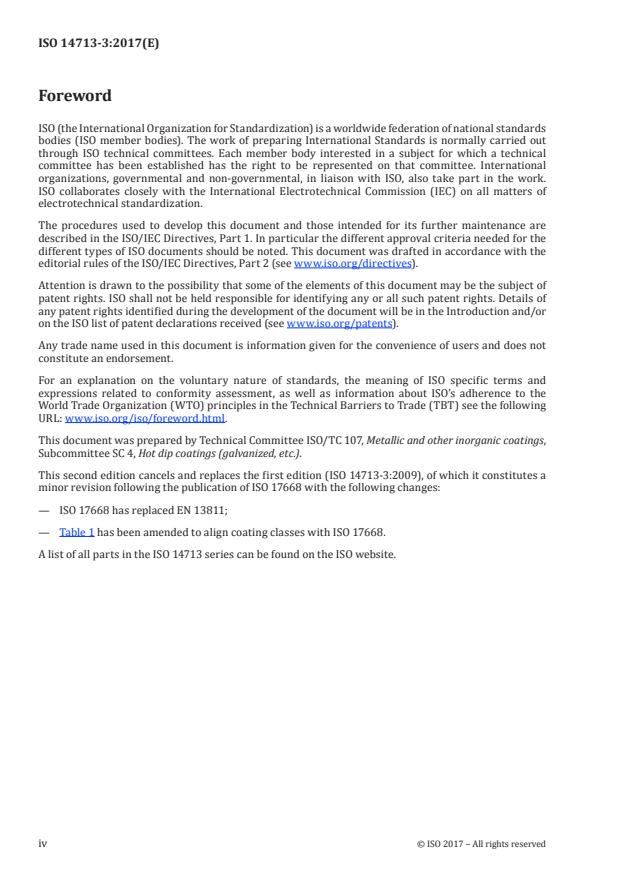

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 107, Metallic and other inorganic coatings,
Subcommittee SC 4, Hot dip coatings (galvanized, etc.).
This second edition cancels and replaces the first edition (ISO 14713-3:2009), of which it constitutes a
minor revision following the publication of ISO 17668 with the following changes:
— ISO 17668 has replaced EN 13811;
— Table 1 has been amended to align coating classes with ISO 17668.
A list of all parts in the ISO 14713 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved

Introduction
Sherardizing is a thermal diffusion process in which articles are heated in the presence of a sherardizing
mixture consisting of zinc dust with or without an inert material.
The process is carried out in a slowly rotating closed container at temperatures ranging from about
300 °C to 500 °C. The normal processing temperature is below the melting point of zinc (419 °C).
During the process, zinc/iron alloys are built up on the surface of the ferrous articles. A coating
thickness of 10 µm to 75 µm (and higher if required) can be achieved. The coating thickness is accurately
controlled by the amount of zinc dust, the processing time and temperature. The coating closely follows
the contours of the basis material, and uniform coatings are produced on articles, including those of
irregular shape.
After sherardizing, the containers are cooled down. A screening process separates the sherardized
articles from the unused sherardizing mixture. The articles, with the zinc/iron-alloyed layer, are
normally post-treated by phosphating, chromating or another suitable passivation process (conversion
coating) resulting in a dust-free and clean passivated surface.
Most steel and iron articles can be sherardized.
INTERNATIONAL STANDARD ISO 14713-3:2017(E)
Zinc coatings — Guidelines and recommendations for
the protection against corrosion of iron and steel in
structures —
Part 3:
Sherardizing
1 Scope
This document provides guidelines and recommendations regarding the general principles of design
that are appropriate for articles to be sherardized for corrosion protection.
The protection afforded by the sherardized coating to the article will depend upon the method of
application of the coating, the design of the article and the specific environment to which the article is
exposed. The sherardized article can be further protected by application of additional coatings (outside
the scope of this document), such as organic coatings (wet paints or powder coatings). When applied to
sherardized articles, this combination of coatings is often known as a “duplex system”.
General guidance on this subject can be found in ISO 12944-5 and EN 13438.
The maintenance of corrosion protection in service for steel with sherardized coatings is outside the
scope of this document.
Specific product-related requirements (e.g. for sherardized coatings on fasteners or tubes, etc.) will
take precedence over these general recommendations.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 8044, Corrosion of metals and alloys — Basic terms and definitions
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 8044 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
3.1
sherardizing
thermal diffusion process in which articles are heated in close contact with a sherardizing mixture,
consisting of zinc dust with or without an inert material, in a closed container, usually rotated
3.2
sherardized coating
coating consisting of zinc/iron alloys obtained by the sherardizing process, and normally post-treated
by phosphating, chromating or another suitable passivating process (conversion coating)
Note 1 to entry: “Sherardized coating” is referred to in this document as “coating”.
4 Design for sherardizing
4.1 General
It is essential that the design of any article required to be finished should take into account not only the
function of the article and its method of manufacture but also the limitations imposed by the finish.
Sherardizing is a process developed to protect components of various sizes, but mainly small articles,
against corrosion and wear. No jig marks are visible after sherardizing. Normal sherardizing equipment
has containers with nominal dimensions of 2 000 mm × 480 mm × 400 mm. Specialized equipment has
been developed to treat large tubes for the gas and oil industry and large articles of complex shape for
the automotive industry.
Some internal stresses in the articles to be sherardized will be relieved during the sherardizing process
and this may cause deformation of the coated article. Normally, the sherardizing is carried out between
320 °C and 419 °C.
The purchaser should seek the advice of the sherardizer before designing or manufacturing a product
that is subsequently to be sherardized, as it may be necessary to adapt the construction of the article
for the sherardizing process, especially when very fragile components are sent for sherardizing. These
components may be liable to damage and distortion during processing. The sherardizer may be able to
recommend a design modification.
4.2 Surface preparation
The design and the materials used should permit good surface preparation. This is essential for the
production of a high-quality coating
...

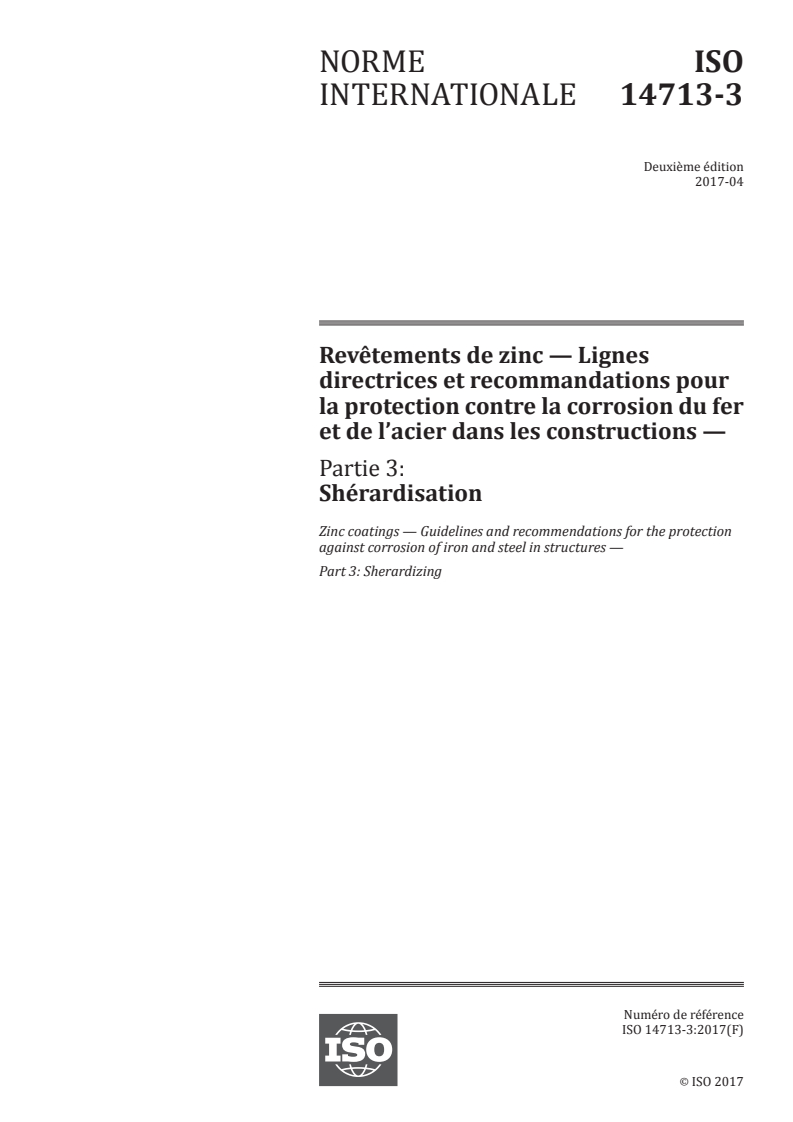

NORME ISO
INTERNATIONALE 14713-3
Deuxième édition
2017-04
Revêtements de zinc — Lignes
directrices et recommandations pour
la protection contre la corrosion du fer
et de l’acier dans les constructions —
Partie 3:
Shérardisation
Zinc coatings — Guidelines and recommendations for the protection
against corrosion of iron and steel in structures —
Part 3: Sherardizing
Numéro de référence
©
ISO 2017
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2017, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – Tous droits réservés

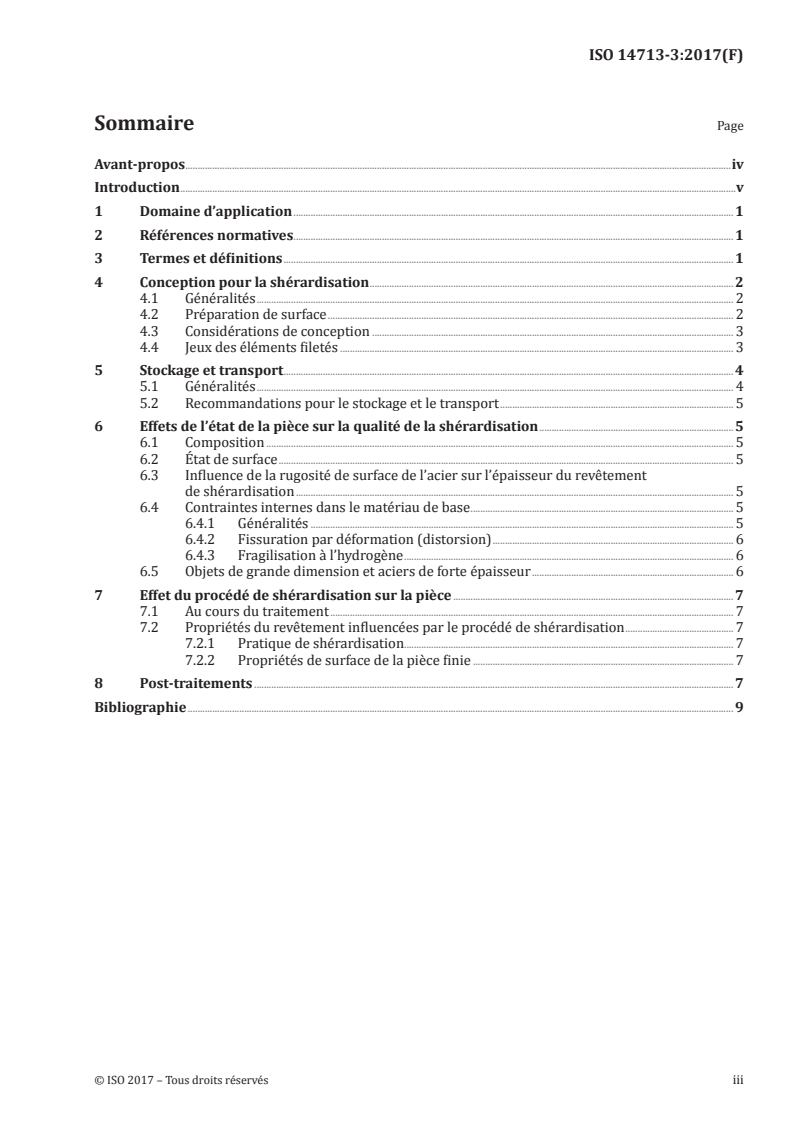

Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Conception pour la shérardisation . 2
4.1 Généralités . 2
4.2 Préparation de surface . 2
4.3 Considérations de conception . 3
4.4 Jeux des éléments filetés . 3
5 Stockage et transport . 4
5.1 Généralités . 4
5.2 Recommandations pour le stockage et le transport . 5
6 Effets de l’état de la pièce sur la qualité de la shérardisation . 5
6.1 Composition . 5
6.2 État de surface . 5
6.3 Influence de la rugosité de surface de l’acier sur l’épaisseur du revêtement
de shérardisation . 5
6.4 Contraintes internes dans le matériau de base . 5
6.4.1 Généralités . 5
6.4.2 Fissuration par déformation (distorsion) . 6
6.4.3 Fragilisation à l’hydrogène . 6
6.5 Objets de grande dimension et aciers de forte épaisseur . 6
7 Effet du procédé de shérardisation sur la pièce . 7
7.1 Au cours du traitement . 7
7.2 Propriétés du revêtement influencées par le procédé de shérardisation . 7
7.2.1 Pratique de shérardisation . . 7
7.2.2 Propriétés de surface de la pièce finie . 7
8 Post-traitements . 7
Bibliographie . 9

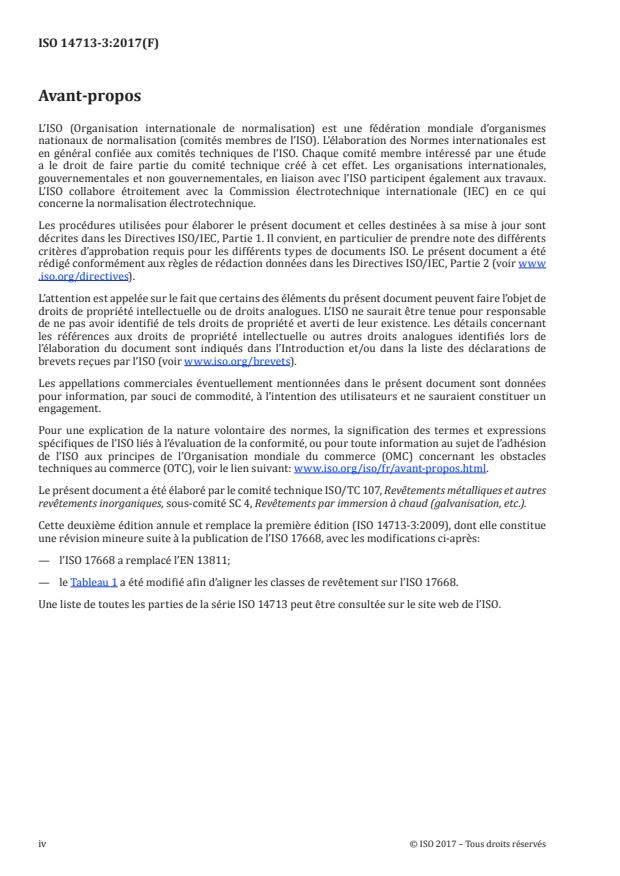

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www
.iso .org/ directives).
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www .iso .org/ brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l’ISO liés à l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion
de l’ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles
techniques au commerce (OTC), voir le lien suivant: w w w . i s o .org/ iso/ fr/ avant -propos .html.
Le présent document a été élaboré par le comité technique ISO/TC 107, Revêtements métalliques et autres
revêtements inorganiques, sous-comité SC 4, Revêtements par immersion à chaud (galvanisation, etc.).
Cette deuxième édition annule et remplace la première édition (ISO 14713-3:2009), dont elle constitue
une révision mineure suite à la publication de l’ISO 17668, avec les modifications ci-après:
— l’ISO 17668 a remplacé l’EN 13811;
— le Tableau 1 a été modifié afin d’aligner les classes de revêtement sur l’ISO 17668.
Une liste de toutes les parties de la série ISO 14713 peut être consultée sur le site web de l’ISO.
iv © ISO 2017 – Tous droits réservés

Introduction
La shérardisation est un procédé de diffusion thermique par lequel les pièces sont chauffées en présence
d’un mélange de shérardisation comprenant de la poussière de zinc avec ou sans matériau inerte.
Le procédé est réalisé dans un conteneur fermé tournant lentement à des températures comprises
entre environ 300 °C et 500 °C. La température de traitement normale est inférieure au point de fusion
du zinc (419 °C).
Pendant le procédé, les alliages de zinc-fer se forment à la surface des pièces ferreuses. Une épaisseur
de revêtement de 10 µm à 75 µm (et plus si nécessaire) peut être obtenue. L’épaisseur du revêtement est
contrôlée avec précision par la quantité de poussière de zinc, la durée et la température de traitement.
Le revêtement suit étroitement les contours du matériau de base, et des revêtements uniformes sont
appliqués aux pièces, y compris celles de forme irrégulière.
Après shérardisation, les conteneurs sont refroidis. Un procédé de tamisage sépare les pièces
shérardisées du mélange de shérardisation non utilisé. Les pièces, avec la couche d’alliage zinc/fer,
sont généralement traitées ultérieurement par phosphatation au zinc, chromatation ou autre procédé
de passivation approprié (couche de conversion), permettant d’obtenir une surface passivée propre et
exempte de poussière.
La plupart des pièces en acier et en fer peuvent être shérardisées.
NORME INTERNATIONALE ISO 14713-3:2017(F)
Revêtements de zinc — Lignes directrices et
recommandations pour la protection contre la corrosion
du fer et de l’acier dans les constructions —
Partie 3:
Shérardisation
1 Domaine d’application
Le présent document fournit des lignes directrices et des recommandations concernant les principes
généraux de conception appropriés pour les pièces à shérardiser pour leur protection contre la
corrosion.
La protection assurée par le revêtement de shérardisation appliqué sur la pièce dépend de la méthode
d’application du revêtement, de la conception de la pièce et de l’environnement spécifique auquel la
pièce est exposée. La pièce shérardisée peut être encore plus protégée par l’application de revêtements
supplémentaires (non couverts par le domaine d’application du présent document), tels que des
revêtements organiques (peintures humides ou revêtements poudre). Lorsqu’elle est appliquée aux
pièces shérardisées, cette combinaison de revêtements est souvent appelée «système duplex».
Des lignes directrices générales sur ce sujet sont données dans l’ISO 12944-5 et l’EN 13438.
L’entretien de la protection contre la corrosion en service assurée pour l’acier par des revêtements
shérardisés ne relève pas du domaine d’application du présent document.
Des exigences spécifiques relatives aux produits (par exemple pour les revêtements shérardisés sur les
tubes et les éléments de fixation, etc.) prévalent sur les présentes recommandations générales.
2 Références normatives
Les documents suivants cités dans le texte constituent, pour tout ou partie de leur contenu, des
exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour les
références non datées, la dernière édition du document de référence s’applique (y compris les éventuels
amendements).
ISO 8044, Corrosion des métaux et alliages — Termes principaux et définitions
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions donnés dans l’ISO 8044 ainsi que les
suivants s’appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en
normalisation, consultables aux adresses suivantes:
— IEC Electropedia: disponible à l’adresse http:// www .electropedia .org/
— ISO Online browsing platform: disponible à l’adresse http:// www .iso .org/ obp
3.1
shérardisation
procédé de diffusion thermique par lequel les pièces sont chauffées en contact étroit avec mélange de
shérardisation, comprenant de la poussière de zinc avec ou sans matériau inerte, dans un conteneur
fermé, habituellement rotatif
3.2
revêtement de shérardisation
revêtement comportant des alliages de zinc/fer, obtenu par le procédé de shérardisation, et
généralement traité ultérieurement par phosphatation, chromatation ou autre procédé de passivation
approprié (couche de conversion)
Note 1 à l’article: Le terme « revêtement » est utilisé dans le reste du document avec le sens de « revêtement de
shérardisation ».
4 Conception pour la shérardisation
4.1 Généralités
Il est essentiel que la conception de toute pièce destinée à recevoir un revêtement tienne compte
non seulement de la fonction de la pièce et de sa méthode de fabrication, mais également des limites
imposées par le revêtement.
La shérardisation est un procédé élaboré p
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
