ISO 16482-1:2013
(Main)Binders for paints and varnishes - Determination of the non-volatile-matter content of aqueous rosin-resin dispersions - Part 1: Oven method
Binders for paints and varnishes - Determination of the non-volatile-matter content of aqueous rosin-resin dispersions - Part 1: Oven method
ISO 16482-1:2013 specifies a method for determining the non-volatile content, by mass, of aqueous rosin-resin dispersions, using an oven. This method is applicable to resin dispersions having a softening point from 60 °C to 100 °C, measured in accordance with ISO 4625‑1 (ring-and-ball method).
Liants pour peintures et vernis — Détermination de la teneur en matières non volatiles des dispersions aqueuses de résine colophane — Partie 1: Méthode à l'étuve
L'ISO 16482-1:2013 spécifie une méthode de détermination de la teneur en matière non volatile, en masse, des dispersions aqueuses de colophane par étuvage. Cette méthode est applicable aux dispersions de résine dont le point de ramollissement, mesuré conformément à l'ISO 4625‑1 (méthode de l'anneau et de la bille), est compris entre 60 °C et 100 °C.
General Information
Overview
ISO 16482-1:2013 specifies an oven method to determine the non-volatile-matter (NV) content by mass of aqueous rosin‑resin dispersions used as binders for paints and varnishes. The procedure applies to resin dispersions with a softening point of 60 °C to 100 °C, measured in accordance with ISO 4625‑1 (ring‑and‑ball method). This standardized test gives a reproducible measurement of solid (resin) content after evaporation of water under controlled conditions.
Key topics and requirements
- Scope: NV determination for aqueous rosin‑resin dispersions; applicable softening point range 60–100 °C.
- Principle: evaporate water at 135 °C and determine the mass of the residue.
- Apparatus:
- Analytical balance accurate to 0.0001 g.
- Aluminium dishes, bottom diameter (45 ± 5) mm, rim height ≤ 40 mm.
- Non‑convection oven capable of 135 ± 3 °C.
- Convection oven for dish drying at about 160 °C.
- Reagents: chemically pure toluene and acetone for cleaning.
- Sampling: take representative samples per ISO 15528.
- Procedure highlights:
- Clean dishes with toluene then acetone, dry solvent‑free, then condition in convection oven at ~160 °C for ≥24 h.
- Use three dried dishes per sample (triplicate).
- Weigh a 2.000 g (2 g) test portion into a pre‑weighed dish.
- Heat in non‑convection oven at 135 °C for at least 45 minutes until constant/stabilized weight.
- Cool and weigh; calculate NV from mass of residue relative to test portion.
- Calculation & reporting: NV (%) = (mass of residue / mass of test portion) × 100. Report the mean of three valid results to one decimal place. Include product ID, reference to ISO 16482‑1, test date and any deviations in the report.
Applications and users
- Quality control in paint, varnish and adhesive manufacturing to verify binder solids.
- Incoming inspection of aqueous rosin‑resin dispersions for raw material acceptance.
- R&D and formulation labs assessing resin concentration and batch consistency.
- Independent testing laboratories performing standardized comparisons or certification.
- Useful for regulatory compliance, specification checks, and supplier audits where accurate non‑volatile matter (solid content) is required.
Related standards
- ISO 16482‑2 - Determination of NV by the microwave method (complements Part 1).
- ISO 4625‑1 - Softening point determination (ring‑and‑ball method); defines applicability range.
- ISO 15528 - Sampling of paints, varnishes and raw materials.
ISO 16482-1:2013 provides a clear, repeatable oven method for measuring NV in aqueous rosin‑resin dispersions-essential for reliable binder quality assessment and process control in coatings and related industries.
Frequently Asked Questions
ISO 16482-1:2013 is a standard published by the International Organization for Standardization (ISO). Its full title is "Binders for paints and varnishes - Determination of the non-volatile-matter content of aqueous rosin-resin dispersions - Part 1: Oven method". This standard covers: ISO 16482-1:2013 specifies a method for determining the non-volatile content, by mass, of aqueous rosin-resin dispersions, using an oven. This method is applicable to resin dispersions having a softening point from 60 °C to 100 °C, measured in accordance with ISO 4625‑1 (ring-and-ball method).
ISO 16482-1:2013 specifies a method for determining the non-volatile content, by mass, of aqueous rosin-resin dispersions, using an oven. This method is applicable to resin dispersions having a softening point from 60 °C to 100 °C, measured in accordance with ISO 4625‑1 (ring-and-ball method).
ISO 16482-1:2013 is classified under the following ICS (International Classification for Standards) categories: 87.040 - Paints and varnishes; 87.060.20 - Binders. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase ISO 16482-1:2013 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)

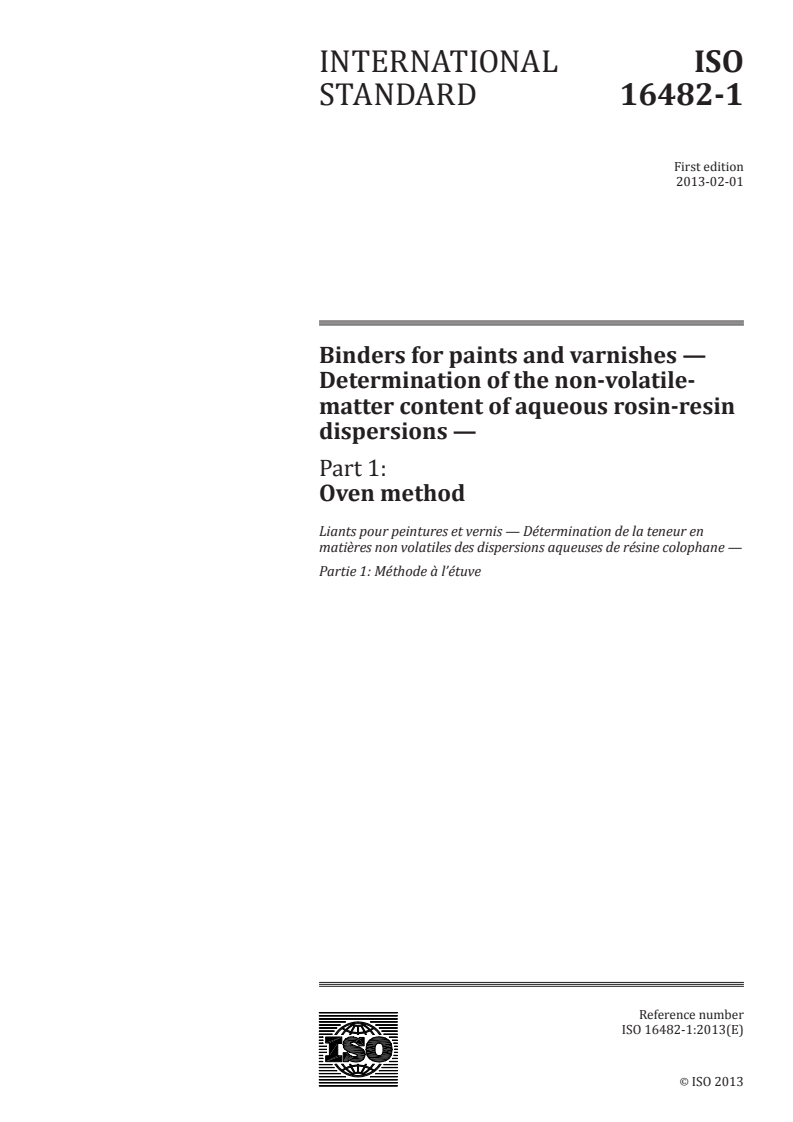

INTERNATIONAL ISO
STANDARD 16482-1
First edition
2013-02-01
Binders for paints and varnishes —
Determination of the non-volatile-
matter content of aqueous rosin-resin
dispersions —
Part 1:
Oven method
Liants pour peintures et vernis — Détermination de la teneur en
matières non volatiles des dispersions aqueuses de résine colophane —
Partie 1: Méthode à l’étuve
Reference number
©
ISO 2013

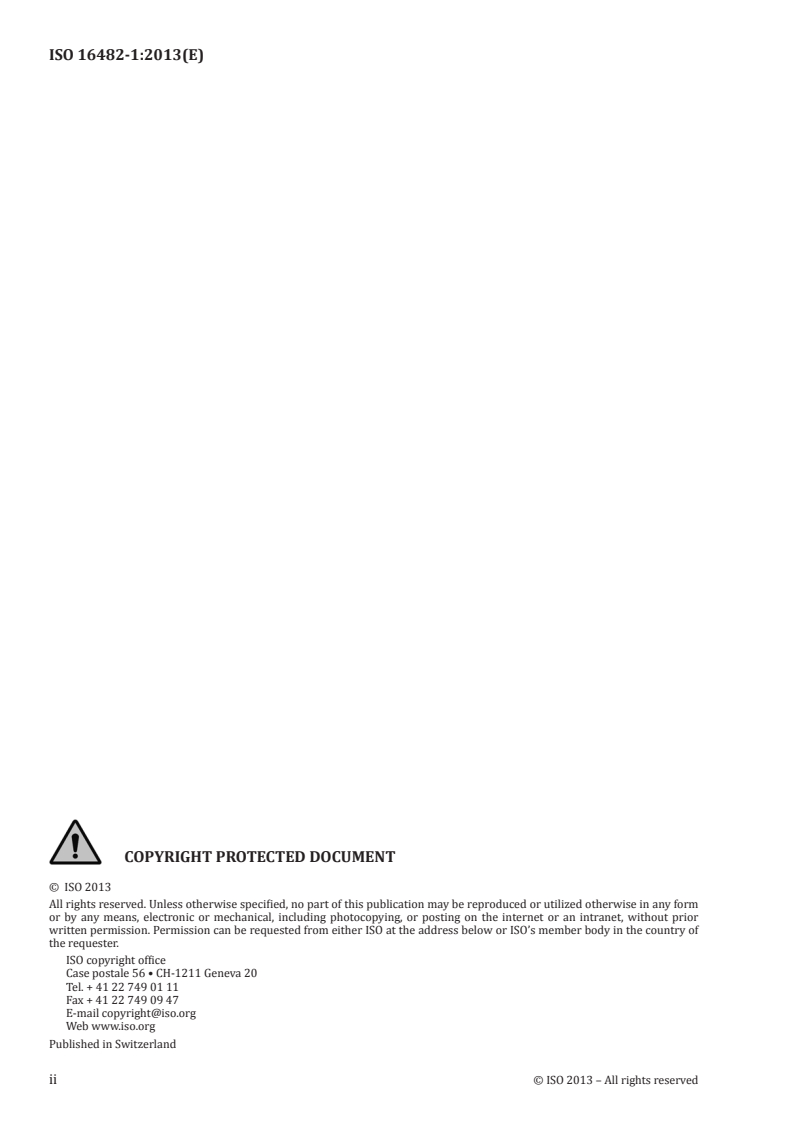

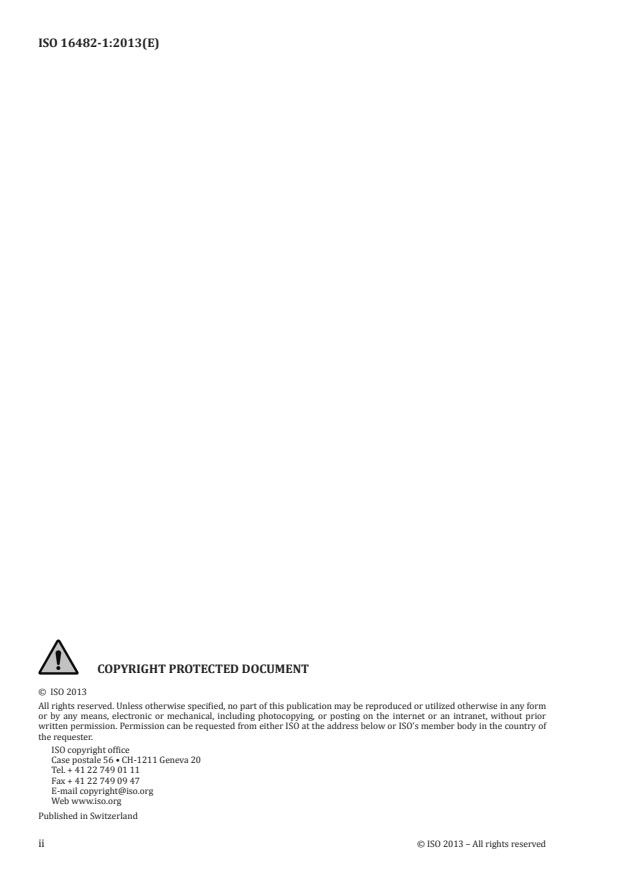

© ISO 2013
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2013 – All rights reserved

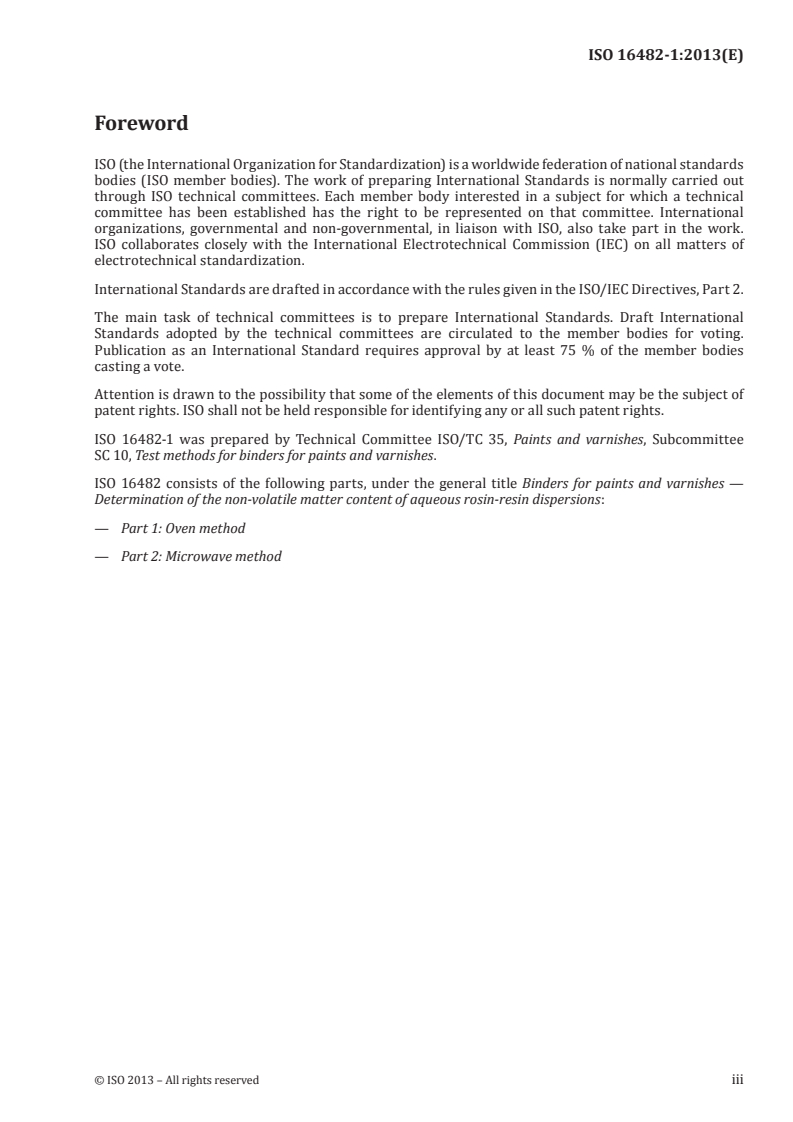

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 16482-1 was prepared by Technical Committee ISO/TC 35, Paints and varnishes, Subcommittee
SC 10, Test methods for binders for paints and varnishes.
ISO 16482 consists of the following parts, under the general title Binders for paints and varnishes —
Determination of the non-volatile matter content of aqueous rosin-resin dispersions:
— Part 1: Oven method
— Part 2: Microwave method
INTERNATIONAL STANDARD ISO 16482-1:2013(E)
Binders for paints and varnishes — Determination of
the non-volatile-matter content of aqueous rosin-resin
dispersions —
Part 1:
Oven method
1 Scope
This part of ISO 16482 specifies a method for determining the non-volatile content, by mass, of aqueous
rosin-resin dispersions, using an oven.
This method is applicable to resin dispersions having a softening point from 60 °C to 100 °C, measured
in accordance with ISO 4625-1 (ring-and-ball method).
2 Normative references
The following documents, in whole or in part, are normatively refere
...

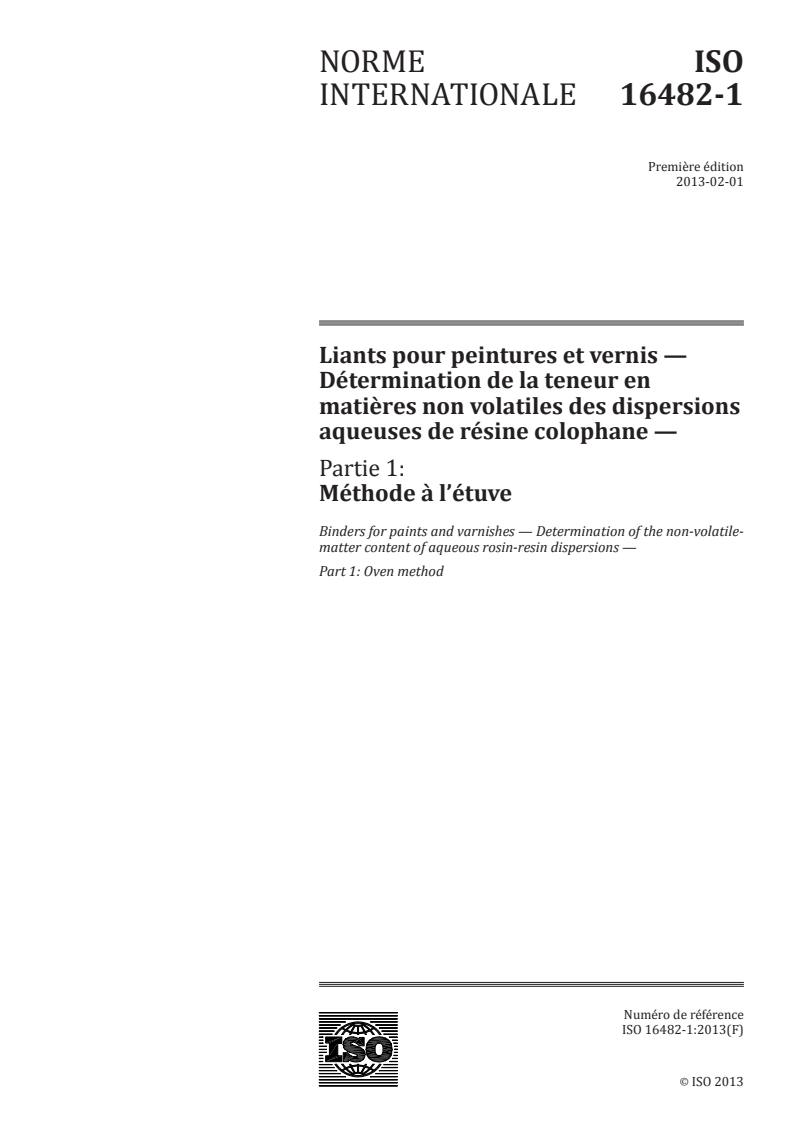

NORME ISO
INTERNATIONALE 16482-1
Première édition
2013-02-01
Liants pour peintures et vernis —
Détermination de la teneur en
matières non volatiles des dispersions
aqueuses de résine colophane —
Partie 1:
Méthode à l’étuve
Binders for paints and varnishes — Determination of the non-volatile-
matter content of aqueous rosin-resin dispersions —
Part 1: Oven method
Numéro de référence
©
ISO 2013

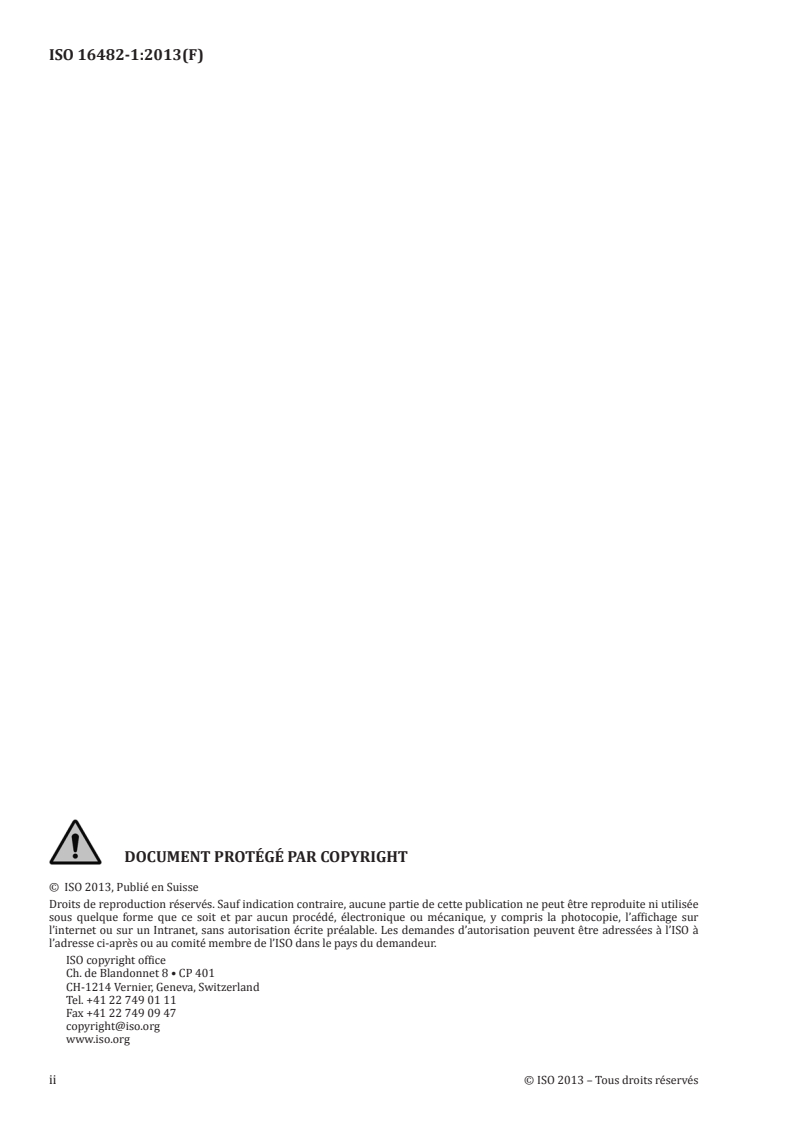

DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2013, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2013 – Tous droits réservés

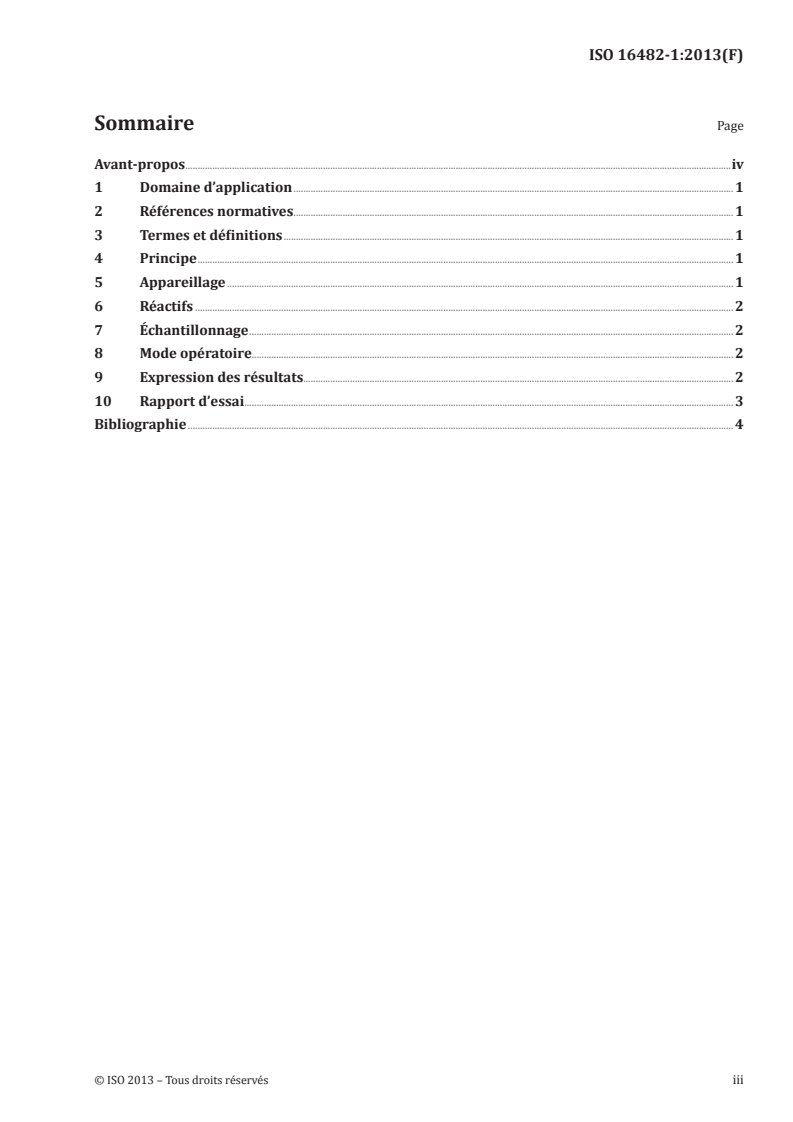

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Principe . 1
5 Appareillage . 1
6 Réactifs . 2
7 Échantillonnage . 2
8 Mode opératoire. 2
9 Expression des résultats. 2
10 Rapport d’essai . 3
Bibliographie . 4

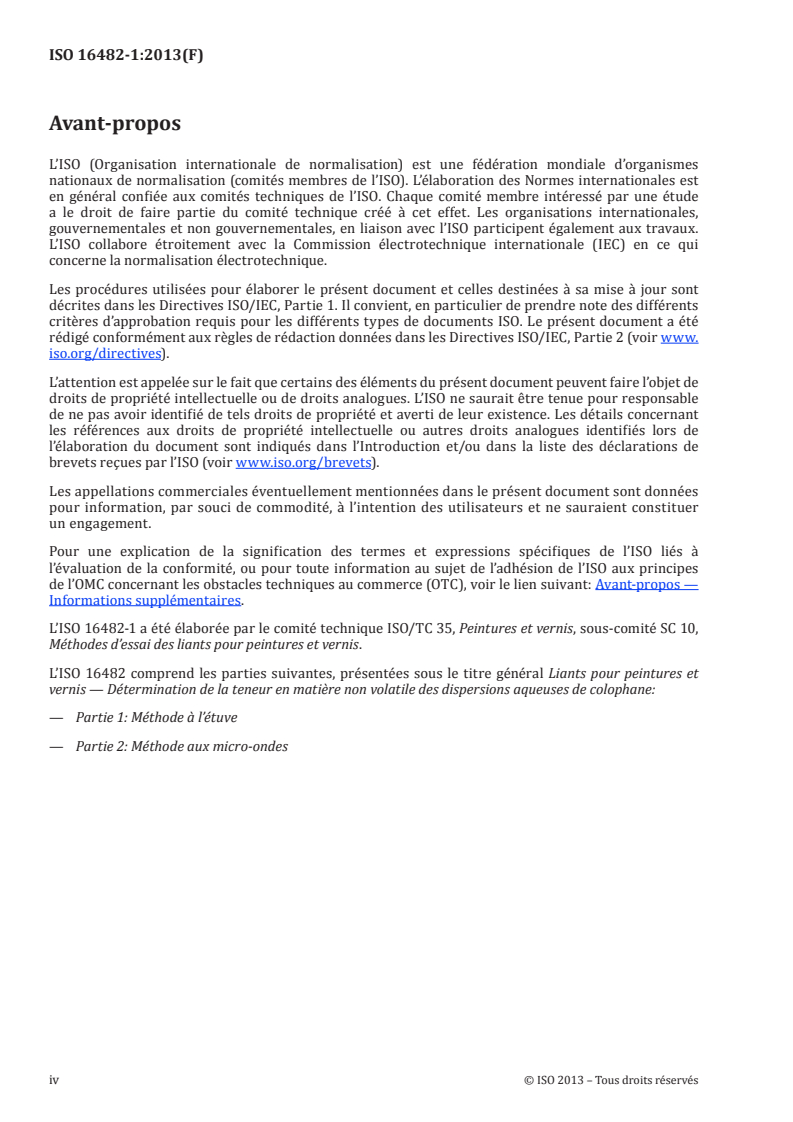

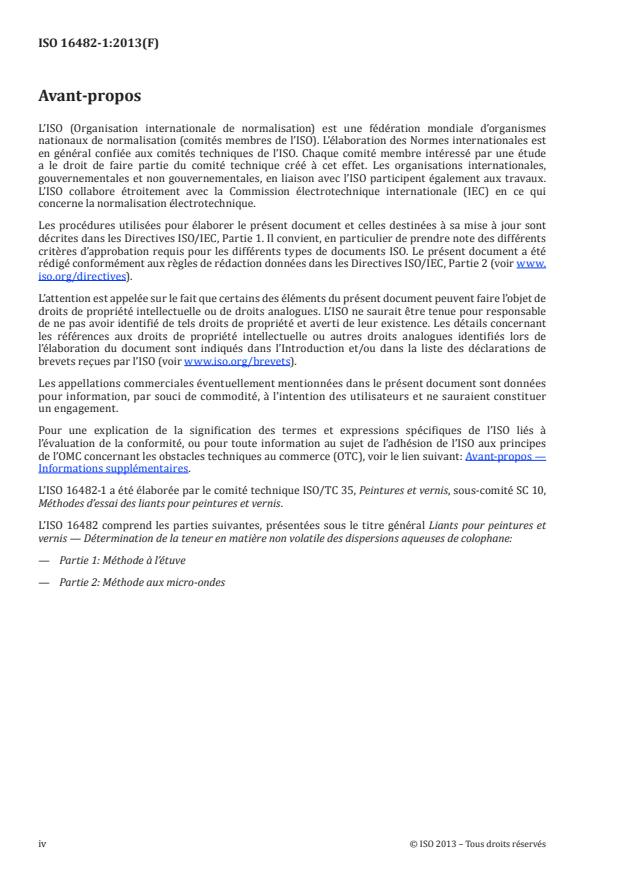

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www.
iso.org/directives).
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par
...
