ISO 1793:2005

INTERNATIONAL ISO
STANDARD 1793
Second edition
2005-01-15
Cinematography — Reels for 16 mm
motion-picture projectors (up to and
including 610 m capacity: 38 cm size) —
Dimensions
Cinématographie — Bobines de projection pour film cinématographique
16 mm (capacité maximale: 610 m pour le format 38 cm) — Dimensions

Reference number
©
ISO 2005
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2005
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2005 – All rights reserved

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 1793 was prepared by Technical Committee ISO/TC 36, Cinematography.
This second edition cancels and replaces the first edition (ISO 1793:1975), which has been technically revised.

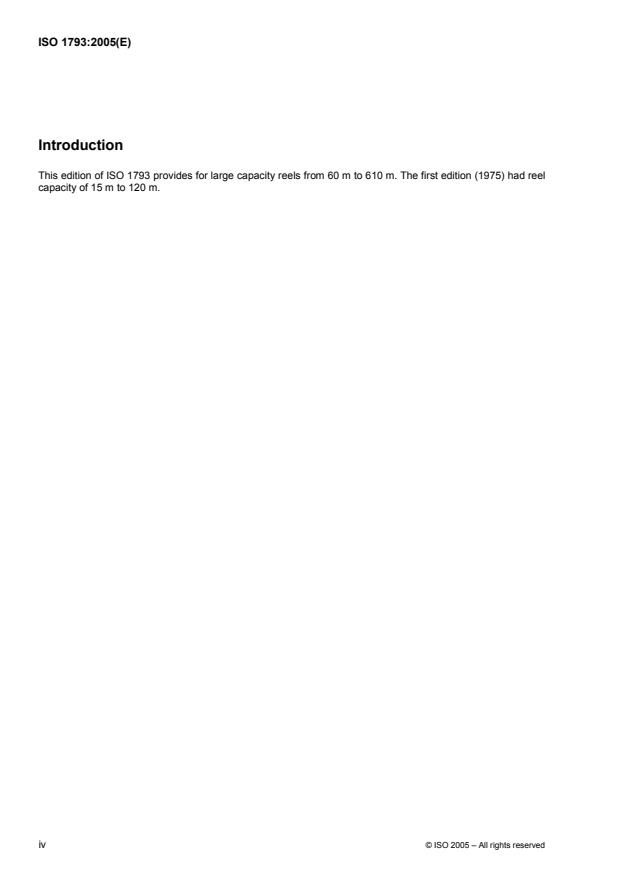

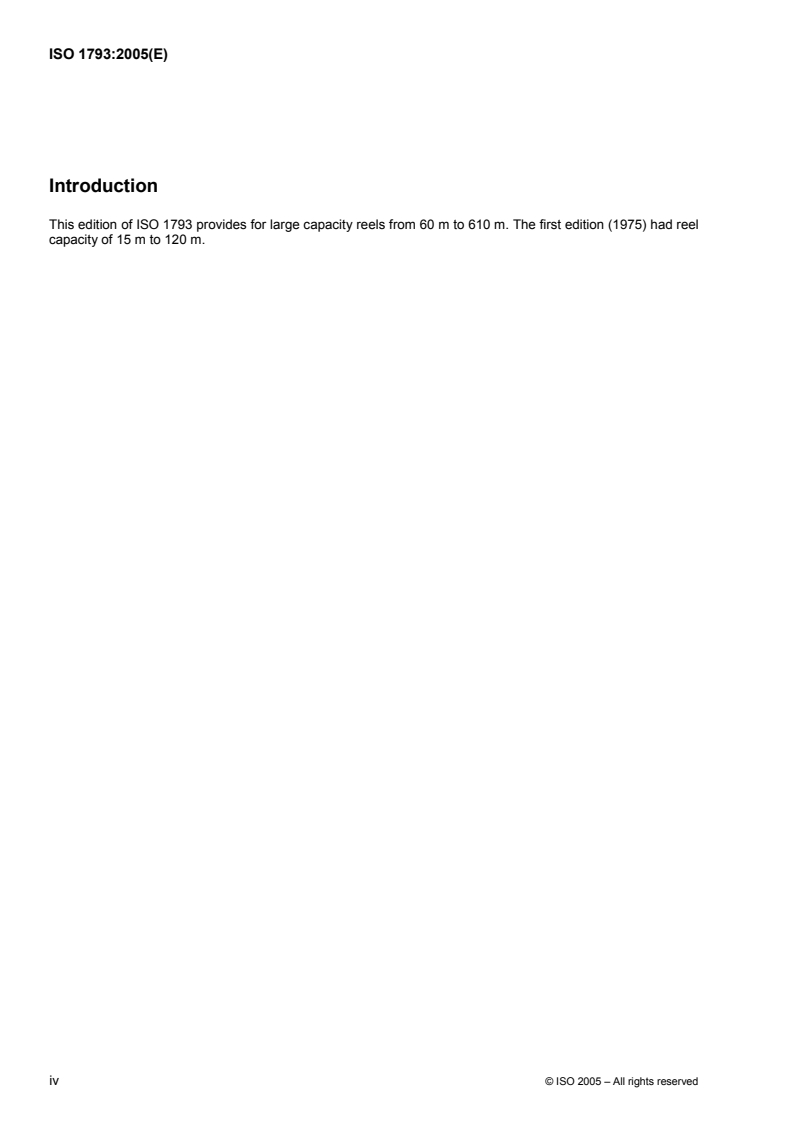

Introduction
This edition of ISO 1793 provides for large capacity reels from 60 m to 610 m. The first edition (1975) had reel
capacity of 15 m to 120 m.
iv © ISO 2005 – All rights reserved

INTERNATIONAL STANDARD ISO 1793:2005(E)

Cinematography — Reels for 16 mm motion-picture projectors
(up to and including 610 m capacity: 38 cm size) — Dimensions
1 Scope
This International Standard specifies the dimensions and characteristics of 16 mm motion-picture film
projection reels.
2 Dimensions
2.1 The dimensions shall be as shown in the figures and given in the tables.
2.2 The tip of the keyway, if rounded as shown in Figure 2, may have a minimum radius V/2, if instead, the
tip of the keyway is made square as illustrated by the chain line, the square tip still shall observe the limits
of U.
2.3 The outer surface of the flanges shall be flat out to a diameter of at least 31,75 mm (1,250 in).
Dimension J is the thickness of the reel over the area described by this diameter.
2.4 Rivets or other fastening members shall not extend beyond the outside surfaces of the flanges more
than 0,8 mm (0,03 in) and shall not extend beyond the overall thickness indicated by dimension C.
2.5 Except at embossings, rolled edges and rounded corners, the limits shown shall not be exceeded at the
periphery of the flanges, nor at any other distance from the centre of the reel.
2.6 If spring fingers are used to engage the edges of the film, dimension F shall be measured between the
fingers when they are pressed outward to the limit of their operating range.
2.7 Eccentricity of the flanges and hub with respect to the spindle hole axis shall not exceed the total
variation shown in Table 2.
2.8 Lateral runout shall be measured with respect to the common axis established by the round and square
holes.
3 Characteristics
3.1 Each flange, preferably, shall have a square spindle hole with dimension as illustrated; alternatively,
one flange may have a round spindle hole with a diameter of D (and no keyway).
3.2 If square spindle hole with corner keyways are used in each flange,
...
