Standards Content (Sample)


INTERNATIONAL ISO
STANDARD 9642
Second edition
2020-01
Cinematography — Time and control
code for 24, 25 and 30 frames per
second motion-picture film systems —
Specifications
Cinématographie — Code de chronométrage et de commande pour
les systèmes de films cinématographiques à 24, 25 et 30 images par
seconde — Spécifications
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Modulation method . 2
5 Code formats . 2
5.1 Type C code format. 2
5.2 Type 8 code format .10
5.3 Use of binary groups .11
5.4 Assigned and unassigned address bits .12
6 Time discrepancies and colour framing in film/video transfer .12
6.1 NTSC colour recording .12
6.2 SECAM signals .13
6.3 PAL signals .13
7 Structure of the address bits .13
8 Position of the address on motion-picture film .13
9 Addresses on motion-picture prints .13
Bibliography .15

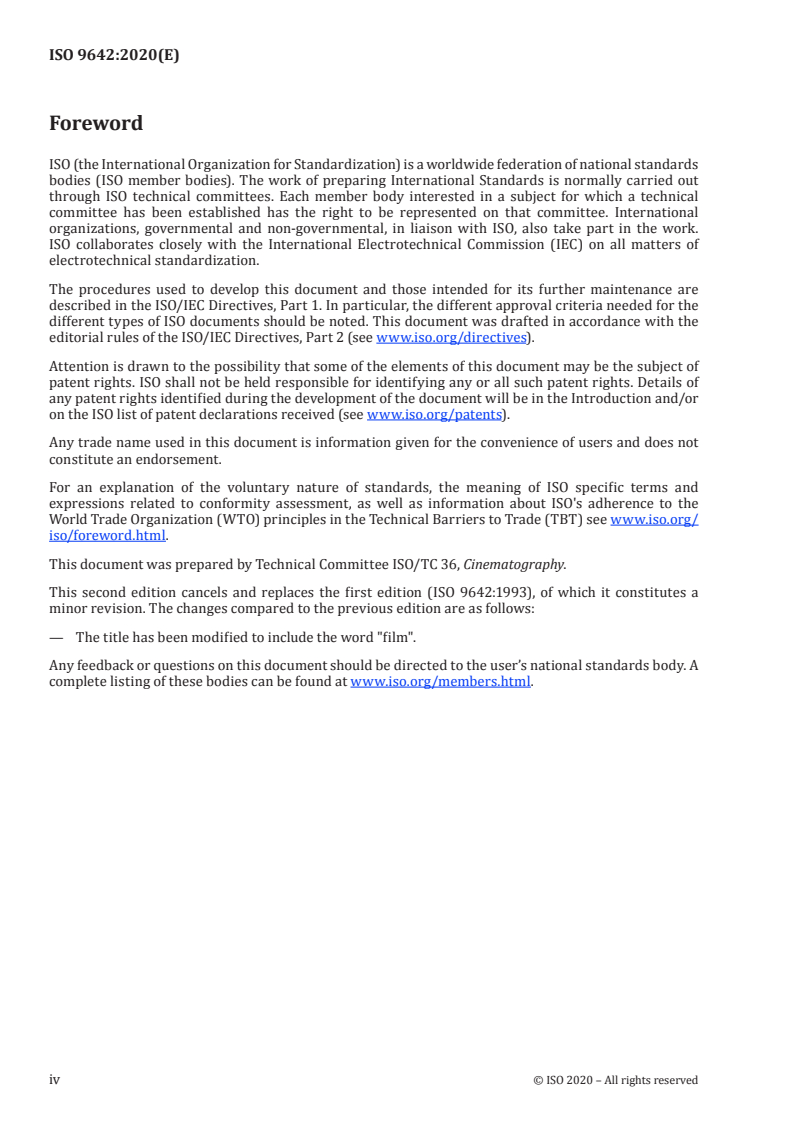

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 36, Cinematography.
This second edition cancels and replaces the first edition (ISO 9642:1993), of which it constitutes a
minor revision. The changes compared to the previous edition are as follows:
— The title has been modified to include the word "film".
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

INTERNATIONAL STANDARD ISO 9642:2020(E)
Cinematography — Time and control code for 24, 25 and
30 frames per second motion-picture film systems —
Specifications
1 Scope
This document specifies digital code for mats and modulation methods for motion-picture film to
be used for timing, control, editing and synchronization purposes. This document also specifies the
relationship of the codes to the motion picture frame.
Two types of code are described in this document. The first type, Type C, is a continuous code which is
very similar to the continuous code specified in IEC 60461. This type of code can be used in situations
where the film is moving continuously at the time of both recording and reproduction.
The second type of code, Type 8, is a non-continuous, block-type code, composed of blocks of data, each
complete in itself, with gaps between the blocks. It is designed so that the code can be recorded and
played back on equipment with intermittent film motion but still be decoded with the same type of
electronic equipment used to read the Type C or continuous time code.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 2022, Information technology — Character code structure and extension techniques
ISO 4241, Cinematography — Projection film leader (time-based), trailer and cue marks — Specifications
ISO 8758, Cinematography — Photographic control and data records on 16 mm and 35 mm motion-picture
film and prints — Dimensions and location
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
real time
time elapsed during the scanning of 60 fields (or any multiple thereof) in an
ideal television system at a vertical field rate of exactly 60 fields per second
3.2
colour time
time elapsed during the scanning of 60 fields (or any multiple thereof) in a
colour television system at a vertical field rate of approximately 59,94 fields per second
4 Modulation method
The modulation method shall be such that a transition occurs at the beginning of every bit period. "One"
is represented by a second transition half a bit period after the start of the bit. "Zero" is represented
when there is no transition within the bit period.
5 Code formats
Two code formats are described: Type C and Type 8. The unique characteristics of the two code types
are described in 5.1 and 5.2 respectively. Information which applies to both code types is given in 5.3
and 5.4.
5.1 Type C code format
5.1.1 Each motion-picture frame shall be defined by a unique and complete address.
5.1.2 The frames shall be numbered successively 0 to 23, 24 or 29 inclusive, corresponding to the
frame rate being used.
5.1.3 Each address shall consist of 80 bits numbered 0 to 79 inclusive.
5.1.4 The bits shall be assigned as shown in the appropriate columns of Figure 1 and Table 1.
5.1.5 The address shall start at the clock edge before the first address bit (bit zero). The bits shall be
evenly spaced throughout the address period and they shall fully occupy the address period, which is one
frame. Consequently, the bit rate shall be 80 times the frame rate in frames per second.
5.1.6 The start of the address, i.e. the clock edge before the first bit, shall coincide with the frameline
at the beginning of the image to which the address refers. The tolerance of this location is +0 % (in the
direction of film travel) and −50 % of a frame length (in the other direction). Thus, the start of the address
can lie anywhere in the top half of the frame with the preferred position at the frameline. See Figure 2.
Table 1 — Bit assignment
Bit number Bit description
Type C code Type 8 code
a
0-7 Alternating zero, one pattern
a
8-23 Synchronizing word
a
8-9 Fixed zero
a
10-21 Fixed one
a
22 Fixed zero
a
23 Fixed one
0-3 24-27 Units of frame
4-7 28-31 First binary group
8-9 32-33 Tens of frames
10 34 Drop frame flag (see 5.4)
11 35 Colour frame flag (see 5.4)
12-15 36-39 Second binary group
16-19 40-43 Units of seconds
20-23 44-47 Third binary group
a
These bits do not exist in the Type C code.
2 © ISO 2020 – All rights reserved

Table 1 (continued)
Bit number Bit description
Type C code Type 8 code
24-26 48-50 Tens of seconds
27 51 Bi-phase mark phase correction bit (see 5.4)
28-31 52-55 Fourth binary group
32-35 56-59 Units of minutes
36-39 60-63 Fifth binary group
40-42 64-66 Tens of minutes
43 67 Binary group flag bit {see 5.4)
44-47 68-71 Sixth binary group
48-51 72-75 Units of hours
52-55 76-79 Seventh binary group
56-57 80-81 Tens of hours
58 82 Unassigned address bit (zero until further assignment)
59 83 Binary group flag bit (see 5.4)
60-63 84-87 Eighth binary group
64-79 88-103 Synchronizing word
64-65 88-89 Fixed zero
66-77 90-101 Fixed one
78 102 Fixed zero
79 103 Fixed one
a
104-111 Alternating one, zero pattern
a
These bits do not exist in the Type C code.
BIT NUMBER BIT
TYPE C TYPE 8 VALUE DESCRIPTION Notes
0 TIMING BITS START FOR TYPE 8
1 IS CLOCK EDGE
2 BETWEEN BIT 111
3 AND BIT 0
6 0
8 0 SYNC WORD
9 0
10 1
11 1
12 1
13 1
14 1
15 1
16 1
17 1
18 1
19 1
20 1 START FOR TYPE C
21 1 IS CLOCK EDGE
22 0 BETWEEN BIT 79
23 1 AND BIT 0
0 24 1 FRAMES UNITS
1 25 2
2 26 4
3 27 8
4 28 1ST BINARY GROUP
4 © ISO 2020 – All rights reserved

5 29
6 30
7 31
8 10 FRAMES TENS
9 20
10 DROP FRAME FLAG
11 35 COLOUR FRAME FLAG
12 36 2ND BINARY GROUP
BIT NUMBER BIT
TYPE C TYPE 8 VALUE DESCRIPTION Notes
16 40 1 SECONDS UNITS
17 41 2
18 42 4
19 43 8
20 44 3RD BINARY GROUP
21 45
22 46
23 47
24 48 10 SECONDS TENS
25 49 20
26 50 40
27 51 BI-PHASE MARK PHASE CORRECTION BIT
28 52 4TH BINARY GROUP
29 53
30 54
31 55
32 56 1 MINUTES UNITS
33 57 2
34 58 4
35 59 8
36 60 5TH BINARY GROUP
37 61
38 62
39 63
40 64 10 MINUTES TENS
41 65 20
42 66 40
43 67 BINARY GROUP FLAG BIT
44 68 6TH BINARY GROUP
45 69
46 70
47 71
48 72 1 HOURS UNITS
6 © ISO 2020 – All rights reserved

49 73 2
50 74 4
51 75 8
52 76 7TH BINARY GROUP
53 77
54 78
55 79
BIT
BIT NUMBER
TYPE C TYPE 8 VALUE DESCRIPTION Notes
56 80 10 HOURS TENS
57 81 20
58 82 UNASSIGNED ADDRESS BIT
59 83 BINARY GROUP
...


INTERNATIONAL ISO
STANDARD 9642
Second edition
2020-01
Cinematography — Time and control
code for 24, 25 and 30 frames per
second motion-picture film systems —
Specifications
Cinématographie — Code de chronométrage et de commande pour
les systèmes de films cinématographiques à 24, 25 et 30 images par
seconde — Spécifications
Reference number
©
ISO 2020
© ISO 2020
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2020 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Modulation method . 2
5 Code formats . 2
5.1 Type C code format. 2
5.2 Type 8 code format .10
5.3 Use of binary groups .11
5.4 Assigned and unassigned address bits .12
6 Time discrepancies and colour framing in film/video transfer .12
6.1 NTSC colour recording .12
6.2 SECAM signals .13
6.3 PAL signals .13
7 Structure of the address bits .13
8 Position of the address on motion-picture film .13
9 Addresses on motion-picture prints .13
Bibliography .15
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 36, Cinematography.
This second edition cancels and replaces the first edition (ISO 9642:1993), of which it constitutes a
minor revision. The changes compared to the previous edition are as follows:
— The title has been modified to include the word "film".
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2020 – All rights reserved

INTERNATIONAL STANDARD ISO 9642:2020(E)
Cinematography — Time and control code for 24, 25 and
30 frames per second motion-picture film systems —
Specifications
1 Scope
This document specifies digital code for mats and modulation methods for motion-picture film to
be used for timing, control, editing and synchronization purposes. This document also specifies the
relationship of the codes to the motion picture frame.
Two types of code are described in this document. The first type, Type C, is a continuous code which is
very similar to the continuous code specified in IEC 60461. This type of code can be used in situations
where the film is moving continuously at the time of both recording and reproduction.
The second type of code, Type 8, is a non-continuous, block-type code, composed of blocks of data, each
complete in itself, with gaps between the blocks. It is designed so that the code can be recorded and
played back on equipment with intermittent film motion but still be decoded with the same type of
electronic equipment used to read the Type C or continuous time code.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO/IEC 2022, Information technology — Character code structure and extension techniques
ISO 4241, Cinematography — Projection film leader (time-based), trailer and cue marks — Specifications
ISO 8758, Cinematography — Photographic control and data records on 16 mm and 35 mm motion-picture
film and prints — Dimensions and location
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
3.1
real time
time elapsed during the scanning of 60 fields (or any multiple thereof) in an
ideal television system at a vertical field rate of exactly 60 fields per second
3.2
colour time
time elapsed during the scanning of 60 fields (or any multiple thereof) in a
colour television system at a vertical field rate of approximately 59,94 fields per second
4 Modulation method
The modulation method shall be such that a transition occurs at the beginning of every bit period. "One"
is represented by a second transition half a bit period after the start of the bit. "Zero" is represented
when there is no transition within the bit period.
5 Code formats
Two code formats are described: Type C and Type 8. The unique characteristics of the two code types
are described in 5.1 and 5.2 respectively. Information which applies to both code types is given in 5.3
and 5.4.
5.1 Type C code format
5.1.1 Each motion-picture frame shall be defined by a unique and complete address.
5.1.2 The frames shall be numbered successively 0 to 23, 24 or 29 inclusive, corresponding to the
frame rate being used.
5.1.3 Each address shall consist of 80 bits numbered 0 to 79 inclusive.
5.1.4 The bits shall be assigned as shown in the appropriate columns of Figure 1 and Table 1.
5.1.5 The address shall start at the clock edge before the first address bit (bit zero). The bits shall be
evenly spaced throughout the address period and they shall fully occupy the address period, which is one
frame. Consequently, the bit rate shall be 80 times the frame rate in frames per second.
5.1.6 The start of the address, i.e. the clock edge before the first bit, shall coincide with the frameline
at the beginning of the image to which the address refers. The tolerance of this location is +0 % (in the
direction of film travel) and −50 % of a frame length (in the other direction). Thus, the start of the address
can lie anywhere in the top half of the frame with the preferred position at the frameline. See Figure 2.
Table 1 — Bit assignment
Bit number Bit description
Type C code Type 8 code
a
0-7 Alternating zero, one pattern
a
8-23 Synchronizing word
a
8-9 Fixed zero
a
10-21 Fixed one
a
22 Fixed zero
a
23 Fixed one
0-3 24-27 Units of frame
4-7 28-31 First binary group
8-9 32-33 Tens of frames
10 34 Drop frame flag (see 5.4)
11 35 Colour frame flag (see 5.4)
12-15 36-39 Second binary group
16-19 40-43 Units of seconds
20-23 44-47 Third binary group
a
These bits do not exist in the Type C code.
2 © ISO 2020 – All rights reserved

Table 1 (continued)
Bit number Bit description
Type C code Type 8 code
24-26 48-50 Tens of seconds
27 51 Bi-phase mark phase correction bit (see 5.4)
28-31 52-55 Fourth binary group
32-35 56-59 Units of minutes
36-39 60-63 Fifth binary group
40-42 64-66 Tens of minutes
43 67 Binary group flag bit {see 5.4)
44-47 68-71 Sixth binary group
48-51 72-75 Units of hours
52-55 76-79 Seventh binary group
56-57 80-81 Tens of hours
58 82 Unassigned address bit (zero until further assignment)
59 83 Binary group flag bit (see 5.4)
60-63 84-87 Eighth binary group
64-79 88-103 Synchronizing word
64-65 88-89 Fixed zero
66-77 90-101 Fixed one
78 102 Fixed zero
79 103 Fixed one
a
104-111 Alternating one, zero pattern
a
These bits do not exist in the Type C code.
BIT NUMBER BIT
TYPE C TYPE 8 VALUE DESCRIPTION Notes
0 TIMING BITS START FOR TYPE 8
1 IS CLOCK EDGE
2 BETWEEN BIT 111
3 AND BIT 0
6 0
8 0 SYNC WORD
9 0
10 1
11 1
12 1
13 1
14 1
15 1
16 1
17 1
18 1
19 1
20 1 START FOR TYPE C
21 1 IS CLOCK EDGE
22 0 BETWEEN BIT 79
23 1 AND BIT 0
0 24 1 FRAMES UNITS
1 25 2
2 26 4
3 27 8
4 28 1ST BINARY GROUP
4 © ISO 2020 – All rights reserved

5 29
6 30
7 31
8 10 FRAMES TENS
9 20
10 DROP FRAME FLAG
11 35 COLOUR FRAME FLAG
12 36 2ND BINARY GROUP
BIT NUMBER BIT
TYPE C TYPE 8 VALUE DESCRIPTION Notes
16 40 1 SECONDS UNITS
17 41 2
18 42 4
19 43 8
20 44 3RD BINARY GROUP
21 45
22 46
23 47
24 48 10 SECONDS TENS
25 49 20
26 50 40
27 51 BI-PHASE MARK PHASE CORRECTION BIT
28 52 4TH BINARY GROUP
29 53
30 54
31 55
32 56 1 MINUTES UNITS
33 57 2
34 58 4
35 59 8
36 60 5TH BINARY GROUP
37 61
38 62
39 63
40 64 10 MINUTES TENS
41 65 20
42 66 40
43 67 BINARY GROUP FLAG BIT
44 68 6TH BINARY GROUP
45 69
46 70
47 71
48 72 1 HOURS UNITS
6 © ISO 2020 – All rights reserved

49 73 2
50 74 4
51 75 8
52 76 7TH BINARY GROUP
53 77
54 78
55 79
BIT
BIT NUMBER
TYPE C TYPE 8 VALUE DESCRIPTION Notes
56 80 10 HOURS TENS
57 81 20
58 82 UNASSIGNED ADDRESS BIT
59 83 BINARY GROUP
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
