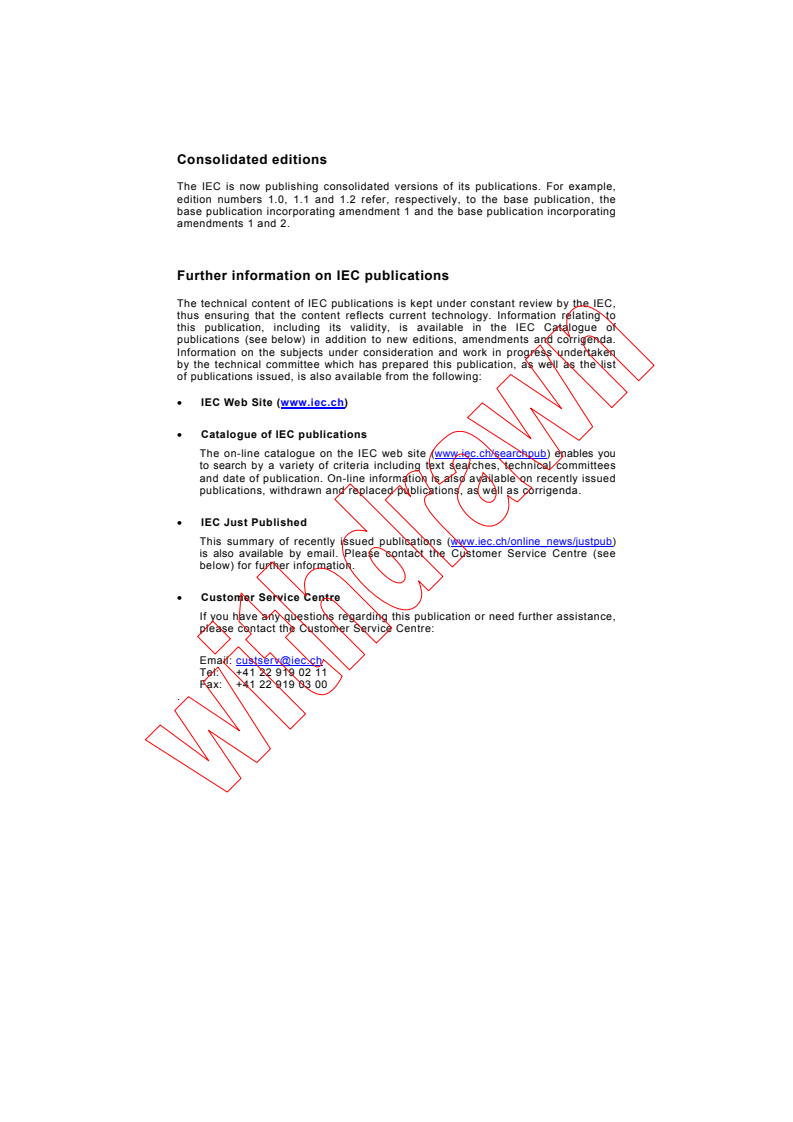

The IEC is now publishing consolidated versions of its publications. For example,

edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the
base publication incorporating amendment 1 and the base publication incorporating

amendments 1 and 2.
Further information on IEC publications

The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (www.iec.ch/searchpub) enables you
to search by a variety of criteria including text searches, technical committees
and date of publication. On-line information is also available on recently issued
publications, withdrawn and replaced publications, as well as corrigenda.

• IEC Just Published
This summary of recently issued publications (www.iec.ch/online_news/justpub)
is also available by email. Please contact the Customer Service Centre (see
below) for further information.

• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:

Email: custserv@iec.ch
Tel: +41 22 919 02 11
Fax: +41 22 919 03 00
.
TECHNICAL
TR CISPR
REPORT
First edition
2004-08
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
Television broadcast receivers
and associated equipment –
Immunity characteristics –
Methods of objective picture assessment

” IEC 2004  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical, including
photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch
CODE PRIX
L
Commission Electrotechnique Internationale
International Electrotechnical Commission
ɆɟɠɞɭɧɚɪɨɞɧɚɹɗɥɟɤɬɪɨɬɟɯɧɢɱɟɫɤɚɹɄɨɦɢɫɫɢɹ
For price, see current catalogue

– 2 – TR CISPR 29 ” IEC:2004(E)

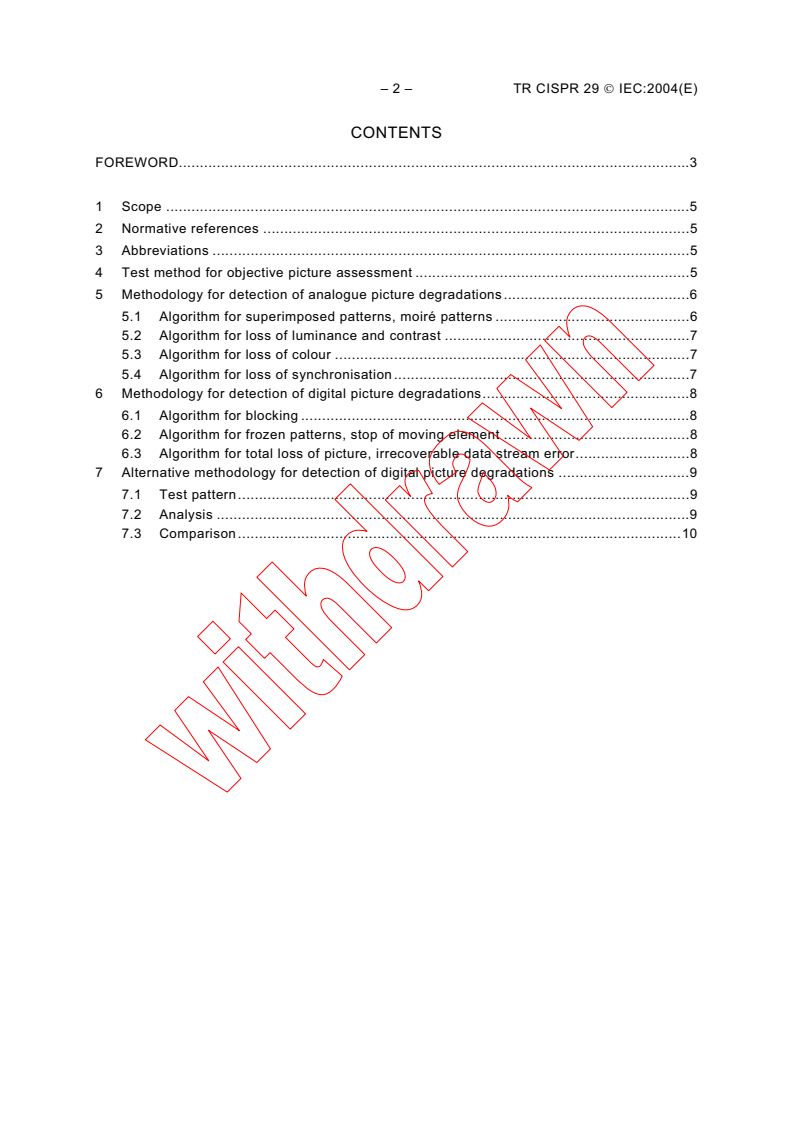

CONTENTS
FOREWORD.3

1 Scope .5

2 Normative references .5

3 Abbreviations .5

4 Test method for objective picture assessment .5

5 Methodology for detection of analogue picture degradations.6

5.1 Algorithm for superimposed patterns, moiré patterns .6
5.2 Algorithm for loss of luminance and contrast .7
5.3 Algorithm for loss of colour .7
5.4 Algorithm for loss of synchronisation.7
6 Methodology for detection of digital picture degradations.8
6.1 Algorithm for blocking .8
6.2 Algorithm for frozen patterns, stop of moving element .8
6.3 Algorithm for total loss of picture, irrecoverable data stream error.8
7 Alternative methodology for detection of digital picture degradations .9
7.1 Test pattern.9
7.2 Analysis .9
7.3 Comparison.10

TR CISPR 29 ” IEC:2004(E) – 3 –

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
TELEVISION BROADCAST RECEIVERS AND ASSOCIATED EQUIPMENT –

IMMUNITY CHARACTERISTICS –
METHODS OF OBJECTIVE PICTURE ASSESSMENT

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a technical report when it has collected

data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
CISPR 29, which is a technical report, has been prepared by CISPR subcommittee I:
Electromagnetic compatibility of information technology equipment, multimedia equipment and
receivers.
The text of this technical report is based on the following documents:
Enquiry draft Report on voting
CISPR/I/104/DTR CISPR/I/119/RVC
Full information on the voting for the approval of this technical report can be found in the
report on voting indicated in the above table.

– 4 – TR CISPR 29 ” IEC:2004(E)

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

 reconfirmed;
 withdrawn;
 replaced by a revised edition, or

 amended.
A bilingual version of this publication may be issued at a later date.

TR CISPR 29 ” IEC:2004(E) – 5 –

TELEVISION BROADCAST RECEIVERS AND ASSOCIATED EQUIPMENT –

IMMUNITY CHARACTERISTICS –
METHODS OF OBJECTIVE PICTURE ASSESSMENT

1 Scope
This Technical Report describes the algorithms used for objective picture assessment in

immunity tests of analogue and digital TV broadcast receivers and associated equipment.

The algorithms used were developed on the basis of the specifications included in Annex K
of CISPR 20. The method of objective picture assessment described in that annex employs
the same interference mechanism and is based on the same wanted signal definition as
specified in CISPR 20. Objective picture assessment, therefore, constitutes an alternative to
the subjective method and offers the advantage of direct correlation to the subjective method.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
CISPR 20:2002, Sound and television broadcast receivers and associated equipment –
Immunity characteristics – Limits and methods of measurement
Amendment 1 (2002)
ITU-R BT.500-10, Methodology for the subjective assessment of the quality of television
pictures
ITU-R BT.801-1, Test signals for digitally encoded colour television signals conforming with
Recommendations ITU-R BT.601 (Part A) and ITU.R BT.656
3 Abbreviations
For the purposes of this document, the following abbreviations apply.
CCVS composite colour video signal
(chrominance, video, blanking and sync signal)

DCT discrete cosine transform
EUT equipment under test
HSL hue, saturation, luminance (colour space model)
SSCQE (single stimulus continuous quality evaluation)
4 Test method for objective picture assessment
Objective picture assessment is based on comparison with a reference picture or a reduced
reference picture.
Both the reference picture and the test picture can be recorded from the EUT monitor by
means of a video camera or at the EUT's video output (CCVS) direct.
___________
See Amendment 2 to CISPR 20:2002, to be published.

– 6 – TR CISPR 29 ” IEC:2004(E)

The recorded test picture is digitised, and deviations from a stored reference picture are

determined by means of the picture assessment algorithms described below. An alternative

methodology computes the deviation from specific features determined on both the reference

picture and the picture to assess.

5 Methodology for detection of analogue picture degradations

Analogue picture degradations are defined as:

– superimposed patterns, moiré patterns;

– loss of luminance and contrast;
– loss of colour;
– loss of synchronization.
5.1 Algorithm for superimposed patterns, moiré patterns
To assess picture degradation showing as a set of lines, an average signal value is formed for
a defined area in the simplest case. The deviation of the average signal value of this area
from a reference value determined from an undisturbed picture serves as a criterion of
whether or not picture degradation is present.
For picture assessment according to this m
...
