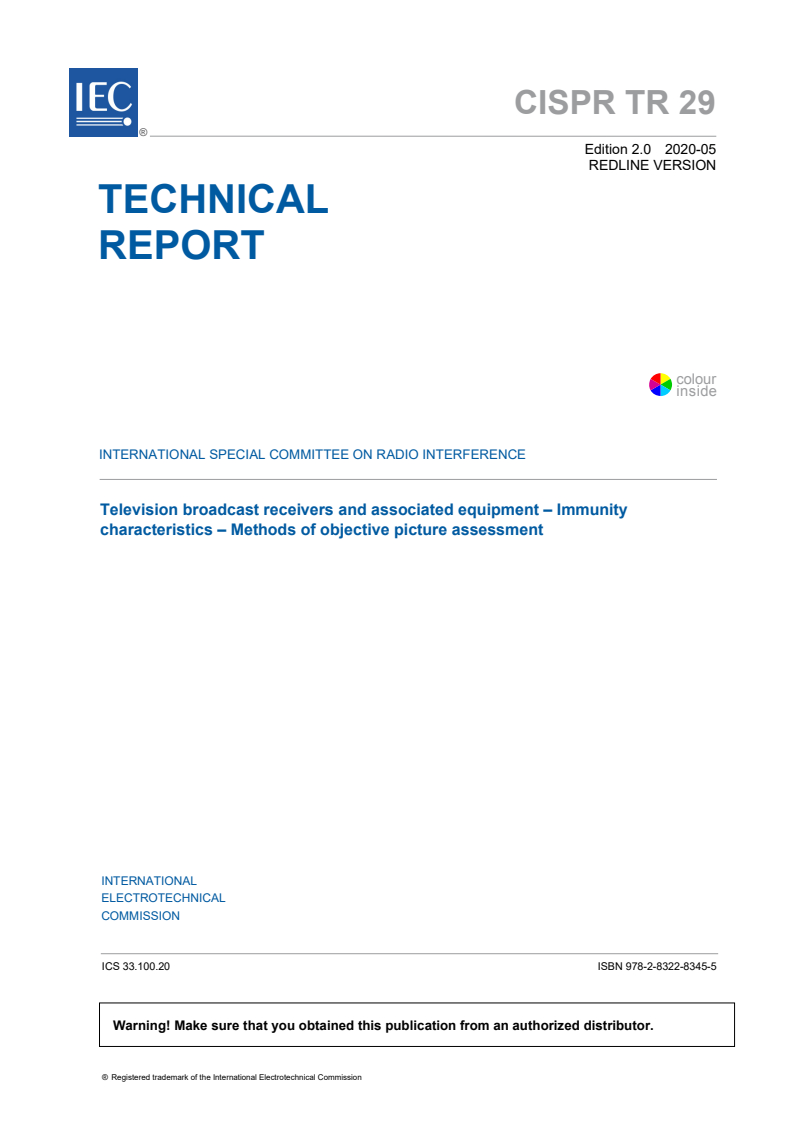

CISPR TR 29:2020

CISPR TR 29 ®
Edition 2.0 2020-05
REDLINE VERSION
TECHNICAL
REPORT
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE
Television broadcast receivers and associated equipment – Immunity
characteristics – Methods of objective picture assessment

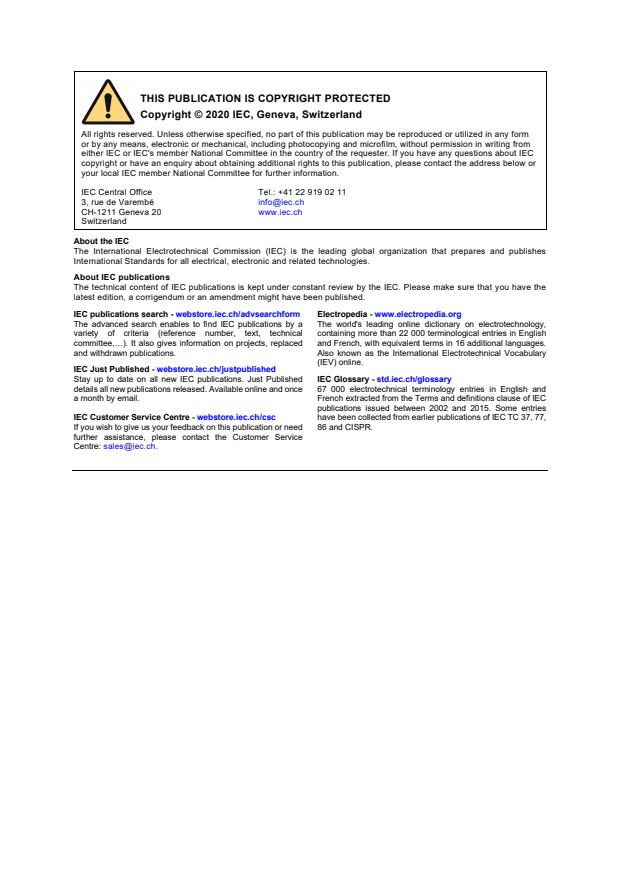

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and Definitions clause of
IEC publications issued since 2002. Some entries have been
IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and
If you wish to give us your feedback on this publication or CISPR.

need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
CISPR TR 29 ®
Edition 2.0 2020-05
REDLINE VERSION
TECHNICAL
REPORT
colour
inside
INTERNATIONAL SPECIAL COMMITTEE ON RADIO INTERFERENCE

Television broadcast receivers and associated equipment – Immunity

characteristics – Methods of objective picture assessment

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.100.20 ISBN 978-2-8322-8345-5

– 2 – CISPR TR 29:2020 RLV © IEC:2020

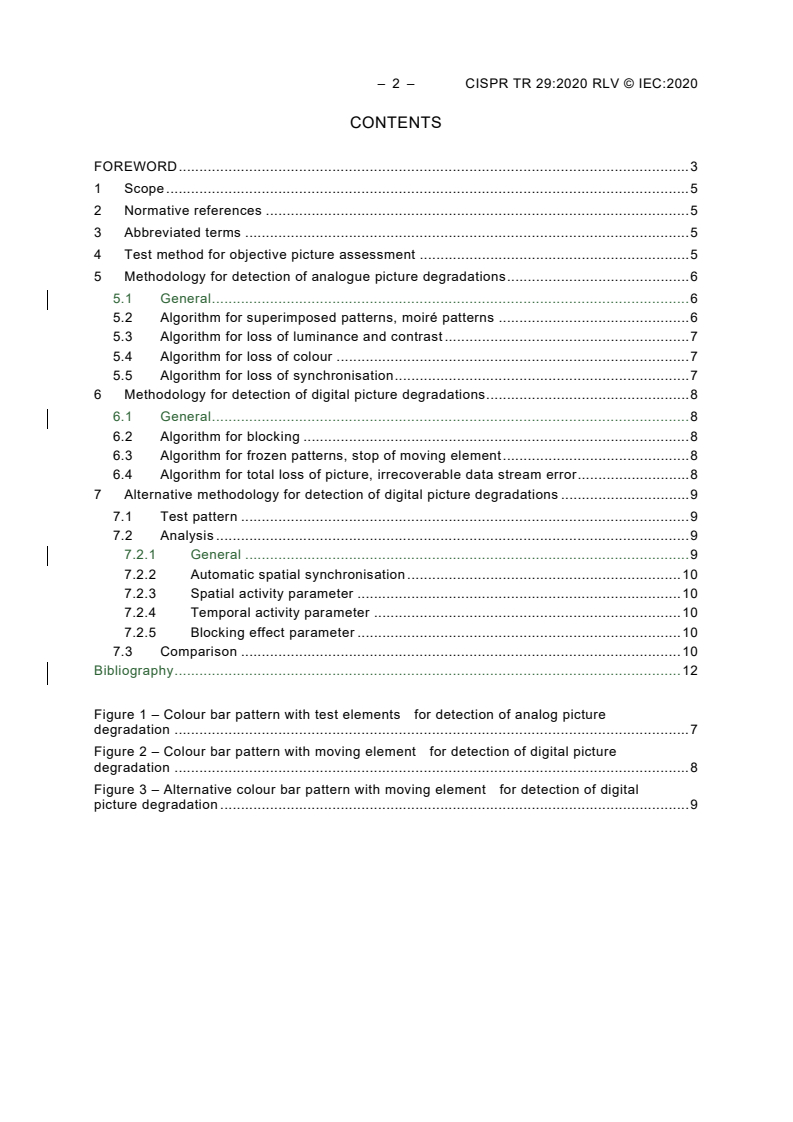

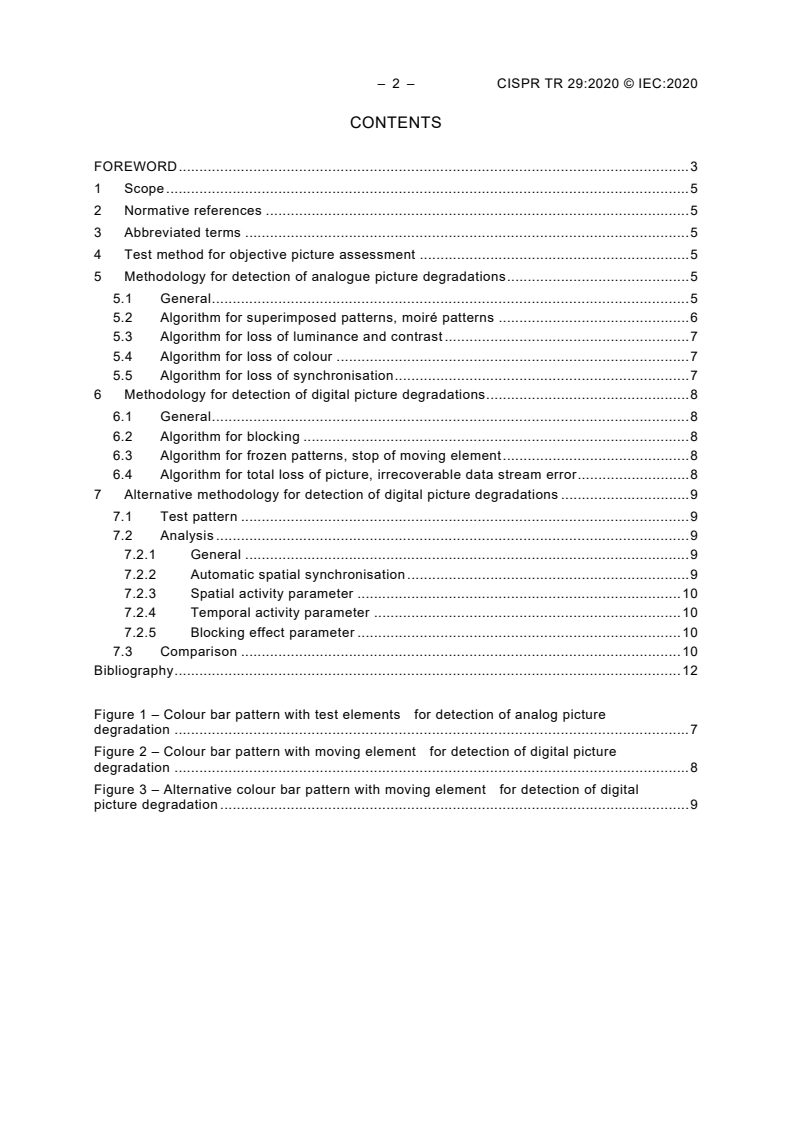

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Abbreviated terms . 5
4 Test method for objective picture assessment . 5
5 Methodology for detection of analogue picture degradations . 6
5.1 General . 6
5.2 Algorithm for superimposed patterns, moiré patterns . 6
5.3 Algorithm for loss of luminance and contrast . 7
5.4 Algorithm for loss of colour . 7
5.5 Algorithm for loss of synchronisation . 7
6 Methodology for detection of digital picture degradations . 8
6.1 General . 8
6.2 Algorithm for blocking . 8
6.3 Algorithm for frozen patterns, stop of moving element . 8
6.4 Algorithm for total loss of picture, irrecoverable data stream error . 8
7 Alternative methodology for detection of digital picture degradations . 9
7.1 Test pattern . 9
7.2 Analysis . 9
7.2.1 General . 9
7.2.2 Automatic spatial synchronisation . 10
7.2.3 Spatial activity parameter . 10
7.2.4 Temporal activity parameter . 10
7.2.5 Blocking effect parameter . 10
7.3 Comparison . 10
Bibliography . 12

Figure 1 – Colour bar pattern with test elements for detection of analog picture
degradation . 7
Figure 2 – Colour bar pattern with moving element for detection of digital picture
degradation . 8
Figure 3 – Alternative colour bar pattern with moving element for detection of digital
picture degradation . 9

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TELEVISION BROADCAST RECEIVERS AND ASSOCIATED EQUIPMENT –
IMMUNITY CHARACTERISTICS –
METHODS OF OBJECTIVE PICTURE ASSESSMENT

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes
made to the previous edition. A vertical bar appears in the margin wherever a change has
been made. Additions are in green text, deletions are in strikethrough red text.

– 4 – CISPR TR 29:2020 RLV © IEC:2020
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a Technical Report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
CISPR 29, which is a technical report, has been prepared by CISPR subcommittee I:
Electromagnetic compatibility of information technology equipment, multimedia equipment and
receivers.
This second edition cancels and replaces the first edition published in 2004. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) update of the references, and
b) editorial improvements.
The text of this Technical Report is based on the following documents:
Draft TR Report on voting
CIS/I/634/DTR CIS/I/638/RVDTR
Full information on the voting for the approval of this Technical Report can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

TELEVISION BROADCAST RECEIVERS AND ASSOCIATED EQUIPMENT –
IMMUNITY CHARACTERISTICS –
METHODS OF OBJECTIVE PICTURE ASSESSMENT

1 Scope
This document describes the algorithms used for objective picture assessment in immunity tests
of analogue and digital TV broadcast receivers and associated equipment.
The algorithms used were developed on the basis of the specifications originally included in
Annex K of CISPR 20:2002/AMD2:2004, the later edition of which has been replaced by
CISPR 35:2016. The method of objective picture assessment described in that annex employs
the same interference mechanism and is based on the same wanted signal definition as
specified in CISPR 20 CISPR 35 for subjective picture assessment. Objective picture
assessment, therefore, constitutes an alternative to the subjective method and offers the
advantage of direct correlation to the subjective method.
2 Normative references
The following referenced documents are indispensable for the application of this document. For
dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
CISPR 20:2002, Sound and television broadcast receivers and associated equipment –
Immunity characteristics – Limits and methods of measurement
Amendment 1 (2002)
ITU-R BT.500-10, Methodology for the subjective assessment of the quality of television
pictures
ITU-R BT.801-1, Test signals for digitally encoded colour television signals conforming with
Recommendations ITU-R BT.601 (Part A) and ITU.R BT.656
There are no normative references in this document.
3 Abbreviated terms
For the purposes of this document, the following abbreviated terms apply.
CCVS composite colour video signal (chrominance, video, blanking and sync signal)
DCT discrete cosine transform
EUT equipment under test
HSL hue, saturation, luminance (colour space model)
SSCQE (single stimulus continuous quality evaluation)
4 Test method for objective picture assessment
Objective picture assessment is based on comparison of the picture displayed on an EUT with
a reference picture or a reduced reference picture.

– 6 – CISPR TR 29:2020 RLV © IEC:2020
Both the reference picture and the test picture can be recorded from the EUT monitor by means
of a video camera or at the EUT's video output (CCVS) direct if it has one.
The recorded test picture is digitised, and deviations from a stored reference picture are
determined by means of the picture assessment algorithms described below. An alternative
methodology computes the deviation from specific features determined on both the reference
picture and the picture to assess.
5 Methodology for detection of analogue picture degradations
5.1 General
Analogue picture degradations are defined as:
– superimposed patterns, moiré patterns;
– loss of luminance and contrast;
– loss of colour;
– loss of synchronization.
5.2 Algorithm for superimposed patterns, moiré patterns
To assess picture degradation showing as a set of lines, an average signal value is formed for
a defined area in the simplest case. The deviation of the average signal value of this area from
a reference value determined from an undisturbed picture serves as a criterion of whether or
not picture degradation is present.
For picture assessment according to this method, the colour bar pattern according to ITU-R
BT.801-1 used for the test is first converted to a suitable colour space, preferably grey. From
each colour bar, a rectangular section is taken into which a rectangular test window is positioned.
The test window is divided into column segments (see Figure 1).
To reliably detect picture degradation, the test window is rotated by a constant angular
increment of 2° until 180° is attained. For picture degradation in the form of lines, the test
window segments will, in the case of one of the angles measured, be aligned approximately
parallel to the interference lines, thus producing a significant deviation from average signal
values.
As already mentioned, an average value or column sum is determined for each segment, and
the deviation from a reference value is calculated. In addition, a regression line over all column
sums is formed, and the square offset of each column sum from the regression line is calculated.
If the sum of the square offsets of the column sums exceeds the corresponding value
determined for a reference picture, a superimposed pattern or moiré pattern is detected.
The position and size of the test window, or the test window diagonal, should be selected such
that, for any angular position of the test window, all pixels of the test window are located within
the same colour bar of the test pattern, i.e. within the homogeneous area of the colour bar. This
excludes impairment of results by influences from the cross-colour region.
After a 180° rotation, the test window is shifted vertically, i.e. parallel to the borders of the
colour bar section, by a length increment of half the test window height. In its new position, the
test window is again rotated by 180°, and a measurement is performed for each angular
increment. By repeatedly shifting the test window within the colour bar section, virtually the
complete colour bar is covered.

Figure 1 – Colour bar pattern with test elements
for detection of analog picture degradation
The above procedure is repeated for each colour bar of the test pattern.
To cover the complete colour bar pattern, the cross-colour transition regions between the bars
also have to be analysed. For this purpose, the cross-colour transition regions are divided into
vertical segments of seven pixels in height. For each segment, the position of the colour
transition edge and its deviation are determined. The evaluation is performed on the assumption
of a Gaussian distribution of the colour transition edge in each segment over a defined number
of reference pictures, preferably 20 and based on a confidence interval of five times the
standard deviation, σ. Picture degradation is present if the position of colour transition in a
segment is found to be outside the confidence interval of the corresponding reference segment.
5.3 Algorithm for loss of luminance and contrast
As described under 5.2, the colour bar pattern is converted to a suitable colour space, preferably
grey. Any change in luminance or contrast directly affects the grey level, so this type of
degradation can be reliably identified. The algorithm detects grey-level errors if the grey level
deviates by a minimum of ± 5 grey tones from the grey level of the stored reference picture
based on a quantisation of 8 Bit (256 grey tones).
5.4 Algorithm for loss of colour
Colour errors are identified by checking the hue of each colour contained in the colour bar
pattern. To this effect, the test window is additionally converted to another colour space,
preferably HSL. The algorithm detects colour errors if the hue deviates by a minimum of ±10°
from the value of the stored reference picture.
5.5 Algorithm for loss of synchronisation
Synchronisation errors or total sync loss manifest themselves by the loss of one or more colour
components. The algorithm detects loss of colour components if the hue deviates by a minimum
of ±10° from the value of the stored reference picture. Total loss of sync is present if the grey
level drops below 30 in all colour bars (black screen).

– 8 – CISPR TR 29:2020 RLV © IEC:2020
6 Methodology for detection of digital picture degradations
6.1 General
Digital picture degradations are defined as:
– blocking;
– frozen patterns, stop of moving element, blocking in moving element;
– total loss of picture, irrecoverable data stream error.
6.2 Algorithm for blocking
Blocking is characterised by the loss of macroblocks (e.g. 8 pixels × 8 pixels). The edges of
lost macroblocks show as interfering lines that can be detected using the method described
under 5.2. Rotating the test window is not necessary here as the loss of a macroblock always
produces interfering lines at 0° and 90°. The test window size can therefore be expanded to
extend over the full colour bar width so that lost macroblocks will be reliably detected also in
the cross-colour regions.
6.3 Algorithm for frozen patterns, stop of moving element
Frozen patterns are characterised by a stop of the moving element video images that fail to
update over time. To detect this type of picture degradation, a colour bar pattern according to
ITU-R BT.801-1 is used that includes a rectangular moving element (see Figure 2). The
movement of this element is effected by partially shifting the green-to-magenta colour transition
by one pixel per frame, the maximum shift being 40 pixels in either direction. The movement of
the colour transition (edge) is monitored by means of an edge filter. A stop Freezing of the edge
movement is detected if there is no change in the position of the colour transition while the
picture is continuously being captured.

Figure 2 – Colour bar pattern with moving element
for detection of digital picture degradation
6.4 Algorithm for total loss of picture, irrecoverable data stream error
Total loss of picture means a drastic change in the grey-level characteristics. This type of
picture degradation can also be interpreted as extreme blocking and therefore be detected by
means of the algorithm described under 6.2.

7 Alternative methodology for detection of digital picture degradations
7.1 Test pattern
To be able to detect frozen pictures due to digital degradations, CISPR 20 recommends the use
of it is recommended that a colour bar test pattern including a moving element is used. The
following described quality assessment method uses the test pattern represented in Figure 3.

Figure 3 – Alternative colour bar pattern with moving element
for detection of digital picture degradation
The test pattern is composed of the common colour bar in compliance with ITU-R BT.801-1,
with a moving black and white disk. The disk describes a horizontal translation with a period of
30 pictures.
7.2 Analysis
7.2.1 General
The methodology is a reduced reference approach. This is based on computation of specific
features that are sensitive to perceived video impairments. Features are first computed on
pictures from the equipment without stress with no disturbance applied, and then compared
with the same features computed on pictures from the equipment under stress with the
disturbance applied. Comparison of the features provides an indication of perceived video
quality. The video quality is then converted in binary using a computation-based evaluation to
raise alarms.
In the first step, impairment features are extracted. They seek to which represent typical
encoding and transmission error impairments. Usual impairments include blocking effects, false
edges, and empty or misplaced macroblocks, to black or frozen areas. Each of these
impairments affects picture contents in a specific way. Based on this assumption, a set of four
parameters that seek to track these impairments has been defined, with computationally
efficient algorithms. The process analyses all pictures in real time to track all transmission
errors.
These parameters are based on a discrete cosine transform (DCT) blocks-based transform.
Such an analysis in the transformed domain has the advantage of being close to the principle
that MPEG uses for the compression, and to integrate other features like the human eye
sensibility sensitivity to spatial frequencies. Each feature is computed on the DCT luma
component blocks of the picture.

– 10 – CISPR TR 29:2020 RLV © IEC:2020
7.2.2 Automatic spatial synchronisation
A preliminary algorithm of spatial synchronisation is performed, in order to compute features at
the same position for the reference picture and for the current signal. This algorithm is based
on the computation of several horizontal gradients all over the picture and merged in a mean
gradient sequence for each horizontal position studied. The gradients sequence is then
converted into a frequency domain. The frequency sequence is used to match the region of
interest with the picture, excluding 16 pixel borders at the bottom, top, left and right. The same
synchronisation algorithm is processed for both the reference signal and the signal under test,
which guarantee a successful synchronisation between the reference computation and the
computation of the signal under test. This procedure is particularly efficient because it prevents
the user from performing long and difficult alignment of signals.
7.2.3 Spatial activity parameter
The first and the second features represent the spatial activity of the picture. The first one The
spatial activity parameter is dedicated to the global content of the picture, calculated as the
mean of the picture. This allows easy detection of black pictures.
7.2.4 Temporal activity parameter
The third feature next parameter deals with temporal activity. It is based on the integration of
the spatial activity for several pictures. The spatial activity sequence is transformed into
frequency and then summarised into a squared sum to obtain one value for the length of the
sequence. This feature is really especially efficient to detect at detecting frozen pictures, for
example, or jerky motion.
7.2.5 Blocking effect parameter
The last feature parameter is the blocking effect indicator. It is sensitive to DCT patterns and
perceptually annoying block edges. The blocking effect parameter is the ratio of the spatial
activity computed for the picture to the spatial activity computed for the picture shifted in a
translation equivalent to half of the block diagonal. Thus, the ratio of shifted spatial activities is
particularly relevant for enhancing the increase or loss of the block’s edge.
Once these reference parameters are computed for the source test pattern, they are recorded
on the hard disk of the measurement equipment. The reference has to be recorded for twice
the length of the sequence. The dedicated test pattern is 30 pictures long, so the reference-
recording step takes only 60 pictures, i.e. for less than 3 s. Parameters are also computed on
the current video signal, and then compared.
7.3 Comparison
In the second step, the equipment realises the synchronisation of synchronises the incoming
signal (delivered by the receiver under test), with the recorded reference data. This procedure
is automatic, it does not require any other information than the incoming signal and is realised
achieved in a very short time.
Finally, compara
...
