IEC 60064:1993/AMD1:2000
(Amendment)Amendment 1 - Tungsten filament lamps for domestic and similar general lighting purposes - Performance requirements
Amendment 1 - Tungsten filament lamps for domestic and similar general lighting purposes - Performance requirements
Amendement 1 - Lampes à filament de tungstène pour usage domestique et éclairage général similaire - Prescriptions de performances
General Information
- Status
- Published
- Publication Date
- 27-Nov-2000
- Technical Committee
- SC 34A - Electric light sources
- Drafting Committee
- WG 6 - TC 34/SC 34A/WG 6
- Current Stage
- PPUB - Publication issued
- Start Date
- 28-Nov-2000
- Completion Date
- 15-Dec-2000
Relations
- Effective Date
- 05-Sep-2023
Overview
IEC 60064:1993/AMD1:2000 is an important amendment to the IEC 60064 standard, published by the International Electrotechnical Commission (IEC). This amendment addresses tungsten filament lamps specifically designed for domestic and similar general lighting purposes with updated performance requirements. It plays a crucial role in setting internationally recognized specifications to ensure consistency, safety, and reliability of tungsten filament lamps used in everyday lighting applications.
The amendment includes detailed lamp data sheets, test rack circuit specifications, and performance benchmarks such as luminous flux, rated life, and electrical characteristics. It also provides standardized lamp dimensions and finishes to support global lamp manufacturing and interchangeability.
Key Topics
- Tungsten Filament Lamp Performance: Defines minimum performance levels, including luminous flux maintenance at 85% after rated life, and minimum rated luminous flux values for various lamp designs.
- Lamp Data Sheets: Detailed specifications for common domestic lamp types, including wattage, cap types (E26/24, E27/27, B22d), finishes (clear, frosted, white), rated life (ranging mostly around 1,000 hours), and luminous flux categories (normal and high).
- Test Rack Circuit Characteristics: Electrical testing specifications for lamps operating between 100 V and 250 V, including resistance, inductance, surge limitation, and fuse ratings to simulate realistic supply conditions.
- Dimensional Standards: Precise mechanical dimensions for bulb sizes such as A55, A60, PS55, PS60 to ensure compatibility in domestic luminaires.
- Lumen Maintenance & Lifespan: Requirements that lamps must sustain 85% of initial luminous flux at end of rated life, ensuring energy efficiency and product longevity.
Applications
This IEC amendment is vital to manufacturers, testing laboratories, and regulatory bodies engaged in producing or certifying tungsten filament lamps for:
- Residential Lighting: Standardized lamps for households and apartments, ensuring consistent brightness and lifespan for indoor lighting fixtures.
- Commercial Environments: Small businesses and offices using tungsten filament bulbs for ambient lighting benefit from compliance with set performance benchmarks.
- Lighting Design and Engineering: Information on lamp dimensions and electrical characteristics assist luminaire designers in creating compatible fittings that optimize lamp performance.
- Quality Assurance and Testing: Defines test conditions and criteria to verify lamp durability, luminous output, and electrical safety under typical supply voltages.
- International Trade: Harmonization of lamp specifications facilitates cross-border sales and manufacturing efficiency, reducing technical barriers.
Related Standards
- IEC 60630: Related to luminaire outlines, referenced in the lamp data sheets for maximum lamp dimensions and fitting requirements.
- IEC 60064 (Base Publication): The core standard for tungsten filament lamps, with AMD1:2000 serving as its first amendment.
- IEC Technical Committee 34: Responsible for broader lamp and lighting equipment standards, ensuring coherence across new and existing IEC publications.
- National Standards Adopting IEC 60064: Many countries base their tungsten filament lamp requirements on this standard and its amendments for domestic lighting safety and performance.
By adhering to the IEC 60064 amendment, manufacturers and users can be confident in the performance, quality, and compatibility of tungsten filament lamps used in general lighting applications worldwide. This standard supports sustained energy efficiency, consistent light quality, and reliable service life - all essential factors in meeting modern lighting needs.
Frequently Asked Questions
IEC 60064:1993/AMD1:2000 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 1 - Tungsten filament lamps for domestic and similar general lighting purposes - Performance requirements". This standard covers: Amendment 1 - Tungsten filament lamps for domestic and similar general lighting purposes - Performance requirements
Amendment 1 - Tungsten filament lamps for domestic and similar general lighting purposes - Performance requirements
IEC 60064:1993/AMD1:2000 is classified under the following ICS (International Classification for Standards) categories: 01 - GENERALITIES. TERMINOLOGY. STANDARDIZATION. DOCUMENTATION; 29.140.20 - Incandescent lamps. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 60064:1993/AMD1:2000 has the following relationships with other standards: It is inter standard links to IEC 60064:1993. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
IEC 60064:1993/AMD1:2000 is available in PDF format for immediate download after purchase. The document can be added to your cart and obtained through the secure checkout process. Digital delivery ensures instant access to the complete standard document.
Standards Content (Sample)
NORME CEI
INTERNATIONALE IEC
INTERNATIONAL
STANDARD
AMENDEMENT 1
AMENDMENT 1
2000-11
Amendement 1
Lampes à filament de tungstène pour usage
domestique et éclairage général similaire –
Prescriptions de performances
Amendment 1
Tungsten filament lamps for domestic and
similar general lighting purposes –
Performance requirements
IEC 2000 Droits de reproduction réservés Copyright - all rights reserved
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http://www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
J
PRICE CODE
International Electrotechnical Commission
Pour prix, voir catalogue en vigueur
For price, see current catalogue
INSTRUCTIONS POUR L’INSERTION INSTRUCTIONS FOR THE INSERTION
DES NOUVELLES PAGES ET FEUILLES OF NEW PAGES AND DATA SHEETS
DE CARACTÉRISTIQUES DANS LA IN PUBLICATION 60064
PUBLICATION 60064
__________ __________
1. Retirer la page 64 existante et insérer la 1. Remove the existing page 65 and insert
nouvelle page 64. in its place the new page 65.
2. Retirer les feuilles de caractéristiques: 2. Remove lamp data sheets:
64-IEC-2011-1, 64-IEC-2031-1, 64-IEC-2011-1, 64-IEC-2031-1,
64-IEC-2051-1, 64-IEC-2071-1 et insérer 64-IEC-2051-1, 64-IEC-2071-1 and insert
les nouvelles feuilles de caractéristiques: the new lamp data sheets:
60064-IEC-2011-2, 60064-IEC-2031-2, 60064-IEC-2011-2, 60064-IEC-2031-2,
60064-IEC-2051-2, 60064-IEC-2071-2 60064-IEC-2051-2, 60064-IEC-2071-2
3. Insérer les nouvelles feuilles de carac- 3. Insert new lamp data sheets:
téristiques: 60064-IEC-2012-1, 60064-IEC-2032-1
60064-IEC-2012-1, 60064-IEC-2032-1
___________
60064 amend. 1 CEI/IEC:2000

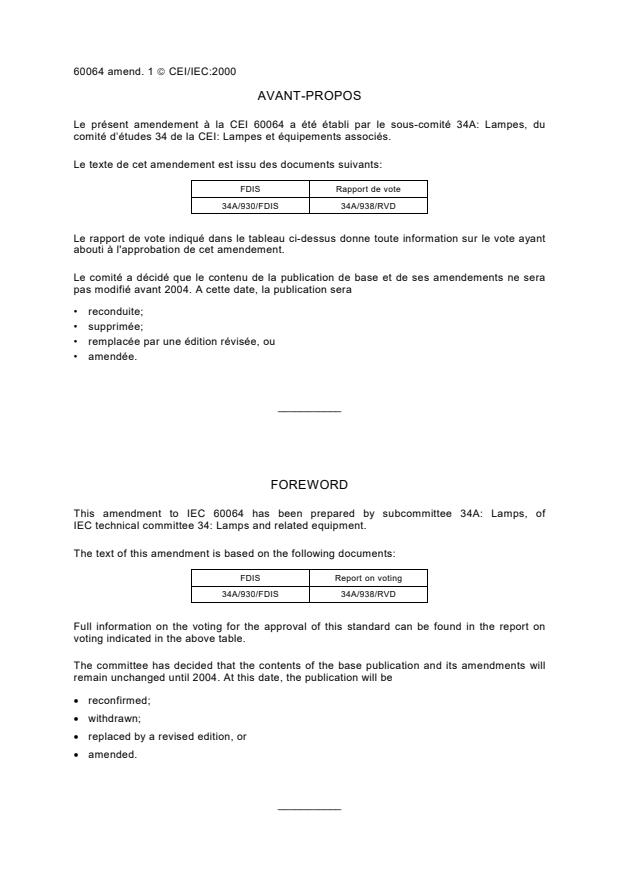

AVANT-PROPOS
Le présent amendement à la CEI 60064 a été établi par le sous-comité 34A: Lampes, du
comité d’études 34 de la CEI: Lampes et équipements associés.
Le texte de cet amendement est issu des documents suivants:
FDIS Rapport de vote
34A/930/FDIS 34A/938/RVD
Le rapport de vote indiqué dans le tableau ci-dessus donne toute information sur le vote ayant
abouti à l'approbation de cet amendement.
Le comité a décidé que le contenu de la publication de base et de ses amendements ne sera
pas modifié avant 2004. A cette date, la publication sera
reconduite;
supprimée;
remplacée par une édition révisée, ou
amendée.
___________
FOREWORD
This amendment to IEC 60064 has been prepared by subcommittee 34A: Lamps, of
IEC technical committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34A/930/FDIS 34A/938/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until 2004. At this date, the publication will be
• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
___________
64 IEC:1993 – 63 –
Annex F
(normative)
Test rack circuit characteristics
For 100 V to 250 V lamps, the test rack circuit has the following characteristics:
100 V to 150 V 200 V to 250 V
1)
Resistance Ω 0,5 ± 0,1
1) 2) 3)
InductanceµH 500 ± 100
1)
Individual external lamp fuse min. A 10 slow-acting
4) 4)
Surge limit V
600 600
1)
Under consideration.
2)
Manufacturers undertaking their own testing may use higher levels of inductance provided the total
impedance does not exceed 0,7 Ω. On a 60 Hz supply, the inductance should be proportionally lower
(values under consideration).
3)
The maximum lamp current loading that may be switched on simultaneously is 16 A, for 200 V to 250 V
test racks.
4)
This information is given to enable surge-limiting means, of the correct rating, to be selected. A 600 V
average value is chosen to take into account practical tolerances on such surge-limiting means to
ensure that incidental peaks greater then 900 V are suppressed.
– 64 – 60064 amend. 1 CEI:2000
Section 8: Feuilles de caractéristiques des lampes
8.1 Regroupement des feuilles de caractéristiques des lampes
Durée Flux
o *
Feuille n Watts Ampoule Culot Finition **
h lumineux
64-IEC-1010 25 A60 E26/24 C,F 2 250 N
64-IEC-1011 25 A60 E26/24 W 2 250 N
64-IEC-1030 40 A60 E26/24 C,F 1 350 N
64-IEC-1031 40 A60 E26/24 W 1 350 N
64-IEC-1040 40 A60 E26/24 C,F 900 N
64-IEC-1041 40 A60 E26/24 W 900 N
64-IEC-1050 60 A60 E26/24 C,F 900 H
64-IEC-1051 60 A60 E26/24 W 900 H
64-IEC-1070 100 A60 E26/24 C,F 675 H
64-IEC-1071 100 A60 E26/24 W 675 H
64-IEC-1090 150 A67 E26/24 C,F 675 H
64-IEC-1091 150 A67 E26/24 W 675 H
64-IEC-1110 200 A71 E26/24 C,F 675 H
64-IEC-1111 200 A67 E26/24 W 675 H
64-IEC-2010 30 A55,PS55 E26/25 C,F 1 000 H
60064-IEC-2011 29 A55,PS55 E26/25 F 1 000 H
60064-IEC-2012 29 A60,PS60 E26/25 F 1 000 H
64-IEC-2030 40 A55,PS55 E26/25 C,F 1 000 H
60064-IEC-2031 38 A55,PS55 E26/25 F 1 000 H
60064-IEC-2032 38 A60,PS60 E26/25 F 1 000 H
64-IEC-2050 60 A60,PS60 E26/25 C,F 1 000 H
60064-IEC-2051 57 A60,PS60 E26/25 F 1 000 H
64-IEC-2070 100 A60,PS60 E26/25 C,F 1 000 H
60064-IEC-2071 95 A60,PS60 E26/25 F 1 000 H
64-IEC-2090 150 A75,PS75 E26/25 C,F 1 000 H
64-IEC-2091 150 A75,PS75 E26/25 W 1 000 H
64-IEC-2110 200 A75,PS75 E26/25 C,F 1 000 H
64-IEC-2111 200 A75,PS75 E26/25 W 1 000 H
64-IEC-4005 15 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4010 25 A60,PS60 B22d/25x26 C,F 1 000 H
64-IEC-4015 25 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4030 40 A60,PS60 B22d/25x26 C,F 1 000 H
64-IEC-4035 40 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4050 60 A60,PS60 B22d/25x26 C,F 1 000 H
64-IEC-4055 60 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4070 100 A60,PS60 B22d/25x26 C,F 1 000 H
64-IEC-4075 100 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4090 150 A68,PS68 B22d/25x26 C,F 1 000 H
64-IEC-4095 150 A80,PS80 B22d/25x26 C,F 1 000 N
64-IEC-4110 200 A80,PS80 B22d/25x26 C,F 1 000 H
64-IEC-4115 200 A80,PS80 B22d/25x26 C,F 1 000 N
64-IEC-5005 15 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5010 25 A60,PS60 E27/27 C,F 1 000 H
64-IEC-5015 25 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5030 40 A60,PS60 E27/27 C,F 1 000 H
64-IEC-5035 40 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5050 60 A60,PS60 E27/27 C,F 1 000 H
64-IEC-5055 60 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5070 100 A60,PS60 E27/27 C,F 1 000 H
64-IEC-5075 100 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5090 150 A68,PS68 E27/27 C,F 1 000 H
64-IEC-5095 150 A80,PS80 E27/27 C,F 1 000 N
64-IEC-5110 200 A80,PS80 E27/27 C,F 1 000 H
64-IEC-5115 200 A80,PS80 E27/27 C,F 1 000 N
* C = claire; F = dépolie ou recouvrement similaire à dépoli; W = blanche
** N = flux lumineux normal; H = flux lumineux élevé
60064 Amend. 1 IEC:2000 – 65 –
Section 8: Lamp data sheets
8.1 Grouping of lamp data sheets
Life Luminous
*
Sheet No. Watts Bulb Cap Finish **
h flux
64-IEC-1010 25 A60 E26/24 C,F 2 250 N
64-IEC-1011 25 A60 E26/24 W 2 250 N
64-IEC-1030 40 A60 E26/24 C,F 1 350 N
64-IEC-1031 40 A60 E26/24 W 1 350 N
64-IEC-1040 40 A60 E26/24 C,F 900 N
64-IEC-1041 40 A60 E26/24 W 900 N
64-IEC-1050 60 A60 E26/24 C,F 900 H
64-IEC-1051 60 A60 E26/24 W 900 H
64-IEC-1070 100 A60 E26/24 C,F 675 H
64-IEC-1071 100 A60 E26/24 W 675 H
64-IEC-1090 150 A67 E26/24 C,F 675 H
64-IEC-1091 150 A67 E26/24 W 675 H
64-IEC-1110 200 A71 E26/24 C,F 675 H
64-IEC-1111 200 A67 E26/24 W 675 H
64-IEC-2010 30 A55,PS55 E26/25 C,F 1 000 H
60064-IEC-2011 29 A55,PS55 E26/25 F 1 000 H
60064-IEC-2012 29 A60,PS60 E26/25 F 1 000 H
64-IEC-2030 40 A55,PS55 E26/25 C,F 1 000 H
60064-IEC-2031 38 A55,PS55 E26/25 F 1 000 H
60064-IEC-2032 38 A60,PS60 E26/25 F 1 000 H
64-IEC-2050 60 A60,PS60 E26/25 C,F 1 000 H
60064-IEC-2051 57 A60,PS60 E26/25 F 1 000 H
64-IEC-2070 100 A60,PS60 E26/25 C,F 1 000 H
60064-IEC-2071 95 A60,PS60 E26/25 F 1 000 H
64-IEC-2090 150 A75,PS75 E26/25 C,F 1 000 H
64-IEC-2091 150 A75,PS75 E26/25 W 1 000 H
64-IEC-2110 200 A75,PS75 E26/25 C,F 1 000 H
64-IEC-2111 200 A75,PS75 E26/25 W 1 000 H
64-IEC-4005 15 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4010 25 A60,PS60 B22d/25x26 C,F 1 000 H
64-IEC-4015 25 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4030 40 A60,PS60 B22d/25x26 C,F 1 000 H
64-IEC-4035 40 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4050 60 A60,PS60 B22d/25x26 C,F 1 000 H
64-IEC-4055 60 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4070 100 A60,PS60 B22d/25x26 C,F 1 000 H
64-IEC-4075 100 A60,PS60 B22d/25x26 C,F 1 000 N
64-IEC-4090 150 A68,PS68 B22d/25x26 C,F 1 000 H
64-IEC-4095 150 A80,PS80 B22d/25x26 C,F 1 000 N
64-IEC-4110 200 A80,PS80 B22d/25x26 C,F 1 000 H
64-IEC-4115 200 A80,PS80 B22d/25x26 C,F 1 000 N
64-IEC-5005 15 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5010 25 A60,PS60 E27/27 C,F 1 000 H
64-IEC-5015 25 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5030 40 A60,PS60 E27/27 C,F 1 000 H
64-IEC-5035 40 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5050 60 A60,PS60 E27/27 C,F 1 000 H
64-IEC-5055 60 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5070 100 A60,PS60 E27/27 C,F 1 000 H
64-IEC-5075 100 A60,PS60 E27/27 C,F 1 000 N
64-IEC-5090 150 A68,PS68 E27/27 C,F 1 000 H
64-IEC-5095 150 A80,PS80 E27/27 C,F 1 000 N
64-IEC-5110 200 A80,PS80 E27/27 C,F 1 000 H
64-IEC-5115 200 A80,PS80 E27/27 C,F 1 000 N
* C = clear, F = frosted or frosted equivalently coated; W = white
** N = normal luminous flux; H = high luminous flux
– 66 – 64 CEI:1993
– Page blanche –
– Blank page –
60064 amend. 1 CEI:2000
FEUILLE DE CARACTÉRISTIQUES
DE LA LAMPE À INCANDESCENCE
À FLUX LUMINEUX ÉLEVÉ
E26 29 W 1 000 h
Dimensions en millimètres
Désignation de l’ampoule: A55 ou PS55
Finition de l’ampoule: dépolie ou recouvrement similaire à dépoli
Culot: E26/25
Puissance assignée (W): 29
Dimensions: comme défini dans la section 6
Se reporter aux prescriptions de l'article 3.3
C max. D max.
104 56
Durée de vie assignée (h): 1 000
Se reporter aux prescriptions de l'article 3.6
Maintien d
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
