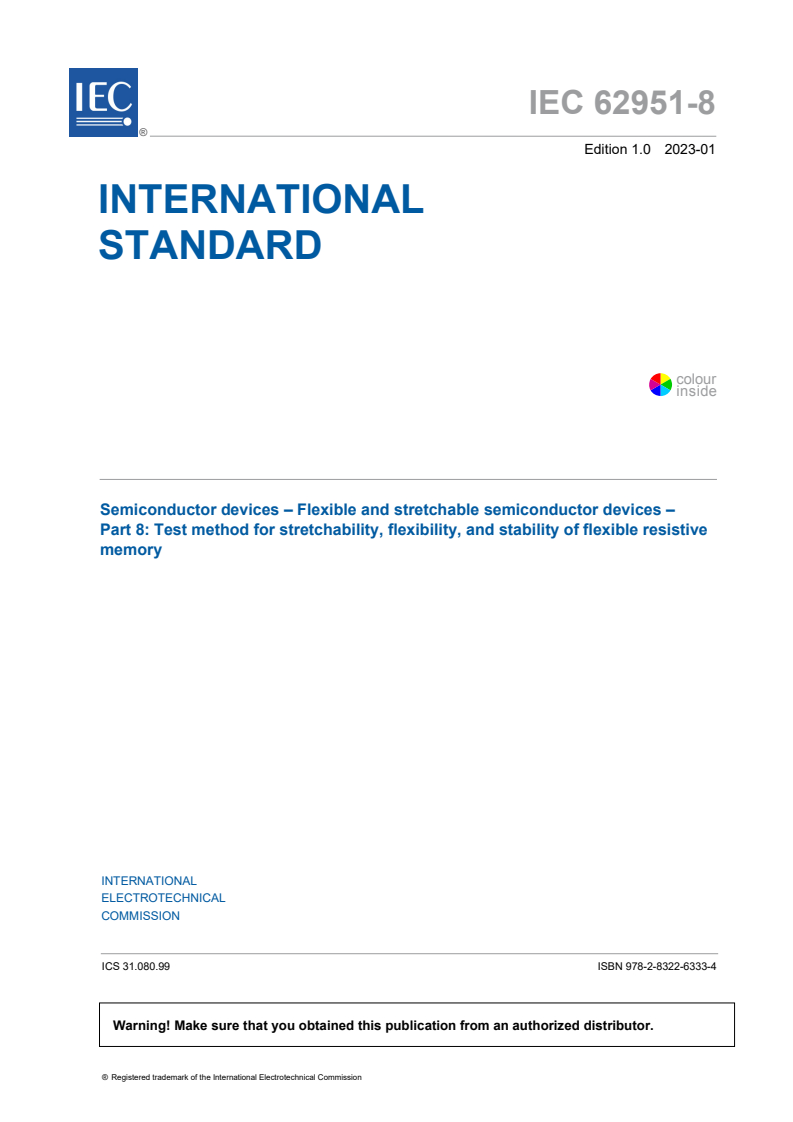

IEC 62951-8:2023

IEC 62951-8 ®
Edition 1.0 2023-01
INTERNATIONAL
STANDARD
colour
inside
Semiconductor devices – Flexible and stretchable semiconductor devices –
Part 8: Test method for stretchability, flexibility, and stability of flexible resistive
memory
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc

If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62951-8 ®
Edition 1.0 2023-01
INTERNATIONAL
STANDARD
colour
inside
Semiconductor devices – Flexible and stretchable semiconductor devices –

Part 8: Test method for stretchability, flexibility, and stability of flexible resistive

memory
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 31.080.99 ISBN 978-2-8322-6333-4

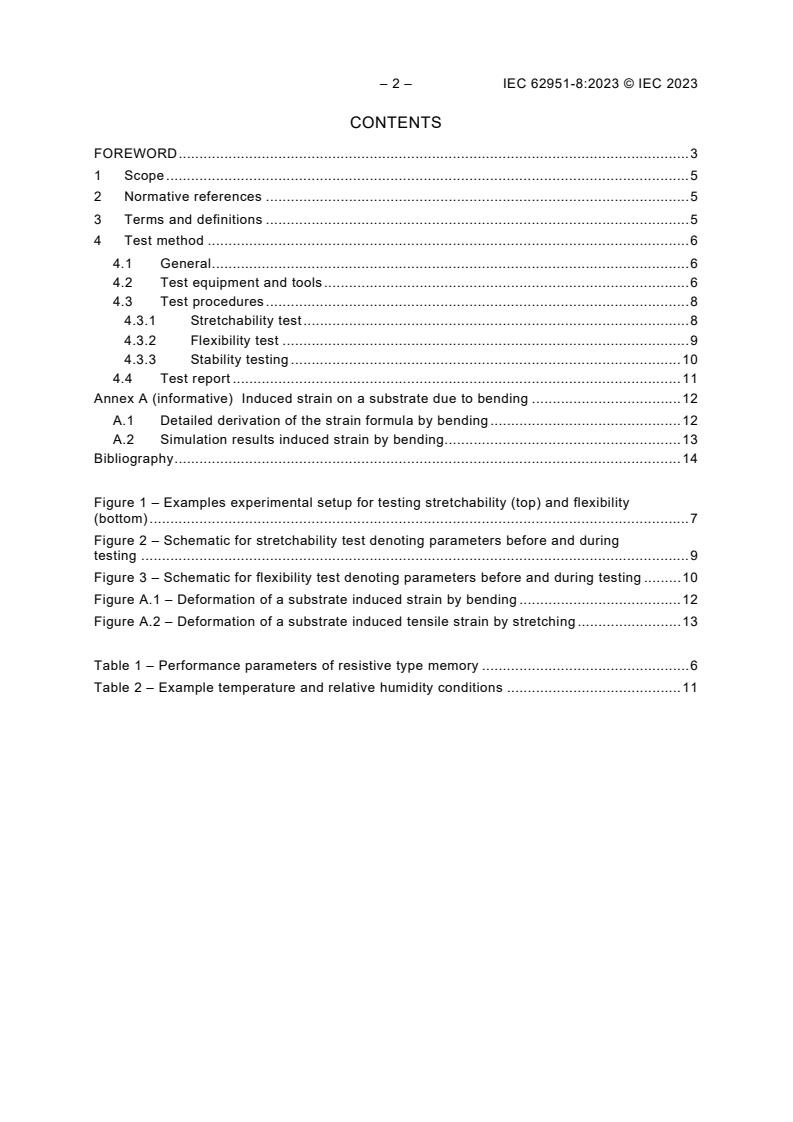

– 2 – IEC 62951-8:2023 © IEC 2023
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Test method . 6
4.1 General . 6
4.2 Test equipment and tools . 6
4.3 Test procedures . 8
4.3.1 Stretchability test . 8
4.3.2 Flexibility test . 9
4.3.3 Stability testing . 10
4.4 Test report . 11
Annex A (informative) Induced strain on a substrate due to bending . 12
A.1 Detailed derivation of the strain formula by bending . 12
A.2 Simulation results induced strain by bending. 13
Bibliography . 14

Figure 1 – Examples experimental setup for testing stretchability (top) and flexibility
(bottom) . 7
Figure 2 – Schematic for stretchability test denoting parameters before and during
testing . 9
Figure 3 – Schematic for flexibility test denoting parameters before and during testing . 10
Figure A.1 – Deformation of a substrate induced strain by bending . 12
Figure A.2 – Deformation of a substrate induced tensile strain by stretching . 13

Table 1 – Performance parameters of resistive type memory . 6
Table 2 – Example temperature and relative humidity conditions . 11

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SEMICONDUCTOR DEVICES –
FLEXIBLE AND STRETCHABLE SEMICONDUCTOR DEVICES –

Part 8: Test method for stretchability, flexibility,
and stability of flexible resistive memory

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62951-8 has been prepared by IEC technical committee 47: Semiconductor devices. It is
an International Standard.
The text of this International standard is based on the following documents:
Draft Report on voting
47/2786/FDIS 47/2793/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
The language used for the development of International Standard is English.

– 4 – IEC 62951-8:2023 © IEC 2023
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 62951 series, published under the general title Semiconductor
devices – Flexible and stretchable semiconductor devices, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until the
stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data related to
the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.

SEMICONDUCTOR DEVICES –
FLEXIBLE AND STRETCHABLE SEMICONDUCTOR DEVICES –

Part 8: Test method for stretchability, flexibility,
and stability of flexible resistive memory

1 Scope
This part of IEC 62951 defines terms and specifies the test method for evaluating the
stretchability, flexibility, and stability of flexible resistive memory. The test method descriptions
include experimental procedures and the equipment to be used. It also includes general
requirements for test conditions such as the temperature and relative humidity of the testing
environment. The test method described in this document focuses on stability evaluation rather
than reliability.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purpose of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available at https://www.iso.org/obp
3.1
flexible resistive memory
flexible device that works by changing the resistance between dielectric materials
3.2
bending radius
measured to the inside curvature, is the minimum radius one can bend a pipe, tube, sheet,
cable or hose
3.3
resistance of low resistance state
LRS
one of stable resistance states induced by applying higher voltage (unipolar switching) or
positive bias (bipolar switching)
3.4
resistance of high resistance state
HRS
one of stable resistance states induced by applying lower voltage (unipolar switching) or
negative bias (bipolar switching)

– 6 – IEC 62951-8:2023 © IEC 2023
3.5
set voltage
V
set
voltage for switching to low resistance state
3.6
reset voltage
V
reset
voltage for switching to high resistance state
4 Test method
4.1 General
This document applies to flexible resistive memory in order to evaluate its stretchability,
flexibility, and stability. This type of semiconductor device is used mostly in products related to
flexible or wearable electronics, which are often stretched or bent when used. Hence, it is critical
that the main performance parameters of the device be maintained under mechanical
deformation. Detailed performance parameters and characterisation procedures are described
in IEC 62951-1, and Table 1 in this document summarises them as applicable to resistive
memory. This document focuses on experimental methods for testing stretchability, flexibility
and stability, and includes a description of the experimental setup.
One of the most problematic issues in the reliability of resistive memory is its increased
performance degradation rate under mechanical deformation. This deterioration is caused by
cracks in electrodes and the resistive materials used in these types of semiconductor devices.
In particular, degradation is accelerated when cracks occur in the encapsulation layer due to
the stress caused by bending. Therefore, this evaluation suggests an experimental
...
